Interactions between the Dengue Virus Polymerase NS5 and Stem-Loop A

Biophysics, The University of Texas Medical Branch, Galveston, Texas, USA

ABSTRACT The process of RNA replication by dengue virus is still not completely understood despite the significant progress made in the last few years. Stem-loop A

(SLA), a part of the viral 5= untranslated region (UTR), is critical for the initiation of

dengue virus replication, but quantitative analysis of the interactions between the dengue virus polymerase NS5 and SLA in solution has not been performed. Here, we examine how solution conditions affect the size and shape of SLA and the formation of the NS5-SLA complex. We show that dengue virus NS5 binds SLA with a 1:1 stoi-chiometry and that the association reaction is primarily entropy driven. We also ob-serve that the NS5-SLA interaction is influenced by the magnesium concentration in

a complex manner. Binding is optimal with 1 mM MgCl2 but decreases with both

lower and higher magnesium concentrations. Additionally, data from a competition assay between SLA and single-stranded RNA (ssRNA) indicate that SLA competes

with ssRNA for the same binding site on the NS5 polymerase. SLA70 and SLA80,

which contain the first 70 and 80 nucleotides (nt), respectively, bind NS5 with similar binding affinities. Dengue virus NS5 also binds SLAs from different serotypes, indi-cating that NS5 recognizes the overall shape of SLA as well as specific nucleotides.

IMPORTANCE Dengue virus is an important human pathogen responsible for den-gue hemorrhagic fever, whose global incidence has increased dramatically over the last several decades. Despite the clear medical importance of dengue virus infection, the mechanism of viral replication, a process commonly targeted by antiviral thera-peutics, is not well understood. In particular, stem-loop A (SLA) and stem-loop B

(SLB) located in the 5= untranslated region (UTR) are critical for binding the viral

polymerase NS5 to initiate minus-strand RNA synthesis. However, little is known re-garding the kinetic and thermodynamic parameters driving these interactions. Here, we quantitatively examine the energetics of intrinsic affinities, characterize the stoi-chiometry of the complex of NS5 and SLA, and determine how solution conditions such as magnesium and sodium concentrations and temperature influence NS5-SLA interactions in solution. Quantitatively characterizing dengue virus NS5-SLA interac-tions will facilitate the design and assessment of antiviral therapeutics that target this essential step of the dengue virus life cycle.

KEYWORDS NS5, RNA polymerase, dengue virus, stem-loop A

D

member of theFlavivirusgenus within theFlaviviridaefamily. DENV causes a wide

range of diseases in humans, ranging from self-limiting dengue fever to life-threatening dengue hemorrhagic fever and dengue shock syndrome (1–5). Recent estimates indi-cate that more than 300 million dengue virus infections occur each year, 96 million of which clinically manifest. Currently, it is estimated that 3.9 billion people living in 128 countries are at risk of infection by DENV (6, 7). Four serotypes of the virus have been identified (DENV serotype 1 [DENV1] to DENV4), and most severe cases of hemorrhagic fever are associated with secondary infections by a serotype different from that of the

Received19 January 2017Accepted20 March 2017

Accepted manuscript posted online29 March 2017

CitationBujalowski PJ, Bujalowski W, Choi KH. 2017. Interactions between the dengue virus polymerase NS5 and stem-loop A. J Virol

91:e00047-17.https://doi.org/10.1128/JVI

.00047-17.

EditorMichael S. Diamond, Washington University School of Medicine

Copyright© 2017 American Society for

Microbiology.All Rights Reserved.

Address correspondence to Kyung H. Choi, [email protected].

on November 7, 2019 by guest

http://jvi.asm.org/

first infection (8). The flavivirus genus also includes other human pathogens, such as West Nile virus, tick-borne encephalitis virus, yellow fever virus, and Japanese enceph-alitis virus (JEV), as well as the rapidly spreading Zika virus.

The 11-kb DENV genome encodes 10 proteins, including three structural proteins (capsid, premembrane, and envelope proteins) and seven nonstructural proteins (NS1, NS2A, NS2B, NS3, NS4A, NS4B, and NS5) (9, 10). NS5 is a viral replicative RNA-dependent RNA polymerase (RdRp) consisting of 900 amino acids distributed across two functional domains (11–14). The N-terminal methyltransferase (MTase) domain (263 amino acids long) functions as a guanylyltransferase and methyltransferase whose activity is

nec-essary for 5=-RNA cap synthesis and methylation (15, 16); cap methylations are

impor-tant for viral RNA recognition and for hijacking the host cell translational apparatus. The C-terminal domain possesses RdRp activity, including the active site for RNA synthesis. Crystal structures of DENV and JEV NS5 have been determined (17–19). These structures showed different interdomain interactions within the NS5 monomer and indicated that NS5 can adopt a number of conformations with different relative orientations of the MTase and RdRp domains. Additionally, interdomain interactions between monomers in an NS5 dimer suggest the coordination of RdRp and MTase activities across the NS5 monomer and dimer (17). Data from small-angle X-ray scattering (SAXS) studies indi-cate that NS5 proteins of all four DENV serotypes can adopt a more elongated shape than that in the crystal structure (20, 21), suggesting that flexibility between the MTase and RdRp domains is likely essential for the viral replication process. Interactions between the MTase and RdRp domains are also important for the polymerase activity of NS5, since full-length NS5 has higher polymerase activity than does the RdRp domain alone (22).

In addition to encoding viral proteins, the DENV genome contains tertiary RNA

structures at the 5= and 3= untranslated regions (UTRs) that regulate different viral

processes (23). In particular, the 5=UTR contains two stem-loops, stem-loop A (SLA) and

stem-loop B (SLB), and SLA has been shown to function as a promoter for RNA synthesis during the replication process (24–26). The importance of SLA in viral RNA replication has been demonstrated for several flaviviruses (24, 27, 28). Despite the importance of SLA in initiating dengue virus RNA replication, interactions between NS5 and SLA have not been quantitatively analyzed, and thus, fundamental aspects of the NS5-SLA interaction, such as stoichiometry and energetics of intrinsic affinities, are unknown. We previously analyzed NS5 interactions with ssRNA and double-stranded RNA (dsRNA), as well as ssDNA and dsDNA, using fluorescence titration techniques (29). Here, we report studies of the interaction between NS5 and SLA and describe the effects of salt, magnesium, and temperature on NS5-SLA binding affinity. Moreover, a competition assay shows that SLA and ssRNA compete for the same binding site on NS5 polymerase and indicates that there is a 1:1 stoichiometry of NS5 to SLA in the NS5-SLA complex.

RESULTS

SLA80forms a stable monomer in solution and adopts a more compact

con-formation with higher magnesium concentrations.Flavivirus polymerase specifically

recognizes the viral 5=UTR during viral RNA replication (24, 25). In particular, SLA within

the 5= UTR is predicted to form a “Y”-shaped secondary structure and serves as a

promoter for NS5 polymerase binding and activity (25, 27). Specific binding between NS5 and SLA was observed when SLA (70 nucleotides [nt]) had an additional ssRNA

region at the 3=end (Fig. 1) (25, 27). We thus constructed SLA with an additional 10 nt,

containing the first 80 nt of the dengue virus genome, referred to here as SLA80, to

study the interaction between SLA and NS5. We hypothesized that the stem-loop

structure of SLA80would be stabilized by cations that neutralize the negatively charged

phosphate backbone, thus allowing close packing of the RNA. Therefore, we first

determined the changes in the shape of SLA80in the presence of Mg2⫹by analytical

ultracentrifugation (AUC). Sedimentation velocity AUC experiments measure the rate at which molecules move through solution and thus reflect hydrodynamic properties of macromolecules that are related to the size and shape of molecules. The size and shape

on November 7, 2019 by guest

http://jvi.asm.org/

of SLA80were determined in the presence of 0, 1, and 10 mM MgCl2(Table 1). The

overall size and shape of the molecule were similar with both 0 and 1 mM MgCl2, with

a Stokes radius of⬃3.5 nm, and low magnesium concentrations (1 mM) did not have

any effect on the overall shape of the molecule. However, at 10 mM magnesium, SLA80

acquires a more compact shape, reflected in a⬃20% decrease in the Stokes radius from

⬃3.5 nm to⬃2.7 nm. The frictional ratio also decreased from 1.8 to 1.6, indicating that

SLA80becomes more compact in the presence of 10 mM magnesium. The behavior of

SLA80in the presence of different concentrations of divalent cations is similar to those

of previously studied structured RNAs such as the turnip yellow mosaic virus, tobacco mosaic virus, and brome mosaic virus RNAs, all of which become more compact at

higher (10 mM) Mg2⫹_{concentrations (30).}

SLA80binds specifically to DENV NS5.The binding constant for NS5 and SLA80

was determined by using SLA80labeled with fluorescein at the 3=end (SLA80-F) at 10°C.

The dependence of the relative fluorescence intensity of SLA80-F (ΔFobs) on the NS5

concentration is shown in Fig. 2. Binding of NS5 to SLA80-F (1.5⫻10⫺8M) in buffer B1

(50 mM Tris [pH 7.5], 100 mM NaCl, 1 mM dithiothreitol [DTT], and 10% glycerol) led to quenching of the marker emission intensity. The maximum observed value for

fluores-cence quenching is⬃17%. The titration curve was analyzed by using the approach

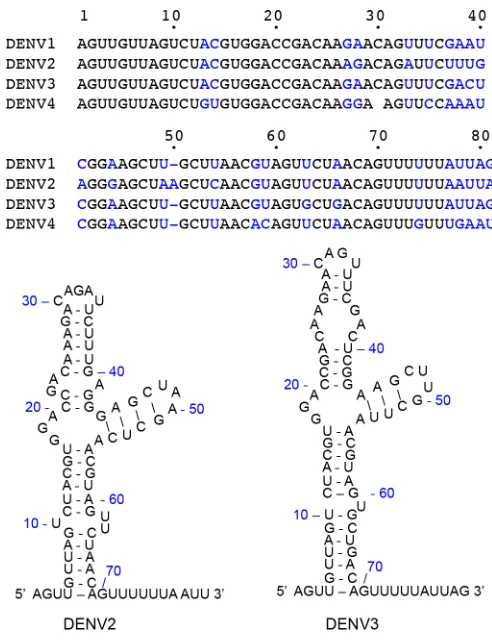

FIG 1Structure of SLA at the 5=UTR of the DENV genome. The sequences for the first 80 nt from DENV1 to -4 genomes are shown, and nonconserved nucleotides are shown in blue. The secondary structures of DENV2 and DENV3 5=UTRs were predicted by using the Mfold Web server (42).

TABLE 1Effect of magnesium on the size and shape of SLA80as measured by AUC

Mg concn (mM) S20 f/f0 RH(nm)a

0 2.17 1.8 3.53

1 2.14 1.8 3.51

10 2.32 1.6 2.74

a_R

H, Stokes radius.

on November 7, 2019 by guest

described in Materials and Methods (equation 5). The nonlinear least-squares fit using

K1and ΔFmaxas the only two fitting parameters provided a binding constant,K1, equal

to 1.8⫻106_M⫺1_{and thus a dissociation constant (K}

d) of 0.55␮M (Fig. 2, blue circles).

Next, we tested how the magnesium concentration affects the formation of the

NS5-SLA80 complex, since previous binding studies of NS5 and ssRNA showed that

magnesium affects the affinity of NS5 for ssRNA (29). Fluorescence titrations of SLA80-F

with NS5 in buffer B1 containing 0, 0.4, 1.0, 1.3, and 2.0 mM MgCl2at 10°C are shown

in Fig. 2. An increase of the magnesium concentration from 0 to 1 mM enhanced the

binding constant from aK0 mM Mgof 1.8⫻106M⫺1to aK1 mM Mgof 5.5⫻106M⫺1(Kd

of 181 nM). However, a further increase to 2 mM MgCl2 did not enhance NS5-SLA80

affinity but rather reduced it to the value measured with 0 mM MgCl2. Furthermore,

NS5-SLA80interactions were not detectable at a higher magnesium concentration of 10

mM; i.e., no fluorescence change was observed upon the addition of NS5. SLA80was

shown to adopt a more compact conformation with 10 mM MgCl2by AUC (Table 1),

and thus, the compact form of SLA observed in the presence of 10 mM MgCl2may not

be able to bind NS5. Our results indicate that the optimal magnesium concentration for

interactions between NS5 and SLA80is⬃1 mM.

Effect of salt on NS5-SLA80interactions.To determine the salt dependence of NS5

binding to SLA80, fluorescence titrations of SLA80-F with NS5 were carried out in buffer

B1 containing 80, 100, 130, 170, and 200 mM NaCl and 1 mM MgCl2at 10°C (Fig. 3A).

As the salt concentration increased, the maximum fluorescence change at saturation,

ΔFmax, decreased from⬃19% at 80 mM to⬃10% at 200 mM NaCl. The affinity of NS5

for SLA80decreased with increasing salt concentrations, from aKof 7.0⫻106M⫺1(Kd

of 142 nM) for 80 mM NaCl to aKof 2.0⫻106_M⫺1_(K

dof 500 nM) for 200 mM NaCl.

The dependence of the logarithm of the intrinsic binding constant on the logarithm of [NaCl] (log-log plot) is shown in Fig. 3B (29, 31). This plot is linear in the studied salt

concentration range, and the slope,⭸logK/⭸log[NaCl], is⫺1.3, which indicates that the

release of⬃1 Na⫹ion accompanies the intrinsic interactions between NS5 and SLA80

(31).

Effect of temperature on NS5-SLA80 interactions. To further characterize the

nature of the SLA80-NS5 interaction, we examined the effect of temperature on

complex formation. Fluorescence titrations of SLA80-F with NS5 were performed in

buffer B1 in the presence of 1 mM MgCl2at 10, 20, and 25°C (Fig. 4). The titration curves

FIG 2Interactions of fluorescein-labeled SLA80 with dengue virus NS5. Fluorescence titrations of

fluorescein-labeled SLA80with DENV3 NS5 (␭ex⫽480 nm;␭em⫽520 nm) were carried out by using

standard buffer (100 mM NaCl, 50 mM Tris [pH 7.5], 10% glycerol, and 1 mM DTT at 10°C) containing the following different MgCl2concentrations: 0 mM, 0.4 mM, 1.0 mM, 1.3 mM, and 2.0 mM. The concentration

of fluorescein-labeled SLA80is 1.5⫻10⫺8M. The solid lines are nonlinear least-squares fits of the titration

curve with aKof 1.8⫻106_M⫺1_{(0 mM MgCl}

2), aKof 2.2⫻106M⫺1(0.4 mM MgCl2), aKof 5.5⫻106

M⫺1_{(1.0 mM MgCl}

2), aKof 2.3⫻106M⫺1(1.3 mM MgCl2), and aKof 1.8⫻106M⫺1(2.0 mM MgCl2).

on November 7, 2019 by guest

http://jvi.asm.org/

were identical for all three temperatures, and nonlinear least-squares fitting, using

equation 5 withK1and ΔFmaxas the only two fitting parameters, yielded aKvalue of

5.5⫻106_M⫺1_(K

dof 181 nM). Thus, neither the intrinsic affinity nor the value of ΔFmax

is affected by temperature in the range from 10°C to 25°C. Thus, the interaction of NS5

with SLA80is accompanied by an apparent enthalpy change, ΔH°, of ⬃0. Hence, the

intrinsic interactions are independent of temperature and are predominantly driven by

the apparent entropy change, ΔS°.

SLA80 and single-stranded␧A(p␧A)19compete for the same binding site on

NS5.Although the DENV NS5 polymerase is known to specifically recognize SLA to

initiate RNA replication, the SLA binding site on NS5 is not known. To determine whether the SLA binding site on NS5 overlaps the template binding site of the RdRp domain, direct competition studies of the binding of NS5 to the fluorescent

etheno-adenosine 20-mer␧A(p␧A)19were carried out in the presence of unlabeled SLA80. The

FIG 3Effect of salt on SLA80-NS5 binding. (A) Fluorescence titrations of fluorescein-labeled SLA80with NS5 (␭ex⫽480 nm;␭em⫽

520 nm) in buffer B1 (50 mM Tris [pH 7.5] at 10°C, 1 mM MgCl2) containing the following different NaCl concentrations: 80 mM,

100 mM, 130 mM, 170 mM, and 200 mM. The concentration of fluorescein-labeled SLA80 is 1.5 ⫻10⫺8M. Increasing salt

concentrations decrease the affinity of the polymerase for SLA80. The solid lines are nonlinear least-squares fits of the titration

curve with aKof 7.0⫻106_M⫺1_{(80 mM NaCl), aKof 5.5⫻10}6_M⫺1_{(100 mM NaCl), aKof 4.0⫻10}6_M⫺1_{(130 mM NaCl), aK}

of 3.5⫻106_M⫺1_{(170 mM NaCl), and aKof 2.0}⫻₁₀6_M⫺1_{(200 mM NaCl). (B) Dependence of the logarithm of the intrinsic binding}

constant,K, on the logarithm of NaCl concentrations. The solid line is the linear least-squares fit of the NaCl concentration regions of the plot, which provide the slope,⭸logK/⭸log[NaCl]⫽ ⫺1.3.

FIG 4Effect of temperature on SLA80-NS5 binding. Shown are fluorescence titrations of

fluorescein-labeled SLA80with NS5 (␭ex⫽480 nm;␭em⫽520 nm) in buffer (50 mM Tris [pH 7.5], 100 mM NaCl, 1

mM MgCl2) at 10, 20, and 25°C. The concentration of fluorescein-labeled SLA80is 1.5⫻10⫺8M. The solid

line is a nonlinear least-squares fit of both titration curves with aKof 5.5⫻106_M⫺1_.

on November 7, 2019 by guest

etheno-derivative of A(pA)19,␧A(p␧A)19, was obtained by modification of A(pA)19with

chloroacetaldehyde (see Materials and Methods). Binding of NS5 to ␧A(p␧A)19

en-hanced the fluorescence emission intensity of the nucleic acid. The relative

fluores-cence signal (ΔFobs) of␧A(p␧A)19(8.0⫻10⫺7M) as a function of the logarithm of the

NS5 concentration is shown in Fig. 5A (blue). The maximum relative change of the

fluorescence signal is 68%. The binding of␧A(p␧A)19to NS5 in the absence of SLA80was

analyzed by using equation 5 and yielded a KssRNAof 2.2 ⫻106 M⫺1. When DENV3

SLA80 (8.0 ⫻ 10⫺7 M) was present, the titration curve shifted toward higher NS5

concentrations, but the maximum value of the relative fluorescence signal remained

unchanged (Fig. 5A, green). This result indicates competition between␧A(p␧A)19and

SLA80for the same binding site on NS5. Analysis of the binding curve was performed

by using equations 6 and 7 and yielded aKSLA₈₀of 7.0⫻106M⫺1(Kdof 142 nM).

At higher SLA80concentrations {2.5⫻10⫺6M [3-fold molar excess over␧A(p␧A)19]},

the titration curve was further shifted toward higher NS5 concentrations (Fig. 5A, red).

Analysis of the binding reaction (equations 6 and 7) yielded aKSLA80of 7.5⫻10

6_M⫺1

(Kdof 133 nM), the same as that obtained in the presence of 8.0⫻10⫺7M SLA80within

experimental accuracy. Thus, the change of the SLA80concentration did not affect the

affinity of NS5 for SLA80, indicating that the 1:1 stoichiometry of the NS5-SLA80complex

remained unchanged.

SLAs at the 5= end of the DENV1 to -4 genomes share between 75% (between

DENV2 and DENV4) and 96% (between DENV1 and DENV3) sequence identities (Fig. 1). All SLA sequences are predicted to have a similar Y-shaped stem-loop structure (32). It was shown previously that DENV2 NS5 can use DENV1 SLA as a promoter to initiate RNA synthesis (32), suggesting that NS5 can bind SLA from different serotypes. We thus

tested whether DENV3 NS5 binds DENV2 SLA80using the competition titration assay

described above. NS5-␧A(p␧A)19 complex formation was measured at two different

concentrations of DENV2 SLA80, 8.0⫻10⫺7and 2.5⫻10⫺6M (Fig. 5B). Similar to the

NS5 interaction with DENV3 SLA80(Fig. 5A), the titration curves were shifted toward

higher NS5 concentrations, indicating that DENV3 NS5 binds DENV2 SLA. DENV3 NS5

has a slightly higher affinity for DENV2 SLA80than for its own serotype, with aKSLA80of

1.0⫻107_M⫺1_(K

dof 100 nM with 8.0⫻10⫺7 SLA80). Further increasing the DENV2

SLA80concentration to 2.5⫻10⫺6M did not increase the binding constant (KSLA80⫽

1.2⫻107_M⫺1_;K

dof 83 nM), indicating that DENV3 NS5 interacts with DENV2 SLA with

1:1 stoichiometry. Therefore, DENV3 NS5 recognizes SLAs of other DENV serotypes and

FIG 5SLA80and␧A(p␧A)19compete for the same binding site on dengue virus NS5. (A) Fluorescence titrations of ␧A(p␧A)19with DENV3 NS5 (␭ex⫽325 nm;␭em⫽410 nm) in standard buffer (100 mM NaCl, 50 mM Tris [pH 7.5],

and 10% glycerol at 10°C) in the absence and presence of DENV3 SLA80at two concentrations, 8.0⫻10⫺7M and

2.5⫻10⫺6_{M. The concentration of␧A(p␧A)}

19is 8.0⫻10⫺7M. The solid lines are nonlinear least-squares fits of

the titration curve with aKof 2.2⫻106_M⫺1_{(no SLA}

80), aKof 7.0⫻106M⫺1(0.8␮M SLA80), and aKof 7.5⫻106

M⫺1_(2.5␮_{M SLA}

80). (B) Fluorescence titrations of␧A(p␧A)19with DENV3 NS5 (␭ex⫽325 nm;␭em⫽410 nm) in the

absence and presence of DENV2 SLA80at two concentrations, 8⫻10⫺7M and 2.5⫻10⫺6M. The solid lines are

nonlinear least-squares fits of the titration curve with aKof 2.2⫻106_M⫺1_{(no SLA}

80), aKSLA80of 1.0⫻107M⫺1

(0.8␮M SLA80), and aKSLA80of 1.2⫻107M⫺1(2.5␮M SLA80).

on November 7, 2019 by guest

http://jvi.asm.org/

thus most likely can replicate the RNA genomes from other serotypes, consistent with data from previous reports (32).

SLA70 binds specifically to full-length DENV NS5. So far, we examined the

interactions between NS5 and SLA80, which has the 10-nt ssRNA region at the 3=end

of SLA. To determine whether DENV NS5 recognizes SLA itself, we analyzed interactions

between SLA70(the stem-loop only) (Fig. 1) and the enzyme using a competition assay.

The dependence of the relative fluorescence intensity of ␧A(p␧A)19 (ΔFobs) on the

logarithm of the NS5 concentration, in the absence and presence of SLA70, is shown in

Fig. 6. The binding of NS5 to␧A(p␧A)19in the absence of SLA70has aKssRNAvalue of

2.2⫻106_M⫺1_{(Fig. 6, blue squares). The presence of SLA}

70clearly shifted the binding

curve toward higher NS5 concentrations, while the maximum value of the relative fluorescence signal remained unchanged (Fig. 6, green squares). The nonlinear

least-squares fit provided aKSLA70of 1.2⫻10

7_M⫺1_{(equations 6 and 7) and, thus, aK}

dof 83

nM. This result indicates that SLA70efficiently competes with␧A(p␧A)19for the same

binding site, and NS5 recognizes and binds to SLA70as well as SLA80.

DISCUSSION

Replication of the viral genome is the primary goal of any viral infection, and thus obtaining quantitative information on the initial step of binding between NS5 and the RNA promoter is essential for understanding virus replication. We have characterized

DENV3 NS5-SLA80 interactions under various solution conditions. DENV3 NS5 binds

SLA80with a dissociation constant of 130 to 140 nM, measured by either direct binding

or competition assays (Fig. 2 and 5). The NS5-SLA80interaction is affected by MgCl2

concentrations, and binding is strongest when the Mg2⫹_{concentration is⬃1 mM. At}

higher Mg2⫹_{concentrations (⬎1 mM), the affinity of NS5 for SLA}

80is decreased. Further

increases of Mg2⫹_{concentrations to 10 mM, where SLA adopts a more compact form,}

diminish the polymerase affinity to hardly detectable levels in standard fluorescence

titration experiments. This result suggests that there are two types of Mg2⫹_binding

sites in the NS5-SLA80complex, one that promotes the interaction between NS5 and

SLA80and the other that inhibits the interaction.

The NS5-SLA interaction is also influenced by the NaCl concentration, and⬃1 Na⫹

ion is released upon NS5-SLA80complex formation (Fig. 3B). This result is in contrast to

the NS5-ssRNA interaction, where the release of⬃6 Na⫹_{ions during complex formation}

was observed (29). The weaker effect of NaCl observed for the NS5-SLA interaction indicates that the binding-site size (the numbers of nucleotides and amino acids involved in interactions) for SLA is smaller than that for ssRNA (Fig. 7). Unlike ssRNA, SLA acquires a defined structure, and thus, the data strongly suggest that SLA has a lower

FIG 6SLA70binds to full-length NS5. Shown are fluorescence titrations of␧A(p␧A)19with DENV3 NS5

(␭ex⫽325 nm;␭em⫽410 nm) in standard buffer (100 mM NaCl, 50 mM Tris [pH 7.5], and 10% glycerol

at 10°C) in the absence and presence of DENV3 SLA70. The concentration of␧A(p␧A)19is 8.0⫻10⫺7M.

The solid lines are nonlinear least-squares fits of the titration curve with aKof 2.2⫻106_{(no SLA} 70) and

aK_SLA70of 1.2⫻107_M⫺1_(0.8␮_{M SLA} 70).

on November 7, 2019 by guest

number of direct contacts with (but a higher affinity for) NS5 than does the ssRNA.

Additionally, the NS5-SLA80interaction is not influenced by temperature (Fig. 4), while

the binding of NS5 and ssRNA is affected (29). The fact that the association reaction

between NS5 and SLA80 is driven by entropy (Fig. 4) suggests that the interacting

surfaces of the protein and SLA are not affected by complex formation; i.e., no additional structural adjustment is required as a result of complex formation, and the solvent and ions released from the complex drive the reaction.

SLA is predicted to interact with NS5 via the RdRp domain, since full-length NS5 and the isolated RdRp domain can promote RNA synthesis and have similar binding affinities for SLA in electrophoretic mobility shift assays (EMSAs) (24, 25). However, it is not known where SLA binds on the RdRp domain. It seems unlikely that SLA binds in the template binding channel of RdRp, because crystal structures of NS5 and RdRp domains show a narrow template binding channel that is large enough to

accommo-date only an ssRNA. Competition assays between ssRNA (20-mer) and SLA80showed

that SLA80competes with the ssRNA and that NS5 and SLA80bind with a 1:1

stoichi-ometry (Fig. 5). This result indicates that the binding site for SLA80 on NS5 likely

overlaps the template binding site in the RdRp domain, although direct contacts between the protein and the nucleic acid are likely different in the two complexes (Fig. 7). Recent studies of the interaction of DENV RdRp with the RNA genome suggest that

the 3=stem-loop is recognized by the thumb subdomain of RdRp, and the polymerase

mutant that abolished the 3=stem-loop interaction also eliminated 5=SLA interactions

(33). In the crystal structure of DENV NS5, the residues implicated in 3=stem-loop/SLA

binding in the thumb subdomain (R770, R773, R856, Y838, and K841) are exposed to the solvent and are away from the MTase domain. Thus, the proposed Arg-rich site in the thumb subdomain could be the SLA binding site in RdRp (Fig. 7).

DENV3 NS5 is able to bind DENV2 SLA80with a slightly higher affinity (83 nM) than

that for DENV3 SLA80(Fig. 5). This affinity is slightly lower than the value reported for

NS5 and SLA in the DENV2 system (10 to 20 nM), as measured by using EMSAs (24). Since DENV3 NS5 recognizes both DENV2 and DENV3 SLAs, the NS5 proteins likely recognize the fold and the sequence of SLA (Fig. 1). The DENV2 SLA regions important for NS5 binding and viral replication were previously identified (24, 25, 32). The base

pairings at the bottom stem-loop (6_UUA/65_{UAA and}12_UAC/58_{GUA) (Fig. 1) and at the}

side stem-loop (44_GAGC/51_{GCUC) are required for both NS5 binding and viral}

replica-tion, whereas a disruption of base pairing at the top stem-loop (26_AAG/36_{CUU) did not}

significantly affect NS5 binding or viral replication (21). The major difference between DENV2 and DENV3 SLA structures lies in the top stem-loop containing nt 22 to 41 (Fig. 1), which does not affect the association with NS5. Thus, DENV NS5 likely recognizes

both DENV2 and -3 SLA80s, consistent with our results.

Furthermore, DENV NS5 binds SLA70 with an affinity similar to that determined for

NS5-SLA80binding (Fig. 6). The SLA70construct encompasses the entire stem-loop but does

not possess the additional 10 nucleotides at the 3=end of SLA80. The ssRNA region at the

FIG 7Model of the NS5-RNA interaction. NS5 consists of the MTase domain (yellow) and the RdRp domain (blue). The arrangement of the MTase and RdRp domains is depicted based on the crystal structures of DENV NS5 (PDB accession no.5CCV). The template binding channel in RdRp is formed by the inner surfaces of the fingers and the thumb subdomains and leads to the active site in the palm subdomain (indicated by the GDD motif). An ssRNA binds in the template binding channel of NS5 with multiple interactions (left). The SLA70or SLA80binding site overlaps the template binding channel but

involves less contact with NS5 than with ssRNA. The RNA molecules are shown in red, and interaction sites are depicted with dashed lines.

on November 7, 2019 by guest

http://jvi.asm.org/

MATERIALS AND METHODS

Reagents and buffers.DENV3 SLAs (GenBank accession no. KU725665) containing the first 70 nucleotides (SLA70) and the first 80 nucleotides (SLA80) with and without a fluorescein tag at the 3=end,

DENV2 SLA80(GenBank accession no.KU725663), and an adenosine 20-mer, A(pA)19, were synthesized

(Midland Certified Reagents, Midland, TX). The concentrations of the nucleic acids were determined by using the following extinction coefficients:⑀260of 10,300 cm⫺1M⫺1for poly(A) and⑀260of 685,200 cm⫺1

M⫺1_{for SLA. The etheno-derivative of A(pA)}

19,␧A(p␧A)19, was obtained by modification of A(pA)19with

chloroacetaldehyde. This modification goes to completion and provides a fluorescent derivative of the nucleic acid (29, 34, 35).

Expression and purification of DENV3 NS5.Full-length DENV3 NS5 with a C-terminal hexahistidine tag was expressed inEscherichia coliBL21-CodonPlus-RIL cells (20). Briefly, the cells were grown at 37°C in Luria broth (LB) containing 34␮g/ml kanamycin and 30 mg/ml chloramphenicol to an absorbance at 600 nm of 0.6 to 0.7. The expression of the protein was induced by the addition of 1 mM isopropyl-␤ -D-1-thiogalactopyranoside. Cell growth was continued overnight at 18°C. For protein purification, the cells were suspended in lysis buffer (100 mM sodium phosphate [pH 8.0], 0.5 M NaCl, 2 mM ␤-mercaptoethanol, and 1 tablet of an EDTA-free protease inhibitor [Roche Applied Science, Penzberg, Germany]) and sonicated. After centrifugation, the protein in the soluble fraction was purified by Talon metal affinity chromatography (Clontech, Mountain View, CA). NS5 was eluted with a 5 to 100 mM gradient of imidazole in 100 mM sodium phosphate (pH 7.0) buffer containing 0.5 M NaCl and 2 mM ␤-mercaptoethanol. The fractions containing NS5 were collected and concentrated to 1 to 2 ml by using an Ultrafree centrifugal filter device (Millipore, Billerica, MA). Subsequently, the pooled fractions were loaded onto a Superdex 200 size exclusion column (GE Healthcare, Little Chalfont, UK) equilibrated with a solution containing 20 mM Tris-HCl (pH 7.0), 0.4 M NaCl, and 2 mM DTT. DENV3 NS5 elutes as a monomer. The purity of the protein, estimated by SDS-PAGE, was⬎95%. The concentration of NS5 was spectrophotometrically determined with an extinction coefficient,⑀280, of 21.2198⫻104cm⫺1M⫺1

obtained by using an approach based on the method of Edelhoch (36).

Fluorescence measurements.Steady-state fluorescence titrations were performed by using an ISS PC1 spectrofluorometer (ISS, Urbana, IL). In order to avoid possible artifacts due to fluorescence anisotropy of the sample, polarizers were placed in excitation and emission channels and set at 90° and 55° (magic angle), respectively. The binding of DENV NS5 to the RNA was monitored by the fluorescence of either␧A(p␧A)19(excitation wavelength [␭ex]⫽325 nm; emission wavelength [␭em]⫽410 nm) or

fluorescein attached to SLA80 (␭ex ⫽ 480 nm; ␭em ⫽ 520 nm). Binding curves were fit by using

KaleidaGraph software (Synergy Software, PA). In the case of titrations using competition with␧A(p␧A)19,

the relative increase in the fluorescence of the nucleic acid (ΔF) upon binding of DENV NS5 is defined as ΔFobs⫽(Fi⫺F0)/F0, whereFiis the fluorescence of the nucleic acid solution at a given titration point,

i, and F0 is the initial fluorescence of the sample (29, 37–39). In the case of direct titrations of

fluorescein-modified SLA, the relative fluorescence change is defined asFi/F0. BothF0andFiare corrected

for background fluorescence at the applied excitation wavelength (29, 37, 39). Standard B1 buffer, containing 50 mM Tris-HCl adjusted to pH 7.5 with HCl at a given temperature, 100 mM NaCl, 1 mM DTT, and 10% (wt/vol) glycerol, was used for all binding experiments. All experiments were performed in triplicate.

Fluorescence signal analysis.The binding constant,K1, characterizing the association of SLA80with

NS5, is defined as

K1⫽ [C1]F

[SLA80]F[NS5]F

(1)

where [C1]Fis the concentration of the formed complex.

The observed fluorescence of the sample at any point of the titration is defined as

Fobs⫽FF[SLA80]F⫹FC[C1]F (2)

where FFandFCare the molar fluorescence intensities of the free SLA80 and the formed complex,

respectively. Thus,

Fobs⫽FF[SLA80]F⫹FCK1[SLA80]F[NS5]F (3)

on November 7, 2019 by guest

The mass conservation equation for the total SLA80concentration, [SLA80]T, in the sample is

[SLA80]T⫽[SLA80]F⫹[C1]F⫽[SLA80]F

共

兲

Using equations 3 and 4, the relative observed change of the SLA80fluorescence, ΔFobs, is then ⌬Fobs⫽ Fobs

FF[SLA80]T⫽

1

1⫹K1[NS5]F⫹ ⌬

Fmax

冉

1⫹K1[NS5]F

冊

(5)

where ΔFmax⫽FC/FFis the maximum value for the observed relative fluorescence quenching. Competition assay.Binding of ␧A(p␧A)19 and NS5 was carried out in buffer B1 containing an

additional 1 mM MgCl2at 10°C by monitoring the changes of the fluorescence signal originating from ␧A(p␧A)19(␭ex⫽325 nm;␭em⫽410 nm) (29). The binding constant was determined by using equation

5. In the competition assay, labeled␧A(p␧A)19(each 8.0⫻10⫺7M) and unlabeled SLA80(8.0⫻10⫺7M

or 2.5⫻10⫺6_{M) or SLA}

70(8.0⫻10⫺7M) were mixed in buffer B1 containing 1 mM MgCl2and titrated

with NS5 at 10°C. The change of the fluorescence signal originates only from the binding of␧A(p␧A)19

to the protein. The shift of the titration curve is a result of competition between␧A(p␧A)19and either

SLA80or SLA70for the binding site on NS5. Competition was analyzed by using equations 6 and 7, where

K1andK2correspond to the binding constants characterizing the association of␧A(p␧A)19with NS5 and

the binding constant characterizing the association of SLA80(or SLA70) with NS5, respectively (38).

Experiments were repeated three times.

⌬Fobs⫽_F Fobs

F[SLA80]T⫽

1

1⫹K1[NS5]F⫹ ⌬

Fmax

冉

1⫹K1[NS5]F

冊

(6)

where the total NS5 concentration is

[NS5]total⫽[NS5]F⫹

K1[␧A(␧A)19]T[NS5]F

1⫹K1[NS5]F ⫹

冉

K2[SLA80]T[NS5]F

1⫹K1[NS5]F

冊

(7)

Analytical ultracentrifugation measurements. The size and shape of SLA80 were analyzed by

analytical ultracentrifugation using an Optima XL-A analytical ultracentrifuge (Beckman Inc., Palo Alto, CA), as we described previously (29, 40, 41). Sedimentation equilibrium scans at different MgCl2

concentrations (0, 1, and 10 mM) were collected at the absorption band of SLA80(260 nm).

Time-derivative analyses of the sedimentation scans were performed with the software supplied by the manufacturer, using averages of 8 to 15 scans for each concentration.
