International Journal of Innovative Technology and Exploring Engineering (IJITEE) ISSN: 2278-3075, Volume-8 Issue-9, July 2019
Vertical Handover Decision Algorithm Based
On Several Specifications in Heterogeneous
Wireless Networks
P. Pramod Kumar, K. Sagar
Abstract Vertical handoff takes place when a mobile incurable button from one network to one more (e.g., from WLAN to CDMA 1xRTT). The purpose of this paper is to establish the problems under which vertical handoff need to be done. The trouble is developed as a Markov choice procedure. A web link benefit feature and also a signaling price feature are presented to record the tradeoff in between the network sources made use of by the link and also the signaling as well as handling tons sustained on the network. Commonly, a mobile phone might be transferred to attain the procedures of vertical handover, thinking about just one standard, that is, the received signal strength (RSS). Making use of a solitary requirement might trigger solution disruption, an out of balance network lots, and also an ineffective vertical handover. In this paper, we recommend boosted vertical handover decision algorithm based upon several standards in the heterogeneous wireless network. As well as additionally In this paper, we research regarding 5th generation system.
Index Terms : 4G Networks, 5G Networks, Wireless Networks
I. INTRODUCTION
In contemporary Future generation wireless systems, many difficult locations is the continual solution for the mobile relocating a location where there is overlapping of networks. The primary purpose of any type of future generation mobile network is a finest connection to every individual any time as well as anywhere [1] In the last number of years, great deals of research study task has really been focused on this challenging issue of adaptability management treatment in heterogeneous cordless systems. When the mobile consumer stays in continuous task, there is a need for handoff to be accomplished from one network to the different one more network, preserving visible, the need of the person in future. Handoff device takes care of the principle of transforming over the networks connected with the present link when a phone call remains in progression. Vertical handoff (VHO) is most plainly made use of the method to sustain proceeding phone call in between various networks having various air user interface strategies throughout internetwork activities. "Handover" is a procedure of rerouting the solutions of a mobile in a network to a brand-new network.
Revised Manuscript Received on July 05, 2019.
P. Pramod Kumar, Research Scholar, OU, Senior Assistant Professor, Department of CSE, S R Engineering College, India
Dr. K. Sagar, Professor, Department of CSE, C.B.I.T, Telangana, India
Handoff device aids in choosing the very best appropriate network to which the customer needs to be attached after the implementation of handoff The primary constrict in handoff is minimal handling hold-up. Research study job is focused on creating as well as carrying out lots of brand-new formulas with the primary purpose of giving the needed quality of service (QoS) over a large range of applications [2] The heterogeneous networks are made use of by numerous individuals on the basis of choice provided to different QoS criterion such as live interactive web traffic, much less hold-up, reduced jitter, high accessibility, high bandwidth (BW), Reduced little bit mistake price (BER). Vertical handoff is needed for far better efficiency as well as high schedule factors. The primary criterion like the ability of the network, the price of the network, handoff latency, problems dominating in the network, individual choice as well as usage of power is to be taken into consideration throughout vertical handoff.
The system of handoff has 4 various stages specifically initiation of handoff, handoff choice production, the option of the network, and also the implementation of handoff procedure. Handoff determined by some quality of service (QoS) criterion like stamina of the signal as well as high quality of the network web link and so on is referred to as initiation of handoff. In handoff choice production, the signal toughness and also the QoS specifications of the bordering networks are gauged as well as a choice is required to pick the most effective network appropriate for doing the handoff. Handoff unit is actually recognized straight into straight handoff as well as additionally vertical handoff (VHO). The diagrammatic representation is actually surrendered Amount.2. Parallel handoff is actually a tactic where the handoff is actually executed in between 2 systems possessing a similar type. As an instance, handoff in between Wi-Fi to Wi-Fi relationship is actually thought about as straight handoff. vertical handoff is actually the handoff in between systems possessing several modern-day innovations in addition to numerous design. As an example, Wi-Fi to Wi-Max link is actually taken into account as an vertical handoff. It is just one of the absolute most obviously made use of handoff devices. This newspaper points out on show business of handoff selection producing where the focus has actually applied the selection of selecting the best system one of all the provided systems. TOPSIS formula located upon the concept of several multiple attribute decision making(MADM) is actually
the web link to the mobile phone terminal System choice period pinpoints the greatest appropriate system one of all the on-call systems selected to do the handoff. Completion of handoff cope with the building of a relationship, launch of hookup, and also system safety and security parts..
Figure 1: Horizontal and Vertical Handoff
In addition, the vertical handoff is classified right into 2 kinds such as higher and also descending handoffs; as well as tough as well as soft handoffs. Based upon the protection location of residence as well as target networks; Vertical handoff is actually classified as greater as well as additionally down stand-up handoffs. If the transforming of the mobile phone is actually coming from a little defense place to a significant insurance policy protection area system, it is actually named as a greater handoff. On the different one more palm, if transforming continues to be in the reverse guidelines, i.e., coming from a greater defense place to a much smaller sized insurance policy protection area system it is actually named as a down handoff. Furthermore, the vertical handoff treatment where a mobile phone nodule associated with the new center terminal after getting removed coming from the previous center terminal is actually phoned as hard handoff or even breather just before help make. On the variety of an additional palm, in the delicate handover, a mobile phone nodule protects the relate to the previous center terminal till its own association along with the new center terminal is actually ended up. This procedure is likewise called as made prior to breaking as well as the mobile node preserves synchronized links with both the base terminals throughout the acting duration. Soft handoffs are better contrasted to tough handoffs as they remove the issue of interruption of the solution. Furthermore, there are numerous various other vertical handoffs offered in the local area network. Remembering the size of the paper, these are left out. The complying with Number 3 shows the vertical handoff taxonomy.
Figure 2: Taxonomy of Vertical Handoff
II. RELATED WORK
There are numerous approaches of vertical handover decision algorithm, as complies with:
RSS-based formulas: This approach makes use of the RSS formula as the handover trigger [3] and also to make a decision handover [4] The RSS-based formula has actually been enhanced by adjusting the RSS limit [5] as well as by integrating the RSS limit with the individual's speed as well as area.
Context-aware-based formulas: Handover is made a decision based upon signal high quality, the network and also the context of the mobile phone [1] Context can be specified as the scenario of an entity [7] or a place, setting, identification as well as time.
Price function-based formulas: This approach can become close to in 2 means: network-related expense feature, as well as user-related expense feature variables associated with the user-related price feature, are protection, financial price and also power intake.
Normally, RSS-based formulas are the least intricate system, yet it is additionally the least exact. On the other hand, formulas, such as unclear reasoning as well as expense feature, are extremely complicated, yet they are likewise extremely precise and also offer greater network performance. Thus far, there has actually been much research study done on several requirements vertical handover choice formulas. It is discovered that they can make a quantitatively-calculated choice utilizing some standards of the prospects. This verdict is obtained by contrasting Several requirements Backer Weighting (MEW), Basic Additive Weighting (SAW), the Method for Order Choice by Resemblance to Perfect Option (TOPSIS) as well as Grey Relational Evaluation (GRA). Their efficiency in handover effectiveness is likewise checked out.
The contrast has actually been a substitute in the heterogeneous network atmosphere of WLAN, UMTS (Universal Mobile Telecoms Equipments) and also GPRS. After that, a contrast of network efficiency (BER, hold-up, jitter and also bandwidth) has actually been accomplished. The outcomes suggest that WPM has much better precision in picking a target network contrasted to SAW. One more several requirements formula, ELECTRE, has actually been executed as the vertical handover choice as well as assessed making use of mathematical evaluation. ELECTRE (Removal et Croix Traduisant la Reality, or removal as well as option sharing truth) is contrasted to the formula of SAW as well as TOPSIS. It needs to be kept in mind that the ideal option of the requirements is important to make certain choice precision. There are numerous requirements, user-related or network relevant, such as RSS, flexibility, application and also bandwidth.
Numerous handoff choice formulas have actually been recommended in the literary works in [1]. A contrast is done amongst numerous formulas like straightforward additive weight (SAW), grey relational evaluation (GRA) as well as multiplicative backer weighting (MEW), method for order choice by resemblance to
[image:2.595.68.276.658.759.2]International Journal of Innovative Technology and Exploring Engineering (IJITEE) ISSN: 2278-3075, Volume-8 Issue-9, July 2019
An unique vertical handover choice system to prevent the handling hold-up as well as power usage as well as to lower the overload as well as the handling hold-up is suggested in [8] An vertical handover choice plan to prevent the handling hold-up which utilizes the MADM approach is specified in [8]. A formula to make a count on handover choice as well as to minimize handling hold-up in a heterogeneous wireless atmosphere utilizing T-DVHD. A unique dispersed vertical handoff choice formula making use of the straightforward additive weight approach with a dispersed way to prevent the downsides is gone over. All these recommended jobs primarily lay their focus on the handoff choice making as well as computing the standards for handoff choice making on the mobile incurable end and also the suggested formulas are used for minimizing the hold-up as a result of handling by doing the needed computations utilizing MADM in a dispersed fashion.
Maintaining sight to all these strategies, the here and now job suggests a formula to examine and also pick the most effective network among numerous site visitor networks for the vertical choice systems and also the position of the network maximizes the very best readily available network in the restriction of several network atmospheres.
III. HETEROGENEOUS WIRELESS ACCESS NETWORKS
The signal toughness of heterogeneous wireless access networks commonly various terms, protection, information price, latency, as well as loss price and so on. Consequently, each of the styles is almost sustained a various collection of details solutions and also tools. Nonetheless, these networks will certainly exist side-by-side and also make use of a typical IP core to supply solutions varying from low-data-rate non-real-time applications to high-speed real-time multimedia applications to finish individuals given that the networks have attributes that match each various other. The constraints of these corresponding wireless accessibility networks can be gotten over via the combination of the various innovations right into a solitary unified system (that is, a 4G system) that will certainly encourage mobile customers to be attached to the fifth Generation system utilizing the very best readily available gain access to network that fits their demands.
The developing 5G network will effortlessly incorporate numerous kinds of wireless gain access to networks consisting of the following:
Wireless individual location networks, such as Bluetooth, that give a range-limited impromptu wireless solution to individuals.
A wireless computer network, such as 802.11 x (Wi-Fi), that give high-throughput links for fixed or quasi-stationary wireless customers without the pricey framework of 3G.

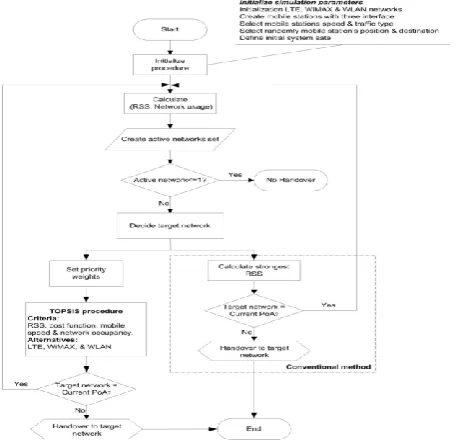

IV. MULTIPLE CRITERIA HANDOFF DECISION ALGORITHM
Carrying on, TOPSIS has numerous benefits over various other several requirements formulas. Its idea is basic: it has an effective computer particular and also has the ability to determine loved one efficiency for every different. Throughout the simulation, contrasted to various other
formulas, TOPSIS offers greater throughput as well as reduced packet loss. In a various viewpoint, the handover choice formula is made up of 4 standards: RSS, price feature. In addition, the formula requires the network (network geography as well as radio) as well as mobile (price feature as well as mobile rate) as the input. Even more information regarding the network criteria is discussed in the following area.
There are 2 mobile terminal criteria in this research study: price feature and also mobile rate. There are 3 sorts of price feature, noted as adheres to:
1.Gold price: A top customer registration that enables the usage of the highest level of Quality of Service (QoS). The expense feature is pointless.
2.Silver price: A tool concern individual registration that would certainly attempt to stabilize in between QoS demands and also expense feature.
3.Bronze expense: A reduced customer registration where the expense feature is considerably more crucial than any type of QoS criteria.
[image:3.595.313.541.425.645.2]The TOPSIS approach gives versatility in specifying the weights of the numerous requirements top priority. There are 3 kinds of top priority in the numerous standards vertical handover choice: equivalent top priority, mobile concern as well as network concern. The top priority technique highlights the mobile specification (price feature and also mobile rate); on the other hand, network concern stresses network tenancy. Each concern has a specific weight, as offered in Table 1.
Table 1. Priority weights.
V. SIMULATION ALGORITHM
To acquire efficiency outcomes, the suggested formula is applied by utilizing NS-2 simulation (UPM Lib., Selangor, Malaysia). We executed the standard network according to the RSS technique in the vertical setting. Really, mostly all of the study documents and also actual releases are concentrated on a solitary statistics like RSS due to the fact that this detail is determined in mostly all mobile phones when this technique is gotten an execution in the handover element as a result of the price and also simpleness. For that reason, to check out the performance of our proposition, the simulations are performed in contrast with this item and also taken as the standard for the evaluation of the handover procedure. Afterward, an assessment of the handover effectiveness is done by checking out the possibility of success as well as failing of handover. Going on, handovers are determined based upon the complete vertical handover event throughout an energetic telephone call. It is essential in examining a mobile network's efficiency as it is affected by signifying tons and also a shipment of QoS. It deserves keeping in mind that unneeded handover will certainly lose network sources as well as time, subsequently adding to ineffectiveness. The handover failing chance is the standard of the inbound handover demands that can not be serviced as a result of the absence of sources.
The network geography includes the LET, WiMAX and also WLAN networks The span of WiMAX is 2500 m, LTE 1000 m as well as WLAN 300 m. WiMAX covers 75% of the simulation location; at the same time, LTE covers 65%, and also WLAN covers 75%. The radio specification exists in Table 1. The tracks of MNs are arbitrarily courses. The Customer Datagram Method is made use of to send 4960 bytes of the video clip as well as 320 bytes of audio web traffic in between MN and also CN. At the same time, the inter-packet transfer period is 0.04 s. The simulation time is evaluated 480 s, while the outcomes are calculated by taking the typical rate of 10-times carrying out the situation. Simulations are done making use of 15 arbitrary mobile node trajectories throughout LET, WiMAX as well as WLAN networks..
VI. VERTICAL HANDOFFS IN 5G WIRELESS NETWORKS
Movement monitoring is a primary obstacle in the progressing multi-service 5G heterogeneous network. The 5th generation heterogeneous includes 2 parts: area monitoring and also handoff monitoring. And also Place monitoring tracks and also finds the mobile terminal (MT) for effective info shipment.
Handoff monitoring preserves the energetic links for wandering Mobile Terminals as they alter their factor of add-on to the network. Handoff is the device through which a recurring link in between an MT as well as a correspondent terminal is moved from one factor of add-on to the network to an additional. That is, the handoff is the device whereby an MT maintains its link energetic when it moves from the insurance coverage location of one network accessory indicate one more. In mobile phone vocal telephone along with mobile phone relevant information systems, such a variable of extra is actually named get to a variable, as well as likewise in a wireless local area network, it is actually named a servile terminal.
The 5th era communication network utilizing handoff technique. It could be classified using the network kind necessitated straight into parallel handoff as well as likewise vertical handoff conditions as an MT transfer within or even in between a variety of overlays of a WON. Parallel handoff is actually a handoff that happens in between the APs or even BSs of the particular very same network technology. Essentially, a parallel handoff happens in between the consistent tissues of a wireless availability unit. As an instance, the change of sign gearbox of an MT coming from an IEEE 802.11 g AP to a geographically neighboring IEEE 802.11 g AP is actually a straight handoff operation. The network immediately swaps the defense task coming from one variable of an add-on to another each and every single opportunity an MT crosses coming from one tissue right into a neighboring tissue maintaining the identical network advancement. vertical handoffs are actually needed taking into consideration that the MT can easily certainly not wage its own communication without implementing it. vertical handoff is actually a handoff that occurs in between the numerous aspects of add-on originating from several network developments. As an instance, the switch of sign gearbox coming from an IEEE 802.11 g AP to the BS of an overlaid mobile phone network is actually an vertical handoff technique. Consequently, straight handoffs are actually carried out throughout various tissues of wireless get to devices, which differ in a variety of factors including gotten sign stamina data transfer, info rate, insurance policy protection place, in addition to consistency of treatment. The punishment of stand-up handoffs is actually additional hard as distinguished to direct handoffs due to the variety of high qualities of the systems required. Overall, there is actually 2 types of vertical handoff: upwards in addition to down. A much higher vertical handoff is actually a handoff to a wireless overlay along with a much bigger tissue size and also minimized data transfer. A falling vertical handoff is actually a handoff to a wireless overlay along with a much smaller sized tissue size as well as likewise much bigger data transfer. Thus, a mobile phone carrying out a greater vertical handoff separates coming from a network offering much smaller sized defense site as well as additionally more significant ease of access cost to a new one offering larger insurance policy protection having said that lowered access to fee), while a cellular
International Journal of Innovative Technology and Exploring Engineering (IJITEE) ISSN: 2278-3075, Volume-8 Issue-9, July 2019
providing greater defense place as well as likewise decreased availability cost to a new one offering marginal insurance policy protection, however, more significant access to price.
The vertical handoff method may be divided straight into 3 phases:
Network discovery Handoff decision
1. Network discovery
The 5th generation wireless interaction is browsing a mobile terminal for obtainable wireless networks throughout the network exploration procedure. Multimode services are obtainable if promotions can be listened to by the Mobile Terminal. The most basic method to find obtainable wireless networks is to constantly maintain all user interfaces on. It is important to prevent maintaining the still user interface constantly on given that maintaining the user interface energetic regularly eats the battery power also without getting or sending out any type of packets.
2. Handoff decision
Handoff choice is the capacity to determine when to execute the vertical handoff as well as identify the most effective handoff prospect gain access to network. Horizontal handoff choices mostly depend upon the high quality of the network shown by the RSS as well as sources offered in the target cell. A handoff is made if the RSS from a neigh bouring BS surpasses the RSS from the existing BS by an established limit worth.
VII. RESULTS AND DISCUSSION
The 5th generation interaction Vertical handoff choice has actually just recently gotten much focus. Because various kind of vertical handoff choice formula is suggested in the study literary works. Due to the fact that the really initial team is actually located upon the regular technique of making use of the RSS integrated along with numerous other standards, as well as additionally in this particular newspaper is actually a system that the optimal really worth for the house cooking timer depends upon the reputation in between the quickly offered details rates in each system. The second team incorporates countless metrics like data transfer as well as likewise answer rate for handoff decision.the article writers suggest a policy-enabled handoff throughout a various network setting taking advantage of a variety of requirements like conveniently offered transmission capacity, electrical power consumption, in addition to expenditure.
The cost function fn of the network n is actually delivered through:
Where wb, wp, as well as likewise wcare the body weights of the standards. The cost function is actually estimated for the conveniently on call get access to systems and also afterward made use of in the handoff option of the MT. The cost function-based vertical handoff option formula for
multi-services handoff existed in [9] The alternative of the excellent network, n_opt, is actually located upon
Where fn is the handoff cost function for network n, and is calculated as
The regarding supplied N( Qns; j) is actually the maintained QoS requirements, given that Qns; j, representing the cost in the jth standard to complete remedies on network n, as well as likewise the fs; jis meant as fs; j (ws; j). In fs; j (ws; j) is actually the jth weighting attribute for option s as well as likewise Ens; i is actually the ith network extraction part of service s. The delivered to associate with the least pricey rate component worth find yourself being actually the handoff intended. However, merely the supplied transmission capacity as well as likewise the RSS of the supplied systems were actually taken into account in the handoff selection productivity distinguishes. In the 5th production, communication possesses a multimode terminal. In multimode terminal continues to be in a much better positioning to help make handoff selections considered that it possesses access to details connecting with its own capacities, as well as likewise understanding of lining access to systems and also consumer profiles. This demands the improvement of an incurable management unit accountable for locating quickly accessible access to systems as well as likewise for producing optimal network option located upon all gathered details. The optimal technique of the 5G network unit may be obtained along with the shared repayments of the tracking units possessed through both the network and also the Mobile Terminal. A network management body is going to absolutely be actually answerable for shared management of the various network resources and also the requirement of QoS to consumers. A TMS possessed due to the MT is going to absolutely be actually responsible for the clever monitoring of the MT's ailment, for pinpointing provided get to systems at the MT, for creating optimal ease of access network choice, as well as additionally for interaction along with the NMS. In existing a mobile phone incurable type for devices managing in various setups, that includes understanding for preserving motion along with roaming throughout access to systems.
VIII. CONCLUSION
In this paper, we research concerning 5th generation system. As well as additionally listed below we boost the price of details cost along with a collection of the system. This system will absolutely take 2 different signals. as well as additionally the handoff technique will definitely occur. A considerable challenge of the progressing 5G wireless networks is smooth vertical handoff throughout the
multi-service heterogeneous
wireless availability
REFERENCES
1. E. Steven Navarro, as well as V. W. S. Wong, "Evaluation in between vertical Handover Selection Algorithms for Various Wireless Networks", Process of the IEEE 63rd Vehicular Innovation Meeting, IEEE Xplore, Vol. 2, pp. 947-- 951, (2006 )
2. R. Tawil, J. Demerjain, as well as G. Pujolle, "A Relied On Handover Selection System for the Newest Generation Wireless Networks", International Diary of Computer Technology System Safety, Vol. 8 (6 ), pp. 174-182, (2008 )
3. H. Attaullah, F. Iqbal, and also M. Y. Javed, "Smart vertical Handover Choice Design to Strengthen QoS", Procedures of the Third International Seminar on Digital Info Monitoring, IEEE Xplore, pp. 119-124, (2008 ).
4. E. Hossain, G. Chow, Winner C. M. Leung, Robert D. McLeod, Jelena Misic, Vincent W. S. Wong, Oliver Yang, "Car Telematics over Various Wireless Networks: A poll", Pc Communications, Vol. Thirty Three (7 ), pp. 775-- 793, (2010 ).
5. K. Savitha, and also C. Chandrasekar, "System Assortment making use of TOPSIS in Vertical Handover Choice Plans for Various Wireless Networks", International Publication of Computer Technology Issues, Vol. 8 (3 ), pp. 400-406, (2011 ).
6. Q.T.Nguyen-Vuong, Y.Ghami-Doudane as well as N.Agoulmine, "On electrical designs for accessibility system assortment in cordless various systems," In IEEE System Functions andManagement Seminar (NOMS), 2008.
7. H. Tembine as well as A.P.Azad, "Dynamic Routing Video Games: A Transformative Video Game Theoretic Strategy," IEEE seminar on choice and also command International Meeting, pp.4516-4521, Dec. 2011.
8. M. Nam, N.Choi, Y.Seok and also Y.Choi, "WISE: Energy-efficient user interface option on vertical handoff in between 3G systems and also WLANs," Process of IEEE International symposiumPIMRC, pp.692-698,2004.
9. Q.Y. Tune and also Abba S Jamalipour," System Choice in an Integrated Wireless LAN as well as UMTS atmosphere making use of algebraic modelling and also computer procedures", IEEE WirelessCommunications Publication, pp.42-48, June 2005. 10. Manzoor Ahmed Khan, HamidouTembine and also Athanasis
V.Vasilakos," Video game Characteristics as well as price of Understanding in Various 4G Networks", IEEE Diary on Selected Places inCommunications, vol. 30, no. 1, pp.198-214, Jan. 2012. 11. RamonaTrestian, Olga Ormond and also Gabriel-MiroMuntean,"
