1 CHAPTER I

INTRODUCTION

1.1 Introduction

2

1.2 Problem Statement

Robot is usually using in industries technology especially in heavy industries. And it is also popular by replacing human to do some work which is dangerous to do by human, for example is chemical work, Electro Static Discharge (ESD) working area, lift heavy thing and many more. In real life, the gripper robot is used for liquid pour application. From the previous gripper robot, the robot wrist cannot rotate and the liquid cannot pour. To solve this problem, the up side down robot gripper is design. The special criteria for this robot compare with others are this robot can rotate the wrist 180 degree to pour the liquid. The another robot gripper only can move up side down and grip thing. With this improvement, the liquid pour application will be improve and make our heavy lift work become easy and also to complete the task for Robocon to score point easily.

1.3 Objective

The objective of this project is :

 To improve the liquid pour application in the industrial sector.  To make our heavy lift work become easy.

 To complete the task for ROBOCON to score point easily.  To design new robot for lift thing application.

 To study and design the PIC16F877programming for software and hardware for microcontroller.

 To gain experience in system design, hardware and software design, electrical and mechanical drawing, wiring, troubleshooting and documentation.

3 1.4 Scope of Project

The scope of this project is divided by two parts, the hardware and the software. The hardware involves designing the mechanical part and electrical part for up side down robot gripper. The mechanical part involves the chassis, and the electrical part involves in microcontroller and driver circuit. The software involves designing and writing the program for the robot to move forward, backward, left, right, up, down and grip.

1.5 Methodology

1) Collecting information i. PIC function ii. Operation method

iii. Understand Software C- language

2) Circuit development i. PIC basic circuit ii. Driver motor circuit

3) Design and develop the robot model i. Design the gripper

4 4) Software development

i. Do flowchart for operation of robot ii. Design the program using C- language

5) Combine the software and robot model i. Burn the program in the PIC16f877A IC ii. Wiring the robot

iii. Connect the driver circuit with motor

6) Testing

i. Testing and define the problem when combine the software and hardware.

7) Provide final report

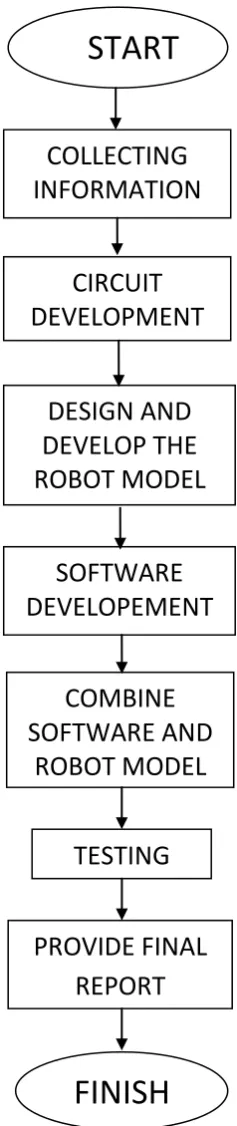

5 The development project flowchart

Figure1.1: Flowchart of development project

START

COLLECTING

INFORMATION

CIRCUIT

DEVELOPMENT

DESIGN AND

DEVELOP THE

ROBOT MODEL

SOFTWARE

DEVELOPEMENT

COMBINE

SOFTWARE AND

ROBOT MODEL

TESTING

PROVIDE FINAL

REPORT

6 CHAPTER II

LITERATURE REVIEW

2.0 Introduction

7

2.1 Gripper Robot Background

Robots which must work in the real world require some way to manipulate objects; pick up, modify, destroy or otherwise have an effect. Thus the 'hands' of a robot are often referred to as end effectors, while the arm is referred to as a

manipulator [3]. Most robot arms have replaceable effectors, each allowing them to perform some small range of tasks. Some have a fixed manipulator which cannot be replaced, while a few have one very general purpose manipulator, for example a humanoid hand.

 Grippers: A common effectors is the gripper. Usually it consists of just two fingers which can open and close to pick up and let go of a range of small objects.

 Vacuum Grippers: Pick and place robots for electronic components and for large objects like car windscreens, will often use very simple vacuum grippers. These are very simple, but can hold very large loads, and pick up any object with a smooth surface to suck on to.

8 2.2 The Similarities Case Study

2.2.1 SCARA robot

The SCARA acronym [4] stands for Selective Compliant Assembly Robot Arm or Selective Compliant Articulated Robot Arm. In general, traditional SCARAs are 4-axis robot arms, i.e., they can move to any X-Y-Z coordinate within their work envelope. There is a fourth axis of motion which is the wrist rotate (Theta-Z). The „X‟, „Y‟ and the „Theta-Z‟ movements are obtained with three parallel-axis rotary joints. The vertical motion is usually an independent linear axis at the wrist or in the base. SCARA robots are used in assembly operations where the final move to insert the part is a single vertical move. Component insertion into printed circuit boards is an example. This is often called "vertical assembly". They are very common in pick-and-place, assembly, and packaging applications. The electronic printed circuit board industry, in particular, use large numbers of SCARAs for placing semiconductor ICs and other components on the circuit boards of computers and related equipment.

9 2.2.2 Canada Arm

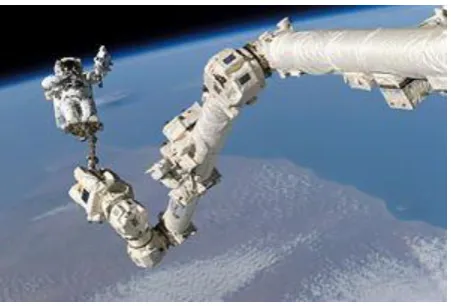

The “Canada hand” resembles a headless torso fitted with two extremely agile, 11 fit long arms and several smaller appendages [5]. The 12 ft long “torso” pivots at the “waist”. The “torso” has a grapple fixture at one end that can be grasped by the larger Space Station Arm, Canadarm2 so that the SPDM can be positioned at the various Orbital Replacement Unit (ORU) worksites along the Space Station trusses. The other end of the “torso” has a grasp fixture virtually identical to that of Canadarm2, so that the SPDM can be stored on Space Station grapple fixtures or can be used as an extension to the larger arm.

The two SPDM arms each have seven, specially offset joints giving a greater freedom of movement in a smaller package than previous systems. At the end of each of these arms is a system called the Orbital Replacement Unit/Tool Change out Mechanism (OTCM). It has built-in grasping jaws, a retractable socket drive, a monochrome TV camera, lights, and an umbilical connector that can provide power and data, and receive video, to/from a payload. The lower “torso” of Dexture has a pair of Orientale color TV cameras with lights, an ORU platform, and tool holders.

10 2.2.3 Articulated Robot

An articulated robot is a robot with rotary joints (e.g. a legged robot) [6]. Articulated robots can range from simple two-jointed structures to systems with 10 or more interacting joints. They are powered by a variety of means, including electric motors. Some types of robots, such as robotic arms, can be articulated or non-articulated

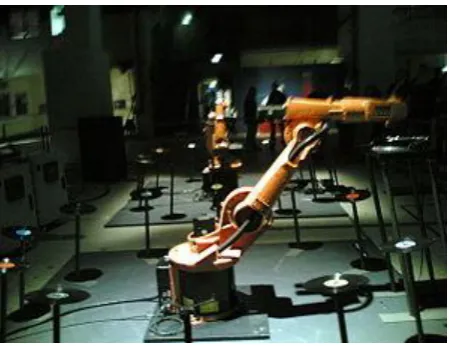

Figure 2.3 : Articulated Robot

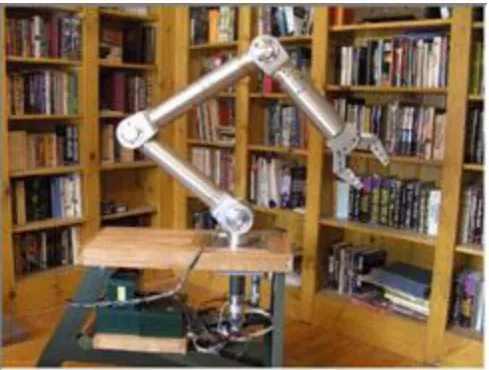

2.2.4 Vision Arm

11 As more experience is generated and archived in development and experimentation with the image system, the more capable the VisionArm™ system will become in performing autonomous and/or unattended activity. Further specifications for the arm and control electronics are included in the tables below.

12 CHAPTER III

METHODOLOGY AND RESEARCH

3.1 General Methodology

To develop the up side down robot gripper, there are some method that all objective of this project successfully archive. The main sub is literature review, hardware development and software development. The flowchart below demonstrate the approach used in completing the project. The methodology of this project is divided by 3 stage.

Stage 1: Understand the objective target, scope of project and problem statement. Do literature review for initial theory execution.

Stage 2: PIC circuit development and software development.

Stage 3: Hardware development, Combination hardware, software and troubleshooting.

13 continue to next stage. If not finish, we need to repeat the process again. In the stage 3, need to develop the hardware. Design and construct the chassis of up side down robot gripper. If finish, we can go to next step, if not we need to repeat the process again. After settle hardware development, the hardware and software will combine and troubleshooting. This stage is the final stage to make sure the project is

successfully function or not. This stage also the difficult stage because we need to combine the hardware and software. After troubleshooting, if no problem occur, the combination is pass and the robot can function. If no, we need to check the error. We will check back the software and hardware design until we get the result we want.
