Forbs differentially affect soil microbial community composition and functions in unfertilized ryegrass red clover leys

Contents lists available atScienceDirect

Soil Biology and Biochemistry

journal homepage:www.elsevier.com/locate/soilbio

Forbs di

ff

erentially a

ff

ect soil microbial community composition and

functions in unfertilized ryegrass-red clover leys

Wen-Feng Cong

, Jørgen Eriksen

Department of Agroecology, Aarhus University, Blichers Allé 20, Tjele, 8830, Denmark

A R T I C L E I N F O

Keywords: Caraway Fertilization Forage mixtures Nitrogen mineralization Plantain

Soil carbon dynamics

A B S T R A C T

Increasing plant diversity in agroecosystems is proposed to enhance multiple ecosystem services. Adding se-lected forbs such as caraway (Carum carviL.) and plantain (Plantago lanceolataL.) to productive grass-clover mixtures can further enhance forage yields, root biomass, uptake of mineral nutrients and improve animal performance. Yet, it remains unclear whether and how adding these forbs to grass-clover mixtures can influence soil microbial communities and associated soil carbon (C) and nitrogen (N) cycling. Based on a three-year grassland experiment varying in species diversity and composition with and without fertilizer application, we determined soil microbial community composition and functions related to C and N cycling under laboratory incubations. Results showed that inclusion of caraway modified soil microbial community composition by en-hancing fungal-to-bacterial phospholipid fatty acids of the ryegrass-red clover mixture. Adding plantain to the ryegrass-red clover mixture increased the relative decomposition rate of the labile C pool, but not of the re-calcitrant C pool. Yet,β-glucosidase activity and net N mineralization were unchanged due to inclusion of either forb. Moreover, fertilization with cattle slurry generally weakened these forb-induced changes in soil microbial properties. Thesefindings demonstrate that adding selected forbs to unfertilized grass-clover leys can modify soil microbial community composition and associated C and N cycling, implying a potential for promoting long-term soil C sequestration through enhanced fungi-to-bacteria ratio, but a limited role in improving soil N fertility.

1. Introduction

Perennial grass-clover mixtures characterized by high productivity, increased resource use, efficient weed suppression and improved soil fertility are increasingly practised in intensively managed grasslands (Finn et al., 2013; Isbell et al., 2017). Agronomists have recently identified several competitive perennial forbs, such as chicory ( Ci-chorium intybus L.), caraway (Carum carvi L.) and plantain (Plantago lanceolata L.) (Elgersma et al., 2014; Hogh-Jensen et al., 2006;

Sanderson et al., 2003). Adding these forbs to the productive grass-clover mixtures can further enhance herbage yield and root biomass (Cong et al., 2017), increase uptake of mineral nutrients from deep soil layers (Pirhofer-Walzl et al., 2011) and improve animal performance in terms of meat production and milk quality (Somasiri et al., 2015). Yet, it remains largely unexplored whether including these forbs in grass-clover mixtures can influence soil microbial community composition and associated carbon (C) and nitrogen (N) cycling, which is crucial for assessing their potential for soil C sequestration and soil N fertility.

Soil microbial communities mediate key ecosystem processes that control nutrient cycling and organic matter (OM) decomposition. One

of the ways that plant species diversity and composition influence soil microbial communities and associated soil C and N processes is through changes in the total amount of belowground OM input (Bardgett and Wardle, 2010). For example, increasing plant diversity has been found to enhance soil microbial community biomass, microbial respiration, decomposition rate of labile C pool and net N mineralization, which is largely ascribed to increased biomass production associated with greater plant diversity (Dijkstra et al., 2005; Lange et al., 2015;Zak et al., 2003). Another way is through changes in the quality of below-ground input that is closely related to the characteristics of added plant species (Bardgett and Wardle, 2010). For example, legumes with high root quality (e.g. low root C/N or lignin/N ratio) are often found to have higher soil microbial biomass, activity of soil enzymes (e.g. β -glucosidase) and soil N mineralization rate than non-leguminous forbs and grasses (Dijkstra et al., 2006;Fornara et al., 2009).

Our recent study has shown that inclusion of plantain enhanced annual herbage yield (by 10–14%) and root biomass (by 20–44%) of ryegrass (Lolium perenneL.)-red clover (Trifolium pratenseL.) mixtures, while inclusion of caraway maintained the similar herbage yield but slightly increased root biomass (by 9–12%) of ryegrass-red clover

https://doi.org/10.1016/j.soilbio.2018.03.008

Received 4 October 2017; Received in revised form 2 March 2018; Accepted 6 March 2018

∗_{Corresponding author.}

E-mail address:[email protected](W.-F. Cong).

0038-0717/ © 2018 Published by Elsevier Ltd.

mixtures (Cong et al., 2017). Moreover,Jing et al. (2017)showed that caraway herbage had the highest OM digestibility, followed by white clover and red clover, and plantain with the lowest OM digestibility. Collectively, these results suggest that including caraway and plantain in grass-clover mixtures will differentially affect the quantity and quality of belowground OM input, consequently influencing soil mi-crobial community biomass, composition and functions related to soil C and N cycling.

Apart from plant species diversity and composition, agricultural management practices have a large impact on soil microbial properties.

Bünemann et al. (2006) showed that fertilization with organic amendments such as animal manure can generally enhance soil mi-crobial biomass and activity through either direct addition of C and N sources and/or indirect influence on plant residue returns. Several studies found that plant species effect on soil microbial properties sig-nificantly differed in soils of different fertility (Bardgett et al., 1999;

Innes et al., 2004). Hence, it remains to be elucidated whether the effect of including caraway or plantain in grass-clover mixtures on soil mi-crobial properties will depend on fertilization with animal manure.

In this study, wefirst explored how inclusion of caraway or plantain influenced soil microbial properties of the ryegrass-red clover reference mixture in both fertilized (applied as cattle slurry) and unfertilized treatments. Then, we examined how these differences, if any, were related to herbage biomass, root biomass and root quality. We hy-pothesized that (1) adding caraway or plantain to the reference mixture influences soil microbial community biomass and microbial C and N cycling through changes in root C input and quality; and (2) fertiliza-tion weakens these forb-induced effects on soil microbial properties.

2. Materials and methods

2.1. Experimental site and treatments

A three-year grassland experiment was established in spring 2013 in the long-term (since 1987) organic dairy crop rotation at the Foulumgaard Experimental Station, Aarhus University, Denmark (Eriksen et al., 2015). The preceding crop in 2012 was winter rye. The experimental site was situated on a loamy sandy soil, classified as a Typic Hapludult with 6.4% clay, 8.5% silt, 44% fine sand and 39% coarse sand. The soil had a pH of 5.9, and contained 2.0% organic C and 0.17% total N. The annual mean temperature and annual precipitation in 2013–2015 were 7.8, 9.5 and 8.6 °C, and 636, 853 and 904 mm, respectively.

The experiment was laid out as a completely randomized block design with species composition and fertilization as the twofixed fac-tors, and with three replicates. The plant species composition consisted of four pure stands (perennial ryegrass,Lolium perenneL.; red clover,

Trifolium pratense L.; caraway, Carum carviL. and plantain, Plantago lanceolata L.), one binary stand (the ryegrass-red clover reference mixture) and two three-species stands (ryegrass-red clover-caraway and ryegrass-red clover-plantain mixtures). Two levels of cattle slurry (0 and 250 kg total N ha−1_yr−1_{with 52% NH}

4+-N) were applied across

all stands. In total, we had 42 plots with the plot size of 8 m length × 1.5 m width. In each plot, 10 rows of seeds (0.12 m row dis-tance) were sown by machine in May 2013. Adjacent plots were sepa-rated by a 0.3 m buffer.

The sowing proportions of plant species are 50:50 for the binary mixture and 20:20:60 for the three-species mixtures. Optimum seed rates in pure stands were 15, 4, 12 and 12 kg ha−1_{for perennial}

rye-grass, red clover, caraway and plantain, respectively. The seed rate of each species in a mixture was calculated by multiplying the seed rate of the species in its pure stand with the sowing proportion of the species in the respective mixture. Cattle slurry was applied four times during the growing season in both 2014 and 2015; with 100 kg N ha−1_yr−1_{at the}

beginning of the growing season and 50 kg N ha−1_yr−1_immediately

after the first, second and third harvests. All plots received a one-off

200 kg K ha−1 (K2SO4) application to avoid potassium and sulphur

deficiency. In dry periods of the growing seasons, 50-60 mm irrigation was applied.

2.2. Soil sampling and soil chemical properties

Just prior to the third harvest in mid-August 2015, eight soil cores (2 cm inner diameter) per plot were taken to a depth of 10 cm. Soil cores were taken randomly in three mixed stands. Given that 12-41% of biomass yields were occupied by weeds across four pure stands, soil cores were thus taken adjacently to the sown plant species in pure stands meanwhile avoiding weed patches to minimize the side effects from weeds. The samples were pooled, transferred to the lab and sieved on a 4 mm-size mesh screen to remove larger roots, animals and stones to obtain homogenized samples. A subsample was ground in a ball mill and determined by Elemental Vario EL C/N Analyzer (Hanau, Germany) to measure total C and N content. As expected, soil C, N content or soil C/N ratio did not differ between stands after just three years, but fertilization with cattle slurry significantly enhanced soil C and N content (Table S1).

2.3. Soil microbial community biomass and composition

The phospholipid fatty acids (PLFAs) analysis is a rapid and sensi-tive method to detect broad shifts in soil microbial community that regulate soil C and N cycling (Bardgett et al., 1999;Frostegård et al., 2011). The principle of the PLFAs method is that it creates afingerprint of the community structure using lipids of microbial membranes as biomarkers for specific microbial groups (Zelles, 1999). The total con-centration of PLFAs can also be used as a measure of viable microbial biomass (Zelles et al., 1997). On the same day of soil sampling, about 2 g moist soil was subsampled from each of the treatments. The PLFAs were then extracted using the same procedure described byPetersen et al. (2002). In brief, fatty acids werefirst extracted using a modified single-phase Bligh-Dyer extraction approach. Phospholipids were then isolated by solid phase extraction, followed by alkaline trans-ester-ification converting ester-linked fatty acids to the corresponding methyl esters. An internal standard (13:0 Me/19:0 Me) was included for quantification of PLFAs. In total, 19 PLFAs (> 0.3%) were identified and subsequently classified into specific microbial groups: gram-posi-tive bacteria, gram-negagram-posi-tive bacteria, actinomycete, fungi and non-specific group (Table 1). Given that many PLFAs are found to be non-specific and common across taxa (Ruess and Chamberlain, 2010;

Frostegård et al., 2011), only widely accepted biomarkers are cau-tiously selected to represent the corresponding microbial groups in this study.

2.4. Soil microbial functions related to C and N cycling

2.4.1. Laboratory soil respiration

Microbial respiration was determined using the procedure described

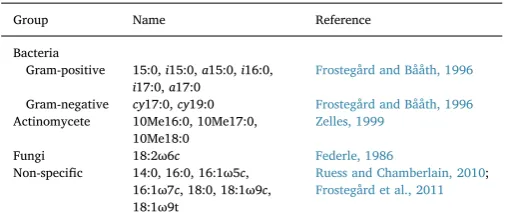

Table 1

List of 19 identified PLFAs with classification into specific microbial groups.

Group Name Reference

Bacteria

Gram-positive 15:0,i15:0,a15:0,i16:0, i17:0,a17:0

Frostegård and Bååth, 1996

Gram-negative cy17:0,cy19:0 Frostegård and Bååth, 1996 Actinomycete 10Me16:0, 10Me17:0,

10Me18:0

Zelles, 1999

Fungi 18:2ω6c Federle, 1986

Non-specific 14:0, 16:0, 16:1ω5c, 16:1ω7c, 18:0, 18:1ω9c, 18:1ω9t

by Cong et al. (2014). In brief, about 30 g sieved moist soil was in-cubated in a 250 ml jar closed with a cotton plug at 20 °C over 112 days. Soil sample was kept at 60% of water holding capacity by supplying deionized water every week. The production of carbon dioxide (CO2)

was measured five times: on days 2, 7, 14, 56, 112 after filling the bottles. On each date, two headspace samples in the begininng and after 4 h (days 2, 7, 14) or 24 h (days 56, 112) incubation were analyzed for CO2on the Micro GC 3000 Gas Analyzer. Daily soil respiration rate was

calculated by determining the difference in CO2 concentrations

be-tween the two samples. To assess the decomposition rate of labile and recalcitrant C pools, daily respiration rate wasfitted to a two-pool C model (Dijkstra et al., 2005).

= − +

Rt C kel kt c (1)

whereRtis the daily C respiration rate (mg kg−1soil d−1) at timet,Cl andkare the pool size and the relative decomposition rate (d−1) for the labile C pool andcis the absolute decomposition rate (mg kg−1_soil

d−1_{) of recalcitrant C pool. All parameters were optimized by}

mini-mizing the root-mean-square error (RMSE). The coefficient of de-termination (R2_{) between predicted and observed respiration rates was}

on average 0.965 (SD = 0.029), indicating strong reliability of this model.

2.4.2. β-glucosidase assay

β-glucosidase, as one of the most adundant extracellular enzymes, is involved in the enzymatic degradation of cellulose in soil.β-glucosidase activity is considered as an important biological indicator of soil ferti-lity (Turner et al., 2002).β-glucosidase activity was assayed by the method of Eivazi and Tabatabai (1988), using the substrate ρ -ni-trophenyl-β-D-glucoside (ρNPG). Briefly, about 2 g sieved soil was mixed with 4 ml of 0.05 M modified universal buffer (pH = 6) and 1 ml

ρNPG (25 mM) in a 10 ml tube, and then incubated in a water bath for 2 h at 20 °C. The reaction was terminated by adding 1 ml of CaCl2

(0.5 M) and 2 ml of 0.1 M Tris buffer (pH = 12). The mixture was centrifuged for 10 min at 4000 rev min−1_{and the absorbance measured}

at 400 nm. All measurements were carried out in triplicate for each soil sample and a blank. Values were corrected for a blank.β-glucosidase activity was expressed as mgρ-nitrophenol (ρNP) kg−1_{soil h}−1_.

2.4.3. Soil potential net N mineralization

Two 20-g subsamples of sieved soils were used to measure soil po-tential net N mineralization (Cong et al., 2014). In brief, one subsample was extracted immediately with 50 ml of 1 M KCl for mineral N ana-lysis. The other subsample was adjusted to 65% of water holding ca-pacity, covered with polyethylene film and incubated in the dark at 20 °C for 6 weeks. Soil moisture content was kept constant throughout the incubation period. After incubation, the subsample was extracted again for mineral N analysis. The KCl extracts werefiltered and ana-lyzed for concentrations of NH4+-N and NO3−-N using a Technicon

Auto-Analyzer III (Bran + Luebbe, Norderstedt, Germany). The soil potential net N mineralization rate (mg N kg−1_{soil d}−1_{) was calculated}

by subtracting pre-incubation soil mineral N from post-incubation soil inorganic N concentrations and dividing it by the incubation period of 42 days.

2.5. Herbage yield and root biomass

The data of herbage yield and root biomass were obtained from a parallel study conducted within the same experiment (Cong et al., 2017). Briefly, the harvests were performed four times in each of two production years (2014 and 2015). At each harvest, herbage dry matter yield was determined by cutting the herbage at 7 cm stubble height and drying ca. 500 g subsample at 80 °C. Botanical composition of plant mixtures was measured by separating ca. 300 g subsample into each of the sown species and pooled unsown species (i.e. weeds). The cumu-lative herbage biomass yield of each sown species and weeds up to soil

sampling time was calculated by summing their respective annual biomass yield in 2014 and biomass yield in thefirst three harvests in 2015. Notably, despite a higher sowing proportion (i.e. 60%), caraway and plantain represented only 18-22% and 38-41% of the cumulative herbage yield in their respective mixtures (seeFig. S1). Standing root biomass were determined immediately after the 3rd harvest in 2015 using the auger method. Roots were retrieved by washing soil samples on a 425-μm mesh and subsequent repeated decantation from a con-tainer onto the sieve (Cong et al., 2017).

2.6. Root quality parameters

Within each of the four pure stands, three individual plants of sown species were dug out up to 10 cm to obtain fresh roots. Roots were then washed, dried and ground in a ball mill. Root C and N contents were measured using Elemental Vario EL C/N Analyzer (Hanau, Germany). Lignin content of root samples was determined by the acid detergent lignin method (Van Soest, 1967). Root C/N ratio and lignin/N ratio were then calculated to indicate root quality.

2.7. Statistical analysis

The linear mixed-effects model was employed to analyze the effects of species composition and fertilization on cumulative herbage yield, soil C and N content, and microbial properties, with blocks as random effects and with species composition and fertilization asfixed effects. Differences between treatments were tested using Tukey'spost hoctest. The molar percentages (mol%) of 19 PLFAs were investigated by a principal component analysis (PCA) after log (mol% +1) transforma-tion. Relationships between herbage yield, root biomass, soil C and N content, microbial properties, and root quality parameters (i.e. C/N ratio and lignin/N ratios) were tested using simple linear regression. All analyses were performed using theRsoftware version 3.4.1.

3. Results

3.1. Species composition and fertilization effects on soil microbial properties

The effect of plant species composition on soil microbial community biomass (measured as total PLFAs) depended on fertilization at a marginal significance level (P= 0.087;Table 2): without fertilization, caraway pure stand hosted the highest microbial biomass among all stands, but this effect disappeared when slurry was applied (Fig. 1A). The similar trend was also observed for bacterial PLFAs (Fig. 1B), gram-positive bacterial, gram-negative bacterial, actinomycete and non-spe-cific PLFAs (Fig. S2). Notably, fungal PLFAs in caraway pure stand were significantly larger than the other three pure stands, independent of fertilization. In addition, inclusion of caraway significantly enhanced fungal PLFAs of the ryegrass-red clover reference mixture (Fig. 1C), consequently leading to higher fungal-to-bacterial PLFAs (Fig. 1D). In contrast, neither total PLFAs nor PLFAs from specific microbial group changed when plantain was included in the reference mixture. Fertili-zation generally enhanced total and subgroup microbial biomass, but did not affect fungal-to-bacterial PLFAs.

reference mixture along PC2, mainly by increasing the perecentage of non-specific PLFAs, such as 14:0, 16:0 (Fig. S3). In contrast, fertilization generally weakened the differences in soil microbial community com-position between stands, evidenced by a tendency of convergence to-wards origin (Fig. 2B).

The effect of species composition on the relative decomposition rate of the labile C pool (k) also depended on fertilization (P= 0.078 at a marginal significance level;Table 2). Without fertilization,kwas higher in pure stands of red clover and caraway than those of ryegrass and plantain (Fig. 3A). Adding plantain to the reference mixture led to a significantly higherk. The absolute decomposition rate (c) of the re-calcitrant C pool was significantly enhanced by fertilization, but did not differ between all stands (Fig. 3B).

Regardless of fertilization,β-glucosidase activity significantly dif-fered between stands (P= 0.037;Table 2), with pure stand of caraway being significantly higher than ryegrass pure stand and all the mixtures (Fig. 3C). Inclusion of either caraway or plantain did not significantly affectβ-glucosidase activity in soils of the reference mixture. A similar trend was observed for net N mineralization rate, except that pure stand of red clover had significantly higher N mineralization rate than that of ryegrass (Fig. 3D). The differences in net N mineralization rate were largely attributed to those in net ammonification rate rather than net nitrification rate (Fig. S4). Fertilization significantly enhanced net N mineralization rate by 21% (P< 0.001;Table 2), with net nitrification rate accounting for the most increase.

Table 2

Pvalues for analysis of variance (ANOVA) for the main and interactive effects of fertilization and species composition on soil microbial community biomass, composition and functions.

Soil microbial properties Fertilization Species composition Fertilization × Species composition

Biomass Total PLFAs < 0.001*** 0.180 0.087†

Composition Bacterial PLFAs < 0.001*** 0.710 0.089†

Fungal PLFAs 0.090† < 0.001*** 0.940

Fungal-to-bacterial PLFAs 0.990 0.002** 0.990

Gram-positive (G+_{) bacterial PLFAs 0.002** 0.840 0.033*} Gram-negative (G−) bacterial PLFAs < 0.001*** 0.200 0.760

Actinomycete PLFAs 0.039* 0.059* 0.003**

Non-specific PLFAs 0.002** 0.24 0.230

Functions

(C and N cycling)

Decomposition rate of labile C pool (k) < 0.001*** 0.068† 0.078†

Decomposition rate of recalcitrant C pool (c) < 0.001*** 0.370 0.360

β-glucosidase activity < 0.001*** 0.037* 0.710

Net N mineralization rate < 0.001*** 0.003** 0.300

Net ammonification rate 0.290 < 0.001*** 0.950

Net nitrification rate < 0.001*** 0.066† 0.017*

***P< 0.001; **P< 0.01; *P< 0.05;†P< 0.1.

3.2. Correlations between soil properties, herbage yield, root biomass and root quality parameters

Cumulative herbage yield significantly differed between stands (P< 0.001, Fig. S1). Inclusion of plantain significantly enhanced herbage yield of the reference mixture, while the same pattern was also observed for root biomass (seeFig. 4inCong et al., 2017). Surprisingly, neither herbage yield nor root biomass significantly correlated with any of soil chemical or microbial variables, except for a positive correlation

between herbage yield andk(Table 3). In contrast, soil C content po-sitively correlated with soil microbial biomass (total PLFAs) and mi-crobial functions related to C cycling, such ask,c, andβ-glucosidase activity (Table 3).

Total PLFAs and bacterial PLFAs positively correlated with micro-bial C cycling (i.e.k,candβ-glucosidase activity). Interestingly, fungal PLFAs positively related tokrather thanc, suggesting that the fungal PLFAs mainly mediated C cycling of labile C pool. As expected, there were good correlations between microbial C cycling and microbial N Fig. 2.Principal component (PC) analysis of molar percentage (mol%) of 19 identified PLFAs after log (mol% +1) transformation without (A) and with (B) fertilization. Along thefirst two components, the mean scores ( ± SE) from four pure and three mixed stands are presented. The loading of individual PLFAs are presented by their names. Note the loadings of PC1 and PC2 were both multipled by eight for clearer presentation. Abbreviations can be referred toFig. 1.

cycling (i.e. net N mineralization).

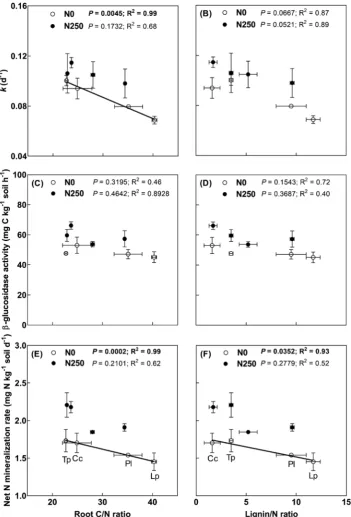

Root quality parameters significantly differed between plant species (Table 4). Overall, red clover and caraway had higher root N content, lower root C/N ratio, lower lignin content, and lower lignin/N content than ryegrass and plantain. Fertilization hardly influenced root quality parameters of red clover, caraway and plantain, but significantly en-hanced root N content and reduced root lignin content of ryegrass. As expected, we found (marginally) significant negative correlations be-tween root quality parameters (root C/N and lignin/N ratios) and mi-crobial C and N cycling (i.e.kand net N mineralization) (Fig. 4).

4. Discussion

We demonstrated that adding forb species (caraway or plantain) to grass-clover mixtures influenced soil microbial community composition and associated C and N cycling. But these effects differed between the two forbs. Specifically, inclusion of caraway in the ryegrass-red clover reference mixture significantly increased fungal PLFA (18:2ω6c) but decreased certain gram-positive bacterial PLFAs (i15:0, a15:0 and

i17:0), thereby enhancing fungal-to-bacterial PLFAs (Figs. 1 and 2). Fungi have higher C utilization efficiency and lower ecosystem N losses (e.g. leaching) than bacteria (de Vries and Bardgett, 2012; Six et al.,

2006). Hence, higher fungi:bacteria ratio and enhanced root biomass in ryegrass-red clover-caraway mixtures (Cong et al., 2017) jointly suggest that maintaining at least a modest biomass fraction of caraway (18-22% in this study) in grass-clover leys can potentially enhance agricultural sustainability in terms of increasing C sequestration and reducing N losses in soil. In contrast, adding plantain to the reference mixture did not significantly shift fungal PLFAs or fungi:bacteria ratio (Fig. 1), al-though it increased the abundance of certain non-specific PLFAs (Fig. 2). Importantly, inclusion of plantain in the reference mixture accelerated the relative decomposition rate (k) of labile C pool (Fig. 3), which could partly conteract the benefit of plantain in enhancing long-term soil C sequestration through enhanced root biomass (Cong et al., 2017).

4.1. Mechanisms underlying enhanced fungi:bacteria ratio by adding caraway

Plant species can considerably modify soil microbial community composition through changes in the quantity, variety and quality of plant-derived organic substrates (Bardgett et al., 1999;Grayston et al., 1998;Hartmann et al., 2009). Several studies have shown an enhanced fungi:bacteria ratio upon the addition of labile C sources and suggested that increased abundance of fungi belong to a fast-growing fungal group that specializes in metabolizing relatively large amounts of labile C-rich substrates (Broeckling et al., 2008; Chigineva et al., 2009;de Graaffet al., 2010).Denef et al. (2009)further revealed that the fast-growing fungi were very active in processing plant-derived labile C sources since the greatest13_{C enrichment was observed in fungal}

bio-marker PLFAs. Our study showed that caraway had high root quality evidenced by low C/N ratio and lignin/N ratio (Table 4), and that low C/N ratio was positively related to the relative decomposition rate (k) of labile C pool (Fig. 4). Moveover, fungal PLFAs were found to posi-tively correlate with k rather than c, the decomposition rate of

recalcitrant C pool (Table 3). These results suggest that caraway en-hanced fungal PLFAs and fungi:bacteria ratio of the reference mixture probably through feeding fungi with labile C sources derived from caraway roots. Further work requires direct demonstration of the uti-lization of plant-derived labile C sources by fungi using stable isotope probing of PLFAs (Treonis et al., 2004) as well as detailed investigation of fungal community composition using molecular techniques such as high-throughput 18S rDNA and ITS gene pyrosequencing (Anderson and Cairney, 2004).

4.2. Mechanisms underlying enhanced C cycling of the labile C pool by adding plantain

Substrate quality is a key factor in influencing decomposition rate of organic matter (Swift et al., 1979). We observed the lowest decom-position rate in ryegrass pure stand, which was probably attributed to low root quality of ryegrass (Table 4). In addition, adding plantain substantially reduced ryegrass biomass of grass-clover mixture (Fig. S1), which thus would increase overall quality of belowground C input. Consequently, this may lead to increased decomposition rate of labile C pool in plantain-containing mixtures. This is in agreement with the biomass ratio hypothesis (Grime, 1998), which proposes that ecosystem processes in a plant community are determined by the functional traits of plant species and its abundance.

Another possible mechanism could be due to the synergistic effect occurring during decomposition of litter mixtures (Hättenschwiler et al., 2005). For example, Vachon and Oelbermann (2011)showed enhanced decomposition rate of N-poor residue of maize when mixed with N-rich residue of soybean because N mineralized from soybean can be transferred to maize to facilitate decomposition. This ‘N transfer’ mechanism may also work between N-rich red clover and N-poor plantain, which requires further examination.

4.3. Fertilization and soil fertility mediated the forb-induced changes in soil microbial properties

We found that fertilization generally enhanced microbial biomass and C and N cycling. As expected, fertilization weakened the forb-in-duced effects on soil microbial properties. However, in contrast with previous findings from several grassland biodiversity experiments (Dijkstra et al., 2005;Lange et al., 2015;Zak et al., 2003), we found that enhanced herbage yield and root biomass in plantain-containing mixtures compared to grass-clover mixtures did not lead to a concurrent increase in soil microbial biomass,β-glucosidase activity or soil N mi-neralization rate. This could be explained by higher soil fertility (2% soil organic C) in this study, which may have masked the forb-induced Table 3

Pearson's correlation coefficients (r) among herbage yield, root biomass, soil chemical properties and soil microbial community biomass, composition and functions.

§_{Parameters Herbage}

yield

Root biomass

Soil C Soil N Soil C/N Total PLFAs

Bacterial PLFAs

Fungal PLFAs

Fungal/ Bacterial

k c β-glucosidase Net N min

Herbage yield 0.65*** 0.11 0.07 0.04 −0.01 0.04 −0.13 −0.16 0.33* 0.27 0.13 0.13

Root biomass 0.14 0.08 0.14 −0.02 −0.04 0.11 0.17 0.22 0.06 −0.04 −0.17

Soil C 0.75*** 0.07 0.45** 0.25 0.14 −0.06 0.33* 0.67*** 0.54*** 0.29†

Soil N −0.32* 0.39* 0.16 0.05 −0.10 0.28†0.51*** 0.48** 0.09

Soil C/N −0.08 0.12 0.00 −0.04 −0.01 0.08 −0.04 −0.10

Total PLFAs 0.46** 0.30† 0.09 0.10 0.34* 0.52*** 0.18

Bacterial PLFAs 0.23 −0.08 0.32* 0.47** 0.47** 0.22

Fungal PLFAs 0.92*** 0.40**0.25 0.32* 0.10

Fungal/Bacterial 0.26†0.02 0.11 0.04

k 0.49*** 0.42** 0.39*

c 0.63*** 0.48**

β-glucosidase 0.39*

Net N min.

§k, decomposition rate of labile C pool;c, decomposition rate of recalcitrant C pool; Net N min, net soil N mineralization rate. Asterisks indicate the significance test of the correlations: ***P< 0.001; **P < 0.01; *P< 0.05;†P< 0.1.

Table 4

Root quality parameters of the four sown plant species. The standard errors for the means were shown in brackets.

Plant species Root C/N ratio Root lignin/N ratio

N0 N250 N0 N250

Ryegrass 40.3 (0.5)a _{28.0 (0.4)}b _{11.7 (0.7)}a _{5.2 (0.9)}b Red clover 22.7 (0.2)b _{22.9 (0.1)}c _{3.5 (0.2)}b _{3.5 (0.2)}c Caraway 24.9 (2.9)b _{23.7 (0.2)}c _{1.6 (0.8)}b _{1.7 (0.4)}d Plantain 35.1 (2.8)a _{34.4 (0.2)}a _{9.5 (1.5)}a _{9.6 (0.2)}a

effects on soil microbial properties. Indeed, our results showed that soil C and N content, rather than herbage yield and root biomass, positively correlated with soil microbial biomass and associated C and N cycling (Table 3).

In conclusion, our study provides thefirst evidence that inclusion of certain forb species such as caraway and plantain differentially infl u-enced soil microbial properties of unfertilized ryegrass-red clover leys, and the differences were probably driven by the quality of soil C input rather than its quantity. Thesefindings suggest that including caraway and plantain into grass-clover mixtures holds potential for enhancing long-term soil C sequestration and ecosystem N retention, but has a limited role in improving soil N fertility, especially in relatively fertile soils. Yet, these results were obtained based on just one sowing pro-portion (i.e. 60%) of forbs sown with grass-clover leys. Future studies are needed to investigate the range of forb proportions, over which these forb-induced effects on soil microbial properties are evident, and to quantitively understand their potential roles in the build-up of soil C stocks and soil fertility in agricultural grasslands.
