Smart Waste Management using Internet of Things (IoT)

International Journal of Innovative Technology and Exploring Engineering (IJITEE) ISSN: 2278-3075, Volume-8 Issue-9, July 2019

Smart Waste Management using Internet-of-Things

(IoT)

Chitluri Sai Srikanth, Tadivaka Bhupathi Rayudu, Javvaji Radhika, Raju Anitha,

Abstract—A basic test in the urban systems is that of waste organization as there is a vivacious improvement in the rate of urbanization and along these lines there is a need of sensible urban advancement structures. As sharp urban systems is especially floating nowadays and the amazing urban zones is over the top without capable waste connection structure. There should be structure that gives earlier data of the filling of the store that alarms the territory so they can clean the holder on time and shield the earth. To avoid each such condition, we plan to propose a reaction for this issue "Sharp Garbage Bin", which will alert and set up the maintained individual when the waste compartment will fill. By then message will be send to the gotten a handle on individual to amass the hardship from the specific territory. The announced individual will send the message from his web application to the waste specialists by sending a SMS. In this undertaking we use strain check to know the burglary of the report. This will diminish the flood of the waste compartment and suitably keeping nature clean.

Keywords—IoT, LoRa, Solid Waste Management, Smart City, MQTT, Cloud, Data Analytics.

I. INTRODUCTION

Internet of Things (IoT) is another correspondence point of view anticipated as a general course of action of physical articles and contraptions being able to talk with one another. It incorporate a course of action of physical articles, gadgets, machines, homes, etc, furnished with hardware, sensors, programming and structure openness with fitting custom stacks that makes them arranged to amass and exchange information with each other [1, 2, 3]. In IoT, a 'thing' can be any trademark or fake things that can be amazingly related to numbers, names or addresses and equipped with the capacity to share information over the system. Today, IoT is growing astonishing idea in two or three associations and has been known as a victor among the most encouraging areas of future advancement [4, 5]. For example, IoT veritable inspiration for undertakings is achievable when related gadgets can cooperate and encourage with their frameworks and activities. With the incident to IoT, the has seen contraptions enlargement and these new time of IoT gadgets have been named 'wise', having the capacity to distinguish, figure, inspect, and solidify adequately with the wrapping condition . Shrewd contraptions are inserted with hardware considered as significant swarm and heterogeneous in nature concerning future, asset limits and correspondence degrees of progress. Besides, these sharp gadgets have predicted to outflank the measure of other commendable gadgets in getting to the Internet at the earliest opportunity [6].

Revised Manuscript Received on July 09, 2019.

Chitluri Sai Srikanth, Koneru Lakshmaiah Education Foundation, Vaddeswaram, Guntur district, Andhra Pradesh, India.

Tadivaka Bhupathi Rayudu, Koneru Lakshmaiah Education Foundation, Vaddeswaram, Guntur district, Andhra Pradesh, India.

Javvaji Radhika, Koneru Lakshmaiah Education Foundation, Vaddeswaram, Guntur district, Andhra Pradesh, India.

Raju Anitha, Assistant Professor, Department of Computer Science and Engineering, Koneru Lakshmaiah Education Foundation, Vaddeswaram, Guntur district, Andhra Pradesh, India.

Specifically, has evaluated that 26 billion impressive gadgets will be connected over the Internet by 2020. After a short time, the application conditions driven by IoT are in ordinary checking, sharp coordinated efforts, vehicle and wonderful flexibility, astute centrality and clever structure, insightful urban systems and frameworks, helpful organizations, video perception, vigilant home, sharp waste association and amazing metering [7][8]. Thusly, IoT quality lies in the high effects it made in the well ordered life and the potential client's immediate.

In the point of view of the use of IoT in adroit urban systems, squander the board is a major zone that is generally tended to. As individuals is dependably developing, constantly squander is made well ordered in the condition. Regardless, one of the key difficulties in urban regions is the fragility to successfully deal with these squanders. The ways to deal with oversee administer squanders are astoundingly obliged and require much human endeavors or mediations. Thusly, two or three governments or affiliations don't be able to screen and track the reliably time of squanders in urban domains and individuals are then compelled to live in unfortunate conditions. Accordingly, it is essential to keep a perfect space in context on the effects it has on the nature of the comprehensive network and notoriety of the whole city. With the obstructions of human interventions in managing waste issues in urban systems, IoT-connect strategy, for example, Lower-Power Wide Area Network (LPWAN) utilizing long range (LoRa) progression rose as proper plans. LoRa is an IoT progression which is remote, since quite a while back ran, low power and used radio range that is unlicensed in the mechanical, authentic, and helpful radio band (ISM) band. It is viewed as canny, dispose of repeaters, pull out gadget battery future, improve plan execution, and bolster related heterogeneous gadgets . With LoRa, a couple IoT-connected with blueprints have been made in the association of squanders in urban zones. These strategies has its very own uncommon plan, operational methodology, qualities and shortcomings.

II. LITERATURE SURVEY

Kumar et al. [9] in their work proposed an IoT-based unbelievable waste clean association structure where sensor frameworks are utilized to steadily checking the waste component of the garbage canisters. In this methodology, when the waste estimation over the dustbins is recognized, the framework along these lines cautions the embraced individual by strategies for GSM/GPRS. They structure works by utilizing microcontroller which gives interface between the sensor and the GSM/GPRS framework. Also, an Android application is utilized to screen and join the important data identifying with the unmistakable component of waste found in various zones. With this framework, another client can basically choose on the structure and not simply the manager. Regardless, anybody can make a record and the framework likewise surrender access to clients not expected for. This framework can be improved by setting two holders to self-rulingly collect dry and wet squanders. For this situation, the wet waste can be moreover masterminded and be utilized for the period of biogas, made intense by making it insignificant and fiscally astute.

Abdullah et al. [10] built up a sharp reject watching framework which is utilized in the estimation of deny level ceaselessly and cautions the fitting expert through SMS writings. The framework is wanted to screen the waste holder and send the messages as alerts when perceived to be full or in every way that really matters full to help its evacuation of the compartment on time. The centrality of the structure is to improve the ability of strong waste trade the executives dependably. In any case, the downside is that the notice of the storehouses' status avoids the zone of the holder or its orientation, making it badly arranged to find and amass the waste canisters in a brief moment.

Prajakta et al. [11] proposed a garbage storing up framework that is adjusted having data gathering structure subject to the arranging of pictures taken and GSM module. To accomplish this point of confinement, the framework utilizes a camera which is set at each position where rubbish is amassed close to a stack cell sensor orchestrated at the base of the waste holder. For this situation, the camera will constantly takes surveys of the reject holder while the stack cell sensor takes the weight to pick whether full or not. Besides, an edge level is set which is utilized to separate the result of the camera and weight sensor. Exactly when the edge is practiced, the controller transmit a message by strategies for the GSM module to the suitable master urging them that the junk holder is full and ought to be engineered. Reasonably, the waste archive total vehicle is dispatched to gather the deny utilizing a robot instrument. In any case, catch is that the camera takes pictures all through disregarding the manner in which that its purpose of constrainment is come to in any case just contemplates the latest to pick gathering. As requirements be, the use of camera is senseless or unessential.

Chaware, et al. [12] proposed a waste get-together structure considered imaginative to help with keeping urban domains clean. The structure works by watching rubbish stores and tell the experts and the waste collection vehicles about the part of garbage set away or contained in the reject holder through a web application. Regardless, the framework utilizes ultrasonic sensors in which their distinctive precision can be affected by changes in temperature. In addition, it utilizes WiFi which is inherently a short range alliance

instrument. From this time forward, these disadvantages sway the ideal execution of the structure.

Kalpana, et al. [13] proposed a sharp canister the authorities framework which stores the majority of the bits of information concerning the dustbins and their district on the server. In this framework, the clients are responsible for checking the segment of the misfortune in the holder correspondingly as sending such data to the server. The subtleties are gotten to by the proper experts at the not actually charming end by techniques for the Internet and quick reaction can be started to arrange the vault of the waste. In this structure the canister must be washed down when a client sends the status of the holder to the server through an adaptable application. Thusly, the damage is that concerned masters can't screen the waste estimation unendingly yet rather need to monitor things for messages. In like way, if a client is unfit to send the message it proposes that nature will be verified with waste when the holder is full.

MohdHelmyAbdWahab et al. have proposed the likelihood of a "Talented Recycle Bin" that utilizes RFID imprints to recognize the character of the individual flinging the deny. RFID based (or any ID card based) structures are implausible to finish on a city wide condition as it is unreasonable to think each individual will pass on his RFID card dependably at whatever point he needs to engineer a type of waste into a trash holder. Besides, their framework has no game-plan for sending the information to the cloud [14].

C.K.M. Lee and Trevor Wu have endeavored to understand a waste association structure in Hong Kong [15]. Their framework utilizes GPRS to send the sensor information to a flexible application over the cloud. This is again not attainable as fitting GSM modules to the majority of the dustbins of a city and guaranteeing that GPRS information is accessible to the majority of the canisters is preposterous.

Reviewing the weaknesses of the above frameworks, we are proposing an "IoT based strong waste association structure" with an assistant game-plan giving a hard and fast review of the framework level arrangement, square estimation building, and a convention stack, which can be executed and scaled on a city wide estimation missing much hindrances.

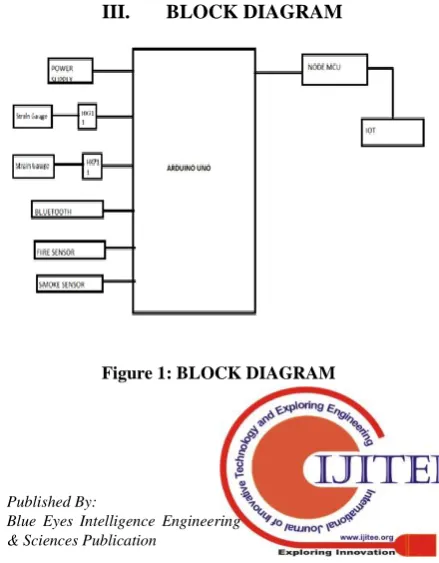

III. BLOCK DIAGRAM

International Journal of Innovative Technology and Exploring Engineering (IJITEE) ISSN: 2278-3075, Volume-8 Issue-9, July 2019

IV. HARDWARE USED

 Power Supply

 HX711 Strain gauge drivers(x2)  EC05 Bluetooth Module  Arduino Uno Micro Controller  Node Mcu

 L393 Comparator  Smoke sensor

Power Supply

The control we get is 230v cooling . We need to change over into unadulterated DC.

For that reason we are utilizing experience down transformer and rectifiers.

Power supply: 12v,5v out(DC) Power supply:12v,0v,12v in(AC)

We are utilizing experience down transformer so as to change over 230v to 12v.

We are utilizing diodes which are utilized for one way transmission.

7805 voltage controller changes over 12v to 5v. We need to change over current to unadulterated DC.

HX711 Strain gauge drivers(x2)

These strain check drivers are utilized to change over the qualities which are gotten from weight sensors.

HX711 utilizes the likelihood of wheatstone interface. The values which are gotten from weight sensors are in

microns ,so these strain checks are utilized to change over these attributes from microns to kilograms(kgs).

Further these attributes are presented to Arduino through silver channel for further correspondence..

Figure 2: HX711 Strain gauge drivers(x2)

EC05 Bluetooth Module

EC05 Bluetooth module is utilized to give among equipment and programming.

We are making an application which is utilized to keep a solid track on the majority of the compartments.

Each house and its compartments are named QR code. We use application so as to channel QR code and give the

practically identical through bluetooth to outfit. This module is utilized in two way correspondence.

Figure 3: EC05 Bluetooth Module

V. ARDUINO UNO MICRO CONTROLLER

The Arduino UNO is an open-source microcontroller board dependent on the Microchip ATmega328P microcontroller and made by Arduino.

The board is furnished with sets of front line and fundamental information/yield (I/O) sticks that might be interfaced to different development sheets (shields) and unmistakable circuits.

The board has 14 Digital pins, 6 Analog pins, and programmable with the Arduino IDE through a sort B USB associate.

It can be empowered by a USB associate or by an outside 9 volt battery, at any rate it perceives voltages some spot in the extent of 7 and 20 volts.

The information that gets into Arduino is PWM (pulse width rule) type.

Reset get is utilized to reset the entire contraption.

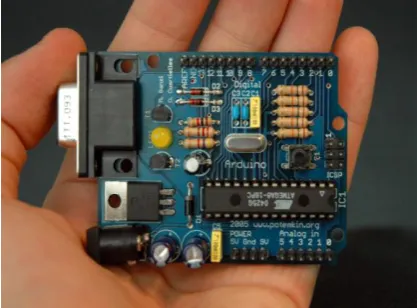

Figure 4: Arduino Uno Micro Controller

Node MCU

Node MCU is an open source IOT compose.

The chip utilized in this module is esp8266 which is utilized to exchange the information to the helpful application.

We are utilizing a stage called UBIDOTS where we can have a graphical illumination of our whole module. For the reason we are making hotspot and by utilizing the

Figure 5: Node MCU

L393 Comparator

This photodiode goes about as a flame sensor.

The values for this comparator are 0 and 1.1 addresses fire.

Whenever there is credibility of getting fire in the dustbin, By then this can be utilized to see the flame and can send data to Arduino.

The information from Arduino is likewise exchanged to adaptable application.

Figure 6: L393 Comparator

 Smoke sensor

This sensor is utilized to perceive smoke in the holder. If there is credibility of smoke then it will indicate higher

qualities.

The default a helper for this sensor is 400.

If there is an open entryway for smoke then the respect expands very much arranged and can be seen in ubidots. Further we can have a graphical delineation for this

sensor.

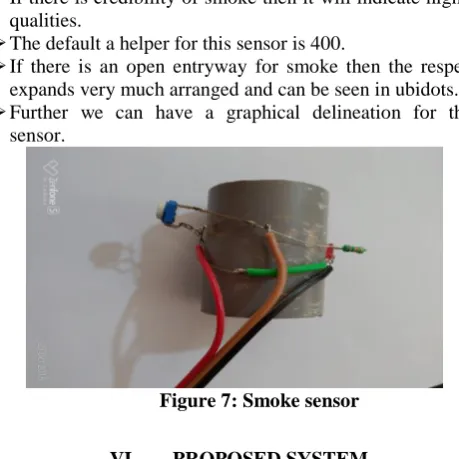

Figure 7: Smoke sensor

VI. PROPOSED SYSTEM

“Sharp Garbage Bin” is used in this paper. These sensors are used at the garbage bins to find the weight and height of the garbage in the dustbin. Calculation of the abnormal behaviour present in the dustbin can be identified based on the steps given below.

Step-1: There are mainly used 2 sensors. Step: 2 the threshold T value at every sensor is 0. 0-Means the normal stage

1-Abnormal stage at the bins. if (T=0)

then System.Println(“Normal Stage”) else

System.Println(“Abnormal Stage”)

The sensors identified the abnormal behaviour such as smoke sensors and weight of the bin. If the weight of the bin is more than the capacity of the bin then the sensors send message to the cloud server. An alert system is implemented in this paper, to get the alerts if any abnormal behaviour happened in the bin. All the sensors connect with the wifi present near to the bin and take the data and messages pass to the server.

International Journal of Innovative Technology and Exploring Engineering (IJITEE) ISSN: 2278-3075, Volume-8 Issue-9, July 2019

VII. CONCLUSION

We showed a sharp waste social event structure. The structure depends upon IoT recognizing model. It is responsible for surveying the waste estimation in the dustbins and later sends this information (through Internet) to a server for farthest point and dealing with. This information figures the overhauled collecting courses for the experts. In future, we should need to improve the structure for various sort of squanders, explicitly strong and fluid squanders. By understanding this errand we can maintain a strategic distance from the pollution realized by dustbins and additionally shocking smell can be decreased or avoided in light of social event the hardship before its rot.

We have executed waste association framework by utilizing sharp dustbins to check the segment of impressive dustbins paying little notice to whether the dustbin are full or not. In this framework when garbage is full the data is send to the insisted individual. By executing this proposed framework we can build up the sharp city thought and cost is reduced. By the productive utilization of sharp dustbins can the advantage is advanced. This framework diminishes the improvement in the awe inspiring city, with the target that condition will be cleaned.
