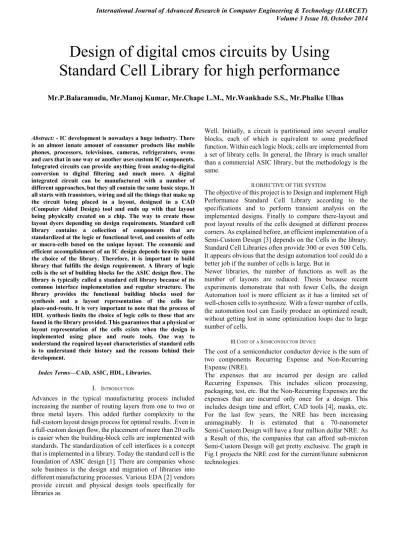

Design of digital cmos circuits by Using Standard Cell Library for high performance

(1)

Abstract: - IC development is nowadays a huge industry. There is an almost innate amount of consumer products like mobile phones, processors, televisions, cameras, refrigerators, ovens and cars that in one way or another uses custom IC components. Integrated circuits can provide anything from analog-to-digital conversion to digital filtering and much more. A digital integrated circuit can be manufactured with a number of different approaches, but they all contain the same basic steps. It all starts with transistors, wiring and all the things that make up the circuit being placed in a layout, designed in a CAD (Computer Aided Design) tool and ends up with that layout being physically created on a chip. The way to create these layout dyers depending on design requirements. Standard cell library contains a collection of components that are standardized at the logic or functional level, and consists of cells or macro-cells based on the unique layout. The economic and efficient accomplishment of an IC design depends heavily upon the choice of the library. Therefore, it is important to build library that fulfills the design requirement. A library of logic cells is the set of building blocks for the ASIC design flow. The library is typically called a standard cell library because of its common interface implementation and regular structure. The library provides the functional building blocks used for synthesis and a layout representation of the cells for place-and-route. It is very important to note that the process of HDL synthesis limits the choice of logic cells to those that are found in the library provided. This guarantees that a physical or layout representation of the cells exists when the design is implemented using place and route tools. One way to understand the required layout characteristics of standard cells is to understand their history and the reasons behind their development.

Index Terms—CAD, ASIC, HDL, Libraries. I. INTRODUCTION

Advances in the typical manufacturing process included increasing the number of routing layers from one to two or three metal layers. This added further complexity to the full-custom layout design process for optimal results. .Even in a full-custom design flow, the placement of more than 20 cells is easier when the building-block cells are implemented with standards. The standardization of cell interfaces is a concept that is implemented in a library. Today the standard cell is the foundation of ASIC design [1]. There are companies whose sole business is the design and migration of libraries into different manufacturing processes. Various EDA [2] vendors provide circuit and physical design tools specifically for libraries as

Well. Initially, a circuit is partitioned into several smaller blocks, each of which is equivalent to some predefined function. Within each logic block; cells are implemented from a set of library cells. In general, the library is much smaller than a commercial ASIC library, but the methodology is the same.

II.OBJECTIVEOFTHESYSTEM

The objective of this project is to Design and implement High Performance Standard Cell Library according to the specifications and to perform transient analysis on the implemented designs. Finally to compare there-layout and post layout results of the cells designed at different process corners. As explained before, an efficient implementation of a Semi-Custom Design [3] depends on the Cells in the library. Standard Cell Libraries often provide 300 or even 500 Cells. It appears obvious that the design automation tool could do a better job if the number of cells is large. But in

Newer libraries, the number of functions as well as the number of layouts are reduced. Thesis because recent experiments demonstrate that with fewer Cells, the design Automation tool is more efficient as it has a limited set of well-chosen cells to synthesize. With a fewer number of cells, the automation tool can Easily produce an optimized result, without getting lost in some optimization loops due to large number of cells.

III.COST OF A SEMICONDUCTOR DEVICE

The cost of a semiconductor conductor device is the sum of two components Recurring Expense and Non-Recurring Expense (NRE).

The expenses that are incurred per design are called Recurring Expenses. This includes silicon processing, packaging, test, etc. But the Non-Recurring Expenses are the expenses that are incurred only once for a design. This includes design time and effort, CAD tools [4], masks, etc. For the last few years, the NRE has been increasing unimaginably. It is estimated that a 70-nanometer Semi-Custom Design will have a four million dollar NRE. As a Result of this, the companies that can afford sub-micron Semi-Custom Design will get pretty exclusive. The graph in Fig.1 projects the NRE cost for the current/future submicron technologies.

Design of digital cmos circuits by Using

Standard Cell Library for high performance

(2)

Fig.1: cost variation with process geometry

Workstation tool cost includes the tool licenses, plus the computing hardware, network and IT support, and internal CAD tool integration expenses. One way to significantly reduce the NRE is to utilize open source CAD tools. While these tools are generally considered to be inferior to commercially available tools, the quality and capabilities of open source tools has been steadily improving over the last 5 years. Unfortunately, the quality and availability of public domain Standard Cell Libraries [5] has not kept pace with the development of design tools. This thesis is an attempt to address the growing need for Standard Cell Libraries that are intended for use with open source IC design tools. The Standard Cell Library developed in this thesis using open source software requires further verification, like fabricating the circuits into silicon and testing, before the Cells can be used for a particular Semi Custom Design. The development process initiated in this thesis is the first step in addressing the issue discussed above.

IV.SIMULATION

After the transistor level description of a circuit is completed using the Schematic Editor, the electrical performance and the functionality of the circuit must be verified using a Simulation tool. Here we have designed the various gates that are their schematic, layout and simulation is done by using cadence software [6]. The detailed transistor-level simulation of your design will be the first in-depth validation of its operation; hence, it is extremely important to complete this step before proceeding with the subsequent design optimization steps. Based on simulation results, the designer usually modifies some of the device properties (such as transistor width to length ratio) in order to optimize the performance. The initial simulation phase also serves to detect some of the design errors that may have been created during the schematic entry step. It is quite common to discover errors such as a missing connection or an unintended crossing of two signals in the schematic. The second simulation phase follows the extraction of a mask layout (post layout simulation), to accurately assess the electrical performance of the completed design. The creation of the mask layout is one of the most important steps in the full-custom (bottom-up) design flow, where the designer describes the detailed geometries and the relative positioning of each mask layer to be used in actual fabrication, using a Layout Editor. Physical layout design is very tightly linked to overall circuit performance (area, speed and power dissipation) since the physical structure determines the Trans conductance of the transistors, the parasitic capacitances and resistances, and obviously, the silicon area which is used to realize a certain function. On the

physical (mask layout) design of CMOS logic gates is an iterative process which starts with the circuit topology and the initial sizing of the transistors. It is extremely important that the layout design must not violate of the layout Design Rules, in order to ensure a high probability of defect free fabrication of all features described in the mask layout. The design flow is shown in fig.2.

Fig.2: Design flow

A) Drc, Design Rule Check:

The created mask layout must conform to a complex set of design rules, in order to ensure a lower probability of fabrication defects. A tool built into the Layout Editor, called Design Rule Checker [7] is used to detect any design rule violations during and after the mask layout design. The detected errors are displayed on the layout editor window as error markers, and the corresponding rule is also displayed in a separate window. The designer must perform DRC (in a large design, DRC is usually performed frequently before the entire design is completed), and make sure that all layout errors are eventually removed from the mask layout, before the final design is saved. Extraction: Circuit extraction is performed after the mask layout design is completed, in order to create detailed net-list (or circuit description) for the simulation tool. The circuit extractor is capable of identifying the individual transistors and their interconnections (on various layers), as well as the parasitic resistances and capacitances that are inevitably present between these layers. Thus, the extracted net-list can provide a very accurate estimation of the actual device dimensions and device parasitic that ultimately determine the circuit performance. The extracted net-list and parameters are subsequently used in Layout-versus-Schematic comparison and in detailed transistor- level simulations (post-layout simulation).

B) LVS, Layout versus Schematic Check

(3)

the LVS check only guarantees topological match: A successful LVS will not guarantee that the extracted circuit will actually satisfy the performance requirements. Any errors that may show up during LVS (such as unintended connections between transistors, or missing connections/devices, etc.) should be corrected in the mask layout before proceeding to post-layout simulation. Also note that the extraction step must be repeated every time you modify the mask layout. Post Layout simulation: The electrical performance of a full-custom design can be best analyzed by performing a post layout simulation on the extracted circuit net list. At this point, the designer should have a complete mask layout of the intended circuit/system, and should have passed the DRC and LVS steps with no violations. The detailed (transistor-level) simulation performed using the extracted net list will provide a clear assessment of the circuit speed, the influence of circuit parasitic (such as parasitic capacitances and resistances), and any glitches that may occur due to signal delay mismatches. If the results of post-layout simulation are not satisfactory, the designer should modify some of the transistor dimensions and/or the circuit topology, in order to achieve the desired circuit performance under realistic conditions, i.e., taking into accounts all of the circuit parasitic. This may require multiple iterations on the design, until the post-layout simulation results satisfy the original design requirements.

C) Parameters

a) Output Slew (Transition) Time

The transition times (slews) [9] on output pins are defined as the time interval between the signal crossing 10% of Vdd and 90% of. Fig.3 illustrates transition time measurements for rising and falling signals. Factors that affect propagation delays and transition time include: temperature, supply voltage, process variations, fan out loading, interconnect loading, input-transition time, input signal polarity, and timing constraints. The timing models provided with this library include the effects of input-transition time on propagation delays.

Rise time (TR): The time for a waveform to rise from 10% to 90% of its steady state value.

Fall time (FT): The time for a waveform to fall from 90% to 10% of its steady state value.

Fig.3: Transition time

b) Propagation Delay

The propagation delay through a cell is the sum of the intrinsic delay, the load-dependent delay, and the input-slew dependent delay. Delays are defined as the time interval between the input stimuli crossing 50% of and the output crossing 50% .is shown in Fig 4.

Fig.4: propagation delay c) Timing Constraints

Timing constraints [10] define minimum time intervals during which specific signals must be held steady in order to ensure the correct functioning of any given cell. Timing constraints include: setup time, hold time, recovery time, And minimum pulse width. Timing constraints can affect propagation delays. The intrinsic delays given in the datasheets are measured with relaxed timing constraints (longer than necessary setup times, hold times, recovery times, and pulse widths).The use of shorter timing constraint intervals may increase delay. Each cell is considered functional as long as the actual delay does not exceed the delay given in the datasheets by more than 10%.

i) Setup Time

The setup time for a sequential cell is the minimum length of time the data-input signal must remain stable before the active edge of the clock (or other specified signal) to ensure correct functioning of the cell. The cell is considered functional as long as the delay for the output reaching its expected value does not exceed the reference delay (measured with a large setup time) by more than 10%. Setup constraint values are measured as the interval between the data signal crossing 50% of for rising data (or 50% of for falling data) and the clock signal crossing 50 and is explained through fig.5.

Fig.5: setup time ii) Hold Time

(4)

[image:4.595.50.225.57.161.2]

Fig .6: Hold Time iii)Recovery Time

[image:4.595.302.517.140.735.2]

Recovery time for sequential cells is the minimum length of time that the active low set or reset signal must remain high before the active edge of the clock to ensure correct functioning of the cell. The cell is considered functional as long as the delay for the output reaching its expected value does not exceed the reference delay (measured with a large recovery time) by more than 10%. Recovery constraint values are measured as the interval between the set or reset signal crossing 50% of and the clock signal crossing 50% of for rising clocks (or 50% of for falling clocks). For The measurement of recovery time, the set or reset signals is held stable after the active clock edge for an infinite hold time. Fig.7 illustrates recovery time.

Fig .7: Recovery Time iv)Removal Time

[image:4.595.52.231.335.437.2]

Removal time for sequential cells is the minimum length of time that the active low set or reset signal must remain low after the active edge of the clock to ensure correct functioning of the cell. The cell is considered functional as long as the active clock edge does not latch in a new data value from that programmed by the asynchronous set or reset signal. Removal constraint values are measured as the interval between the set or reset signal crossing 50% of and the clock signal crossing 50% of for rising clocks (or 50% of for falling clocks). For the measurement of removal time, the set or reset signal is held stable before the active clock edge for an infinite setup time. Fig.8 illustrates removal time.

Figure .8: Removal Time

V)SEQUENTIALCELLS

LAYOUT, SCHEMATIC CIRCUIT AND SIMULATION RESULTS OF DESIGNED DIGITAL CIRCUITS USING CADENCESOFTWARE

selected input into a single line. A multiplexer of 2n inputs has n select lines, which are used to select which input line to send to the output. Multiplexers are mainly used to increase the amount of data that can be sent over the network within a certain amount of time and bandwidth. A multiplexer is also called a data Selector. The mux4 schematic and symbol is shown in fig.9 and fig.10.

Fig.9:mux4 schematic

Fig.10:mux4 symbol

B) Nand3

Fig.11:Nand3 layout

Fig.12:Nand3 waveform Process

corners rise time(PS)

fall time(PS)

propagation delay(ps)

tt 47.67 53.26 56.34

ss 56.89 63.14 75.18

ff 41.87 50.90 47.57

[image:4.595.48.225.605.717.2]

(5)

corners rise time(ps)

fall time(ps)

Tt 42.37 38.43 48.62

ss 46.38 46.46 59.27

[image:5.595.140.481.38.739.2]

ff 36.15 33.81 41.91

Table .2: Nand3_2X

Process corners

rise time(ps)

fall time(ps)

tt 36.5 37.04 44.17

ss 41.59 45.28 55.16

ff 32.85 31.77 39.17

Table .3: Nand3_4X

C)Nor2

Fig.13:Nor2 layout

Fig.14:Nor2 waveform

Process corners

rise time(ps)

fall time(ps)

Tt 38.14 16.89 39.62

Ss 43.57 33.89 46.50

Ff 35.67 23.45 34.68

Table .3: Nor2_1X

Process

corners rise time(ps) fall time(ps) propagation delay(ps)

tt 38.04 26.41 41

ss 44.7 35.9 45.4

ff 36.57 24.35 33.58

Process corners

rise time(ps)

fall time(ps)

tt 40.79 35.25 44.63

ss 45.42 42.86 52.20

[image:5.595.298.493.44.717.2]

ff 37.28 31.96 39.36

D) Or3

Fig.15:Or3 layout

Fig.16:Or3 waveform

Process corners

rise time(ps)

fall time(ps)

tt 54.43 57.34 121.4

ss 62.34 59.4 149.66

ff 55.4 49.2 101.165

Table.6: Or3_1X

Process corners

rise time(ps)

fall time(ps)

tt 43.15 45.97 108.96

ss 51.42 53.9 134.38

ff 38.1 41.91 91.12

Table .7: Or3_2X

Process corners

rise time(ps)

fall time(ps)

tt 42.81 40.44 78.29

ss 47.77 47.1 116.2

ff 38.53 37.66 84.25

Table .8: Or3_4X

[image:5.595.40.245.44.675.2]

(6)

[image:6.595.43.502.40.776.2]

Fig.17: Xor layout

Fig.18: Xor waveform

Proces s corners

rise time(ps)

fall time(ps)

tt 46.93 47.16 121.4

ss 57.37 63.66 149.66

ff 42.86 38.38 99.165

Table.9: Xor

F) Aoi21

Fig.19:Aoi21 layout

Fig.20:Aoi21 waveform

Process corners

rise time(ps)

fall time(ps)

Tt 44.8 39.52 133.7

Ss 50.32 31.07 169.05

Ff 42.7 51.4 110.15

Process corners

rise time(ps)

fall time(ps)

tt 47.86 47.11 138.2

ss 34.1 33.1 175.55

[image:6.595.297.504.41.757.2]

ff 31.0 31.0 116.6

Table.10: AOI21_2X Process

fall time(ps)

tt 44.3 30.12 132.8

ss 55.15 53.65 164.05

ff 43.82 40.52 114.15

Table .11: AOI21_4X

G) Oai21

Fig.21: Oai 21 layout

Fig.22: Oai 21 waveform Process

fall time(ps)

tt 50.35 37.89 42.11

ss 60.69 49.33 53.10

ff 43.21 31.78 35.85

Table.12: Oai 21_1X

Process corners

rise time(ps)

fall time(ps)

tt 53.58 46.98 42.68

ss 62.95 58.35 51.62

ff 48.30 39.98 37.44

Table.14: Oai 21_2X

Process corners

rise time(ps)

fall time(ps)

tt 53.48 54.35 42.83

ss 60.76 64.85 50.74

[image:6.595.44.252.46.783.2]

(7)

[image:7.595.47.239.54.357.2]

H) Mux2

Fig.23: Mux2 waveform

Fig.24:mux2 waveform

Process corners

rise time(ps)

fall time(ps)

tt 46.87 44.10 23.85

ss 45.23 48.95 28.16

[image:7.595.303.547.54.668.2]

ff 41.87 38.74 29.99

Table .16: Mux2_1X Process

fall time(ps)

tt 44.85 43.66 25.155

ss 50.74 50.23 29.28

ff 46.510 47.53 22.11

Table.17: Mux2_2X Process

fall time(ps)

tt 42.6 41.91 24.08

ss 46.41 47.83 27.39

ff 43.09 40.98 21.89

Table.18: Mux2_4X

I) Half Adder

The half adder adds two single binary digits A and B. It has two out-puts, sum (S) and carry (C). The carry signal represents an overflow into thenext digit of a multi-digit addition. The half-adder ads two input bits and generate carry and sum which are the two outputs of half-adder. The summand carry of the half adder is represented by the equation:

SUM = A: B + A: B, CARRY = A: B The schematic & symbol is as shown in

Fig.25: half adder schematic

Fig.26: Half adder symbol

Fig.27: Half adder layout

Fig.28: half adder waveform PVT Sumtr

(ps)

Sumtf( ps)

Carrytr( ps)

Carrytf( ps)

Sumtp( ps)

Carrytp( ps)

Tt 60.75 50.51 62.20 43.58 121.35 212.7 Ss 73.7 62.27 75.47 52.07 153.4 205.44 Ff 51.64 43.66 52.88 38.07 101.76 218.8

Table.19: half adder

J) Full Adder

A full adder adds binary numbers and accounts for values carried in as well as out. A one-bit full adder adds three one-bit numbers, often written as A, B, and Cin; A and B are the operands, and Cin is a bit carried in from .The next less significant stage

[image:7.595.40.231.378.590.2]

(8)

Fig.29: full adder schematic

Fig.30: full adder schematic

Fig.31: full adder layout

Fig.32: full adder waveform

P V T

Sumtr (ps)

Sumtf( ps)

Carrytr( ps)

Carrytf( ps)

Sumtp(p s)

Carrytp( ps)

tt 60.4 54.22 44.07 41.64 169.42 106.29 ss 70.7 64.95 52.06 48.62 213.07 127.18 ff 54.1 47.7 39.10 37.48 140.86 92.151 Table.20: full adder

VI)CONCLUSIONANDFUTURESCOPE

That main objective of this system is to design high performance standard cell library and it is achieved by meeting the given specification. The required specifications to be met are cell height, rise & fall time, & propagation delay. This system meets pre layout and post layout results as per the design specifications. From the results we found that

text containing information regarding timing and functional characteristics of an ASIC cell library. Several components of a technology library used by an ASIC design at various phases of design procedure are listed below: 1. Global parameters: These include PVT corner specifications, unit definitions, threshold values for input and output transitions and maximum output Capacitance and slew limits.2. Functionality for mapping during synthesis and functional simulations. Area, power, timing constraints and delay values for optimization and delay simulation. 4. Pin locations, geometry of cells, routing blockages and grids for place and route.

REFERENCES

[1] Asic Design in the Silicon Sandbox: A Complete Guide to Building Mixed-Signal Integrated Circuits, Keith Barr McGraw Hill Professional, 2007.

[2] Harnessing VLSI System Design with Eda Tools by Santosh A. Shinde, Pawan K. Gaikwad.

[3] Closing the Gap between Asic & Custom: Tools and Techniques for High by David Chinnery, Kurt Keutzer.

[4] Low-Power Cmos Circuits: Technology, Logic Design and Cad Tools

by Christian Piguet.

[5] Engineering the Cmos Library: Enhancing Digital Design Kits For Competitive By David Doman.

[6] Digital VLSI Chip Design with Cadence and Synopsys Cad Tools Erik Brunvand Addison-Wesley, 2010.

[7] Cmos VLSI Design: A Circuits and Systems Perspective by Neil H. E. Weste, David Money Harri.

[8] Mixed-Signal Methodology Guide by Jess Chen, Michael Henrie, Monte F. Mar, Ph.D., Mladen Nizic.

[9] Digital Design by Wakerly.

[10] Engineering the Cmos Library: Enhancing Digital Design Kits For Competitive By David Doma.
