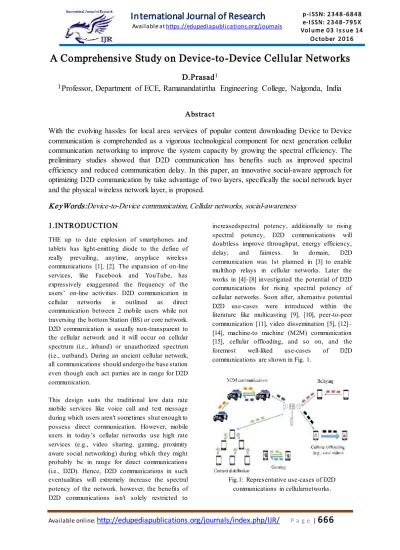

A Comprehensive Study on Device-to-Device Cellular Networks
D.Prasad
11
Professor, Department of ECE, Ramanandatirtha Engineering College, Nalgonda, India
Abstract
With the evolving hassles for local area services of popular content downloading Device to Device
communication is comprehended as a vigorous technological component for next generation cellular
communication networking to improve the system capacity by growing the spectral efficiency. The
preliminary studies showed that D2D communication has benefits such as improved spectral
efficiency and reduced communication delay. In this paper, an innovative social-aware approach for
optimizing D2D communication by take advantage of two layers, specifically the social network layer
and the physical wireless network layer, is proposed.
KeyWords:Device-to-Device communication, Cellular networks, social-awareness
1.INTRODUCTION
THE up to date explosion of smartphones and tablets has light-emitting diode to the define of really prevailing, anytime, anyplace wireless communications [1], [2]. The expansion of on-line services, like Facebook and YouTube, has expressively exaggerated the frequency of the users’ on-line activities. D2D communication in
cellular networks is outlined as direct
communication between 2 mobile users while not traversing the bottom Station (BS) or core network. D2D communication is usually non-transparent to the cellular network and it will occur on cellular spectrum (i.e., inband) or unauthorized spectrum (i.e., outband). During an ancient cellular network, all communications should undergo the base station even though each act parties are in range for D2D communication.
This design suits the traditional low data rate mobile services like voice call and text message during which users aren't sometimes shut enough to possess direct communication. However, mobile users in today’s cellular networks use high rate services (e.g., video sharing, gaming, proximity aware social networking) during which they might probably be in range for direct communications (i.e., D2D). Hence, D2D communications in such eventualities will extremely increase the spectral potency of the network. however, the benefits of D2D communications isn't solely restricted to
increasedspectral potency, additionally to rising spectral potency, D2D communications will doubtless improve throughput, energy efficiency,
delay, and fairness. In domain, D2D
communication was 1st planned in [3] to enable multihop relays in cellular networks. Later the works in [4]–[8] investigated the potential of D2D communications for rising spectral potency of cellular networks. Soon after, alternative potential D2D use-cases were introduced within the literature like multicasting [9], [10], peer-to-peer communication [11], video dissemination [5], [12]– [14], machine-to machine (M2M) communication [15], cellular offloading, and so on, and the
foremost well-liked use-cases of D2D
communications are shown in Fig. 1.
Available online: http://edupediapublications.org/journals/index.php/IJR/ P a g e |
667
In this article we have a tendency to aim to
determine a replacement paradigm for a D2D communication underlying cellular system: social-aware D2D communication that leverages social networking characteristics of the cellular system. supported a profound understanding of the social networks properties, we have a tendency to establish a framework to prepare well recognized social relationships and characteristics, associate degreed any validate them by an example of
real-life human mobility traces. For D2D
communication system style, we have a tendency to illustrate the most technical issues supported this background, we have a tendency to create 2 main contributions to the projected goal. First, by qualitative analysis, we have a tendency to investigate however the social options of social networks influence D2D communication, and the way they will facilitate solve the difficult technical issues of D2D communication. These qualitative results offer a profound understanding of and insight into the planning of the social-aware D2D communication system. Second, by quantitative assessment, we have a tendency to target a sensible D2D communication underlying cellular system, and style social-aware D2D communication solutions: centrality-aware peer discovery and community-aware resource allocation.
D2D USE CA SE
Social networks have promotedprominently from advance of mobile communication technology. We need to control social network characteristics for inaugurate new standard of mobile.
Fig.2 Illustration of social-aware D2D communication
Here are the four importantmethodological issues in planning the D2D communication underlying cellular system are as follows:
1. Service and Peer Discovery: determine candidate D2D pairs and needed services.
Cellular mediates discovery method, a
centralized single-point-of-failure
resolution, and stability and measurability issues.
2. Co mmu nication Mode Selectio n : It is themeans to apply all possible transmission modes to progress the information transmission ability from all the BSs to any or all UEs.
3. Sp ectrum Resource Allocation: the way to share spectrum between D2D and cellular to achieve most of the system throughput.
4. In terference Management and Organizatio n : the way to manage interference between cellular and D2D and across the particular multiple cells.
Interference coordination for D2D
connected may be managed centrally by BSs.
Interference coordination for D2D
opportunist might need distributed management involving handsets .
Available online: http://edupediapublications.org/journals/index.php/IJR/ P a g e |
668
3.0 SOCIA L M EETS D2D: QUA LITA TIVE
INSIGHT
In this section we examine how steady social features can help resolve D2Dcommunication difficulties by identifying the keydesign problems, studying the chief nominal challenges, and providing some resolution comprehensions.As shown in Fig. 3, users will regulate their beacon rates consistent with the strengths of the ties for peer discovery. Allocating additional spectrum and energy resources to users with robust ties will increasepeer discovery quantitative relation, avoid congestion, and improve spectral potency.
So cial tie-aware res o u rce allo catio n an d relay s electio n : Strength of a tie reflects trait of 2 peers. In relay choice, taking social tie info under consideration improves privacy and security.
Fig. 4 Social Community
Peer d is co v ery : Here community structureand encounter patterns facilitate peerdiscovery method. – User in population-dense communitycan utilize community encounterpatterns to assist unintended based mostly peerdiscovery procedure.
• Res ource allo catio n : Here user findsinformation of particular content fromcommunity neighbors with less effort,owing to similar interest.
• Allocating additional resources in D2D communication for these community links helps to cut back duplicated network load.
• Mode selection: depends on information of
channel condition, inter-cell interferenceand
network load.
• Community structure data simplifies detection and helps to form modeselection quickly and accurately.

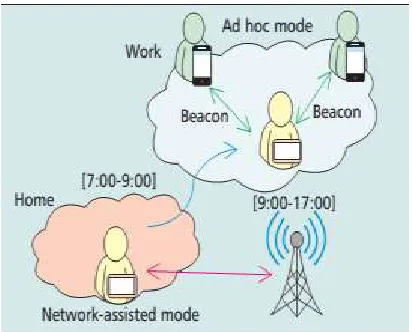

In Fig.5 Alice is at home and desires to contact a colleague in her university community. Now choosing the direct cellular communication mode could be a more sensible choice than a D2D mode, as a result of her neighbors square measure distributed, and therefore the efforts of random beacons to seek out D2D communication pairs would principally be wasted. Similarly, community interests are useful for mode choice.
Fig. 5 Peer density-aware mode selection
Available online: http://edupediapublications.org/journals/index.php/IJR/ P a g e |
669

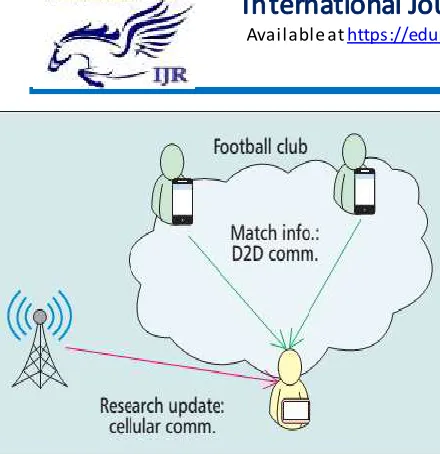

Fig. 6Community interest-Enhanced mode
selection.
4.0 SYSTEM M ODEL
Consider a cellular network only with one base station and multiple users. The UEs will receive signals from the base station via the cellular network, or from the opposite UEs via D2D pairs exploitation licensed spectrum resources during this system, 2 network layers exist over that data is disseminated the primary layer is that the OnSN. The OnSN is that the platform over that user acquire the links of contents from alternative users.
Fig. 7. Information dissemination in both OnSN and OffSN.
An illustration of this planned model is shown in Fig.7, every active user within the OnSN corresponds to a particular UE within the OffSN. Users access content links in associate increasing
order of their labels within the OnSN, every content link is detached consistent with its quality from frequent users to regular usersparticularly, a bunch of users that we have a tendency to check with as frequent users, have a high on-line activity, and, thus the most source of influence and data dissemination. During this respect, the alternatives of the regular users, World Health Organization access the OnSN less often, are typically influenced by the frequent users. within the OffSN, the primary content appeal is obliged by the basestation succeeding users will therefore be served by previous users World Health Organization hold the content, if they're among the D2D communication distance.
A . Offlin e So cial Netwo rk M o d el
In this scenario the area covered by a basestation, the users can be disseminatedas well as modeled. For example in public areas like commercial sites, office buildings, the users density in more compared to open areas so therefore the low density the users are served directly by the base station as shown in Fig. 8.
B. On lin e So cial Netwo rk M o d el
Here we can define OnSN is the platform for content links to distribute and its contents’ popularity in OnSN monitors a certain PDF. Henceforth deriving this distribution permits to forecast current users content selections.
Available online: http://edupediapublications.org/journals/index.php/IJR/ P a g e |
670
5.0 CONCLUSIONS
We have studied a social-aware D2D
communication architecture that exploits social network properties for better cellular system design. In this paper, we have suggested a novel approach for improving the performance of D2D communication underlaid over a cellular system, by take advantage of the social ties and impactbetween individuals. So therefore we have recognized the OnSN to analyses the OffSN users’ online activities. Our study thus unlocks a new research course for designing the next-generation social-aware D2D communication underlaying cellular system.
REFERENCES
[1] L. Song, D. Niyato, Z. Han, and E. Hossain, Wireless Device-to-DeviceCommunications and
Networks. Cambridge, U.K.: Cambridge
Univ.Press.
[2] “Cisco visual networking index: Global mobile data traffic forecast update,” Whitepaper, vol. 10, no. 8, pp. 2752–2763, Feb. 2011.
[3] G. Fodor et al., “Design Aspects of Network AssistedDevice-to-Device Communications,” IEEE Commun. Mag.,vol. 50, no. 3, Mar. 2012, pp. 170– 77.
[4] B. Kaufman and B. Aazhang, “Cellular networks with an overlaiddevice to device network,” in Proceedings of Asilomar Conference onSignals, Systems and Computers, 2008, pp. 1537–1541.
[5] K. Doppler, M. Rinne, C. Wijting, C. Ribeiro, and K. Hugl, “Deviceto-device communication as an underlay to LTE-advanced networks,”IEEE Communications Magazine, vol. 47, no. 12, pp. 42–49, 2009.
[6] K. Doppler, M. P. Rinne, P. Janis, C. Ribeiro, and K. Hugl, “Deviceto-device communications; functional prospects for LTE-Advancednetworks,” in Proceedings of IEEE ICC Workshops, 2009, pp. 1–6.
[7] A. Osseiran, K. Doppler, C. Ribeiro, M. Xiao, M. Skoglund, andJ. Manssour, “Advances in device-to-device communications and network coding for IMT-Advanced,” ICT Mobile Summit, 2009.
[8] T. Peng, Q. Lu, H. Wang, S. Xu, and W. Wang, “Interference avoidancemechanisms in the hybrid
cellular and device-to-device systems,”
inProceedings of IEEE PIMRC, 2009, pp. 617– 621.
[9] J. Du, W. Zhu, J. Xu, Z. Li, and H. Wang, “A compressed HARQ feedback for device-to-device multicast communications,” in Proceedingsof IEEE VTC-Fall, 2012, pp. 1–5.
[10] B. Zhou, H. Hu, S.-Q. Huang, and H.-H. Chen, “Intracluster deviceto-device relay algorithm with optimal resource utilization,” IEEETransactions on Vehicular Technology, vol. 62, no. 5, pp. 2315– 2326,Jun. 2013.
[11] L. Lei, Z. Zhong, C. Lin, and X. Shen,
“Operator controlled deviceto-device
communications in LTE-advanced networks,” IEEE WirelessCommunications, vol. 19, no. 3, pp. 96–104, 2012.
[12] N. Golrezaei, A. F. Molisch, and A. G. Dimakis, “Base-station assisteddevice-to-device communications for high-throughput wireless videonetworks,” in Proceedings of IEEE ICC, 2012, pp. 7077–7081.
[13] N. Golrezaei, A. G. Dimakis, and A. F. Molisch, “Device-to-devicecollaboration through
distributed storage,” in Proceedings of
IEEEGLOBECOM, 2012, pp. 2397–2402.
[14] J. C. Li, M. Lei, and F. Gao,
“Device-to-device (D2D) communicationin MU-MIMO
cellular networks,” in Proceedings of IEEE GLOBECOM, 2012, pp. 3583–3587.
[15] N. K. Pratas and P. Popovski, “Low-rate machine-type communication via wireless
device-to-device (D2D) links,” arXiv
