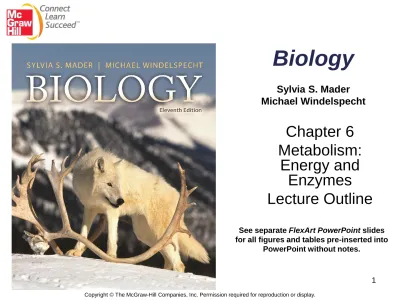

Chapter 6 ppt

(1)

Biology

Sylvia S. Mader Michael Windelspecht

Chapter 6 Metabolism:

Energy and

Enzymes

Lecture Outline

See separate FlexArt PowerPoint slides for all figures and tables pre-inserted into

PowerPoint without notes.

(2)

Outline

• 6.1 Cells and the Flow of Energy

• 6.2 Metabolic Reactions and Energy

Transformations

• 6.3 Metabolic Pathways and Enzymes

• 6.4 Organelles and the Flow of Energy

(3)

6.1 Cells and the Flow of

Energy

• Energy

– The ability to do work or bring

about a change



Kinetic energy

• Energy of motion

• Mechanical



Potential energy

• Stored energy

• Chemical energy

(4)

Flow of Energy

4

solar energy

heat

Mechanical energy Chemical

energy

(5)

Two Laws of

Thermodynamics

• First law:

 Law of conservation of energy

 Energy cannot be created or destroyed, but can be

changed from one form to another

• Second law:

 Law of entropy

 When energy is changed from one form to another,

there is a loss of usable energy

 Waste energy goes to increase disorder

(6)

sun

CO₂

H₂O

solar energy producer

carbohydrate heat

(7)

Carbohydrate Metabolism

carbohydrate uncontracted muscle contracted muscle

(8)

Cells and Entropy

H+

H₂O

C₆H₁₂O₆

• more organized • more potential energy • less stable (entropy) a.

Carbon dioxide and water • less organized • less potential energy • more stable (entropy)

CO₂ kinetic energy channel protein H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ H+ Unequal distribution of hydrogen ions

Equal distribution of hydrogen ions • more organized

• more potential energy

b.

• less stable (entropy)

(9)

6.2 Metabolic Reactions and Energy

Transformations

• Metabolism

 Sum of cellular chemical reactions in cell

 Reactants participate in a reaction

 Products form as result of a reaction

• Free energy

is the amount of energy available

to perform work

 Exergonic Reactions - Products have less free energy than reactants (release energy)

 Endergonic Reactions - Products have more free energy than reactants (require energy input)

(10)

ATP: Energy for Cells

• Adenosine triphosphate (ATP)



High energy compound used to drive metabolic

reactions



Constantly being generated from

adenosine

diphosphate (ADP)

• Composed of:



Adenine, ribose (together = adenosine), and three

phosphate groups

• Coupled reactions



Energy released by an exergonic reaction

captured in ATP



ATP is used to drive an endergonic reaction

(11)

The ATP Cycle

P

adenosine triphosphate

ATP is unstable and has

a high potential energy.

(12)

The ATP Cycle

12

P P P

P

adenosine triphosphate ATP is unstable and has a high potential energy.

ATP

Endergonic Reaction:

• The hydrolysis of ATP releases previously stored energy, allowing the change in free energy to do work and drive other processes. • Has negative delta G.

(13)

The ATP Cycle

P P + P P P P

+ P

ATP

• The hydrolysis of ATP releases Previously stored energy, allowing the change in free energy to do work and drive other processes. • Has negative delta G.

• Examples: protein synthesis, nerve conduction, muscle contraction

adenosine diphosphate phosphate

ADP is more stable and has lower potential energy than ATP. +

(14)

The ATP Cycle

14

P P + P P P P

+ + P

Exergonic Reaction: • Creation of ATP from ADP and Prequires input of energy from Other sources. • Has positive delta G. • Example: cellular respiration

ATP

ADP

adenosine diphosphate phosphate ADP is more stable and has lower potential energy than ATP.

• The hydrolysis of ATP releases Previously stored energy, allowing the change in free energy to do work and drive other processes. • Has negative delta G.

(15)

Coupled Reactions

15

1 Myosin assumes its resting shape when It combines with ATP.

myosin actin

(16)

Coupled Reactions

16

1 ₂

P Myosin assumes its

resting shape when It combines with ATP.

ATP splits into ADP and p , causing myosin to change its shape and allowing it to attach to actin.

ADP myosin

actin

(17)

Coupled Reactions

1 2 3

Release of ADP and p cause myosin to again change shape and pull again stactin, generating force and motion.

ADP myosin

actin

(18)

Coupled Reactions

1 2 3

Release of ADP and p cause myosin to again change shape and pull against actin, generating force and motion.

ADP myosin

actin

(19)

6.3 Metabolic Pathways and

Enzymes

• Reactions usually occur in a sequence

 Products of an earlier reaction become reactants of a

later reaction

 Such linked reactions form a metabolic pathway

• Begins with a particular reactant, proceeds through several intermediates, and terminates with a particular end product

19

A



B



C



D



E



F



G

“A” is Initial Reactant

“G” is End

Product B, C, D, E, and F

(20)

6.3 Metabolic Pathways and

Enzymes

• Enzyme

 Protein molecules that function as catalysts

 The reactants of an enzymatically catalyzed reaction

are called substrates

 Each enzyme accelerates a specific reaction

 Each reaction in a metabolic pathway requires a

unique and specific enzyme

 The end product will not be formed unless ALL

enzymes in the pathway are present and functional

20

(21)

Energy of Activation

• Molecules frequently do not react with one

another unless they are activated in some way

 Energy must be added to at least one reactant to

initiate the reaction

• Energy of activation

• Enzyme Operation:

 Enzymes operate by lowering the energy of

activation

 Accomplished by bringing substrates into contact with

one another

(22)

Energy of Activation

22

Progress of the Reaction energy of

reactant

energy of product

energy of activation (Ea)

enzyme not present

enzyme present

Fre

e

E

ner

gy

(23)

Enzyme-Substrate Complex

• The

active site

complexes with the

substrates



Causes the active site to change shape



Shape change forces substrates together,

initiating bond



Induced fit model

• Enzyme is induced to undergo a slight alteration to

(24)

Enzyme-Substrate Complex

• Degradation:

 Enzyme complexes with a single substrate molecule

 Substrate is broken apart into two product molecules

• Synthesis:

 Enzyme complexes with two substrate molecules

 Substrates are joined together and released as a

single product molecule

(25)

Enzymatic Actions

25

Degradation

The substrate is broken down to smaller products. products substrate enzyme a. b. active site enzyme-substrate complex enzyme Synthesis

(26)

Factors Affecting Enzymatic

Speed

• Substrate concentration

 Enzyme activity increases with substrate

concentration due to more frequent collisions between substrate molecules and the enzyme

• Temperature

 Enzyme activity increases with temperature

 Warmer temperatures cause more effective collisions

between enzyme and substrate

 However, hot temperatures can denature and

destroy enzymes

• pH

 Most enzymes are optimized for a particular pH

(27)

The Effect of Temperature on Rate of

Reaction

27

Rat e o f Rea c tio n (p ro d u c t p e r u n it o f tim e )

0 10 20 30 40 50 60

a. Rate of reaction as a function of temperature

b. Body temperature of ectothermic animals often limits rates of reactions.

c. Body temperature of endothermic animals promotes rates of reactions.

Temperature C

(28)

The Effect of pH on Rate of Reaction

28

Rate

of

Reac

ti

on

(produc

t

pe

r un

it o

f

ti

m

e)

pH

0 1 2 3 4 5 6 7 8 9 10 11 12

(29)

Factors Affecting Enzymatic

Speed

• Cells can regulate the presence/absence of an

enzyme

• Cells can regulate the concentration of an

enzyme

• Cells can activate or deactivate some enzymes

 Enzyme Cofactors

• Molecules required to activate enzyme

• Coenzymes are nonprotein organic molecules

• Vitamins are small organic compounds required in the diet

for the synthesis of coenzymes

(30)

Cofactors at Active Site

30

cofactor

active site

a.

(31)

Cofactors at Active Site

substrate

(32)

Cofactors at Active Site

cofactor

active

site substrate

(33)

Enzyme Inhibition

• Reversible enzyme inhibition



A substance known as an inhibitor binds to an

enzyme and decreases its activity

• Competitive inhibition – the substrate and the

inhibitor are both able to bind to active site

• Noncompetitive inhibition – the inhibitor does not

bind at the active site, but at an allosteric site

(34)

Noncompetitive Inhibition of an Enzyme

34

2 active site enzymes substrates allosteric site E

2 E3 E4 E5

A A F (end product) A

Metabolic pathway produces F, the end product.

F binds to allosteric site and the active site of E1 changes shape.

A cannot bind to E1; the enzyme has been inhibited by F.

B C D E

(35)

Enzyme Inhibitors Can Spell

Death

• Materials that irreversibly inhibit an enzyme are

known as poisons

• Cyanide inhibits enzymes required for ATP

production

• Sarin inhibits an enzyme located at the

neuromuscular junction.

• Warfarin inhibits an enzyme responsible for the

blood clotting process

(36)

6.4 Organelles and the Flow

of Energy

• Oxidation-reduction (redox) reactions



Electrons pass from one molecule to another

• Oxidation - loss of an electron

• Reduction – gain of an electron



Both take place at same time



One molecule accepts the electron given up by

the other

(37)

Photosynthesis and Cellular Respiration

(38)

Electron Transport Chain

• Consists of membrane-bound carrier proteins

found in mitochondria and chloroplasts

• Physically arranged in an ordered series

 Starts with high-energy electrons

 Pass electrons from one carrier to another

• Electron energy used to pump hydrogen ions (H+_{) to one side}

of membrane

• Establishes an electrochemical gradient across the membrane

• The electrochemical gradient is used to make ATP from ADP

– Chemiosmosis

 Ends with low-energy electrons and high-energy ATP

(39)

ElectronTransport Chain

e–

high-energy electrons

High-energy electrons are unstable and have high potential energy. This energy is released in stages, as kinetic energy, during the

electron transport chain.

electron transport chain

low-energy electrons As energy is released,

the electrons become more stable and have less potential energy.

ATP energy for

Synthesis of

(40)

Chemiosmosis

High H+ _{concentration}

H+ _{pump in electron}

transport chain

H+

Low H+ _{concentration}

NADH _{NAD +}

H+

ATP

(41)

Chemiosmosis

transport chain H+

H+

NADH _{NAD +}

ATP

(42)

Chemiosmosis

H+

NADH _{NAD +}

ATP

(43)

Chemiosmosis

P

H+

NADH _{NAD +}

ATP

synthase complex ATP

ADP +
