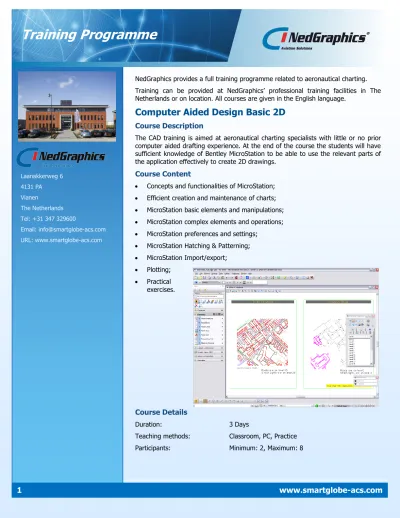

Training Programme

NedGraphics provides a full training programme related to aeronautical charting. Training can be provided at NedGraphics’ professional training facilities in The Netherlands or on location. All courses are given in the English language.

Computer Aided Design Basic 2D

Course Description

The CAD training is aimed at aeronautical charting specialists with little or no prior computer aided drafting experience. At the end of the course the students will have sufficient knowledge of Bentley MicroStation to be able to use the relevant parts of the application effectively to create 2D drawings.

Course Content

 Concepts and functionalities of MicroStation;

 Efficient creation and maintenance of charts;

 MicroStation basic elements and manipulations;

 MicroStation complex elements and operations;

 MicroStation preferences and settings;

 MicroStation Hatching & Patterning;

 MicroStation Import/export;

 Plotting;

 Practical exercises.

Course Details

Duration: 3 Days

Teaching methods: Classroom, PC, Practice Participants: Minimum: 2, Maximum: 8

(2)

Training Programme

smartGlobe® Designer

Course Description

The smartGlobe Designer training is aimed at the aeronautical cartographer, who will configure, set up and maintain charts. This three-day course will cover functionality

related to the creation, amendment and publishing of database generated charts. The CAD Basic 2D course is a prerequisite for this course.

Course Content

 Concepts and functionalities of smartGlobe®;

 Setting up a chart;

 Geographic calculator;

 Adding elements to a chart;

 Clean-up chart;

 Synchronize and update;

 Update chart (new effective date);

 Chart management;

 SmartGlobe® advanced features;

Course Details

Duration: 3 Days

Cadac Group

Heerlen, The Netherlands Tel: +31 (0)45-400 1000

Gouda, The Netherlands Tel: +31 (0)182-62 5000

Meppel, The Netherlands Tel: +31 (0) 522 238850

Amsterdam, The Netherlands tel +31 (0)20 4917142

Hasselt, Belgium Tel: +32 (0)11-300 911

Gent, Belgium

(3)

Training Programme

Cadac Organice

Cadac Organice Americas Inc Houston

Tel: +1 713 8931266

Cadac Organice EMEA BV London / United Kingdom Tel: +44 208 282 6016

Cadac Organice Americas Inc. Boston / USA

Tel: +1 617 934 0563

Cadac Organice APAC Pty ltd Sydney / Australia

Tel: +61 (0)2 90047927

Cadac Organice EMEA BV Stockholm / Sweden Tel: +46 850 521030

smartGlobe® Application Manager

This 2-day training course covers the configuration of chart templates, grids and graticules, symbols and annotation labels.

The MicroStation Basic 2D and smartGlobe Designer training are a prerequisite for this course.

Course Content

 Overview the smartGlobe® settings;

 Setting up and maintaining chart types;

 Creating and maintaining symbols and labels;

 Creating and modifying chart types;

Course Details

Duration: 2 Days

(4)

Training Programme

NedGraphics B.V.

NedGraphics is a specialist in Geographical Information Systems solutions, and is market leader in Local Gov-ernment solutions in The Netherlands. NedGraphics has developed the smart-Globe (tm) Aeronautical Charting System, a special-ized system for the Aviation industry. Both Airlines and Civil and Military Aviation Authorities are among Ned-Graphics‘ customers.

In 1999 smartGlobe was selected as the charting product for the Eurocontrol European Aeronautical Data-base project.

smartGlobe Administrator

The smartGlobe Administrator training is aimed at the System Administrator who will be responsible for installation and maintenance of the smartGlobe system. This three-day course will cover the system architecture, database concepts as well as configuration of server and client systems.

Course Content

 SmartGlobe client/server model;

 ARINC 424 and the smartGlobe data model;

 Database implementation and user management;

 Check / preparation of the client/server environment;

 Configuration data model;

 Production management data model;

 Initialise smartGlobe database, adding tablespaces, database tables, users, roles;

 ARINC 424 data load, adding primary keys, referential data;

 Adding initial configuration data, foreign keys and indexes;

 Adding constraints, stored procedures and packages;

 Adding database triggers, public synonyms, and

grants, database management;

 SmartGlobe client installation and configuration.

Course Details

Duration: 3 Days

(5)

Training Programme

ARINC 424 Path and Terminator Coding

The Path & Terminator coding course has been designed as an introduction to database coding of Instrument Flight procedures.

This four-day course will cover the ARINC 424 Path & Terminator theory as well as its practical application in IAP, SID and STAR procedures.

Course Content

 Procedure coding methodology based on the ARINC 424 Path & Terminator concept;

 History and background of the Path & Terminator concept;

 Overview of Documentation and Discussion of individual Path

Terminators;

 Allowed Leg Combinations, Waypoint Description codes and mandatory attributes;

 Application of PT concept to SID procedures, examples and commonly use PT combinations in SID procedure, Special SID coding consideration;

 Application of PT concept to STAR procedures, examples and commonly used PT combinations in STAR procedure, Special STAR coding consideration;

 Application of PT concept to IAP procedures, examples and commonly used PT combinations in IAP procedure, Special IAP coding consideration;

Course Details

Duration: 4 Days

Teaching methods: Classroom, Practice Participants: Minimum: 2, Maximum: 8

(6)

Training Programme

Ab Initio Cartography

The aim of the training course is to familiarize novice cartographers with the relevant standards and recommended practices as defined in ICAO Annex 4 and the ICAO Chart Manual Doc 8697, as well as its application in a Bentley MicroStation Computer Aided Design environment.

The course has been designed as a custom course, allowing for some flexibility to enable the trainer to respond to the student’s experience level and specific questions and issues that student’s may bring forward.

Course Content

 Overview of ICAO documents;

 Annex 4 to the Chicago convention of the International Civil Aviation Organization;

 Aeronautical chart types;

 ICAO Document 8697 – Aeronautical Chart Manual;

 Chart projections;

 Creating and modifying a Standard Departure Chart;

 Creating and modifying an Instrument Approach Char;

 Creating and modifying a Visual Approach Chart.

Course Details

Duration: 5 Days
