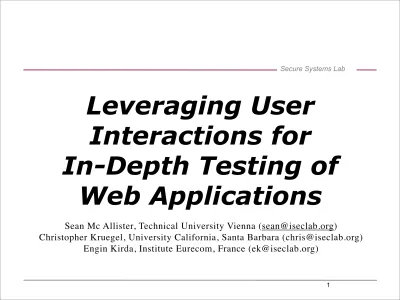

Leveraging User Interactions for In-Depth Testing of Web Applications

(1)

Secure Systems Lab

Leveraging User

Interactions for

In-Depth Testing of

Web Applications

1

Sean Mc Allister, Technical University Vienna ([email protected])

Christopher Kruegel, University California, Santa Barbara ([email protected]) Engin Kirda, Institute Eurecom, France ([email protected])

(2)

Overview

1. Challenges

2. Improved Fuzzing

3. Evaluation

(3)

Vulnerability Scanners

• black-box testing tools to detect vulnerabilities within

web applications

3

3 main phases in the workflow:

– Discovery

• find new URLs (+ input parameters) to be used as attack vectors

• follow links and analyze forms

– Audit (Fuzzing Phase)

• fuzz parameters, send request and analyze response

– Crawling (optional)

• used to detect persistent vulnerabilities

(4)

Current Problems

• complex forms: server side validation prevents tools to

find new attack vectors

– current solutions often guess values

– some tools offer the possibility to supply values for certain forms

(i.e. login credentials)

– the lack of valid input keeps tools from finding vulnerabilities

embedded deeper within the application

• but persistent attacks (such as stored XSS) require

malicious input that is accepted as valid

(5)

Current Problems

• Importance of workflow within the web application

– login required before interaction with the application

✓ supply credentials and block logout links

– order of steps is of importance

(6)

Our Solution

• to correctly fill out complex forms it is necessary to

have real user input

• to follow workflows within the application the scanner

needs some sort of guidance

• build black-box test cases from real user interaction

with the application by monitoring user behavior and

capturing POST / GET data

(7)

Overview

7

1. Challenges

2. Improved Fuzzing

3. Evaluation

(8)

(9)

Guided Fuzzing

8

✓

use cases can reach deep

into the application

✓

user supplied input is (often)

valid

(10)

Guided Fuzzing

✓

use cases can reach deep

into the application

✓

user supplied input is (often)

valid

- less breadth than traditional

fuzzers (depending on the

amount of use cases)

(11)

Extended, Guided Fuzzing

• depths of the application reached by following user

interactions (1. & 3.), testing breadth increased by

alternating crawling phases (2.)

(12)

Extended, Guided Fuzzing

• depths of the application reached by following user

interactions (1. & 3.), testing breadth increased by

alternating crawling phases (2.)

- fuzzing phases might

break the use case

(13)

Problems

10

• these workflows have the disadvantage that the fuzzing phase

can in some cases break the replay of the use case

–

i.e. logout from web application, deletion of all items from

the shopping cart before proceeding to checkout or, even

worse, delete content generated by the fuzzing component

• the need for stateful testing arises due to these shortcomings

• the state of a web application is controlled by

(1) the client (cookie values)

(2) the server (database)

➡

client side can be controlled

(14)

(15)

Implementation

• request capturing component running as a middleware

between the server and the web application

• replay component (HTTP protocol driver)

• server side implementation of the state-machine

intercepts and records all data manipulation originating

from a request

– “rollback” all changes after fuzzing phase

• fuzzing component

(16)

Overview

1. Challenges

2. Improved Fuzzing

(17)

Tested Applications

• 3 common web applications were tested

1. blog

– Browse entries and create comments – forced preview of comment

2. forum application

– create threads and replies

3. e-commerce application

– large number of pages

– browsing of articles, adding to shopping cart, checkout – registration of new users, login, logout

– comment on articles

(18)

Tools tested and compared

1. w3af

•

open source vulnerability scanner

•

many modules available for various attacks

2. Acunetix Web Vulnerability Scanner

• commercial tool

• claims high success rates

• high amount of different attack strings, including advanced XSS attacks

3. Burp Suite Spider Component

• not really a vulnerability scanner, but a manual penetration testing tool • simple form filling algorithms and web spider capabilities

(19)

Measuring the Effectiveness

• coverage of an application (number of pages found

and tested)

✓

high coverage of an application is definitely desirable

- questionable for sites with large amount of content that all

derive from the same base template

• measuring generated content

‣

does the scanner have any effect on the content displayed on a

web application? Both in terms of generated pages (new

threads in bulletin boards) and content on existing pages

(replies and comments on existing content)

‣

on the data level: How many objects have been generated by

the scanner?

(20)

Results

1. blog

– no other scanner managed to generate a comment on the blog – Acunetix and w3af both found more pages, by requesting root

directories of each found URL

– persistent XSS vulnerability found after successfully posting comment

2. forum application

– due to the varying number of test strings used, some scanners generated more objects in the database

Acunetix: 687 threads w3af: 29

(21)

Results (2)

3. e-commerce application

– due to the complexity of this application the evaluated scanners failed to supply valid input data for most forms (even after configuration with username/password) and could not find more than a single vulnerability, the use case based approaches found up to 8 more

– a crawling and attacking phase breaks the use case immediately

– spider logs out

– deletes content from shopping cart – etc.

– coverage was high with all presented approaches, but depth could only be reached with use cases

– stateful fuzzing as the only feasible approach to reach both depth and breadth for security testing of this application

(22)

Conclusions

• The workflow of vulnerability scanners can not cope with the demand for extensive testing of web applications, because they are unable to reach certain end points.

• Use cases offer a good approach to increase the coverage of scanners within a complex web application.

• The lack of extensive use cases leads to the demand for alternative approaches that can increase the testing breadth of the application

• In an application that strongly depends upon actions being performed in the right order, additional effort is needed to ensure a high coverage.
