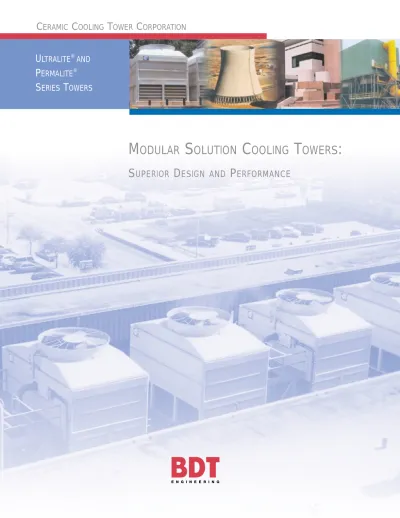

MODULAR SOLUTION COOLING TOWERS:

U

LTRALITE

AND

P

ERMALITE

S

ERIES

T

OWERS

C

ERAMIC

C

OOLING

T

OWER

C

ORPORATION

M

ODULAR

S

OLUTION

C

OOLING

T

OWERS

:

BDT ENGINEERING

T

I

S

Ceramic Cooling Tower Corporation (CCTC) is an industry leader with a global reputation for high quality cooling tower design and construction. CCTC is one of the world's premier manufac-turers of heat transfer and thermal energy equipment for air conditioning, refrigeration, and industrial process cool-ing. As an industry leader in research and development, CCTC offers an extensive product line of cooling towers, several of which are CTI-Certified.

I

C

S

Founded in 1947, CCTC quickly estab-lished the concept of the "permanent" cool-ing tower structure, while pioneercool-ing the use of non-clogging ceramic tile fill material. The successful marketing of this "perma-nence" concept evolved progressively to a family of long-life fiberglass cooling tower structures. This pioneering spirit, combined with years of research and development in materials and structures, led to today's state-of-the-art cooling tower structures composed of hi-tech pultruded structural members. Offering many advanced features available only from CCTC, these towers solve today's cooling tower requirements.

Quality of Fiberglass at a

Lower Cost

Long life and low maintenance advantages of a quality fiberglass structure tower, but with lighterweight, lower-cost PVC fill.

CCTC's tower designs enhance the surrounding architecture

Part of CCTC's manufacturing process includes this robotic fabricating equipment

CERAMIC COOLING TOWER CORPORATION

D

S

:

A C

A

Today’s global power engineering solutions are found in progressive companies that cooperatively share enormous complemen-tary strengths. Having recognized this need for technological and business synergy, Balcke-Dürr continued its mission of techno-logical excellence by merging with Thermal Engineering International (TEI). Today's BDT engineering combines the excellence of Thermal Engineering International, Balcke-Dürr, and many other firms.

A

E

E

Balcke-Dürr’s heritage of excellence originat-ed in 1894, when Hans-Joachim Balcke built the first natural draft cooling tower, estab-lishing a legacy upon which BDT would build a world-class reputation for engineering excellence in the recooling sector. ERMALITE600 Towers UNILITETower PCS Counterflow Tower Concrete Tower CCTC's R&D operation Service and repair

The CCTC Corporate Headquarters and Manufacturing Plant

®

THE

W

ORLD

M

AXIMUM

B

ENEFITS WITH

L

OW

M

AINTENANCE

U

100

P

200 C

T

:

V

E

Lower Installed Cost – The simple support requirements, generally consisting of only two parallel I-beams, result from the heavy-duty construction and structural strength of the ULTRALITE®100 and PERMALITE®200

tow-ers. Rigging costs are minimized because the ULTRALITE100 and PERMALITE200 ship

fully assembled.

Long Life – Both towers use high-performance fill materials: PERMAGRID®_{tile for}

PERMALITEtowers; and economical, lighter-weight PVC fill for the ULTRALITES. The use of superior mechanical components, high quality resin systems, ultraviolet inhibitors, and gel-coating results in factory-assembled cooling towers with impressive life-span advantages over conventional towers. Low Maintenance –The FRP structure will not rust, rot, corrode, or deteriorate, and the mechanical equipment requires little maintenance. The easy-cleaning, one-piece FRP basin is leak-resistant.

Compatible Design and Access– The eye-pleasing design of these towers can maximize architectural compatibility. Visual inspections and maintenance are simplified, and the removable louvers provide conven-ient access to the interior of the unit. Because of size and weight advantages, these compact towers enable easy and flexible placement.

U

600

P

600 C

T

:

S

P

Tough and Refined –ULTRALITE600 and

PERMALITE600 Modular Cooling Towers

com-bine a high-quality, heavy-duty fiberglass reinforced plastic (FRP) structure and durable mechanical components for enduring performance.

No Deterioration –The tough FRP structure is fire-retardant and self-extinguishing, with a flame spread rating of less than 25 per ASTM E-84. Its advanced fire-resistant design earns the PERMALITEtower both FM and IRI approval for use without a fire sprinkler system.

Long Life –These pre-fabricated, field-assembled cooling towers have impressive lifespan advantages over conventional towers. Both utilize high-performance fill materials – PERMAGRIDtile for the PERMALITE

tower, and light, economical PVC fill for the ULTRALITE. Exterior and interior surfaces incorporate a high quality resin system, hand-applied uni-directional fiberglass, gel-coating for long life, and ultraviolet inhibitors. All assembly connections utilize unidirectional fiberglass-reinforced members with stainless steel attachment hardware. Low Maintenance –These exceptional towers require little maintenance, demon-strate energy efficiency, and provide enduring performance far surpassing towers of similar size.

Flexible Placement –The towers are molded in sections for rapid field assembly in mini-mum space, including installation at grade, on a roof top, or even in a mechanical room.

ULTRALITE100 and PERMALITE200 Towers ship ready to be installed, fully assembled

PERMALITE600 fan being installed and tested at the CCTC manufacturing facility

S

IMPLE YET VERSATILE

–

P

ERMALITE AND

U

LTRALITE TOWERS ARE

YOUR BEST CHOICE FOR

COOLING

.

Technician hand laying-up fiberglass at the CCTC manufacturing facility PERMALITE600 being transported to job site by truck

Its light weight allows the Ultralite 100 Tower to be used virtually anywhere

THE

ULTRALITE 100

SERIES COOLING TOWER

inspection ports

ULTRALITE100 Tower ULTRALITE100 Towers

F

-A

E

The ULTRALITE®100 Series Cooling Tower

is the solution which promotes corrosion resistance, longevity, and minimal maintenance.

A

P

The ULTRALITE100 Series cooling towers are versatile performers whose lightweight design permits easy lifting to rooftop loca-tions, particularly for comfort cooling applications. Architectural integrity is built-in, as the attractive design needs no screening. Due to its heavy-duty construc-tion, support requirements are minimal, consisting of a hot-dipped galvanized steel base.

Rigging costs are minimized because the ULTRALITE100 ships fully assembled with

all motors and drives factory installed and aligned. The modular design enables units to be multiplexed for larger installations, eliminating the time and expense associated with field-erected cooling towers.

F

-A

R

Each ULTRALITE100 Cooling Tower leaves the CCTC factory ready for immediate operation. The tower structure consists of a high-performance, fiberglass-reinforced polyester (FRP) composite laminate, engi-neered to ensure durability.

Tower fill consists of cross-corrugated PVC film supported by stainless steel or FRP members. Drift eliminators are wave-formed PVC with ultraviolet (UV) inhibitors. Both have a flame spread of 15 or less. The UV-protected fiberglass structure and basin are fabricated with fire-retardant resins, thus eliminating rust and corrosion.

U

100 S

The ULTRALITE100 Series is

available in two basic cell sizes: •The XL-36 measures 81" x 81".

•The larger XL-75 measures 98" x 128". Capacities range from 47 to 232 nominal tons per cell, and multiple cells can be used for larger applications. Confirming that the performance of these towers is commensurate with the quality of con-struction, the thermal performance ratings are certified by the Cooling Technology Institute (CTI) in accordance with their standard, STD-201 (96). P V C I L L FRP structure outlet inlet make-up valve (optional) overflow PVC film fill fill supports galvanized steel support one-piece FRP basin PVC film fill fan screen

cast aluminum fan

direct drive motor low-pressure water distribution system

3-pass drift eliminators

C

I

The counterflow design PERMALITE®200 is

compact; its hexagonal shape occupies less than 75 square feet when installed. The full 360° air inlet allows flexible place-ment.

D

A

C

F

L

, E

M

The unique fiberglass structure PERMALITE200 is the first cooling tower designed to require low maintenance on key tower components. Gone are the maintenance expenses associated with fill replacement, structure deterioration, and distribution system maintenance.

N

-C

, N

-D

,

L

-L

T

F

The PERMALITE200 uses CCTC's PERMAGRID®

ceramic tile fill, guaranteed to provide serv-ice for 25 years, assuring a PERMALITE200

owner of thermal performance longevity. Tiles are stacked by hand in a predeter-mined pattern after tower assembly. The combination of a strong support system and the strength of the tile assures the preven-tion of water and air flow distorpreven-tion. PERMAGRID's hardness, density, strength, and composition eliminate problems that arise from fill distortion, which disrupts the designed water and results in inefficient water cooling and higher electricity con-sumption. PERMAGRIDis unaffected by UV exposure, water treatment chemicals, fungal attack, and temperature extremes, including icing.

F

S

The tower walls are fabricated of pultruded fiberglass members. The fan enclosure and basin are made of molded FRP structural fiberglass – a material of exceptional strength that will not rust, rot, deteriorate, or leak. The basin interior surfaces are tool-finished gel-coat (with UV inhibitors), have a flame spread rating of 25 or less per ASTM E-84, and are self-extinguishing. The PERMALITE200 is an extremely sturdy tower,

capable of withstanding winds in excess of 100 MPH, while complying with seismic Zone 4 building codes. Because of its practical and attractive modular design, multiple towers can be installed in minimum space for larger cooling requirements.

M

H

The direct drive PERMALITE200 motor is an enclosed, corrosion-duty, variable-torque, sealed-bearing type motor that requires zero maintenance. There are no gears to lubricate or belts to wear. The aluminum fan is a fixed blade design that requires no adjusting.

D

S

Another zero maintenance feature of the PERMALITE200 is the totally enclosed,

low-pressure distribution system. The large-diameter piping and CCTC-designed, large-orifice spray nozzles are self-cleaning.

PERMALITE200 Towers

Distribution system arrangement and unitized waveform eliminators on a PERMALITE200.

T I L E F I L L

THE

PERMALITE 200

SERIES COOLING TOWER

The PERMALITE200 has a lightweight and compact design

direct drive motor and fan

3-pass drift eliminators FRP structure PERMAGRID ceramic tile fill

air inlet louvers (optional)

one-piece

basin _{fill support}

low pressure water distribution system

A L

P

The ULTRALITE®600 incorporates all of the quality and permanent structure features of the famous PERMALITE®Cooling Tower. Like the PERMALITEtower, the ULTRALITE

tower’s fiberglass structure is a field-assembled, fire retardant, Class 1-rated fiberglass structure, except that the ULTRALITEseries utilizes economical, light-weight PVC film fill. ULTRALITEtowers are available in the same plan sizes (12 x 12’ and 12 x 18’) as the PERMALITEtowers.

P

T

ULTRALITE600 cooling towers are designed

for customers who want the long life and low maintenance advantages of a quality

fiberglass structure tower, but with lighter weight, lower-cost PVC fill. These towers are well-suited for air conditioning or industrial water cooling. Both ULTRALITE

and PERMALITEtowers feature a shallow-sump FRP basin that is highly adaptable to rooftop installations.

D

F

L

, E

M

ULTRALITE600 towers require little

main-tenance, while providing consistent ther-mal performance. The mechanical sec-tion is factory-assembled, including the fan, drive system, and water distribution system, all within a fiberglass enclosure with integral fan stack. Quality construc-tion minimizes noise and vibraconstruc-tion.

PERMALITE600s

V C I L L

THE

ULTRALITE 600

SERIES COOLING TOWER

THE

PERMALITE 600

SERIES COOLING TOWER

L

M

A

T

P

PERMALITE600 towers offer the

perform-ance-proven advantages of a concrete structure tower in a lighter-weight, long-life fiberglass tower. PERMALITEtowers require

little maintenance and provide enduring, con-sistent thermal performance. The hardy FRP structure will not rot or rust. The minimal-maintenance mechanical section is factory-assembled, including the fan, drive system, and water distribution system, all within a fiberglass enclosure with integral fan stack.

A

T

PERMALITE600 modular cooling towers

combine structural fiberglass construction, CCTC's "permanent" PERMAGRID®Ceramic

Tile Fill, and advanced technology to produce significant performance advan-tages over conventional cooling towers.

The PERMAGRIDtile fill is the most durable

fill in the industry, with a guaranteed mini-mum 25 years of service. Made from domestic clay to strict specifications, the clay is heat fired to create a fill that is immune to traditional fill deterioration problems. Because tile fill is unaffected by ultraviolet exposure and fungal attack, PERMALITEtowers are unusually well-suited

for harsh operating environments involving temperature extremes. Characterized by large openings, PERMAGRIDtile is an

excel-lent performer in the high-solid contents environment of dirty water applications.

A

PERMALITEtowers are available in plan sizes 12 x 12’ and 12 x 18’. Multiple-unit installa-tions can meet larger cooling requirements. The PERMALITEtower’s pleasing appearance makes it architecturally compatible.

T I L E F I L L

ULTRALITE600s are attractive enough to be used in prominent locations

screen adjustable pitch FRP fan gear drive (belt drive optional) 3-pass drift eliminators low-pressure water distribution system PVC fill FRP fill support lintels FRP structure 1-piece FRP basin ladder and access door air inlet louvers (optional) screen

motor and belt drive access door FRP structure

fill support lintels one-piece FRP basin FRP ladder (optional) air inlet louvers (optional)

Structural upgrade of a wood tower

Field testing being performed

CCTC possesses a well-earned reputation as a leading provider of comprehensive engineering services to many industries, including power generation, chemical and petrochemical, and the comfort cooling sectors. Our service operations benefit from CCTC's combined international resources and expertise, providing our customers with rapid, flexible, and efficient service.

Our service expertise encompasses: • Expert inspections

• Performance testing & evaluations • Structural repairs

• Thermal upgrades

• High-performance, non-fouling film and splash fill replacements • Drift eliminator replacements • Water distribution system upgrades • Mechanical component replacements • Full range of spare parts available for

all OEM equipment

S

Most cooling towers lose efficiency every year through normal wear. Eventually, the tower requires repair, upgrade, or replace-ment to meet modern standards. CCTC’s mission is to provide the most advanced, cost-effective solutions for all cooling tower service requirements. Regardless of manufacturer, builder, or date of construc-tion, CCTC possesses the material resources to restore and enhance your cooling operations.

CCTC's experienced, capable staff pro-vides clients great benefit, derived from a 100-plus year legacy of service and con-struction. Manufacturing resources locat-ed around the world assure customers of prompt technical assistance and equip-ment availability.

R

CCTC has provided repair services for all situations for over 75 years. Experienced reconstruction specialists are strategically stationed for superior response to your cooling tower needs. After inspecting and assessing your tower’s condition, these specialists identify the required repair and provide a time and cost estimate for returning the tower to appropriate opera-tion. Regardless of the manufacturer of your tower, natural or mechanical draft, counterflow or crossflow, CCTC can ensure that you meet the demands of reduced water temperature or lower power consumption requirements.

P

CCTC maintains an extensive inventory of parts to meet your requirements quickly and efficiently. We will supply any part required. For any part not in stock, our relationship with major suppliers in the industry enables us to obtain other parts. Whether you are restocking parts before the next scheduled outage or have an urgent need, contact CCTC for expert assistance. By maintaining a vast supply of cooling tower replacement parts, CCTC puts the "immediate" in delivery.

S

ERVICE

, R

EPAIR AND

P

ARTS

CCTC’

S MISSION IS

TO PROVIDE THE MOST

ADVANCED

,

COST

-EFFECTIVE SOLUTIONS

FOR ALL COOLING TOWER

SERVICE REQUIREMENTS

.

CCTC builds quality into its components, which helps minimize service calls later Replacing louvers

T

HE

W

ORLD OF

BDT E

NGINEERING

M
