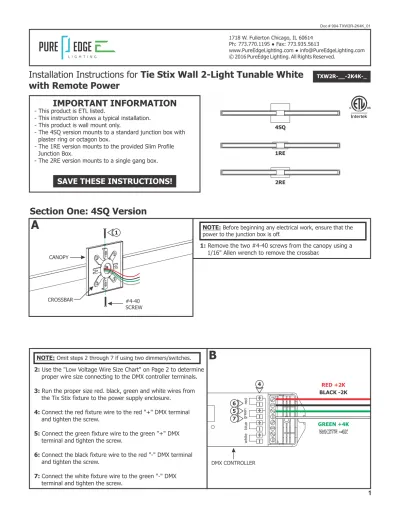

Installation Instructions for Tie Stix Wall 2-Light Tunable White with Remote Power. Section One: 4SQ Version IMPORTANT INFORMATION

Section One: 4SQ Version

A

NOTE: Before beginning any electrical work, ensure that the

power to the junction box is off.

1: Remove the two #4-40 screws from the canopy using a

1/16" Allen wrench to remove the crossbar.

#4-40 SCREW CANOPY 1 4SQ 2RE 1RE

- This product is ETL listed.

- This instruction shows a typical installation. - This product is wall mount only.

- The 4SQ version mounts to a standard junction box with plaster ring or octagon box.

- The 1RE version mounts to the provided Slim Profile Junction Box.

- The 2RE version mounts to a single gang box.

IMPORTANT INFORMATION

SAVE THESE INSTRUCTIONS!

1718 W. Fullerton Chicago, IL 60614 Ph: 773.770.1195 ● Fax: 773.935.5613

www.PureEdgeLighting.com ● [email protected] © 2016 PureEdge Lighting. All Rights Reserved.

Doc # 904-TXW2R-2K4K_01

Installation Instructions for Tie Stix Wall 2-Light Tunable White

with Remote Power

TXW2R-__-2K4K-_ CROSSBAR 4 5 6

B

7 DMX CONTROLLER RED +2K GREEN +4K BLACK -2K WHITE -4K

2: Use the "Low Voltage Wire Size Chart" on Page 2 to determine

proper wire size connecting to the DMX controller terminals.

3: Run the proper size red. black, green and white wires from

the Tix Stix fixture to the power supply enclosure.

4: Connect the red fixture wire to the red "+" DMX terminal

and tighten the screw.

5: Connect the green fixture wire to the green "+" DMX

terminal and tighten the screw.

6: Connect the black fixture wire to the red "-" DMX terminal

and tighten the screw.

7: Connect the white fixture wire to the green "-" DMX

terminal and tighten the screw.

C

8: Feed the wires coming from the DMX controller or two

remote power supplies through the center hole of the crossbar. Refer to the instructions provided with the power supply.

9: Align the crossbar tabs vertically and mount the crossbar to

the junction box holes with the two #8-32 screws provided.

D

9 SCREW SCREW TAB CROSSBAR TAB 8

E

12: Place the fixture against the crossbar and secure it with the

provided #4-40 screws using a 1/16" Allen wrench.

#4-40 SCREW

F

12

12

CANOPY

100W, 24VAC LOW VOLTAGE WIRE SIZE CHART

3%

VOLTAGE

DROP

WIRE LENGTH IN FT UP TO 31FT 32FT-49FT 50FT-81FT 82FT-124FT WIRE SIZE VOLTAGE AT END OF THE WIRE

14 AWG 12 AWG 10 AWG 8 AWG

23.28 VAC 23.29 VAC 23.28 VAC 23.28 VAC

10: Refer to the wiring diagrams on pages 5 and 6 to connect

the wires properly.

11: Place all the wires and wire connections inside the junction

box.

Section Two: 1RE Version

NOTE: Before beginning any electrical work, ensure that the power to the electrical box is off.

1: Mount each adjustable mounting bar to one side of the

junction box and secure them with the provided mounting brackets and two Phillips screws.

ADJUSTABLE MOUNTING BAR MOUNTING BRACKET PHILLIPS SCREW JUNCTION BOX 1

G

JUNCTION BOX

2: Place the adjustable mounting bar tabs between the studs.

Secure the adjustable bars to the studs with the #8 screws.

NOTE: Adjustable mounting bars mount to studs that are spaced 15" to 25" apart. If the span needs to be shorter than 15", then break the bar arms from dedicated lines.

H

ADJUSTABLE MOUNTING BAR #8 SCREW 2 JUNCTION BOX CONDUIT

I

3 4

3: Remove a knockout to install a conduit into the junction box.

Install conduit(s) (if required by local electrical code).

4: Run the wires coming from the DMX controller (refer to

Drawing B, steps 2 through 7 on page 1) or alternative two dimmers to the junction box.

5: Mark the rectangular junction box opening shape on the

drywall where the junction box will be located.

6: Cut out the marked rectangle opening, using a "Dremel

Multi-Max" with the "wood & drywall" cutting bit.

7: Install the drywall and plaster around the junction box. Sand

and then paint.

J

RECTANGLE OPENING DRYWALL DREMEL MULTI-MAX WOOD & DRYWALL

CUTTING BIT

5

6

K

8: Feed the wires of the channel through the goof plate.

9: Place the provided goof plate (paint to match prior) onto

the Tie Stix channel. Secure it with the two 1/2" #6-32 socket head cap screws using a 7/64" Allen wrench (provided).

#6-32 SOCKET HEAD CAP SCREW GOOF

PLATE CHANNEL

8 9

Section Three: 2RE Version

O

1

NOTE: Ensure single gang box is oriented horizontally. 1: Run the wires coming from the DMX controller (refer to

Drawing B, steps 2 through 7 on page 1) or alternative two dimmers to the gang box.

GANG BOX

L

JUNCTION BOX 11 MOUNTING PLATE 10 12 CHANNEL

10: Feed the wires from the channel through the mounting

plate.

11: Refer to the wiring diagrams on pages 5 and 6 to connect

the wires properly.

12: Place all the wires and wire connections inside the junction

box.

M

13: Place the mounting plate into the junction box. Secure it

with the two Phillips screws.

PHILLIPS SCREW

JUNCTION BOX

13

N

14: Insert the socket head cap screws into the opening of the

mounting plate, then slide sideways to lock in place.

15: If the drywall is thicker than 3/4", use the two 1" #6-32

socket head cap screws (provided) for the goof plate with a 7/64" Allen wrench. BACK VIEW GOOF PLATE 1" #6-32 SOCKET HEAD SCREW 15 14 MOUNTING PLATE

General Wiring Diagram

red green blue white GND D1+ D1- D2-D2+ INPUT GND DRIVER DMX CABLE (BELDEN #9841) CONTROLLER POWER ADAPTER PSB-100W-24VDC-2XK CDMX1-2XK -24VDC +24VDC L N POWER SUPPLY 120VAC

Using LED Power Supply with CDP, CTP, or CDMX Control

RED +2K

GREEN +4K

BLACK -2K

WHITE -4K

FIXTURE

5: Place the canopy onto the junction box. Secure it to the

junction box with the two Phillips screws provided.

Q

R

CANOPY PHILLIPS SCREWS 5 BACK VIEW CANOPY #6-32 SOCKET HEAD SCREW 6 6

6: Insert the socket head cap screws into the opening of the

canopy, then slide the channel sideways to lock in place.

CHANNEL

2: Feed the wires from the channel through the canopy. 3: Refer to the wiring diagrams on pages 5 and 6 to connect

the wires properly.

4: Place all the wires and wire connections inside the gang box.

P

CANOPY 3

4

CHANNEL

Using Two Power Supplies and ELV Dimmers

INPUT INPUT 2000K 4000K GND GND UNI POWER SUPPLY +24VDC RED -24VDC BLACK +24VDC RED -24VDC BLACK L N L N L N L N RED +2K BLACK -2K GREEN +4K WHITE -4K

Using Two Power Supplies Triac Dimmer

+24VDC RED -24VDC BLACK +24VDC RED -24VDC BLACK L N L N INPUT (L) RED +2K BLACK -2K GREEN +4K WHITE -4K INPUT (N) UNI POWER SUPPLY UNI POWER SUPPLY UNI POWER SUPPLY ELV DIMMER ELV DIMMER LUTRON SKYLARK CONTROLLER S2-L-WH

(8FT MINIMUM INSTALLATION LENGTH)

LOAD 1 LOAD 2

2000K

4000K

General Wiring Diagram

GND

N

GND

Using Two Power Supplies and 0-10V Dimmers

INPUT 2000K +24VDC RED -24VDC BLACK L GRAY 0-10V PURPLE 0-10V GRAY 0-10V PURPLE 0-10V RED 120VAC L N +24VDC RED -24VDC BLACK GND N GND 4000K L GRAY 0-10V PURPLE 0-10V GRAY 0-10V PURPLE 0-10V RED 120VAC L N RED +2K BLACK -2K GREEN +4K WHITE -4K INPUT UNI POWER SUPPLY UNI POWER SUPPLY 0-10V DIMMER 0-10V DIMMER FIXTURE FIXTURE FIXTURE
