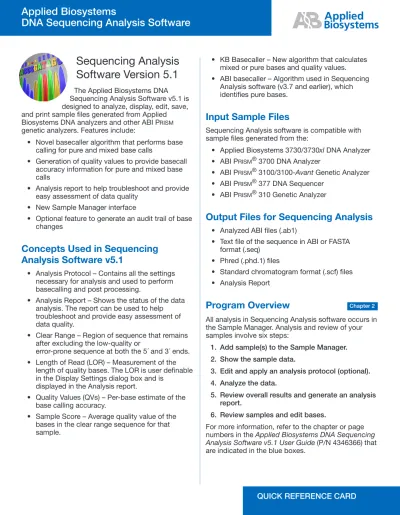

Sequencing Analysis Software Version 5.1
The Applied Biosystems DNA Sequencing Analysis Software v5.1 is designed to analyze, display, edit, save, and print sample files generated from Applied Biosystems DNA analyzers and other ABI PRISM
genetic analyzers. Features include:
• Novel basecaller algorithm that performs base calling for pure and mixed base calls
• Generation of quality values to provide basecall accuracy information for pure and mixed base calls
• Analysis report to help troubleshoot and provide easy assessment of data quality
• New Sample Manager interface
• Optional feature to generate an audit trail of base changes
Concepts Used in Sequencing Analysis Software v5.1
• Analysis Protocol – Contains all the settings necessary for analysis and used to perform basecalling and post processing.
• Analysis Report – Shows the status of the data analysis. The report can be used to help troubleshoot and provide easy assessment of data quality.
• Clear Range – Region of sequence that remains after excluding the low-quality or
error-prone sequence at both the 5´ and 3´ ends.
• Length of Read (LOR) – Measurement of the length of quality bases. The LOR is user definable in the Display Settings dialog box and is
displayed in the Analysis report.
• Quality Values (QVs) – Per-base estimate of the base calling accuracy.
• Sample Score – Average quality value of the bases in the clear range sequence for that sample.
• KB Basecaller – New algorithm that calculates mixed or pure bases and quality values.
• ABI basecaller – Algorithm used in Sequencing Analysis software (v3.7 and earlier), which identifies pure bases.
Input Sample Files
Sequencing Analysis software is compatible with sample files generated from the:
• Applied Biosystems 3730/3730xl DNA Analyzer
• ABI PRISM® 3700 DNA Analyzer
• ABI PRISM® 3100/3100-Avant Genetic Analyzer
• ABI PRISM® 377 DNA Sequencer
• ABI PRISM® 310 Genetic Analyzer
Output Files for Sequencing Analysis
• Analyzed ABI files (.ab1)
• Text file of the sequence in ABI or FASTA format (.seq)
• Phred (.phd.1) files
• Standard chromatogram format (.scf) files
• Analysis Report
Program Overview
All analysis in Sequencing Analysis software occurs in the Sample Manager. Analysis and review of your samples involve six steps:
1. Add sample(s) to the Sample Manager.
2. Show the sample data.
3. Edit and apply an analysis protocol (optional).
4. Analyze the data.
5. Review overall results and generate an analysis report.
6. Review samples and edit bases.
For more information, refer to the chapter or page numbers in the Applied Biosystems DNA Sequencing Analysis Software v5.1 User Guide (P/N 4346366)that are indicated in the blue boxes.
Chapter 2
Applied Biosystems
DNA Sequencing Analysis Software
The Sample Manager
The Sample Manager is a window that displays sample files and the various analysis parameter values. All data is analyzed or reanalyzed from this window pane. Single or multiple sample views are displayed here.
The Analysis Report
An Analysis Report shows the status of data analysis. An analysis report can be generated for any samples added to the Sample Manager. If the data is analyzed, the report displays a summary of QVs and LORs, as well as individual sample information and errors. If the data is unanalyzed, the report displays status information. It can be exported as a tab-delimited file and opened in Microsoft® Excel software for trend analysis.
Pages 3-5 & 5-2
Use tabs to view data in Sample Views pane
Samples in Sample Manager pane
Processing tasks: Basecalling, Post Processing, Printing
Scroll bars to view a sample
Scroll bar to scroll the stack of multiple samples Analysis parameters can be changed in Sample Manager or in Analysis Protocol. Matrix file used for 310 and 377 data only
Calculated results Use the Show
check box to display sample data
Scroll bar to view other samples
Chapter 7
An underlined sample is hyperlinked to the specific sample in Sample Manager
Partial output and failed samples are hyperlinked to the specific sample in the Errors table Definition of QV ranges Definition of LOR ranges
Change view settings here Right-click to show/hide a column
Data Analysis and Review
All analysis in Sequencing Analysis software occurs in the Sample Manager. You can perform the analysis and review of your sequencing sample files by following the steps below.
To launch the analysis software, double-click the Sequencing Analysis v5.1 desktop icon.
Step 1: Add sample(s) to the Sample Manager.
Use the Add Samples function to add samples to the Sample Manager for analysis, printing, viewing, or editing data.
1A. Click (Add Sample).
1B. Select the files that you want to add to the Samples To Add section of the dialog box.
1C. Click OKin theAdd Samples dialog box.
The dialog box closes and the selected files are added to the Sample Manager window.
Step 2: Show the sample data.
2A. Use the Sample Manager or Sample Navigator view to show data for one or more sample files.
Figure 1 Samples in the Sample Manager view 2B. To show the data in the Sample Navigator, select
View > Sample Navigator or click .
Figure 2 Samples in the Sample Navigator view
To add … Do this ...
A single file to the list
Select the file, then click Add Selected Samples.
Multiple files Shift-click to select continuous samples or Ctrl-click to select discontinuous samples, then click Add Selected Samples.
All samples in a single folder
Select the folder, then click Add Selected Samples.
To show the
data for … Do this ...
A single sample
Double-click the sample file name or select the corresponding Show check box.
Multiple samples
Shift-click, Shift-drag or Ctrl-click the sample row numbers to select the sample files, then click . All samples Click the empty box above row
number 1 or Shift-drag the sample row numbers to select all samples,
Page 3-10
Page 3-13
Step 3: Edit and apply an analysis protocol (optional).
Use the Analysis Protocol Manager function to change the analysis protocol settings for samples.
3A. Select the sample rows of interest in the Sample Manager.
• Use Shift-click to select continuous samples.
• Use Ctrl-click to select discontinuous samples.
3B. Select Analysis > Analysis Protocol Manager. 3C. In the Analysis Protocol column, select the
protocol you want to edit, then double-click the protocol name.
3D. Make changes in the General, Basecalling, Mixed Bases, and Clear Range tabs, as appropriate.
3E. Click OK to save the protocol and close the Sequence Analysis Protocol Editor.
3F. Click:
• Apply to Selected Samples to apply the protocol to the samples selected in step 3A, or
• Apply to All Samplesto apply the protocol to all the samples in the Sample Manager.
IMPORTANT! Do not skip this step.
3G. Click Done to close the Analysis Protocol Manager.
Step 4: Analyze the data.
Use to start the basecalling, post processing, and printing tasks that you selected.
Click (Start Analysis) and Sequencing Analysis software will automatically perform the following tasks:
Basecalling
When the BC (basecalling) parameter is selected, the basecaller performs the either of following tasks:
• Calls the bases with the KB basecaller – If the mixed base option is selected in the
analysis protocol, then mixed bases are called.
– If the mixed base option is not selected, then pure bases are called (A, C, G, and T only).
– Calculates quality values (QVs) for pure and mixed bases, if the mixed base option is selected.
• Calls the bases with the ABI basecaller
Assigns A, C, G, T, or N to every base (no mixed- base calling and QV options)
The Sequencing Analysis software then generates optional file formats (.seq, .phd.1 and/or .scf).
Post Processing
When the PP (post processing) parameter is selected in the Sample Manager, the software calculates the clear range.
Printing
When the P (printing) parameter is selected, the software prints the sample views after analysis and post processing.
Note: The views that are printed are defined in the Options dialog box. To change the defaults, select Tools > Options, then select the Printing tab.
Step 5: Review overall results and generate an analysis report.
Use the Sample Manager and the analysis report to review your data.
5A. Review your results in the Sample Manager.
a. Look for green, yellow, or red boxes for the BC parameter. Green indicates the process was successful, yellow indicates poor quality data, and red indicates failure.
Note: The yellow result applies only to samples analyzed with the KB basecaller.
b. Look for green or red boxes for the PP and/or P parameters. Green indicates the process was successful, and red indicates failure.
c. Review the base spacing, peak 1 location, and start and stop points. A red value in the Base Spacing column indicates that the spacing could not be calculated and the default value was used for analysis.
5B. Review the analysis report.
a. Click (Analysis Report) to generate and display the report.
b. Review the data in the report.
c. To export the report, select File > Export Report. The file is exported in a
tab-delimited format.
Page 8-13
Chapter 5
Page 5-8
Page 5-19 Chapter 7
Step 6: Review samples and edit bases.
6A. Select a sample file.
6B. Review your results in the sample file:
a. Review the raw, analyzed, and EPT data.
b. Review low-quality basecalls and check for errors.
6C. Edit the bases, as needed.
• To navigate through the data, use the keyboard shortcuts in the table in the next column.
• The QVs change depending on the edits you make. If you:
– Insert a base – No QV is added – Delete a base – QV is deleted
– Change a base – QV has the same value but is displayed as a gray bar
6D. Save the sample file. The .seq file created when the data was analyzed is updated when you save the sample file.
Quality Values
The QV is a per-base estimate of the basecaller accuracy. The QVs are calibrated on a scale corresponding to:
where Pe is the probability of error.
The KB basecaller generates QVs from 1 to 99.
• Typical high quality pure bases have QVs 20 to 50
• Typical high quality mixed bases have QVs 10 to 50
• Size and color of QVs bars are identical for QVs 50 to 99
The QVs are optionally displayed as bars above each
You can change the colors and values of the QV bars in the Display Settings:
1. Select (Display Settings).
2. In the Sample File Display section, change the range for the QVs. Use the two sliders to define the low, medium, and high ranges.
Figure 3 Display Settings: Bases Tab
3. Click OK to save the new settings and close the dialog box.
Shortcuts for Working with Data
Use the following shortcuts when working with data in the Sequence and Electropherogram views.
Quality Value Probability the Basecall Is Incorrect
10 10%
20 1%
30 0.1%
40 0.01%
50 0.001%
Page 4-2
Page 6-4
QV = –10log10( )Pe
QV Bar Default Color and Range
Set the range to identify data that is …
Low Red
0 to 14
Not acceptable
Medium Yellow
15 to 19
Needs manual review
High Blue
20 or higher
Acceptable
To move to the … Press …
Next base Right arrow
Previous base Left arrow
Next/previous N Tab key/Shift+Tab Next/previous 10 bases F5 key/Shift+F5 Next/previous low QV F6 key/Shift+F6 Next/previous medium QV F7 key/Shift+F7 Next/previous high QV F8 key/Shift+F8
Chapter 9
Sliders
Toolbar
The toolbar displays buttons for the most commonly used software functions. See the graphic below for the name, keyboard shortcut, and description of each button.
© Copyright 2003, Applied Biosystems. All rights reserved.
For Research Use Only. Not for use in diagnostic procedures.
Applied Biosystems, and ABI PRISM and its Design are registered trademarks, and AB (Design), ABI, and Applera are trademarks of Applera Corporation or its subsidiaries in the U.S. and/or certain other countries.
Add Sample(s) Ctrl+I
Opens Add Sample(s) dialog box
Remove Sample(s) Delete
Removes selected samples from Sample Manager/Navigator
Toggle Ctrl+N
Toggles between Sample Navigator and Sample Manager views
Full View Ctrl+[
Displays all data in a standard size window
Print Ctrl+P Prints selected views and analysis reports
Zoom In Horizontal Ctrl+=
Enlarges view horizontally
Actual Size Ctrl+]
Restores display to initial default zoom factor
Zoom Out Horizontal Ctrl+Minus Reduces view horizontally
Show/Hide original sequence
Ctrl+J
Toggles display of original sequence on and off
Zoom Out Vertical Ctrl+Shift+Minus Reduces view vertically
Display Settings Ctrl+Y
Opens Displays Settings dialog box Zoom In Vertical
Ctrl+Shift+=
Enlarges view vertically
Show/Hide QV Ctrl+K
Toggles display of the quality values on and off Copy
Ctrl+C
Start Analysis Ctrl+R
Starts the selected analysis, post processing and printing tasks
Save Sample(s) Ctrl+S
Saves changes to selected samples
Save All Sample(s) Ctrl+Shift+S Saves changes to all samples
Analysis Report Ctrl+B
Generates and displays analysis report
View Sequencing Analysis Protocol Ctrl+T
Opens analysis protocol for the selected sample
Show/Hide Ctrl+U
Displays selected sequence file data
Applied Biosystems Home Page Links to the Applied Biosystems web page
