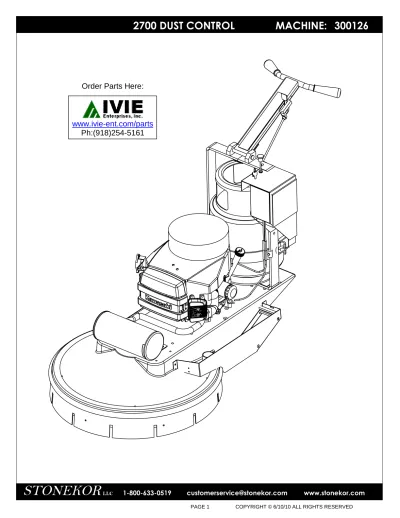

2700 DUST CONTROL MACHINE:

300126

STONEKOR

MACHINE:

2700 DUST CONTROL

PAGE 1 COPYRIGHT © 6/10/10 ALL RIGHTS RESERVED Order Parts Here:

www.ivie-ent.com/parts Ph:(918)254-5161

23 1 3 6 2 4 24 5 19 11 9 15 8 16 10 13 12 14 OLD STYLE BATERY BOX 7 20 18 29 2 17 21 FACTORY INSTALLED OPTIONS:

300141 ELECTRIC CLUTCH NOTE:

USE PULLEY 680210 WITH ELECTRIC CLUTCH

26 27 28 25 22 30 31 32

300126

STONEKOR

MACHINE:

2700 DUST CONTROL

ITEM

NO. PART NUMBER DESCRIPTION QTY.

1 1010 HANDLE GRIP 2

2 9042 VELCRO TAPE 2 X 12 2

3 680410 2 X 13 CASTER WITH GRAY SPARTAN WHEEL 2

4 1003 TOGGLE 1 5 300178 LOGO STONEKOR 1 6 300174 HANDLE 1 7 680053 LP TANK (ALUM) 1 8 4002 BATTERY SM 12V 1 9 680082 REPLACEMENT KEY 1

10 680209 KEY SWITCH HOUSING 1

11 680255 CHOKE CABLE PUSH / PULL (KAWASAKI / ROBIN) 1

12 300171 KEY SWITCH 1

13 680198 BATTERY BOX WITH KEY SWITCH / CHOKE 1

14 680223 WIRE HARNESS KAWASAKI 1

15 300179 BATTERY BOX (NEW) 1

16 680296 BATTERY CONNECTOR COMPLETE - KAWASAKI 1

17 680599 THROTTLE CABLE WITHOUT CHOKE 1

18 300172 FRONT BEARING ASSY.COMPLETE DC -NEW STYLE 1

19 300166 DUST CONTROL WHEEL ASSEMBLY (OLD # 680586) 2

20 300159 TENSIONER 24 & 27 BUFFER 1

21 300196 27" ENVIRO PRO PAD DRIVER COMPLETE ASSEMBLY 1

22 3005 DECK 27" DC 1

23 680542 27" DUST BAG TRAY 1

24 680550 CLOTH FILTER BAG (LONG) 1

25 681151 DUST SHROUD 27" NEW STYLE METAL 1

26 681152 27" RUBBER SKIRT 1

27 1600 BUMPER MOLDING 6 FT 1

28 1240 HOUR METER 1

29 200353 BELT BX-53 1

30 680574 CLOTH FILTER BAG CLAMP 1

31 009315 PULLEY, 7.0 1 32 680210 PULLEY, 8.5 1

300126

STONEKOR

MACHINE:

2700 DUST CONTROL

9 9 8 3 6 2 10 4 5 1 10 7

300145

STONEKOR

PART NUMBER:

ITEM

NO. NUMBERPART DESCRIPTION QTY.

1 1410 CENTERLOCK 1

2 680581 FLANGE BACKING RING 1

3 680642 FLANGE 3-5/16 1

4 680673 PAD DRIVER 2700 ONLY 1

5 680678 26 3/8" DIAMETER X 17" ID MIGHTY-LOK II FACE WITH ADHESIVE 1

6 680679 RUBBER BISCUIT 2004 STYLE 1

7 FLAT WASHER 5/16 SAE 6

8 FENDER WASHER 5/16 6

9 NYLOCK 5/16-18 12

10 SOCKET HEAD CAP SCREW 5/16-18 X 1 1/4 12

300145

LLC

STONEKOR

MACHINE:

1-800-633-0519 [email protected] www.stonekor.com

27" PAD DRIVER PARTS BREAK DOWN

2 6 4 8 4 8 7 1 5

KAWASAKI 17 HP EXHAUST SYSTEM

LLC

ITEM

NO. PART NUMBER DESCRIPTION QTY.

1 300149 KAWASAKI 17 HP COMPLETE W/O MUFFLER & MANIFOLD 1

2 W110607021 GASKET, MANIFOLD 2

3 300153 MANIFOLD KAWASAKI VERTICAL (680656) 1

4 300186 MUFFLER CLAMP KAWASAKI (680269) 2

5 300152 MUFFLER KAWASAKI VERTICAL (680268) 1

6 300151 MANIFOLD KAWASAKI HORIZONTAL 1

7 300150 MUFFLER KAWASAKI HORZONTAL 1

8 680680 MANIFOLD BOLT PLUG 2

KAWASAKI 17 HP EXHAUST SYSTEM

LLC

STONEKOR

2 3 4 5 14 1 6 9 6 7 8 11 8 13 4 5 12 10 15 20 16 18 22 17 19 23 21

KAWASAKI 17 HP ENGINE AND CARBURETOR

LLC

STONEKOR

PARTS BREAK DOWN

ITEM

NO. PART NUMBER DESCRIPTION QTY

1 680226 STARTER SOLENOID KAWASAKI 1

2 680222 OIL SWITCH 1

3 680088 SENDING UNIT ELBOW 1

4 680227 SPACER 1 1/8 KAWASAKI 2

5 680230 SCREW 10-32 X 1 3/4 2

6 W110617004 GASKET AIR FILTER 2

7 CARBURETOR ASSEMBLY KAWASAKI 17 HP 1

8 W110617018 GASKET AIR FILTER 2

9 W160737007 INSULATOR WITH VACUUM TUBE 1

10 1117 HOSE 3' VAC 1

11 680236 FUEL LOAD BLOCK KAWASAKI 1

12 680235 RUBBER CAP 1/4-KAWASAKI 1

13 680229 STUD M6 X 130 KAWASAKI 2

14 680298 KAWASAKI STARTER TO SOLENOID WIRE 1

15 680224 RECOIL FILTER- KAWASAKI 1

16 W11013-7001 AIR FILTER ( KAWASAKI FH541 V ) 1

17 W11013-7049 AIR FILTER (KAWASAKI FS 481 V ) 1

18 W11013-7006 PRE CLEANER (KAWASAKI FH541 V) 1

19 W11013-7046 PRE CLEANER (KAWASAKI FS 481 V) 1

20 W49065-7010 FILTER-OIL (KAWASAKI FH541 V ) 1

21 W49065-7007 FILTER-OIL (KAWASAKI FS 481 V) 1

22 W92070-7003 PLUG SPARK RCJ8Y, SOLID (KAWASAKI FH541 V ) 1

23 W92070-7004 PLUG, SPARK BPR4ES (NGK), SOLID (KAWASAKI FS 481 V ) 2

KAWASAKI 17 HP ENGINE AND CARBURETOR

LLC

STONEKOR

PARTS BREAK DOWN

7 6 8 12 4 2 3 5 11 10 9 5 1 13 12 LLC

STONEKOR

ROBIN 22 HP EXHAUST SYSTEM

6 ITEM

NO. PART NUMBER DESCRIPTION QTY.

1 300146 ROBIN 22 HP COMPLETE WITHOUT MUFFLER & MANIFOLD 1

2 300187 CLAMP MUFFLER ROBIN 1

3 300147 VERTICAL MUFFLER 1

4 300148 MANIFOLD ROBIN VERTICAL 1

5 200142 CLUTCH 1

6 200154 SHAFT EXTENSION ROBIN 1

7 200146 SPACER, CLUTCH 1

8 200155 KEY STOCK 1

9 680053 LP TANK (ALUM) 1

10 4002 BATTERY SM 12V 1

11 200124 BATTERY CABLE ASSY 1

12 2463520103 GASKET, MANIFOLD 2

13 680680 MANIFOLD BOLT PLUG 1

ROBIN 22 HP EXHAUST SYSTEM

LLC

STONEKOR

9 3 5 3 11 8 6 10 4 4 7 4 10 18 19 1 2 14 13 12 15 17 16

ROBIN 22 HP ENGINE AND CARBURETOR

LLC

STONEKOR

PARTS BREAK DOWN

ITEM

NO. PART NUMBER DESCRIPTION QTY.

1 200128 RECOIL SUPPORT FOR STUD 1

2 1117 HOSE 3' VAC 1

3 R26335501A3 AIR CLEANER GASKET 2

4 R26335502A3 AIR CLEANER GASKET 3

5 R26335401A3 INSULATOR WITH VACUUM TUBE 1

6 680235 RUBBER CAP 1/4-KAWASAKI 1

7 CARBURETOR ASSEMBLY ROBIN 22 HP 1

8 680553 ROBIN 22 HP FUEL LOAD BLOCK 1

9 1118 HOSE 3' FUEL 1

10 680229 STUD M6 X 130 KAWASAKI 2

11 R-263-38001-A3 SPACER 1

12 680541 FILTER SUPPORT SCREEN ROBIN 1

13 680509 RECOIL FILTER ROBIN 1

14 R26373123A1 WIRING HARNESS SK SERIES GRINDERS ONLY 1

15 RX650140730 PLUG SPARK RCJ8Y, SOLID (KAWASAKI FH541 V ) 1

16 263-32610-A1 CLEANER ELEMENT 1

17 248-65801-00 OIL FILTER AY 1

18 HEX BOLT 1/4-20 X 5 1/2 1

19 FENDER WASHER 1/4 1

LLC

STONEKOR

PARTS BREAK DOWN

1-800-633-0519 [email protected] www.stonekor.com

ROBIN 22 HP ENGINE AND CARBURETOR

1 3 2 4 5 6 8 9

300160

STONEKOR

REGULATOR ELECTRIC LOCK FITTING HOSE COUPLER

ITEM NO. PART NUMBER DESCRIPTION QTY.

1 680350 REGULATOR FOR KAWASAKI & ROBIN 1

2 680265 FUEL LOCK WITH FILTER 1

3 1144 1/8 MALE PIPE X 3/16 HOSE BARB X 90 1

4 1143 BRASS ELBOW 3/8 X 3/8 NPT 1

5 1124 HOSE, LP TANK TO REGULATOR 1

6 1155 QUICK COUPLING 1

8 1117 HOSE, 3' VAC 1

9 1118 HOSE, 3' FUEL 1

300160

LLC

STONEKOR

PART NUMBER

REGULATOR ELECTRIC LOCK FITTING HOSE COUPLER

PARTS BREAK DOWN

4

5

1

3

2

2

KILL SWITCH PARTS BREAK DOWN

300140

LLC

STONEKOR

PART NUMBER

KILL SWITCH PARTS BREAK DOWN

ITEM

NO. PART NUMBER

DESCRIPTION

QTY.

1

680456

CLUTCH HOUSING TOP

1

2

602675

ARM & SPRINGS (1 PAIR)

3

9039

CLUTCH SWITCH WIRE

1

4

680454

CLUTCH HOUSING BOTTOM

1

5

300163

SWITCH, KILL ONLY

1

300140

LLC

STONEKOR

PART NUMBER

4

5

1

3

2

2

300141

STONEKOR

PART NUMBER

ELECTRIC CLUTCH SWITCH

PARTS BREAK DOWN

ITEM

NO. PART NUMBER

DESCRIPTION

QTY.

1

680456

CLUTCH HOUSING TOP

1

2

602675

ARM & SPRINGS (1 PAIR)

3

9039

CLUTCH SWITCH WIRE

1

4

680454

CLUTCH HOUSING BOTTOM

1

5

300164

SWITCH, CLUTCH ONLY

1

300141

LLC

STONEKOR

PART NUMBER

1-800-633-0519 [email protected] www.stonekor.com

ELECTRIC CLUTCH SWITCH

PARTS BREAK DOWN

1

2

300142

LLC

STONEKOR

EMISSION SHUT DOWN

1-800-633-0519 [email protected] www.stonekor.com

ITEM

NO. PART NUMBER DESCRIPTION QTY.

1 300142 EMISSION SHUT DOWN COMPLETE 1

2 300169 OXYGEN SENSOR ONLY 1

300142

LLC

STONEKOR

EMISSION SHUT DOWN

PART NUMBER

LOOKING INTO

WIRE SIDE OF SWITCH

CONNECTOR KEY SWITCHP/N: 300171

WHT OIL SWITCH P/N: 680222 WHT WHT RED HOUR METER P/N: 1240 STARTER RED FUEL LOCK OFF P/N: 680265 VOLTAGE REGULATOR WHT WHT WHT STARTER SOLENOID RED KEY SWITCH WHT WHT 12 VOLT BATTERY WHT WHT RED GROUND HERE

IF NOT USING EMISSION SHUT DOWN

RED RED RED EMISSION SHUT DOWN P/N: 300142 BLK RED RED BLU GRN BLK

BLU OXYGEN _SENSOR

P/N: 300169 BLK

RED

BLK

CLUTCH MICRO SWITCH P/N: 9046

BLU WHT ELECTRIC CLUTCH P/N: 300141 LEGEND: WHT = WHITE BLK = BLACK BLU = BLUE = CONNECTOR OR SPLCE REFER TO KAWASAKI OWNERS MANUAL FOR IGNITION AND CHARGING CIRCUIT SCHEMATIC

BLU

BLU

WIRING HARNESS P/N: 680223

WIRE HARNESS SCHEMATIC KAWASAKI 17 HP SIGNATURE SERIES AND DUST CONTROL

LLC

STONEKOR

WITH OPTIONAL ELECTRIC CLUTCH AND EMISSION SHUT DOWN

LOOKING INTO

WIRE SIDE OF SWITCH

CONNECTOR KEY SWITCHP/N: 300171

WHT OIL SWITCH P/N: 680222 WHT WHT RED HOUR METER P/N: 1240 STARTER RED FUEL LOCK OFF P/N: 680265 VOLTAGE REGULATOR WHT WHT WHT STARTER SOLENOID RED KEY SWITCH 12 VOLT BATTERY WHT WHT RED GROUND HERE

IF NOT USING EMISSION SHUT DOWN

RED RED RED EMISSION SHUT DOWN P/N: 300142 BLK RED RED BLU GRN BLK

BLU OXYGEN _SENSOR

P/N: 300169 BLK

RED

BLK

CLUTCH MICRO SWITCH P/N: 9046

BLU WHT ELECTRIC CLUTCH P/N: 300141 LEGEND: WHT = WHITE BLK = BLACK BLU = BLUE = CONNECTOR OR SPLCE REFER TO KAWASAKI OWNERS MANUAL FOR IGNITION AND CHARGING CIRCUIT SCHEMATIC

BLU

BLU

WIRING HARNESS P/N: R26373123A1

WIRE HARNESS SCHEMATIC ROBIN 22 HP SIGNATURE SERIES AND DUST CONTROL

LLC

STONEKOR

WITH OPTIONAL ELECTRIC CLUTCH AND EMISSION SHUT DOWN

1-800-633-0519 [email protected] www.stonekor.com
