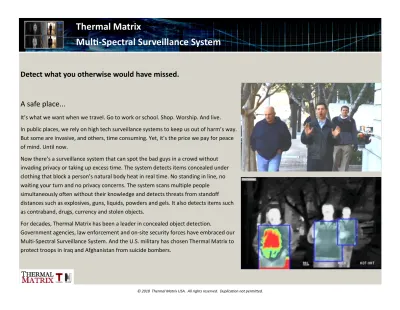

Detect what you otherwise would have missed.
A safe place...
It’s what we want when we travel. Go to work or school. Shop. Worship. And live.
In public places, we rely on high tech surveillance systems to keep us out of harm’s way. But some are invasive, and others, time consuming. Yet, it’s the price we pay for peace of mind. Until now.
Now there’s a surveillance system that can spot the bad guys in a crowd without invading privacy or taking up excess time. The system detects items concealed under clothing that block a person’s natural body heat in real time. No standing in line, no waiting your turn and no privacy concerns. The system scans multiple people simultaneously often without their knowledge and detects threats from standoff distances such as explosives, guns, liquids, powders and gels. It also detects items such as contraband, drugs, currency and stolen objects.
For decades, Thermal Matrix has been a leader in concealed object detection.
Government agencies, law enforcement and on-site security forces have embraced our Multi-Spectral Surveillance System. And the U.S. military has chosen Thermal Matrix to protect troops in Iraq and Afghanistan from suicide bombers.
Thermal Matrix
Features
Automated Video Surveillance
Thermal Matrix’s new Multi-Spectral Surveillance System provides multi-camera/multi-view imaging for concealed objects and day/night surveillance. Our dual camera model provides remote imaging using visible and infrared sensors allowing unparalleled monitoring of entrances, exits and checkpoints of secure areas. The system provides real time warning of person-borne concealed threats from safe distances, detecting threats metal detectors cannot, such as IEDs, plastic explosives, and hazardous liquids, powders and gels. The system includes dual sets paired IR and CCTV imagers, DVR features, image stabilization, motion detection, digital zoom and a wide spectrum of features. Advanced motion detection allows selected video feeds to blank during no motion, simplifying the task of security personnel.
Thermal Matrix can detect items missed by metal detectors such as plastic explosives, composite guns, powders, liquids and gels.
Concealed Object Detection
TM’s dual camera model is ideal for detection of concealed objects such as contraband, currency and stolen items. It can detect threats from safe distances discretely without cooperation or lines. The system detects smuggled liquor and contraband entering stadiums and cruise ship/airline gates, stolen items from exiting warehouses, or threats, drugs and currency approaching border crossings. The dual camera model is ideal for checkpoint surveillance, viewing both the front and back of subjects simultaneously and is upgradable as your requirements change. For wide entryways, the dual cameras can extend the field of view of the system, covering twice the width a single camera allows.
Field-Proven Experience
Fixed/Permanent Deployment
Thermal Matrix’s Fixed/Permanent Deployment version allows the system to be securely mounted in a fixed covert or overt location. Based on a high-end tower PC computer, the command and control displays are typically located in a central security office. The cameras are typically located near entrances or places of interest and connected via fiber optics. Additional monitors can be included to mirror the central command/control console near the surveillance point(s) to streamline communications with security personnel on location.
Additionally, the command/control display can be wirelessly beamed to a smartphone or tablet device for handheld operation. This offers a remote operator full view of the Multi-Spectral display in real time without a tethered connection.
Mobile/Rapid Deployment
Thermal Matrix’s Mobile/Rapid Deployment version allows the system to be easily moved between locations. Housed in a rugged rolling equipment case and one man portable unit, it includes one or two camera enclosures, tripod(s), ToughBook laptop computer with TM software preinstalled and IP router connecting the computer to the infrared and visible sensors. Deployment is simple- mount the camera enclosures to the tripods, connect them to the IP router/computer and connect to a 100-230VAC power source. For field use, TM can supply an optional battery pack to power the unit away from infrastructure.
The Mobile/Rapid Deployment version is ideal for protecting sporting events, concerts, large or small gatherings and providing protection and surveillance for state visits and VIPs. The
system’s versatility and flexibility make it Thermal Matrix’s best selling configuration for law enforcement and military applications.
Thermal Matrix also provides custom cable lengths for connecting the equipment including 50 meter CAT-6 and 300+ meter fiber optic lengths provided on convenient cable reels.
Technology Comparison
Thermal Matrix Metal Detector Gateway Scanning Booth Explosives Dog
Technology Thermal Multi-Spectral Magnetometer Millimeter wave Millimeter wave Canine Single file? No. Random traffic Yes Yes Yes (booth) Yes
Random traffic pattern?
Yes. Random flow and crowds
No. Single file line
No. Single file line
No. Single person booth
Somewhat. Dog must sniff each person
Est. throughput 180+ people/min 15 people/min 10 people/min 6 people/min 30 people/min
Best at detecting Metal, explosives, liquids, powders, gels,
paper, theft
Metal (only) Metal Metal Explosives, drugs
Standoff detection Yes No No No No
Covert use Yes No No No No
Mobile/outdoor use Yes No No No No
Specifications
Specifications (Preliminary)
Imager Interface Software drivers included for GigE, CameraLink, Analog RS-170 NTSC or PAL interfaces Interface hardware optional
Imaging Resolution 640 x 512 pixels x 12 thermal bits typical
Sensitivity Infrared imagers detect temperature differences to a fraction of a degree Fahrenheit Features Multi-Spectral analysis, image enhancement, motion detection, DVR control, video
skim-ming, playback of archived video, real time motion pause, continuous recording, echo highlights over color imagery, image stabilization, person, face and traffic detection/ tracking, concealed object highlighting, false color overlays, region masking
Response Time Real time operation with auto-scene blanking when no motion is detected Operating Environment Indoors or outdoors. Range dependent on optics employed, 3-15 meters typical
Control Dual camera (upgradable) GUI showing IR + color imagers (2 each) with integrated image processing and DVR. International language GUI with 10 languages supported
Concealed Objects Detected Contraband (liquor and other liquids), drugs (quantities of tablets, capsules or powders), threats (large knives, guns, clubs), currency (quantities of paper currency or coins), food. Also detects theft items of numerous varieties including solids, metals, plastics, liquids and paper (e.g., documents)
Hardware Platform Tower PC or laptop based dependent on customer requirements
