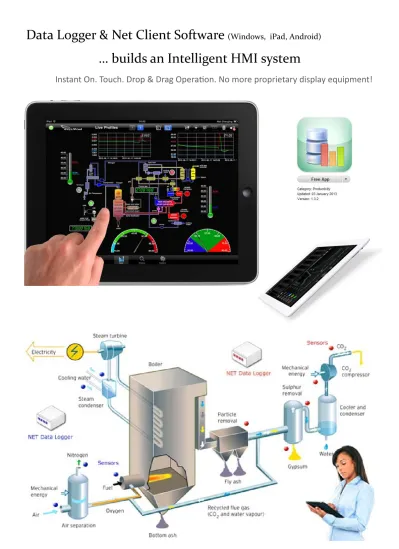

Data Logger & Net Client Software
(Windows, iPad, Android)… builds an Intelligent HMI system
Running a HMI system with your finger ...
… Point, Touch, Drag
User Profiles
Each Profile allows 9 channels display
Digital Alarm Status Buzzer Alert
16 chart styles selectable
Touch the point Data will be displayed
Instant Live Data Alarm High Level
Alarm Low Level
(1) Split Screen View
Switch among users profiles with a touch!
Running a HMI system with your finger ...
… Point, Touch, Drag
Selectable User Pictures
Each picture allows 30 channels display
Digital Alarm Status
Buzzer Alert
16 chart styles selectable
Touch the point Data will be displayed
Instant Live Data Alarm High Level
Alarm Low Level
(2) Human Machine Interface View
Switch among users schema c pictures with a touch!
User can assign up to 30 channels from a number of GPRS Net Data Loggers.
Counter is ready for displaying pulse channel of data logger.
User will be alerted by buzzer or flashing chart on alarm triggered.
Running a HMI system with your finger ...
… Point, Touch, Drag
User Profiles
Each Profile allows 8 channels display Buzzer Alert
Touch & Drag the chart to display data at different me period
Different Chart Styles
(3) Live Chart View
For comparison:
Running a HMI system with your finger ...
… Point, Touch, Drag
User Profiles
Each Profile keeps 3 days records in list Buzzer Alert
Touch & Drag the chart to display data at different me period
Different Channels from different data loggers
(4) Data Listing
Data Lis ng supports:
Running a HMI system with your finger ...
… Point, Touch, Drag
Historical Data View
‐ display all channels of data logger within selected period
(5) History View
How the HMI system works with GPRS Data Logger & Net Client?
Sensors are installed in the machine, equipment or environment.
GPRS Data Logger logs the data from sensors, and stores into its memory. GPRS Data Logger uploads measurement data to iPad directly over GPRS. User views the sensors readings in real me on charts.
User accesses the record data from GPRS Data Logger for analysis or comparison of historical data. User will be alerted when incoming data is beyond the preset range e.g. high temperature.
“Net Client for Windows, iPad & Android” supports:
Live Data Display on Split Screen, HMI and Data Lis ng modes
Data comparison of max. 4 channels on Chart mode
Max. 2 GPRS Data Loggers
Max. 4 channels
Max. 4 users profiles in split screen and HMI modes
How the HMI system works with NET Data Logger & Net Client?
Sensors are installed in the machine, equipment or environment.
NET Data Logger logs the data from sensors, and stores into its memory. NET Data Logger uploads measurement data to iPad directly over WLAN. User views the sensors readings in real me on charts.
User accesses the record data from NET Data Logger for analysis or comparison of historical data. User will be alerted when incoming data is beyond the preset range e.g. high temperature.
“Net Client for Windows, iPad & Android” supports:
Live Data Display on Split Screen, HMI and Data Lis ng modes
Data comparison of max. 4 channels on Chart mode
Max. 2 NET Data Loggers
Max. 4 channels
Max. 4 users profiles in split screen and HMI modes
How the Wireless Temperature Sensor, RF Station & Net Client works?
Wireless Sensors are installed in the machine, equipment or distant environment. Connect‐Hub receives data from sensors, and uploads to the U‐Cloud Server instantly. All data will be stored in U‐Cloud Storage.
User views the sensors readings in real me on charts.
User accesses the record data from U‐Cloud Server for analysis or comparison of historical data. User will be alerted when incoming data is beyond the preset range e.g. high temperature.
“Ul mate Client for Windows, iPad & Android” supports:
Live Data Display on Split Screen, HMI and Data Lis ng modes
Data comparison of different wireless sensors reading on Chart mode
Unlimited number of wireless sensors
Unlimited number of Connect‐Hub
Max. 10 users profiles in split screen and HMI modes each user
Mul ‐Channels Data Logging & 10/100M Network Transmission [NET Data Logger] Mul ‐Channels Data Logging & GPRS wireless data transmission [GPRS Data Logger] Upload Data via Ethernet on schedule or alarm triggered [NET Data Logger]
Upload Data via GPRS on schedule or alarm triggered [GPRS Data Logger] Programmable data logging and upload interval
Support sensors via analog, digital, pulse channels or RS485 modbus Support data tunneling from external PLC to central via Ethernet Alert user when sensor data is too high or low
Temperature & Humidity Channels built‐in
Alert user when temperature/humidity is high/low Digital Alarm Input & Relay Control
4MB Internal Logging Memory
What is NET Data Logger?
Net Data Logger captures reading data from sensors connected.
It logs and uploads live data to the user via UDP over Ethernet Network. “Net Client” allow users to receive data on LAN from GPRS or Ethernet.
What is GPRS Data Logger?
GPRS Data Logger captures reading data from sensors connected.
Software Schematics
Data via Ethernet
Data via GPRS
Data via Ethernet
Data via GPRS
Data via GPRS
Command via GPRS or Ethernet
Command via Ethernet
Command via RS232, SMS or Ethernet
Data via Ethernet
Net Client [GPRS] Net Client [Ethernet] Ul mate Client [GPRS & Ethernet] UlƟmate Server Setup [Client Mode] Setup Direct Mode Server Mode
[Setup] So ware is bundled with all Data Loggers.
Net Client [Ul mate Client ‐ limited edi on] is bundled with some data loggers only.
Ul mate Client and Setup [Client Mode] are bundled in Ul mate Server Package, and freely distributed to client users.
How to select? Net Client is good for few sets of data loggers without central data recording.Data via Ethernet
Web Browser
Client Software Editions
EdiƟon Net Client Ul mate Client Ul mate Client
Free bundled Free bundled Full Version
with datalogger with Server License
Data Logger Access Mode Direct Server Server & Direct
[A] Server Mode
Receive Data & Alarm via GPRS — Yes Yes
Receive Data & Alarm via Ethernet, WiFi — Yes Yes
Receive Data & Alarm via SMS — Yes Yes
Receive Data via GPRS & Ethernet simultaneously — Yes Yes
Server Database — Yes Yes
Data Export to Excel — Yes Yes
Intelligent Data Recovery — Yes Yes
Redundant Database Management — Yes Yes
Remote Command via SMS, GPRS Internet, Ethernet — Yes Yes
Schedule & Batch Command — Yes Yes
Temperature & Humidity So ware Alarm Yes Yes
Send Alarm Alert via IP network or email — Yes Yes
Data Loggers Grouping & Management — Yes Yes
Remote Clients Grouping & Management — Yes Yes
Client So ware support — Yes Yes
Max. Data Loggers simultaneous support — 99999 99999
Max. Channels — unlimited unlimited
NET Client Ul mate Client Ul mate Client
[B] Direct Mode Limited — Full Version
Receive Data & Alarm via GPRS Yes — Yes
Receive Data & Alarm via Ethernet, WiFi Yes — Yes
Receive Data via GPRS & Ethernet simultaneously — — Yes
Max. Data Loggers accessed simultaneously 2 — unlimited
Max. clients for each data logger 3 — 3
Live, Historical & Alarm Data Display Yes — Yes
Digital Alarm Alert each profile 2 — 9
AD Level, Temperature & Humidity Hi/Low Alert Yes — Yes
Graphics Display of Temperature, Humidity & AD Yes — Yes
Max. Clients simultaneous support — 999 999
Win iPad Android
No. of Channels in Data Lis ng unlimited 2 26 — unlimited
No. of Split Screen profiles / Channels each profile 1 / 9 1 / 4 1 / 4 — 30 / 9
No. of Channels in Chart Line profile 2 2 2 — 8
No. of HMI Graphics profiles / Channel each profile 1 / 4 1 / 4 1 / 4 — 30 / 30
