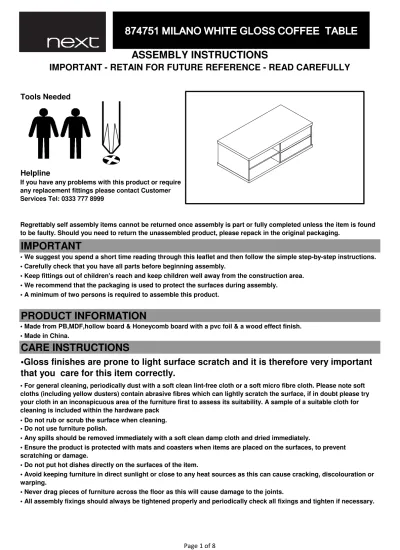

ASSEMBLY INSTRUCTIONS IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY

(1)

Tools Needed

Helpline

If you have any problems with this product or require any replacement fittings please contact Customer Services Tel: 0333 777 8999

ASSEMBLY INSTRUCTIONS

Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty. Should you need to return the unassembled product, please repack in the original packaging.

IMPORTANT

• Carefully check that you have all parts before beginning assembly.

• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY

874751 MILANO WHITE GLOSS COFFEE TABLE 874751 MILANO WHITE GLOSS COFFEE TABLE 874751 MILANO WHITE GLOSS COFFEE TABLE 874751 MILANO WHITE GLOSS COFFEE TABLE

PRODUCT INFORMATION

• Carefully check that you have all parts before beginning assembly.

• Keep fittings out of children's reach and keep children well away from the construction area.

CARE INSTRUCTIONS

• Never drag pieces of furniture across the floor as this will cause damage to the joints.

• Do not rub or scrub the surface when cleaning.

• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.

• Do not put hot dishes directly on the surfaces of the item.

• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or warping.

• We recommend that the packaging is used to protect the surfaces during assembly.

• Made from PB,MDF,hollow board & Honeycomb board with a pvc foil & a wood effect finish.

• Made in China.

• A minimum of two persons is required to assemble this product.

• Do not use furniture polish.

• For general cleaning, periodically dust with a soft clean lint-free cloth or a soft micro fibre cloth. Please note soft cloths (including yellow dusters) contain abrasive fibres which can lightly scratch the surface, if in doubt please try your cloth in an inconspicuous area of the furniture first to assess its suitability. A sample of a suitable cloth for cleaning is included within the hardware pack

•Gloss finishes are prone to light surface scratch and it is therefore very important that you care for this item correctly.

• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent scratching or damage.

• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.

(2)

FITTINGS

PARTS

DX30 CX2

BX10

AX20 EX30

FX12

(? 8*30mm) (? 6*30mm)

HX4 IX1 JX9

(4*38mm) GX2

Please note: Remove the protective film after assembly of this product - this will prevent accidental scratches during assembly

1. Attach panels 15(x2), 16(x2) & 17(x2) to panels 13(x2) with 12 x screws (F) and tighten with a screwdriver.

STEP ONE

(3)

1.Slide panels 14(x2) into the assembled drawer frame.

1. Insert 3 x cambolts (E) into panel 11 and tighten with a screwdriver.

2. Glue(C) and insert 3 x wooden dowels (B) into panels 15, 16 & 17.

3. Attach panel 11 to the assembled drawer frame.

4. Insert 3 x camlocks (D) into panels 15, 16 & 17 and tighten with a screwdriver.

Ensuring the arrow indicator is pointing towards the panel edge before tightening with a screwdriver.

STEP TWO

STEP THREE

panel edge before tightening with a screwdriver.

2. Glue(C) and insert 3 x wooden dowels (B) into panels 15, 16 & 17.

3. Attach panel 12 to the assembled drawer frame.

4. Insert 3 x camlocks (D) into panels 15, 16 & 17 and tighten with a screwdriver.

STEP FOUR

B

C

(4)

1. Insert 14 x cambolts (E) into panels 3(x2), 1 & 2 and tighten with a screwdriver.

1. Glue and insert the 2 x wooden dowels (B) into panel 1.

2. Attach panel 6 to panel1.

3. Insert 2 x camlocks (D) into panel 6 and tighten with a screwdriver.

STEP SIX STEP FIVE

C D

D 6

B

2 1

3x2pcs E

E

1. Glue and insert the 6 x wooden dowels (A) into panels 7, 8 & 9.

2. Attach panels 7, 8 & 9 to panel 1.

STEP SEVEN

D

1 B

1 9

8

7

D

A A C

A

(5)

1. Glue(C) and insert 4 x wooden dowels (A) into panel 10.

2. Attach panel 10 to panels 8 & 9.

Please note: There is a choice of Walnut effect or white gloss for the panel 10. The colour you prefer needs to face up upwards & outwards.

1. Insert 4 x camlocks (D) into panels 8 & 9 and tighten with a screwdriver.

STEP NINE STEP EIGHT

8

1. Glue(C) and insert 4 x wooden dowels (B) into panel 6.

2. Attach panel 2 to panels 6, 7, 8 & 9.

STEP TEN

9 D

D

D B

C

(6)

1. Fix panel 2 to panels 7, 8 & 9 with 8 x screws (J) and tighten with an Allen key (I).

STEP ELEVEN

STEP TWELVE

J I

J J

2

9

7

8

2

1. Glue(C) and insert 4 x wooden dowels (A) into panels 4(x2).

2. Attach panels 3(x2) to panels 4(x2).

3. Insert 4 x camlocks (D) into panels 4(x2) and tighten with a screwdriver.

STEP THIRTEEN

2

(7)

1. Glue(C) and insert 6 x wooden dowels (A) into panel 2.

2. Attach assembly frame to panel 2.

3. Insert 10 x camlocks (D) into panels 4(x2) & 3(x2) and tighten with a screwdriver.

Note :Please note the gloss pvc foil must be faced outside when assembling.

1. Carefully turn over this assembly unit by two person

2. Insert 4 x fittings (H) into the required position . 3. Insert pane 5 onto the fittings (H) .

Please note: There is a choice of Walnut effect or white for the panel 5. The colour you prefer needs to

STEP FORTEEN

STEP FIFTEEN

white for the panel 5. The colour you prefer needs to 1 face up upwards.

1. Insert the assembled drawers to the unit as diagram.

2. Use 4 x stickers (G) to cover the camlock holes

STEP SIXTEEN

7

8

5 H

H

11 12 7

(8)

1.The assembled coffee table as shown.
