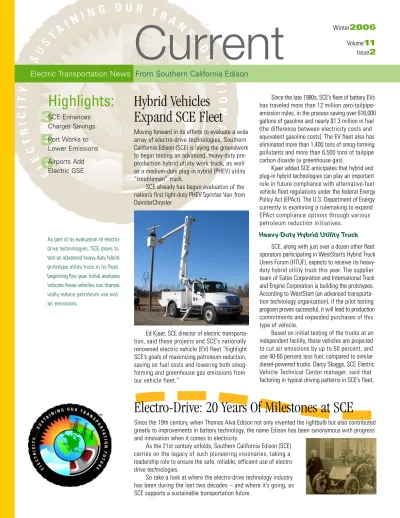

Current
Hybrid Vehicles
Expand SCE Fleet
Moving forward in its efforts to evaluate a wide array of electro-drive technologies, Southern California Edison (SCE) is laying the groundwork to begin testing an advanced, heavy-duty pre-production hybrid utility work truck, as well as a medium-duty plug-in hybrid (PHEV) utility “troubleman” truck.
SCE already has begun evaluation of the nation’s first light-duty PHEV Sprinter Vanfrom DaimlerChrysler.
Ed Kjaer, SCE director of electric transporta-tion, said these projects and SCE’s nationally renowned electric vehicle (EV) fleet “highlight SCE’s goals of maximizing petroleum reduction, saving on fuel costs and lowering both smog-forming and greenhouse gas emissions from our vehicle fleet.”
3
5
6
Volume
11
Issue2
Since the late 1980s, SCE’s fleet of battery EVs has traveled more than 12 million zero-tailpipe-emission miles, in the process saving over 616,000 gallons of gasoline and nearly $1.3 million in fuel (the difference between electricity costs and equivalent gasoline costs). The EV fleet also has eliminated more than 1,400 tons of smog-forming pollutants and more than 6,500 tons of tailpipe carbon dioxide (a greenhouse gas).
Kjaer added SCE anticipates that hybrid and plug-in hybrid technologies can play an important role in future compliance with alternative-fuel vehicle fleet regulations under the federal Energy Policy Act (EPAct). The U.S. Department of Energy currently is examining a rulemaking to expand EPAct compliance options through various petroleum reduction initiatives.
Heavy-Duty Hybrid Utility Truck
SCE, along with just over a dozen other fleet operators participating in WestStart’s Hybrid Truck Users Forum (HTUF), expects to receive its heavy-duty hybrid utility truck this year. The supplier team of Eaton Corporation and International Truck and Engine Corporation is building the prototypes. According to WestStart (an advanced transporta-tion technology organizatransporta-tion), if the pilot testing program proves successful, it will lead to production commitments and expanded purchases of this type of vehicle.
Based on initial testing of the trucks at an independent facility, these vehicles are projected to cut air emissions by up to 50 percent, and use 40-60 percent less fuel, compared to similar diesel-powered trucks. Darcy Skaggs, SCE Electric Vehicle Technical Center manager, said that factoring in typical driving patterns in SCE’s fleet,
Highlights:
