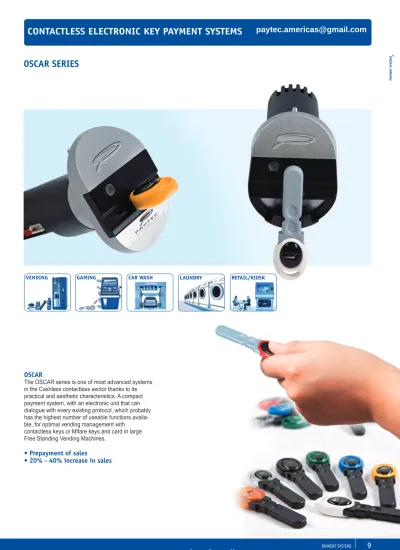

CONTACTLESS ELECTRONIC KEY PAYMENT SYSTEMS OSCAR SERIES OSCAR. Prepayment of sales 20% - 40% increase in sales

(1)

9

PAYMENT SYSTEMS

OSCAR

The OSCAR series is one of most advanced systems in the Cashless contactless sector thanks to its practical and aesthetic characteristics. A compact payment system, with an electronic unit that can dialogue with every existing protocol, which probably has the highest number of useable functions availa-ble, for optimal vending management with

contactless keys or Mifare keys and card in large Free Standing Vending Machines.

• Prepayment of sales

• 20% - 40% increase in sales

OSCAR SERIES

LAUNDRY

VENDING GAMING CAR WASH RETAIL/KIOSK

PAY

MENT S

Y

STEMS

(2)

Cod. OS801EU8080

...

Cod. OS801EU8070

...

Cod. 0S000008410

...

Cod. OS000008400

...

OSCAR

CPU unit Key reader

Peripheral devices and accessories Characteristics Optical IrDA integrated in Cashless reader - external interface Banknote reader - parallel - impulse Coin validator:

- standard 24VDC P3000- confi gurations

- IR reader PC - confi gurations - Audit reading Palmtop - confi gurations - Audit reading SIB

- FW update Data Key- confi gurations

- Audit reading

EYE Display 7-segment display

- 5-fi gure LCD - 6-fi gure LCD

GSM/GPRS

- Telemetry Wireless network

Cashless Cellphone Serial protocols: - Executive - MDB/ICP - BDV001 - MDB RS232 Operating modes

- loader Contactless key:- transponder Electronics:- separate electronics

Clock/calendar: - discounts - free vend - free

Black List

- 500 AUDIT:- EVA-DTS standard

- full Times - On/Off - discounts - free vend - free System security

Complete Executive Euro OSCAR system with IrDA Complete Executive Euro OSCAR system

OSCAR key reader with IrDA and cable OSCAR key reader with cable

Radio frequency Cashless System for contactless key (transponder technology). CPU and key reader (also available with integrated Optical IrDA).

Connects to electronic Automatic Vending Machines with Executive BDV001, MDB serial Protocols; connectors for banknote reader envisaged also as standard as well as connection to 24VDC coin validator.

The EYE Display can be connected (for displaying various images and texts, product information, adverts, etc.). Expandable with ECB1 card (GSM/GPRS modem board, Zigbee wireless network, Cashless Cellphone).

The system can be confi gured using a PC, palmtop, via Optical IrDA, or with the P3000 portable programming device.

The AUDIT management (EVA-DTS standard protocol) envisages two data transfer modes: in standard or Full AUDIT format (over 4,000 detailed operations per user code); compatible with “Audit View” management system. The data can be transferred via Optical IrDA, via RS232/USB cable (with PC or palmtop), or using the Data Key. Power input

24V AC/DC nom.; from 18.5V to 42V DC max power 1W nom.; 6W max (coin validator on) Overall dimensions

Key reader:

- casing Ø 35 x 70 mm, front plate 50 x 70 x 11 mm - weight 50 g

CPU Box:

- 120 x 110 x 24 mm - weight 110 g

(3)

11

PAYMENT SYSTEMS

Cod. OM101EU8080

...

Cod. OM101EU8070

...

OSCAR STAR

CPU unit Key/card reader

- IR reader PC - confi gurations - Audit reading Palmtop - confi gurations - Audit reading SIB

- FW update Data Key- confi gurations

- Audit reading

EYE Display 7-segment display

- 5-fi gure LCD - 6-fi gure LCD

GSM/GPRS

- Telemetry Wireless network

Cashless Cellphone

OSCAR STAR 24 V Euro IrDA OSCAR STAR 24V Euro

Cashless radio frequency system, for Mifare key and card. CPU and OSCAR STAR key reader (also with integrated Optical IrDA).

Connects to electronic Automatic Vending Machines with Executive, BDV001, and MDB serial protocols; connectors for a banknote reader and the 24VDC coin validator are also envisaged as standard.

The EYE Display can be connected (for displaying images and texts, product infor-mation, adverts, etc.).

Expandable with ECB1 card (GSM/GPRS modem board, Zigbee wireless network, Cashless Cellphone).

The system can be confi gured using a PC, palmtop, or via Optical IrDA, or with the P3000 portable programming device.

The AUDIT management (EVA-DTS standard protocol) envisages two data transfer modes: in standard or Full AUDIT format (over 4,000 detailed operations per user code); compatible with the PAYTEC “Audit View” management system.

The data can be transferred via Optical IrDA, or via RS232/USB cable (with PC or palmtop).

Power input:

24V AC/DC nom.; from 18.5V to 42V DC max power 1W nom.; 6W max (coin validator on)

Overall dimensions Key reader:

- casing Ø 35 x 70 mm, front plate 50 x 70 x 11 mm - weight 50 g CPU Box: - 120 x 110 x 24 mm - weight 110 g Serial protocols: - Executive - MDB/ICP - BDV001 - MDB RS232 Operating modes

- loader Contactless key:- Mifare Electronics- separate electronics

Clock/calendar: - discounts - free vend - free

Black List

- 500 AUDIT:- stdard EVA-DTS

- full Times - On/Off - discounts - free vend - free

System security Contactless

card: - Mifare PAY MENT S Y STEMS

[email protected]

(4)

Cod. OS701EU8070

...

OSCAR LITE

PIT key (transponder) Key reader

Peripheral devices and accessories Characteristics

Optical IrDA

- external interface Coin validator:- standard 24VDC P3000- confi gurations

- IR reader Data Key - confi gurations - Audit reading PC - confi gurations - Audit reading Palmtop - confi gurations - Audit reading SIB - FW update Serial protocols: - Executive - MDB/ICP - BDV001 Operating modes

- loader Contactless key:- transponder Clock/calendar:- discounts

- free vend - free Black List - 500 Economic version AUDIT: - standard EVA- DTS - full Times - On/Off - discounts - free vend - free System security OSCAR LITE EXE. 24V

Compact Cashless radio frequency system, for contactless key (technology with transponder); the CPU electronics are integrated in the key reader.

Connects to electronic Automatic Vending Machines using Executive serial protocol; nevertheless also the BDV001 protocol is envisaged as well as the possibility of connecting an interface for an MDB slave.

The connector for the 24VDC coin validator is also standard.

The system can be confi gured using a PC, palmtop, or with the P3000 portable programming device.

The AUDIT management (EVA-DTS standard protocol) envisages two data transfer modes: in standard or Full AUDIT format (over 4,000 detailed operations per user code); compatible with the “Audit View” management.

The data can be transferred using the Data Key or via serial port with a PC/Palmtop. Nominal input

24 AC/DC nom. 19.5V - 40V DC

24V - 30V DC with coin validator Overall dimensions

• Key reader:

- casing Ø 35 x 90 (depth) mm - front plate 50 x 70 x 11 mm - weight 65 g

(5)

13

PAYMENT SYSTEMS

Cod. OM101EU8070

...

Cod. OM103EU8070

...

OSCAR STAR LITE

Peripheral devices and accessories Key/card reader

Optical IrDA

- external interface Coin validator:- standard 24VDC P3000- confi gurations

- IR reader PC - confi gurations - Audit reading Palmtop - confi gurations - Audit reading SIB - FW update - confi gurations MIFARE Key

OSCAR STAR LITE Executive 24VAC - Euro version OSCAR STAR LITE MDB 34VAC - Euro version

Compact radio frequency Cashless system, for Mifare key and card. The CPU electronics are integrated in the key reader.

Connects to Automatic Vending Machines using Executive, MDB serial protocols. Various peripheral devices and accessories can be connected.

The system can be confi gured using a PC, palmtop, Optical IrDA, or with the P3000 portable Programming device.

The AUDIT management (EVA-DTS standard protocol) envisages two data transfer modes: in standard or Full AUDIT format (over 4,000 detailed operations per user code).

Nominal input 24 AC/DC nom. 19.5V - 40V DC

24V - 30V DC with coin validator Overall dimensions • Reader: - casing Ø 35 x 90 (depth) mm - front plate 50 x 70 x 11 mm - weight 65 g Characteristics Serial protocols: - Executive - MDB/ICP - BDV001 Operating modes

-loader Contactless key:- MIFARE Clock/calendar:- discounts

- free vend - free Black List

- 500 AUDIT:- stadard EVA-DTS

- full Times - On/Off - discounts - free vend - free System security Contactless card: - Mifare Economic version PAY MENT S Y STEMS

[email protected]

(6)

Cod. OS303 EU8070

...

OSCAR MDB

Serial protocols: - MDB/ICP - MDB RS232

Contactless key:

- transponder Clock/calendar:- discounts

- free vend - free Black List - 500 AUDIT: - EVA-DTS standard - full Times - On/Off - discounts - free vend - free

System security Economic version

OSCAR MDB only

Compact MDB Cashless radio frequency system, for contactless key (technology with transponder); the CPU electronics are integrated in the key reader.

Connects to electronic Automatic Vending Machines using MDB serial protocol. The system can be confi gured using a PC, palmtop, or with the P3000 portable program-ming device.

The AUDIT management system (EVA-DTS standard protocol) has two data transfer modes: in standard or Full AUDIT format (over 4,000 detailed operations per user code); compatible with the PAYTEC “Audit View” management system. The data can be transferred using the Data Key or via serial port with a PC/Palmtop.

Nominal input • 34V DC nom. • Range: 18.5V - 42V DC Power absorption: 1W Overall dimensions • Key reader: - casing Ø 35 x 84 mm - front plate 50 x 70 x 11 mm - weight 50 g Key reader PIT key (transponder) Optical IrDA

- external interface P3000- confi gurations

- IR reader Data Key - confi gurations - Audit reading PC - confi gurations - Audit reading Palmtop - confi gurations - Audit reading SIB - FW update - confi gurations

(7)

15

PAYMENT SYSTEMS

Cod. OS868EU8070

...

Cod. OS868EU8080

...

OSCAR CU

- IR reader PC - confi gurations - Audit reading Palm Palmtop - confi gurations - Audit reading SIB - FW update - confi gurations Data Key - confi gurations - Audit reading

EYE Display Display

- 5-fi gure LCD - 6-fi gure LCD Serial protocols: - Executive Master Slave Contactless key:

- transponder Electronics- separate electronics Clock/calendar:- discounts

- free vend - free Black List

- full Times - On/Off - discounts - free vend - free System security OSCAR CU

OSCAR CU with IrDA

Cashless key payment system, ready for Master-Slave connection, with Executive Automatic Vending Machines.

Connects between the Vending Machine and an Executive Changegiver, so the prices and discounts can be managed by the OSCAR CPU.

The Audit on the OSCAR CU system makes it possible to obtain sales data even if the coin validator doesn’t have an Audit system.

All the peripheral devices of the OSCAR series can be connected, for the greatest expandability.

Power input:

24V AC/DC nom.; from 18.5V to 42V DC max power 1W nom.; 6W max (coin validator on)

Overall dimensions

Key reader:

- casing Ø 35 x 70 mm, front plate 50 x 70 x 11 mm - weight 50 g CPU Box: - 120 x 110 x 24 mm - weight 110 g PAY MENT S Y STEMS

[email protected]

(8)

Optical IrDA integrated in Cashless reader - external interface Banknote reader - parallel - impulse Coin validator:

- IR reader PC - confi gurations - Audit reading Palmtop - confi gurations - Audit reading SIB - FW update - confi gurations EYE Display Display - 5-fi gure LCD - 6-fi gure LCD

Cod. OM168EU8070

...

Cod. OM168EU8080

...

OSCAR STAR CU

Serial protocols: - Executive - Master - Slave Contactless key:

- MIFARE Contactlesscard:

- Mifare Electronics - separate electronics Clock/calendar: - discounts - free vend - free Black List

- full Times - On/Off - discounts - free vend - free System security

Sistemi di pagamento a chiave elettronica contactless --› Serie OSCAR

OSCAR STAR CU

OSCAR STAR CU with IrDA

Cashless key payment system, ready for Master-Slave connection, with Executive Automatic Vending Machine.

Connects between the Vending Machine and an Executive Changegiver, so the prices and discounts can be managed by the OSCAR CPU. The Audit on the OSCAR CU system makes it possible to obtain sales data even if the coin validator doesn’t have an Audit system. All the peripheral devices of the OSCAR series can be connected, for the greatest expandability.

Power input:

24V AC/DC nom.; from 18.5V to 42V DC max power 1W nom.; 6W max (coin validator on) Overall dimensions

Key reader:

- casing Ø 35 x 70 mm, front plate 50 x 70 x 11 mm - weight 50 g

CPU Box:

- 120 x 110 x 24 mm - weight 110 g

(9)

17

PAYMENT SYSTEMS Contactless key: - Transponder - MIFARE - MIFARE Electronics

- separate electronics Banknote reader- parallel

- impulse Coin validator:

- IR reader PC - confi gurations - Audit reading Palmtop - confi gurations - Audit reading SIB - FW update - confi gurations Data Key - confi gurations - Audit reading Optical IrDA integrated in Cashless reader - external interface Black List - 500

EYE Display Display

- 5-fi gure LCD - 6-fi gure LCD Serial protocols: - MDB/ICP - MASTER-SLAVE Clock/calendar: - discounts - free vend - free AUDIT: - EVA-DTS standard - full MDB peripheral devices System security

Cod. OS877EU8070

...

Cod. OS877EU8080

...

OSCAR MDB-MDB

OSCAR MDB-MDB

OSCAR MDB-MDB with IrDA

CPU cashless system, ready for Master-Slave connection, with MDB serial Automatic Vending Machine.

Connects between the Vending Machine and an MDB Changegiver, for Audit recor-ding on the OSCAR system.

All the peripheral devices of the OSCAR series can be connected, for the greatest expandability. Overall dimensions CPU Box: - 120 x 110 x 24 mm - weight 110 g Available on request: CASHLESS readers PAY MENT S Y STEMS

[email protected]

(10)

Comparative commercial table for OSCAR series

OSCAR STAR LITE STAR LITE MDB CU STAR CU MDB-MDB

Executive Master - -Executive Slave _- _- _- _- _- -Price Holding - -MDB Master _- _- _- _- _- _- -MDB Slave 1 _- -MDB RS-232 _- _- -BDV001 Master _- _- _- -BDV001 Slave _- _-

-Parallel Open Collector _- _- _- _- _- _- _-

-Loader - - - -Price Line _- _- _- _- _- _- _- -Transponder key - - -Mifare key/card _- _- -Separate electronics - - -Banknote reader _- _- -12VDC coin validator - - - - - - - -24VDC coin validator -MDB peripheral device2 - - -

-Portable programming device PC management 3

WinCE Palmtop management 4

-

-SIB

Data Key _- _-

-Clock/Calendar

IrDA (integrated / external) / / - / - / - / / / /

Black List - 500 elements Standard AUDIT Full AUDIT 5 “EYE” display - - -LCD _- _- -GSM/GPRS (telemetry) 6 - - - - - -Wireless network 6 - - - - - -Cashless Cellphone 6 - - - - - -Times

No. Prices / Discount Lists Free (for values / for credit) Language: single / double

Standard (device can be connected) Cashless Reader on request - Unavailable

This table does not indicate if the “function” is standard or optional, but only if it is available.

1 _{Requires external EXE-MDB interface}

2 _{MDB peripheral device controlled directly by payment system}

3 _{Requires serial PC interface (CIC1/RS232 or UIC1/USB)}

4 _{Requires Optical IrDA}

5 _{Compatible with “AUDIT VIEW”}

6 _{Requires ECB1 expansion card}

(11)

19

PAYMENT SYSTEMS 128 x 64 pixel Liquid Crystal Display

Monochrome, compact dimensions, can support text messages and images for custom adverts. The display is controlled by the payment system.

EYE

• Adverts

Cyclical display, or selected or key-controlled for example.

• Selection messages

Product information, that appears when product is selected (ingredients, promotions etc.)

• PAYTEC active systems line Activation of discounts or promotions (happy hour), for example in times when consumption is low, as a sales incentive.

• News

Connected to a modem, sms messages can be received and displayed, such as a contract with your phone provider for example.

Cod. AJ000005300

...

EYE CONFIGURATOR programme (for Win2000/XP)

Software for the EYE product, for the graphic composition of the fi le (the sequen-ce of texts and images etc.), to save on PC and send to a palmtop which is then used to confi gure the payment system connected to the display.

PAY

MENT S

Y

STEMS

(12)

Top colour: yellow green white red blue black transparent orange

• Contactless radio frequency key • EEPROM 1Kbit

• Frequency 125 kHz

• PIN code protected (7 byte password)

• Keys encoded with OSCAR Programming device instrument • Direct Auto-encoding on payment system

• EMC compatibility: DIN 40839 conformity • Customized key optional: logo, labels

• Colours: red, green, yellow, blue, black, white, transparent, transparent orange All keys have a black stem, Top colours are optional.

For PROGRAMMING DEVICE see page 21

Cod. AL40.012N

...

Cod. AL40.013N

...

Cod. AL40.502N

...

Cod. AL40.010N

...

Cod. AL40.011N

...

Cod. AL40.127N

...

Cod. AL40.475N

...

Cod. AL40.480N

... Top colour: yellow green white red blue black transparent orange

• ISO14443A Radio frequency Key • Operating frequency: 13.56 MHz

• Keys encoded with OSCAR STAR Programming device • Data transfer speed: 106 kbit/s

• High data integrity: 16 bit CRC, parity, bit coding, bit counting • EEPROM 1 Kbyte

• Can be used with 3 PAYTEC client areas • Multi application (MAD standard)

• Custom keys available on request: logo, labels

• Colours: red, green, yellow, blue, black, white, transparent, transparent orange All keys have a black stem, Top colours are optional.

For PROGRAMMING DEVICE see page 21

Contactless key

(Trasponder -PIT-)

Contactless key (Mifare)

Cod. KS50.012

...

Cod. KS50.013

...

Cod. KS50.502

...

Cod. KS50.010

...

Cod. KS50.011

...

Cod. KS50.127

...

Cod. KS50.475

...

Cod. KS50.480

...

(13)

21

PAYMENT SYSTEMS

Cod. OS800008630

... OSCAR-Programming device.

Programming unit for keys with transponderPIT technology complete with software -Windows95/98/2000/XP compatible

• Programme for FageKey and FageCard reading/writing • Data reading from Audit-service-Key (Audit Key)

Lets you generate a complete series of service cards and keys, as well as contactless cards and keys for other users. Furthermore, it is used to download the Audit data saved in the AuditKey.

Cod. CB01491 (RS232 serial cable)

...

Cod. AG50044 (USB serial cable)

...

PC CONFIGURATOR (including cables and software CD) Universal software application for payment system confi guration. Main functions:

- confi guration (reading/sending) - data reading (Audit)

- sending FW to SIB device

The application runs under Windows.

The software can be downloaded from the web site. CARDSTAR

Mifare ISO14443 Chip available on card (PROGRAMMING). The card can be customized on request, with the silk-screen printed Company logo.

The OSCAR STAR Programming device is used to program the CardStar (and KeyStar).

Specifi cations

• ISO 14443A radio frequency key • Operating frequency: 13.56 MHz • Data transfer speed: 106 kbit/s

• High data integrity: 16 bit CRC, parity, bit coding, bit counting • EEPROM 1Kbyte

• Can be used with 3 PAYTEC client areas • Multi application (MAD standard) • Colour: white card PAYTEC logo

• Customization: silk-screen printing on request (optional)

CARD STAR

Cod. CS50.001

...

Cod. OM100008630

... OSCAR STAR-Programming device.

Programming unit for keys and card with MIFARE technology Windows95/98/2000/XP compatible

• Programme for FageKey and FageCard reading/writing • Data reading from Audit-service-Key (Audit Key)

Lets you generate a complete series of service cards and keys, as well as contactless cards and keys for other users. Furthermore, it is used to download the Audit data saved in the AuditKey.

PAY

MENT S

Y

STEMS

(14)

• PC programme for Audit control

(free software tool for customers to download from the web site or supplied on CD)

• Program for remote control functions of the Vending Machines supplied as network/ GSM support (free software tool for customers to download from the web site or supplied on CD).

• PC software for programming coins.

(Free software tool for customers to download from the web site or supplied on CD).

Free Tools

AUDIT CONTROL

...

RCS Remote Control Software

...

VECOP

...

(15)

23

PAYMENT SYSTEMS

AUDITVIEW

PC program studied for managing the data made available by the “Full AUDIT” function of the PAYTEC OSCAR series payment systems. Can save a max of 4,500 key operations. The operator gathers the data using one of the available systems (key Audit, palmtop, PC) on a PC where the data is saved in a database for processing (compatibility: Windows 2000 / XP). You must purchase a USB hardware key to install the program. After having installed AuditView on the PC, insert the hardware key in the USB port to enable the programme.

General characteristics

Creation of database for single user codes: - details on each key operation

- real time display of the keys in circulation at each location and their residual credit

- prints single reports for detailed documentation of the real situation of the locations

SOFTWARE-AUDITVIEW

Program. AuditView CD-R (USB)

Credit keys control (button)

Displays anomalous key operations or an anomalous increase in credit. The search can be run for all the keys or for a single customer.

Key operations (window)

Displays the operations on a key in an interval of time defi ned by the user, running a search for a single customer or in the entire database.

Total keys (window)

Displays the total number of operations carried out on the keys by all the users in a location or by a group of users. The following is displayed for each key:

• User code • Date of last operation • Initial credit • Final credit (residual credit on key) • Number of sales • Total sold • Sold with free credit • Value charged • Value charged with free credit Cash sales (window)

Displays the cash sales of a certain customer and/or on a certain machine in an interval of days defi ned by the user.

Advanced search (page)

Lets you search the database, setting the search criteria (customer search, search for machine No., product code search, operation type search, user code search or period search). Products consumption graph (page)

Displays the sales statistics of a product on the basis of times or days of the week, or for an established period of time. Search in database for all the sales of a single product or for all products, in a single machine or for all the machines of a customer. Calculates the number of sales, dividing the sales by times or days of the week. The result is displayed on a histogram graph.

Products rotation index

Indicates if a particular product reached the sales target. The database is searched for all of the sale operations carried out on a machine or on all of the machines associated with a customer in the period set. The number of selections is calculated for each product and divided by the number of days (daily mean). The values obtained are compared to a value set for each product, which indicates how many selections are expected on a daily basis.

Cod. AU000005200

...

Characteristics of the programme

PAY

MENT S

Y

STEMS

(16)

Data Key (Audit and Confi guration)

Special memory key, used to transfer Audit data from payment systems.

The key can be used to Audit several Automatic Vending Machines. The number of Vending Machines that can be audited with an Audit Key varies and depends on the physical quantity of data present in the various Audit systems. This key is read by the Giotto Programming device.

Cod. AG50.030

...

Cod. AG50.026

...

SIB (Serial Interface Board)

Interface device used to save and transfer software between a Personal Computer and a Payment System (and vice versa).

Used to update the systems with the last release and transfer the programming confi gurations.

(17)

25

PAYMENT SYSTEMS

P3000 GIOTTO r5.5 Programming device

Application

• Keyboard programming device for PAYTEC Systems

• Data Box for data detection/unloading Feeding

Data Box use: internal battery 8.4V/120 mAh (NiMH) rechargeable. Using Programming device: 5V external supplied by System Current absorbed: 60 µA in standby, 20 mA in transmission Display: 16 x 2 (backlit) LCD

Keyboard: Membrane type 16 keys Hardware interface

• AUDIT

• IR optical reader • Communication speed: 2,400 Baud Programming: cable connection (Flat)

Memory

• 1Mb RAM (roughly 30 Systems) • Data maintenance 1 min. without battery Data Box programme

• Data detection password • Settings - 6 languages

• AUDIT format EVA-DTS, DDCMP protocol Accessories included • Battery • Connecting cable • Case Dimensions: 155 x 90 x 27 mm

Cod. AC.00010G

...

CHARGE 05 battery charger

Recharger used for the programming device P3000 batteries. Application: P3000 - DB4000v battery chargers

Power input: 110/220V 50/60Hz Consumption: 30 W max Outputs

• 5 constant current outputs for 8.4V 0.11Ah batteries

• Dedicated NiMH batteries 8.4V / 110 mAh

• 2.1 movable sockets

Illuminated indications

• Green LED charging / charged output • Combined blinking to indicate the various cases

• Red LED indicates outputs not connected/charging error

Cod. AC.00097

... PAY MENT S Y STEMS

[email protected]

(18)

Key charger for OSCAR systems

Key charger for OSCAR STAR (MIFARE) systems

Recharging station that can be installed on a wall or on the ground (using the relevant basement).

• Strong, vandal-proof structure made of painted steel • Reinforced lock with security bars

• Banknote reader • Electronic coin validator • Vandal-proof coin slot • 50 mm printer • Backlit display

• Key reading system for OSCAR system

Cod.

CA100IT8290

...

Cod.

CA100IT8350

...

Cod.

CA000005020

... Basement for OSCAR systems key charger

ChargekeyKey charger for OSCAR series system

(19)

27

PAYMENT SYSTEMS CSP2 VendoNRI-18/220V CSP2 VendoCIC-110V 4pr CSP2 Stand.220V/4pr. CSP2 Dixie 110V/4pr. CSP2 FAS 220V/4pr.12p. CSP2 24Vac/Univ.12 4pr

CSP2 24Vac with wires without connector Machine interface

• Electromechanical parallel - 4 prices • 4 Relay outputs Coin validator interface

• Executive Serial 24V AC • Max current 900 mA @ 24V AC Fuse

• 315 mA 220V AC

• 630 mA 110V AC • 1,6 A thermal 24V AC

Input: 24/110/220V AC 50/60 Hz depending on version Power: 22 W max

Application

Serial/parallel interface for Executive payment Systems.

Lets you connect an Executive System, or a coin validator, to an electromechanical Vending Machine.

Prices lines inputs/outputs • Prices with 4 NO output Relays - common line

• Optoisolated inputs. Active prices line sensors >1.0mA.

• Nominal current at contacts 2.5 A / 230V AC • Max. current 8A

Display: DS4000 5 digit LED (external)

Programming: P3000 Programming device (accessory) Program

• Sale prices • Display prices

• 4 external RAZ modes + automatic RAZ • Totalizer mode - 1 price (active) Expansion - 10 prices

• External expansion for 10 prices. (rewiring required)

Dimensioni: 250 x 130 x 60 mm (comprensive di ingombro connettori) Weight: 2.2 Kg roughly

Cod. CO209000000

...

Cod. CO233000000

...

Cod. CO204000000

...

Cod. CO215000000

...

Cod. CO218000000

...

Cod. CO230000000

...

Cod. CO232000000

...

10 prices/230V FAS expansion kit

This is a supplementary kit which, when connected to a parallel payment system for electromechanical Vending Machines, increases the number of prices that can be selected from 4 to 10.

Cod. KT.02785

...

Converter

PAY MENT S Y STEMS

[email protected]

(20)

CONTACTLESS ELECTRONIC KEY PAYMENT SYSTEMS

GENIUS SERIES

LAUNDRY

VENDING GAMING CAR WASH RETAIL/KIOSK

GENIUS

The GENIUS series is a simple, versatile and universal solution, easy to install and control for Free Standing (FS) and Offi ce Vending Machines (OCS -offi ce coffee service-).

• Prepayment of sales

• 20% - 40% increase in sales

PAY MENT S Y STEMS

(21)

30

PAYMENT SYSTEMS

GENIUS FS-NEW PL (ELECTROMECHANICAL-PRICE LINE) GENIUS FS-NEW EXE (EXECUTIVE)

GENIUS FS-NEW MDB (MDB) GENIUS FS-NEW BDV (BDV)

GENIUS FS-NEW System, with illuminated slot

Suitable for large Automatic Vending Machines.

The reading slot comes complete with EVA standard LEDs. Each pack contains:

• 1 system

• 1 slot with EVA standard LEDs (Ø 32 mm hole) • 1 VMC connecting cable

(Vending Machine Controller or Automatic Vending Machine): in the EXE version the cable also has an input for a changegiver coin validator, while the MDB version has a double MDB connector

• highly adhesive fi xings

• instruction stickers to apply on Automatic Vending Machine

Patented

Optional:

Cod. 3.500.68... EASY GENIUS FS-NEW EXE (EXECUTIVE)

Cod. 3.500.74... EASY GENIUS FS-NEW MDB (MDB)

Cod. 3.500.70

...

Cod. 3.500.69

...

Cod. 3.500.71

...

Cod. 3.500.75

...

GENIUS

Characteristics Serial protocols: - Executive - MDB/ICP - BDV001 Operating modes

-loader Electronics- separate electronics MDB peripheral devices

System security Clock/calendar:

- discounts - free vend - free AUDIT: - EVA-DTS standard - full Contactless key: - transponder Black List - 12

Peripheral devices and accessories

Coin validator:

- standard 12VDC Coin validator:- standard 24VDC Banknote reader- parallel

- impulse

Portable programming device for GENIUS systems

PC

- confi gurations - Audit reading

GENIUS Superkey Optical IrDA

integrated in Cashless reader - external interface Display - 5-fi gure LCD - 6-fi gure LCD Changegiver: Connection to a changegiver system

[email protected]

(22)

Catalogue 2009

Cod. 3.500.53

...

Cod. 3.500.39

...

Cod. 3.500.50

...

Cod. 3.500.57

...

Cod. 3.500.61

...

Cod. 3.500.76

...

Patented

Optional:

Cod. 3.500.62...EASY GENIUS OCS EXE (EXECUTIVE)

Cod. 3.500.50/A...EASY GENIUS OCS EXE XS-XM (EXECUTIVE)

Cod. 3.500.72...EASY GENIUS OCS MDB (MDB)

Cod. 3.500.73...EASY GENIUS OCS MDB XS-XM (MDB)

GENIUS OCS

Characteristics Serial protocols: - Executive - MDB/ICP - BDV001 - MDB RS232 Operating modes

- discounts - free vend - free AUDIT: - EVA-DTS standard - full Contactless key: - transponder Black List - 12

Coin validator:

- standard 12VDC Coin validator:- standard 24VDC Banknote reader- parallel

- impulse

PC

GENIUS Superkey Display

- 5-fi gure LCD - 6-fi gure LCD Changegiver: connections with changegiver system PAY MENT S Y STEMS

GENIUS OCS PL (ELECTROMECHANICAL-PRICE LINE) GENIUS OCS EXE (EXECUTIVE)

GENIUS OCS EXE XS-XM (EXECUTIVE) GENIUS OCS MDB (MDB)

GENIUS OCS MDB XS-XM (MDB) GENIUS OCS BDV (BDV)

GENIUS OCS System, with reading coil

Suitable for large or small Automatic Vending Machines with front plate coin validator. The reading coil is installed directly on the coin validator (therefore, no holes need drilling in the Vending Machine).

Each pack contains: • 1 system

• 1 coil to install on the side of the coin validator

• 1 single cable for connection to VMC (Vending Machine Controller or Automatic Vending Machine)

• highly adhesive fi xings

• instructions stickers to apply on Automatic Vending Machine • on XS-XM version - adaptor for coin/key insertion

(23)

32

PAYMENT SYSTEMS

Reading slot compatible with OSCAR and GENIUS systems with the dimensions of a mechanical coin validator and built-in display.

Can be mounted both vertically and horizontally.

Version with the front plate dimensions of a standard mechanical coin validator • Waterproof

• IP 44

• Input: 24VAC/DC

• No Relay outputs - NC 5A-230VAC • With waterproof seal

• Fixing screws Fields of application: - Showers - Self-service carwash - Access control

Cod. 3.500.86

...

GENIUS DISPLAY P.L.

Coin validator:

- standard 24VDC Programmingdevice for integrated

GENIUS systems PC - confi gurations - Audit reading GENIUS Superkey Operating modes

-loader Electronics- separate electronics GENIUS key Contactless key:- transponder

- discounts - free vend - free

Black List

- full

Display integrato - 5-fi gure LCD - 6-fi gure LCD

Characteristics

(24)

Catalogue 2009

FS OCS EASY FS EASY OCS FS P.L. OCS P.L. EASY OCS FS EASY P.L. OCS

Executive Master - - - -Executive Slave - - - - - -Price Holding - - - -MDB Master - - - - - - - -MDB Slave - - - -MDB RS-232 - - - - - - - -BDV001 Master - - - -BDV001 Slave - - -

-Parallel Open Collector - - -

-Loader Price Line - - - -Transponder key Mifare key/card - - - - - - - -Separate electronics Banknote reader 12VDC coin validator 24VDC coin validator - - - -MDB peripheral device 2 _- _- _- _- _- _- _-

-Portable programming device

PC management 3 3

WinCE Palmtop management 4 _- _- _- _- _- _- _-

-Super key Data Key

Clock/Calendar - - -

-IrDA (integrated / external) - - - - -

-Black List - 12 elements Standard AUDIT Full AUDIT 5 “EYE” display - - - - - - - -7-segment display GSM/GPRS (telemetry) 6 _- _- _- _- _- _- _- -Wireless network 6 _- _- _- _- _- _- _- -Cashless Cellphon 6 _- _- _- _- _- _- _- -Times - - - - - - -

-No. Prices / Discount Lists

Free (for values / for credit) / / - - / / -

-Comparative commercial table for GENIUS series

Standard (device can be connected) Cashless Reader available on request - Unavailable

1 _{Requires external EXE-MDB interface}

2_{MDB peripheral device controlled directly by payment system}

3_{Requires RS-232 Hardware Key Station and USB interface}

4_{Requires Optical IrDA}

5_{Compatible with “AUDIT VIEW”}

6_{Requires ECB1 expansion card}

PAY

MENT S

Y

STEMS

(25)

34

PAYMENT SYSTEMS

GENIUS Key

• Electronic contactless key with RF transponder. The size and shape let you insert the key in front plate coin validators.

• Large space for advertising • Non-volatile data storage • Dual operator/site code structure

• Personalised cryptography and password ensures maximum security • Auto-restoring base-data backup

• Two or four user levels, free services, expiry

• Can be confi gured for all management system functions

Patented

› Pack of 100 pieces

GENIUS FS-EVA Slot

Reading slot for GENIUS key and GENIUS card

Cod. 3.501.36

...

Cod. 2.112.16

...

GENIUS Card

• Standard ISO dimensions › Pack of 200 pieces

Cod. 1.402.00

...

Characteristics

GENIUS Key Contactless card:

- GENIUS

(26)

Catalogue 2009

GENIUS display with button

• 4-digit display suitable for mounting on plate with circular hole. With GENIUS PL systems recharge button

GENIUS Display

• 4-digit display with anchor bracket and wiring, suitable for electromechanical vendors with standard housing for display

GENIUS 6-digit display

• Numeric 6-digit display including cable and plastic protection

Cod. 2.531.10

...

Cod. 2.531.15

...

Cod. 2.531.09

... PAY MENT S Y STEMS

(27)

36

PAYMENT SYSTEMS

GENIUS Base STATION + Software KEYSTATION FOR PC

• Connects to the RS232 serial port of the Personal Computer/USB port using the adaptor (not supplied)

• Reading/writing of user and special keys (e.g. programming, Audit, master, etc.), and complete superkey management (Audit/confi guration) with data collecting and print functions also in EVA-DTS format

• Power supply and cables included

Cod. 2.624.09

...

Portable GENIUS programming device • 4-digit display, 3 programming buttons • On-site programming and book-keeping audit • Suitable for all GENIUS systems

GENIUS Downloader

• Interface for updating GENIUS systems SW with a Personal Computer • Comes with all cables required

Cod. 2.624.10

...

Cod. 3.503.19

...

(28)

Catalogue 2009

Base station GENIUS Kit + DOWNLOADER + harness

Cod. 2.033.41

...

Superkey interface for SW updating on GENIUS

• PC-SUPERKEY connection for loading up to 4 different GENIUS SW programs • SUPERKEY-GENIUS connection to download the SW to the system

Cod. 3.502.67

...

GENIUS Superkey

• Data survey on up to 240 GENIUS Automatic Vending Machines • Remote individual confi guration on up to 240 GENIUS systems • Update SW on GENIUS systems (up to 4 software programs)

• Management on Personal Computer via Base Station + SW Keystation • Fast on-site operations.

N.B.: the superkey interface (Code 3.502.67) is required to update the SW.

Cod. 3.501.25

...

PAY

MENT S

Y

(29)

38

PAYMENT SYSTEMS

GENIUS code Key

Assigns the operator code to GENIUS systems and SW Keystation GENIUS programming key

• Non-modifi able, only available from PAYTEC • Enables portable programming device

• Requires operator and site code used by system

Cod. 3.501.28

...

Cod. 3.501.26

...

Stepper/validator conversion cable

Special cable for GENIUS PL systems, to connect a stepper validator to input or connect the system to a parallel validator input

Cod. 3.504.183

...

DS008

4-price board for coin stepper/validator or parallel coin validator, and for GENIUS PL system. For connecting a parallel coin validator/stepper with electromechanical machines. Indicate input voltage when ordering (230/115/24 VAC)

Cod. 2.514.93

...

(30)

Catalogue 2009

6-price kit board- 230/115/24 V

Conversion from electromechanical to executive Composed of:

• 4-digit display with fi xing brackets

• MH244 230/115/24 VAC board - 6 electromechanical prices • 1 connecting cable

• 1 semi-manufactured MH244-machine harness

N.B. alternatively and with limited performance, the economic DS008 interface can be used connected to the GENIUS PL

Cod. 2.033.39

...

Cod. 2.531.10

...

Cod. 2.514.49

...

Cod. 3.504.163

...

Cod. 3.504.139

...

Interface for GENIUS and coin validators on LAVAZZA PININFARINA dispenser. For connection with GENIUS PL system and with 2-price 12 VDC coin stepper/ validator.

Cod. 3.502.68

...

Holing tool for GENIUS FS-NEW slot Ø 32 mm holing tool for fi tting GENIUS slots

Cod. 2.303.01

...

Cutter for rectangular slot

Tool for cutting holes to fi t the rectangular GENIUS key and card slots

Cod. 9.902.01

...

PAY

MENT S

Y

(31)

40

PAYMENT SYSTEMS

Key chargers for the GENIUS system Key/Card chargers for the GENIUS system

Wall or fl oor (with relevant basement) mount recharge station. • Strong vandal-proof structure made of painted steel • Reinforced lock with security bars

• Key reading system for GENIUS system - 32 mm slot with led for contactless key only - Reading slot for GENIUS key and card

Cod.

CA100IT8340

...

Cod.

CA100IT8350

...

Cod.

CA100EU8311

... Basement for GENIUS systems key charger

Key chargers for the GENIUS system

(32)

Catalogue 2009

Serial protocols: - Executive - MDB/ICP - BDV001 - MDB RS232 Operating modes

- loader Electronics- separate electronics MDB peripheral devices

Black List

- full Times - On/Off - discounts - free vend - free

A

FLASH GOLD base version (A) EXECUTIVE Version

MDB Version BDV Version

FLASH GOLD base version with case (B) EXECUTIVE Version

FLASH GOLD plus version (A) EXECUTIVE Version

FLASH GOLD plus version with case (B) EXECUTIVE Version

MDB Version BDV Version FLASH GOLD

Payment and multiprotocol system for Executive/BDV/ MDB/Electromechanical Automatic Vending Machines with or without changegivers

• 64-price line price-holding mode • 4 user levels

• Data audit through Audit-Key or IrDA-EVA-DTS unit (PLUS Model) • Optional module for archive - clock - IrDA

• Programmed through Audit-Key (with computerized management) or using portable programming device

• Fully compatible with Air systems

• Management of free / Happy Hour / expiry and key validity services • Automatic Euro conversion

• No intelligent electronics in key reader • Prepayment of sales

Cod. 3.500.36

...

Cod. 3.500.41

...

Cod. 3.500.45

...

Cod. 3.500.32

...

Cod. 3.500.40

...

Cod. 3.500.44

...

Cod. 3.500.37

...

Cod. 3.500.43

...

Cod. 3.500.47

...

Cod. 3.500.35

...

Cod. 3.500.42

...

Cod. 3.500.46

...

B

FLASH GOLD

Characteristics

Banknote reader - parallel - impulse

Coin validator only with DS004 interface: - standard 12VDC

Coin validator: - standard 24VDC

PC

GENIUS Superkey IrDA Mod. PLUS

- integrated in Cashless reader - external interface Display - 5-fi gure LCD - 6-fi gure LCD Changegiver: Connection to a changegiver system PAY MENT S Y STEMS

(33)

42

PAYMENT SYSTEMS

FLASH PRO EXE (with executive protocol) FLASH PRO MDB (with MDB protocol)

FLASH PLUS EXE (with executive protocol and IrDA interface) FLASH PLUS MDB (with MDB protocol and IrDA interface) • Internal clock with battery

• EVA-DTS data audit through Audit Key

• EVA-DTS data audit through IrDA interface (FLASH PLUS only)

• Programmed with programming device for FLASH GOLD/FLASH and/or confi guration key

• 32-price line price-holding

Cod. 3.500.80

...

Cod. 3.500.81

...

Cod. 3.500.82

...

Cod. 3.500.83

...

FLASH PRO - FLASH PLUS

Serial protocols: - Executive - MDB/ICP - BDV001 - MDB RS232 Operating modes

Black List

- full Times - On/Off - discounts - free vend - free Characteristics

Banknote reader - parallel - impulse

Coin validator: - standard 24VDC

PC

GENIUS Superkey IrDA Mod. PLUS

- integrata nel lettore Cashless - external interface Display - 5-fi gure LCD - 6-fi gure LCD Changegiver: Connection to a changegiver system

[email protected]

(34)

Catalogue 2009

FLASH GOLD FLASH GOLD PLUS FLASH PRO FLASH PLUS

Executive Master Executive Slave Price Holding MDB Master MDB Slave MDB RS-232 BDV001 Master BDV001 Slave

Parallelo Open Collector - - -

-Loader Price Line - - - -Transponder key * * * * Mifare key/card - - - -Separate electronics Banknote reader 12VDC coin validator 6 6 24VDC coin validator 6 6 MDBperipheral device2 _- _- _-

-Portable programming device

PC management 3 3 3 3

WinCE Palmtop management 4 _- _- _-

-Easy DTS Data Key

Clock/Calendar

IrDA (integrated / external) -

-Black List - 2000 elements Standard AUDIT Full AUDIT 5 “EYE” display - - - -5-segment display GSM/GPRS (telemetry) 6 _- _- _- -Wireless network 6 _- _- _- -Cashless Cellphone 6 _- _- _- -Times -

-No. Prices / Discounts lists

Free (for values / for credit) / / / /

Language: single / double

Comparative commercial table for FLASH series

Standard (connects to device) Cashless Reader on request - Unavailable

*

Key with embedded microprocessor

1_{Requires external EXE-MDB interface}

2_{MDB peripheral device controlled directly by payment system}

3_{Requires serial PC Interface (CIC1/RS232 or UIC1/USB) Base Station}

4_{Requires Optical IrDA}

5_{Compatible with “AUDIT VIEW”}

6_{Requires DS004 expansion card}

PAY

MENT S

Y

(35)

44

PAYMENT SYSTEMS

AUDIT-KEY

For data survey on 20 Vending Machines with Air/Flash systems

Data provided: partial income with key, extra income and revalue coins/notes. Machine number (on all systems) and date/time survey (on Airkey – Microkey Contactless).

Automatic management with Airwrite software.

CONFIG-KEY

• Auto-supplied single-channel transponder system • Waterproof

• Bit in EPROM technology

• Microprocessor for transmission control • Personalised cryptography

• Double auto-repairing copy of main data • Control code for each data structure • Historical data of last 5 operations

Cod. 3.501.14

... AIRKEY

Electronic contactless key available in various colours › Pack of 50

AIRKEY Code Key

• For confi guring 1 or more Vending Machine

Cod. 3.501.33

...

Cod. 3.501.21

...

Cod. 3.501.22

...

(36)

Catalogue 2009

AIRKEY Console

Console for Airkey keys management through PC Composed of:

• Airkey Console • Power supply

• Serial connection cable for PC • Air Write Software

• Power Input: 9 - 24VAC/DC • VPBOX Software for FLASH GOLD

Cod. 2.624.07

...

FLASH GOLD/FLASH programming device Portable terminal for FLASH GOLD programming

230/115/24 VAC electromechanical Kit for FLASH GOLD Composed of:

• 1 x 5-digit display with two types of fi xing brackets

• 1 MH244 230/115/24 VAC card for 6 electromechanical prices • 1 connecting cable

• 1 semi-manufactured MH244-machine harness

Cod. 2.033.24

...

Cod. 2.033.23

...

Cod. 2.514.49

...

Cod. 3.504.163

...

Cod. 3.504.139

...

Cod. 3.503. 16

... PAY MENT S Y STEMS

(37)

46

PAYMENT SYSTEMS

Cutter for rectangular slot

Tool for cutting holes to fi t the rectangular FLASH key and card slots

Cod. 9.902.01

...

Key charger for FLASH systems

Wall or fl oor (with relevant basement) mount recharge station. • Strong vandal-proof structure made of painted steel • Reinforced lock with security bars

• Key reading system for FLASH system

Cod. CA100IT8330

...

Key charger for FLASH systems

Cod CA100EU8311

... Basement for FLASH systems key charger

(38)

EASY DTS, universal palmtop for DDCMP and DEX data survey Portable battery-powered data auditing unit.

Cable or IrDA connections

Supports EVA-DTS 5.0 and DEX UCS Composed of:

• EASY DTS case

• Standard DDCMP and DEX cable

• Software for downloading data in text/EVA-DTS format

Cod. 3.503.17

...

Palmtop data collection system (for OSCAR, GENIUS, and FLASH series)

PAY

MENT S

Y
