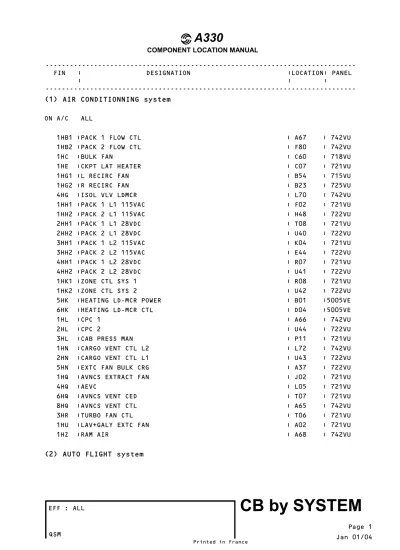

(1) AIR CONDITIONNING system
ON A/C ALL
1HB1 |PACK 1 FLOW CTL | A67 | 742VU 1HB2 |PACK 2 FLOW CTL | F80 | 742VU 1HC |BULK FAN | C60 | 718VU 1HE |CKPT LAT HEATER | C07 | 721VU 1HG1 |L RECIRC FAN | B54 | 715VU 1HG2 |R RECIRC FAN | B23 | 725VU 4HG |ISOL VLV LDMCR | L70 | 742VU 1HH1 |PACK 1 L1 115VAC | F02 | 721VU 1HH2 |PACK 2 L1 115VAC | H48 | 722VU 2HH1 |PACK 1 L1 28VDC | T08 | 721VU 2HH2 |PACK 2 L1 28VDC | U40 | 722VU 3HH1 |PACK 1 L2 115VAC | K04 | 721VU 3HH2 |PACK 2 L2 115VAC | E44 | 722VU 4HH1 |PACK 1 L2 28VDC | R07 | 721VU 4HH2 |PACK 2 L2 28VDC | U41 | 722VU 1HK1 |ZONE CTL SYS 1 | R08 | 721VU 1HK2 |ZONE CTL SYS 2 | U42 | 722VU 5HK |HEATING LD-MCR POWER | B01 |5005VE 6HK |HEATING LD-MCR CTL | D04 |5005VE 1HL |CPC 1 | A66 | 742VU 2HL |CPC 2 | U44 | 722VU 3HL |CAB PRESS MAN | P11 | 721VU 1HN |CARGO VENT CTL L2 | L72 | 742VU 2HN |CARGO VENT CTL L1 | U43 | 722VU 5HN |EXTC FAN BULK CRG | A37 | 722VU 1HQ |AVNCS EXTRACT FAN | J02 | 721VU 4HQ |AEVC | L05 | 721VU 6HQ |AVNCS VENT CED | T07 | 721VU 8HQ |AVNCS VENT CTL | A65 | 742VU 3HR |TURBO FAN CTL | T06 | 721VU 1HU |LAV+GALY EXTC FAN | A02 | 721VU 1HZ |RAM AIR | A68 | 742VU
ON A/C ALL
5CA1 |FMGEC 1 | M75 | 742VU 5CA2 |FMGEC 2 | R43 | 722VU 7CA1 |MCDU 1 | Q61 | 742VU 7CA2 |MCDU 2 | C47 | 722VU 7CA3 |MCDU 3 | N71 | 742VU 8CA1 |FCU A+B | E69 | 742VU 8CA2 |FCU C | R42 | 722VU 14CA |AP ELEC PWR SPLIT | Q41 | 722VU 6CB |SIDE STICK LOCK | M73 | 742VU 7CB |RUDDER ARTF FEEL | M74 | 742VU
(3) COMMUNICATIONS system
ON A/C ALL
21MH |PES OVERHEAD CTL | H08 |5001VE 27MK |PES IN-SEAT AREA 4 | A09 |5005VE 2RC1 |VHF 1 | A70 | 742VU 2RC2 |VHF 2 | X43 | 722VU 2RC3 |VHF 3 | S05 | 721VU 2RE1 |HF 1 | J63 | 742VU 2RE2 |HF 2 | E37 | 722VU 2RG1 |RMP 1 | F79 | 742VU 2RG2 |RMP 2 | X44 | 722VU 2RG3 |RMP 3 | V10 | 721VU 601RH |CIDS DIR 1 NORM | P45 | 722VU 602RH |CIDS DIR 2 NORM | P46 | 722VU 603RH |CIDS DEU A LEFT FWD NORM | J04 |5001VE 604RH |CIDS DEU A RIGHT FWD NORM | J05 |5001VE 605RH |CIDS DEU A LEFT MID NORM | J08 |5001VE 606RH |CIDS DEU A RIGHT MID NORM | J09 |5001VE 607RH |CIDS; DEU A L AFT NORM | B05 |5005VE 608RH |CIDS; DEU A R AFT NORM | B09 |5005VE 609RH |CIDS DEU A CENTER FWD NORM | J06 |5001VE 610RH |CIDS DEU MID1 MID NORM | J07 |5001VE 611RH |CIDS DEU A CENTER MID 1 | J08 |5001VE 612RH |CIDS DEU A C AFT NORM | B06 |5005VE 613RH |CIDS DEU B L FWD NORM | N35 | 722VU 614RH |CIDS DEU B R FWD NORM | N34 | 722VU
615RH |DEU B L NORM | P43 | 722VU 616RH |DEU B R NORM | P44 | 722VU 617RH |FWD ATTND PNL NORM | P42 | 722VU 618RH |CIDS CREW REST | A06 |5005VE 1401RH |CIDS DIR 1 ESS | A81 | 743VU 1402RH |CIDS DIR 2 ESS | A82 | 743VU 1403RH |CIDS DEU A L1 FWD ESS | A83 | 743VU 1404RH |CIDS DEU A R1 FWD ESS | A84 | 743VU 1405RH |CIDS DEU A L2 FWD ESS | A85 | 743VU 1406RH |CIDS DEU A R2 FWD ESS | A86 | 743VU 1407RH |CIDS DEU A L1 AFT ESS | A87 | 743VU 1408RH |CIDS DEU A R1 AFT ESS | A88 | 743VU 1409RH |CIDS DEU A L2 AFT ESS | A89 | 743VU 1410RH |CIDS DEU A R2 AFT ESS | A90 | 743VU 1411RH |CIDS DEU A C1 FWD ESS | A91 | 743VU 1412RH |CIDS DEU A C2 FWD ESS | A92 | 743VU 1413RH |CIDS DEU A C1 AFT ESS | A93 | 743VU 1414RH |CIDS DEU A C2 AFT ESS | A94 | 743VU 1415RH |CIDS DEU B L ESS | A95 | 743VU 1416RH |CIDS DEU B R ESS | A96 | 743VU 1417RH |CIDS FLT ATTND PNL ESS | A97 | 743VU 1418RH |CIDS DEU B LDMCR ESS | A98 | 743VU 1419RH |CIDS DEU A LDMCR ESS | A99 | 743VU 4RK |CVR | Q67 | 742VU 5RK |CVR CTL | V09 | 721VU 4RN1 |ACP CAPT | A71 | 742VU 4RN2 |ACP F/O | A72 | 742VU 4RN3 |ACP 3RD OCCPNT | V05 | 721VU 5RN |FLT INTPH | A73 | 742VU 6RN |SELCAL | V08 | 721VU 1RV |SATCOM SDU/RFU | J48 | 722VU 3RV |SAT HI AMPL D/LNA | K48 | 722VU 2WC |EXT HORN | H78 | 742VU
(4) ELECTRICAL POWER system
ON A/C ALL
1MC |GALLEY SYS 1 | T10 | 721VU 2MC |GALLEY SYS 2 | S39 | 722VU 11MC |GALLEY FWD MID | B51 | 717VU
12MC |GALLEY AFT | A54 | 715VU 23MC |GALLEY FWD MID | P56 | 715VU 111MC |GALLEY FWD MID | C51 | 717VU 112MC |GALLEY FWD MID AFT | C55 | 715VU 113MC |GALLEY FWD MID AFT | C55 | 715VU 223MC |GALLEY FWD MID AFT | P57 | 715VU 9PB |303PP | E24 | 735VU 10PB1 |701PP | S72 | 742VU 10PB2 |702PP | S71 | 742VU 11PB |301PP | D24 | 735VU 12PB1 |BAT 1 CNTOR | J73 | 742VU 12PB2 |BAT 2 CNTOR | H74 | 742VU 12PB3 |DC SUPPLY BAT APU CNTOR | B04 |5000VE 13PB1 |BAT REF BCL 1 | J74 | 742VU 13PB2 |BAT REF BCL 2 | H75 | 742VU 13PB3 |DC SUPPLY BAT REF BCL APU | B03 |5000VE 14PB1 |BCL 1 301PP REF | Q08 | 721VU 14PB2 |BCL 2 301PP REF | Q09 | 721VU 14PB3 |DC SUPPLY 309PP REF BCL APU | B02 |5000VE 20PB |BAT FEED WARN CTL | M36 | 722VU 21PB |BAT FEED WARN SPLY | N13 | 721VU 24PB1 |470PP BAT1 SPLY | T64 | 740VU 24PB2 |470PP BAT2 SPLY | T65 | 740VU 12PC |BUS 3-4 TIE CNTOR | S42 | 722VU 13PC1 |BAT1/ESS BUS CNTOR | J76 | 742VU 13PC2 |BAT2/ESS BUS CNTOR | H76 | 742VU 14PC |ESS DC EMER CTL | J75 | 742VU 4PE |TR ESS | R76 | 742VU 5PE |ESS TR MONG | X10 | 721VU 3PH |801/805PP CTL | N63 | 742VU 4PH |801/805PP SHED CTL | N64 | 742VU 5PH |401PP | S73 | 742VU 6PH |403PP | S74 | 742VU 7PH |801PP | S76 | 742VU 10PH |407PP | S75 | 742VU 11PH |805PP | S77 | 742VU 13PH |LAND RCVY BUS SWTG | E80 | 742VU 15PH |405PP/470PP | T66 | 740VU 16PH |470PP CTL | B80 | 740VU 2PN1 |101PP | D21 | 735VU 2PN2 |202PP | D28 | 735VU
3PN1 |103PP | D22 | 735VU 3PN2 |204PP | D27 | 735VU 4PN1 |105PP | D23 | 735VU 4PN2 |206PP | D26 | 735VU 8PN |FLT SPLY SVCE BUS | T45 | 722VU 3PR |501PP | E27 | 735VU 4PR |502PP BAT SPLY | R74 | 742VU 5PR |501PP BAT SPLY | R73 | 742VU 7PR |501PP ESS SPLY | R72 | 742VU 8PR |501PP ESS/GND SWTG | N42 | 722VU 9PR |502PP | E28 | 735VU 10PR |REFUEL BAT/GND SW | G73 | 742VU 3PU1 |TR 1 | J55 | 715VU 3PU2 |TR 2 NORM | W56 | 715VU 3PU3 |APU TR | S56 | 715VU 4PU |TR 1 MONG | A79 | 742VU 8PU |TR 2 NORM SPLY CTL | J50 | 722VU 9PU |TR 2 ESS MONG | E78 | 742VU 10PU |TR 2 NORM MONG | X09 | 721VU 2PV |DC SUPPLY APU VM | B05 |5000VE 2PX |SVCE BUS GND SPLY | M37 | 722VU 3PX |601PP | D25 | 735VU 4PX |602PP | E25 | 735VU 5PX |603PP | E26 | 735VU 3XA |GALLEY SHED | N44 | 722VU 6XB |STAT INV CTL | N65 | 742VU 1XC |ESS BUS NORM SPLY | E54 | 715VU 2XC |ESS BUS ALTN SPLY | S57 | 715VU 5XC |ESS BUS NORM SWTG | M14 | 721VU 6XC |ESS BUS ALTN SWTG | M38 | 722VU 9XC |LAND RCVY CTL | K64 | 742VU 13XC |ESS NTWK AUTO ALT | G72 | 742VU 2XD |CBMU | X05 | 721VU 17XE |CSM/G AUTO START | J78 | 742VU 22XE |CSM/G MAN START | N61 | 742VU 24XE |CSM/G OFF CTL | N62 | 742VU 25XE |AC EMER DET RLY | E77 | 742VU 29XE |1XP VOLT REF/TEST | D04 | 721VU 30XE |2XP VOLT REF/TEST | D49 | 722VU 2XG |GND SPLY A | L42 | 722VU 5XG |GND SPLY B | L39 | 722VU
6XG |EXT A AVAIL | M44 | 722VU 11XG |EXT A NOT IN USE | M45 | 722VU 12XG |EPC A CTL | M46 | 722VU 14XG |EXT B AVAIL | M40 | 722VU 15XG |EXT B NOT IN USE | M41 | 722VU 16XG |EPC B CTL | M42 | 722VU 39XG |GAPCU | P13 | 721VU 8XH |401XP VOLT REF | Q62 | 742VU 9XH |26VAC 931XPA | R71 | 742VU 12XH |901XP | R79 | 742VU 13XH |905XP SHED | Q11 | 721VU 14XH |901XP VOLT REF | N80 | 742VU 15XH |401XP | T71 | 740VU 17XH |401XP CTL | A77 | 742VU 21XH |905XP | R69 | 742VU 2XM1 |ECMU 1 NORM | A78 | 742VU 2XM2 |ECMU 2 NORM | E79 | 742VU 3XM1 |ECMU 1 ESS | J77 | 742VU 3XM2 |ECMU 2 ESS | H77 | 742VU 4XM |ECMU 1 1PP SNSG | X06 | 721VU 6XM |ECMU 1 1XP SNSG | K05 | 721VU 7XM |ECMU 2 2XP SNSG | F49 | 722VU 9XM |ECMU 2 2PP SNSG | S43 | 722VU 10XM |ECMU 1 SNSG 3PP | N08 | 721VU 14XM |ECMU 2 GND SPLY A | M43 | 722VU 16XM |ECMU 1 GND SPLY B | M39 | 722VU 1XN1 |101XP | D55 | 715VU 1XN2 |202XP | R56 | 715VU 2XN1 |103XP | G55 | 715VU 2XN2 |204XP | U56 | 715VU 3XN1 |105XP | H55 | 715VU 3XN2 |206XP | V56 | 715VU 4XN1 |131XPA 26VAC | G54 | 715VU 4XN2 |232XPA 26VAC | U57 | 715VU 5XN |208XP / SHED | Q57 | 715VU 6XN1 |111XP | D51 | 717VU 6XN2 |212XP | D59 | 718VU 7XN1 |113XP | D52 | 717VU 7XN2 |214XP | D60 | 718VU 16XN |111XP CTL | X07 | 721VU 17XN |113XP CTL | X08 | 721VU
18XN |212XP CTL | S44 | 722VU 19XN |214XP CTL | S45 | 722VU 23XN |208XP CTL | S46 | 722VU 25XN |COML SHED | N43 | 722VU 33XN |115XP | E55 | 715VU 37XN |107XP/115XP CTL | W15 | 721VU 40XN |2XP VOLT REF | H47 | 722VU 41XN |1XP VOLT REF | B02 | 721VU 42XN |2XP VOLT REF | B46 | 722VU 43XN |1XP VOLT REF | K06 | 721VU 45XN |1XP VOLT REF | K07 | 721VU 46XN |ECMU1 SIDE 2 BUS SHED | Q34 | 722VU 47XN |ECMU2 SIDE 1 BUS SHED | W18 | 721VU 51XN |107XP/SHED | B55 | 715VU 1XT1 |IDG 1 DISC | A76 | 742VU 1XT2 |IDG 2 DISC | D69 | 742VU 2XU1 |BTC 1 NORM | Q05 | 721VU 2XU2 |BTC 2 NORM | N05 | 721VU 4XU1 |GCU 1 | Q10 | 721VU 4XU2 |GCU 2 | N06 | 721VU 8XU1 |BTC 1 GND SPLY | M09 | 721VU 8XU2 |BTC 2 GND SPLY | L45 | 722VU 1XX |111XP GND SPLY | B21 | 725VU 2XX |212XP GND SPLY | N56 | 715VU 3XX |113XP GND SPLY | B22 | 725VU 4XX |214XP GND SPLY | N57 | 715VU 8XX |TR 2 GND SPLY | C23 | 725VU 9XX |216XP GND SPLY | C24 | 725VU 10XX |111XP GND SPLY CTL | N38 | 722VU 11XX |113XP GND SPLY CTL | N39 | 722VU 12XX |212XP GND SPLY CTL | N40 | 722VU 13XX |214XP GND SPLY CTL | N41 | 722VU 17XX |115XP GND SPLY | C22 | 725VU 20XX |115XP GND SPLY CTL | N37 | 722VU
(5) EQUIPMENT/FURNISHINGS system
ON A/C ALL3DS |FLOOR PNL DR1 L SPLY | F06 | 721VU 4DS |FLOOR PNL DR1 R SPLY | H08 | 721VU
5DS |DOOR AREA HEATING PANELS | H07 | 721VU 6DS |FLOOR PNL DR2 R SPLY | G11 | 721VU 7DS |FLOOR PNL DR3 L SPLY | H39 | 722VU 8DS |FLOOR PNL DR3 R SPLY | F31 | 722VU 9DS |FLOOR PNL DR4 L SPLY | J39 | 722VU 10DS |FLOOR PNL DR4 R SPLY | D32 | 722VU 1ME |VACUUM CLEANER SOCKET Z221 | F01 |5001VE 2ME |VACUUM CLEANER SOCKET Z222 | F03 |5001VE 3ME |VACUUM CLEANER SOCKET Z241 | F04 |5001VE 4ME |VACUUM CLEANER SOCKET Z242 | E04 |5001VE 5ME |VACUUM CLEANER SOCKET Z271 | B17 |5005VE 6ME |VACUUM CLEANER SOCKET Z272 | B18 |5005VE 15ME |VACUUM CLEANER SOCKET Z261 | B15 |5005VE 16ME |VACUUM CLEANER SOCKET Z262 | B16 |5005VE 21ME |VACUUM CLEANER SOCKET Z 132 | B05 |5002VE 22ME |VACUUM CLEANER SOCKET Z 152 | B03 |5006VE 23ME |VACUUM CLEANER SOCKET Z 162 | B05 |5006VE 1MS1 |SEAT CAPT | A05 | 721VU 1MS2 |SEAT F/O | B39 | 722VU 1MT |RAZOR SOCKET | F05 |5001VE 3MT |RAZOR SOCKET | F06 |5001VE 5MT |RAZOR SOCKET | C06 |5005VE 7MT |RAZOR SOCKET | C07 |5005VE 1MY |FWD CARGO LOADING CTL | C13 |5002VE 2MY |FWD CARGO LOADING POWER LH2 | B10 |5002VE 3MY |FWD CARGO LOADING POWER LH1 | A10 |5002VE 4MY |FWD CARGO LOADING POWER RH2 | B13 |5002VE 5MY |FWD CARGO LOADING POWER RH1 | A13 |5002VE 101MY |AFT CARGO LOADING CTL | C13 |5006VE 102MY |AFT CLS/LH2-POWER | B10 |5006VE 103MY |AFT CLS/LH1-POWER | A10 |5006VE 104MY |AFT CLS / RH2-PWR | B13 |5006VE 105MY |AFT CLS / RH1-PWR | A13 |5006VE 1NA |PILOTS OUTLETS/STAT INV | S31 | 722VU 2NA |PILOTS OUTLETS/115V 60HZ | B33 | 722VU
(6) FIRE PROTECTION system
ON A/C ALL
3WD2 |FIRE LOOP A ENG 2 | D79 | 742VU 4WD1 |FIRE LOOP B ENG 1 | W42 | 722VU 4WD2 |FIRE LOOP B ENG 2 | W43 | 722VU 37WE1 |FIRE BTL1/A ENG1&2 | H73 | 742VU 37WE2 |FIRE BTL1/B ENG1&2 | T37 | 722VU 38WE1 |FIRE BTL2/A ENG1&2 | J69 | 742VU 38WE2 |FIRE BTL2/B ENG1&2 | W38 | 722VU 1WF |APU FIRE SQUIB A | J72 | 742VU 2WF |APU FIRE SQUIB B | P09 | 721VU 3WF |APU FIRE VLV CTL | J71 | 742VU 4WF |APU FIRE VLV CTL | P07 | 721VU 31WF |APU FIRE AUTOEXTNG | G78 | 742VU 1WG |FIRE LOOP A APU | D80 | 742VU 2WG |FDU LOOP B APU | P08 | 721VU 11WH |SDCU CHAN 1 | L75 | 742VU 12WH |SDCU CHAN 2 | T38 | 722VU 1WX |CRG FIRE EXTNG/A | J70 | 742VU 2WX |CRG FIRE EXTNG/B | W44 | 722VU
(7) FLIGHT CONTROLS system
ON A/C ALL
6CE1 |FCDC 1 | E64 | 742VU 6CE2 |FCDC 2 | T42 | 722VU 7CE1 |FCPC 1 NORM | C69 | 742VU 7CE2 |FCPC 2 NORM | V41 | 722VU 7CE3 |FCPC 3 | V42 | 722VU 7CE4 |FCPC 3 | V38 | 722VU 9CE |FCSC 1 STBY | G77 | 742VU 10CE1 |FCSC 1 NORM | C70 | 742VU 10CE2 |FCSC 2 | T39 | 722VU 11CE |FCPC 1 STBY | K69 | 742VU 41CE |FCSC2 STBY SPLY | D66 | 742VU 1CF |ECAM FLAP POS SYS1 | P62 | 742VU 2CF |ECAM FLAP POS SYS2 | L33 | 722VU 1CN |ECAM SLAT POS SYS1 | P63 | 742VU 2CN |ECAM SLAT POS SYS2 | L34 | 722VU 5CS1 |THS ACTR MOT 1 | L77 | 742VU 5CS2 |THS ACTR MOT2 NORM | V43 | 722VU 5CS3 |THS ACTR MOT 3 | V44 | 722VU
30CS1 |RUD TRIM ACTR MOT1 | L78 | 742VU 30CS2 |RUD TRIM ACTR MOT2 | T40 | 722VU 38CS |RUD T ACTR STBY | L67 | 742VU 1CV |SFCC 1 FLAP | L61 | 742VU 2CV |SFCC 2 FLAP | T43 | 722VU 10CV |SFCC 1 NORM | X14 | 721VU 1CW |SFCC 1 SLAT | L62 | 742VU 2CW |SFCC 2 SLAT | V40 | 722VU 10CW |SFCC 1 NORM AVAIL | X13 | 721VU
(8) FUEL system
ON A/C ALL
51QA1 |FUEL L PUMP 1 SPLY | E34 | 722VU 51QA2 |FUEL R PUMP 1 SPLY | G45 | 722VU 52QA1 |FUEL L PUMP 2 SPLY | K62 | 742VU 52QA2 |FUEL R PUMP 2 SPLY | H62 | 742VU 53QA1 |FUEL L STBY PUMP | J05 | 721VU 53QA2 |FUEL R STBY PUMP | A11 | 721VU 54QA1 |FUEL L PUMP 1 CTL | U46 | 722VU 54QA2 |FUEL R PUMP 1 CTL | Q43 | 722VU 55QA1 |FUEL L PUMP 2 CTL | D68 | 742VU 55QA2 |FUEL R PUMP 2 CTL | V13 | 721VU 56QA1 |FUEL L STBY PUMP CTL | T05 | 721VU 56QA2 |FUEL R STBY PUMP CTL | R05 | 721VU 1QB |ACTR MOT L/R1 CTL | M71 | 742VU 2QB |ACTR MOT L&R 2CTL | K39 | 722VU 1QC |APU AFT FUEL PUMP | N78 | 742VU 2QC |APU FWD FUEL PUMP | B09 | 721VU 5QC |28VDC ESS BUS | F64 | 742VU 6QC |28VDC ESS BUS | F65 | 742VU 1QE |XFEED VLV MOT 1 | B66 | 742VU 2QE |XFEED VLV MOT 2 | Q44 | 722VU 1QF |APU CTL & LP VLV MOT1 | K76 | 742VU 2QF |APU LP VLV MOT 2 | P10 | 721VU 3QF |APU ISOL VLV | K75 | 742VU 1QG1 |FUEL LP MOT 1 ENG1 | K77 | 742VU 1QG2 |FUEL LP MOT 1 ENG2 | K78 | 742VU 2QG1 |FUEL LP MOT 2 ENG1 | U45 | 722VU 2QG2 |FUEL LP MOT 2 ENG2 | Q39 | 722VU
1QJ |FUEL HI LVL | K36 | 722VU 2QJ |FUEL OVFL | K37 | 722VU 16QJ |FUEL LO LVL | L74 | 742VU 1QL1 |FUEL XFR L PUMP | E05 | 721VU 1QL2 |FUEL XFR R PUMP | G48 | 722VU 2QL1 |FUEL XFR L PMP CTL | S06 | 721VU 2QL2 |FUEL XFR R PMP CTL | Q46 | 722VU 6QL1 |FUEL MAIN XFR L | B67 | 742VU 6QL2 |FUEL MAIN XFR R | B68 | 742VU 8QL1 |L INR TK INLET VLV | R12 | 721VU 8QL2 |R INR TK INLET VLV | M64 | 742VU 13QL |FUEL XFR OVRD | E76 | 742VU 27QL |FUEL XFR OVRD MAIN | T14 | 721VU 29QL1 |FUEL MAIN XFR L SPLY2 | Q38 | 722VU 29QL2 |FUEL MAIN XFR R SPLY2 | Q37 | 722VU 1QM1 |FCMC 1 SPLY 1 | M76 | 742VU 1QM2 |FCMC 2 SPLY 1 | M77 | 742VU 2QM1 |FCMC 1 SPLY 2 | M78 | 742VU 2QM2 |FCMC 2 SPLY 2 | K34 | 722VU 6QM |FCMC1 BAT R/F SPLY | M67 | 742VU 7QM |BAT REFUEL SYSTEM | K35 | 722VU 9QM |FCMC2 BAT R/S SPLY | M63 | 740VU 14QM1 |VLV BAT REFUEL SPLY 1 | M65 | 740VU 14QM2 |VLV BAT REFUEL SPLY 2 | M66 | 740VU 1QN1 |FUEL L AFT XFR VLV | E68 | 742VU 1QN2 |FUEL R AFT XFR VLV | Q45 | 722VU 3QN |FUEL AUX FWD XFR | B69 | 742VU 4QN |FUEL TRIMPIPE ISOL | M62 | 742VU 5QN |FUEL TRIM TK ISOL | B70 | 742VU 6QN |FUEL TRIM TK INLET | M61 | 742VU 24QN |TRIM XFR PUMP SPLY | E40 | 722VU 26QN |TRIM XFR PUMP CTL | Q40 | 722VU 30QN1 |FUEL AFT XFR L SPLY2 | Q36 | 722VU 30QN2 |FUEL AFT XFR R SPLY2 | F68 | 742VU 1QU1 |REFUEL L OUTR TK | R13 | 721VU 1QU2 |REFUEL R OUTR TK | R14 | 721VU 12QU |REFUEL CTR TK | K38 | 722VU 15QU |REFUEL R ISOL | K32 | 722VU 16QU |REFUEL PNL CTL&IND | K33 | 722VU
ON A/C ALL
11JB |HYD PUMP B ENG 1 | U08 | 721VU 13JB |HYD FIRE ENG 1 SOV | D73 | 742VU 3JC2 |B ELEC PUMP | B23 | 725VU 9JC |HYD PUMP B CTL | X12 | 721VU 6JG |HSMU B + PART G | U10 | 721VU 7JG |HSMU Y + PART G | X46 | 722VU 8JG |HYD SOV BUS SWTG | R33 | 722VU 14JG1 |HYD PUMP G ENG 2 | X45 | 722VU 14JG2 |HYD PUMP G ENG 1 | X11 | 721VU 15JG1 |HYD FIRE ENG 2 SOV | D72 | 742VU 15JG2 |HYD FIRE ENG 1 SOV | D75 | 742VU 19JG |HYD SOV ENG 2 NORM | R34 | 722VU 3JJ1 |Y ELEC PUMP SVCE | A22 | 725VU 3JJ2 |Y ELEC PUMP | A55 | 715VU 9JJ |HYD PUMP Y CTL | R36 | 722VU 10JJ |HYD PUMP Y SVCE | N46 | 722VU 2JL |LEAK MEAS VALVES | N45 | 722VU 1JR |RAT STOW CTL | D77 | 742VU 2JR |RAT MAN ON | K74 | 742VU 5JR |HYD RAT EXT SOL 2 | D76 | 742VU 3JS |HYD PRESS XDCR | D71 | 742VU 9JV |HYD PUMP G CTL | U09 | 721VU 11JY |HYD FIRE ENG 2 SOV | D74 | 742VU 12JY |HYD PUMP Y ENG 2 | T46 | 722VU 15JY |HYD SOV ENG 2 NORM | R35 | 722VU
(10) ICE AND RAIN PROTECTION system
ON A/C ALL
1DA2 |ANTI ICE AOA 2 | F48 | 722VU 2DA1 |PHC 1 | P12 | 721VU 2DA2 |PHC 2 | X40 | 722VU 2DA3 |PHC 3 | N07 | 721VU 3DA |ANTI ICE PITOT1OR3 | Q72 | 742VU 4DA1 |ANTI ICE PITOT 3 | L07 | 721VU 4DA2 |ANTI ICE PITOT 2 | F43 | 722VU 11DA1 |ANTI ICE STAT 1 | W09 | 721VU
11DA2 |ANTI ICE STAT 2 | X41 | 722VU 11DA3 |ANTI ICE STAT 3 | W10 | 721VU 12DA1 |ANTI ICE TAT 1 | B06 | 721VU 12DA2 |ANTI ICE TAT 2 | E43 | 722VU 15DA |ESS ANTI ICE AOA3 | H68 | 742VU 16DA |ESS ANTI ICE PITOT 3 | H69 | 742VU 31DA1 |ANTI ICE AOA 1 OR 3 | Q68 | 742VU 31DA3 |ANTI ICE AOA 3 | C05 | 721VU 2DB1 |WIPER CAPT | W05 | 721VU 2DB2 |WIPER F/O | S40 | 722VU 5DB1 |RAIN RPLNT CAPT | A69 | 742VU 5DB2 |RAIN RPLNT F/O | X42 | 722VU 2DD1 |ICE DET 1 | B07 | 721VU 2DD2 |ICE DET 2 | F47 | 722VU 1DG1 |ANTI ICE WSHLD L | T74 | 740VU 1DG2 |ANTI ICE WSHLD R | R57 | 715VU 4DG1 |ANTI ICE WINDOWS L | D03 | 721VU 4DG2 |ANTI ICE WINDOWS R | D43 | 722VU 5DG1 |WHC 1 | G64 | 742VU 5DG2 |WHC 2 | X39 | 722VU 1DH |ICE PROT ESC SLIDE DOOR 1/2 | F07 |5001VE 2DH |ICE PROT ESC SLIDE DOOR 3/4 | C13 |5005VE 1DL |ANTI ICE WING | L68 | 742VU 2DN1 |ANTI ICE ENG 1 | W06 | 721VU 2DN2 |ANTI ICE ENG 2 | W39 | 722VU 1DR |FOOT WARMER | B10 | 721VU 1DU |HEATER WASTE | B02 |5058VE 2DU |HEATER WASTE | B03 |5058VE 201DU |HEATER WASTE | B02 |5060VE 202DU |HEATER WASTE | B03 |5060VE 203DU |HEATER WASTE | A03 |5060VE 206DU |HEATER WASTE | C03 |5060VE 21DV |HEATER POTABLE SVCE PNL | C07 |5060VE 22DV |HEATER WASTE SVCE PNL | A02 |5060VE 2DW |HEATER POTABLE | A05 |5058VE 3DW |HEATER POTABLE | B05 |5058VE 4DW |HEATER POTABLE | B06 |5058VE 9DW |WATER ICE PROTECTION CTL | A01 |5058VE 11DW |HEATER POTABLE DRAIN PNL | C07 |5058VE 210DW |HEATER POTABLE | C05 |5060VE 211DW |HEATER POTABLE | C04 |5060VE
212DW |HEATER POTABLE | A07 |5060VE 213DW |HEATER POTABLE | B07 |5060VE 214DW |HEATER POTABLE | C06 |5060VE 217DW |HEATER POTABLE | A05 |5060VE 218DW |WATER ICE PROTECTION CTL | A01 |5060VE 219DW |HEATER WASTE | B01 |5060VE 220DW |HEATER POTABLE | C01 |5060VE 221DW |HEATER POTABLE DRAIN PNL | C02 |5060VE
(11) INDICATING RECORDING system
ON A/C ALL
4FS |CLOCK TBU | K73 | 742VU 6FS |CLOCK | B71 | 742VU 7TU |FDIU/DFDR | F42 | 722VU 8TU |QAR 115VAC | F03 | 721VU 9TU |LA/DAR/QAR 28VDC | U11 | 721VU 15TU |QAR | T12 | 721VU 4TV |ACMS DMU/DAR | F04 | 721VU 4WK1 |ND CAPT | Q66 | 742VU 4WK2 |ND F/O | C49 | 722VU 5WK1 |PFD CAPT | P80 | 742VU 5WK2 |PFD F/O | J49 | 722VU 6WK1 |ECAM EWD | N77 | 742VU 6WK2 |ECAM SD | L06 | 721VU 9WK1 |ND SWTG CAPT | L71 | 742VU 9WK2 |ND SWTG F/O | V45 | 722VU 10WK1 |PFD SWTG CAPT | B77 | 742VU 10WK2 |PFD SWTG F/O | R46 | 722VU 11WK1 |ECAM EWD SWTG | B78 | 742VU 11WK2 |ECAM SD SWTG | S07 | 721VU 1WM |ECAM CTL PNL | B72 | 742VU 2WT1 |EFIS SWTG DMC 1 | B73 | 742VU 2WT2 |EFIS DMC 2 SWTG | W45 | 722VU 2WT3 |EFIS SWTG DMC 3 | B74 | 742VU 3WT1 |EFIS DMC 1 | Q75 | 742VU 3WT2 |EFIS DMC 2 | K50 | 722VU 3WT3 |EFIS DMC 3 NORM | L11 | 721VU 4WT |EFIS DMC 3 STBY | Q76 | 742VU 11WT2 |ECAM DMC 2 SWTG | W46 | 722VU
11WT3 |ECAM SWTG DMC 3 | B76 | 742VU 2WV1 |SDAC 1 | Q79 | 742VU 2WV2 |SDAC 2 | H49 | 722VU 3WV |SDAC NORM DC1 MONG | W11 | 721VU 4WV |SDAC NORM DC2 MONG | V46 | 722VU 5WV |SDAC ESS DC MONG | B79 | 742VU 11WV |STAT INV FREQ&VOLT | N66 | 742VU 13WV |EMER GEN FREQ&VOLT | N67 | 742VU 2WW1 |FWC 1 | Q80 | 742VU 2WW2 |FWC 2 | C48 | 722VU
(12) LANDING GEAR system
ON A/C ALL
1GA |LGCIU 1 | L63 | 742VU 2GA |LGCIU 2 | U38 | 722VU 3GA |L/G SAFETY VLV | S12 | 721VU 1GB |L/G DNLK IND | C76 | 742VU 1GD |BRK FAN WHL 1+2 | G36 | 722VU 2GD |BRK FAN WHL 3+4 | G39 | 722VU 3GD |BRK FAN WHL 5+6 | E08 | 721VU 4GD |BRK FAN WHL 7+8 | E11 | 721VU 5GD |BRK FAN CTL | R44 | 722VU 1GF |L/G FREE FALL SYS1 | K71 | 742VU 2GF |L/G FREE FALL SYS2 | G74 | 742VU 1GG |BSCU SYS 1 | G62 | 742VU 2GG |BSCU SYS 2 | U37 | 722VU 4GH |NLG OVSTEER WARN SPLY | L65 | 742VU 6GH |NLG OVSTEER IND | S16 | 721VU 1GV |TYRE PRESS IND | T09 | 721VU 1GW |BRK TEMP WHL5 TO 8 | G63 | 742VU 2GW |BRK TEMP WHL1 TO 4 | U39 | 722VU 1GZ |PARK BRK CTL | P35 | 722VU 2GZ |PARK BRK EMER CTL | K70 | 742VU
(13) LIGHTS system
ON A/C ALL
2LA |NAV 2 LT SPLY/CTL | H33 | 722VU 1LB |LT LDG L | Q69 | 742VU 2LB |LT LDG R | D46 | 722VU 3LB |LT LDG CTL | G61 | 742VU 1LC |LT RWY TURN OFF L | H03 | 721VU 2LC |LT RWY TURN OFF R | D47 | 722VU 1LE1 |CKPT LT EMER | E75 | 742VU 1LE2 |CKPT LT SWTG+DOME | P39 | 722VU 2LE |CKPT OUTLET 115VAC | J31 | 722VU 4LE1 |CKPT LT CAPT+MISC | U05 | 721VU 4LE2 |CKPT LT F/O+MISC | R40 | 722VU 4LE3 |CKPT LT CAPT+MISC | U06 | 721VU 6LE |CKPT OUTLET 28VDC | P40 | 722VU 3LF |INTG LT PED + MAIN | S13 | 721VU 4LF |INTG LT OVHD PNL | S14 | 721VU 5LF |INTG LT 5VAC | H05 | 721VU 300LG |LIGHT - CABIN WINDOW FWD RH | C06 |5001VE 301LG |LIGHT - CABIN CLNG FWD LH | C01 |5001VE 302LG |LIGHT - CABIN WINDOW MID RH | C08 |5001VE 303LG |LIGHT - CABIN CLNG MID LH | C03 |5001VE 304LG |LIGHT - CABIN WINDOW AFT RH | B08 |5005VE 305LG |LIGHT - CABIN CLNG AFT LH | B01 |5001VE 306LG |LIGHT - CABIN CLNG FWD RH | C02 |5001VE 307LG |LIGHT - CABIN WINDOW FWD LH | C05 |5001VE 308LG |LIGHT - CABIN CLNG MID RH | C04 |5001VE 309LG |LIGHT - CABIN WINDOW MID LH | C07 |5001VE 310LG |LIGHT - CABIN CLNG AFT RH | B06 |5005VE 311LG |LIGHT - CABIN WINDOW AFT LH | B03 |5001VE 312LG |LIGHT - CABIN CENTER MID | C11 |5001VE 313LG |LIGHT - CABIN CENTER FWD | C10 |5001VE 314LG |LIGHT - CABIN CENTER AFT | B16 |5001VE 315LG |LIGHT - CABIN ENTRY AFT | B05 |5001VE 316LG |LIGHT - CABIN ENTRY FWD | C09 |5001VE 1LJ |LIGHT SEC19 | D06 |5005VE 2LJ |LIGHT APU | D07 |5005VE 14LJ |LIGHT SEC 18 | C03 |5006VE 1LK |ACCESSORY COMPT SOCKET | C05 |5002VE 2LL |NLG OUTLET 28V | P38 | 722VU 4LL |NLG + MLG WELL LT | P36 | 722VU 6LL |MLG OUTLET 28V | P37 | 722VU 3LP1 |ANN LT SYS 1 | C02 | 721VU
3LP2 |ANN LT SYS 2 | C46 | 722VU 3LP3 |ANN LT STAT INV | P79 | 742VU 3LP5 |ANN LT ESS | Q63 | 742VU 6LP |ANN LT RLY SYS 2 | R37 | 722VU 7LP |ANN LT RLY SYS 1 | U12 | 721VU 8LP |ANN LT RLY ESS | E74 | 742VU 1LQ |FWD AND MID DOOR LAVS | F12 |5001VE 2LQ |LAV LT | W14 | 721VU 11LQ |LIGHT LAV AFT & MID | D08 |5005VE 1LR |LT TAXI/T.O L | H02 | 721VU 2LR |LT TAXI/T.O R | D48 | 722VU 3LR |LT TAXI/T.O CTL | R41 | 722VU 2LS |AVNCS OUTLET 28V | R38 | 722VU 4LS |AVNCS OUTLET 115V | F44 | 722VU 12LS |AVNCS COMPT LT | R39 | 722VU 1LU |CARGO LIGHTING C/C | A05 |5002VE 2LU |AFT CARGO LIGHTING | A05 |5006VE 3LU |CARGO LIGHTING AREA | A04 |5002VE 4LU |AFT CARGO LIGHTING | A04 |5006VE 1LV |BEACON | A08 | 721VU 5LV |BEACON | A40 | 722VU 10LV |WING STROBE LT | A43 | 722VU 1LX |WING SCAN LIGHT R | B47 | 722VU 2LX |ENG SCAN LIGHT R | B48 | 722VU 3LX |ENG SCAN LIGHT L | B03 | 721VU 4LX |WING SCAN LIGHT L | B04 | 721VU 1LY |LOGO LT | B49 | 722VU 2LY |LOGO LT | B50 | 722VU 1WJ |LAV FWD&MID DOOR 2 | F03 |5001VE 11WJ |LAV AFT&MID DOOR 3 OCCUPIED | E07 |5005VE 1WL |EMER CAB LT | E73 | 742VU 2WL |EMER CAB LT | E72 | 742VU 3WL |CAB EMER LT | C03 | 721VU 9WL |EMER CAB LT | E71 | 742VU
(14) NAVIGATION system
ON A/C ALL
2FN |DDRMI | P77 | 742VU 5FN |ADF 1 / VOR 1 SWTG | F66 | 742VU
4FP1 |ADIRU 1 115VAC | N75 | 742VU 4FP2 |ADIRU 2 115VAC | H46 | 722VU 4FP3 |ADIRU 3 115VAC | G04 | 721VU 5FP1 |ADIRU/AOA 1 26VAC | P64 | 742VU 5FP2 |ADIRU/AOA 2 26VAC | L32 | 722VU 5FP3 |ADIRU/AOA 3 26VAC | M05 | 721VU 6FP1 |AOA 1 & 3 TEST | W12 | 721VU 6FP2 |AOA 2 TEST+ADIRU 2 | T44 | 722VU 7FP1 |ADIRU 1 BAT | K72 | 742VU 7FP2 |ADIRU 2 BAT | G75 | 742VU 7FP3 |ADIRU 3 BAT | G76 | 742VU 8FP |ADIRU 3 SWTG | F69 | 742VU 9FP |ADIRU 1 & 3 SWTG | K02 | 721VU 13FP |ADIRU 3 115VAC ESS | P68 | 742VU 50FP |EMER AOA3 26VAC | P61 | 742VU 51FP |AOA3 & PRB3 SWTG CTL | H65 | 742VU 3RP1 |ADF 1 | P78 | 742VU 3RP2 |ADF 2 | E48 | 722VU 2RS1 |VOR 1 | N76 | 742VU 2RS2 |VOR 2 | E45 | 722VU 2SA1 |RA 1 | L14 | 721VU 2SA2 |RA 2 | E46 | 722VU 2SD1 |DME 1 | Q65 | 742VU 2SD2 |DME 2 | E50 | 722VU 4SG |TCAS | B05 | 721VU 3SH1 |ATC 1 | Q64 | 742VU 3SH2 |ATC 2 | E47 | 722VU 9SQ1 |WXR 1 | H64 | 742VU 9SQ2 |WXR 2 | E49 | 722VU 3WZ |GPWC | K01 | 721VU
(15) OXYGEN system
ON A/C ALL
4HT |CREW OXY CTL | L73 | 742VU 1WR |PAX OXY CTL | C77 | 742VU 2WR |PAX OXY CTL | C78 | 742VU 3WR |PAX OXY CTL | C79 | 742VU 4WR |PAX OXY CTL | C80 | 742VU 5WR |PAX OXY ACTUATION | P76 | 742VU
6WR |PAX OXY ACTUATION | P75 | 742VU 7WR |PAX OXY ACTUATION | P74 | 742VU 8WR |PAX OXY ACTUATION | P73 | 742VU 9WR |PAX OXY ACTUATION | P72 | 742VU 10WR |PAX OXY ACTUATION | P71 | 742VU 11WR |PAX OXY ACTUATION | P70 | 742VU 12WR |PAX OXY ACTUATION | P69 | 742VU
(16) PNEUMATIC system
ON A/C ALL
2HA1 |BMC 1 | C73 | 742VU 2HA2 |BMC 2 | T34 | 722VU 3HA1 |BLEED VLV ENG 1 | C74 | 742VU 3HA2 |BLEED VLV ENG 2 | T35 | 722VU 6HA1 |AIR BLEED ENG 1 | R06 | 721VU 6HA2 |AIR BLEED ENG 2 | W41 | 722VU 1HV |AIR XBLEED AUTO | R45 | 722VU 2HV |AIR XBLEED MAN | C75 | 742VU
(17) WATER/WASTE system
ON A/C ALL
1MA |WATER SYSTEM QUANT IND | E06 |5005VE 1MB |LAV FWD&MID DOOR 2 HOT WTR | F11 |5001VE 2MB |LAV FWD&MID DOOR 2 HOT WTR | F11 |5001VE 3MB |LAV FWD&MID DOOR 2 HOT WTR | F08 |5001VE 4MB |LAV FWD&MID DOOR 2 HOT WTR | F08 |5001VE 101MB |LAV AFT&MID DOOR 3 HOT WTR | E08 |5005VE 102MB |LAV AFT&MID DOOR 3 HOT WTR | E11 |5005VE 103MB |LAV AFT&MID DOOR 3 HOT WTR | E10 |5005VE 104MB |LAV AFT&MID DOOR 3 HOT WTR | E09 |5005VE 1MD |WATER SYSTEM AIR COMPRESSOR | E02 |5005VE 1MG |LAV PWR RH FWD | D14 |5005VE 2MG |LAV PWR RH-MID-FWD | F13 |5005VE 3MG |LAV PWR RH MID AFT | F12 |5005VE 4MG |LAV PWR RH AFT | F11 |5005VE 5MG |VACUUM TOILET SYSTEM SYSTEM | F14 |5005VE 6MG |VACUUM GEN | F17 |5005VE
101MG |LAV PWR LH FWD | D05 |5005VE 102MG |LAV PWR LH MID-FWD | F06 |5005VE 103MG |LAV PWR LH MID-AFT | F07 |5005VE 105MG |VACUUM TOILET SYSTEM SYSTEM | F05 |5005VE 106MG |VACUUM GEN | F02 |5005VE 1MP |WATER SYSTEM DRAIN | E05 |5005VE
(18) ONBOARD MAINTENANCE system
ON A/C ALL
3TD |DATA LOADER | L13 | 721VU 27TD |DLS/DLRB SPLY | S20 | 721VU 3TM1 |CMC 1 | N72 | 742VU 3TM2 |CMC 2 | D45 | 722VU 4TM1 |CMC 1 SWTG | U07 | 721VU 4TM2 |CMC 2 SWTG | W40 | 722VU 6TM |TEST PLUG 2 | Q42 | 722VU 7TM |TEST PLUG 1 | R11 | 721VU 1TP |PRINTER | D02 | 721VU
(19) AIR TRAFIC AND INFORMATION MANAGEMENT SYSTEM (ATIMS) ALL
ON A/C ALL
3TX1 |ATSU1 115VAC PWR SPLY | G09 | 721VU 5TX1 |ATSU 1 SWTG | T19 | 721VU
(20) AIRBORNE AUXILIARY POWER system
ON A/C ALL
1KA |APU START CTL | C72 | 742VU 1KD |APU MAIN SUPPLY | A03 |5000VE 2KD |APU CTL | A02 |5000VE 3KD |APU COM MODE SUPPLY | A04 |5000VE 35KD |APU INTRPT SPLY | C71 | 742VU 58KD |APU INTRPT SUPPLY | A05 |5000VE 1KT |OILìSCV HEATER | C01 |5000VE
ON A/C ALL
1MJ |CARGO DOOR CTL | C03 |5002VE 2MJ |DOORS & SLIDES CTL | P41 | 722VU 3MJ |DOORS & SLIDES CTL | N09 | 721VU 1MQ |CKPT DOOR LATCH | V39 | 722VU
(22) ENGINE system
ON A/C ALL
3EG1 |T / R LOCKING ENG 1 | G05 | 721VU 3EG2 |T / R LOCKING ENG 2 | C43 | 722VU 1EH1 |IGN SYS A ENG 1 | Q70 | 742VU 1EH2 |IGN SYS A ENG 2 | Q71 | 742VU 2EH1 |IGN SYS B ENG 1 | G03 | 721VU 2EH2 |IGN SYS B ENG 2 | F50 | 722VU 5EN1 |OIL LO PR RLY ENG 1 | V12 | 721VU 5EN2 |OIL LO PR RLY ENG 2 | S41 | 722VU 1KC1 |HP FUEL SOV ENG 1 | C68 | 742VU 1KC2 |HP FUEL SOV ENG 2 | D70 | 742VU 12KS1 |FADEC A ENG 1 | Q73 | 742VU 12KS2 |FADEC A ENG 2 | Q74 | 742VU 13KS1 |FADEC B ENG 1 | D44 | 722VU 13KS2 |FADEC B ENG 2 | K49 | 722VU 14KS1 |EIVMU 1 | P05 | 721VU 14KS2 |EIVMU 2 | P06 | 721VU 37KS1 |TRDV ENG 1 | S08 | 721VU 37KS2 |TRDV ENG 2 | T36 | 722VU 38KS1 |TRPV ENG 1 | S09 | 721VU 38KS2 |TRPV ENG 2 | U36 | 722VU
