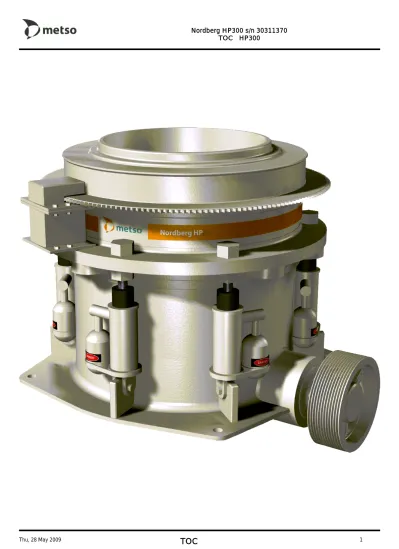

TOC HP300

(2)

(3)

TOC HP300

Pos. Part No. Description Qty Net Wght Page

1 7090008015 MAIN FRAME ASSEMBLY 1 4724.6 2

2 7090248005 ADJUSTMENT RING ASSY 1 2377.6 4

3 N90158030 TRAMP RELEASE ASSY 1 890 6

20 7090018004 COUNTERSHAFT ASSEMBLY 1 355.1 11

30 N90228304 ECCENTRIC ASSEMBLY 1 1011.6 13

31 7090048101 SOCKET ASSEMBLY 1 104 16

32 7090058000 HEAD ASSEMBLY 1 1183 17

33 7090058302 FEED PLATE ASSEMBLY 1 60.7 18

34 7090258000 BOWL ASSEMBLY 1 2173.4 19

35 7090248505 HYD. ADJUSTMENT, ASSY 1 624.3 20

40 1093030219 HOPPER, ASSEMBLY 1 239 24

50 N90258625 LINER SET 1 1673 25

60 N90148036 OIL PIPING ASSY 1 53 26

70 7068605803 PULLEY 1 169.7 27

82 7090168002 SHIM ASSEMBLY 1 222.8 28

90 N90288551 IDENTIFICATION PLATE ASSEMBLY 1 29

105 7090348022 PACKING 1 0

120 7004205204 DAMPER 6 5 30

130 7072002019 CYLINDRIC FEED EXTENSION 1 73 31

160 7090288005 TOOLS ASSEMBLY 1 163.5 32

165 7059801000 INFLATER CHECKER 1 0.5 33

170 7002445687 ADAPTER 1 0.1 34

500 34010000 LUBRICATION AND HYDRAULIC UNIT 1 35

(4)

7090008015_1 MAIN FRAME ASSEMBLY

(5)

7090008015_1 MAIN FRAME ASSEMBLY

1 7018307006 MAIN FRAME 1 3800

2 7021900301 MAIN FRAME LINER 1 228 3

3 7013308252 MAIN SHAFT 1 520

4 1054350025 MAIN FRAME PIN 6 4.9

5 1057602250 LOWER THRUST BEARING 1 19

6 1070587740 SHIM 1 1.9 7 1070587739 SHIM 1 1 8 1070587738 SHIM 1 0.5 9 1070587737 SHIM 1 0.2 10 1063518815 SEAL RING 1 2 11 7008010103 ACTIVATOR 1 0.1 12 7022102502 ARM GUARD 3 30 13 1014624971 SQUARE BAR 6 0.2 14 7008010050 GLUE 1 0.1

15 1003766291 HEXAGON SOCKET HEAD CAP SCREW 6 0

16 7001632010 WASHER 6 0 17 7008010051 ACTIVATOR 1 0.2 18 7002076003 PLUG 1 0.1 19 7008010102 GLUE 1 0.38 20 7074201500 WASHER 6 0.4 21 7001532310 HEXAGONAL SCREW 6 0.1

22 7001630016 SERRATED LOCK WASHER 6 0.0029

23 7046000000 FRAME RING 1 5.3

24 1048514410 FRAME SEAT LINER 1 18

25 1064666515 PROTECTION PLATE 4 2

26 7034401000 ANGLE BAR 6 0.1

(6)

7021900301_0 MAIN FRAME LINER

(7)

7021900301_0 MAIN FRAME LINER

Pos. Part No. Description Qty Net Wght

1 7021900302 ELEMENT 1 76

2 7021900303 ELEMENT 2 76

(8)

7090248005_0 ADJUSTMENT RING ASSY

(9)

7090248005_0 ADJUSTMENT RING ASSY

1 7012504002 ADJUSTMENT RING 1 1830

2 7002122012 GREASE FITTING 4 0.01

3 7001548079 SOCKET HEAD SET SCREW 6 0.00871

4 1061873757 CLAMPING RING 1 290

5 7001530636 HEXAGONAL SCREW 4 1.6

6 1094280065 CLAMPING CYLINDER ASSY 8 10.8 5

7 1002080430 ELBOW 1 0.03 8 1044250910 HOSE 1 0.1 9 1044251345 HOSE 7 0.1 10 1001998504 PLUG 1 0.02 11 1001998508 PLUG 1 0.04 12 7081108004 DUST SHELL 1 77 13 1063519182 SEAL 1 1.7 14 1022130525 BUSHING 6 1.25 15 N01530194 HEXAGONAL SCREW 8 0.037 16 7001638012 WASHER 8 0 17 1002080450 ELBOW 1 0.12 18 7001626030 WASHER 4 0.06

20 1073044083 SPACER TUBE 4 0.6

21 7023604001 FOAM RUBBER CAP 6 0

22 1064667128 CLAMP RING SEGMENT 6 2.2

23 N01530140 HEXAGONAL SCREW 24 0.03

24 7001624010 WASHER 24 0

26 N01563010 HEXAGONAL NUT 24 0.008

(10)

1094280065_3 CLAMPING CYLINDER ASSY

(11)

1094280065_3 CLAMPING CYLINDER ASSY

1 1028562625 CYLINDER TUBE 1 7.1

2 1054912920 PISTON 1 3.2

3 1094280087 SEAL KIT 1 0.2

4 1063405400 PISTON RETAINER 1 0.1

5 N02405211 ADAPTER 2

6 1002809193 SLOTTED CHEESE HEAD SCREW 2 0

7 1002098744 PLUG 1 0.2

8 7008010001 GLUE 1 0

(12)

N90158030_0 TRAMP RELEASE ASSY

(13)

N90158030_0 TRAMP RELEASE ASSY

1 1093030108 TRAMP RELEASE CYLINDER 6 120.8 7

2 N02445269 ACCUMULATOR 6 15.5 9

3 1054268497 AXLE 6 4.8

5 7033100511 COLLAR 6 1

6 1002077185 ADAPTER 6 0.34

7 1093030021 CLEARING/ RELEASE CIRCUIT 2 3 10

8 1051495225 SPHERICAL NUT 6 2.5

9 7001612100 SPLIT PIN 12 0

10 7001530098 HEXAGONAL SCREW 24 0.01

13 7002118832 COLLAR 6 0.1

14 7001624008 WASHER 24 0

15 7001563272 HEXAGONAL NUT 6 2.5

16 7008010002 HARD THREAD LOCKER 1

17 7080200502 PROTECTIVE BELLOWS 6 0

18 7002118105 CLAMP 6 0.1

19 7002118061 CLAMP 6 0.05

(14)

1093030108_0 TRAMP RELEASE CYLINDER

(15)

1093030108_0 TRAMP RELEASE CYLINDER

1 1093035005 CYLINDER TUBE 1 63.9 2 1093030107 ROD ASSEMBLY 1 39.7 8 3 1037711893 PISTON HEAD 1 30 4 1063901250 STOP TUBE 1 0.7 5 1093030109 SEAL KIT 1 0.5 Thu, 28 May 2009

_{1093030108_0}

7

(16)

1093030107_0 ROD ASSEMBLY

(17)

1093030107_0 ROD ASSEMBLY

1 1065634305 ROD 1 27

2 1054914660 PISTON 1 12.7

3 7008010001 GLUE 1 0

(18)

N02445269_0 ACCUMULATOR

(19)

N02445269_0 ACCUMULATOR

1 N02445276 SPARE PART KIT 1 0.907

(20)

1093030021_0 CLEARING/ RELEASE CIRCUIT

(21)

1093030021_0 CLEARING/ RELEASE CIRCUIT

1 1044252535 HYDRAULIC HOSE 6 0.2 2 1044253761 HYDRAULIC HOSE 2 0.9 3 1001958050 EQUAL TEE 2 0.14 4 1002080450 ELBOW 6 0.12 5 7002421214 ELBOW ADAPTER 2 0.1 6 1001978140 T-BAR 3 0 7 1001998508 PLUG 1 0.04 Thu, 28 May 2009

_{1093030021_0}

10

(22)

7090018004_0 COUNTERSHAFT ASSEMBLY

(23)

7090018004_0 COUNTERSHAFT ASSEMBLY

1 7090018003 COUNTERSHAFT PINION ASSY 1 134 12

2 1022063300 COUNTERSHAFT BUSHING 2 12.6 3 7001614135 PIN 4 0.02 4 7053200006 O-RING 1 0.2 6 7023408201 COUNTERSHAFT BOX 1 126 7 7022102501 COUNTERSHAFT GUARD 1 32 8 7022102500 COUNTERSHAFT GUARD 1 11.3 9 7033100015 OIL FLINGER 1 13 10 7035912253 HOUSING 1 12 11 1063084500 PISTON SEAL 1 0.2 12 7001530421 HEXAGONAL SCREW 6 0.2

16 7008010040 SILICONE SEAL 1 0.01

17 1063192845 WEAR RING 1 0

(24)

7090018003_0 COUNTERSHAFT PINION ASSY

(25)

7090018003_0 COUNTERSHAFT PINION ASSY

1 1036833868 PINION 1 40

2 1068633366 COUNTERSHAFT 1 94

(26)

N90228304_0 ECCENTRIC ASSEMBLY

(27)

N90228304_0 ECCENTRIC ASSEMBLY

1 7090228208 GEAR ECCENTRIC ASSY 1 437 14

2 N90228115 COUNTERWEIGHT ASSY 1 573 15

4 7001530312 HEXAGONAL SCREW 8 0.102

5 7008010003 HARD THREAD LOCKER 1 0

(28)

7090228208_0 GEAR ECCENTRIC ASSY

(29)

7090228208_0 GEAR ECCENTRIC ASSY

1 7043358008 GEAR ECCENTRIC ASSY 1 270

2 1022073307 INNER ECCENTRIC BUSHING 1 49.5

3 1057612200 UPPER THRUST BEARING 1 19

4 1003766291 HEXAGON SOCKET HEAD CAP SCREW 6 0

5 1003086066 RIBBED LOCK WASHER 6 0

6 1036833869 DRIVE GEAR 1 95

8 7001619307 PIN 1 0.2

9 1095059960 LOCKING COMPOUND 1 3.6

(30)

N90228115_0 COUNTERWEIGHT ASSY

(31)

N90228115_0 COUNTERWEIGHT ASSY

1 N16200115 COUNTERWEIGHT 1 470

2 1038018155 COUNTERWEIGHT LINER 1 103

5 7008010040 SILICONE SEAL 1 0.01

(32)

7090048101_1 SOCKET ASSEMBLY

(33)

7090048101_1 SOCKET ASSEMBLY

1 7039608251 SOCKET 1 56 2 7035800600 SOCKET LINER 1 47 3 7001619303 PIN 4 0.1 4 7001530326 HEXAGONAL SCREW 3 0.2 5 7001631116 WASHER 3 0 Thu, 28 May 2009

_{7090048101_1}

16

(34)

7090058000_2 HEAD ASSEMBLY

(35)

7090058000_2 HEAD ASSEMBLY

1 7082404300 HEAD 1 1050

2 7024950500 HEAD BALL 1 60

5 7015656200 UPPER HEAD BUSHING 1 14.8

6 1022145975 LOWER HEAD BUSHING 1 48

7 7001532140 HEXAGONAL SCREW 4 0 8 1003063296 NUT-LOCK 4 0 9 1063518725 SEAL RING 1 2 10 7008010102 GLUE 1 0.38 11 7008010103 ACTIVATOR 1 0.1 12 1047098031 SHAFT KEY 4 1.2 13 1061340015 SUPPORT 4 0.3

15 7001634016 ELASTIC WASHER 1 0.028

16 7049330250 PIN 3 0.3

18 1013305030 STRAP 1 1.2

(36)

7090058302_1 FEED PLATE ASSEMBLY

(37)

7090058302_1 FEED PLATE ASSEMBLY

1 7041068005 LOCKING BOLT 1 24 2 7065558093 FEED CONE 1 17 3 7001530623 HEXAGONAL SCREW 1 0.7 4 7001632030 WASHER 1 0 5 7008010040 SILICONE SEAL 1 0.01 Thu, 28 May 2009

_{7090058302_1}

18

(38)

7090258000_0 BOWL ASSEMBLY

(39)

7090258000_0 BOWL ASSEMBLY

1 7023508200 BOWL 1 1780

2 1022815005 ADJUSTMENT CAP 1 390

4 7001619309 PIN 5 0.2

(40)

7090248505_3 HYD. ADJUSTMENT, ASSY

(41)

7090248505_3 HYD. ADJUSTMENT, ASSY

1 1062440045 DRIVE GEAR 1 437 2 7047811500 SLIDE 3 9.2 3 7001530511 HEXAGONAL SCREW 12 0.3 4 7001626024 WASHER 19 0 5 7080500477 BEARING SUPPORT 3 6.5 6 7003770060 CAM FOLLOWER 3 1.6 7 7001632030 WASHER 3 0 8 7080500423 SUPPORT 1 33

9 N01530532 HEX CAP SCREW 4 0.56

10 N01563024 HEXAGONAL NUT 5 0.11

11 7001614318 PIN 2 0.2

12 7057500007 GEAR BRAKE MOTOR 1 63 21

13 7063002250 PINION 1 9

14 7001532204 HEX CAP SCREW 10 0.052

15 N01563012 HEXAGONAL NUT 10 0.017

17 7066000132 SUPPORT PLATE 1 15

18 7001530516 HEX CAP SCREW 4 0.3

19 7001530535 HEXAGONAL SCREW 1 0.7 20 7028000463 PROTECTION COVER 1 5 21 7001530134 HEXAGONAL SCREW 6 0.02 22 7001631110 WASHER 6 0 23 7053001001 SEAL RING 1 0.1 24 7002415018 ADAPTER 2 0.05 25 7002421214 ELBOW ADAPTER 3 0.1 26 1001998508 PLUG 3 0.04 27 N34360029 SUPPORT 1 0.3 28 7002415010 ADAPTER 1 0.1 29 7001624010 WASHER 2 0 Thu, 28 May 2009

_{7090248505_3}

20

(42)

7057500007_1 GEAR BRAKE MOTOR

(43)

7057500007_1 GEAR BRAKE MOTOR

1 7005631150 GEAR REDUCER 1 39 22

2 MM0258684 BRAKE 1 10 23

* 7005631211 GASKET SET 1 0.03

3 MM0255812 HYDRAULIC MOTOR 1 14

4 7005631205 LOCK WASHER 1 0.5

5 7001550056 SOCKET FLAT HEAD SCREW 3 0

6 7005631206 LENGTHENING PIECE 3 0.1

7 7005631207 ELBOW 2 0

8 7005631208 PLUG 1 0

9 7005631209 PLUG 1 0

(44)

7005631150_0 GEAR REDUCER

(45)

7005631150_0 GEAR REDUCER

1 7005631210 SEAL KIT 1 0

(46)

MM0258684_0 BRAKE

(47)

MM0258684_0 BRAKE

Description THIS PAGE HAS BEEN LEFT INTENTIONALLY BLANK

(48)

1093030219_0 HOPPER, ASSEMBLY

(49)

1093030219_0 HOPPER, ASSEMBLY

1 1044180340 UPPER FEED HOPPER 1 141

2 1044180281 LOWER FEED HOPPER 1 96

3 1012362975 SUPPORT 2 1

(50)

N90258625_1 LINER SET

(51)

N90258625_1 LINER SET

1 N55208269 BOWL LINER 1 736

2 N55308261 MANTLE 1 780

3 1063914652 TORCH RING 1 5

4 1019578065 SQUARE HEAD BOLT 6 1

5 1051483199 SPHERICAL NUT 6 0.2 6 1056839413 NUT-LOCK 6 0.6 7 1086342700 WEDGE 6 2 8 7001612062 SPLIT PIN 6 0 9 N08010111 FIXING AGENT 6 10 10 7028450751 SQUARE BAR 6 0.1 11 1070516700 SHIM 6 0.2

12 1063917418 BOWL ADAPTER RING 1 65

13 7002707040 POLYURETHANE SEAL 1 0

14 N27093035 SHIM 6 0.4

(52)

N90148036_0 OIL PIPING ASSY

(53)

N90148036_0 OIL PIPING ASSY

1 7002407166 MALE CONNECTION 3 0.2

2 7086402017 HOSE 1 2.2

3 7002422120 EQUAL TEE 2 0.712

4 7002002030 BUSHING 2 0.3

5 7002153021 PRESSURE RELIEF VALVE 1 4

6 7002421224 ELBOW ADAPTER 2 0.5 7 N80500546 SUPPORT 1 3.1 8 7043200011 U-BOLT 1 0.3 9 N01563012 HEXAGONAL NUT 2 0.017 10 7002431027 CAP NUT 2 0.01 11 7002411086 ADAPTER 1 0 12 7002422116 EQUAL TEE 1 0.319 13 7086401750 HOSE 1 1.1 14 706300793090 CONNECTION 1 0.75 15 7002407142 MALE CONNECTION 1 0 16 7002411080 STRAIGHT ADAPTER 1 0.3 17 7086401502 HOSE 1 0.8 18 1001958050 EQUAL TEE 1 0.14 19 7002421250 ELBOW 1 0 20 7002411038 ADAPTER 1 0.057 21 7080500476 SUPPORT 1 0.2 22 7001530029 HEXAGONAL SCREW 2 0 23 7002125801 PRESSURE SWITCH 1 1 24 7002416007 ADAPTER 1 0.1 25 7002125112 MANOMETER 1 0.84 26 7002002021 BUSHING 1 0.1 27 7002019004 UNION 1 0.3 28 7002046004 ELBOW 1 0.1 29 7000116156 TUBE 2 0.1 30 7002118031 COLLAR 2 0 31 7086300767 HOSE 1 0.9 32 7002002016 BUSHING 1 0.2 33 7002045007 ELBOW 1 0.4 34 7080500418 SUPPORT 1 1 35 N02445788 FILTER CARTRIDGE 1 0.3 36 7086124754 TUBE 1 7.4 37 7002045013 ELBOW 1 2.7 39 7002101088 PLASTIC PLUG 1 0 40 7080500401 SUPPORT 1 7.8 41 7084102112 PROTECTION PLATE 2 4.5

42 7001550174 SOCKET FLAT HEAD SCREW 4 0.106

43 7001570016 SELF-LOCKING NUT 6 0.034

44 7065012051 CLAMPING BAR 1 1.3

45 7043200005 U-BOLT 1 0

46 N01563010 HEXAGONAL NUT 2 0.008

(54)

7068605803_0 PULLEY

(55)

7068605803_0 PULLEY

1 7003236883 DETACHABLE HUB PULLEY 1 150

2 7003239269 HUB 1 14

3 1047009520 PARALLEL KEY 1 0.9

4 7015778300 GROOVED BUSHING 1 4.8

(56)

7090168002_0 SHIM ASSEMBLY

(57)

7090168002_0 SHIM ASSEMBLY

1 7027224000 SHIM 4 54.2

2 7000056325 WASHER 4 0.6

5 N01563030 HEXAGONAL NUT 4 0.22

(58)

N90288551_2 IDENTIFICATION PLATE ASSEMBLY

(59)

1 N64351114 DANGER PLATE 1 2 1056372827 INSTRUCTION PLATE 1 0 3 N64351115 STICKER 6 4 N64351116 DANGER PLATE 6 5 N64351117 DANGER PLATE 3 6 N64351118 DANGER PLATE 4 7 N64351119 LIFTING PLATE 4 8 N64351032 LOGO STICKER 2 9 N64351120 PATENT PLATE 1 10 N64351121 DANGER PLATE 1 11 N64340302 INSTRUCTION PLATE 1 0.023 12 1029300198 INSTRUCTION PLATE 2 0 13 N64351028 LOGO STICKER 2 Thu, 28 May 2009

_{N90288551_2}

29

(60)

7004205204_0 DAMPER

(61)

7004205204_0 DAMPER

(62)

7072002019_0 CYLINDRIC FEED EXTENSION

(63)

7072002019_0 CYLINDRIC FEED EXTENSION

(64)

7090288005_2 TOOLS ASSEMBLY

(65)

7090288005_2 TOOLS ASSEMBLY

1 7001836108 EYE BOLT 2 0.06 2 704102157500 EYE BOLT 3 0.1 3 704102158000 EYE BOLT 3 0.18 4 7001836116 EYE BOLT 4 0.3 5 704102160000 EYE BOLT 2 0.44 6 7001836130 EYE BOLT 4 1.7 7 1080960103 LIFTING PLATE 1 14.8

8 7001532323 HEX CAP SCREW 4 0.2

9 7001624016 WASHER 4 0.02

10 1067269101 JACKSCREW 3 0.5

11 7082652000 THREADED ROD 3 0.3

12 7001624020 WASHER 2 0.03629

14 7001624030 WASHER 2 0.1

15 1080960059 ECCENTRIC LIFTING PLATE 1 79.2

16 N01530204 HEXAGONAL SCREW 3 0.05 17 7001624012 WASHER 3 0.0136 18 1087729022 LOCKING WRENCH 1 43 19 7001624010 WASHER 3 0 20 7001624008 WASHER 2 0 23 1003183924 EYE BOLT 2 0 24 7001624024 WASHER 2 0.1

25 7001530626 HEX CAP SCREW 1 0.9

26 7027009529 SAFETY BLOCK 6 2

(66)

7059801000_0 INFLATER CHECKER

(67)

7059801000_0 INFLATER CHECKER

(68)

7002445687_0 ADAPTER

(69)

7002445687_0 ADAPTER

(70)

(71)

34010000_# LUBRICATION AND HYDRAULIC UNIT

(72)

(73)

34010000_# LUBRICATION AND HYDRAULIC UNIT

1 N90198188 ASSY, TANK 1 276 36

2 N90198172 TANK, MOUNTING 1 83.3 39

4 7090198600 DOOR 1 0.3 40

5 N90198708 DUST ENCAPSULATION, ASSY 1 44.5 41

10 N90198845 BASE PLATE 1 104.5 43

20 N29201548 HYDRAULIC POWER UNIT 1 158 46

30 N90198394 COOLER ASSEMBLY 1 107 53

40 N90198062 THERMOSTAT 1 5 55

50 N64460232 IDENTIFICATION PLATE ASSEMBLY 1 56

51 N64350162 IDENTIFICATION PLATE 1

60 7090148409 PIPE ASSEMBLY 1 107.1 57

80 7090340260 PACKING 1 0

(74)

N90198188_1 ASSY, TANK

(75)

N90198188_1 ASSY, TANK

1 N72622044 OIL TANK 1 235.3

2 N90198054 COVER ASSY 1 6.3 37

3 N43800020 FILTER ASSEMBLY 1 5.3 38

4 MM0233622 IMMERSION HEATER 2 5.7

5 7002125751 NUT 2 0

6 N02125303 OIL LEVEL INDICATOR 2 0.23

7 7002431027 CAP NUT 1 0.01 8 7002429043 SCREW PLUG 2 0.02 9 7002420048 ELBOW ADAPTER 2 0.95 10 7070001009 ADAPTER 2 0.5 11 7002123112 GATE VALVE 2 1.5 12 7002429051 PLUG 2 0.05 13 7002421224 ELBOW ADAPTER 1 0.5 14 7002415053 ADAPTER 1 0.420 15 7002125010 THERMOMETER 1 0.2 16 N53001005 SEAL 1 0.05 17 N22300012 COLLECTOR BLOCK 1 5

18 7001538188 HEXAGON SOCKET HEAD CAP SCREW 4 0.043

19 N53001019 SEAL 1 0.2 20 N02125014 THERMOMETER 1 0.2 21 N28000882 GUARD 1 3.9 22 7002101088 PLASTIC PLUG 1 0 23 7001626012 WASHER 4 0 24 7002429043 SCREW PLUG 1 0.02 Thu, 28 May 2009

_{N90198188_1}

36

(76)

N90198054_0 COVER ASSY

(77)

N90198054_0 COVER ASSY

1 N35900142 COVER 1 6.3 2 7001659200 HANDLE 1 0 3 7001530033 HEXAGONAL SCREW 2 0 4 7001624006 WASHER 2 0 5 MM0232489 CAM LOCK 2 Thu, 28 May 2009

_{N90198054_0}

37

(78)

N43800020_1 FILTER ASSEMBLY

(79)

N43800020_1 FILTER ASSEMBLY

1 N43800021 STRAINER 1 5

2 7017502000 MAGNETIC PLUG 1 0.2

(80)

N90198172_0 TANK, MOUNTING

(81)

N90198172_0 TANK, MOUNTING

1 7080008010 FRAME 1 82.4

3 7001624012 WASHER 16 0.0136

4 N01563012 HEXAGONAL NUT 8 0.017

(82)

7090198600_0 DOOR

(83)

7090198600_0 DOOR

1 7002445900 DOOR 1 0

2 7001570008 SELF-LOCKING NUT 8 0

3 7001530110 HEXAGONAL SCREW 8 0.019

4 7002445910 SEALING WASHER 16 0

(84)

N90198708_1 DUST ENCAPSULATION, ASSY

(85)

N90198708_1 DUST ENCAPSULATION, ASSY

1 N68000025 DOOR 1 3 42 2 N68000030 DOOR 1 3 3 N60900539 PANEL 1 2.4 4 N84101124 COVER 1 11.4 5 N60900540 PANEL 1 7.3 6 N60900541 PANEL 1 7.2 7 N60900542 PANEL 1 5.6 8 N85406059 CROSS BEAM 1 1.1 9 N85406058 CROSS BEAM 1 1.1 10 N85406061 CROSS BEAM 1 1 11 N85406060 CROSS BEAM 1 1 12 7001530110 HEXAGONAL SCREW 16 0.019 13 7001631108 WASHER 24 0 14 7001530102 HEXAGONAL SCREW 8 0.0123 Thu, 28 May 2009

_{N90198708_1}

41

(86)

N68000025_1 DOOR

(87)

N68000025_1 DOOR

1 N68000026 DOOR 1 3

2 MM0233363 CAM LOCK 2

(88)

N90198845_0 BASE PLATE

(89)

N90198845_0 BASE PLATE

1 7065900049 SUPPORT 1 13

2 7005419218 SQUIRREL CAGE MOTOR 1 45

3 MM0233600 BELL HOUSING 1

4 MM0233612 FLEXIBLE COUPLING 1 0.2

5 N02150061 PUMP 1 25.8 44

6 7008010021 TIGHTNESS PASTE 1 0

7 7002445844 SEAL 1 0

8 N01530197 HEX CAP SCREW 4 0.05

12 7002046007 ELBOW 1 0.4 13 N86122305 TUBE 1 0.8 14 7043800008 FILTER 1 10 45 15 7086402021 HOSE 1 1.8 16 N90198905 SENSOR ASSY 1 1.6 17 7034360028 FLOAT SWITCH 1 0.5 18 7002420046 ELBOW ADAPTER 1 0.5 19 7002420048 ELBOW ADAPTER 1 0.95 20 N80500619 SUPPORT 1 0.2 21 N80500621 SUPPORT 1 0.2 22 N02445788 FILTER CARTRIDGE 1 0.3 23 7053140013 SEAL 1 0 24 N01530138 HEXAGONAL SCREW 10 0.03 25 N01626010 WASHER 10 26 N01530106 HEXAGONAL SCREW 4 0.02 27 7001624008 WASHER 4 0 28 N80500620 SUPPORT 1 0.2 29 7002415048 ADAPTER 1 0.380 30 7002416114 ADAPTER 1 0.621 31 N02125854 ADAPTER 2 0.1 32 N02416150 STRAIGHT ADAPTER 2 0.1 33 N02420000 ELBOW ADAPTER 2 0.1 Thu, 28 May 2009

_{N90198845_0}

43

(90)

N02150061_1 PUMP

(91)

N02150061_1 PUMP

Pos. Part No. Description Qty

1 N63004900 GEAR KIT 1

2 N02152776 GASKET KIT 1

3 N02152960 PUMP COMPONENTS 1

(92)

7043800008_0 FILTER

(93)

7043800008_0 FILTER

1 7002445751 FILTER CARTRIDGE 1 0.84

2 7002445800 CLOGGING INDICATOR 1 0.55

3 7053001003 SEAL 1 0.1

4 7002445830 SEAL KIT 1 0

(94)

N29201548_4 HYDRAULIC POWER UNIT

(95)

N29201548_4 HYDRAULIC POWER UNIT

1 N29201816 DRILLED BLOCK 1 50 47

2 N02480851 PRESSURE GAUGE 1

3 7005419218 SQUIRREL CAGE MOTOR 1 45

4 N02149026 COUPLING HOUSING 1 5 MM0233613 FLEXIBLE COUPLING 1 3 6 MM0237480 PUMP 1 7 7002480611 CAP 1 0.1 8 7034360028 FLOAT SWITCH 1 0.5 9 N02445269 ACCUMULATOR 1 15.5 9 10 N84500506 PLATE ASSEMBLY 1 23 11 N01530138 HEXAGONAL SCREW 10 0.03 12 7001624010 WASHER 10 0 13 7053001004 SEAL 1 0 14 1002076250 ADAPTER 8 0.058 15 7002421214 ELBOW ADAPTER 6 0.1 16 N25450511 ELECTRIC CABLE 1 20 52 17 7002480477 HOSE 1 0 18 7002480478 HOSE 1 0 19 7002482040 HOSE 1 0 20 7002482042 CAPILLARY 1 0.04 21 7002482041 CAPILLARY 1 0.04 22 N44453803 CAPILLARY 1 0.5 23 N43000008 LABEL 1 24 MM0237698 PRESSURE SENSOR 1 25 MM0236006 CLAMP 2 26 N02415007 ADAPTER 1 0.035 27 706300790017 CONNECTION 2 0.04 28 MM0233325 ELBOW ADAPTER 1 0.14 29 MM0233311 CONNECTION 1 0.015 30 N86129001 TUBE 1 31 N86112501 TUBE 1 32 N86112500 TUBE 1 33 7001538186 SCREW 4 0.04 34 7001530196 HEXAGONAL SCREW 4 0.044 35 7001624012 WASHER 4 0.0136 36 N01632012 WASHER 4 37 MM0222100 ADAPTOR FLANGE 1 0.16 38 7002416011 ADAPTER 1 0.1 39 MM0222102 ADAPTOR FLANGE 1 0.28 40 MM0273490 ELBOW ADAPTER 1 0.33 41 N53124501 GASKET 1 42 N70009501 ADAPTER 1 43 N02405455 CONNECTION 1 0.04 44 N02405210 ADAPTER 1 0.044 45 N02405201 ADAPTER 1 0.025 46 N53001021 SEAL 1 47 MM0237695 PRESSURE SENSOR 1 48 MM0222101 ADAPTOR FLANGE 1 0.18 49 N02405455 CONNECTION 1 0.04 Thu, 28 May 2009

_{N29201548_4}

46

(96)

N29201816_2 DRILLED BLOCK

(97)

N29201816_2 DRILLED BLOCK

1 7002480887 PRESSURE RELIEF VALVE 1 0.12

3 MM0232783 PRESSURE RELIEF VALVE 1 0.11

4 N02482102 PRESSURE RELIEF VALVE 1 0.1

5 N02482166 SPOOL CONTROL 2 48

6 N02482165 SPOOL CONTROL 2 1.987 49

7 7002480753 CHECK VALVE 1 0.8

8 7002480754 CHECK VALVE 1 0

10 7002480755 CIRCUIT SELECTOR 1 0.02

11 MM0232727 FLOW CONTROL VALVE 2 0.998

12 MM0232715 DIRECTIONAL VALVE 1 0.33 50 13 MM0232725 DIRECTIONAL VALVE 1 0.33 51 14 N29201813 DRILLED BLOCK 1 12 15 MM0233032 ACCESSORIES 1 16 MM0232736 FILTER CARTRIDGE 1 1 17 MM0232739 CLOGGING INDICATOR 1 0.25

19 7001624008 WASHER 3 0

20 7001532104 HEXAGONAL SCREW 3 0

23 MM0237246 HEXAGON SOCKET HEAD CAP SCREW 4

(98)

N02482166_0 SPOOL CONTROL

(99)

1 N05256446 SOLENOID 1 0.35

(100)

(101)

1 N05256446 SOLENOID 2 0.35

(102)

MM0232715_0 DIRECTIONAL VALVE

(103)

1 MM0217273 COIL 1

(104)

(105)

1 MM0217273 COIL 1

(106)

N25450511_3 ELECTRIC CABLE

(107)

(108)

(109)

1 N25450518 CASE 1 4 2 N25450517 STUFFING-BOX 1 4 3 MM0219546 BRACKET 4 0.03 4 MM0215957 SUPPORT RAIL 1 7 MM0235327 RELAY 4 .021 8 MM0235363 RELAY 3 0.021 9 804664 RELAY BASE 4 0.05 10 707302282520 RELAY BASE 3 0.05 11 MM0235366 RELAY 2 0.065 12 MM0235369 RELAY BASE 2 13 MM0235328 PUSH BUTTON 2 .031 14 N05256392 PUSH BUTTON 4 .031 15 N05256391 PUSH BUTTON 1 16 N05256384 PUSH BUTTON 1 0.077 17 N05256385 PUSH-BUTTON BODY 7 0.053 18 MM0235390 PUSH-BUTTON BODY 1 .053 19 N02495122 CONTACT ELEMENT 7 0.01 20 N05256386 CONTACT BLOCK 1 0.011 21 MM0222179 SIGNAL LAMP 1 0.080 22 N05256374 SIGNAL LAMP 1 0.1 23 N05256375 SIGNAL LAMP 2 25 MM0215950 SCREW 14 26 MM0216049 BAR 1 27 MM0219591 CABLE MARKING 13 28 MM0219588 CABLE MARKING 13 29 MM0235881 CLIP 2 30 MM0220514 CABLE SEAL 5 0.022 31 MM0235870 CABLE SEAL 1 0.043 32 MM0219416 CABLE SEAL 1 0.044 33 MM0235869 CABLE SEAL 1 0.0238 34 MM0219485 NUT 8 0.002 35 MM0236000 TERMINAL BLOCK 15 36 MM0236001 TERMINAL BLOCK 3 37 MM0236002 END PLATE 1 38 MM0219534 TERMINAL BLOCK 13 39 MM0236003 TERMINAL BLOCK 4 40 MM0220838 CONNECTING BAR 1 41 MM0220836 CONNECTING BAR 5 42 MM0222227 PE-TERMINAL BLOCK 1 43 MM0216004 END PLATE 1 44 N05257001 END PLATE 2 45 MM0236004 TERMINAL BLOCK 3 46 MM0236005 END PLATE 1 47 MM0219647 MARKER CARD 20 48 MM0219648 MARKER CARD 20 49 MM0219649 MARKER CARD 20 50 MM0235999 MARKER CARD 13 51 MM0219638 MARKER CARD 2 52 MM0219642 MARKER CARD 4 53 MM0238905 MARKER CARD 2 54 MM0215931 CABLE TIE 20 55 MM0215932 CABLE TIE 20 56 N25450512 ELECTRIC CABLE 1 57 MM0235864 ELECTRIC CABLE 1 58 MM0232784 CONNECTOR CABLE 8 1.1 59 MM0220406 CONNECTOR CABLE 1 60 N05255528 CABLE PLUG 2 0.2 61 MM0220630 HEXAGONAL SCREW 6

62 MM0221019 HEXAGON SOCKET HEAD CAP SCREW 4

63 7001624008 WASHER 4 0 64 N01563006 HEXAGONAL NUT 3 65 7001530053 HEXAGONAL SCREW 2 0 66 N01631104 WASHER 3 67 7001530098 HEXAGONAL SCREW 4 0.01 68 7001563008 HEXAGONAL NUT 4 0.0052 69 7001631108 WASHER 8 0 70 N01631104 WASHER 3 71 MM0239034 CHANNEL 2 .44 Thu, 28 May 2009

_{N25450511_3}

52

(110)

N90198394_0 COOLER ASSEMBLY

(111)

N90198394_0 COOLER ASSEMBLY

1 N02154081 AIR COOLER, INSTALLATION 1 80 54

2 N01530138 HEXAGONAL SCREW 10 0.03 3 N01626010 WASHER 10 4 N53140026 GASKET 1 5 N65900087 BASE PLATE 1 23 6 N86402030 HOSE 1 2.3 7 7002421224 ELBOW ADAPTER 1 0.5 8 7002420046 ELBOW ADAPTER 1 0.5 9 7002431027 CAP NUT 1 0.01 10 7002415048 ADAPTER 1 0.380 11 N01530136 HEXAGONAL SCREW 4 0.02 12 N01626010 WASHER 4 13 N01563010 HEXAGONAL NUT 4 0.008 Thu, 28 May 2009

_{N90198394_0}

53

(112)

N02154081_0 AIR COOLER, INSTALLATION

(113)

N02154081_0 AIR COOLER, INSTALLATION

1 N02154521 COOLING FAN 1

2 N02154614 BODY 1

3 N02154760 RADIATOR 1 26

4 N02154709 WIRE GUARD 1

5 N02154724 SUPPORT 2

6 N02154581 SQUIRREL CAGE MOTOR 1

(114)

N90198062_0 THERMOSTAT

(115)

N90198062_0 THERMOSTAT

1 N02125058 THERMOSTAT 2 1.6 2 7064351010 INSTRUCTION PLATE 1 0 3 7064351009 INSTRUCTION PLATE 1 0 4 7064351011 INSTRUCTION PLATE 1 0 6 7002429043 SCREW PLUG 1 0.02 7 N02125057 THERMOSTAT 1 1.6 Thu, 28 May 2009

_{N90198062_0}

55

(116)

(117)

1 N64340554 LABEL 1

2 N64340552 LABEL 1

3 N64351038 LOGO STICKER 1

4 N64340526 STICKER, OIL 1

5 N64340550 HYDR. UNIT INSTRUCTION PLATE 1

6 N64350117 ARROW 1

7 N64340521 HYDR. UNIT INSTRUCTION PLATE 1

(118)

7090148409_1 PIPE ASSEMBLY

(119)

7090148409_1 PIPE ASSEMBLY

1 7086402023 HOSE 2 7 2 7086403765 HOSE 1 27 3 7002118806 CLAMP 4 0.4 4 7070002900 ADAPTER 2 2.5 5 7002046014 ELBOW 1 2.7 6 7002019014 UNION 2 4.8 7 7044453043 HYDRAULIC HOSE 6 7.2 8 7002063011 ELBOW 1 3.5 9 7002421224 ELBOW ADAPTER 1 0.5 Thu, 28 May 2009

_{7090148409_1}

57
