UMTS-BBU

HBXX-6516DS-VTM

Diplexer1 Diplexer1 TX/RXA RXB GSM1800 BTS TX/RXA RXB 3G RRU Diplexer2 Diplexer2

Comba CM-DW2D-OD4 (DC bypass all)

2G TMA

TMA

1800Mhz

AISG 0.5m(RCU-SBT)

_BOM:04045920

P or t A P or t B P or t A P o rt B On ON Off Off DC Out Configuration UMTS GSM

DC Stop:Kathrein 793301

RCU: Comba RCU-003

Or Andrew ATM200-002

Or RFS ACU-A11-N

SBT: Kathrein 78210254

or Comba SBT

Comba CM-DW2D-OD4 (DC bypass all)

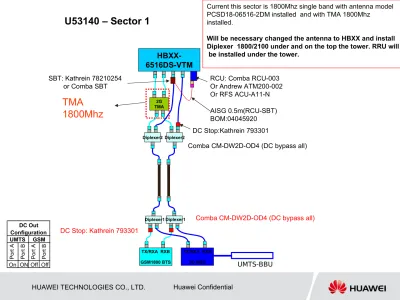

U53140 – Sector 1

Current this sector is 1800Mhz single band with antenna model

PCSD18-06516-2DM installed and with TMA 1800Mhz

installed.

Will be necessary changed the antenna to HBXX and install

Diplexer 1800/2100 under and on the top the tower. RRU will

be installed under the tower.

(2)

UMTS-BBU

TX/RXA RXB GSM1800 BTS TX/RXA RXB 3G RRU TX/RXA RXB GSM900 BTS

Tri-plexer

Kathrein 742265

(900/1800-2100)

DIPLEXER

Filter

900MHZ

U53140 – Sector 2

Comba CM-BK2D-OD4 (900/1800-2100) (DC bypass all)

Current this sector is 900/1800Mhz dual band with antenna model

742264 900/1800Mhz installed and with filter installed.

Will be necessary changed the antenna to 742265 and install

Diplexer 900/1800-2100 on the top and install triplexer under

the tower. RRU will be installed under the tower.

P

or

t A

P

or

t B

P

or

t A

P

or

t B

Off Off Off Off

DC Out

Configuration

(3)

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Confidential

UMTS-BBU

TX/RXA RXB GSM1800 BTS TX/RXA RXB 3G RRU TX/RXA RXB GSM900 BTS

Tri-plexer

Comba CM-BDW3D-OD6 (DC bypass all)

Kathrein 742265

(900/1800-2100)

DIPLEXER 2G TMA

TMA

900MHZ

DC Stop:Kathrein 793301

Comba CM-BK2D-OD4 (900/1800-2100) (DC bypass all)

U53140 – Sector 3

Current this sector is 900/1800Mhz dual band with antenna model

742265 900/1800-2100 Mhz installed and with TMA

900Mhz installed.

Will be necessary install Diplexer 900/1800-2100 on the top

and install triplexer under the tower. RRU will be installed

under the tower.

DC Stop: Kathrein 793301

P

or

t A

P

or

t B

P

or

t A

P

or

t B

On On Off Off

DC Out

Configuration

UMTS

GSM

(4)

UMTS-BBU

Kathrein 742215

TX/RXA RXB 3G RRU

RCU: Comba RCU-003

Or Andrew ATM200-002

AISG-M 5m

(RCU-40 W

RRU)

BOM: 04046494

P o rt A P or t B Off Off DC Out Configuration UMTS GSM

U53787– Sector 1 , 2 and 3.

In this site will be installed RF system separated of GSM.

Huawei should get the antenna Kathrein

742215. Site Roof Top.

(5)

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Confidential

UMTS-BBU

Andrew

DBXLH-6565B-VTM

TX/RXA RXB GSM1800 BTS

RCU:Andrew ATM200-002

AISG-M 5m(RCU-40 W RRU)

BOM: 04046494

TX/RXA RXB GSM900 BTS DiplexerGSMDiplexer-GSM Diplexer-GSMDiplexe-GSM

Current diplexer-GSM

TX/RXA RXB 3G RRU P or t A P o rt B P o rt A P or t B

Off Off Off Off

DC Out Configuration UMTS GSM

742215

U53041– Sector 1 , 2 and 3.

Current this site is 900/1800Mhz dual band with two antennas

Installed one antenna to 900Mhz and other antenna to 1800Mhz.

Will be necessary change the antenna 900mhz ( DB854)

by DBXLH. RRU will be installed on the top the tower.

(6)

UMTS-BBU

HBX-6516DS-VTM

RCU: Comba RCU-003

Or Andrew ATM200-002

AISG-M 5m

(RCU-40 W

RRU)

BOM: 04046494

P or t A P or t B Off Off DC Out Configuration UMTS GSM

U53853 Sector 1, 2 and 3

In this site will be installed RF system separated of GSM.

(7)

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Confidential

Page 7

UMTS-BBU

TX/RXA RXB

3G RRU

AISG-M 5m(RCU-40 W RRU)

BOM: 04046494

Andrew

HBXX-6516DS-VTM

TX/RXA RXB GSM1800 BTS P or t A P o rt B P or t A P o rt B

Off Off Off Off

DC Out Configuration

UMTS GSM

RCU: Comba RCU-003

Or Andrew ATM200-002

Or RFS ACU-A11-N

U53841 Sector 1 and 2

Current this site is 1800Mhz single band with antenna model

742215 installed.

Will be necessary change the antennas 1800Mhz single band to

HBXXX only in sector 1 and 2 because in sector 3 Ericsson

will do this change. RRU will be installed on the top the tower.

(8)

UMTS-BBU

AISG-M 5m(RCU-40 W RRU)

BOM: 04046494

Andrew

HBXX-6516DS-VTM

TX/RXA RXB GSM1800 BTS P or t A P o rt B P or t A P o rt B

Off Off Off Off

UMTS GSM

RCU: Comba RCU-003

Or Andrew ATM200-002

Or RFS ACU-A11-N

U53841 Sector 3

Current this site is 1800Mhz single band with antenna model

742215 installed.

Will be necessary change the antennas 1800Mhz single band to

HBXXX only in sector 1 and 2 because in sector 3 Ericsson

will do this change. RRU will be installed on the top the tower.

Ericsson has 2 cabinets GSM because it will be necessary install

Diplexer on the top the tower.

TX/RXA RXB GSM1800 BTS

(9)

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Confidential

Page 9

UMTS-BBU

TX/RXA RXB

3G RRU

AISG-M 5m(RCU-40 W RRU)

BOM: 04046494

Andrew

HBXX-6516DS-VTM

TX/RXA RXB GSM1800 BTS P or t A P or t B P or t A P or t B

Off Off Off Off

UMTS GSM

RCU: Comba RCU-003

Or Andrew ATM200-002

Or RFS ACU-A11-N

U53891 Sector 1, 2 and 3 – U55555 Sector 1, 2 and 3

Current this site is 1800Mhz single band with antenna model

HBXX installed.

It is not necessary install antennas because will be used the

existent. Site Roof top.

(10)

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Confidential

UMTS-BBU

Andrew

HBXX-6516DS-VTM

Diplexer1 Diplexer1 TX/RXA RXB GSM1800 BTS TX/RXA RXB 3G RRU

RCU: Comba RCU-003

Or Andrew ATM200-002

Or RFS ACU-A11-N

Diplexer2 Diplexer2

AISG 0.5m(RCU-SBT) BOM:04045920

P

o

rt

A

P

o

rt

B

P

o

rt

A

P

o

rt

B

DC Out

Configuration

UMTS

GSM

SBT: Kathrein 78210254

or Comba SBT

Comba CM-DW2D-OD4 (DC bypass all)

DC Stop:Kathrein 793301

U53859 Sector 1, 2 and 3 - U53888 Sector 1, 2 and 3 – U54887 Sector 1, 2 and 3

Current this site is 1800Mhz single band with antenna model HBXX

Installed.

It is not necessary install antennas because will be used the

existent but will be necessary install diplexer 1800/2100 under

and on the top the tower. RRU will be installed under the tower.

(11)

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Confidential

UMTS-BBU

Andrew

HBXX-6516DS-VTM

RCU: Comba RCU-003

Or Andrew ATM200-002

Or RFS ACU-A11-N

AISG 0.5m(RCU-SBT) BOM:04045920

P

o

rt

A

P

o

rt

B

P

o

rt

A

P

o

rt

B

On Off Off Off

DC Out

Configuration

UMTS

GSM

SBT: Kathrein 78210254

or Comba SBT

Comba CM-DW2D-OD4 (DC bypass all)

DC Stop:Kathrein 793301

U54130 Sector 1, 2 and 3.

DC Stop:Kathrein 793301

Current this site is 1800Mhz single band with antenna model

PCSD18-06516-2DM installed.

Will be necessary change the antennas 1800Mhz single band to

HBXX.

(12)

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Confidential

UMTS-BBU

Andrew

HBXX-6516DS-VTM

RCU: Comba RCU-003

Or Andrew ATM200-002

Or RFS ACU-A11-N

AISG 0.5m(RCU-SBT) BOM:04045920

P

o

rt

A

P

o

rt

B

P

o

rt

A

P

o

rt

B

DC Out

Configuration

UMTS

GSM

SBT: Kathrein 78210254

or Comba SBT

Comba CM-DW2D-OD4 (DC bypass all)

DC Stop:Kathrein 793301

U53854 Sector 1, 2 and 3

Current this site is 1800Mhz single band with antenna model

742215 installed.

Its necessary install new antenna HBXX and install

diplexer 1800/2100 under and on the top the tower. RRU

will be installed under the tower.

(13)

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Confidential

Page 13

AISG-M 5m(RCU-40 W RRU)

BOM: 04046494

Andrew

HBXX-6516DS-VTM

On Off Off Off

UMTS GSM

RCU: Comba RCU-003

Or Andrew ATM200-002

Or RFS ACU-A11-N

U53852 Sector 1

Diplexer1 Diplexer1

UMTS-BBU

TX/RXA RXB 3G RRU TX/RXA RXB GSM1800 BTS

SBT: Kathrein 78210254

or Comba SBT

Current this site/sector is 1800Mhz single band with

antenna model 742215 installed and 2 cabinets

Ericsson installed the new antennas HBXX..

Will be necessary changed the antenna to HBXX and

install diplexer 1800/2100 only under the tower.

(14)

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Confidential

UMTS-BBU

Andrew

HBXX-6516DS-VTM

RCU: Comba RCU-003

Or Andrew ATM200-002

Or RFS ACU-A11-N

AISG 0.5m(RCU-SBT) BOM:04045920

P

o

rt

A

P

o

rt

B

P

o

rt

A

P

o

rt

B

DC Out

Configuration

UMTS

GSM

SBT: Kathrein 78210254

or Comba SBT

Comba CM-DW2D-OD4 (DC bypass all)

DC Stop:Kathrein 793301

U53852 Sector 2 and 3

Current this site/sectors are 1800Mhz single band with 1

antenna 742215 installed.

Will be necessary change the antenna to HBXX and

install diplexer 1800/2100 under and on the top the

tower.

(15)

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Confidential

Page 15

AISG-M 5m(RCU-40 W RRU)

BOM: 04046494

Andrew

HBXX-6516DS-VTM

On Off Off Off

UMTS GSM

RCU: Comba RCU-003

Or Andrew ATM200-002

Or RFS ACU-A11-N

U53840 Sector 1

Diplexer1 Diplexer1

UMTS-BBU

TX/RXA RXB 3G RRU TX/RXA RXB GSM1800 BTS

SBT: Kathrein 78210254

or Comba SBT

Current this site/sector is 1800Mhz single band with

antenna model 742215 installed and 2 cabinets

Ericsson installed the new antennas HBXX..

Will be necessary changed the antenna to HBXX and

install diplexer 1800/2100 only under the tower.

(16)

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Confidential

UMTS-BBU

Andrew

HBXX-6516DS-VTM

RCU: Comba RCU-003

Or Andrew ATM200-002

Or RFS ACU-A11-N

AISG 0.5m(RCU-SBT) BOM:04045920

P

o

rt

A

P

o

rt

B

P

o

rt

A

P

o

rt

B

DC Out

Configuration

UMTS

GSM

SBT: Kathrein 78210254

or Comba SBT

Comba CM-DW2D-OD4 (DC bypass all)

DC Stop:Kathrein 793301

U53840 Sector 2 and 3

Current this site/sectors are 1800Mhz single band with

antenna model 742215 installed.

Will be necessary change the antenna to HBXX and

install diplexer 1800/2100 under and on the top the

tower.
