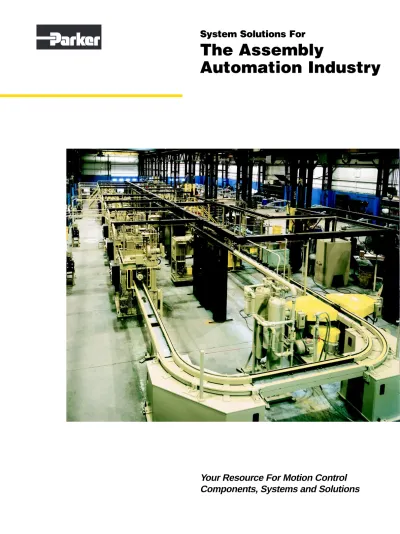

System Solutions For
The Assembly
Automation Industry
Your Resource For Motion Control
Components, Systems and Solutions
Assembly Automation Industry: A Focus
Parker means components, systems and partnerships that work
Parker is committed to offering the assembly automation market the most comprehensive array of motion control products and technologies. We are continuously evaluating assembly requirements and developing new products and systems to meet the current and future needs of our customers.
Industry Leader
No other manufacturer matches Parker’s performance in designing and supplying motion control components and systems. But there’s more to Parker than just great parts. There are the engineers that will help specify and evaluate the products you need for assembly applications. You can count on Parker for quality products, on-time delivery and comprehensive technical support. It’s all these capabilities that make Parker your total motion control resource.
Engineering Expertise
Parker offers unparalleled design assistance and support. Our dedicated sales and application engineers will work with you in the design process to optimize component size, performance and cost. We don’t just want you to use our assembly automation components — we want you to use them effectively.
Vendor Reduction
Many suppliers talk about single sourcing, but no one is better equipped to provide it than Parker. We can supply pneumatic valves, actuators, vacuum and air-preparation systems, as well as tubing, hoses and fittings to connect them. We offer mechanical positioning systems, servo and stepper motor technologies, advanced PC-based man-machine interfaces and structural framing systems. And Parker makes a full range of hydraulic valves, cylinders, pumps, motors and power units.
Instrumentation Group
Aerospace Group
Seal Group
Climate & Industrial
Controls Group
Fluid Connectors Group
Automation Group
Hydraulics Group
Filtration Group
Parker makes over 500,000 parts
to meet your application needs
Dial
Pick & Assembly
Index
Place
Lines
Cylinders
2H Hydraulic Cylinders
MP/2MA Metric/NFPA Cylinders MPRL Rodlock Cylinders
P1M/LPM Low Profile Cylinders RC Rodless Cylinders
SR/SRM Stainless Steel
Air Valves
A-mini Series Miniature valves B Series Lightweight Compact F Series Plug-In Subbase Directional Serial Interface
Automation Components
Angular and Parallel Grippers PTR Pneumatic Rotary Actuator SST Short Stroke Thrust Vacuum Components XL/HBT Guided Cylinder
Electromechanical
400XR Single and Multi-Axis Systems ET/ER Electric Cylinders
HLE Belt-driven Linear Actuator Linear Motor
Man-Machine Interface Servo Drive/Amplifiers Servo Motors
Servo and Stepper Controllers
Hydraulic Components Directional Valves Filtration Power Units Proportional/Servo Valves Rotary Actuators
Hose and Fittings
Fittings
Hose and Tubing Quick Couplings
Air Preparation Units Structural Framework
Parker — Providing Assembly
Automation With Complete
System Solutions.
Everyone knows
Parker is the industry
leading motion control
component supplier to
the assembly automation
industry. Now we’re going
one step further…by
putting our 70 years of
application engineering
expertise to work for you
as the single source
solution for your entire
assembly automation
system.
You know the ‘Assembly
Automation Industry’, and
we know ‘Motion Control’.
Our sales engineers will
work with your designers
to bring together all of
the electromechanical,
pneumatic and hydraulic
components necessary
to make the ideal system
for you.
Working with Parker
brings many benefits,
including quality
products, system
integrity, worldwide
Single and
Multi-Axis Systems
Precise and fast multi-axis systems with modular customization and compact-sealed design.Electric Cylinders
Electric cylinders and rodless actuators for packaged single-axis solutions and engineered multi-axis systems.Belt-Driven
Linear Actuators
Modular or custom, high speed systems with repeatable positions, horizontal and vertical units.Linear Motors
High Speed, high precision linear motor table, easily mounted, integrated and configured into multi-axis systems.
Non-Lube Aluminum
Cylinders
Economical, lightweight aluminum cylinders are NFPA or metric interchangeable.
distribution, extensive
field support, unequaled
customer service, as
well as shortened
product lead times,
simplified ordering and
more efficient shipping.
But most importantly,
with the assistance of
Parker’s application
engineers, you can be
sure that the ‘Motion
Control’ capability of
your new system will
meet and exceed both
your specifications...
and your expectations.
Servo Drive/Amplifiers
Digital Stepper and Servo Drives with encoderless stall detect, serial bus communications and Palm PC based diagnostics.Servo and Stepper
Controllers
Scalable multi-axis servo and stepper motor controller with high-speed serial bus communication and expandable I/O.
Man-Machine Interface
Complete range of flat panel, touch interfaces available bundled with Interact, the #1 rated HMI software and MachineLogic™, a low risk alternative to the traditional PC.Servo Motors
Linear and rotary servo motors with encoders and resolvers. Motors are also offered with integrated gearheads.
Low Profile Cylinders
Low profile, lightweight aluminum cylinders fit tight space requirements.Rodlock Cylinders
Cylinder with integrated locking device preventing movement of the rod when air pressure is lost.Hydraulic Cylinders
Medium and heavy-duty hydraulic cylinders in a variety of configurations with optional feedback device. Custom cylinders are also available.Stainless Steel
Cylinders
Low-cost, space-saving, corrosion resistant round body cylinders offer high performance in light duty applications.
Angular & Parallel
Grippers
Angular and true parallel gripping motion for pick-and-place applications.
Rack & Pinion
Rotary Actuators
Rugged, reliable rotary motion with the broadest torque range in the industry. Hydraulic and pneumatic styles available.Guided Cylinders/
Linear Slides
High speed precision automation or heavy-duty linear motion. Available options include stroke adjust, position sensing, and shock absorbers.Vacuum Components
Vacuum generators, valves and cups in multiple sizes for pick-and-place applications.Filtration
A complete range of coolant and hydraulic filters, available in a variety of mounting styles and pressure ranges.
Hose & Tubing
A complete line of hoses and tubing available in metric and inch sizes.
Quick Couplings
1/8" through 3/4" pneumatic quick couplings are available valved or unvalved. Exhaust-style, thermoplastic, and NoMar couplings are also available.Fittings
A complete line of fittings available in metric and inch sizes.
For additional information, contact
Parker’s Factory Automation Market
Manager at 1-888-801-8026, e-mail
to [email protected]
or visit us on the web at
www.parker.com/assembly.
Custom Power Units
Overhead, vertical, and custom power units designed to customer’s specifications to optimize space and reduce noise.Structural Framing
System
Metric aluminum profiles with connecting hardware in inch or metric standards provide an economical, easy to assemble, modular structure that eliminates the need to weld or paint.
Air Preparation Units
Prolong component life. Proper filtration use doubles warranty on all Parker pneumatic products in the system.Plug-In Subbase
Directional Valves
High flow, fast response air valves with (WCS) feature ISO standard plug-in style mounting for simplified installation and reduced wear.Lightweight, Compact
Air Valves
Compact, high performance valves utilizing Parker’s Wear Compensating System (WCS) for non-lube service through millions of cycles.
Hydraulic Valves
Directional control valves with optional soft-shift as well as proportional and servo valves and control electronics.Serial Addressable
Manifolds
Serial interface
communications that allow banks of directional control valves to be driven from a PC or PLC. Hydraulic and pneumatic styles available.
Premier Customer Service Initiatives...
Single Source
Total system capabilities enables
our customers to reduce their
number of vendors.
Buying from a single source saves
both time and money through
reduced paperwork, simplified
ordering and more efficient
shipping.
Parker Integration
Network (PIN)
PIN is an alliance between a select
group of independent systems
engineering companies and the
Parker family of motion control
products and support team. These
‘System Integrators’ will work with
you to establish a custom
automated turnkey system.
(www.parker.com/pin)
Industry-Leading Technical
Support and Training
The Parker network of application
specialists, support professionals
and distributor personnel will
provide expert technical
assistance where and when you
need it, as well as training in
motion control technology.
Worldwide Distribution
Network
With over 7,500 distributors,
our distribution network is the
strongest in the industry, providing
comprehensive technical support
and after-the-sale service.
Printed and Electronic
Sales Literature
Parker offers the most
comprehensive selection of product
and technical information in printed
form, as well as electronic versions
on CD-ROM and our web page.
inPHorm
inPHorm is Parker’s product
selection software that helps you
choose the correct components for
your application, saving you time
and making selecting, specifying
and ordering easier.
We’re Where You Are
...Worldwide.
• To order products, CD’s and other product information call 1-800-C-PARKER. • To contact Parker’s Factory Automation Market Manager,
call 1-888-801-8026 or e-mail to [email protected] • Visit us on the web at www.parker.com/assembly
