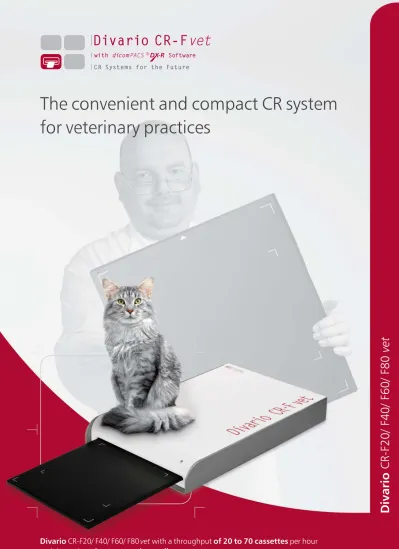

The convenient and compact CR system
for veterinary practices
Divario
of 20 to 70 cassettes
space-saving wall mount
CR-F20/ F40/ F60/ F80
with a throughput
per hour
and the option of a
vet
Divario CR-F
vet
with dicom PACS®DX-R Software
CR Systems for the Future
Divario
CR-F20/ F40/ F60/ F80
Divario
CR-F20/ F40/ F60/ F80
vet
The small and fast
CR system for digital
X-ray imaging in
veterinary medicine
The DR-F vet system is suitable for examinations with imaging plates both in small veterinary practices requiring only a few images per day as well as veterinary clinics dealing with large numbers of patients.
Robust, compact, lightweight and fast: in combination with the professional image acquisition software, the CR system provides all the necessary image processing functions. The solution may be integrated into existing CR or DR systems and is therefore ideal as a second or additional system for high workloads in large clinics or university facilities.
The software in particular allows quick and easy working. Special emphasis was placed on maximum image quality and maximum flexibility. For example, the included professional image processing software can be adapted very easily to the doctor's specific wishes or requirements for each X-ray examination. The user is not limited to the selection of „pre-set“ standards. This functionality provides the best possible image quality in accordance with the doctor's needs.
The creation of the best possible images, however, also requires the correct setup of the X-ray unit and the correct positioning of the patient. To help the X-ray assistant with this task, a multimedia radiographic positioning guide foreach examination has been integrated directly into the system. It allows the user to verify, prior to taking the X-ray, how to correctly set up the X-ray image. Even videos on the positoning of a patient etc. are included. This guide removes the need for radiographers to consult tables, reference books or external software programmes. Divario Divario dicom DX-R dicom DX-R dicom DX-R PACS PACS PACS ® ® ®
Divario CR-Fvet
with dicom PACS®DX-R Software
All the benefits of the
Divario
CR-F
vet
at a glance
Highlights
The system is available in different versions:
CR-F20 : up to 20 plates/hour CR-F40 : up to 40 plates/hour CR-F60 : up to 60 plates/hour CR-F80 : up to 70 plates/hour Divario Divario Divario Divario Divario vet vet vet vet vet Light: Unventilated unit: Robust: High throughput:
Multiple formats available: Flexible use:
Optional:
Easy to upgrade:
Simple conversion to a DR system:
Convenient transport:
Easy to operate
only weighs approx. 30 kg
silent in standby mode, does not attract dust, animal hair etc.
yet compact (dimensions: 11.7 x 46.4 x 70.3 cm)
up to 70 cassettes per hour
24 x 30 cm and 35 x 43 cm
as a compact stationary table system or a portable system
wall mount to save space
cassette throughput can be easily increased without having to exchange equipment
customers can continue to use the same operating software – investment protection!
in a suitcase with wheels and pull-out handle
only about
30 kg
3
Flexibility
Place the unit in the perfect position!
Standard table unit
1.
2.
Wall mounting as a space-saving solution (optional)Modern graphic user interface (GUI) adaptable to almost operation
Capture of patient data via or other protocols - data may also be captured manually
Use of for the transfer of all relevant examination data directly from the connected patient management system (HIS/RIS)
body parts with more than and numerous possible adjustments in already included
Safe and fast
Allows the user to of a patient, for instance to avoid having to re-position the patient frequently
Special tools for veterinary medicine, such as an extra dialog box for patient and owner data, integrated
for alternating between mobile and stationary systems and much more…
Entry of recurring
for each examination incl. comprehensive notes, photos and correct X-ray images
A single work station with installed software may be upgraded by the following options (selection):
Direct control of the X-ray generator (generator control) Tools for taking images of an entire leg or a full spine
Planning and working with
Connection of several diagnostic monitors
Capture of additional patient and examination data and their freely configurable statistical evaluation
Facilitates the use of a flat panel and an intraoral sensor
any language -Touchscreen
DICOM Worklist, BDT/GDT
DICOM Procedure Codes
Freely configurable 200 projections
veterinary medicine registration of emergency patients
switch between examinations
hip dysplasia measuring, special image filters, TPLO, TTA, Buchanan‘s Vertebral Heart Score, distraction index, multi generator operation
examination procedures as macros Fully integrated radiographic positioning guide
(image stitching)
digital prostheses templates/ operation planning
dicomPACS®DX-R
Advantages of the professional
X-ray acquisition software:
dicom
PACS
®DX-R
Software
Job creation Radiographic positioning guide
Jenny
TTA measuring tool Buchanan‘s Vertebral Heart Score
HD measuring technique for dogs TPLO measuring tool Preview of the X-ray image and worklist Viewer
5
Jenny
Included
The
Divario
CR-F
vet
system includes the following components:
CR unit
Performance: CR-F20 : up to 20 plates/hour (for 35 x 43 cm/ 14 x 17") CR-F40 : uUp to 40 plates/hour
CR-F60 : up to 60 plates/hour CR-F80 : up to 70 plates/hour System configuration: top-table
Time until the first image: 49 seconds
Resolution: data capture: 16-bits per pixel, 65,000 graytones Weight: 65 lbs (30 kg)
Dimensions (H x W x D): 4.6” x 18.3” x 27.7” (117 x 464 x 703 mm) Power requirements: 110/220/240V, 60/50cs, 150W
PC connection: USB 2.0 Regulatory approvals: FCC, UL and CE
Divario Divario Divario Divario vet vet vet vet
dicom
PACS
®DX-R
control console
Operating console (two options available), MS Windows 7 Professional, hardware stress test, software pre-installation, system checked and ready to use
Option 1:Archive and diagnostic station* Option 2:Notebook*
Intel Core Processor 4 GB RAM DDR
2x 500 GB hard drive (RAID 1) DVD+/-RW drive
1000 Mbit network
Intel Core Processor 4 GB RAM DDR 500 GB hard drive 1920 x 1080 pixel resolution DVD+/-RW drive 1000 Mbit network Wireless LAN 802.11 a/b/g/n
39.6 cm (15.6“) ultra sharp FHD wide screen display
7
dicom
PACS
®DX-R
acquisition and diagnostic software
The CR-F requires very little space and is
therefore also suitable for mobile use. Easy to set up and well padded in a sturdy suitcase, it is ideal for vehicle transport and mobile use. The transport suitcase is equipped with wheels and a pull-out handle.
Divario vet
Suitcase
dicomPACS®DX-R
is an acquisition, diagnostic and archiving software including an integrated professional PACS viewer with image editing, measuring and export options, image printing, freely configurable user interface and much more Operation via touch screen More than 200 integrated X-ray settings
Integrated multimedia
radiographic positioning guide for each examination including photos, videos and examples of correct X-ray images
Capturing of macros for recurring examination processes
Option to display the
recommended X-ray settings for each examination (kVp, mA, mAs etc.) in accordance with the generator used
Extensive image processing can be adapted to the customer's individual requirements for each examination (CoP) Automatic black mask functionality Querying a DICOM Worklist (SCU) Backup module
Automatic removal of grid lines when fixed grids are used Creation of patient CDs
Direct connection to other viewing stations with miniPACS function
Many other functions are available :
Image transfer to PACS systems (DICOM store)
X-ray generator control DICOM Basic Print Digital X-ray journal
Integration of several diagnostic evaluation monitors
Image stitching (tool for generating full leg / full spine images)
Pre-operative planning with prosthesis documentation module
Wall mounting for CR unit System upgradable to a networked image management system (PACS)
And much more…
Image processing
Automatic image processing for optimal quality
Perfect images at all times - generally required
Integrated software for
Professional, for each individual examination to obtain best possible image settings for the needs of each customer
Due to specially developed processes, the image processing allows the
user to while the image quality
remains virtually the same ( )
in one image - this enables the user to significantly improve his diagnosis
Noise suppression
(automatic shutters)
Cropping of images (Crop function)
Automatic when using fixed grids
no adjustment automatic image optimisation adaptable image processing
vary the X-ray settings on a large scale
possibility of reducing the dosage Bones and soft tissue
Details of bones and microstructures are very easy to recognise
Black mask
removal of grid lines
11
If you wish to create your X-ray images with a flat panel system (DR = direct radiography) at a later stage, you only have to exchange the CR system for a flat panel. is already designed to implement such a connection. You will not need to purchase new software or to get used to a new user interface.
Divario
This is what we call investment protection.
dicomPACS®DX-R
Investment protection:
Built-in flexibility!
The software already includes all functions necessary to store X-ray images and provide them to other workstations as a standard feature. Other work stations in your practice's network may load these images directly and display them. This requires just one “ Diagnostic Module Standard” (optional extra) per workstation. Of course, the images can also be sent to an existing PACS system.
dicom DX-R dicom PACS PACS ® ®
Overview - products of OR Technology
Vet portfolio
Image management (PACS) - comprises
acquisition, processing, diagnosis, transfer and archiving of image material
Xray acquisition software [only for OEMs]
-acquisition and diagnostic software for X-ray images from flat panels or CR systems
DX-R
dicomPACSR
X-ray Acquisition Software
DR suitcases - compact suitcases solutions for
mobile and portable X-ray
DR retrofits - expanding sets for existing
X-ray systems (available for U-arm and wall stand and table systems)
Conventional Xray equipment and accessories
-the latest technology for conventional X-ray systems
Complete DR systems - digital X-ray systems
incl. stand, table, generator, flat panel etc.
CR solutions - CR systems for digital
X-ray with cassettes
Medici DR Systemsvet
DR Retrofit Systems for the Future withdicom PACS®DX-R Software
Leonardo DR Systemsvet
Portable X-ray Systems for the Future
withdicom PACS®DX-R Software
Amadeo DR Systemsvet
X-ray Syste ms for the Future
withdicom PACS®DX-R Software
Divario CR Systemsvet
CR Systems for the Future
withdicom PACS®DX-R Software
Conventional X-ray Equipment X-ray Systems for the Future
dicomPACS vet
Digital Image Processing in Veterinary Medicine
R
(Oehm und Rehbein GmbH) 18057 Rostock, Germany, Neptunallee 7c
Tel. +49 381 36 600 500, Fax +49 381 36 600 555 www.or-technology.com, [email protected] OR Technology
[Stamp of distribiution partner]
