(3) TM 5-3805-291-23P. LIST OF EFFECTIVE PAGES/WORK PACKAGES. -. NOTE: Zero in the “Change No.” column indicates an original page or work package. Date of issue for the original manual is: Original. . . . . . . 1
(4) TOTAL NUMBER OF PAGES FOR FRONT AND REAR MATTER IS 26 AND TOTAL NUMBER OF WORK PACKAGES IS 4, CONSISTING OF THE FOLLOWING: Page/WP No.. Change No.. Front Cover . . . . . . . . . . . . . . . . . . . . . . Blank . . . . . . . . . . . . . . . . . . . . . . . . . . . i thru x . . . . . . . . . . . . . . . . . . . . . . . . . . WP 0001 00 (6 pgs). . . . . . . . . . . . . . . . WP 0002 00 (460 pgs). . . . . . . . . . . . . .. 0 0 0 0 0. Page/WP No.. Change No.. WP 0003 00 (10 pgs) . . . . . . . . . . . . . . . WP 0004 00 (114 pgs) . . . . . . . . . . . . . . Inside Back Cover . . . . . . . . . . . . . . . . . Back Cover . . . . . . . . . . . . . . . . . . . . . .. A/(B blank). 0 0 0 0.
(5)

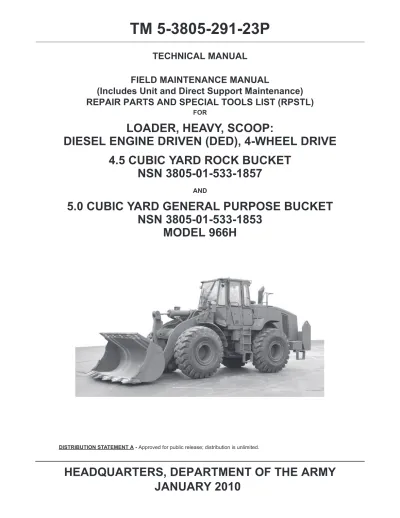

(6) TM 5-3805-291-23P. HEADQUARTERS DEPARTMENT OF THE ARMY Washington, D.C., 15 January 2010. TECHNICAL MANUAL FIELD MAINTENANCE MANUAL (Includes Unit and Direct Support Maintenance) REPAIR PARTS AND SPECIAL TOOLS LIST (RPSTL) FOR. LOADER, HEAVY, SCOOP: DIESEL ENGINE DRIVEN (DED), 4-WHEEL DRIVE 4.5 CUBIC YARD ROCKET BUCKET NSN 3805-01-533-1857 AND. 5.0 CUBIC YARD GENERAL PURPOSE BUCKET NSN 3805-01-533-1853 MODEL 966H Current as of 21 August 2009. REPORTING ERRORS AND RECOMMENDING IMPROVEMENTS You can help improve this publication. If you find any errors, or if you would like to recommend any improvements to the procedures in this publication, please let us know. The preferred method is to submit your DA Form 2028 (Recommended Changes to Publications and Blank Forms) through the Internet, on the Army Electronic Product Support (AEPS) website. The Internet address is https:// aeps.ria.army.mil. The DA Form 2028 is located under the Public Applications section in the AEPS Public Home Page. Fill out the form and click on SUBMIT. Using this form on the AEPS will enable us to respond quicker to your comments and better manage the DA Form 2028 program. You may also mail, mail, or fax your comments or DA Form 2028 directly to the U.S. Army TACOM Life Cycle Management Command. The postal mail address is U.S. Army TACOM Life Cycle Management Command, ATTN: AMSTA-LCLMPP/TECH PUBS, 1 Rock Island Arsenal, Rock Island, IL 61299-7630. The mail address is [email protected]. The fax number is DSN 793-0726 or Commercial (309) 782-0726. DISTRIBUTION STATEMENT A - Approved for public release; distribution is unlimited.. i.
(7) TM 5-3805-291-23P. TABLE OF CONTENTS WP 0001 00. FIELD MAINTENANCE (INCLUDING UNIT AND DIRECT SUPPORT MAINTENANCE) REPAIR PARTS AND SPECIAL TOOLS LIST (RPSTL) INTRODUCTION. WP 0002 00. REPAIR PARTS LIST Illus/Fig. Page. GROUP 01 ENGINE 0100 ENGINE ASSEMBLY ........................................................................ ENGINE ASSEMBLY ........................................................................ ENGINE SUPPORTS ......................................................................... 0002 00-3 1 2. 0101 CRANKCASE, BLOCK CYLINDER HEAD........................................ CYLINDER HEAD AND FASTENERS .............................................. CYLINDER BLOCK PLUGS ............................................................... 0002 00-7 3 4. 0102 CRANKSHAFT .................................................................................. VIBRATION DAMPER AND PULLEY ............................................... REAR MAIN SEAL, CRANKSHAFT .................................................. FRONT MAIN SEAL, CRANKSHAFT................................................. 5 6 7. 8 9. 10 11 12 13. 14 15 16 17 18 19 20. 0002 00-29 0002 00-31 0002 00-33 0002 00-37 0002 00-39 0002 00-41 0002 00-43 0002 00-45. 21 22. 0109 ACCESSORY DRIVING MECHANISMS .......................................... ACCESSORY DRIVE GEAR AND COVER ....................................... 0002 00-21 0002 00-23 0002 00-25 0002 00-27 0002 00-29. 0108 MANIFOLDS ..................................................................................... AIR INTAKE MANIFOLD ................................................................... EXHAUST MANIFOLD AND FASTENER .......................................... 0002 00-17 0002 00-19 0002 00-21. 0106 ENGINE LUBRICATION SYSTEM.................................................... PISTON COOLING JET .................................................................... OIL PAN AND RELATED PARTS ..................................................... ENGINE OIL FILTER AND BASE ..................................................... ENGINE OIL COOLER AND TURBOCHARGER OIL LINES............ ENGINE OIL FILLER AND DIPSTICK............................................... ENGINE OIL PUMP AND RELATED PARTS ................................... FUMES DISPOSAL AND CRANKCASE BREATHER........................ 0002 00-11 0002 00-13 0002 00-15 0002 00-17. 0105 VALVES, CAMSHAFT AND TIMING SYSTEM................................. ROCKER ARM GROUP .................................................................... VALVE COVER ................................................................................. VALVE COVER BASE....................................................................... IDLER AND TIMING GEARS AND RELATED PARTS ...................... 0002 00-7 0002 00-9 0002 00-11. 0103 FLYWHEEL ASSEMBLY................................................................... FLYWHEEL ASSEMBLY ................................................................... FLYWHEEL HOUSING ...................................................................... 0002 00-3 0002 00-5. 0002 00-45 0002 00-47 0002 00-49. 23. 0002 00-49. GROUP 03 FUEL SYSTEM 0301 FUEL INJECTOR .............................................................................. FUEL INJECTOR .............................................................................. 0302 FUEL PUMP....................................................................................... ii. 0002 00-51 24. 0002 00-51 0002 00-53.
(8) TM 5-3805-291-23P. TABLE OF CONTENTS (Con’t). FUEL TRANSFER PUMP.................................................................. FUEL PRIMING PUMP, SECONDARY FUEL FILTER BASE, AND LINES ...................................................................................... Illus/Fig. Page. 25. 0002 00-53. 26. 0002 00-57. 0304 AIR CLEANER .................................................................................. AIR CLEANER ASSEMBLY AND MOUNTING .................................. 0002 00-61 27. 0305 SUPERCHARGER, BLOWER, TURBOCHARGER, OR ALTITUDE COMPENSATOR .................................................................. ENGINE AFTERCOOLER LINES ..................................................... TURBOCHARGER ASSEMBLY AND RELATED PARTS................. TURBOCHARGER AIR LINES.......................................................... AFTERCOOLER ASSEMBLY AND MOUNTING ............................... 0002 00-63 28 29 30 31. 0306 TANKS, LINES, FITTINGS, HEADERS ............................................ FUEL LINES ...................................................................................... FUEL TANK FUEL LINES ................................................................. FUEL TANK AND RELATED PARTS................................................. 32 33 34. 35. 0002 00-77 0002 00-79. 36. 0312 ACCELERATOR, THROTTLE, OR CHOKE CONTROLS ................ THROTTLE PEDAL AND RELATED PARTS..................................... 0002 00-71 0002 00-73 0002 00-75 0002 00-77. 0311 ENGINE STARTING AIDS ................................................................ ETHER STARTING AID ..................................................................... 0002 00-63 0002 00-65 0002 00-67 0002 00-69 0002 00-71. 0309 FUEL FILTERS ................................................................................. PRIMARY AND SECONDARY FUEL FILTERS ................................. 0002 00-61. 0002 00-79 0002 00-81. 37. 0002 00-81. GROUP 04 EXHAUST SYSTEM 0401 MUFFLER AND PIPES ..................................................................... MUFFLER AND MOUNTING ............................................................ EXHAUST EXTENSION ..................................................................... 0002 00-83 38 39. 0002 00-83 0002 00-85. GROUP 05 COOLING SYSTEM 0501 RADIATOR, EVAPORATIVE COOLER, OR HEAT EXCHANGER .. RADIATOR AND MOUNTING ............................................................ 0002 00-87 40. 0502 COWLING, DEFLECTORS, AIR DUCTS, SHROUDS, ETC. ........... FAN SHROUD .................................................................................... 0002 00-89 41. 0503 WATER MANIFOLD, HEADERS, THERMOSTATS, AND HOUSING GASKET ................................................................................ RADIATOR LINES............................................................................. THERMOSTAT, GASKET, AND WATER LINES ............................... 0505 FAN ASSEMBLY................................................................................ iii. 0002 00-89 0002 00-91. 42 43. 0504 WATER PUMP .................................................................................. WATER PUMP AND MOUNTING ...................................................... 0002 00-87. 0002 00-91 0002 00-93 0002 00-95. 44. 0002 00-95 0002 00-97.
(9) TM 5-3805-291-23P. TABLE OF CONTENTS (Con’t). FAN AND RELATED PARTS ............................................................. Illus/Fig. Page. 45. 0002 00-97. 0507 AUXILIARY COOLING ...................................................................... HYDRAULIC OIL COOLER CORE AND MOUNTING ....................... 0002 00-99 46. 0002 00-99. GROUP 06 ELECTRICAL SYSTEM 0601 GENERATOR, ALTERNATOR ......................................................... ALTERNATOR AND RELATED PARTS ............................................ 0002 00-101 47. 0603 STARTING MOTOR.......................................................................... STARTER ........................................................................................... 0002 00-103 48. 0607 INSTRUMENT OR ENGINE CONTROL PANEL .............................. INSTRUMENT PANEL, UPPER ........................................................ INSTRUMENT PANEL, LOWER ....................................................... FUSE BLOCK ASSEMBLY ................................................................ 49 50 51. 52. 0002 00-111. 53 54 55 56 57. 0002 00-113 0002 00-117 0002 00-119 0002 00-121 0002 00-123 0002 00-125. 58 59 60. 0610 SENDING UNITS AND WARNING SWITCHES ............................... ENGINE SENSORS AND RELATED PARTS ................................... TRANSMISSION SENSORS AND RELATED PARTS...................... FUEL LEVEL SENDING UNIT .......................................................... TILT KICKOUT AND POSITION SENSOR AND MOUNTING .......... SENDING UNITS AND WARNING SWITCHES................................. 61 62 63 64 65. 0613 HULL OR CHASSIS WIRING HARNESS .......................................... iv. 0002 00-131 0002 00-133 0002 00-135 0002 00-139 0002 00-141 0002 00-143. 66 67. 0612 BATTERIES, STORAGE (WET OR DRY) ........................................ BATTERIES....................................................................................... BATTERY BOX (STANDARD) .......................................................... BATTERY CABLES (STANDARD)..................................................... 0002 00-125 0002 00-127 0002 00-129 0002 00-131. 0611 HORN, SIREN................................................................................... ELECTRIC HORN ............................................................................. BACKUP ALARM ............................................................................... 0002 00-105 0002 00-107 0002 00-109 0002 00-111. 0609 LIGHTS ............................................................................................. BLACKOUT LIGHT, DRIVE LIGHT, SERVICE LIGHT, AND TURNLAMP ASSEMBLIES ............................................................ WORKLIGHTS .................................................................................. DOME LAMP ...................................................................................... 0002 00-103 0002 00-105. 0608 MISCELLANEOUS ITEMS................................................................ ELECTRONIC CONTROL MODULE (ECM) ..................................... POWERTRAIN AND IMPLEMENT ELECTRONIC CONTROL MODULES (ECM) ........................................................................... POWER CONVERTER, CAMERA, AND RELATED PARTS ............ TURNLAMP SWITCH........................................................................ ELECTRICAL SWITCHES, RELAYS, AND CIRCUIT BREAKERS... HOOD ACTUATOR ............................................................................ 0002 00-101. 0002 00-143 0002 00-145 0002 00-147. 68 69 70. 0002 00-147 0002 00-149 0002 00-153 0002 00-157.
(10) TM 5-3805-291-23P. TABLE OF CONTENTS (Con’t) Illus/Fig FRONT CHASSIS WIRING ............................................................... REAR CHASSIS WIRING ................................................................. CAB WIRING ..................................................................................... ENGINE HARNESS GROUP ............................................................ SECONDARY STEERING WIRING .................................................. ECM HARNESS ASSEMBLY ............................................................ HEATER/AC WIRING HARNESS ..................................................... FUEL INJECTOR HARNESS ............................................................ SECONDARY FUEL FILTER JUMPER HARNESS AND JOYSTICK HARNESS .................................................................... TURNLAMP WIRING HARNESS ...................................................... AXLE MONITORING WIRING HARNESS ........................................ COUPLER WIRING ........................................................................... TILT SENSOR WIRING..................................................................... TRANSMISSION HARNESS .............................................................. Page. 71 72 73 74 75 76 77 78. 0002 00-157 0002 00-161 0002 00-165 0002 00-167 0002 00-169 0002 00-171 0002 00-173 0002 00-175. 79 80 81 82 83 84. 0002 00-177 0002 00-179 0002 00-183 0002 00-185 0002 00-187 0002 00-189. GROUP 07 TRANSMISSION 0705 TRANSMISSION SHIFTING COMPONENTS .................................. TRANSMISSION CONTROL AND RELATED PARTS....................... 0002 00-193 85. 0708 TORQUE CONVERTER OR FLUID COUPLING.............................. TORQUE CONVERTER AND HOUSING .......................................... 0002 00-195 86. 0710 TRANSMISSION ASSEMBLY (HYDRAULIC), (HYDRO STATIC), TORQUAMATIC), (CROSS-DRIVE), AND ASSOCIATED PARTS......... TRANSMISSION AND TRANSMISSION MOUNTS........................... 0002 00-195 0002 00-197. 87. 0721 COOLERS, PUMPS, MOTORS ........................................................ TRANSMISSION FILL/CHECK TUBE AND SIGHT GAGE ............... TRANSMISSION OIL COOLER ........................................................ TRANSMISSION OIL PUMP (GEAR PUMP) .................................... TRANSMISSION OIL COOLER LINES ............................................. TRANSMISSION FILTER AND LINES .............................................. MAGNETIC SCREEN......................................................................... 0002 00-193. 0002 00-197 0002 00-199. 88 89 90 91 92 93. 0002 00-199 0002 00-201 0002 00-203 0002 00-205 0002 00-209 0002 00-213. GROUP 09 PROPELLER, PROPELLER SHAFTS, UNIVERSAL JOINTS, COUPLER, AND CLAMP ASSEMBLY 0900 PROPELLER SHAFTS...................................................................... DRIVE SHAFT AND RELATED PARTS............................................. 0002 00-215 94. 0002 00-215. GROUP 10 FRONT AXLE 1000 FRONT AXLE ASSEMBLY ............................................................... FRONT AXLE .................................................................................... FRONT AXLE MOUNTING ................................................................ 0002 00-217 95 96. 0002 00-217 0002 00-219. GROUP 11 REAR AXLE 1100 REAR AXLE ASSEMBLY................................................................... v. 0002 00-221.
(11) TM 5-3805-291-23P. TABLE OF CONTENTS (Con’t) Illus/Fig REAR AXLE AND MOUNTING ......................................................... REAR AXLE TRUNNION AND RELATED PARTS (FORWARD) ..... REAR AXLE TRUNNION AND RELATED PARTS (REAR) ............... 97 98 99. Page 0002 00-221 0002 00-223 0002 00-225. GROUP 12 BRAKES (OTHER THAN SPECIAL PURPOSE) 1201 HAND BRAKES................................................................................. PARKING BRAKE AND RELATED PARTS ....................................... 0002 00-227 100. 1204 HYDRAULIC BRAKE SYSTEM......................................................... ACCUMULATOR ASSEMBLIES AND RELATED PARTS ................ SERVICE BRAKE LINES, FITTINGS, AND RELATED PARTS......... 0002 00-229 101 102. 1206 MECHANICAL BRAKE SYSTEM...................................................... BRAKE FOOT PEDAL GROUP ......................................................... 0002 00-227. 0002 00-229 0002 00-233 0002 00-237. 103. 0002 00-237. GROUP 13 WHEELS AND TRACKS 1311 WHEEL ASSEMBLY ......................................................................... WHEEL ASSEMBLY AND RELATED PARTS ................................... 0002 00-239 104. 1313 TIRES, TUBES, TIRE CHAINS ......................................................... TIRES ................................................................................................. 0002 00-239 0002 00-241. 105. 0002 00-241. GROUP 14 STEERING 1401 MECHANICAL STEERING GEAR .................................................... STEERING COLUMN AND RELATED PARTS ................................. 0002 00-243 106. 1410 HYDRAULIC PUMP OR FLUID MOTOR ASSEMBLY...................... SECONDARY STEERING PUMP AND MOUNTING ........................ PISTON PUMP (STEERING) AND MOUNTING ............................... STEERING NEUTRALIZER VALVE................................................... 0002 00-247 107 108 109. 1411 HOSES, LINES, FITTINGS ............................................................... STEERING HOSES, LINES, AND FITTINGS ................................... SECONDARY STEERING LINES ...................................................... 110 111. 0002 00-255 0002 00-259 0002 00-263. 112. 1414 STEERING SYSTEM VALVES ......................................................... STEERING CONTROL VALVE AND METERING PUMP .................. 0002 00-247 0002 00-249 0002 00-251 0002 00-255. 1412 HYDRAULIC OR AIR CYLINDERS................................................... STEERING CYLINDER AND MOUNTING ......................................... 0002 00-243. 0002 00-263 0002 00-267. 113. 0002 00-267. GROUP 15 FRAME, TOWING ATTACHMENTS, DRAWBARS, AND ARTICULATION SYSTEMS 1501 FRAME ASSEMBLY ......................................................................... HYDRAULIC SERVICE BOX ............................................................. 0002 00-271 114. 1502 COUNTERWEIGHTS........................................................................ COUNTERWEIGHTS AND VEHICULAR COMPONENTS BRACKET. vi. 0002 00-271 0002 00-273. 115. 0002 00-273.
(12) TM 5-3805-291-23P. TABLE OF CONTENTS (Con’t) Illus/Fig 1503 PINTLES AND TOWING ATTACHMENTS ....................................... ARTICULATED HITCH AND RELATED PARTS............................... REMOTE LUBRICATION LINES AND FITTINGS.............................. Page 0002 00-275. 116 117. 0002 00-275 0002 00-279. GROUP 18 BODY, CAB, HOOD, AND HULL 1801 BODY, CAB, HOOD, AND HULL ASSEMBLIES .............................. FRONT GUARD GROUP .................................................................. CAB MOUNTING HARDWARE......................................................... CAB LINER........................................................................................ ROLLOVER PROTECTION CANOPY (ROPS) AND MOUNTING HARDWARE ................................................................................... HOOD AND SIDE GUARDS PANEL GROUP (ENGINE) ................. ENGINE COMPARTMENT SHIELD (FAN GROUP) ......................... HOOD LOCK AND REAR COVERS ................................................. DOOR ASSEMBLY (LEFT SIDE) ...................................................... DOOR ASSEMBLY (RIGHT SIDE) ................................................... LADDERS, HANDRAILS, AND STEPS............................................. SOUND SUPPRESSION.................................................................... 0002 00-281 118 119 120. 0002 00-281 0002 00-283 0002 00-285. 121 122 123 124 125 126 127 128. 0002 00-287 0002 00-291 0002 00-295 0002 00-297 0002 00-299 0002 00-301 0002 00-305 0002 00-307. 1802 FENDERS, RUNNING BOARDS WITH MOUNTING AND ATTACHING PARTS, OUTRIGGERS, WINDSHIELD, GLASS, ETC. .... CAB GLASS ...................................................................................... FENDERS .......................................................................................... 0002 00-309 129 130. 1806 UPHOLSTERY SEATS AND CARPETS........................................... SEAT ASSEMBLY AND SEAT BELT ................................................ HEADLINER, FLOOR MAT, AND RELATED PARTS ....................... CAB VISOR ........................................................................................ 0002 00-315 131 132 133. 1808 STOWAGE RACKS, BOXES, STRAPS, CARRYING CASES, CABLE REELS, HOSE REELS, ETC. ..................................................... RIFLE MOUNT .................................................................................. TOOLBOX (STANDARD) ................................................................... 0002 00-309 0002 00-311. 0002 00-315 0002 00-321 0002 00-323 0002 00-325. 134 135. 0002 00-325 0002 00-327. GROUP 22 BODY, CHASSIS AND HULL ACCESSORY ITEMS 2202 ACCESSORY ITEMS........................................................................ INCLINOMETER ............................................................................... JOYSTICK CONSOLE ...................................................................... WINDSHIELD WASHER BOTTLE AND PUMP ................................ WINDSHIELD WIPER GROUP ......................................................... CAB AIR FILTER ............................................................................... CAB HEATER LINES ........................................................................ MIRROR ............................................................................................ AIR DUCT GROUP ............................................................................ 0002 00-329 136 137 138 139 140 141 142 143. 2210 DATA PLATES AND INSTRUCTION HOLDERS ............................. DATA PLATES AND INSTRUCTION HOLDERS............................... vii. 0002 00-329 0002 00-333 0002 00-337 0002 00-339 0002 00-341 0002 00-343 0002 00-345 0002 00-349 0002 00-353. 144. 0002 00-353.
(13) TM 5-3805-291-23P. TABLE OF CONTENTS (Con’t) Illus/Fig. Page. GROUP 24 HYDRAULIC AND FLUID SYSTEMS (EXCLUDE SYSTEMS AND/OR COMPONENTS LOCATED IN OTHER GROUPS) 2401 PUMP AND MOTOR ......................................................................... HYDRAULIC PUMP (IMPLEMENT/PILOT) AND MOUNTING.......... BRAKING AND HYDRAULIC FAN PUMP AND MOUNTING ............ 0002 00-357 145 146. 2402 MANIFOLD AND/OR CONTROL VALVES ....................................... MANIFOLD CONTROL, BRAKE, AND FAN ..................................... MAIN HYDRAULIC CONTROL VALVE............................................. MANUAL CONTROL VALVE LOWERING ........................................ QUICK COUPLER HYDRAULIC VALVES ......................................... 0002 00-361 147 148 149 150. 2403 HYDRAULIC CONTROLS AND/OR MANUAL CONTROLS............. ELECTROHYDRAULIC JOYSTICK .................................................. RIDE CONTROL AND PILOT OIL ACCUMULATORS....................... 151 152. 153. 154. 155 156 157 158 159 160 161. 0002 00-379 0002 00-381 0002 00-387 0002 00-395 0002 00-399 0002 00-401 0002 00-403 0002 00-405. 162. 2408 LIQUID TANKS OR RESERVOIRS .................................................. HYDRAULIC TANK, FILTER, AND RELATED PARTS...................... 0002 00-377 0002 00-379. 2407 HYDRAULIC CYLINDERS ................................................................ QUICK COUPLER HYDRAULIC CYLINDER ..................................... 0002 00-375 0002 00-377. 2406 STRAINERS, FILTERS, LINES AND FITTINGS, ETC. .................... HYDRAULIC OIL FILTERS, BASE, AND SAMPLING VALVE .......... HYDRAULIC COUPLER LINES ........................................................ HYDRAULIC HOSES, LINES, AND FITTINGS ................................. QUICK COUPLER LINES ................................................................. LIFT CYLINDER LINES..................................................................... TILT CYLINDER LINES..................................................................... HYDRAULIC TEST POINTS, LINES, AND FITTINGS ....................... 0002 00-371 0002 00-373 0002 00-375. 2405 MAST COLUMN................................................................................ LIFT CYLINDERS............................................................................... 0002 00-361 0002 00-363 0002 00-367 0002 00-369 0002 00-371. 2404 TILT CYLINDERS AND TILT CRANK............................................... TILT CYLINDERS............................................................................... 0002 00-357 0002 00-359. 0002 00-405 0002 00-407. 163. 0002 00-407. GROUP 33 SPECIAL PURPOSE KITS 3303 WINTERIZATION KITS ..................................................................... ARCTIC HEATER.............................................................................. BATTERY BOX (ARCTIC)................................................................. HANDRAIL AND LADDER (ARCTIC) ............................................... BATTERY CABLES (ARCTIC) ........................................................... 0002 00-409 164 165 166 167. 3307 SPECIAL PURPOSE KITS................................................................ BRISTLES AND LINK........................................................................ BROOM ATTACHMENT ................................................................... HYDRAULIC LINES, BROOM ............................................................ viii. 0002 00-409 0002 00-411 0002 00-413 0002 00-415 0002 00-417. 168 169 170. 0002 00-417 0002 00-421 0002 00-425.
(14) TM 5-3805-291-23P. TABLE OF CONTENTS (Con’t) Illus/Fig PALLET FORK ................................................................................... 171. Page 0002 00-427. GROUP 52 REFRIGERATION, AIR CONDITIONER, HEATER, AND AIR CONDITIONING COMPONENTS 5200 AIR CONDITIONER/HEATER ASSEMBLY AND GAS COMPRESSOR ASSEMBLY .................................................................. AC/HEATER AND MOUNTING ......................................................... AC COMPRESSOR............................................................................ 0002 00-431 172 173. 5217 REFRIGERANT PIPING ................................................................... REFRIGERANT LINES AND FITTINGS ............................................ 0002 00-435 174. 5221 REFRIGERANT ACCUMULATOR.................................................... AC/HEATER ACCUMULATOR AND DRYER .................................... 175. 176. 0002 00-441 0002 00-443. 177. 5243 BLOWER ASSEMBLY ...................................................................... AC/HEATER BLOWER MOTOR ........................................................ 0002 00-439 0002 00-441. 5241 EVAPORATOR ................................................................................. AC EVAPORATOR CORE ................................................................. 0002 00-435 0002 00-439. 5230 CONDENSER (WATER OR AIR COOLED) ..................................... AC CONDENSER AND MOUNTING ................................................. 0002 00-431 0002 00-433. 0002 00-443 0002 00-445. 178. 0002 00-445. GROUP 74 CRANES, SHOVELS, AND EARTH MOVING EQUIPMENT COMPONENTS 7436 LIFT ARMS AND PIVOT ASSEMBLIES ........................................... LIFT ARM ASSEMBLY ...................................................................... QUICK COUPLER .............................................................................. 0002 00-447 179 180. 7437 LOADER BUCKET ASSEMBLY OR FORKLIFT............................... BUCKET LINKAGE ........................................................................... LOADER BUCKET ASSEMBLY (GENERAL PURPOSE)................. LOADER BUCKET ASSEMBLY (ROCK) ........................................... 0002 00-447 0002 00-449 0002 00-451. 181 182 183. 0002 00-451 0002 00-453 0002 00-455. GROUP 94 REPAIR KITS 9401 REPAIR KITS ..................................................................................... 0002 00-457. GROUP 95 GENERAL USE STANDARDIZED PARTS 9501 HARDWARE SUPPLIES AND BULK MATERIEL, COMMON .......... WP 0003 00. 0002 00-459. SPECIAL TOOLS LIST. GROUP 26 TOOLS AND TEST EQUIPMENT 2604 SPECIAL TOOLS .............................................................................. UNIT SUPPORT SPECIAL TOOLS .................................................. DIRECT SUPPORT SPECIAL TOOLS ............................................. WP 0004 00. NSN AND PART NUMBER CROSS REFERENCE INDEXES. ix/(x blank). 0003 00-5 184 185. 0003 00-5 0003 00-9.
(15)
(16) 6 TM 5-3805-291-23P. FIELD MAINTENANCE (INCLUDING UNIT AND DIRECT SUPPORT MAINTENANCE) REPAIR PARTS AND SPECIAL TOOLS LIST (RPSTL) INTRODUCTION. 0001 00. SCOPE This RPSTL lists and authorizes spares and repair parts; special tools; special test, measurement, and diagnostic equipment (TMDE); and other special support equipment required for performance of Field maintenance of the 966H Loader. It authorizes the requisitioning, issue, and disposition of spares, repair parts, and special tools as indicated by the source, maintenance, and recoverability (SMR) codes. GENERAL In addition to the Introduction work package, this RPSTL is divided into the following work packages: 1.. Repair Parts List Work Package. Work package containing lists of spares and repair parts authorized by this RPSTL for use in the performance of maintenance. This work package also includes parts which must be removed for replacement of the authorized parts. Parts lists are composed of functional groups in ascending alphanumeric sequence, with the parts in each group listed in ascending figure and item number sequence. Sending units, brackets, filters, and bolts are listed with the component they mount on. Bulk materials are listed by item name in FIG. BULK at the end of the work package. Repair parts kits are listed separately in their own functional group. Items listed are shown on the associated illustrations.. 2.. Special Tools List Work Package. Work package containing lists of special tools, special TMDE, and special support equipment authorized by this RPSTL [as indicated by Basis of Issue (BOI) information in the DESCRIPTION AND USABLE ON CODE (UOC) column]. Tools that are components of common tool sets and/or Class VII are not listed.. 3.. Cross-Reference Indexes Work Package. There are two cross-reference indexes in this RPSTL: National Stock Number Index and Part Number Index. The National Stock Number Index refers you to the figure and item number. The Part Number Index refers you to the figure and item number.. EXPLANATION OF COLUMNS IN THE REPAIR PARTS LIST AND SPECIAL TOOLS LIST WORK PACKAGES 1.. Item No. (Column 1). Indicates the number used to identify items called out in the illustration.. 2.. SMR Code (Column 2). The SMR code containing supply/requisitioning information, maintenance level authorization criteria, and disposition instruction, as shown in the following breakout: SOURCE CODE. MAINTENANCE CODE. RECOVERABILITY CODE. XXxxx. xxXXx. xxxxX. 1st two positions. 3rd position. 4th position. 5th position. How you get an item.. Who can install, replace, or use the item.. Who can do complete repair* on the item.. Who determines disposition action on an unserviceable item.. * Complete Repair: Maintenance capacity, capability, and authority to perform all corrective maintenance tasks of the “Repair” function in a use/user environment in order to restore serviceability to a failed item.. a.. Source Code. The source code tells you how to get an item needed for maintenance, repair, or overhaul of an end item/equipment. Explanations of source codes follow: 0001 00-1.
(17) TM 5-3805-291-23P. FIELD MAINTENANCE (UNIT AND DIRECT SUPPORT MAINTENANCE) REPAIR PARTS AND SPECIAL TOOLS LIST (RPSTL) INTRODUCTION - CONTINUED. 0001 00. EXPLANATION OF COLUMNS IN THE REPAIR PARTS LIST AND SPECIAL TOOLS LIST WORK PACKAGES - CONTINUED Source Code. Application/Explanation. NOTE Items coded PC are subject to deterioration. Stocked items; use the applicable NSN to request/requisition items with these source codes. They are authorized to the maintenance category indicated by the code entered in the third position of the SMR code.. PA PB PC PD PE PF PG. ............................................................ Items with these codes are not to be requested/requisitioned individually. They are part of a kit which is authorized to the maintenance level indicated in the third position of the SMR code. The complete kit must be requisitioned and applied. ............................................................. KD KF KB MO - Made at Unit/ AVUM level MF - Made at DS/AVIM Level MH - Made at GS Level ML - Made at SRA MD - Made at Depot. Items with these codes are not to be requested/requisitioned individually. They must be made from bulk materiel which is identified by the part number in the DESCRIPTION AND USABLE ON CODE (UOC) column and listed in the bulk materiel group work package of the RPSTL. If the item is authorized to you by the third position of the SMR code, but the source code indicates it is made at a higher level, order the item from the higher level of maintenance. ............................................................. AO-Assembled by Unit/ AVUM level AF-Assembled by DS/ AVIM level AH-Assembled by GS level AL-Assembled by SRA AD-Assembled by Depot. Items with these codes are not to be requested/requisitioned individually. The parts that make up the assembled item must be requisitioned or fabricated and assembled at the level of maintenance indicated by the source code. If the third position of the SMR code authorizes you to replace the item, but the source code indicates the item is assembled at a higher level, order the item from the higher level of maintenance.. XA. Do not requisition an “XA” coded item. Order the next higher assembly (refer to NOTE below).. XB. If an item is not available from salvage, order it using the CAGEC and P/N.. XC. Installation drawings, diagrams, instruction sheets, field service drawings; identified by manufacturer’s P/N.. XD. Item is not stocked. Order an XD-coded item through normal supply channels using the CAGEC and P/N given, if no NSN is available.. ............................................................. NOTE Cannibalization or controlled exchange, when authorized, may be used as a source of supply for items with the above source codes, except for those source coded “XA” or those aircraft support items restricted by requirements of AR 750-1. 0001 00-2.
(18) TM 5-3805-291-23P. FIELD MAINTENANCE (UNIT AND DIRECT SUPPORT MAINTENANCE) REPAIR PARTS AND SPECIAL TOOLS LIST (RPSTL) INTRODUCTION - CONTINUED. 0001 00. EXPLANATION OF COLUMNS IN THE REPAIR PARTS LIST AND SPECIAL TOOLS LIST WORK PACKAGES - CONTINUED b.. Maintenance Code. Maintenance codes tell you the level(s) of maintenance authorized to use and repair support items. The maintenance codes are entered in the third and fourth positions of the SMR code as follows: (1). Third Position. The maintenance code entered in the third position tells you the lowest maintenance level authorized to remove, replace, and use an item. The maintenance code entered in the third position will indicate authorization to one of the following levels of maintenance:. Maintenance Code. Application/Explanation. C . . . . . . . . . . . . . . .Crew or Operator maintenance done within Unit/AVUM maintenance. O. . . . . . . . . . . . . . .Unit Level/AVUM maintenance can remove, replace, and use the item. F . . . . . . . . . . . . . . .Direct Support/AVIM maintenance can remove, replace, and use the item. H . . . . . . . . . . . . . . .General Support maintenance can remove, replace, and use the item. L . . . . . . . . . . . . . . .Specialized Repair Activity (SRA) can remove, replace, and use the item. D . . . . . . . . . . . . . . .Depot Maintenance can remove, replace, and use the item. (2). Fourth Position. The maintenance code entered in the fourth position tells you whether or not the item is to be repaired and identifies the lowest maintenance level with the capability to do complete repair (perform all authorized repair functions).. NOTE Some limited repair may be done on the item at a lower level of maintenance, if authorized by the Maintenance Allocation Chart (MAC) and SMR codes. Maintenance Code. Application/Explanation. O. . . . . . . . . . . . . . .Unit/AVUM is the lowest level that can do complete repair of the item. F . . . . . . . . . . . . . . .Direct Support/AVIM is the lowest level that can do complete repair of the item. H . . . . . . . . . . . . . . .General Support is the lowest level that can do complete repair of the item. L . . . . . . . . . . . . . . .Specialized Repair Activity (SRA) is the lowest level that can do complete repair of the item. D . . . . . . . . . . . . . . .Depot is the lowest level that can do complete repair of the item. Z . . . . . . . . . . . . . . .Nonreparable. No repair is authorized. B . . . . . . . . . . . . . . .No repair is authorized. No parts or special tools are authorized for the maintenance of a “B”-coded item. However, the item may be reconditioned by adjusting, lubricating, etc., at the user level. 0001 00-3.
(19) TM 5-3805-291-23P. FIELD MAINTENANCE (UNIT AND DIRECT SUPPORT MAINTENANCE) REPAIR PARTS AND SPECIAL TOOLS LIST (RPSTL) INTRODUCTION - CONTINUED. 0001 00. EXPLANATION OF COLUMNS IN THE REPAIR PARTS LIST AND SPECIAL TOOLS LIST WORK PACKAGES - CONTINUED c.. Recoverability Code. Recoverability codes are assigned to items to indicate the disposition action on unserviceable items. The recoverability code is entered in the fifth position of the SMR code as follows:. Recoverability Code. Application/Explanation. Z . . . . . . . . . . . . . . .Nonreparable item. When unserviceable, condemn and dispose of the item at the level of maintenance shown in the third position of the SMR code. O. . . . . . . . . . . . . . .Reparable item. When uneconomically reparable, condemn and dispose of the item at the Unit level maintenance. F . . . . . . . . . . . . . . .Reparable item. When uneconomically reparable, condemn and dispose of the item at Direct Support level. H . . . . . . . . . . . . . . .Reparable item. When uneconomically reparable, condemn and dispose of the item at General Support level. D . . . . . . . . . . . . . . .Reparable item. When beyond lower level repair capability, return to depot. Condemnation and disposal of item are not authorized below depot level. L . . . . . . . . . . . . . . .Reparable item. Condemnation and disposal of item not authorized below Specialized Repair Activity (SRA). A . . . . . . . . . . . . . . .Item requires special handling or condemnation procedures because of specific reasons (e.g., precious metal content, high dollar value, critical material, or hazardous material). Refer to appropriate manuals/directives for specific instructions. 3.. NSN - (Column 3). The NSN for the item is listed in this column.. 4.. CAGEC (Column 4). The Commercial and Government Entity Code (CAGEC) is a five-digit code which is used to identify the manufacturer, distributor, or Government agency/activity that supplies the item.. 5.. PART NUMBER (Column 5). Indicates the primary number used by the manufacturer (individual, company, firm, corporation, or Government activity), which controls the design and characteristics of the item by means of its engineering drawings, specifications, standards, and inspection requirements to identify an item or range of items.. NOTE When you use an NSN to requisition an item, the item you receive may have a different part number from the part ordered. 6.. DESCRIPTION AND USABLE ON CODE (UOC) (Column 6). This column includes the following information: a.. The Federal item name and, when required, a minimum description to identify the item.. b.. Part Numbers (P/Ns) of bulk materials are referenced in this column in the line entry to be manufactured or fabricated.. c.. Hardness Critical Item (HCI). A support item that provides the equipment with special protection from electromagnetic pulse (EMP) damage during a nuclear attack.. d.. The statement END OF FIGURE appears just below the last item description in column (6) for a given figure in both the repair parts list and special tools list work packages. 0001 00-4.
(20) TM 5-3805-291-23P. FIELD MAINTENANCE (UNIT AND DIRECT SUPPORT MAINTENANCE) REPAIR PARTS AND SPECIAL TOOLS LIST (RPSTL) INTRODUCTION - CONTINUED. 0001 00. EXPLANATION OF COLUMNS IN THE REPAIR PARTS LIST AND SPECIAL TOOLS LIST WORK PACKAGES - CONTINUED 7.. QTY (Column 7). The QTY (quantity per figure) column indicates the quantity of the item used in the breakout shown on the illustration/figure, which is prepared for a functional group, subfunctional group, group or an assembly. A “V” appearing in this column in lieu of a quantity indicates that the quantity is variable and the quantity may vary from application to application.. EXPLANATION OF CROSS-REFERENCE INDEXES WORK PACKAGE FORMAT AND COLUMNS 1.. 2.. National Stock Number (NSN) Index Work Package. a.. STOCK NUMBER Column. This column lists the NSN by National Item Identification Number (NIIN) sequence. The NIIN consists of the last nine digits of the NSN (i.e., NSN 5305-01-674-1467). When using this column to locate an item, ignore the first four digits of the NSN. However, the complete NSN should be used when ordering items by stock number.. b.. FIG. Column. This column lists the number of the figure where the item is identified/located. The figures are in numerical order in WP 0002 00 and WP 0003 00.. c.. ITEM Column. The item number identifies the item associated with the figure listed in the adjacent FIG. column. This item is also identified by the NSN listed on the same line.. Part Number (P/N) Index Work Package. Part numbers in this index are listed in ascending alphanumeric sequence (i.e., vertical arrangement of letter and number combination which places the first letter or digit of each group in order A through Z, followed by the numbers 0 through 9 and each following letter or digit in like order). a.. PART NUMBER Column. Indicates the P/N assigned to the item.. b.. FIG. Column. This column lists the number of the figure where the item is identified/located in the repair parts list and special tools list work packages.. c.. ITEM Column. The item number is the number assigned to the item as it appears in the figure referenced in the adjacent figure number column.. SPECIAL INFORMATION 1.. Usable On Code (UOC). The UOC appears in the lower left corner of the DESCRIPTION column heading. Usable on codes are shown as “UOC:” in the Description Column (justified left) on the first line under the applicable item/nomenclature. Uncoded items are applicable to all models. Identification of the UOC’s used in the RPSTL are: Code AAB AAC. Used On 966H with 4.5 Cubic Yard Rock Bucket 966H with 5.0 Cubic Yard General Purpose Bucket. 2.. Fabrication Instructions. Bulk materiels required to manufacture items are listed in the Bulk Materiel functional group of this RPSTL. Part numbers for bulk materiel are also referenced in the Description Column of the line item entry for the item to be manufactured/fabricated. Detailed fabrication instructions for items source coded to be manufactured or fabricated are found in TM 5-3805-291-23.. 3.. Index Numbers. Items which have the word BULK in the figure column will have an index number shown in the item number column. This index number is a cross-reference between the NSN/P/N Index work package and the bulk materiel list in the repair parts list work package. 0001 00-5.
(21) TM 5-3805-291-23P. FIELD MAINTENANCE (UNIT AND DIRECT SUPPORT MAINTENANCE) REPAIR PARTS AND SPECIAL TOOLS LIST (RPSTL) INTRODUCTION - CONTINUED. 0001 00. SPECIAL INFORMATION - CONTINUED 4.. Associated Publications. The publication(s) listed below pertain to the 966H Loader and its components: Publication. Short Title. TM 5-3805-291-10 . . . . . . . . . . . . . . . . . Operator’s Manual for 966H Loader TM 5-3805-291-23-1 and 23-2 . . . . . . . . Field Maintenance Manual for 966H Loader HOW TO LOCATE REPAIR PARTS 1.. 2.. 3.. When NSNs or Part Numbers Are Not Known. a.. Using the table of contents, determine the assembly group to which the item belongs. This is necessary since figures are prepared for assembly groups and subassembly groups, and lists are divided into the same groups.. b.. Find the figure covering the functional group or the subfunctional group to which the item belongs.. c.. Identify the item on the figure and note the number(s).. d.. Look in the repair parts list work packages for the figure and item numbers. The NSNs and part numbers are on the same line as the associated item numbers.. When National Stock Number is Known: a.. First. If you have the NSN, look in the STOCK NUMBER column of the NSN index work package. The NSN is arranged in NIIN sequence. Note the figure and item number next to the NSN.. b.. Second. Turn to the figure and locate the item number. Verify that the item is the one you are looking for.. When Part Number is Known: a.. First. If you have the P/N and not the NSN, look in the PART NUMBER column of the P/N index work package. Identify the figure and item number.. b.. Second. Look up the item on the figure in the applicable repair parts list work package.. ABBREVIATIONS For standard abbreviations see ASME Y14.38-2007, Abbreviations and Acronyms. Abbreviation. Explanation. NIIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . National Item Identification Number (consists of the last 9 digits of the NSN) RPSTL . . . . . . . . . . . . . . . . . . . . . . . . . . Repair Parts and Special Tools List SMR . . . . . . . . . . . . . . . . . . . . . . . . . . . . Source, Maintenance, and Recoverability Code TMDE . . . . . . . . . . . . . . . . . . . . . . . . . . . Test, Measurement, and Diagnostic Equipment. END OF WORK PACKAGE 0001 00-6.
(22) 460 TM 5-3805-291-23P. REPAIR PARTS LIST. 0002 00. 0002 00-1.
(23) WP 0002 00. TM 5-3805-291-23P. 427-572. Figure 1. Engine Assembly 0002 00-2.
(24) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 01 ENGINE GROUP 0100 ENGINE ASSEMBLY FIG. 1. 1 2 3 4. PFFZZ PAFHH PAFZZ PAFZZ. 2590015555161 2815015708920 5310010980624 5306014481550. 11083 11083 11083 11083. 2244140 2347850 5P8245 6V3668. ENGINE ASSEMBLY. BRACKET,VEHICULAR C................. ENGINE,DIESEL....................... WASHER,FLAT 13.5 X 25 X 3MM........ BOLT,MACHINE M12 X 1.75 X 30MM..... END OF FIGURE. 0002 00-3. 2 1 8 8.
(25) WP 0002 00. TM 5-3805-291-23P. Figure 2. Engine Supports 0002 00-4.
(26) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0100 ENGINE ASSEMBLY FIG. 2. 1 2 3 4 5 6 7 8. PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ. 5306014734495 5365015585448 5365014310866 5340014299834 2510015556868 5310010980624 5306014381750 5310014138769. 11083 11083 11083 11083 11083 11083 11083 11083. 8T4649 3E4888 9W7385 6Y9960 2292887 5P8245 6V5696 8T4167. ENGINE SUPPORTS. BOLT,SHOULDER M24 X 3 X 140MM...... SPACER,PLATE 32 X 144 X 12MM THK... SPACER,SLEEVE FRONT................ MOUNT,RESILIENT,GEN................. FRAME SECTION,STRUC FRONT.......... WASHER,FLAT 13.5 X 25.5 X 3MM...... BOLT,MACHINE M12 X 1.75 X 80MM..... WASHER,FLAT 26 X 44 X 4MM THK...... END OF FIGURE. 0002 00-5. 2 2 2 2 1 8 8 2.
(27) WP 0002 00. TM 5-3805-291-23P. Figure 3. Cylinder Head and Fasteners 0002 00-6.
(28) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0101 CRANKCASE, BLOCK CYLINDER HEAD FIG. 3. 1 2 3 4 5 6 7 8 9. PFFHL PAFZZ XDFHH PAFZZ PAFZA PAFZZ PAFZZ PAFZZ PAFZZ. 11083 5331011296019 11083 11083 5365010360010 11083 5331015135210 11083 2910015733456 11083 5331015369808 11083 5331015069094 11083 5305015555353 11083. 3050617 5P5598 3056358 9S8004 214-7568 2634920 1662904 9X7430 2104460. 10 PAFZZ 5330015343777 11083 2219392 11 PAFZZ 5310004317244 11083 2S5658 12 PAFZZ 5305015563149 11083 2421811. CYLINDER HEAD AND FASTENERS. CYLINDER HEAD,DIESE................. .O-RING............................. .CYLINDER HEAD,DIESE................ ..PLUG,MACHINE THREAD............... ..O-RING............................ ..INSERT,FUEL INJECT................ ..O-RING............................ ..O-RING............................ SCREW,CAP,HEXAGON H M10 X 1.5 X 130MM............................... GASKET CYLINDER HEAD............... WASHER,FLAT 17 X 29 X 3MM.......... SCREW,CAP,HEXAGON H................. END OF FIGURE. 0002 00-7. 1 1 1 7 7 6 12 6 8 1 26 26.
(29) WP 0002 00. TM 5-3805-291-23P. Figure 4. Cylinder Block Plugs 0002 00-8.
(30) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0101 CRANKCASE, BLOCK CYLINDER HEAD FIG. 4. 1 PAFZZ 5340003638925 11083 4F5695. CYLINDER BLOCK PLUGS. PLUG,EXPANSION END OF FIGURE. 0002 00-9. FREEZE PLUG.......... 5.
(31) WP 0002 00. TM 5-3805-291-23P. Figure 5. Vibration Damper and Pulley 0002 00-10.
(32) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0102 CRANKSHAFT FIG. 5. 1 2 3 4 5 6 7. PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PFFZZ PAFZZ. 4730015335868 2510015242731 5310014389803 5306014794610 3020015553640 5365015554622 5306014295265. 11083 11083 11083 45152 11083 11083 11083. 1790092 1678125 9X2027 7HB513 2307167 2131585 8T0281. VIBRATION DAMPER AND PULLEY. ADAPTER,STRAIGHT,TU................. DAMPER.............................. WASHER,FLAT 11 X 18 X 2MM.......... BOLT,MACHINE M10 X 1.5 X 30MM...... PULLEY,GROOVED...................... SPACER,RING......................... BOLT,MACHINE M16 X 2.0 X 80MM...... END OF FIGURE. 0002 00-11. 1 1 8 8 1 1 6.
(33) WP 0002 00. TM 5-3805-291-23P. Figure 6. Rear Main Seal, Crankshaft 0002 00-12.
(34) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0102 CRANKSHAFT FIG. 6. 1 2 3 4 5 6 7. PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ. 5330014666663 11083 7C1583 5340014669740 11083 1054245 5310010512360 11083 5P0537 11083 2946007 5306014709590 11083 8T0640 5330014666642 11083 7C1728 5331014669022 11083 1076280. REAR MAIN SEAL, CRANKSHAFT. GASKET.............................. COVER,ACCESS........................ WASHER 7.2 X 14.50 X 3MM........... BOLT,MACHINE M6 X 1 X 18MM......... BOLT,MACHINE M6 X 1 X 30MM......... SEAL,PLAIN.......................... O-RING 5.33 X 177.17MM ID.......... END OF FIGURE. 0002 00-13. 1 1 13 7 6 1 1.
(35) WP 0002 00. TM 5-3805-291-23P. Figure 7. Front Main Seal, Crankshaft 0002 00-14.
(36) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0102 CRANKSHAFT FIG. 7. 1 2 3 4 5 6 7. PFFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ. 5330015343925 5310014736099 5310014151606 5331013707705. 11083 11083 11083 11083 11083 5310010980624 11083 5306014381755 11083. 2264755 6V8225 9X8256 7J6285 2850823 5P8245 6V8197. FRONT MAIN SEAL, CRANKSHAFT. SEAL,PLAIN ENCASED.................. NUT,PLAIN,HEXAGON M6 X 1........... WASHER,FLAT 6.6 X 12 X 2MM......... O-RING.............................. COVER,ACCESS........................ WASHER,FLAT 13.5 X 25.5 X 3MM...... BOLT,MACHINE M12 X 1.75 X 40MM..... END OF FIGURE. 0002 00-15. 1 5 5 1 1 3 3.
(37) WP 0002 00. TM 5-3805-291-23P. Figure 8. Flywheel Assembly 0002 00-16.
(38) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0103 FLYWHEEL ASSEMBLY FIG. 8. 1 PFFZZ 2815015554427 11083 1608210 2 PAFZZ 5310010954631 11083 5P8247 3 PAFZZ 5305015553888 11083 9X2021. FLYWHEEL ASSEMBLY. FLYWHEEL,ENGINE..................... WASHER,FLAT 17 X 32 X 3.5MM........ SCREW,CAP,HEXAGON H M16 X 2 X 45MM. END OF FIGURE. 0002 00-17. 1 8 8.
(39) WP 0002 00. TM 5-3805-291-23P. Figure 9. Flywheel Housing 0002 00-18.
(40) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0103 FLYWHEEL ASSEMBLY FIG. 9. 1 PAFZZ 5305015554101 11083 8T0106 2 3 4 5 6 7 8 9 10 11 12 13 14 15. PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PFFZZ PAFZZ PAFZZ PAFZZ PAFZZ PFFZZ PAFZZ PAFZZ PAFZZ. 5310010980624 5331009486482 5365007630120 5331014523208 5365011033727 5340015557679 5310013598806 5305015144098 5331003334384 5331011865442 2815015554404 5310014944293 5305015553883 5315011881865. 11083 11083 11083 11083 11083 11083 11083 11083 11083 11083 11083 11083 11083 11083. 5P8245 3K0360 9S4185 1J9671 3K8460 1994051 8T4224 0993649 1H5728 5D9344 1741586 5P8246 2146277 6V3538. FLYWHEEL HOUSING. SCREW,CAP,HEXAGON H M12 X 1.75 X 100MM............................... WASHER,FLAT 13.5 X 25.5 X 3MM...... O-RING.............................. PLUG,MACHINE THREAD................. O-RING.............................. PLUG,PIPE........................... COVER,ACCESS........................ WASHER,FLAT 8.8 X 16 X 2MM THK..... SCREW,MACHINE M8 X 1.25 X 40MM..... O-RING.............................. O-RING.............................. HOUSING,FLYWHEEL.................... WASHER,FLAT 15.5 X 29 X 3MM........ SCREW,CAP,HEXAGON H................. PIN,STRAIGHT,HEADLE................. END OF FIGURE. 0002 00-19. 2 2 1 1 1 1 1 2 2 1 1 1 10 10 2.
(41) WP 0002 00. TM 5-3805-291-23P. Figure 10. Rocker Arm Group 0002 00-20.
(42) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0105 VALVES, CAMSHAFT AND TIMING SYSTEM FIG. 10. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17. AFFFF PFFZZ AFFZZ PAFZZ PAFZZ PAFZZ AFFZZ PAFZZ PAFZZ PAFZZ PAFZZ PFFZZ AFFZZ PAFZZ PAFZZ PAFZZ PAFZZ. 11083 5306015553618 11083 11083 2815015743035 11083 11083 5310013599329 11083 11083 2815015740575 11083 5310015557049 11083 2815015742825 11083 5331014243527 11083 5305015556451 11083 11083 11083 11083 5310013599329 11083 5306015554626 11083. 2600252 2421401 2612294 2612293 2607524 2Y5829 2600251 2600915 2456095 2744490 8L2777 2588721 2612290 2612291 2607524 2Y5829 2410847. 18 PFFZZ 3040015553981 11083 2427418 19 PAFZZ 3040015553813 11083 2244418 20 PAFZZ 5306015554626 11083 2410847. ROCKER ARM GROUP. ARM ASSEMBLY ROCKER................ .ROCKER ARM BASE,SINGLE............. .ROCKER ARM ASSEMBLY EXHAUST....... ..ROCKER ARM,ENGINE................. ..SETSCREW M10 X 1.5............... ..NUT,PLAIN,HEXAGON M10 X 1.5...... .ROCKER ARM ASSEMBLY UNIT INJECTOR. ..ROCKER ARM,ENGINE................. ..NUT,PLAIN,HEXAGON M12 X 1.5...... ..SCREW,ADJUSTING,V ADJUSTMENT..... ..O-RING............................ ..SCREW,CAP,SOCKET HE............... .ROCKER ARM ASSEMBLY INLET......... ..ROCKER ARM,ENGINE................. ..SETSCREW M10 X 1.5 ADJUSTMENT.... ..NUT,PLAIN,HEXAGON M10 X 1.5...... .BOLT,MACHINE M12 X 1.75 X 93 MM THD................................. .SHAFT,SHOULDERED ROCKER ARM BASE, DOUBLE.............................. .SHAFT,SHOULDERED................... BOLT,MACHINE M12 X 1.75 X 93MM..... END OF FIGURE. 0002 00-21. 3 2 2 1 1 1 2 1 1 1 1 1 2 1 1 1 2 1 1 6.
(43) WP 0002 00. TM 5-3805-291-23P. Figure 11. Valve Cover 0002 00-22.
(44) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0105 VALVES, CAMSHAFT AND TIMING SYSTEM FIG. 11. 1 PFOZZ 2815015554168 11083 2292616 2 PAOZZ 5306013981287 11083 8T6912 3 PAOZZ 5310013598806 11083 8T4224 4 PFOZZ 5340015557407 11083 2127728 5 PAOZZ 5330015343759 11083 2295711. VALVE COVER. COVER,ENGINE POPPET................. SCREW,CAP,HEXAGON H M8 X 1.250 X 50MM................................ WASHER,FLAT 8.8 X 16 X 2MM......... MOUNT,RESILIENT,GEN................. GASKET SEAL,VALVE COVER............. END OF FIGURE. 0002 00-23. 1 10 10 10 1.
(45) WP 0002 00. TM 5-3805-291-23P. Figure 12. Valve Cover Base 0002 00-24.
(46) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0105 VALVES, CAMSHAFT, AND TIMING SYSTEM FIG. 12. 1 PAOZZ 5315015221090 11083 1801538 2 PFOZZ 2510015592054 11083 2486661 3 PAOZZ 5306013601002 11083 6V3918 4 PAOZZ 5310004324064 11083 9M1974 5 PAOZZ 5340014800363 45152 8HE196 6 PAOZZ 11083 2720389. VALVE COVER BASE. PIN,STRAIGHT,HEADLE................. BASE,AUTOMOTIVE ENG................. SCREW,CAP,HEXAGON H M8 X 1.25 X 50 MM.................................. WASHER,FLAT 8.8 X 16 X 2MM THK..... CLAMP,LOOP.......................... SEAL,PLAIN.......................... END OF FIGURE. 0002 00-25. 2 1 13 13 1 1.
(47) WP 0002 00. TM 5-3805-291-23P. Figure 13. Idler and Timing Gears and Related Parts 0002 00-26.
(48) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0105 VALVES, CAMSHAFT, AND TIMING SYSTEM FIG. 13 IDLER AND TIMING GEARS AND RELATED PARTS. 1 2 3 4 5 6 7 8 9 10 11. AFFFF PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ. 5306014295265 5365015553987 3020015553653 3020015553666 5365015553869 5306015555106 5310004324064 5306013600929 5315015553867 5305013601993. 11083 11083 11083 11083 11083 11083 11083 11083 11083 11083 11083. 2223088 8T0281 7C7851 2223902 2223905 2187270 8T0360 9M1974 6V2317 6V3535 6V5219. 12 13 14 15 16. PAFZZ PAFZZ PAFZZ PFFZZ PFFZZ. 5307015554621 5305015072644 5310010980624 2815015555158 5330015553931. 11083 11083 11083 11083 11083. 1230764 8T5093 5P8245 2787093 2237852. IDLER AND TIMING.................... .BOLT,MACHINE M16 X 2 X 80MM....... .SPACER,RING........................ .GEAR,SPUR 64 TEETH................ .GEAR,SPUR CAM IDLER 71 TEETH...... .SPACER,RING........................ .BOLT,MACHINE M20 X 2.5 X 90MM..... WASHER,FLAT 8.8 X 16 X 2MM THK..... BOLT,MACHINE M8 X 1.25 X 30MM...... PIN,STRAIGHT,HEADLE................. SCREW,CAP,HEXAGON H M8 X 1.25 X 40MM................................ STUD,SHOULDERED..................... SCREW,TAPPING M8 X 1.25 X 25MM..... WASHER,FLAT 13.5 X 25.5 X 3MM...... COVER,TIMING GEAR,I................. GASKET.............................. END OF FIGURE. 0002 00-27. 1 1 1 1 1 1 1 27 17 2 9 2 1 2 1 1.
(49) WP 0002 00. TM 5-3805-291-23P. Figure 14. Piston Cooling Jet 0002 00-28.
(50) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0106 ENGINE LUBRICATION SYSTEM FIG. 14. 1 PAFZZ 5305013601000 11083 8T0100 2 PAFZZ 5310014335836 11083 3E4352 3 PFFZZ 4710015592842 11083 2767222. PISTON COOLING JET. SCREW,CAP,HEXAGON H M8 X 1.25 X 60 MM.................................. WASHER,FLAT 8.8 X 20.5 X 2.5 MM THK TUBE ASSEMBLY,METAL PISTON COOLING JET................................. END OF FIGURE. 0002 00-29. 6 6 6.
(51) WP 0002 00. TM 5-3805-291-23P. Figure 15. Oil Pan and Related Parts 0002 00-30.
(52) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0106 ENGINE LUBRICATION SYSTEM FIG. 15. 1 2 3 4 5 6 7 8 9. PAFZZ PAFZZ PAFZZ PFFZZ PAFZZ PAFZZ PAFZZ PAOZZ PAOZZ. 5330015343786 5306014792736 5310004324064 4710015553855 5310010980624 5306015336854 2815015553812 5331014741528 5365015333477. 11083 45152 11083 11083 11083 11083 11083 11083 11083. 2173673 9HB895 9M1974 2351074 5P8245 6A5591 2351073 0619458 9X6451. 10 11 12 13 14 15 16 17 18 19. PFFZZ PAFZZ PAFZZ PAFZZ PAOZZ PAOZZ PAOZZ PAOZZ PAOZZ PAOZA. 5365015554642 5310010980625 5307015744245 5310013029942 5975010589099 5310013600983 5310013527726 5340014800363 5331009738301 4820013436277. 11083 11083 11083 11083 11083 11083 11083 45152 78640 11083. 2173674 6N8863 2873049 8T7934 3S2093 6V-5839 8T4133 8HE196 8L2786 6V7238. 20 MOOZZ. 11083 5P0767-56. 21 PAOZZ 4730011223338 11083 5D-1026 22 PAFZZ 5306014297098 11083 6V4249 23 PAFZZ 5330010794738 11083 5P8211. OIL PAN AND RELATED PARTS. GASKET.............................. BOLT,MACHINE M8 X 1.25 X 25MM...... WASHER,FLAT 8.8 X 16 X 2MM......... TUBE ASSEMBLY,METAL OIL SUMP....... WASHER,FLAT 13.5 X 25.5 X 3MM...... SCREW,MACHINE M12 X 1.75 X 25MM.... OIL PAN............................. O-RING.............................. PLUG,MACHINE THREAD DRAIN,ENGINE OIL PAN............................. SPACER,SLEEVE....................... WASHER,FLAT 10.2 X 32 X 2.5MM...... STUD,SHOULDERED..................... WASHER,FLAT 11 X 21 X 5MM THK...... STRAP............................... WASHER,LOCK 11 X 21 X 2.5MM THK.... NUT,PLAIN,HEXAGON................... CLAMP,LOOP.......................... PACKING,PREFORMED................... COCK,POPPET DRAIN ENGINE OIL PAN DRAIN............................... HOSE MAKE FROM HOSE P/N 5P0767,22 INCHES (56 CM)...................... CLAMP,HOSE.......................... BOLT,MACHINE M10 X 1.5 X 50MM...... SEAL,PLAIN.......................... END OF FIGURE. 0002 00-31. 1 2 2 1 2 2 1 1 1 14 14 1 1 1 1 1 1 1 1 1 1 13 1.
(53) WP 0002 00. TM 5-3805-291-23P. Figure 16. Engine Oil Filter and Base 0002 00-32.
(54) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0106 ENGINE LUBRICATION SYSTEM FIG. 16. 1 2 3 4 5 6 7 8 9 10. PAOZZ PAOZZ PAOZZ PAOZZ PAOZZ PAOZZ PAOZZ PAOZZ PAOZZ PAOZZ. ENGINE OIL FILTER AND BASE. 5330003769861 2940015553833 5330015554129 5310004324064 5306013600929 2940015333470 5310013600983 5306014991065. 11083 11083 11083 11083 11083 11083 11083 11083 91816 5331010491292 81346. 3P0650 PACKING,PREFORMED................... 2818366 HEAD,FILTER FLUID OIL FILTER....... 2379751 GASKET.............................. 9M1974 WASHER,FLAT 8.8 X 16 X 2MM THK..... 6V2317 BOLT,MACHINE M8 X 1.25 X 30MM...... 1R1808 FILTER ELEMENT,FLUI................. 6V5839 WASHER,LOCK 11 X 21 X 2.5MM THK.... 1345245 BOLT,MACHINE M10 X 1.5 X 30MM...... HV50-2-R VALVE,SAMPLING,HYDR................. ASTM D2000 M6BG9 O-RING.............................. 10 11 PAOZZ 4730000089818 11083 5P9617 REDUCER,BOSS........................ 12 PAOZZ 5331000200186 11083 6V5049 O-RING.............................. END OF FIGURE. 0002 00-33/(34 blank). 2 1 1 4 4 1 6 6 1 1 1 1.
(55)
(56) WP 0002 00. TM 5-3805-291-23P. Figure 17. Engine Oil Cooler and Turbocharger Oil Lines (Sheet 1 of 2) 0002 00-35.
(57) WP 0002 00. TM 5-3805-291-23P. Figure 17. Engine Oil Cooler and Turbocharger Oil Lines (Sheet 2 of 2) 0002 00-36.
(58) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0106 ENGINE LUBRICATION SYSTEM FIG. 17 ENGINE OIL COOLER AND TURBOCHARGER OIL LINES. 1 2 3 4 5 6 7 8 9 10. AOOOO PFOZZ PAOZZ PFOZZ PAOZZ PAOZZ PAOZZ PAOZZ PAOZZ PAOZZ. 11 PFOZZ 12 PAOZZ 13 14 15 16 17 18 19. PAOZZ PFOZZ PAOZZ PAOZZ PFOZZ AOOOO PAOZZ. 20 21 22 23 24. PAOZZ PAOZZ PFOZZ PAOZZ PAOZZ. 25 26 27 28 29 30 31 32 33. PAOZZ PAOZZ PFOZZ PAOZZ PAOZZ PFOZZ PAOZZ PFOZZ PFOZZ. 2517600 COOLER ASSEMBLY,ENG ENGINE OIL..... 2246360 .SEAL,NONMETALLIC ST................ 2368745 .COOLER,LUBRICATING OIL COOLER..... 2304519 .WATER OUTLET,ENGINE................ 9M1974 .WASHER,FLAT 8.8 X 16 X 2MM........ 6V5219 .SCREW,CAP,HEXAGON H M8 X 1.25 X 40 3017298 .CLAMP,LOOP......................... 1316645 .HOSE,NONMETALLIC................... 9S8002 .PLUG,MACHINE THREAD................ ASTM D2000 M6BG9 .O-RING............................. 10 2930015554196 11083 2304518 .WATER OUTLET,ENGINE................ 5306014710429 11083 6V5221 .SCREW,CAP,HEXAGON H M8 X 1.25 X 80 MM.................................. 5306013600929 11083 6V2317 .BOLT,MACHINE M8 X 1.25 X 30....... 5330015554609 11083 2242675 .SEAL,NONMETALLIC,RO................ 5331013515544 11083 6V-3250 .O-RING............................. 5365004114584 11083 9S-4191 .PLUG,MACHINE THREAD................ 5340015503970 11083 1570670 .CAP-PLUG,PROTECTIVE................ 11083 1645590 .VALVE ASSEMBLY..................... 5331010491292 81346 ASTM D2000 M6BG9 ..O-RING............................ 10 4820013512951 11083 8C3446 ..VALVE,BLEEDER,HYDRA............... 5330014810979 11083 6V3251 .SEAL,PLAIN ENCASED................. 4730015556751 11083 8K4739 .REDUCER,PIPE....................... 5310015556400 11083 8E9571 .WASHER,FLAT 8.8 X 16 X 7MM........ 5306013601006 11083 6V5218 SCREW,CAP,HEXAGON H M8 X 1.25 X 35 MM.................................. 5310004324064 11083 9M1974 WASHER,FLAT 8.8 X 16 X 2MM......... 5330015165776 11083 1978419 GASKET TURBOCHARGER OIL............ 4720015553634 11083 2279920 HOSE ASSEMBLY,NONME DRAIN.......... 5331015554564 11083 2256948 O-RING.............................. 5331005806583 11083 6V8398 O-RING.............................. 4730015557433 11083 8T6876 ELBOW,TUBE TO HOSE 90 DEG.......... 5331013336444 11083 3J1907 O-RING.............................. 4720015553973 11083 2351071 HOSE ASSEMBLY,NONME SUPPLY......... 5330015556920 11083 1978418 GASKET TURBOCHARGER OIL............ 5330015557360 2930015555199 2930015554395 5310004324064 5305013601993 5340015742546 4720014669281 5365000786248 5331010491292. 11083 11083 11083 11083 11083 11083 11083 11083 11083 81346. END OF FIGURE. 0002 00-37. 1 2 1 1 6 5 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 6 6 1 1 1 1 1 1 1 1.
(59) WP 0002 00. TM 5-3805-291-23P. Figure 18. Engine Oil Filler and Dipstick 0002 00-38.
(60) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0106 ENGINE LUBRICATION SYSTEM FIG. 18 ENGINE OIL FILLER AND DIPSTICK. 1 2 3 4 5 6 7 8. PAOZZ PAOZZ PAOZZ PAOZZ PFOZZ PAOZZ PFOZZ PFOZZ. 2940007253360 5306013600929 5310004324064 5331014697607 2590015553920 5330003675650 6680015553606 2590015555290. 11083 11083 11083 11083 11083 11083 11083 11083. 5L2952 6V2317 9M1974 0619455 2844929 3P0647 2844930 2213263. CAP,FILLER OPENING.................. BOLT,MACHINE M8 X 1.25 X 30MM...... WASHER,FLAT 8.8 X 16 X 2MM......... SEAL,PLAIN.......................... TUBE ASSEMBLY,METAL................. PACKING,PREFORMED................... GAGE ROD,LIQUID LEV................. FILLER NECK,VEHICUL................. END OF FIGURE. 0002 00-39. 1 2 2 1 1 1 1 1.
(61) WP 0002 00. TM 5-3805-291-23P. Figure 19. Engine Oil Pump and Related Parts 0002 00-40.
(62) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0106 ENGINE LUBRICATION SYSTEM FIG. 19 PARTS. 1 2 3 4 5 6 7 8 9. PAFZZ PAFZA PFFZZ PAFZZ PFFZZ PAFZZ PAFZZ PAFZZ PAFZZ. 5306013600929 5331010060303 4710015563051 5331015165599 2815015553773 5310004324064 5331015553971 5331011831281 5306014710429. 11083 81349 11083 11083 11083 11083 11083 11083 11083. 6V-2317 M83248/1-322 2351448 0618561 2351451 9M1974 3E6788 8J4351 6V5221. 10 11 12 13 14 15. PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ. 4730014666641 2815015382178 5331014669285 5331012899129 4730014666640 5306015311564. 11083 11083 11083 11083 11083 11083. 7C1822 2335220 6V3834 5P8068 7C1821 7X0870. ENGINE OIL PUMP AND RELATED. BOLT,MACHINE M8 X 1.25 X 35MM...... O-RING.............................. TUBE ASSEMBLY,META.................. O-RING.............................. OIL PUMP ASSEMBLY,E OIL PUMP....... WASHER,FLAT......................... O-RING.............................. O-RING.............................. SCREW,CAP,HEXAGON H M8 X 1.25 X 80MM................................ ADAPTER,STRAIGHT,PI................. OIL PUMP ASSEMBLY,E................. O-RING.............................. O-RING.............................. ADAPTER,STRAIGHT,PI................. BOLT,MACHINE M8 X 1.25 X 140MM..... END OF FIGURE. 0002 00-41. 2 3 1 1 1 8 1 1 5 1 1 1 2 1 1.
(63) WP 0002 00. TM 5-3805-291-23P. Figure 20. Fumes Disposal and Crankcase Breather 0002 00-42.
(64) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0106 ENGINE LUBRICATION SYSTEM FIG. 20 FUMES DISPOSAL AND CRANKCASE BREATHER. 1 2 3 4 5 6. PAOZZ PAOZZ PAOZZ PAOZZ PAOZZ PAOZZ. 2815014668234 5975015553456 5306014792492 5310014390845 4720015556821 5330014669290. 11083 11083 11083 11083 11083 11083. 9Y4357 0341432 8T0275 9X8267 2379759 9Y1758. BREATHER............................ STRAP,TIEDOWN,ELECT HOSE........... BOLT,MACHINE M6 X 1 X 50MM......... WASHER,FLAT 6.6 X 12 X 2MM......... HOSE,NONMETALLIC.................... GASKET.............................. END OF FIGURE. 0002 00-43. 1 1 4 4 1 1.
(65) WP 0002 00. TM 5-3805-291-23P. Figure 21. Air Intake Manifold 0002 00-44.
(66) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0108 MANIFOLDS FIG. 21. 1 PAFZZ 5305013601990 11083 6V3822 2 3 4 5 6 7 8 9 10 11 12. PAFZZ PFFZZ PFFZZ PFFZZ PAFZZ PAFZZ PAFZZ PFFZZ PAFZZ PAOZZ PAOZZ. 5310014736477 5330015628822 2815015744650 5307015556888 5340014800363 5331013336444 4730015555356 5331001651960 5331009448281 5365010643790. 11083 11083 11083 11083 11083 45152 11083 11083 81349 11083 11083. 7X0623 2303518 2812925 1215908 1769237 8HE196 3J1907 1629527 M83248/1-242 3D2824 9S8008. AIR INTAKE MANIFOLD. SCREW,CAP,HEXAGON H M10 X 1.5 X 35 MM.................................. WASHER,FLAT 10.5 X 21 X 2MM........ GASKET.............................. MANIFOLD,INTAKE..................... STUD,SHOULDERED..................... STUD-BOLT........................... CLAMP,LOOP.......................... O-RING.............................. PLUG,PIPE........................... O-RING.............................. O-RING.............................. PLUG,O-RING......................... END OF FIGURE. 0002 00-45. 10 12 1 1 1 1 3 2 2 1 1 1.
(67) WP 0002 00. TM 5-3805-291-23P. Figure 22. Exhaust Manifold and Fastener 0002 00-46.
(68) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0108 MANIFOLDS FIG. 22 EXHAUST MANIFOLD AND FASTENER. 1 2 3 4 5 6 7 8. PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ. 2815015554428 2815015553784 5330015641257 5365014668233 5310013600983 5315014792027 5310014594164 5307014668295. 11083 11083 11083 11083 11083 11083 11083 11083. 2472834 2319030 283-2238 4P4369 6V5839 1163715 3E8017 9X8281. MANIFOLD,EXHAUST.................... MANIFOLD,EXHAUST.................... GASKET.............................. SPACER,PLATE 12 X 19 X 23.5MM...... WASHER,LOCK 11 X 21 X 2.5MM THK.... PIN,HOLLOW M10 X 1.5 X 85MM........ NUT,SELF-LOCKING,HE M10 X 1.5MM.... STUD,PLAIN M10 X 1.5 X 45MM........ END OF FIGURE. 0002 00-47. 1 2 6 12 12 12 12 4.
(69) WP 0002 00. TM 5-3805-291-23P. Figure 23. Accessory Drive Gear and Cover 0002 00-48.
(70) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0109 ACCESSORY DRIVING MECHANISMS FIG. 23 COVER. 1 2 3 4 5 6 7 8. PAFZZ PAFZZ PAFZZ PFFZZ PAFZZ PAFZZ PAFZZ PAFZZ. 5330015343917 5331001651936 3110005165490 3020015553500 3110015555349 3010015553620 5310004324064 5305011647966. 11083 81349 11083 11083 11083 11083 11083 11083. 2572015 M83248/1-159 8H9789 2219357 5P6727 2514314 9M1974 6V5192. 9 PAFZZ 5330014810971 45152 7HB224. ACCESSORY DRIVE GEAR AND. GASKET.............................. O-RING.............................. BEARING,BALL,ANNULA................. GEAR,SPUR 40-TEETH................. BEARING,BALL,ANNULA................. GRIDMEMBER,COUPLING................. WASHER,FLAT......................... SCREW,CAP,SOCKET HE M8 X 1.25 X 30MM................................ SEAL,PLAIN ENCASED.................. END OF FIGURE. 0002 00-49. 1 1 1 1 1 1 3 3 1.
(71) WP 0002 00. TM 5-3805-291-23P. Figure 24. Fuel Injector 0002 00-50.
(72) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 03 FUEL SYSTEM GROUP 0301 FUEL INJECTOR FIG. 24. 1 AFFZZ 11083 2531459 2 PAFZZ 5306013601708 11083 8T0644 3 4 5 6 7. PFFZZ PAFZZ PAFZZ PAFZZ PAFZZ. 2910015557745 2915015560036 5331014808871 5331015344289 5331015344285. 11083 11083 11083 11083 11083. 2244991 2490712 9X7317 2303728 2303775. FUEL INJECTOR. FUEL INJECTOR....................... .SCREW,CAP,HEXAGON H M10 X 1.5 X 90MM................................ .HOLDER,FUEL INJECTO................ .INJECTOR ASSEMBLY,F FUEL.......... ..O-RING............................ ..O-RING............................ ..O-RING............................ END OF FIGURE. 0002 00-51. 6 1 1 1 1 1 1.
(73) WP 0002 00. TM 5-3805-291-23P. Figure 25. Fuel Transfer Pump 0002 00-52.
(74) WP 0002 00 (1) ITEM NO. (2) SMR CODE. TM 5-3805-291-23P (3) NSN. (4) CAGEC. (5) PART NUMBER. (6). (7). DESCRIPTION AND USABLE ON CODES(UOC) QTY GROUP 0302 FUEL PUMP FIG. 25. 1 2 3 4 5 6. PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ PAFZZ. 2915015740573 5330014810971 5310013600983 5306014794610 5330014860899 5340015745672. 11083 45152 11083 45152 11083 11083. 3166863 7HB224 6V5839 7HB513 5P4889 2963447. FUEL TRANSFER PUMP. PUMP,FUEL,METERING FUEL TRANSFER... SEAL,PLAIN ENCASED.................. WASHER,FLAT 11 X 21 X 2.5.......... BOLT,MACHINE M10 X 1.5 X 30MM...... SEAL ORING.......................... COVER,ACCESS........................ END OF FIGURE. 0002 00-53/(54 blank). 1 1 4 4 1 1.
(75)
(76) WP 0002 00. TM 5-3805-291-23P. Figure 26. Fuel Priming Pump, Secondary Fuel Filter Base, and Lines (Sheet 1 of 2) 0002 00-55.
(77) WP 0002 00. TM 5-3805-291-23P. Figure 26. Fuel Priming Pump, Secondary Fuel Filter Base, and Lines (Sheet 2 of 2) 0002 00-56.
