F
O
U
R
134

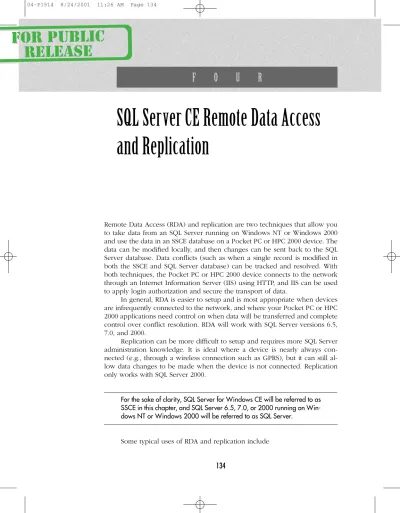

SQL Server CE Remote Data Access
and Replication
Remote Data Access (RDA) and replication are two techniques that allow you to take data from an SQL Server running on Windows NT or Windows 2000 and use the data in an SSCE database on a Pocket PC or HPC 2000 device. The data can be modified locally, and then changes can be sent back to the SQL Server database. Data conflicts (such as when a single record is modified in both the SSCE and SQL Server database) can be tracked and resolved. With both techniques, the Pocket PC or HPC 2000 device connects to the network through an Internet Information Server (IIS) using HTTP, and IIS can be used to apply login authorization and secure the transport of data.
In general, RDA is easier to setup and is most appropriate when devices are infrequently connected to the network, and where your Pocket PC or HPC 2000 applications need control on when data will be transferred and complete control over conflict resolution. RDA will work with SQL Server versions 6.5, 7.0, and 2000.
Replication can be more difficult to setup and requires more SQL Server administration knowledge. It is ideal where a device is nearly always con-nected (e.g., through a wireless connection such as GPRS), but it can still al-low data changes to be made when the device is not connected. Replication only works with SQL Server 2000.
For the sake of clarity, SQL Server for Windows CE will be referred to as SSCE in this chapter, and SQL Server 6.5, 7.0, or 2000 running on Win-dows NT or WinWin-dows 2000 will be referred to as SQL Server.
Some typical uses of RDA and replication include
● Pulling down up-to-date price lists from a central server
● Recording orders locally on an SSCE database and then sending them to
a central SQL Server
● Pulling down updated customer details, making changes to the customer
lists in the SSCE database, and sending changes back to the SQL Server Because IIS is used to connect to the SQL Server, Windows NT authenti-cation can be used to secure access. Since HTTP is used to transfer data, Se-cure Socket Layer (SSL) HTTP requests can be used to seSe-cure the data in tran-sit. Using HTTP makes deployment easier — most firewalls and proxy servers are configured to allow HTTP requests from outside the organization, so addi-tional ports and protocols do not need to be configured. Finally, the data is compressed in transit, making transmission efficient even over low bandwidth connections.
You will need to plan carefully the amount and nature of the data you will be transferring using RDA or replication. Storage on Pocket PC and HPC 2000 devices is limited (your entire customer database may not fit!), and the more data you involve in RDA or replication, the slower the transmission will be. In most cases, it is possible to identify subsets of the data, either by se-lecting rows (“select customers assigned to a particular salesperson”) or col-umns of data (“only these colcol-umns of data are relevant in the mobile situa-tion”). Ensure that you test your RDA or replication setup across the typical connection speeds your users will operate over, rather than the fast network connection you may use in development.
Remote Data Access
RDA allows you to pull the entire contents of a table, or selected columns and rows of data, from a Microsoft SQL Server 6.5, 7.0, or 2000 database and store the contents in an SSCE database table. The table in SSCE will automatically be created by the pull operation, and the pull process will convert SQL Server data types to appropriate SSCE data types. Primary key and other constraints will also be created in the local SSCE database table, but relationships with other tables will not be created.
Once a table is pulled down into an SSCE database the data can be ac-cessed and manipulated using ADOCE. You can add relationships with other tables, such as declaring foreign keys using ADOXCE. When a table is pulled you can turn on tracking, and this allows you to push the changes you have made to the SSCE table back up to the SQL Server database. You can specify a table name that will contain a list of conflicts detected when a push is made.
RDA also allows you to execute SQL statements from a Pocket PC or HPC 2000 on an SQL Server. Any SQL statement can be executed, including stored
136
Chapter 4•
SQL Server CE Remote Data Access and Replicationprocedures, INSERT, DELETE, and UPDATE statements, so long as the SQL statement does not return a result set.
RDA operates through Internet Information Server (IIS) running on Win-dows NT 4 or WinWin-dows 2000 and can use an SQL Server located on the same server as IIS or on a different server. The configuration of RDA can be a little tricky, as you need to configure IIS, SQL Server, and Windows NT or Windows 2000 security, so you should follow the instructions in the next section carefully.
RDA Installation and Configuration
Figure 4.1 shows the RDA architecture, the key elements of which are
● SQL Server CE Client Agent ● SQL Server CE Server Agent
The Client Agent implements the “SSCE.RemoteDataAccess.1.0” object that you program against to push and pull tables and to execute SQL state-ments on an SQL Server database. This functionality is implemented in the file
ssceca10.dll, and this should be installed in the \windows directory on the Pocket PC or HPC 2000 device.
The Server Agent receives push, pull, and SQL execute requests from the client agent and passes these requests on to the SQL Server. It manages the
re-Remote Data Access architecture
Figure 4.1
turned data and conflict resolution. This functionality is implemented in the file
sscesa10.dll, which is an ISAPI (Internet Server API) application that is in-stalled in a Web virtual directory and is managed by IIS.
REQUIREMENTS
To install and use RDA you will need
● A Pocket PC or HPC 2000 with SSCE installed (as described in the last
chapter), together with the filessceca10.dllcopied into the\windows
directory on the device
● A Windows NT or Windows 2000 server running IIS
● An SQL Server 6.5, 7.0, or 2000 server running on either the same server
as IIS or a different one
The Pocket PC or HPC 2000 should be capable of connecting to the IIS server. This can be a direct network connection using a network card or a dial-up RAS (Remote Access Server) connection. Making RAS connections is de-scribed in Chapter 8. Alternatively, you can use the SQL Server Relay through an ActiveSync connection using a serial or USB connection, as described later in this chapter.
While you can use Windows NT or Windows 2000, and either SQL Server version 6.5, 7.0, or 2000, the instructions in this chapter describe setting up RDA on a Windows 2000 Server with SQL Server 2000 run-ning on the same server. Instructions for Windows NT and other versions of SQL Server can be found in the on-line documentation.
The examples in this section will show how to setup RDA to the pubs
sample database shipped with SQL Server. The same principles can be applied to any database. The example here uses a Windows 2000 Server called “malahide” with an IP address of “190.100.100.120”. You should change these where appropriate to your server name and address as you follow through these instructions.
INSTALLING SSCE SERVER TOOLS
You will need to install the SSCE Server Tools on your server running IIS. Note that if you have IIS and SQL Server on separate machines, you need only run the SSCE Server Tools setup on the IIS machine.
● Run the ssce11.exe setup application.
● On the opening screen, ensure that “Server Tools” is selected and
“De-velopment Tools” is unselected.
● Click Next.
You can now follow the wizard steps to complete the SSCE Server Tools installation.
138
Chapter 4•
SQL Server CE Remote Data Access and ReplicationCONFIGURING IIS
The best place to start configuring RDA is with the IIS server. You will need to
● Create a virtual directory
● Copy the file sscesa10.dllinto the directory
● Set file and directory access permissions in this directory ● Specify the authentication control used on the website.
First, run the “Internet Information Services” application and create the virtual directory:
● Select the Start Programs Administrative Tools Internet Ser-vices Manager menu command.
Alternatively, on Windows 2000 Professional you can
● Run the Control Panel
● Double-click the “Administrative Tools” icon ● Double-click the “Internet Services Manager” icon
To create the virtual directory
● Expand out your server name (“malahide” in Figure 4.2), and “Default
Web Site”
● Right-click “Default Web Site” and select the New Virtual Web Direc-torymenu
Selecting this menu command starts the “Virtual Directory Creation Wizard.”
● Click Nextin the opening screen.
● Enter the alias name for the virtual directory (see Figure 4.3). In this ex-ample you should use sscePubs. Click Next.
The virtual directory needs a folder that it will map to for content.
● Use File Explorer to create a new folder \Inetpub\wwwroot\ssce Pubs.
● Select this folder in the “Web Site Content Directory” wizard page (see
Figure 4.4). Click Next.
The next screen allows you to specify the access permissions for this website. RDA is implemented through an ISAPI DLL, and so Execute permis-sions must be enabled. Other permispermis-sions are not required.
● Ensure only “Execute (such as ISAPI applications or CGI)” is selected in
the “Access Permissions” wizard page (see Figure 4.5). Click Next and then Finish.
The next stage is configuring Directory Security options for this new vir-tual directory. It is crucial to get this right; otherwise, you will end up with an insecure website or will not be able to access the website at all.
● Right-click the new sscePubsvirtual directory in the “Default Web Site” list in the “Internet Information Services” application.
● Select the Propertiesmenu command.
● Select the Directory Security tab in this dialog and click Edit.
This displays the “Authentication Methods” dialog (see Figure 4.6). By de-fault, anonymous login will be enabled (unless this option is changed in “De-fault Web Site” within Internet Information Services), and this specifies a login that will be used if the application making the HTTP request does not sup-ply a Windows NT or Windows 2000 username and password. By default, the username is IUSR_<servername>where <servername>is replaced with the name of the service IIS is running on (for example, IUSR_Malahide). Click-ing Editallows you to change the login name used for anonymous access.
“Integrated Windows authentication” allows the client application to specify a username and password that will be used to authenticate access to IIS and is more secure than using anonymous login. You should avoid using “Basic authentication.”
Internet Information Services
140
Chapter 4•
SQL Server CE Remote Data Access and ReplicationIn this example, anonymous login will be used; however, you may wish to use “Integrated Windows authentication” in a production system.
● Click the Editbox in the “Authentication Methods” dialog and record the
name of the anonymous username.
● Close all the open dialogs.
Note that the “Directory Security” page allows you to setup certificates for enabling Secure Socket Layer (SSL) for encrypting data in transit. This al-lows you to use HTTPS rather than HTTP when using RDA. You should en-able SSL when transmitting data across public networks such as the Internet. You now need to copy the ISAPI DLL into the folder used by the virtual directory you have just created and to set the correct permissions on the directory.
● Run File Explorer and copy the file sscesa10.dllfrom the install loca-tion (which is, by default, in the folder \Program files\Microsoft SQL Server CE\Server) to \InetPub\wwwroot\sscepubs.
Selecting the virtual alias name
Figure 4.3
● Run a command shell (cmd.exe), navigate to the \InetPub\wwwroot \sscepubsfolder, and run regsvr32on this DLL:
Regsvr32 sscesa10.dll
This registers the COM components in this DLL. This DLL needs to read and write files in the \InetPub\wwwroot\sscepubs folder, so the anony-mous user (or other users if you are using Integrated Windows authentication) must be granted access. Note that this is not done though the Internet Infor-mation Server administration program, since remote client does not need to perform the reads and writes — it is the DLL itself that does.
● Run File Explorer, and select the \InetPub\wwwroot\sscepubsfolder.
● Right-click the folder sscepubsand select Properties. ● Click the Securitytab (see Figure 4.7).
● Click the Addbutton to add another user to list of users granted
permis-sions on the directory.
● Select your IUSR_<servername> user (e.g., IUSR_MALAHIDE) from the
list of users, click the Addbutton and click OK. Selecting the Web site content directory
142
Chapter 4•
SQL Server CE Remote Data Access and Replication● Select the newly added user in the “Name” list, and click “Full Control”
in the “Permissions” list.
● Click OKto accept the change to the security settings.
TESTING THE IIS INSTALLATION
You can now test the IIS installation at a basic level by attempting to execute
sscesa10.dll through Internet Explorer.
● Run Internet Explorer on your server PC.
● Enter http://localhost/sscePubs/sscesa10.dll in the address line and press Enter.
If IIS is configured correctly you should see the word “Body” being dis-played. This indicates that IIS could connect and execute the ISAPI function in
sscesa10.dll. If you get an error 500 returned, check that you have copied
sscesa10.dllinto the virtual directory folder and that you have successfully registered the DLL with regsvr32.dll. If you get a permissions problem, check that you have assigned execute permissions to the virtual directory and read /write permissions on the folder.
Selecting the access permissions
Figure 4.5
Directory security
Figure 4.6
You can check the username being used to access IIS through the logs:
● Navigate to the folder \winnt\system32\logfiles\W3SVC1
● Open the most recently accessed log file with Notepad and scroll to
the end.
You will see lines like the following:
2001-04-06 12:28:37 190.100.100.98 - 190.100.100.120 80 POST /sscePubs/sscesa10.dll - 200 SSCEReplicationClient
This shows the date and time of the HTTP request followed by the IP dress of the requester and the IP address of IIS. The “-” between the two IP ad-dresses indicates that an anonymous login was used to access IIS. If Windows authentication was used, the domain name and username would be shown:
2001-04-05 18:30:40 190.100.100.98 MALAHIDE\Administrator 190.100.100.120
80 POST /sscePubs/sscesa10.dll - 200 SSCEReplicationClient
TESTING THE POCKET PC OR HPC 2000 CONNECTION
You can now test that your Pocket PC or HPC 2000 can connect to your IIS server by using Pocket Internet Explorer.
144
Chapter 4•
SQL Server CE Remote Data Access and ReplicationFolder security
Figure 4.7
● Run Pocket Internet Explorer on your Pocket PC or HPC 2000 device. ● Enter the address http://Malahide/sscepubs/sscesa10.dll in
the address line, replacing “Malahide” with the name of your server. Pocket Internet Explorer should display the text “Body” if it can connect to sscesa10.dll.
Note that the screen will be blank if you have “Fit to Screen” turned on, so use the View Fit to Screenmenu to turn off this option and en-sure that the text “Body” appears.
If you cannot connect, try using the IP address of your server rather than the server name. For example, enterhttp://190.100.100.120/sscepubs/
sscesa10.dllin the address line, replacing “190.100.100.120” with the IP ad-dress of your server. If this solves the problem it is likely that the Pocket PC or HPC 2000 cannot connect to a Domain Name Server (DNS), or the DNS is not configured properly. You can either fix the DNS problem or continue to use an IP address in place of the server name. You will need to be careful, though, if your server has a server-assigned IP address rather than a fixed IP address — the next time the server reboots, the IP address may change, and you will no longer be able to connect.
Once you have IIS configured, you can move on to configuring SQL Server.
CONFIGURING SQL SERVER 2000
When configuring SQL Server 2000 there are two types of security you can use:
● Mixed security (“SQL Server and Windows”):Users can login either
using an SQL Server login identifier or using integrated security with an automatic login using a Windows username.
● Windows only:Integrated security only with a Windows username. This
is sometimes known as “trusted security.”
When using RDA, the type of security is selected through a connection string from within your program. However, you will need to ensure that the connection string you choose uses a security type configured on SQL Server. In this example, “Mixed Security” will be used so that code using both SQL Server login identifiers and integrated security can be shown. To configure security
● Run the “SQL Server Enterprise Manager” by selecting the Start Pro-gramsMicrosoft SQL ServerEnterprise Managermenu command.
● Expand out “Microsoft SQL Servers” under “Console Root” in the “Tree” pane until you locate your server (e.g., “Malahide”).
If you cannot locate your server, right-click “SQL Server Group” in the “Tree” pane, select the New SQL Server Registration menu command, and follow the “Register SQL Server Wizard” instructions. Next, you will set the se-curity options for your server.
● Right-click your server name (e.g., “Malahide”) in the “Tree” pane, and
select the Propertiesmenu command.
● Select the Securitytab (see Figure 4.8).
● Ensure that “SQL Server and Windows” security is selected. ● Ensure that “All” is selected for “Audit level”.
Selecting “All” for “Audit level” causes SQL Server to write an event into the application event log for all attempts at logging into the server, regardless of whether they succeed or fail. Using this option when setting up RDA is use-ful, as you can quickly determine the username being used by IIS to access SQL Server. However, you should remember to reset this option at some stage
146
Chapter 4•
SQL Server CE Remote Data Access and ReplicationSQL Server security options
Figure 4.8
to ensure your event log does not become full. Figure 4.9 shows a typical event log for a successful login using integrated (trusted) security for the anonymous login user IUSR_MALAHIDE.
You will now need to check that users have the correct access rights to the database being accessed through RDA. In this example the user in ques-tion is IUSR_MALAHIDE and the database is pubs.
● Expand out your server (e.g., “Malahide”) in the “Tree” pane so that
“Se-curity” is visible, and then expand out “Se“Se-curity” so “Logins” is visible.
● Single-click “Logins” to display the current list of logins (see Figure 4.10). 04-P1914 8/24/2001 11:26 AM Page 146
SQL Server login
Figure 4.9
Notice that there is not currently an IUSR_MALAHIDE user added to this list. If you were to access the SQL Server through IIS with anonymous login, you would get an error explaining that IUSR_MALAHIDE was not a trusted user of the SQL Server. You now need to add a trusted user.
● Right-click “Logins” in the “Tree” pane and select the New Loginmenu
command.
● In the “SQL Server Login Properties —New Login” dialog (see
Fig-ure 4.11), click the button with the caption “. . .” to the right of the “Name” edit box.
● Double-click IUSR_MALAHIDE from the list of users and click OK. ● Click the “Database Access” tab in the “SQL Server Login Properties —
148
Chapter 4•
SQL Server CE Remote Data Access and ReplicationSQL Server logins
Figure 4.10
● Select the “Permit” check box for the “pubs” database.
● Select the “db_owner” role for the “pubs” database (see Figure 4.12). ● Click on OKto create the login.
Note that the user IUSR_MALAHIDE has had the “db_owner” role se-lected — this grants full access to all objects in this database. You would nor-mally not make a user a “db_owner” unless the user was a developer. Instead, you should set the permissions on all objects appropriately through the data-base’s user permission settings.
That completes the SQL Server configuration and the RDA setup —you now need to execute some RDA code to test the configuration. Remember, if you have trouble logging in to SQL Server or need to check the actual login being used, use the Event Viewer to look at the application event log.
Programming RDA
RDA is programmed through the RemoteDataAccessobject’s methods and properties. This object is created using the progid “SSCE.RemoteDataAc-cess.1.0”. A reference to the library “Microsoft SQL Server Control 1.0” should be added to the project using the eVB Project Add Referencesmenu com-mand. All the code shown in this section can be found in the project \Ex amples\PocketPC\RDA\RDA.ebp or \Examples\HPC2000\RDA\RDA.ebp
on the CDROM. The code to use RDA is the same for Pocket PC and HPC 2000.
Creating a new SQL login
Figure 4.11
PULLING DATA
The RemoteDataAccess object’s Pull method allows a table to be down-loaded from an SQL Server database and the data down-loaded into an SSCE table. The Pullmethod automatically creates the table in the SSCE database and pro-vides suitable data type conversions where the SQL Server database uses data types that are unsupported in SSCE.
The Pull method is passed an SQL statement that will be executed on the SQL Server, and this defines the data to be downloaded. In the simplest case, you can specify a SELECT * FROM tabletype statement to download all fields and all records from the table. Alternatively, you can specify a list of fields in place of “*” or add a WHEREclause to filter only particular records.
Be-150
Chapter 4•
SQL Server CE Remote Data Access and ReplicationDatabase access for an SQL Server login
Figure 4.12
cause almost any SQL statement producing a result set can be used, stored pro-cedures, views, or SELECTstatements joining several tables can be used. How-ever, if you later want to push data back up onto the server, you should en-sure that the recordset resulting from executing the SQL statement is updateable.
There are some limitations to be aware of when using the RDA Pull
method.
● With SSCE databases, object names are not case sensitive, whereas SQL
Server databases can optionally be configured as case sensitive. You can-not use RDA against a case-sensitive SQL Server database.
● You cannot pull data from a table having a primary key of type CHAR,
NCHAR, VARCHAR, or NVARCHAR where the length of the field is greater
than 255 characters. In a Pull, fields of this type with a length greater than 255 are mapped to NTEXT, and an NTEXT field cannot be a pri-mary key.
● When using RDA to pull data from a table that also participates in
repli-cation on the server, you must exclude the system column with the
ROWGUIDCOL attribute. By default, this column is named RowGuid.
● The number of columns pulled must be 253 or less. RDA adds two extra
columns for tracking changes made to pulled data.
● You need to apply service pack 6 to SQL Server 6.5 when tracking data
changes.
Pull can be used with two different data change tracking options:
● Tracking Off:The data is pulled from the SQL Server and SSCE does not monitor changes made to the data locally. Changes cannot be automati-cally pushed back to the server.
● Tracking On:Data changes made locally will be tracked. At a later stage, the changes can be pushed back to the server. Optionally, a table can be specified into which information on conflicts will be added.
In the first RDA example, a new database will be created called
\pubs.sdf, and the three tables authors, titles, and titleauthor will be pulled from the pubs database without tracking. The relationships will not automatically be created between these tables during the Pulloperation, so they will be added using ADOXCE techniques described in the previous chapter. The code for creating the database and pulling the tables is shown in Listing 4.1. This code is associated with a form called frmGetTables in the project \Examples\PocketPC\RDA\RDA.ebpor \Examples\HPC2000\ RDA\RDA.ebpon the CDROM. The form is illustrated in Figure 4.13.
The form prompts the user for the name or IP address of the IIS server and allows the SQL Server username and password to be specified — the code uses an SQL login id rather than integrated security in this example. Clicking the “OK” button proceeds with creating the database (deleting the old database if one exists) and then pulling the three tables. A label on the form notifies the user of progress. The form has a File System object called FileSystem1, and this is used to delete an existing database.
Listing 4.1 Pulling tables with RDA
Option Explicit Private sServer Private sUser Private sPassword
152
Chapter 4•
SQL Server CE Remote Data Access and ReplicationThe form frmGetTables
Figure 4.13
Me.Hide End Sub
Private Sub cmdOK_Click() sServer = Me.txtServerName sUser = Me.txtSQLUser sPassword = Me.txtPassword Call MakeDB Me.Hide End Sub
' makes the SSCE database by copying files from SQL Server ' using RDA.
Private Sub MakeDB()
Dim ceRDA As SSCE.RemoteDataAccess Dim oCatalog As adoxce.Catalog Dim sSvrCon, sLocalCon
' Delete database if it already exists, and then create On Error Resume Next
If FileSystem1.Dir("\Pubs.sdf") <> "" Then FileSystem1.Kill "\Pubs.sdf"
If Err.Number <> 0 Then
DisplayError "Deleting database: " Exit Sub
End If End If
Set oCatalog = CreateObject("ADOXCE.Catalog.3.1") If Err.Number <> 0 Then
DisplayError "Creating ADOXCE.Catalog object: "
Exit Sub End If
lblStatus.Caption = "Creating local database"
sLocalCon = "Provider=Microsoft.SQLSERVER.OLEDB.CE.1.0;" sLocalCon = sLocalCon & "Data source=\Pubs.SDF"
oCatalog.Create sLocalCon ' create the database If Err.Number <> 0 Then
DisplayError "Creating Database: " Exit Sub
End If
Set oCatalog = Nothing
lblStatus.Caption = "Connecting to remote server" Set ceRDA = CreateObject("SSCE.RemoteDataAccess.1.0") ' set RDA properties
ceRDA.InternetURL = "http://" & sServer & _ "/sscePubs/sscesa10.dll"
ceRDA.LocalConnectionString = sLocalCon
sSvrCon = "Provider=sqloledb;Data Source=(local);" sSvrCon = sSvrCon & "Initial Catalog=Pubs"
sSvrCon = sSvrCon & ";user id=" & sUser sSvrCon = sSvrCon & ";password=" & sPassword lblStatus.Caption = "Pulling Authors"
ceRDA.Pull "Authors", "SELECT * FROM Authors", _ sSvrCon, _
TRACKINGOFF
If Err.Number <> 0 Then
ReportEngineErrors "Pulling Authors:", ceRDA Exit Sub
End If
lblStatus.Caption = "Pulling Titles"
ceRDA.Pull "Titles", "SELECT * FROM Titles", _ sSvrCon, _
TRACKINGOFF
If Err.Number <> 0 Then
ReportEngineErrors "Pulling Titles", ceRDA Exit Sub
End If
lblStatus.Caption = "Pulling TitleAuthor"
ceRDA.Pull "TitleAuthor", "SELECT * FROM TitleAuthor", _ sSvrCon, _
TRACKINGOFF
If Err.Number <> 0 Then
ReportEngineErrors "Pulling TitleAuthor", ceRDA Exit Sub
154
Chapter 4•
SQL Server CE Remote Data Access and ReplicationSet ceRDA = Nothing
Call AddIndexesEtc(sLocalCon) End Sub
The function MakeDB uses the FileSystem1 control’s Dir method to
determine if the file \pubs.sdfalready exists. This method returns an empty
string if the file does not exist or the fully qualified filename if it does. The
Killmethod is used to delete the file:
If FileSystem1.Dir("\Pubs.sdf") <> "" Then FileSystem1.Kill "\Pubs.sdf"
If Err.Number <> 0 Then
DisplayError "Deleting database: " Exit Sub
End If End If
Next, ADOXCE is used to create the new database \pubs.sdf using a connection string specifying the OLEDB SSCE provider and the name of the file, as follows:
sLocalCon = "Provider=Microsoft.SQLSERVER.OLEDB.CE.1.0;" sLocalCon = sLocalCon & "Data source=\Pubs.SDF"
oCatalog.Create sLocalCon ' create the database
This connection string will also be used to specify the database into which RDA will place the pulled tables. When calling RDA you will need to create an object using the progid SSCE.RemoteDataAccess.1.0 and
spec-ify the URL to the IIS server, including the virtual directory and name of the ISAPI DLL sscesa10.dll. This is assigned to the InternetURL property.
The connection string for the SSCE database is specified in the LocalConnec tionStringproperty:
Set ceRDA = CreateObject("SSCE.RemoteDataAccess.1.0") ' set RDA properties
ceRDA.InternetURL = "http://" & sServer & _ "/sscePubs/sscesa10.dll"
ceRDA.LocalConnectionString = sLocalCon
The Pull method also needs a connection string for connecting to the
SQL Server. This connection string will be used on the IIS server, so you can use (local)for the Data Source(that is, the server name where SQL Server
is located). If your SQL Server is on another server, you will need to change this to the name of the server. In this case, the initial catalog is set to the pubs
database, and the user id and password are taken from the dialog:
sSvrCon = "Provider=sqloledb;Data Source=(local);" sSvrCon = sSvrCon & "Initial Catalog=Pubs"
sSvrCon = sSvrCon & ";user id=" & sUser sSvrCon = sSvrCon & ";password=" & sPassword
This code, when executed, results in the following connection string be-ing created:
Provider=sqloledb;Data Source=(local);Initial Catalog=Pubs; user id=sa;password=
It is important that “Initial Catalog” is used to specify the database being used; otherwise, the default database defined for the SQL Server user will be used (which is “master” by default). The Pull method is now called and is passed the following parameters:
● The name for the new table in the SSCE database, Authorsin this case.
● The SQL statement that provides the recordset for the new table. All
columns and all rows are selected.
● The SQL Server connection string created above.
● The tracking option for changed data. Tracking is not enabled in this case
as the TRACKINGOFFconstant is specified:
ceRDA.Pull "Authors", "SELECT * FROM Authors", _ sSvrCon, _
TRACKINGOFF
If Err.Number <> 0 Then
ReportEngineErrors "Pulling Authors:", ceRDA Exit Sub
End If
Note that the table being pulled must not exist in the SSCE database. In this case the database has been re-created so the tables cannot exist. In your code you may need to drop tables before pulling them.
As you can imagine, there are many things that can (and often do) go wrong with pulling data; therefore, it is essential to provide good error-check-ing code. In the above code, the subroutine ReportEngineErrorsis called if an error is detected, and this is passed the RDA Engine object. Listing 4.2 shows this subroutine — it is located in the module utils.bas.
Listing 4.2 Reporting RDA errors
Public Sub ReportEngineErrors(sMsg, oEngine As SSCE.Engine) Dim oEngErr As SSCEError
For Each oEngErr In oEngine.ErrorRecords MsgBox sMsg & vbCrLf & _
"SSCE Error: " & vbCrLf & oEngErr.Description _ & vbCrLf & "Number: " & oEngErr.Number & _ vbCrLf & "Native: " & oEngErr.NativeError
156
Chapter 4•
SQL Server CE Remote Data Access and ReplicationNext End Sub
The Engineobject has an ErrorRecordscollection containing one or more SSCEError objects describing the error. The code in Listing 4.2 iter-ates through the errors, displaying each in a message box. The Description
property does not always describe the error fully, so you should look up the
NativeError in the SSCE on-line documentation for more information. Search the help file for “Client Agent Errors” for a list of error numbers gener-ated by the SSCE Client Agent and “Server Agent Errors” for error numbers gen-erated by the IIS ISAPI agent.
Similar code is executed to pull the Titles and the TitleAuthor
tables. Once this has been done, the code in Listing 4.3 is called to add pri-mary and foreign keys between the tables. The techniques used in this code are described in Chapter 3, “ADOCE and ADOXCE.”
Listing 4.3 Adding indexes and keys
Private Sub AddIndexesEtc(sLocalCon)
' add indexes, primary keys etc for these new tables Dim oT As adoxce.Table
Dim o As adoxce.Catalog Dim oK As adoxce.Key Dim oIC As adoxce.Column
Set o = CreateObject("ADOXCE.Catalog.3.1") o.ActiveConnection = sLocalCon
On Error Resume Next
' set primary key on au_id for Authors table Set oT = o.Tables("Authors")
Set oK = CreateObject("ADOXCE.Key.3.1") oK.Type = adKeyPrimary
oK.Name = "pkAuthors"
Set oIC = CreateObject("ADOXCE.Column.3.1") oIC.Name = "au_id" oK.Columns.Append oIC oT.Keys.Append oK If Err.Number <> 0 Then DisplayError "Authors PK" End If
' set primary key on title_id for titles table Set oT = o.Tables("Titles")
Set oK = CreateObject("ADOXCE.Key.3.1") oK.Type = adKeyPrimary
oK.Name = "pkTitles"
Set oIC = CreateObject("ADOXCE.Column.3.1")
oIC.Name = "title_id" oK.Columns.Append oIC oT.Keys.Append oK If Err.Number <> 0 Then DisplayError "Titles PK" End If
' set primary key on au_id, title_id ' for titleauthor table
Set oT = o.Tables("TitleAuthor")
Set oK = CreateObject("ADOXCE.Key.3.1") oK.Type = adKeyPrimary
oK.Name = "pkTitleAuthor"
Set oIC = CreateObject("ADOXCE.Column.3.1") oIC.Name = "au_id"
oK.Columns.Append oIC
Set oIC = CreateObject("ADOXCE.Column.3.1") oIC.Name = "title_id" oK.Columns.Append oIC oT.Keys.Append oK If Err.Number <> 0 Then DisplayError "TitleAuthor PK" End If
' set foreign key on titleauthor table to authors table Set oK = CreateObject("ADOXCE.Key.3.1")
oK.Type = adKeyForeign oK.Name = "fkAuthor"
Set oIC = CreateObject("ADOXCE.Column.3.1") oIC.Name = "au_id" oIC.RelatedColumn = "au_id" oK.Columns.Append oIC oK.RelatedTable = "Authors" If Err.Number <> 0 Then DisplayError "Author FK" End If oT.Keys.Append oK
' set foreign key on titleauthor table to titles table Set oK = CreateObject("ADOXCE.Key.3.1")
oK.Type = adKeyForeign oK.Name = "fkTitles"
Set oIC = CreateObject("ADOXCE.Column.3.1") oIC.Name = "title_id" oIC.RelatedColumn = "title_id" oK.Columns.Append oIC oK.RelatedTable = "Titles" oT.Keys.Append oK Set o = Nothing If Err.Number <> 0 Then DisplayError "Title FK"
158
Chapter 4•
SQL Server CE Remote Data Access and ReplicationList of authors from a pulled table
Figure 4.14
End If End Sub
You can use this code to test your own RDA installation.
● Copy the files from the folder \Examples\PocketPC\RDA from the CDROM into a folder on your PC’s hard drive.
● Use File Explorer to remove the read-only settings on these files.
● Open the project rda.ebp in eVB.
● Open the code associated with the form frmRDA.ebf and change the constant definition sMyServerto your own IIS server name or IP address of the IIS server:
Const sMyServer = "190.100.100.120"
● Run the application on your Pocket PC.
● Select the Operations Create Tablesmenu command to display the
“Get Server Details” dialog.
● Enter your server name (it does not use the constant sMyServerin this
case) and enter a valid SQL login and password.
● Click OKto download the tables.
● To confirm that the data has been downloaded, select the Operations Show Authorsmenu command to list the contents of the “Authors” table (see Figure 4.14).
SQL PASS-THROUGH
The RDA Engine object’s SubmitSQLmethod can be used to execute any SQL
statement on an SQL Server providing the SQL statement does not return a recordset. The SQL statement could be an INSERT, DELETE, or UPDATE
state-ment or a stored procedure.
Note that you cannot determine the number of rows affected when using
SubmitSQL. Therefore, if you delete a number of rows using a WHERE
clause, you cannot determine how many, if any, records were deleted. When calling the RDA Engine object’s SubmitSQL method (see Listing 4.4), you will first need to specify the URL of the IIS server in the Internet URL property and the SSCE connection string in the LocalConnection String property. The format of the URL and connection string is exactly the same as for the Push method. The SubmitSQL method itself is passed two parameters:
● The SQL statement to execute
● The connection string used by IIS to connect to the SQL Server
As usual, you will need to check for errors, and these can be displayed using the ReportEngineErrorsmethod.
Listing 4.4 Using SubmitSQL
Public Sub RemoteSQL(sServer, sSQL) Dim sLocalCon, sSvrCon
Dim ceRDA As SSCE.RemoteDataAccess
Set ceRDA = CreateObject("SSCE.RemoteDataAccess.1.0") On Error Resume Next
sLocalCon = "Provider=Microsoft.SQLSERVER.OLEDB.CE.1.0;" sLocalCon = sLocalCon & "Data source=\Pubs.SDF"
ceRDA.InternetURL = "http://" & sServer & _ "/sscePubs/sscesa10.dll"
ceRDA.LocalConnectionString = sLocalCon
sSvrCon = "Provider=sqloledb;DataSource=(local)" sSvrCon = sSvrCon & ";Initial Catalog=Pubs;" sSvrCon = sSvrCon & "Integrated Security=SSPI" ceRDA.SubmitSQL sSQL, sSvrCon
If Err.Number <> 0 Then
ReportEngineErrors "Adding Author:", ceRDA Exit Sub
End If End Sub
160
Chapter 4•
SQL Server CE Remote Data Access and ReplicationAdding an author using RemoteSQL
Figure 4.15
In the project RDA.EBP the function RemoteSQL is used by the form frmAddAuthor.ebfto get details for each of the fields in the Authortable,
to produce an INSERT SQL statement containing these values, and to send
the INSERTstatement to the server (see Figure 4.15). The “Add Author” form
is accessed from the main form through the Operations Add Authormenu command.
The following code is executed when the Add button is clicked in the “Add Author” dialog:
Private Sub cmdAdd_Click() Dim s
s = "INSERT INTO Authors "
s = s & "(au_id, au_lname, au_fname, phone," s = s & "address, city, state, zip, contract)" s = s & "VALUES("
s = s & "'" & au_id.Text & "'," s = s & "'" & au_lname.Text & "'," s = s & "'" & au_fname.Text & "'," s = s & "'" & phone.Text & "'," s = s & "'" & address.Text & "'," s = s & "'" & city.Text & "'," s = s & "'" & state.Text & "'," s = s & "'" & zip.Text & "'," If contract.Value Then
s = s & "1)" Else s = s & "0)" End If RemoteSQL Me.txtServer, s Me.Hide End Sub
This code generates an SQL INSERT statement such as
INSERT INTO Authors
(au_id, au_lname, au_fname, phone,address, city, state, zip, contract)
VALUES('999-99-9999','First Name', 'Last Name','408 496 7224',
'1500 Bridge Street','Oakland','CA','94026',
Remember that this results in a record being added to the Authorstable
on the SQL Server, not on the local SSCE database. You will not see this new record in your Pocket PC or HPC 2000 application unless you again pull the Authorstable from SQL Server. There is no automatic update
with RDA.
TRACKING DATA WITH PULL
In the Engine object’s Push example described earlier in this chapter, the
TRACKINGOFFoption was used. The SSCE client agent does not track changes made on the Pocket PC or HPC 2000 device, so changes cannot automatically be sent back to the SQL Server.
When the TRACKINGON option is used, two new fields are added to the table being pulled, called s_BinaryKeyand s_Operation.Values are placed in these fields indicating the type of change operation (such as a record being inserted, deleted, or updated). A table with these two fields can be pushed back to the SQL Server, and the SSCE client agent will only send back to SQL Server those records that have been changed in some way.
Of course, it is possible that one particular record may be changed in SSCE and on the SQL Server database between the time the table was pulled and the time it is eventually pushed back to the server — this creates a conflict that must be resolved. When calling the Pull method you can specify the name of a table in the SSCE database that will contain records detailing any conflicts that have been detected.
In the \Examples\PocketPC\RDA\RDA.ebp project on the CDROM, the Stores table from the Pubs database is used to illustrate using the
TRACKINGON option and resolving conflicts. The Operations Pull Stores menu command executes the code in Listing 4.5 to pull the Stores table us-ing trackus-ing. The code is located in frmRDA.ebf.
162
Chapter 4•
SQL Server CE Remote Data Access and ReplicationThis code uses ADOXCE to determine if the Storestable already exists in the database. If it does, the table is deleted. This uses the DoesObject Existfunction described in Chapter 3.
Listing 4.5 Pulling “Stores” table
Public Sub PullStores()
Dim ceRDA As SSCE.RemoteDataAccess Dim sLocalCon, sSvrCon
Dim oCatalog As adoxce.Catalog On Error Resume Next
' first delete the table if it exists
Set oCatalog = CreateObject("ADOXCE.Catalog.3.1") If Err.Number <> 0 Then
DisplayError "Creating ADOXCE.Catalog object: " Exit Sub
End If
sLocalCon = "Provider=Microsoft.SQLSERVER.OLEDB.CE.1.0;" sLocalCon = sLocalCon & "Data source=\Pubs.SDF"
oCatalog.ActiveConnection = sLocalCon
If DoesObjectExist(oCatalog.Tables, "Stores") Then oCatalog.Tables.Delete ("Stores")
If Err.Number <> 0 Then
DisplayError "Deleting 'Stores' table: " Exit Sub
End If End If
Set oCatalog = Nothing
Set ceRDA = CreateObject("SSCE.RemoteDataAccess.1.0") ' set RDA properties
ceRDA.InternetURL = "http://" & sMyServer & _ "/sscePubs/sscesa10.dll"
ceRDA.LocalConnectionString = sLocalCon
sSvrCon = "Provider=sqloledb;Data Source=(local)" sSvrCon = sSvrCon & ";Initial Catalog=Pubs;" sSvrCon = sSvrCon & "Integrated Security=SSPI" ceRDA.Pull "Stores", "SELECT * FROM Stores", _
sSvrCon, _
TRACKINGON, "tblError" If Err.Number <> 0 Then
ReportEngineErrors "Pulling Stores:", ceRDA Else
MsgBox "Stores Pulled"
End If End Sub
An RDA Engineobject is created as usual, and the InternetURL prop-erty is assigned the URL of the SSCE Server agent DLL, sscesa10.dll. Next, the local connection string is assigned to the LocalConnectionString prop-erty. Both these two strings are the same as the previous Pullexample. The server connection string uses integrated SQL Server security rather than speci-fying an SQL Server login and password. Because anonymous access is used for IIS, the IUSR_MALAHIDE login will be used to access SQL Server. The con-nection string will look like the following:
Provider=sqloledb;Data Source=(local);
Initial Catalog=Pubs;Integrated Security=SSPI
The call to the Pullmethod specifies:
● The name of the table to create in the SSCE database, which is Stores.
● The TRACKINGONoption — this results in the two extra fields being added to the Storestable.
● The name tblErrorused for the errors table. This table will automati-cally be created when a Pushis performed.
Note that you should specify a different errors table name (tblError)
for each table being pulled. The errors table contains the same fields as the pulled table and is therefore specific to that table.
The Operations Show Storesmenu command can be used to display the pulled table and the contents of the s_BinaryKey and s_Operation
fields. When first pulled, the contents of these two fields will always be NULL— the values are set as records are changed.
CREATING A CONFLICT
To illustrate how conflicts can be detected, the Operations Create Stores Conflictmenu in the \Examples\PocketPC\RDA\RDA.ebp project adds a record to the SSCE database table Stores and another record to the SQL Server database table Stores with the same primary key value for stor_id, but different data in the other fields. When the table is finally pushed, the conflict will be detected.
The code to create the conflict is shown in Listing 4.6. Two INSERT state-ments are created in the strings sSQLLoc(for adding to the SSCE database) and
sSQLRem(for adding to the SQL Server database). The local record is inserted using the ADOCE’s Executemethod through the Connectionobject. The re-mote record is inserted using the RemoteSQLmethod described earlier in this chapter.
164
Chapter 4•
SQL Server CE Remote Data Access and ReplicationListing 4.6 Creating a conflict in the Stores table
Public Sub CreateStoresConflict() Dim sSQLLoc, sSQLRem, sLocalCon Dim oLocADO As ADOCE.Connection On Error Resume Next
' create the SQL INSERT statements
sSQLLoc = "INSERT INTO Stores (stor_id, stor_name, " sSQLLoc = sSQLLoc & "stor_address, city, state, zip)" sSQLLoc = sSQLLoc & "VALUES ('9999', 'Store 1', " sSQLLoc = sSQLLoc & "'11 High Street', "
sSQLLoc = sSQLLoc & "'Portland', 'OR', '89076')" sSQLRem = "INSERT INTO Stores (stor_id, stor_name, " sSQLRem = sSQLRem & "stor_address, city, state, zip)" sSQLRem = sSQLRem & "VALUES ('9999', 'Store 2', " sSQLRem = sSQLRem & "'1021 Lost Creek', "
sSQLRem = sSQLRem & "'Fremont', 'CA', '90019')" ' add record locally
Set oLocADO = CreateObject("ADOCE.Connection.3.1") If Err.Number <> 0 Then
MsgBox "Error Creating ADOCE Object" & _ vbCrLf & Err.Description
Exit Sub End If
sLocalCon = "Provider=Microsoft.SQLSERVER.OLEDB.CE.1.0;" sLocalCon = sLocalCon & "Data source=\Pubs.SDF"
oLocADO.Open sLocalCon If Err.Number <> 0 Then
MsgBox "Error opening local database" & _ vbCrLf & Err.Description
Exit Sub End If
oLocADO.Execute sSQLLoc If Err.Number <> 0 Then
MsgBox "Error adding local record" & _ vbCrLf & Err.Description
Exit Sub End If
oLocADO.Close
Set oLocADO = Nothing ' add record remotely
Call RemoteSQL(sMyServer, sSQLRem) MsgBox "Conflict Created"
End Sub
The easiest way to look at and edit records in an SQL Server database is through the Enterprise Manager. Click on “Tables” in the “pubs” database 04-P1914 8/24/2001 11:26 AM Page 164
in the “Tree” pane, right-click the table name “Stores”, and select the Open Table Return All Rowsmenu command. This displays the records in a table and is editable.
PUSHING A TABLE
Changes made locally in the Stores table can be pushed back to the SQL Server using the RDA Engineobject’s Push method. In Listing 4.7 the Inter netURL and LocalConnection strings are initialized as before. The Push
method is passed
● The name of the table to push, which is Storesin this case.
● The connection string used to connect to the SQL Server database. Once
again, this uses integrated security.
This code can be executed through the Operations Push Stores menu command in the sample application. Executing this menu command will result in a native error 28544 being generated. This is a client – agent error that the on-line documentation describes as “One or more error rows returned from RDA_PUSH; see associated _err table”. This results because of the conflict cre-ated in the previous section.
Listing 4.7 Pushing a table
Public Sub PushStores()
Dim ceRDA As SSCE.RemoteDataAccess Dim sLocalCon, sSvrCon
On Error Resume Next
Set ceRDA = CreateObject("SSCE.RemoteDataAccess.1.0") ' set RDA properties
ceRDA.InternetURL = "http://" & sMyServer & _ "/sscePubs/sscesa10.dll"
sLocalCon = "Provider=Microsoft.SQLSERVER.OLEDB.CE.1.0;" sLocalCon = sLocalCon & "Data source=\Pubs.SDF"
ceRDA.LocalConnectionString = sLocalCon
sSvrCon = "Provider=sqloledb;Data Source=(local);" sSvrCon = sSvrCon & "Initial Catalog=Pubs;"
sSvrCon = sSvrCon & "Integrated Security=SSPI" ceRDA.Push "Stores", sSvrCon
If Err.Number <> 0 Then
ReportEngineErrors "Pushing Stores:", ceRDA Exit Sub
Else
166
Chapter 4•
SQL Server CE Remote Data Access and ReplicationEnd If End Sub
The following happens when a conflict is detected:
● The offending record is removed from the SSCE Stores table
● The conflicting record on the SQL Server database Stores table is not changed — the SQL Server changes take precedence
● A record is added to the tblError table describing the conflict
Note that a Pushdoes not result in records changed on the SQL Server
table being downloaded to the SSCE table. You must perform a Pull
again to get changes from the SQL Server table, and to do this you must first drop the SSCE table. This can make RDA inefficient when pulling large tables.
The contents of the tblErrortable can be viewed in the sample appli-cation by selecting the Operations Show Conflicts menu command. The table will contain a single record describing the conflict with the following fields:
● s_errorDate:Date and time of the Pushthat detected the conflict
● s_OLDEBErr:Database access error causing the conflict
● s_OLDEBErrorString:A string describing the error
● Fields for each of the fields in the original table Stores containing the record resulting in the conflict
The conflict in this case results in an error 2627 “Violation of PRIMARY KEY constraint ‘UPK_storeid’”, since the conflict created earlier used the same primary key for the local record and the record added to the SQL Server database.
SQL Server CE Relay
Generally, when you have a serial or USB connection to ActiveSync, you can-not connect to other servers on the network using TCP/IP. This means that while you can use RDA when a network or dial-up connection is present, you cannot use RDA with ActiveSync. Release 1.1 of SSCE introduced the “SQL Server CE Relay” application — this acts as a point-to-point proxy between the Pocket PC or HPC 2000 device and the IIS server (see Figure 4.16).
By using relay, all connection methods between a Pocket PC and HPC 2000 devices can use RDA. You should note the following limitations in using relay:
● Relay must have a connection using ActiveSync 3.1
● Relay does not support Secure Socket Layer (SSL) encryption or Inte-grated Windows authentication
SQL Server CE relay architecture
Figure 4.16
CONFIGURING SQL SERVER CE RELAY
Before starting to configure SSCE Relay ensure that you have your Pocket PC or HPC 2000 connected to a desktop PC using ActiveSync 3.1 using a serial or USB connection. It is best to start by manually configuring SSCE Relay as it is easy to change parameters without having to reconnect your device to Ac-tiveSync. When you have Relay working, you can then configure Relay to start automatically when an ActiveSync connection is made.
Relay acts as a proxy server, so you will need to change your RDA code to use a proxy server. You will need to add the line shown in bold to any code that makes a Push, Pull, or SubmitSQLcall through the RDA Engine object:
ceRDA.InternetURL = "http://" & sServer & _ "/sscePubs/sscesa10.dll"
ceRDA.LocalConnectionString = sLocalCon ' enable this line if SSCE Relay is used
ceRDA.InternetProxyServer = "ppp_ peer:81"
sSvrCon = "Provider=sqloledb;DataSource=(local)" sSvrCon = sSvrCon & ";Initial Catalog=Pubs;"
168
Chapter 4•
SQL Server CE Remote Data Access and ReplicationsSvrCon = sSvrCon & "Integrated Security=SSPI"
ceRDA.SubmitSQL sSQL, sSvrCon
This line specifies that Relay is being employed (the Relay is a point-to-point peer proxy) using port 81.
You can now run the Relay server on your desktop PC. Run a command shell (cmd.exe) and change directory to \Program Files\Microsoft SQL Server CE\Relayand execute the following command:
sscerelay /clientport 81 /servername 190.100.100.120 /serverport 80
This command uses the following parameters:
● Clientport: Specifies the port number (81) specified in the Inter netProxyServerproperty shown in the code above.
● Servername: Server name or IP address (190.100.100.120) of the IIS server the RDA application connects to.
● Serverport: The port number on the server used by IIS. Port 80 is the default and is the most commonly used number. Sometimes port 8080 is used for security reasons.
An icon is added to the tray area on the desktop PC, and the icon ani-mates when transmission takes place. You should now be able to run the RDA application, and tables can be pulled and pushed as before. RDA errors are logged in a file called sscerelay.log in the same directory where
sscerelay.exeis located.
Once you have relay working you can close down the Relay application and then configure Relay to start automatically when an ActiveSync connection is made. To stop Relay issue the following command in the command shell:
sscerelay /stop
Now issue the following command. This is the same command as used before to start Relay, but with the additional parameter /register.
sscerelay /clientport 81 /servername 190.100.100.120 /serverport 80 /register
Note that Relay will not be available until the next time an ActiveSync connection is made and not for the current session after issuing this command.
Relay is automatically started when an ActiveSync connection is made and closed down when the connection is closed. You can unregister Relay by issuing the command
sscerelay /unregister
Security
In the examples shown above, anonymous authentication using the IUSR_ servername user has been used. In many situations you will want to
imple-ment NT authentication to secure access to your data. You can do this in IIS by
● Running the Internet Information Services administration program by
selecting the Start Programs Administrative Tools Internet Services Manageror through the Control Panel’s “Administrative Tools” icon
● Expanding out “Default Web Site” and right-clicking the RDA virtual
di-rectory name (e.g., sscePubs)
● Selecting the “Directory Security” tab and clicking the Editbutton ● Unchecking “Anonymous access” and checking “Integrated Windows
authentication”
● Clicking OK to close the dialogs
Note that you can choose “Basic authentication,” but this can be insecure as the username and password are not sent in encrypted form.
When Integrated Windows authentication is enabled you will need to supply the Windows username and password through the RDA Engine object. You can use the InternetLogin and InternetPassword properties for this.
ceRDA.InternetLogin = "MyUserName" ceRDA.InternetPassword = "MyPassword"
SQL Server Replication
SSCE can replicate data with SQL Server 2000 using merge replication. SQL Server replication provides a much more sophisticated mechanism for down-loading and updown-loading data than RDA. However, this comes at a cost.
● Careful planning is required and should involve network administration
staff and database administrators.
● Installation and configuration are more difficult.
● Merge replication is a large, complex subject and involves a significant
learning curve to gain full advantage of the technology. Merge replication offers the following advantages over RDA:
● Replication is two way — changes made on the Pocket PC or HPC 2000
device are sent to the SQL Server, and changes made on the SQL Server are sent back to the Pocket PC or HPC 2000 device in a single operation.
170
Chapter 4•
SQL Server CE Remote Data Access and Replication● Conflict resolution can be automatic using rules like “first modification
wins”, or you can write custom conflict resolves that run on the server. With RDA, changes made in the SQL Server are only downloaded when a Pulloperation is made, and this involves copying down the entire contents of the table. With merge replication, only the changes are copied down, so this is much more efficient. Further, to perform a two-way transfer of data with RDA you must first perform a Push, resolve conflicts, and then perform a Pull. With merge replication these three tasks are performed by a single synchro-nization.
Note that SSCE replication only works with SQL Server 2000 using merge replication.
The examples and discussion in this chapter are designed to allow a pro-grammer to setup and explore merge replication with SQL Server 2000. Before attempting to deploy an application that uses merge replication, you will need to carefully plan the topology and security of your solution. This will involve liaising with your network administration staff.
You should ensure that you have RDA working as described in the previ-ous sections of this chapter before attempting to implement merge repli-cation. The examples in the remainder of this chapter assume that IIS and the SSCE server and client agents have been correctly installed. The code examples assume that anonymous login is used to the IIS server. There are two stages to getting merge replication up and running.
● Configure merge replication on the SQL Server.
● Write code using the Replication object to initialize merge replication on
the Pocket PC or HPC 2000 device and then to periodically synchronize the data.
Synchronization of data with SSCE merge replication is not automatic. Your eVB application will need to decide when it is appropriate to synchronize data and then make a connection to SQL Server to perform synchronization.
The following terms are used with merge replication:
● Distributor:A process that manages the distribution of data from a
pub-lication to a subscriber. This runs through the SQL Server Agent service.
● Publication: The definition of data in a database that is available for
replication.
● Subscriber: An application that consumes data from a publication and
optionally returns data to the publication.
● Articles:The data elements being published in a publication. Although
in SQL Server articles can be views, stored procedures, or tables, only tables are used for SSCE replication.
Installation and Configuration
The instructions here show how to setup merge replication for some tables in the pubs database on SQL Server 2000.
UPDATING A STORED PROCEDURE
Before attempting to use merge replication with SSCE, you will need to update the stored procedure sp_Msmakegenerationin the masterdatabase in SQL
Server.
This should only be performed on SQL Server if no service packs have been installed. Service packs will automatically update this stored procedure. To update this stored procedure,
● Run SQL Server Enterprise Manager
● Select the Tools SQL Query Analyzermenu command
● Ensure that the masterdatabase is selected from the list of databases in the toolbar
● Select the File Openmenu command
● Select the file \Program files\Microsoft SQL Server CE\Inc \sp_MSMakeGeneration.sql
● Select the Query Execute menu command to execute the script and
update the stored procedure
The file sp_MSMakeGeneration.sql is installed as part of a “Devel-oper” SSCE installation andnot part of a “Server” installation. You will there-fore need to find the file on your development PC.
CREATING A SHARE FOR THE PUBLICATION
You will need to create a folder and then create a share on the same server as SQL Server. This will be used by publication for storing files associated with replication. The default option is to use the share \\myserver\c$, but you cannot set permissions and security on this share. Therefore, you should cre-ate a folder and a share and then configure the correct security on that share.
● Run the File Explorer, and create the folder \PubReplication.
● Right-click this new folder and select the Properties menu command.
172
Chapter 4•
SQL Server CE Remote Data Access and Replication● Click the Share this folder option button and ensure that PubRepli cationis entered for the “Share Name.”
● Click the Permissionsbutton.
You will need to add the following users to have permissions on this share:
● Administrator— this is the default user for the SQL Agent service, and
this user will require full access to the share.
● IUSR_servername— The anonymous IIS user will need read-only ac-cess to this share. In this example, it is IUSR_Malahide.
If you are using Windows authentication you will need to add read-only access to the share for any users that participate in replication. You should now set the security for these two users, as follows:
● Click the Addbutton in the “Permissions for PubReplication” dialog ● Double-click “Administrator” from the list of “Users, Computers, or
Groups” and click OK
● Select “Administrator” in the list of users, and click the “Full Control”
op-tion button in the “Allow” column
● Click the Addbutton again
● Double-click IUSR_servername— in this example the user is IUSR_ Malahide, from the list of “Users, Computers, or Groups”, and click OK ● Select IUSR_servername in the list of users, and click the Read option
button in the “Allow” column
● Click OKto close the dialogs
The “Create Publication Wizard” in the next section will use this share.
SET TING UP A PUBLICATION
A publication defines the data that can be replicated. The easiest way of cre-ating a publication is to use the “Create Publication Wizard” from the SQL Server Enterprise Manager.
● Run the SQL Server Enterprise Manager by selecting the Start Pro-grams Microsoft SQL Server Enterprise Manager menu com-mand.
● Expand the “Microsoft SQL Servers” tree list in the left pane to show your server (“Malahide” in this case), and “Databases” to show the list of databases.
● Right-click the pubsdatabase and select the New Publicationmenu command.
This starts the “Create Publication Wizard.” The steps in this wizard de-pend on whether a publication has been created already on this server. If a publication has not been created the wizard will take you through the details
Create Publication Wizard—Select Distributor
Figure 4.17
of the Distributor to use for the publication. The Distributor can be the SQL Server supporting the publication or another SQL Server. In this case, the steps assume that a Distributor is yet to be defined for the SQL Server and that the SQL Server itself will act as the Distributor.
● Click Next to skip the initial, opening sheet for the wizard.
● In the “Select Distributor” sheet select the first option “Make ‘Malahide’ its
own Distributor; SQL Server will create a distribution database and log” (see Figure 4.17). Click Next.
Publication uses the SQL Server Agent to generate information relating to replication. By default, the agent is not started automatically. The “Configure SQL Server Agent” sheet allows you to configure the SQL Server Agent to run automatically when the computer is started.
● Select “Yes, Configure the SQL Server Agent service to start automatically”
174
Chapter 4•
SQL Server CE Remote Data Access and ReplicationCreate Publication Wizard—Specify Snapshot Folder
Figure 4.18
The next page, “Specify Snapshot Folder,” is used to specify the name of the share that replication will use for holding snapshot and other information. In this example, you will use the share created in the previous section. Note that you should use a share and not a folder on a local drive.
● Enter \\server\PubReplication for the “Snapshot folder” and click Next (see Figure 4.18). In this example, \\Malahide\PubReplica tionis used.
The next sheet, “Choose Publication Database,” lists all the databases on the SQL Server and allows you to select the database to publish. In this case you will be publishing the “pubs” database.
● Select “pubs” from the list of databases and click Next.
There are three types of publication supported by SQL Server (Snapshot, Trans-actional, and Merge), but only Merge is supported by SSCE.
● Select “Merge Publication” from the list of publication types in the “Select
Publication Type” sheet, and click Next(see Figure 4.19).
Create Publication Wizard—Select Publication Type
Figure 4.19
The “Specify Subscriber Types” sheet allows you to select one or more types of subscriber. You must select at least “Devices running SQL Server CE” when using replication with SSCE.
● Select “Devices running SQL Server CE” from the list of subscriber types,
and any other subscriber types you want to test with. Click Next. The next sheet, “Specify Articles,” allows you to specify the tables that will be published through the publication. While SQL Server supports tables, stored procedures, and views as articles, you should only use tables for SSCE replication. You need to carefully define the set of tables to use, because you can end up limiting the ability to add new records to replicated tables. For ex-ample, if you set table “A” as an article, and table “B” has a foreign key rela-tionship with the primary key in “A” but is not specified as an article, then you will not be able to add records to table “A” in the SSCE database. Of course, the more tables you specify as articles, the slower replication will be. You need to plan carefully the data that needs to be updated in the SSCE database and specify articles accordingly.
176
Chapter 4•
SQL Server CE Remote Data Access and ReplicationCreate Publication Wizard—Specify Articles
Figure 4.20
● Select the following tables in the object list: authors, publishers,
roysched, sales, titles, titleauthor (see Figure 4.20) and click Next.
To enable merge replication, SQL Server needs to add a uniqueidentifier
column with a unique index and the attribute ROWGUIDCOLto each table that does not already have such a column. The “Article Issues” sheet requests you to confirm this database change.
● Select Next to confirm these database changes in the “Article Issues”
sheet.
Each publication will need a name through which it is accessed. In this case you will set the name to “pubs”, that is, the same as the database name. You can also specify a description for the publication in this sheet. Note that you can have several different publications on the same database — this can be use-ful when you have groups of users with different replication requirements.
