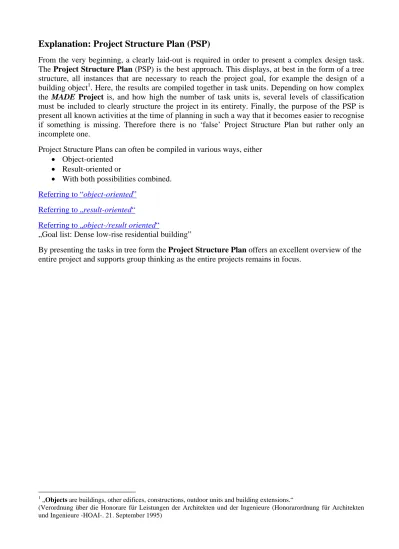

Explanation: Project Structure Plan (PSP)
From the very beginning, a clearly laid-out is required in order to present a complex design task. The Project Structure Plan (PSP) is the best approach. This displays, at best in the form of a tree structure, all instances that are necessary to reach the project goal, for example the design of a building object1. Here, the results are compiled together in task units. Depending on how complex the MADE Project is, and how high the number of task units is, several levels of classification must be included to clearly structure the project in its entirety. Finally, the purpose of the PSP is present all known activities at the time of planning in such a way that it becomes easier to recognise if something is missing. Therefore there is no ‘false’ Project Structure Plan but rather only an incomplete one.
Project Structure Plans can often be compiled in various ways, either
• Object-oriented
• Result-oriented or
• With both possibilities combined.
Referring to “object-oriented”
Referring to „result-oriented“
Referring to „object-/result oriented“
„Goal list: Dense low-rise residential building”
By presenting the tasks in tree form the Project Structure Plan offers an excellent overview of the entire project and supports group thinking as the entire projects remains in focus.
1
„Objects are buildings, other edifices, constructions, outdoor units and building extensions.“
(Verordnung über die Honorare für Leistungen der Architekten und der Ingenieure (Honorarordnung für Architekten und Ingenieure -HOAI-. 21. September 1995)
Project Structure Plan:
result-oriented
MADE- Project Task Teaching Activities
Model of Architectural Design Education (MADE)
Prof. Ralph Johannes, FB 9, Department: Architecture
Dense low-rise residential building
Ergonomics
Prof. Ulrich Burandt, FB 4, Department: Industrial Design
Evaluation Procedure
Jörg Pampe, Assistant, FB 10 Course of study: Townplanning
Explanation:
FB 9 = Department: Architecture, Bio- and Geological Studies FB 4 = Department: Industrial Design
Project Structure Plan:
object-oriented
Land for Development
Objects Object Component Object Areas Object Component Areas
0. Level 1. Level 2. Level 3 Level 4. Level
0. Building site > 1. Residential building >
1.1 Dwelling > 1.1.1 Entrance area > 1.1.1.1 House entrance
1.1.1.2 Porch
1.1.1.3 Porch with wardrobe area 1.1.1.4 “Schmutzschleuse” (Mud room)
1.1.2 Communication area > 1.1.2.1 Family room with dining corner
1.1.2.2 „Gute Stube” (Sitting room) 1.1.2.3 Conservatory
1.1.3 Individual area > 1.1.3.1 Parent’s bedroom
1.1.3.2 Single bed child’s bedroom 1.1.3.3 Hobby room
1.1.4 Home economic area > 1.1.4.1 Kitchen with snack corner 1.1.4.2 Utility room
1.1.5 Sanitation area > 1.1.5.1 Parent’s bathroom 1.1.5.2 Children’s shower room 1.1.5.3 WC
1.1.6 House service area > 1.1.6.1 Boiler room 1.1.6.2 Fuel storage room 1.1.6.3 House extension room/area
1.1.7 Storage area „inside“ > 1.1.7.1 Pantry room 1.1.7.2 Storage rooms
1.1.7.3 Cleaning equipment room
1.1.8 Development area „inside” >
1.1.8.1 Hallway
1.1.8.2 Stairs
1.2 Auxiliary rooms > 1.2.1 Storage area „outside” >
1.2.1.1 Parking space
1.2.1.2 Multi-purpose room 1.2.1.3 Summer house/ garden appliance storage room 1.2.1.4 Rubbish bin area
2. Free spaces > 2.1 Green area > 2.1.1 Front garden
2.1.2 Garden 2.1.3 Yard area
2.2 Free area > 2.2.1 Terrace 2.2.2 Balcony 2.2.3 Loggia 2.3 Development area „outside” > 2.3.1 Entrance path 2.3.2 Driveway entrance
Explanation: Project Structure Plan:
object-oriented
The term Project Structure Plan: object-oriented refers to a hierarchically-organised number of clearly defined object elements that, due to functional considerations, are in direct relation to one another and form a single large unit – an object.2 This larger unit consists of object elements or so-called object parts, object areas, object part areas through to object spaces and puts these in order via key numbers. By naming and ordering these object elements, adaptations on future models are also made possible.
2
„Objects are buildings, other edifices, constructions, outdoor units and building extensions.“
(Verordnung über die Honorare für Leistungen der Architekten und der Ingenieure (Honorarordnung für Architekten und Ingenieure -HOAI-. 21. September 1995)
Example: MOTEL
The entire function of the object “MOTEL” consists of offering travellers a replacement for the dwelling during a journey with their cars, specifically to remain their temporarily with their car. The following main functions can be derived from the absolute function:
• To recuperate
• To wash
• To dine
• To converse with others
• Guests register and de-register
• To park their cars
Corresponding rooms have to be created for these purposes. Under certain circumstances, the main functions can be grouped together spatially in such a way that recuperation, conversation, washing all take place in a living/sleeping room with a washing corner. A main function can also be further reduced into sub-functions such as e.g. washing in: physically washing one’s person, showering, bathing, so that more corresponding rooms are the result of further task functional division.
Depending on the level of pretense and need satisfaction among the guests, there can be a limited or larger division of main functions into part-functions, sub-functions with corresponding rooms, if necessary down to the basic function with the relevant positions (Object Matrix).
Project Structure Plan: object-oriented: MOTEL GUESTROOM
Object O.-Components O.-Areas O.-Sub-Areas Component Areas 1.0 Motel 1.1 Bed apparatus 1.1.1 Single room 1.1.1.1 Vestibule 1.1.1.1.a Wardrobe area 1.1.1.1.b
Suitcase storage area 1.1.1.1.c
Clothes storage area
1.1.1.2 Guest room
1.1.1.2.a
Sleeping area with repository
1.1.1.2.b
Seating area with repository 1.1.1.2.c Writing area 1.1.1.3 Sanitation unit 1.1.1.3.a Shower area 1.1.1.3.b Lavatory 1.1.1.3.c Washing area
The didactic significance of this approach is that the student is given the opportunity to develop an object from its known main functions.
Objects can be developed from two fixed viewpoints, those being:
(1) From the view of the guest or user. In this case, virtually all of the previously listed main functions (see above) will be of interest.
(2) The owner of the motel. In this case, the additional main function “efficient management” with the sub-functions such as preparing and arranging courses, storing food stuff, washing and drying clothing, ironing, cleaning rooms must also be part of the equation.
Project Structure Plan:
object/result-oriented
: Dense low-rise residential building
Land for Development Objects Object
Components
Object Areas Object Component Areas
1. Level 2. Level 3 Level 4. Level
0.Building site > • Gulliver Kübler • StephanTischmann 1. Residential building > • Markus Hartmann • Claudius Kühne 1.1 Dwelling> • Marco Solbach 1.1.1 Entrance area > • Ingrid Kalthoff • Wilhelm Hermann 1.1.1.1 House entrance 1.1.1.2 Porch 1.1.1.3 Wardrobe area 1.1.1.4 “Schmutzschleuse” (Mud room) • Ralph Johannes 1.1.2 Communication area >
1.1.2.1 Family room with dining corner
• Karsten Klocke
Christa Günther
1.1.2.2 „Gute Stube” (Sitting room) • Mirco Sprenger • Christa Günther 1.1.2.3 Conservatory • Oliver Heidmann • Olaf Broda 1.1.3 Individual area > • Christoph Glenk • Christian Tasche 1.1.3.1 Parent’s bedroom 1.1.3.2 Single bed child’s room
1.1.3.3 Hobby room 1.1.4 Home economic
area >
1.1.4.1 Kitchen with snack corner • Claas Janssen Antja Böttcher 1.1.4.2 Utility room • Heiner Wendel • Antje Böttcher 1.1.5 Sanitation area > • Doris Ostermann • Björn Serowy 1.1.5.1 Parent’s bathroom 1.1.5.2 Children’s shower room 1.1.5.3 WC 1.1.6
Home services rooms >
• Gerd Pfeiffer
• Christian
Zimmermann
1.1.6.1 Boiler room 1.1.6.2 Fuel storage room 1.1.6.3 House extension room
/ space 1.1.7
Storage area „inside“ >
• Sabine Kuller • Damian Matuschek 1.1.7.1 Pantry room 1.1.7.2 Storage rooms 1.1.7.3 Cleaning equipment room 1.1.8 Development area “inside” > • Bernd Gehrmann • Wilhelm Hermann 1.1.8.1 Hallway 1.1.8.2 Stairs 1.2 Auxiliary areas 1.2.1
Storage area “outside” >
1.2.1.1 Parking space • Johannes Röer, Oleg Besser 1.2.1.2 Multipurpose storage room 1.2.1.3 Summer house, Garden appliance storage area
1.2.1.4 Rubbish bin area
• Christoph Knauf 2. Free space 2.1 Free areas > • Christoph Obergfell • Toofan Taheri 21.1.Terrace 2.1.2 Balcony 2.1.3 Loggia 2.2 Green areas > • Holger Teuber • Mirko Sprenger 2.2.1 Front garden 2.2.2 Garden Yard area 2.3 Development areas “outside” > 2.3.1 Entrance path 2.3.2 Driveway entrance
