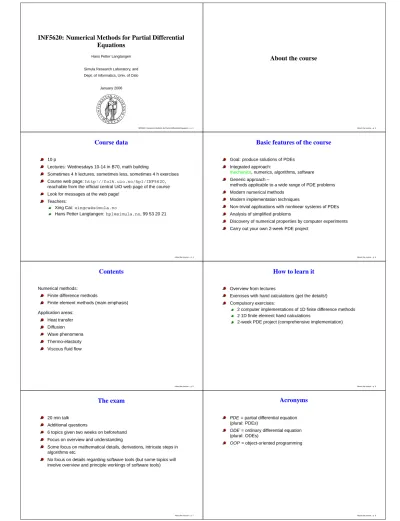

INF5620: Numerical Methods for Partial Differential Equations p. 1. About the course. Basic features of the course. Course data.

(1)

INF5620: Numerical Methods for Partial Differential

Equations

Hans Petter Langtangen

Simula Research Laboratory, and Dept. of Informatics, Univ. of Oslo

January 2006

INF5620: Numerical Methods for Partial Differential Equations – p. 1

About the course

About the course – p. 2

Course data

10 p

Lectures: Wednesdays 10-14 in B70, math building

Sometimes 4 h lectures, sometimes less, sometimes 4 h exercises Course web page:http://folk.uio.no/hpl/INF5620, reachable from the official central UiO web page of the course Look for messages at the web page!

Teachers:

Xing Cai:[email protected]

Hans Petter Langtangen:[email protected], 99 53 20 21

Basic features of the course

Goal: produce solutions of PDEs Integrated approach:

mechanics, numerics, algorithms, software Generic approach –

methods applicable to a wide range of PDE problems Modern numerical methods

Modern implementation techniques

Non-trivial applications with nonlinear systems of PDEs Analysis of simplified problems

Discovery of numerical properties by computer experiments Carry out your own 2-week PDE project

The exam

20 min talk Additional questions

6 topics given two weeks on beforehand Focus on overview and understanding

Some focus on mathematical details, derivations, intricate steps in algorithms etc.

No focus on details regarding software tools (but some topics will involve overview and principle workings of software tools)

Acronyms

PDE = partial differential equation

(plural: PDEs)

ODE = ordinary differential equation

(plural: ODEs)

OOP = object-oriented programming

(2)

Scientific software trends

Dramatic increase in the interest of problem solving environments: Maple, Matlab, Mathematica, S-Plus, ...

PDE solvers are often huge & expensive It’s difficult to build a flexible “Matlab” for PDEs, but

modern programming techniques and languages (e.g. C++) simplify the task

Diffpack is one attempt (used in this course)

Practical problem solving in industry makes use of large program packages – that is one reason why we use a package in this course New numerical projects in industry make increasing use of C++ instead of Fortran – therefore we expose students to C++ and more modern implementation techniques

We also see the potential of high-level languages like Python, in combination with C++ or Fortran, for solving PDEs – INF5660 may be a companion course

Diffpack

Numerical library for PDE solution

(Almost) a full problem-solving environment for PDEs A tool for programmers

Implementated in C++ and requires you to program in C++ Relies on object-oriented programming

Reduced implementation efforts for finite elements and PDEs Enables real-world problem solving in a course

Some features of Diffpack

Free version (though with array-size limition) Free version at UiO and for students

Over 200 commercial installations: www.diffpack.com

(Siemens, Xerox, DaimlerCrysler, Mitsubishi, NASA, Intel, Stanford, Cornell, Cambridge, Harvard, ...)

Some application areas:

basic model equations in applied math. (Laplace, heat and wave equations) viscous fluid flow (Navier-Stokes equations) many types of water wave equations heat transfer, incl. phase changes thermo-elasticity

stochastic PDEs and ODEs

computational engineering, medicine, geology, finance 1D, 2D, 3D within the same code lines

The Diffpack philosophy

Diffpack relies on programming and scripting

Diffpack is a set of libraries, consisting of C++ classes in hierarchies (OO design), applications (examples), and (Perl/Python) scripts A simulator mainly contains problem-dependent code; generic methods and data structures are already programmed in the libraries Diffpack acts as a computational engine with a layered design:

primitive layers: arrays, input/output, ...

intermediate layers: linear systems/solvers, grids, fields, ... higher-level layers: simulators, parallel toolbox, ...

How to learn Diffpack

Required:

good general programming skills some familiarity with the class concept thorough knowledge of the numerics the right attitude:

don’t reinvent the wheel – learn to use others’ code don’t try to understand all details – utilize black boxes Principles:

learn on demand rely on program examples stay cool!

Have access to a C++ textbook, e.g., Barton and Nackman’s Scientific

and Engineering C++

Literature

H. P. Langtangen: Computational Partial Differential Equations, Springer, 2nd ed., 2003

Warnings

Numerical solution of PDEs is a huge field in rapid growth; it takes years to master the field

Many other fields (computer science, physics, mathematics) are wired into PDE numerics

C++ takes time to master OOP takes time to understand

Diffpack requires you to have a thorough and generic understanding of the numerics

Difficulties with this course are usually not due to C++/OOP/Diffpack details – but lack of the proper overview of mathematics and numerics

1D heat conduction

(3)

Heat conduction in the continental crust

earth surface x s T x=b x=0 -Q mantle

Knowing the temperature at the earth’s surface and the heat flow from the mantle, what is the temperature distribution through the continental crust?

Interesting question in geology and geophysics – and for those nations exploring oil resources...

1D heat conduction – p. 17

Basic assumptions

x s T x=b x=0 -Q Physical assumptions:

Crust of infinite area Steady state heat flow

Heat generated by radioactive elements Physical quantities:

u(x): temperature

q(x): heat flux (velocity of heat)

s(x): heat release per unit time and mass

Summary of the model

Differential equations and boundary conditions:

−u00

(x) =f(x), x∈(0,1), u(0) = 0, u0 (1) = 1 (f(x)is a scaled version ofs(x))

Finite difference method (h= cell size):

u1 = 0

ui+1−2ui+ui−1 = −h2fi 2un−1−2un = −2h−h2fn which can be written as a linear system

Au=b whereu= (u1, . . . , un)andAis tridiagonal

What to do: FillAandb, solve foruby Gaussian elimination

Derivation of the model (1)

x x=0 x=b outflow inflow s(x)=R exp(-x/L) Physical principles:

First law of thermodynamics:

net outflow of heat=total generated heat

Fourier’s law: heat flows from hot to cold regions (i.e. heat velocity is poportional with changes in temperature)

q(x) =−λu0 (x)

λreflects the material’s ability to conduct heat

Derivation of the model (2)

x s(x) h q(x-h/2) q(x+h/2) x=0 x=b

The first law of thermodynamics: outflow = heat generation

q(x+h/2)−q(x−h/2) =s(x)h

Here: heat generations(x)due to radioactive decay,

s(x) =Rexp(−x/L) Divide left-hand side byhand makehsmall,

q(x+h/2)−q(x−h/2)

h =s(x) →q

0 (x) =s(x)

Derivation of the model (3)

We have more information (boundary conditions):

u(0) =Ts(at the surface of the earth)

q(b) =−Q(at the bottom of the crust)

We need to getuinto the model; combining the 1st law of thermodynamics

q0 (x) =s(x) with Fourier’s law

q(x) =−λu0 (x)

we can eliminateqand get a differential equation foru:

−d dx λdu dx =s(x) 1D heat conduction – p. 22

Mathematical model

−_dxdλdu dx =Re−x/L_, _u_{(0) =}_T s, λ(b)u0(b) =−Q or ifλis constant: −u00 (x) =λ−1_Re−x/L_, _u_{(0) =}_T s, λ(b)u0(b) =−Q Observe:u=u(x;λ, R, L, b, Ts, Q)

u varies with 7 parameters!

Suppose that we want to investigate the influence of the different parameters. Assume (modestly) three values of each parameter: Number of possible combinations:36_{= 729.}

Using scaling we can reduce the six physical parameters

λ, R, L, b, Ts, Qto only two!

Scaling

We introduce dimensionless quantities (see HPL A.1 and assume thatλis constant):

x= ¯xb, u=Ts+Qb¯u/λ, s(b¯x) =R¯s(¯x) −d 2_u_¯ d¯x2=γe −x/β¯ _, _u_¯_{= 0}_, du¯ dx¯(1) = 1 where we have two dimensionless quantities

β=b/L, γ=bR/Q

Dropping the bars, we get a problem on the form

−u00 (x) = f(x), x∈(0,1) u(0) = 0 u0 (1) = 1 1D heat conduction – p. 24

(4)

Discretization of our equation

1. Divide the domain[0,1]inton−1cells, the cell edgesxiare called nodes (i= 1, . . . , n) 2. Letui=u(xi),

our goal is to let the computer calculateu1,u2,u3, . . .

u u u u u 3 4 5 1 2 x=1 x=0 x

3. The differential equation is to be fulfilled at the nodes only:

−u00

(xi) =f(xi), i= 1, . . . , n 4. Derivatives are approximated by finite differences

Finite difference approximations (1)

Recall the definition of the derivative from introductory calculus: lim h→0 u(x+h)−u(x) h =u 0 (x) Idea: use this formula with a finiteh

– this is a finite difference approximation to the derivative What is the error in this approximation? Expandu(x+h)in a Taylor series and compute

1 h(u(x+h)−u(x)) = 1 h u(x) +u0 (x)h+1 2u 00 (x)h2₊_{· · · −}_u₍_x₎ = u0 (x) +1 2u 00 (x)h+· · ·

The largest error term isu00

h/2, proportional toh

Finite difference approximations (2)

An alternative finite difference approximation:

u0

(x)≈u(x+h)−u(x−h)

2h

Compute the error by Taylor series expansion ofu(x+h)and

u(x−h)aroundx: u(x+h)−u(x−h) 2h =u 0 (x) +1 6u 000 (x)h2₊_{. . .}

Leading error term proportional toh2

Finite difference approximations (3)

Approximation tou00 (x): u00 (x)≈u(x+h)−2u(x) +u(x−h) h2 or u00 (xi)≈ u(xi+h)−2u(x) +u(xi−h) h2

Alternative notation, noting thatui≡u(xi),ui+1=u(xi+h), and

ui−1=u(xi−h): [u00

]i≈ui+1−2ui+ui −1

h2

Show that the error isO(h2₎

(Hint: expandui+1,ui, andui−1in Taylor series aroundxiand insert the series in the finite difference formula)

The discrete differential equation

The equation at the nodes:

−u00

(xi) =f(xi), i= 1, . . . , n Replaceu00

by a centered finite difference:

u00

(xi)≈ui+1−2ui+ui −1

h2

⇒The differential equation is transformed to a system of algebraic equations:

−ui+1−2ui+ui−1

h2 =fi, i= 1, . . . , n

Discretizing boundary conditions

u(0) = 0simply becomesu1= 0

u0

(1) = 1can be approximated as

un+1−un−1

2h = 1

Problem:un+1is not in the mesh!

Solution: Use the discrete differential equation fori=n:

−un−1−2un+un+1

h2 =fn

and the discrete boundary condition to eliminateun+1

The result is

2un−1−2un=−2h−h2fn

System of equations

The complete set of finite difference equations,

u1 = 0

ui+1−2ui+ui−1 = −h2fi 2un−1−2un = −2h−h2fn can be written as a linear system on matrix form

Au=b whereu= (u1, . . . , un)andAis a tridiagonal matrix

Tridiagonal coefficient matrix

A=                     A1,1 A1,2 0 · · · 0 A2,1 A2,2 A2,3 . .. . .. . .. . .. ... .. . . .. . .. . .. . .. . .. ... .. . . .. . .. . .. . .. . .. ... ..

. . .. 0 Ai,i−1 Ai,i Ai,i+1 0 ...

.. . . .. . .. . .. . .. . .. . .. 0 .. . . .. . .. . .. . .. . .. . .. An−1,n 0 · · · 0 An,n−1 An,n                     A1,1 = 1, A1,2= 0, An,n−1= 2 Ai,i−1 = 1, Ai,i+1= 1, i= 2, . . . , n−1 Ai,i = −2, i= 2, . . . , n 1D heat conduction – p. 32

(5)

Solution of linear systems

The system is solved by Gaussian elimination: Compute the LU factorization:A=LU L: lower triangular matrix

U: upper triangular matrix SolveLy=b(easy) SolveU x=y(easy) Computational work: Ais dense:O(n3₎ Ais tridiagonal:O(n) 1D heat conduction – p. 33

Solution of linear systems; general case

LU factorization (Gaussian elimination) is the optimal solution method whenAis tridiagonal

However, in 2D and 3D problems,

LU factorization is a very slow process (Ais no longer tridiagonal) the structure ofAfavors iterative methods, which are very much faster than LU factorization

Iterative methods are discussed at the end of the course

Implementation

We want the computer to solve our linear system (for arbitraryn) This task can easily be accomplished using any computer language and any computer

The program fillsAandbwith numbers according to the derived formulas and then calls a Gaussian elimination procedure to findu In numerical simulation in general, computer codes are large and complicated and using effective tools is fundamental

We shall use a comprehensive tool, Diffpack, even for this very simple problem

The Diffpack code will be close similar codes in Python, Fortran 77, Matlab, C, C++, Java, ...

There is no particular advantage of using Diffpack (except that Diffpack has a solver for tridiagonal linear system), but it is a simple problem for the first Diffpack encounter

Diffpack intro

Diffpack intro – p. 36

The standard intro to a new language

A “scientific” Hello World code:

#include <iostream> // make input/output functionality available #include <cmath> // make math functions available: e.g. sin(x) int main () // function "main" is always the main program {

std::cout << "Hello, World! Give a number: ";

double r; std::cin >> r; // read number into double precision r double s = sin(r); // declare s and initialize with sin(r) std::cout << "\nThe value of sin(" << r << ") is " << s << "\n"; }

This is pure C++ - no Diffpack!

Compiling and linking

Compile: g++ -c hw.cpp

Link

hw.o

to the C/C++ standard and math library g++ -o app hw.o -lm

# -lm (link to math lib.) can often be left out: g++ -o app hw.o

Run the program: ./app

Compiling and linking in one step: g++ -o app hw.cpp -lm

C++ compilers can have other names: CC, xlC

The corresponding Diffpack program

Make special directory:Mkdir myfirstdp cd myfirstdp

Make a filehw.cppwith the following contents: #include <IsOs.h> // Diffpack tools for input/output #include <cmath> // make math functions available: sin(x) int main (int argc, const char* argv[])

{

initDiffpack (argc, argv); // should always be performed s_o << "Hello world! Give a number: ";

real r; s_i >> r; // read real number into r real s = sin(r);

s_o << "\nThe value of sin(" << r << ") is " << s << "\n"; }

/* Explanation:

IsOs.h : input/output in Diffpack, much like iostream real : real variables in Diffpack, equals double by default s_i : standard input in Diffpack, corresponds to std::cin s_o : standard input in Diffpack, corresponds to std::cout */

Compiling and linking

Diffpack is compiled using makefiles (which are automatically generated by the

Mkdir

command)

Compilation and linking is just a matter of Make (safe, but results in slow code) Make MODE=opt (fast code, but less safety checks)

Always start with

Make

; use only optimized mode (

MODE=opt

) when the program is thoroughly tested!

(6)

Arrays in Diffpack

Conventions as in Fortran: first index is 1 subscript syntax: a(i)

Different from C, where arrays start at 0 and brackets are used: a[0], a[1], ...

Diffpack arrays are not a built-in feature of C++, but they are defined by a programmer (and can in principle be extended by anybody to meet the demands in a particular application)

Code example with arrays

#include <Arrays_real.h>

int main (int argc, const char* argv[]) {

initDiffpack (argc, argv); int i,j,k,n,m,p; real r; n = m = 4; p = 3; Vec(real) w(n); w.redim (m); i = w.size(); w = -3.14; Vec(real) z; z = w; z(n-1) = w(1) - 4.3; z.print (s_o, "z"); z.printAscii(s_o,"z"); z.print (s_o); } Diffpack intro – p. 42

Heat conduction problem in Diffpack

Find a suitable test problem with known analytical solution

−u00 (x) =γexp (−βx), u(0) = 0, u0 (1) = 1 u(x) = γ β2 1−e −βx₊ 1−_βγe−β x, β6= 0 u(x) =x 1 +γ 1−1 2x , β= 0 Readβ,γandn InitializeAandb

Call a Gaussian elimination procedure in Diffpack to solve foru

Test problem for debugging

Choose e.g.n= 2and solve the discrete equations by hand,

u1= 0, 2u1−2u2=−2h−h2γe−β Solutionu2: u2= 1 + γ 2e −β

Whenβ= 0, the numerical solution is exact for alln(!), i.e., the analytical solution u(xi) =ui= (i−1)h 1 +γ 1−1 2(i−1)h

fulfills the discrete equations In general,u00

=const is solved exactly by finite difference methods on uniform grids

Diffpack/C++ program in F77/C style

Declaration and initialization of variables:

#include <Arrays_real.h> // for array functionality (and I/O) #include <cmath> // for the exponential function int main(int argc, const char* argv[])

{

initDiffpack(argc, argv);

s_o << "Give number of solution points: "; // write to the screen

int n; // declare an integer n (no of grid points)

s_i >> n; // read n from s_i, i.e. the keyboard real h=1.0/(n-1); // note: 1/(n-1) gives integer division (=0) Mat(real) A(n,n); // create an nxn matrix

ArrayGen(real) b(n); // create a vector of length n. ArrayGen(real) u(n); // the grid point values s_o << "Give beta: "; real beta; s_i >> beta; s_o << "Give gamma: "; real gamma; s_i >> gamma;

Fill matrix and right-hand side

A.fill(0.0); // set all entries in A equal to 0.0 b.fill(0.0); // set all entries in b equal to 0.0 real x; int i;

i = 1; A(i,i) = 1; b(i) = 0; // inner grid points:

for (i = 2; i <= n-1; i++) // i++ means i=i+1

{

x = (i-1)*h;

A(i,i-1) = 1; A(i,i) = -2; A(i,i+1) = 1; b(i) = - h*h*gamma*exp(-beta*x); } // i = n: i = n; x = (i-1)*h; A(i,i-1) = 2; A(i,i) = -2; b(i) = - 2*h - h*h*gamma*exp(-beta*x); if (n <= 10) {

A.print (s_o,"A matrix"); // print matrix to the screen b.print (s_o,"right-hand side"); // print vector to the screen }

Solve for u and write out solution

A.factLU(); A.forwBack(b,u); // Gaussian elimination s_o << "\n\n x numerical error:\n"; real u_exact;

for (i = 1; i <= n; i++) { // \n is newline

x = (i-1)*h;

if (beta < 1.0E-09) { // is beta zero? u_exact = x*(1 + gamma*(1 - 0.5*x)); } else {

u_exact = gamma/(beta*beta)*(1 - exp(-beta*x)) + (1 - gamma/beta*exp(-beta))*x; }

s_o << oform("%4.3f %8.5f %12.5e\n", x,u(i),u_exact-u(i));

}

// test for the case of only one cell:

if (n == 2) { s_o << "u(2)=" << 1+0.5*gamma*exp(-beta) << "\n"; } // write results to the file "SIMULATION.res"

Os file ("SIMULATION.res", NEWFILE); // open file for (i = 1; i <= n; i++)

file << (i-1)*h << " " << u(i) << "\n"; file->close();

}

Tridiagonal matrices

Ais tridiagonal

Mat(real) A(n,n)

is a dense matrix

Save memory and CPU-time: use tridiagonal matrix (this can be quite dramatic savings!)

MatTri(real) A(n)

A(i,-1)

,

A(i,0)

,

A(i,1)

forAi,i−1,Ai,i,Ai,i+1

Otherwise the program remains the same

(7)

Exercises

1. Perform the steps to be a Diffpack user

2. Type in the Diffpack version of our numerical “Hello World!” program, compile and run the program

3. Introduce MatTri instead of Mat in the 1D heat conduction program (Exercise 1.4 in HPL)

The heat conduction coefficient

The derivation of the 1D model ends in

−_dxd λdu dx =s(x) and allows a variableλ

λ: heat conduction coefficient

The continental crust is typically not homogeneous!

⇒ λvaries in space!

Model simplification:λ=λ(x) (λ=λ(x, y, z)would require a 3D model) Need to discretize the operator

d dx λdu dx Diffpack intro – p. 50

Discretization of variable coefficients

Mathematical problem −d dx λ(x)du dx =f(x), 0< x <1 u(0) = 0, u0 (1) = 1.

NEVER expand(λu0

)0_{(by the rule of product differentiation)} Two-step discretization, first outer operator:

d dx λ(x)du dx _x₌_x i ≈1 h  λdu dx _x₌_x i+ 1₂ −λdu dx _x₌_x i−12  

Then inner operator:

λdu dx _x₌_x i+ 1₂ ≈λi+1 2 ui+1−ui h Diffpack intro – p. 51

Finite difference equations

Left point, inner points, right point:

u1 = 0 λi+1 2(ui+1−ui)−λi−12(ui−ui−1) = −h 2_f i, i= 2, . . . , n−1 2λn(un−1−un) = −2hλn+1 2−h 2_f n Arithmetic mean: λi+1 2= 1 2(λi+λi+1) Harmonic mean: 1 λi+1 2 =1 2 1 λi + 1 λi+1 Geometric mean: λi+1 2= (λiλi+1) 1/2 Diffpack intro – p. 52

A nonlinear problem

A nonlinear problem – p. 53

Nonlinear heat conduction

Heat conduction typically depends upon the temperature

−_dxd λ(u)du dx =f(x), 0< x <1, u(0) = 0, u0 (1) = 1 This is a nonlinear differential equation

Using the same discretization reasoning as whenλ=λ(x),

u1= 0 λi+1 2(ui+1−ui)−λi−12(ui−ui−1) =−h 2_f i 2λn(un−1−un) =−2hλn+1 2−h 2_f n where λi+1 2≡λ(ui+12) A nonlinear problem – p. 54

The new problem

Our discrete equations containsλ(ui+1

2), i.e., the coefficients that we

previously put in the matrixA, now depend on the solutionuiand

ui+1

The linear system can be written as A(u)u=b This is a set of nonlinear algebraic equations The nonlinearity arises from theλ(u)u0

product in the underlying differential equation

We cannot use LU decomposition becauseAdepends onu What can we do?

Solution method

If we only had a linear equation, we would get a linear system Au=b, which know how to solve...

Idea: Guess a solutionu0_{and use this in}_λ_:

−d dx λ(u0₎du1 dx =f(x)

u1_{is – hopefully – a better approximation than}_u0

This approach suggest an iteration procedure: use solution from last iteration inλ

the equation is now linear

use the solution technology for−(λ(x)u0 (x))0

=f(x)

(8)

Algorithm

Guess a solutionu0_{(need not be correct)}

Solve the recursive equations

−d dx λ(u k−1₎du dx k! =f(x), uk_{(0) = 0}_,du dx k (1) = 1

until difference betweenuk_and_uk−1_{is small}

“Small” can mean _v u u t n X j=1 |uk j−uk −1 j |2≤

Pros:may reuse previous code by inserting an evaluation ofλ(ui+1 2)

Cons:slow convergence (faster methods exist)

The complete scheme (1)

Fori= 1,2, . . . , n−1: 1 2 λ(uk−1 i ) +λ(uk −1 i+1) uk i+1−uki − 1 2 λ(uk−1 i−1) +λ(uk −1 i ) uk i−uki−1 =−h2_f₍_x i) A nonlinear problem – p. 58

The complete scheme (2)

Fori=n 2λ(uk−1 n )(ukn−1−ukn) =−2hλn+1 2−h 2_f₍_x n) Now, λn+1 2= 1 2 λ(u k−1 n ) +λ(uk −1 n+1) Using the boundary condition

uk−1 n+1−uk −1 n−1 2h = 1, k >1 gives λn+1 2= 1 2 λ(uk−1 n ) +λ(uk −1 n−1+ 2h) A nonlinear problem – p. 59

Implementation

Reuse old program (Heat1D) with:

Loop around system generation and solution Two arrays

uk

and

ukm

Initial guess in

ukm

New auxiliary variables (for iteration etc.) Function

lambda

to evaluateλ(u) Update

A

and

b

for each step

Call

A.resetFact()

to enable new LU decomposition prior to

call to

A.factLU()

Check for termination upon convergence Set

ukm

equal

uk

before new iteration

The central code segment (1)

int k = 0; // iteration counter

const int k_max = 200; // max no of iterations real udiff = INFINITY; // udiff = ||uk - ukm|| const real epsilon = 0.0000001; // tolerance in termination crit. while (udiff > epsilon && k <= k_max)

{

k++; // increase k by 1

A.fill(0.0); b.fill(0.0); // initialize A and b for (i = 1; i <= n; i++) { if (i == 1) { A(1,0) = 1; } else if (i > 1 && i < n) { lambda1 = lambda(ukm(i-1), m); lambda2 = lambda(ukm(i), m); lambda3 = lambda(ukm(i+1), m); A(i,-1) = 0.5*(lambda1 + lambda2); A(i, 0) = -0.5*(lambda1 + 2*lambda2 + lambda3); A(i, 1) = 0.5*(lambda2 + lambda3); } else if (i == n) { A(i,-1) = 2*lambda(ukm(i), m); A(i, 0) = - A(i,-1); b(i) = -(h*lambda(ukm(i-1)+2*h,m)+lambda(ukm(i),m)); } } A nonlinear problem – p. 61

The central code segment (1)

A.resetFact(); // ready for new factLU

A.factLU(); A.forwBack(b,uk); // Gaussian elimination // check termination criterion:

udiff = 0;

for (i = 1; i <= n; i++) udiff += sqr(uk(i) - ukm(i)); udiff = sqrt(udiff);

s_o << "iteration " << k << ": udiff = " << udiff << "\n"; ukm = uk; // ready for next iteration

} A nonlinear problem – p. 62

No of iterations

λ(u) =um 0 10 20 30 40 50 60 0 0.5 1 1.5 2 2.5 3 3.5 4 no of iterations m number of iterations n=100 A nonlinear problem – p. 63

Numerical error

λ(u) =um -35 -30 -25 -20 -15 -10 -5 0 0 0.5 1 1.5 2 2.5 3 3.5 4 log(error) m numerical error n=100 A nonlinear problem – p. 64

(9)

Convergence

Define the error from iterations:

EI=||uk−uk−1|| where|| · ||is some norm, e.g.,

||u||= v u u t1 n n X i=1 u2 i

Define the discretization error:

E∆=||u−uk||

Basic issue in discretization: how doesE∆vary with the cell sizeh?

Investigation: makeEInegligible (EIE∆), computeE∆for

different choices ofh

Common model for relating discretization error to grid size:

E∆=Chr

fitCandrto data (linear least squares): logE∆= logC+rlogh

y=aξ+b, y= logE∆, b= logC, ξ= logh, r=a

DoesE∆→0ash→0? And how fast?

Second-order finite difference approximations suggestr= 2

Convergence plot (1)

λ(u) =um -10 -9 -8 -7 -6 -5 -4 -3 -2 -8 -7 -6 -5 -4 -3 -2 -1 log(error) log(h) numerical error m=0.2 m=1.2 m=3.2 A nonlinear problem – p. 66

Convergence plot (2)

λ(u) = (1 +u)m -24 -22 -20 -18 -16 -14 -12 -10 -8 -6 -4 -8 -7 -6 -5 -4 -3 -2 -1 log(error) log(h) numerical error m=0.2 m=1.2 m=3.2 A nonlinear problem – p. 67

Summary of results

Number of iterations increase withm m= 1: numerical solution is exact (!)

λ(u) =um_:_O₍_hr₎_for_r_≤₁

(despite our use ofO(h2₎_{accurate finite differences!)}

λ(u) = (1 +u)m_:_O₍_h2₎_{– as expected}

Explanation:um_gives_u0 (0)→ ∞,

need a very fine grid aroundx= 0to get accurate results Note: theory does not extend well to nonlinear problems; systematic experiments may be an important additional tool

Simulation of waves

Simulation of waves – p. 69

Vibration of a string

Mathematical model: the wave equation

∂2_u

∂t2 =γ 2∂2u

∂x2, x∈(a, b)

- Time- and space-dependent problem - This is a partial differential equation (PDE) - Boundary conditions atx=a, b(uor∂u/∂x) - Initial conditions: knownu(x,0)andut(x,0) Explicit finite difference method:

u`+1

i =f(u`i, ui`−1, u`i+1, u`

−1

i )

Implementation: run through a space-time grid and computeu`+1

i for each grid point

Derivation of the model (1)

y

x

Physical assumptions:

the string = a line in 2D space no gravity forces

up-down movement (i.e., only iny-direction) Physical quantities:

r=xi+u(x, t)j: position T(x): tension force (along the string)

θ(x): angle with horizontal direction

%(x): density

y x T T (x-h/2) (x+h/2) u(x,t) ρ ∆s h

Physical principle: Newton’s second law applied to a small (infinitesimal) part of the string

sum of forces=total mass·acceleration

(10)

Derivation of the model (3)

Great mathematicians had great problems with understanding how to set up the mathematical model for a vibrating string

Euler, D’Alambert and Taylor all made various attempts (which look “stupid” by today’s standards...)

Lagrange was the first one to derive the right partial differential equation

This happened about 100 years after Newton had presented the mathematics and physics we need to derive this PDE

The derivation to be presented here is typical: simple principles, but lots of mathematical details; it’s easy to get lost in the details

Derivation of the model (4)

y x T T (x-h/2) (x+h/2) u(x,t) ρ ∆s h Acceleration: a=∂ 2_r ∂t2= ∂2_u ∂t2j

Newton’s law applied to a string element: Tx+h 2 −Tx−h₂=%(x)∆s∂ 2_u ∂t2(x, t)j

⇒A vector equation with two components

y x T T (x-h/2) (x+h/2) u(x,t) ρ ∆s h The tension reads

T(x) =T(x) cosθ(x)i+T(x) sinθ(x)j Newton’s law in component form

T(x+h 2) cosθ(x+ h 2)−T(x− h 2) cosθ(x− h 2) = 0 T(x+h 2) sinθ(x+ h 2)−T(x− h 2) sinθ(x− h 2) =%(x)∆s ∂2_u ∂t2 Simulation of waves – p. 75

Divide the first component byhand leth→0

∂ ∂x Tcosθ

= 0 Similarly for the second component

∂ ∂x Tsinθ =%lim h→0 ∆s h _∂2_u ∂t2 Simulation of waves – p. 76

Derivation of the model (7)

We need to determine the limitlimh→0∆s/h

Assume linear segment, then by Pythagoras:

∆s2₌_h2_{+ ∆}_u2_, _i.e., ∆s h = limh→0 s 1 + ∂u ∂x 2 Furthermore, tanθ=∂u ∂x,

which means that

sinθ=√ tanθ 1 + tan2_θ= ∂u ∂x q 1 + ∂u ∂x 2 Simulation of waves – p. 77

Altogether this gives

% " 1 + ∂u ∂x 2#12 ∂2_u ∂t2= ∂ ∂x  T " 1 + ∂u ∂x 2#−1 2 ∂u ∂x  

which is a nonlinear partial differential equation.

Assume small vibrations, i.e.,(∂u/∂x)2_{1. For small vibrations,}

θ(x)≈0, such that 0 = ∂ ∂x Tcosθ = ∂ ∂x T 1−θ 2 2!+. . . ≈ ∂ ∂xT

This means thatTis approximately a constant and that the square roots are 1

Summing up

The governing PDE:

∂2_u

∂t2=c 2∂2u

∂x2 c 2₌_{T /%}

String fixed at the ends:

u(a, t) =u(b, t) = 0 String initially at rest:

u(x,0) =I(x), ∂u ∂t(x,0) = 0

The scaled wave equation problem

We scale the equations (γ≡1, but kept as a label) and arrive at the following initial-boundary value problem:

∂2_u ∂t2=γ 2∂2u ∂x2, x∈(0,1), t >0 u(x,0) =I(x), x∈(0,1) ∂ ∂tu(x,0) = 0, x∈(0,1) u(0, t) = 0, t >0, u(1, t) = 0, t >0 Simulation of waves – p. 80

(11)

Finite difference approximation (1)

Introduce a grid in space-time

xi = (i−1)h, i= 1, . . . , n t` = `∆t, `= 0,1, . . . h x t ∆t Simulation of waves – p. 81

Finite difference approximation (2)

Central difference approximations:

∂2 ∂x2u(xi, t`) = u` i−1−2uì+uì+1 h2 +O(h 2₎ ∂2 ∂t2u(xi, t`) = u`−1 i −2uì+uì+1 ∆t2 +O(∆t 2₎

Insert these in the PDE

∂2_u

∂t2=γ 2∂2u

∂x2

Finite difference approximation (3)

The PDE has been transformed to a difference equation

u`−1

i −2u`i+u`i+1

∆t2 =γ

2uì−1−2uì+uì+1

h2

Alluvalues at time levels`and`−1are assumed known

⇒Only one unknown term:u`+1

i

⇒Can solve foru`+1

i explicitly: u`+1 i = 2uì−u` −1 i +γ2 ∆t2 h2 uì−1−2uì+uì+1 This scheme is classified as a an explicit finite difference method; no need to solve coupled systems of linear equations (⇒easier programming!)

The computational procedure

h x

t

∆t

Can findu`+1

i for oneiat a time ifuatt`andt`−1is known

Needu−1

i andu0ifor allito start the algorithm

Initial conditions (1)

u0

i=I(xi): evaluate directly A bit more challenging:

∂u ∂t t=0 = 0 ⇒ u 1 i−u −1 i 2∆t = 0 ⇒ u −1 i =u1i butu−1

i is outside the legal time grid... Idea: eliminateu−1

i by using the discrete PDE att= 0, which gives a special formula for the first step:

u1 i=u0i+γ2 ∆t2 2h2 u 0 i−1−2u0i+u0i+1 Simulation of waves – p. 85

Initial conditions (2)

It is awkward to have a special first step. Instead we introduce

u−1 i =u0i+γ2 ∆t2 2h2(u 0 i+1−2u0i+u0i−1)

and use the standard difference equation also at the first step

Algorithm

Define storageu+ i ,ui,u−i forui`+1,u`i,u` −1 i and setC=γ∆t/h Set initial conditions:ui=I(xi), i= 1, . . . , n

Define the artificial quantityu−

i (i= 2, . . . , n−1) u− i =ui+1 2C 2₍_u i+1−2ui+ui−1),

Sett= 0; whilet < tstop

t=t+ ∆t

Update all inner points (i= 2, . . . , n−1)

u+

i = 2ui−u−i +C2(ui+1−2ui+ui−1)

Set boundary condition:u+

1= 0, u+n= 0 Initialize for next stepu−

i =ui, ui=u+i, alli

Diffpack code in F77/C style

We use functions in C++

void timeLoop (ArrayGen(real)& up, ArrayGen(real)& u, ArrayGen(real)& um, real tstop, real C); void setIC (real C, ArrayGen(real)& u0, ArrayGen(real)& um);

The main program:

ArrayGen(real) up (n); // u at time level l+1 ArrayGen(real) u (n); // u at time level l ArrayGen(real) um (n); // u at time level l-1 // get n and Courant number C=dt/dx from the user timeLoop (up, u, um, tstop, C); // finite difference scheme

(12)

The timeLoop function

void timeLoop (ArrayGen(real)& up, ArrayGen(real)& u, ArrayGen(real)& um, real tstop, real C) {

int n = u.size(); // length of the vector u (no of grid points) real h = 1.0/(n-1); // length of grid intervals

real dt = C*h; // time step, assumes unit wave velocity!!

real t = 0; // time

setIC (C, u, um); // set initial conditions

int i; // loop counter over grid points

int step_no = 0; // current step number

while (t <= tstop) {

t += dt; step_no++; // increase time; count no. of steps // update inner points according to finite difference scheme: for (i = 2; i <= n-1; i++)

up(i) = 2*u(i) - um(i) + sqr(C)*(u(i+1) - 2*u(i) + u(i-1)); up(1) = 0; up(n) = 0; // update boundary points: um = u; u = up; // update data struct. for next step }

}

The setIC function

void setIC (real C, ArrayGen(real)& u0, ArrayGen(real)& um) {

int n = u0.size(); // length of the vector u

real x; // coordinate of a grid point

real h = 1.0/(n-1); // length of grid intervals real umax = 0.05; // max string displacement

int i; // loop counter over grid points

for (i = 1; i <= n; i++) { // set the initial displacement u(x,0) x = (i-1)*h;

if (x < 0.7) u0(i) = (umax/0.7) * x; else u0(i) = (umax/0.3) * (1 - x); }

for (i = 2; i <= n-1; i++) // set the help variable um: um(i) = u0(i) + 0.5*sqr(C) * (u0(i+1) - 2*u0(i) + u0(i-1)); um(1) = 0; um(n) = 0; // dummy values, not used in the scheme }

Dumping solution to file

We dump the solution at each time point to file such that we can make a movie after the simulation is finished

Diffpack has tools for managing a large number of curves on files

CurvePlotFile

: manager for a collection of curves

CurvePlot

: a variable that holds a curve

Code example:

int n = u.size(); // the number of unknowns real h = 1.0/(n-1); // length of grid intervals CurvePlot plot (plotfile); // a single plot plot.initPair ("displacement", // plot title

oform("u(x,%g)",t), // name of function

"x", // name of indep. var.

oform("C=%g, h=%g",C,h)); // comment

for (int i = 1; i <= n; i++) // add (x,y) data points plot.addPair (h*(i-1) /* x-value */, u(i) /* y value */); plot.finish();

Visualizing the results

The simulation produces a Diffpack case with name

SIMULATION

Central files generated in the simulation:

SIMULATION.dp

— logfile for simulation, i.e., runtime

SIMULATION.map

— overview of data files

SIMULATION.files

— explanation of what the files are

.SIMULATION_1

,

.SIMULATION_2

, ... the (hidden) data

files

Animation

Make the animation using Diffpack features: curveplotmovie gnuplot SIMULATION.map -0.1 0.1

(script) (program) (name of map file) (ymin) (ymax)

Can replace

gnuplot

by

matlab

curveplotmovie matlab SIMULATION.map -0.1 0.1

Varying the Courant number C

C=γ∆t h, t= 0.5, h= 1/20 0 0.1 0.20.3 0.4 0.5 0.6 0.70.8 0.9 1 −0.02 −0.015 −0.01 −0.005 0 0.005 0.01 0.015 (a)C= 1.0 0 0.1 0.2 0.30.4 0.5 0.6 0.7 0.8 0.9 1 −0.1 −0.08 −0.06 −0.04 −0.02 0 0.02 0.04 0.06 0.08 (b)C= 1.05 Simulation of waves – p. 94

Varying the Courant number C

0 0.1 0.2 0.3 0.40.5 0.6 0.7 0.80.9 1 −0.015 −0.01 −0.005 0 0.005 0.01 0.015 (c)C= 0.8 0 0.1 0.2 0.30.4 0.5 0.6 0.70.8 0.9 1 −0.015 −0.01 −0.005 0 0.005 0.01 0.015 (d)C= 0.3 Simulation of waves – p. 95

Another numerical example

−10 −5 0 5 10 0 0.2 0.4 0.6 0.8 1 Time t=0.0, σ=103 −10 −5 0 5 10 0 0.2 0.4 0.6 0.8 1 Time t=15.0, C=1.0 −10 −5 0 5 10 0 0.2 0.4 0.6 0.8 1 Time t=15.0, C=0.8 −10 −5 0 5 10 0 0.2 0.4 0.6 0.8 1 Time t=0.0, σ=1 −10 −5 0 5 10 0 0.2 0.4 0.6 0.8 1 Time t=15.0, C=0.99 −10 −5 0 5 10 0 0.2 0.4 0.6 0.8 1 Time t=15.0, C=0.8 Simulation of waves – p. 96

(13)

Numerical stability and accuracy

We have two parameters:∆tandh

How do we choose∆tandh? Too large∆tandhgive

- too large numerical errors

- or in the worst case: unstable solutions

Too small∆tandhrequire too much computing power Simplified problems can be analyzed theoretically, which yields a guide to choosing∆tandh

Basic result for our wave equation:∆t≤h/γ(derived later) Peculiar case: exact solution is obtained by∆t=h/γ, regardless of

h(!!!)

2D wave equation

2D wave equation – p. 98

A more general wave equation

General form of a 1D/2D/3D wave equation foru(x, t):

∂2_u

∂t2=∇ ·[λ(x)∇u]

Wave travels with velocityγ=√λ

The operator∇ ·[λ(x)∇u]is frequently encountered in this course! In 2D the operator is written out as

∂ ∂x λ(x, y)∂u ∂x +∂ ∂y λ(x, y)∂u ∂y

Goal for the next slides: Learn how to discretize a 2D wave equation with variable coefficients

We shall do this by putting together elements we have learned so far

Applications of wave the equation

Vibrations of a string (1D) Vibrations of a drum (2D)

Large destructive water waves (2D; water elevation) Sound waves (1D: organ pile, flute; 3D: room, space) Light and radio waves (3D)

Example: earthquake-generated waves

−0.15 −0.105 −0.06 −0.015 0.03 0.075 0.12 0.165 0.21 0.255 0.3 X Y Z −1 0 0.2 −20 −10 0 10 20 −20 −10 0 10 20

Note: scales are distorted! Earthquake close to seamount

Effect of earthquake: Sudden elevation of the surface, modeled here as a prescribed initial surface at rest

Domain = segment of the ocean

Principles

∂2_u ∂t2 =∇ ·[λ(x)∇u] ∂2_u ∂t2 = ∂ ∂x λ∂u ∂x +∂ ∂y λ∂u ∂y

Time discretization as for 1D wave eq. Space discretization: generalized from(λ(x)u0

)0 Boundary conditions: generalized fromu(0) = 0andu0

(1) = 1 Initial conditions as for 1D wave eq.

Overall algorithm as for 1D wave eq.

Discretization

Seek approximationu`

i,jon a rectangular grid tou(xi, yj, t`)

xi= (i−1)∆x, yj= (j−1)∆y, t`=`∆t Approximate derivatives by central differences

∂2_u ∂t2 ` i,j ≈u `+1 i,j −2u`i,j+u` −1 i,j ∆t2

A spatial term like ∂ ∂y

λ∂u

∂y

takes the form 1 ∆y λi,j+1 2 u` i,j+1−u`i,j ∆y ! −λi,j−1 2 u` i,j−u`i,j−1 ∆y !! 2D wave equation – p. 103

The scheme

The finite difference scheme takes the form

u`+1

i,j = 2u`i,j−u` −1

i,j + [∆u]`i,j Exercise: derive the expression for[∆u]`

i,j

(14)

Algorithm (BC:

u

= 0

)

DEFINITIONS:

Storageu+

i,j,ui,j, andu−i,jforui,j`+1,u`i,j, andu` −1

i The whole grid:

¯ (∞) ={i= 1, . . . , nx, j= 1, . . . , ny} Inner points: (∞) ={i= 2, . . . , nx−1, j= 2, . . . , ny−1} INITIAL CONDITIONS: ui,j=I(xi, yj), (i, j)∈(∞) SET ARTIFICIAL QUANTITYu− i,j: u−

i,j=ui,j+12[4u]i,j, (i, j)∈(∞) Sett= 0

Algorithm (BC:

u

= 0

)

Whilet≤tstop

t←t+ ∆t

UPDATE ALL INNER POINTS:

u+

i,j= 2ui,j−u −

i,j+ [4u]i,j, (i, j)∈(∞)

INITIALIZE FOR NEXT STEP:

u−

i,j=ui,j, ui,j=u+i,j, (i, j)∈(∞)

A model for water waves

Physical assumption: long waves in shallow water Corresponding mathematical model:

∂2_u

∂t2=∇ ·

gH(x)∇u

Physical quantities:

u(x, y, t): water surface elevation

g: acceleration of gravity

H(x, y): still-water depth Boundary condition at coastline

∂u

∂n≡ ∇u·n= 0

(full reflection of waves)

Scaling

LetHcbe a characteristic value ofH(x, y) We introduce new variables

¯

x=x/Hc,y¯=y/Hc,¯t=t/

p

Hc/g, λ=H/Hc ¯

u=u/uc(uccancels and can be arbibtary) Inserted in the equation:

∂2_u_¯

∂¯t2 = ¯∇ ·

λ∇¯u¯

⇒ g(the driving force) is scaled away

Implementing boundary conditions (1)

There are two ways of handling∂u/∂n= 0conditions:

“Ghost cells” at boundary with explicit updating of fictitious values Modify stencil at boundary

We choose the second option, as this allows direct output ofui,jto a visualization program, i.e., no need to remove ghost cells.

Implementing boundary conditions (2)

Consider the boundaryi= 1(x=const) Boundary condition: ∂u ∂n≡ ∂u ∂x= 0 Discrete version: u2,j−u0,j 2∆x = 0 ⇔ u2,j=u0,j u0,jis outside the legal mesh

Use the discrete PDE fori= 1and eliminateu0,j, that is, just replace

u0,jbyu2,j

Modified difference operator

The boundary condition modifies the finite difference equations, and this can be viewed as modifying the operator[4u]i,j(in this example ati= 1) according to [4u]1,j:i−1→i+1≡ ∆t ∆x 2 λ1+1 2,j(u2,j−u1,j)−λ1−12,j(u1,j−u2,j) + ∆t ∆y 2 λ1,j+1 2(u1,j+1−u1,j)−λ1,j−12(u1,j−u1,j−1) 2D wave equation – p. 111

Efficiency issues

Two things should be considered:

Loops should be ordered such thatu(i, j)is traversed in the order it is stored. In Diffpack ArrayGen objects are stored columnwise. Therefore the loop should read:

for (j = 1; j <= ny; j++) for (i = 1; i <= nx; i++)

u(i,j) = ...

One should avoid

if

statements in loops if possible (they prevent many compiler optimization techniques); hence we will have separate loops over inner and boundary points.

Remark I: Debug code before optimizing it!!

Remark II: Focus on a readable and maintainable code before thinking of efficiency

(15)

Updating of internal points

We define a function for updating the solution: WAVE(u+_{, u, u}−

, a, b, c)

This function reads, at inner points,

u+

i,j= 2aui,j−bu−i,j+c[4u]i,j, (i, j)∈(∞)

Updating of boundary points (1)

i= 1, j= 2, . . . , ny−1;

u+

i,j= 2aui,j−bu−i,j+c[4u]i,j:i−1→i+1,

i=nx, j= 2, . . . , ny−1; u+ i,j= 2aui,j−bu − i,j+c[4u]i,j:i+1→i−1, j= 1, i= 2, . . . , nx−1; u+ i,j= 2aui,j−bu − i,j+c[4u]i,j:j−1→j+1, j=ny, i= 2, . . . , nx−1; u+

i,j= 2aui,j−bu−i,j+c[4u]i,j:j−1→j+1,

Updating of boundary points (2)

i= 1, j= 1; u+ i,j= 2aui,j−bu − i,j+c[4u]i,j:i−1→i+1,j−1→j+1 i=nx, j= 1; u+

i,j= 2aui,j−bu−i,j+c[4u]i,j:i+1→i−1,j−1→j+1

i= 1, j=ny;

u+

i,j= 2aui,j−bu−i,j+c[4u]i,j:i−1→i+1,j+1→j−1

i=nx, j=ny;

u+

i,j= 2aui,j−bu−i,j+c[4u]i,j:i+1→i−1,j+1→j−1

Modified algorithm (BC:

∂u/∂n

= 0

)

DEFINITIONS: as above INITIAL CONDITIONS: ui,j=I(xi, yj), (i, j)∈(∞) SET ARTIFICIAL QUANTITYu− i,j: WAVE(u− , u, u− ,0.5,0,0.5) Sett= 0 2D wave equation – p. 116

Modified algorithm (BC:

∂u/∂n

= 0

)

Whilet≤tstop

t←t+ ∆t

UPDATE ALL POINTS:

WAVE(u+_{, u, u}−

,1,1,1)

INITIALIZE FOR NEXT STEP:

u−

i,j=ui,j, ui,j=u+i,j, (i, j)∈(∞)

Diffpack/C++ written in F77/C style

src/fdm/intro/Wave2D #include <Arrays_real.h>

#include <FieldLattice.h> #include <SimRes2mtv.h>

// We define a macro LaplaceU to save typing of long // finite difference formulas. For example, //

// #define mac(X) q0(i,j-X) //

// defines a macro mac(X) and any text mac(i+2) will then be // transformed to q0(i,j-i+2) by the C/C++ preprocessor (cpp). #define LaplaceU(i,j,im1,ip1,jm1,jp1) \

sqr(dt/dx)*\

( 0.5*(lambda(ip1,j )+lambda(i ,j ))*(u(ip1,j )-u(i ,j )) \ -0.5*(lambda(i ,j )+lambda(im1,j ))*(u(i ,j )-u(im1,j )))\ +sqr(dt/dy)*\

( 0.5*(lambda(i ,jp1)+lambda(i ,j ))*(u(i ,jp1)-u(i ,j )) \ -0.5*(lambda(i ,j )+lambda(i ,jm1))*(u(i ,j )-u(i ,jm1)))

More code ...

void WAVE (ArrayGenSel(real)& up, const ArrayGen(real)& u, const ArrayGenSel(real)& um, real a, real b, real c, const ArrayGenSel(real)& lambda, real dt, real dx, real dy) {

int nx, ny; up.getDim (nx, ny); int i,j;

// update inner points according to finite difference scheme: for (j = 2; j <= ny-1; j++)

for (i = 2; i <= nx-1; i++) up(i,j) = a*2*u(i,j) - b*um(i,j)

+ c*LaplaceU(i,j,i-1,i+1,j-1,j+1);

// update boundary points (modified finite difference schemes): i=1; for (j = 2; j <= ny-1; j++) up(i,j)=a*2*u(i,j)-b*um(i,j) +c*LaplaceU(i,j,i+1,i+1,j-1,j+1); i=nx; for (j = 2; j <= ny-1; j++) up(i,j)=a*2*u(i,j)-b*um(i,j) + c*LaplaceU(i,j,i-1,i-1,j-1,j+1); j=1; for (i = 2; i <= nx-1; i++) up(i,j)=a*2*u(i,j)-b*um(i,j) + c*LaplaceU(i,j,i-1,i+1,j+1,j+1); ... 2D wave equation – p. 119

More code ...

int main (int argc, const char* argv[]) {

initDiffpack (argc, argv);

s_o << "Give number of intervals in x and y direction: "; int h; s_i >> h; int nx = h+1; s_i >> h; int ny = h+1; s_o << "Give width of domain in x direction: "; real wx; s_i >> wx;

s_o << "Give width of domain in y direction: "; real wy; s_i >> wy;

// ArrayGenSel is like ArrayGen, but has increased functionality // for finite difference methods

// (we need it for the FieldLattice object for visualization) ArrayGenSel(real) up (nx,ny); // u at time level l+1 ArrayGenSel(real) u (nx,ny); // u at time level l ArrayGenSel(real) um (nx,ny); // u at time level l-1 ArrayGenSel(real) lambda (nx,ny); // variable coefficient const real dx = wx/(nx-1); // length of grid intervals in x dir. const real dy = wy/(ny-1); // length of grid intervals in y dir. s_o << "Give time step length: (0 gives dt=dx): ";

real dt; s_i >> dt;

(16)

More code ...

// fill lambda with values .... (see source file) // fill um with initial values:

um.fill(0.0);

// set the help variable um:

WAVE (um, u, um, 0.5, 0, 0.5, lambda, dt, dx, dy);

int step_no = 0; // current step number

while (t <= tstop) {

t += dt; // increase time by the time step step_no++; // increase step number by 1 s_o << "t=" << t << "\n";

WAVE (up, u, um, 1, 1, 1, lambda, dt, dx ,dy);

um = u; u = up; // update data struct. for next step }

// dump solution to file ... (see source file)

Visualizing the results

unix> plotmtv -colorps W0017.tmp.mtv

Nature of some PDEs

Nature of some PDEs – p. 123

Hyperbolic equations (1)

Linear PDEs can be divided into basic categories: elliptic, parabolic, and hyperbolic

A typical hyperbolic equation is the wave equation

∂2_u

∂t2 =γ 2∂2u

∂x2

which has the general solution

u(x, t) =f(x−γt) +g(x+γt) i.e., two waves propagating to the left and to the right

The functionsfandgare determined fromu(x,0)and∂u(x,0)/∂t. Disturbances travel with a finite wave speed.

Reference: HPL appendix A.5

Changing boundary conditions

Boundary conditions:u(0, t) = 0,u(1, t) = 0 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 −1 −0.8 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 Time t=0.300 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 −1 −0.8 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 Time t=0.667 Boundary conditions:u(0, t) = 0,ux(1, t) = 0 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 −1 −0.8 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 Time t=0.300 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 −1 −0.8 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 Time t=0.667

Observations

Changing the BC influences the solution at only some(x, t)points (e.g., at the midpoint, after the initial disturbance has left, a change in the BC atx= 1is not felt before the pulse has been reflected from the boundary)

An initial disturbance is transported without change of shape (essential for oral communication!)

BC: let waves leave the domain

Boundary conditions:u(0, t) = 0and ut+γux

|x=1= 0 0 0.10.2 0.30.4 0.50.60.7 0.80.9 1 −1 −0.8 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 Time t=0.300 0 0.10.2 0.30.4 0.50.60.7 0.80.9 1 −1 −0.8 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 Time t=0.667

The wave propagates out of the domain, exactly as we want for ocean waves! Unfortunately, the condition is hard to generalize successfully to physically relevant 2D cases

Other hyperbolic equations (2)

Uni-directional “wave” or transport equation:

∂u ∂t+γ ∂u ∂x= 0 where u(x, t) =I(x−γt)

I(x)is the initial conditionu(x,0)

Systems of wave equations (here: long ocean waves)

∂η ∂t = − ∂ ∂x(uH)− ∂ ∂y(vH) −∂H ∂t ∂u ∂t = − ∂η ∂x, x∈Ω, t >0 ∂v ∂t = − ∂η ∂y, x∈Ω, t >0

(17)

Other hyperbolic equations (2)

Multi-dimensional standard wave equation:

∂2_u

∂t =∇ ·(λ∇u)

Applications: radio waves, light, sound, membranes, ... Nonlinear hyperbolic conservation law:

∂u ∂t+

∂ ∂xf(u) = 0

or a system of such equations:

∂u

∂t+ ∂ ∂xf(u) =0

Applications: gas dynamics, oil reservoir flow

Elliptic equations

Elliptic equations are stationary (equilibrium or steady-state physical conditions)

Example:

−u00

(x) = 2, u(0) = 0, u0 (1) = 0 Let us look at the effect of changingu0

(1) = 0tou(1) = 0

Changing boundary conditions

u0 (1) = 0versusu(1) = 0: 0 0.2 0.4 0.6 0.8 1 1.2 0 0.2 0.4 0.6 0.8 1 u(1)=0 u’(1)=0

Observe: All points in the interior are effected by the boundary condition! And the solution is smooth.

Multi-dimensional elliptic equations

The Poisson equation is a typical multi-dimensional elliptic equation:

−∇2_u_{(x) =}_f_(x)

or

−∇ ·(λ(x)∇u(x)) =f(x) Another elliptic equation:

−∇ ·(λ(x)∇u(x)) +αu=f(x)

The Helmholtz equation

Sometimes one solves the wave equation

∂2_u

∂t2 =γ 2_∇2_u

by assuming periodical waves in time:

u(x, y, z, t) = exp (−iωt)ˆu(x, y, z), i=√−1 This results in the famous Helmholtz equation

∇2_u_ˆ₊_k2_ˆ_u_{= 0}_, _k₌_ω/γ

The Helmholtz equation is not an elliptic equation (wrong sign!)

Parabolic equations (1)

A 1D heat equation is a typical parabolic equation:

∂u ∂t=

∂2_u

∂x2+ 2, u(x,0) = 0, u(0, t) = 0

Typically for parabolic equations:

time derivative = elliptic counterpart That is, ast→ ∞, the eq. above tends to the elliptic equation

−∂

2_u

∂x2= 2, u(x,0) = 0, u(0, t) = 0

Changing boundary conditions

Let us see the effect of two different conditions atx= 1:u(1, t) = 0 versusux(1, t) = 0 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0 0.1 0.2 0.3 0.4 0.5 Time t=0.300

As for the elliptic counterpart, all points in the interior are effected by the boundary condition

Parabolic equations (2)

Multi-dimensional parabolic (heat) equation:

∂u

∂t=∇ ·(λ(x)∇u) +f

Recall: ast→ ∞, we normally have that∂u/∂t→0, and the parabolic equation approaches the elliptic counterpart

(18)

Numerical methods

Hyperbolic equations:

explicit schemes, must choose∆t∼h

Elliptic equations:

all grid-point values are coupled in a linear system, time-consuming to solve, requires sophisticated iterative methods

Parabolic equations:

can use explicit schemes, if∆t∼h2_{, but implicit schemes coupling}

all points (like in elliptic equations) are preferred

Why solutions of elliptic eqs. are smooth

Solutions of elliptic equations are smooth!

−u00 (x) =f(x)with “noisy”f(x): u=− Z Z f(x)dx dx

Twice integration of noisyf(x)⇒smoothu(x) (λu0

)0

= 0with noisy coefficientλ(x):

u(x) = const· Zx 0 dτ λ(τ) Roughλ⇒smoothu

More general result from Fourier series

−u00

(x) =f(x)solved by Fourier series (here: sine series):

u(x) = ∞ X

i=1

uisiniπx

Expandingf(x)also in a Fourier series:

f(x) = ∞ X

i=1

fisiniπx

Inserting this in the equation gives

ui∼fi/i2

i.e., theuseries converges faster than thefseries and from Fourier series theory this means thatuis smoother thanf

Smoothness and variational calculus

∇2_u_{= 0}_{is equivalent with} min v(x) Z Ω ||∇v||2_d_Ω

⇒uis “smoothest” among “all”voverΩ

Analysis of difference schemes

Analysis of difference schemes – p. 141

Outline

Try to explain the observed numerical behavior (accuracy, stability) by mathematical means

Tool: exact solution of the discrete equations Main focus on the wave and heat equations

Intro to classical topics like truncation error and von Neumann

stability

Operator notation (1)

Finite difference schemes are often long and difficult to read compared to the underlying PDE

Operator notation gives condensed expressions much like the PDE Define [δxu]`i,j,k≡ u` i+1 2,j,k−u ` i−1 2,j,k ∆x

with similar definitions ofδy,δz, andδt Another difference:

[δ2xu]`i,j,k≡

u`

i+1,j,k−u`i−1,j,k 2∆x

Operator notation (2)

Compound difference (1D now, to save index writing): [δxδxu]ì= 1 h2 u ` i−1−2uì+uì+1 One-sided forward difference:

[δ+

xu]`i≡

u` i+1−u`i

h

and the backward difference: [δ−

xu]`i≡

u` i−u`i−1

h

Operator notation for arithmetic average: [ux_]` i≡ 1 2 u` i+1 2+u ` i−1 2

(19)

Operator notation (3)

Put the whole equation inside brackets: [δxδxu=−f]i This is a finite difference scheme foru00

=−f Example:(λu0 )0 = 0is discretized as [δxλ x δxu= 0]i Another example, the heat equation:

∂u ∂t=κ ∂2_u ∂x2+ ∂2_u ∂y2 [δ+ tu=κ(δxδxu+δyδyu)]`i,j

Typical solution of a wave equation

Wave equation: ∂2_u ∂t2=γ 2∂2u ∂x2 Typical solution u=Aei(kx−ωt) for arbitraryk

Only real or imaginary part has physical interpretation, e.g., the real part isAcos(kx−ωt)

Inserting solution gives the dispersion relationω=ω(k):

ω=±γk ⇒ u=Aeik(x±γt)

General solutions

Can build general solutions as Fourier series

u=X k

Akei(kx−ωt)

...or Fourier integrals

u= Z∞

−∞

A(k)ei(kx−ωt)_dk

The basic component in these general solutions is

ei(kx−ωt)

which we will study in the following

Physical interpretation

What doA,k, andωin u=Aei(kx−ωt) really mean? -1.5 -1 -0.5 0 0.5 1 1.5 0 1 2 3 4 5 6 λ c A

λ= 2π/kis the wave length,c=ω/k=γis the wave velocity

A heat equation

The heat (diffusion) equation:

∂u ∂t =κ

∂2_u

∂x2

Typical solutionu=Aexp (i(kx−ωt))for arbitraryk

Inserting solution givesω=−iκk2_{(called the dispersion relation)}

The form of the solution:

u=Ae−κk2_t eikx

Can build more complicated solutions through Fourier series or integral

The damping in the heat equation

A general solution component:

u=Ae−κk2_t eikx damps short waves (bigk) significantly (exp (−k2₎₎

Example: add two components,k=πandk= 100π(choose

κπ= 1), consider the imaginary part:

u(x, t) = 1·e−t_sin_πx_{+ 0}_.₆_·_e−10000t_{sin 100}_πx This is a sine with period 1 plus a 60 percent perturbation which oscillates 100 times faster

The damping factor of the perturbation isexp (−10000)that of the first term; aftert= 1/1000this damping os about5·10−5

Recall: no damping in the wave equation

Plot of the damping

-0.5 0 0.5 1 1.5 2 0 0.2 0.4 0.6 0.8 1 u(x,0) -0.5 0 0.5 1 1.5 2 0 0.2 0.4 0.6 0.8 1 u(x,0.001)

Solution of discrete equations

Consider the explicit finite difference for the wave equation, withu` jas unknown

A typical solution reads

u` j=Aei(kjh

−ω`˜∆t)₌_Aei(kx−ωt˜)

⇒same structure as the solution of the PDE! Inserting this form ofu`

iin the scheme: ˜

ω= ˜ω(k, h,∆t) (numerical dispersion relation)

The velocityc=ω/kshould beγ(constant), but will now depend on

k,h, and∆t

Hopefully,c→γash,∆t→0

(20)

The wave equation scheme

Insertingu`

j= exp (i(kjh−ω`˜∆t))in the wave equation scheme gives sin˜ω∆t 2 =± γ∆t h sin kh 2

Can solve forω˜and then we have an analytical solution of the discrete equations: ˜ ω=±2 ∆tarcsin γ∆t h sin kh 2

Can assess the accuracy by plottingω−ω˜

Better: plotc=ω/kas a function ofkhfor different Courant (γ∆t/h) numbers

Can assess the accuracy by investigating

ω−ω˜=−₂₄1γk3₍_h2₋_γ2_∆_t2_{) +}_O₍_h2_∆_t2_{, h}4_,_∆_t4₎

Stability (1)

We know that the exact solution of the wave equation PDE contains no damping or no growth of a wave component, i.e.,

ωis real

A numerical wave component should exhibit the same qualitative behavior

...it can be slightly damped, but not amplified (for sufficiently larget

the wave becomes arbitrarily large)

⇒ Should have real˜ω(or a small negative imaginary part only, i.e., slight damping)

The equation for˜ω: sinω˜∆t 2 =± γ∆t h sin kh 2

Stability (2)

The equation forω˜, sin˜ω∆t 2 =± γ∆t h sin kh 2 can also have complexω˜

Complexω˜will occur in conjugate pairs, i.e., one root has positive imaginary part, leading to wave growth, and cannot be allowed

⇒Only realω˜can be accepted

sin = const×sin⇒the const must be in[−1,1], here

γ∆t h ≤1

or

∆t≤h

γ

which is the stability criterion Analysis of difference schemes – p. 155

The effect of round-off errors

Consider the initial conditionu(x,0) =Aexp (ikx)for the wave eq. General solution:

u(x, t) =Aei(kx−ωt)

Perturb initial condition: ˆ

u(x,0) =Aeikx₊_aei10kx_, _a_A

This always happens on a computer, because of round-off errors If∆t≤h/γ, no numerical wave components are damped or amplified and the solution reads

u` j=Aei(kjh

−ω`˜∆t)₊_aei(10kjh−˜ω`∆t)

⇒ Initial perturbation (round-off errors) is not amplified

Consequences of stability

If∆t > h/γ, at least one wave component starts to grow in time, i.e., the initial perturbation is amplified

After some time, the solution is completely nonphysical

When a program gives nonsense solutions, recall that the reason can either be a bug or a too large∆t!

Accuracy

The exact and numerical solutions,

exp (i(kx−ωt)) and exp (i(kx−ωt˜)) have the same basic structure, only theωvalues differ Can assess the numerical accuracy asEω=ω−ω˜

Can plotEωor make a Taylor series expansion in terms of the grid and physical parameters:

Eω=−1 24γk

3₍_h2₋_γ2_∆_t2_{) +}_O₍_h2_∆_t2_{, h}4_,_∆_t4₎

Errors go to zero ash2_,_∆_t2

It turns out thatEω= 0if∆t=h/γ(!)

Summary of numerical properties

The wave equation:

Accuracy:O(h2_,_∆_t2_{), but exact curves can also be produced}

Special result:C≡γ∆t/h= 1implies that the numerical solution is exact

Stability:∆t≤h/γ

The method of analysis applies to linear, homogeneous, time-dependent equations with constant coefficients

The heat equation; stability

The heat equation:

∂u ∂t=κ ∂2_u ∂x2 can be discretized by [δ+ tu=κδxδxu]`j (explicit forward scheme,u`+1

i =old values) Inserting discrete wave component

u` j=Aei(kjh

−ω`˜∆t)₌_Aξ`_eikjh_, _ξ₌_e−iω˜∆t

in the numerical scheme results in

ξ= 1−κ4∆t h2 sin

2kh

2

(21)

Stability criterion

Damping, i.e. no growth, implies|ξ| ≤1 With ξ= 1−κ4∆t h2 sin 2kh 2 this leads to ∆t≤h 2 2κ

as the stability criterion

Truncation error

PDE:L(u) =f

Numerical approximation:u∆,L∆(u∆) =f∆

The truncation error is defined as

τ=L∆(u)−f∆

i.e.τreflects the residual when the analytical solution is inserted in

the numerical scheme

Computational technique:

expand analyticalu(x)atxi±1in Taylor series aboutxi:

u(xi±1) = u(xi)± ∂u ∂x xi h+1 2 ∂2_u ∂x xi h2_±1 6 ∂3_u ∂x xi h3 + 1 24 ∂4_u ∂x xi h4₊_{· · ·}

Truncation error; example (1)

Problem: L(u) ≡ −u00 (x) L∆(u∆) ≡ −ui −1−2ui+ui+1 h2 Don’t multiply byh2_{! (}_τ_{∼ L} ∆)

Insert Taylor expansions:

τ=u00

(xi) +f(xi) +1 12u

0000

(x)h2₊_O₍_h4₎

PDE is fulfilled pointwise:u00

(xi) +f(xi) = 0 Second order scheme because:

τ= 1 12u

0000

(x)h2₊_O₍_h4₎_, _τ_∼_O₍_h2₎

What is the truncation error?

τmeasures the error in the discrete equations when the exact solution of the continuous problem is inserted

That is,τmeasures the error in an equation (this error is called a residual), not the error in the solutionu−u∆

Hopefully,τreflects the true erroru−u∆

Truncation error; example (2)

Model problem: the 1D wave equation

L(u) ≡ ∂ 2_u ∂t2−γ 2∂2u ∂x2 L∆(u∆) ≡ u `−1 i −2uì+uì+1 ∆t2 − γ2uì−1−2uì+uì+1 h2 τ = ∂ 2_u ∂t2+ 1 12 ∂4_u ∂t4∆t 2₊_O_(∆_t4₎ − γ2∂2u ∂x2−γ 21 12 ∂4_u ∂x4h 2₊_O₍_h4₎ τ = O(∆t2_{, h}2₎

von Neumann stability analysis (1)

Make an equation for the numerical error (see later) Seek discrete solution for the error:

e` j= X k ξ`_{exp (}_ikjh₎ Inserte`

jin error equation, compute for a single componentk:

e`

j= exp (ikjh)

Common stability requirement:

|e`

j|<∞ ⇒ |ξ| ≤1

Gives a condition on∆t

Very similar to discussing numerical dispersion relations

von Neumann stability analysis (2)

1D heat equation:ut=κuxx Perturbed solutionv:vt=κvxx Equation for errore=u−v:et=κexx Insertinge` j=ξ`exp (ikjh): ξ−1 ∆t =− 4κ h2sin 2kh 2 |ξ| ≤1⇒ −1≤ξ≤1: −1≤ξ= 1−4κ∆t h2 ⇒∆t≤ h 2κ 1D wave equation:utt=c2uxx, ∆t≤h c

Consistency and convergence

u: solution of continuous problem

u∆: solution of discrete problem

∆: mesh parameter (h,∆tetc) Definition of consistency:τ→0as∆→0 Example: τ= 1 12u 0000 (xi)h2+O(h4)→0ash→0

Interpretation: The analytical solution fulfulls the discrete equations as∆→0

Convergence:u∆→uas∆→0

τ→0does not implyu∆→u

(22)

Lax’ theorem

Convergence⇔consistency and stability

⇒easy tool for proving convergence!

Intro to finite elements

Intro to finite elements – p. 170

Features of the method

Flexibility

Straightforward handling of complicated geometries Easy to construct higher-order approximations Broad spectrum of applications

Popular method for demanding engineering applications Strong mathematical foundation

Intro to finite elements – p. 171

Basic principles

Finite difference method:

∂u ∂x �

INF5620: Numerical Methods for Partial Differential Equations p. 1. About the course. Basic features of the course. Course data.
