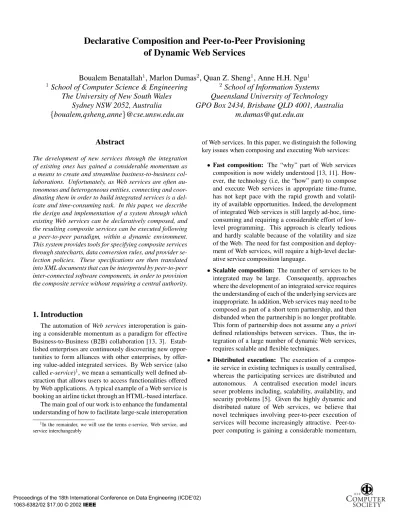

Declarative Composition and Peer-to-Peer Provisioning
of Dynamic Web Services
Boualem Benatallah
1, Marlon Dumas
2, Quan Z. Sheng
1, Anne H.H. Ngu
1 1School of Computer Science & Engineering
2School of Information Systems
The University of New South Wales
Queensland University of Technology
Sydney NSW 2052, Australia
GPO Box 2434, Brisbane QLD 4001, Australia
f
boualem,qsheng,anne
g@cse.unsw.edu.au
[email protected]
Abstract
The development of new services through the integration of existing ones has gained a considerable momentum as a means to create and streamline business-to-business col-laborations. Unfortunately, as Web services are often au-tonomous and heterogeneous entities, connecting and coor-dinating them in order to build integrated services is a del-icate and time-consuming task. In this paper, we describe the design and implementation of a system through which existing Web services can be declaratively composed, and the resulting composite services can be executed following a peer-to-peer paradigm, within a dynamic environment. This system provides tools for specifying composite services through statecharts, data conversion rules, and provider se-lection policies. These specifications are then translated into XML documents that can be interpreted by peer-to-peer inter-connected software components, in order to provision the composite service without requiring a central authority.
1. Introduction
The automation ofWeb services interoperation is gain-ing a considerable momentum as a paradigm for effective Business-to-Business (B2B) collaboration [13, 3]. Estab-lished enterprises are continuously discovering new oppor-tunities to form alliances with other enterprises, by offer-ing value-added integrated services. By Web service (also callede-service)1, we mean a semantically well defined
ab-straction that allows users to access functionalities offered by Web applications. A typical example of a Web service is booking an airline ticket through an HTML-based interface. The main goal of our work is to enhance the fundamental understanding of how to facilitate large-scale interoperation 1In the remainder, we will use the terms e-service, Web service, and
service interchangeably
of Web services. In this paper, we distinguish the following key issues when composing and executing Web services:
Fast composition: The “why” part of Web services
composition is now widely understood [13, 11]. How-ever, the technology (i.e, the “how” part) to compose and execute Web services in appropriate time-frame, has not kept pace with the rapid growth and volatil-ity of available opportunities. Indeed, the development of integrated Web services is still largely ad-hoc, time-consuming and requiring a considerable effort of low-level programming. This approach is clearly tedious and hardly scalable because of the volatility and size of the Web. The need for fast composition and deploy-ment of Web services, will require a high-level declar-ative service composition language.
Scalable composition: The number of services to be
integrated may be large. Consequently, approaches where the development of an integrated service requires the understanding of each of the underlying services are inappropriate. In addition, Web services may need to be composed as part of a short term partnership, and then disbanded when the partnership is no longer profitable. This form of partnership does not assume anya priori defined relationships between services. Thus, the in-tegration of a large number of dynamic Web services, requires scalable and flexible techniques.
Distributed execution: The execution of a
compos-ite service in existing techniques is usually centralised, whereas the participating services are distributed and autonomous. A centralised execution model incurs sever problems including, scalability, availability, and security problems [5]. Given the highly dynamic and distributed nature of Web services, we believe that novel techniques involving peer-to-peer execution of services will become increasingly attractive. Peer-to-peer computing is gaining a considerable momentum,
as it naturally exploits the distributed nature of the In-ternet [14].
In this paper, we overview the design and implementa-tion ofSELF-SERV(compoSing wEb accessibLe inForma-tion & buSiness sERVices): a framework for dynamic and peer-to-peer provisioning of Web services. In SELF-SERV, Web services are declarativelycomposed, and the result-ing composite services are executed in adecentralisedway within adynamicenvironment. In a nutshell, the salient fea-tures of SELF-SERV are:
Adeclarativelanguage for composing services based
on statecharts [8]: a widely used formalism in the area of reactive systems, which is emerging as a standard for process modeling as it has been integrated into the Unified Modeling Language (UML). Statecharts sup-port the expression of control-flow dependencies such as branching, merging, concurrency, etc. They also pro-vide an implicit style for expressing data-flow depen-dencies through the use of global variables.
A concept ofservice communitiesto architect the
com-position of a potentially large number of dynamic ser-vices. Service communities are essentially containers of alternative services. They provide descriptions of desired services (e.g., providing flight booking inter-faces) without referring to any actual provider (e.g., UA flight-booking Web service). Actual providers can reg-ister with any community of interest to offer the desired service. They can leave these communities at any time.
Apeer-to-peerservice execution model, whereby the
responsibility of coordinating the execution of a com-posite service, is distributed across several peer soft-ware components called coordinators. Coordinators are attached to each involved service. They are in charge of initiating, controlling, monitoring the associ-ated services, and collaborating with their peers to man-age service execution. The knowledge required at run-time by each of the coordinators involved in a compos-ite service (e.g. location, peers, and control flow rout-ing policies) is statically extracted from the service’s statechart and represented in a simple tabular form. In this way, the coordinators do not need to implement any complex scheduling algorithm.
The remainder of this paper is organised as follows. Sec-tion 2 describes SELF-SERV’s approach to service compo-sition. Section 3 discusses SELF-SERV’s peer-to-peer ex-ecution model for composite services. Section 4 presents SELF-SERV’s system architecture and describes the imple-mentation of this architecture using Java and XML-oriented tools. Finally, section 5 gives a brief overview of related work and section 6 provides some concluding remarks.
2
Composing Web Services
In this section, we describe those concepts and function-alities of SELF-SERV which are intended to provide a high-level language for composing pre-existing services.
2.1. Types of services
SELF-SERV distinguishes 3 types of services: elemen-tary services,composite services, andservice communities. An elementary service is an individual Internet-accessible application (e.g., a Java program) that does not rely on another Web service to fulfill user requests. An ex-ample of an elementary service might be a Web form-based interface to a weather information source.
A composite service aggregates multiple Web services, which are referred to as its components. An example of a composite service would be a Web-accessible travel prepa-ration service, integrating autonomous services for booking flights, booking hotels, searching for attractions, etc.
The concept of service community is a solution to the problem of composing a potentially large number of dy-namic Web services. A community describes the capabili-ties of a desired service without referring to any actual Web service providers. In other words, a community defines a request for a service which makes abstraction of the under-lying providers. In order to be accessible through communi-ties, pre-existing Web services can register with them. Ser-vices can also leave and reinstate these communities at any time. At runtime, when a community receives a request for executing an operation, it selects one of its current mem-bers, and delegates the request to it.
Whether elementary, composite, or community-based, a Web service is specified by anidentifier(e.g., URL), a set of attributes, and a set ofoperations. The attributes of a ser-vice provide information which is useful for the serser-vice’s potential consumers (e.g., public key certificates). In order to ensure that all services provide a uniform interface, each service in SELF-SERV is wrappedby a software compo-nent hosted by its provider. A service’s wrapper acts as its entry point, in the sense that it handles requests for execut-ing the operations provided by the service.
2.2
Elementary Services
The operations of an elementary service are realized in terms of calls to proprietary/legacy applications. Specifi-cally, each operation of an elementary service is associated with a translator. A translatoris mainly used to map the SELF-SERV operation into the format understood by the underlying proprietary/legacy applications. For instance,
assume that Travel Insurance (TI)is an
elemen-tary service that provides an operation called getInsur-ance. A corresponding translator, sayTI translator, associatesgetInsurancewith a routine that calls, e.g.,
a Java class method from the underlying application. The development of translators is left to the responsibility of the provider of the service.
2.3. Composite Services
The operations of a composite service are expressed as a composition of operations of other Web services using statecharts [8]. Encoding the flow of operation invoca-tions as statecharts have several advantages. First, state-charts possess a formal semantics, which is essential for analysing composite service specifications. Next, state-charts are becoming a standard process modeling language as they have been integrated into the Unified Modeling Language (UML). Finally, statecharts offer most of the control-flow constructs found in existing workflow specifi-cation languages (branching, concurrent threads, structured loops).
2.3.1 Overview of Statecharts
A statechart is made up of states and transitions. Tran-sitions are labeled byECA(Event Condition Action) rules. When a transition fires, its action part is executed and its tar-get state is entered. The event, condition, and action parts of a transition are all optional. A transition without an event is said to betriggerless.
States can be basic or compound. In SELF-SERV, a ba-sic state corresponds to the execution of a service, whether elementary or composite. Accordingly, each basic state is labeled with an invocation to a service operation. When the state is entered, this invocation is performed. The state is normally exited through one of its triggerless transitions when the execution induced by this invocation is completed. If the state has outgoing transitions labeled with events, an occurrence of any of these events causes the state to be ex-ited and the ongoing execution to be cancelled.
Compound states contain one or several entire statecharts within them. Compound states come in two flavors: OR and AND states. An OR-state contains a single statechart, while an AND-state contains several statecharts (separated by dashed lines) which are intended to be executed concur-rently. Each of these statecharts is called aconcurrent re-gion. When a compound state is entered, its initial state(s) become(s) active. The execution of a compound state is considered to be completed when it reaches (all) its final state(s). Initial states are denoted by filled circles, whereas final states are denoted by two concentric circles.
2.3.2 Data Flow and Conversion Rules
An operation of a composite service can be seen as hav-ing input parameters, output parameters, consumed and pro-duced events, and a statechart glueing these elements to-gether. The input and output parameters can be referenced
in any of the conditions and actions of the statechart. Sim-ilarly, the consumed events can appear in any of the event parts of the statechart, and the produced events can be gen-erated by the actions of the statechart. Moreover, the stat-echart contains a set of invocations of component services. Each of these invocations is described by the name of the service, the name of the operation, the effective input pa-rameters, and the variables to which the output of the oper-ation are assigned.
In addition to input and output parameters, the conditions and the actions of a statechart implementing a composite service operation may refer to other variables, namely inter-nalvariables. Specifically, an internal variable is a data item that affects the outcome of a service execution, but which is not an input nor an output parameter of the operation that the statechart implements. An internal variable can be used in, e.g., one of the branching conditions of statecharts.
To summarise, a variable appearing in the statechart of a composite service operation can be: an input parameter of the composite service operation, an output parameter of the composite service operation, or an internal variable. The value of an internal variable may be: (i) obtained from the output of a service invocation, (ii) requested from the user during the execution of the composite service, or (iii) de-rived from the input parameters of the composite service operation and/or other internal variables through a query. To cater for the first of these cases, we adopt the following syntax for invoking service operations:
S::m(Q1, ..., Qn, &V1, ..., &Vn)
The semantics of this expression is an invocation of the operationmprovided by service S, with input parameters provided by queriesQ1, ...,Qn, and such that the outputs of the invocation are assigned to variablesV1, ...,Vn. A query
Qican be simply a variable name or any other query. SELF-SERV adopts XPath [6] as the query language. To cater for the second and third cases above, SELF-SERV recognizes in the action parts of the statechart the following types of expressions: (i)X := USER: the value of the internal vari-ableXis supplied by the user, and (ii)X := Q: the value of
Xis the result of queryQ.
2.3.3 Example
Figure 1 contains the statecharts of two composite
services, namely Complete Travel Services
(CTS) and Intl Travel Arrangements Ser-vice (ITAS). The latter is invoked within the former. The statechart of CTS is composed of an AND-state, in which a search for attractions is performed in parallel with the bookings of the flight and the accommodation. When both of these threads complete, a car rental booking is performed if the major attraction is far from the booked accommodation.
Intl Travel Arrangements (ITA) Domestic Flight (DFB) Accommodation Booking Booking (AB) Attractions major_attraction, [not near( Search (AS) Car Rental (CR)
Complete Travel Service (CTS)
[not domestic(destination)] [domestic(destination)] International Flight Booking (IFB) Travel Insurance (TI)
International Travel Arrangements Service (ITAS)
accommodation)] [near(major_attraction,
accommodation)]
Figure 1. The Travel Solution composite service.
Table 1 describes the signature ofCTSand the signatures of the services that it invokes. To describe the signatures of the services, the following notations are used:
CTS::prepareTripdenotes an invocation of the
opera-tionprepareTripprovided by the serviceCTS.
The keywordinindicates that a parameter is passed by
value. For instancein Date minDepatureDate
indicates that the parameterminDepartureDateof typeDateis passed by value.
The keywordoutindicates that a parameter is passed
by variable. For example out float
total-Pricemeans that the service operation returns a value of typefloat, and that this value is assigned to the variable given in place of this parameter.
Table 2 details the invocations that are made in each of the states of the composite service CTS. For a giv en row, the left column of the table contains the name of a state, e.g.,AS, and the right column provides the name of the ser-vice operation that is invoked when that state is entered, followed by the effective parameters. Some of the vari-ables appearing in Figure 1 and in the associated Table 2 are input parameters ofCTS(e.g.,minDepartureDate,
maxDepartureDate,destination), while others are internal variables (e.g., departureDate, flightDe-tails). All of the internal variables involved in this ex-ample, are used to store the outputs of the component ser-vices invocations. In addition, the values of some internal variables are used as input parameters to component ser-vices invocations. For example, the variable departure-Dateis used to store one of the outputs of the invocation of the operationDFBS::booking, and it is later on used
Table 1. Signature of the operationprepareTrip
of CTS, and signatures of the service opera-tions that it invokes (see Figure 1).
CTS::prepareTrip(
in Date minDepatureDate, in Date maxDepartureDate, in Date minReturnDate, in maxReturnDate,
in string destination, in string name, out float totalPrice, out XMLDoc flightDetails,
out XMLDoc accommDetails, out XMLDoc rentalDetails) CRS::booking(
in string city, in string name
in Date rentalDate, in Date returnDate, out float price, out XMLDoc rentalDetails) ABS::booking(
in string city, in string name,
in Date arrivalDate, in Date departureDate, in int numberOfStars,
out float price, out XMLDoc accommDetails) ASS::getAttractions(in string city, out XMLDoc attractions) DFBS::booking(
in Date minDepatureDate, in Date maxDepartureDate, in Date minReturnDate, in maxReturnDate,
in string destination, in string name,
out Date actualDepartureDate, out actualReturnDate, out float price, out XMLDoc flightDetails)
to provide the value of an input parameter for operations
AB::bookingandCRS::booking.
We also note that the statechart in Figure 1 features four conditions in its transitions. Conditions are modeled as calls to boolean functions, which take as parameters queries in-volving input parameters of the composite service as well as internal variables. For example, the condition domes-tic(destination)is a function call whose parameter
Table 2. Invocation table ofCTS::prepareTrip State Invocation AS ASS.getAttractions(destination, &attractions) DFB DFBS.booking( minDepartureDate, maxDepartureDate, minReturnDate, maxReturnDate, starRating, destination, name, &departureDate, &returnDate, &flightPrice, &flightDetails) ITA ITAS.arrangeTrip(
minDepartureDate, maxDepartureDate, minReturnDate, maxReturnDate,
destination, name, &departureDate, &returnDate, &flightPrice, &flightDetails)
AB ABS.booking(
destination, name, departureDate, returnDate, &accommPrice, &accommDetails)
CR CRS.booking(
destination, name, departureDate, returnDate, &rentalPrice, &rentalDetails)
is directly obtained from one of the inputs of service CTS.
Meanwhile, near(major attraction,
accommo-dation)is a function call whose parameters are given by the values of internal variables. Although not shown in the statechart for clarity reasons, the value of the variable ma-jor attractionis derived from the value of the vari-ableattractions(which is an XML document) through an XPath expression. Also not shown in the statechart, is the fact that the value of the internal variable starRat-ing(which is used as an input parameter in the invocation
ABS.booking) is requested from the user at runtime, just after the flight booking is completed. This situation should be expressed through the actionstarRating := USER.
2.4
Service Communities
A community is an aggregator of service offers with a unified interface. It is intended as a means to support the composition of a potentially large number of dynamic Web services. The description of a community contains a set of operations that can be used to interact with the community and its underlying members. These operations are described without referring to the definitions of local services (i.e, members). Service providers may use services platforms of their choice (e.g., Sun Jini or HP e-speak) to advertise and locate Web services including communities2.
The registration of a service with a community requires the specification ofmappingsbetween the operations of the service and those of the community. The following is an example of a mapping:
source serviceQantas Airway QAS
target communityFlight bookings FBS
2In the current implementation of our system, we use the service
dis-covery engine of theAgFlowprototype [15]).
operationFBS.search flight()
is QAS.search ticket();
operation FBS.book flight()
is QAS.book ticket();
In this example, the operationsearch flight(resp.,
book flight) of the communityFlight bookings
is mapped to the operation search ticket (resp.,
book ticket) of the serv iceQantas Airway. A registration may concern only a subset of the opera-tions of a community. Thus, Web services have the flexi-bility to register only for the operations that they can
pro-vide. For instance, the communityFlight bookings
provides operations for searching (i.e, search flight) and buying (i.e., book flight) flight tickets; if a Web service provides only one of these operations, then it will register only for the operation that it provides.
A Web service can register with one or several commu-nities. A community can be registered with another com-munity. For example, the Web servicesQantas Airway
and Cathay Pacificare registered with the commu-nity Flight bookings which is itself registered with
the communityIntl Travel Arrangements.
The means by which a community chooses a member to execute an operation is specified via aselection policy. A selection policy can be based, e.g., on an auction, or any ranking algorithm involving parameters such as customer’s profile, Web Service’s reliability, etc. If the selection is based on auctions, the community essentially works as an auction house in which the members bid for executing op-erations. A selection strategy is implemented by a program which takes as parameter relevant data such as the opera-tion’s input parameter values, the user’s profile, past execu-tion logs, input from humans, etc. The low-level specifica-tion and implementaspecifica-tion of selecspecifica-tion policies is out of the scope of this paper.
3. Peer-to-Peer Provisioning of Web Services
This section starts with an overview and illustration of the basic concepts of the service execution model of SELF-SERV. After this overview and illustration, a formal descrip-tion of the concepts and algorithms is given.3.1. Overview
SELF-SERV’s execution model is based on the idea that each stateSTappearing in a composite service specification is represented by astate coordinatorresponsible for:
Receiving notifications of completion from other state
coordinators and determining from these notifications when should stateSTbe entered.
Invoking the service labellingSTwhenever all the
done by sending a message to the service’s wrapper and waiting for a reply.
Notifying the execution’s completion to the
coordina-tors of the states which may need to be entered next.
While state ST is active, receive notifications of
ex-ternal events (such as a cancellation), determine ifST
should be exited because of these event occurrences, and if so, interrupt the service execution and notify the interruption to the coordinators of the states which po-tentially need to be entered next.
In other words, the coordinator of a state is a lightweight scheduler which determines (i) when should a state within a statechart be entered?, (ii) what should be done after the state is entered?, (iii) when should the state be exited?, and (iv) what should be done after the state is exited? The knowledge needed by a coordinator in order to answer these questions at runtime, is statically extracted from the state-chart describing the composite service operation, and rep-resented in the form ofrouting tablesas detailed later.
A composite service execution is orchestrated through peer-to-peer message exchanges between the coordinators of the states of the service’s description, and through mes-sage exchanges between the coordinators and the wrappers. The messages exchanged between the coordinators for the purpose of notifying that a given state should/may be en-tered are calledcontrol-flow notifications. A (control-flow) notification sent by a coordinatorC1to a coordinatorC2 ex-presses the fact that the execution of the state represented by
C1has completed, and thatC1believes that the state repre-sented byC2needs to be entered. The notification message contains the input parameters of the composite service ex-ecution, as well as the up-to-date values of all the internal variables of the statechart thatC1needs to transmit toC2.
On the other hand, the messages exchanged between the coordinators of a state and the wrapper of the service la-belling this state are calledservice invocations/completions. A service invocation message contains the name of the ser-vice operation that is being invoked, as well as the values of the input parameters. A service completion message con-tains the values of the return parameters.
3.2. Example
The diagram in Figure 2 shows the messages exchanged by the coordinators and the wrappers during a particular ex-ecution of serviceCTS. The layout of the arrows indicate the type of the message (control-flow notification or service invocation/result) as explained in the legend of the figure. The numbers labelling the arrows capture the temporal re-lationships between the messages. For instance,message 3is sent aftermessage 2which is sent aftermessage 1. Some messages are exchanged as part of concurrent threads. In this case, the messages are given the same serial
number, followed by a character. For instance, the messages starting with2aand2bin Figure 2 (e.g.,2a.1and2b.1) are sent within concurrent threads. Messages sent within the same thread are identified by serial numbers within that thread. For instance, message2a.1and2a.2are sequen-tial messages exchanged within thread2a.
The execution in this diagram starts when a user or application invokes the service CTS through its wrapper (message 1). Assuming that the trip is international, the wrapper of CTS sends a control-flow notification to the coordinators of ITA (message 2a.1) and to the coordi-nator of AS (message 2b.1). These coordinators trig-ger the service ITAS (2a.2) and ASS (2b.2) through their wrappers. When the wrapper ofASSreturns an out-put (2b.3), the coordinator of AS sends a control-flow notification both to the wrapper of CTS (2b.4a) and to the coordinator of CR (2b.4b), since it is not possible to determine whether the major attraction is near the ac-commodation or not until thread 2ais completed. Mean-while, the wrapper of ITAS starts this service by send-ing a control-flow notification to the coordinator of IFB
(message2a.3), which invokesIFBS(2a.4and2a.5). The execution ofITAScontinues its course (2a.6,2a.7
and2a.8) until eventually a termination message is sent to the wrapper of ITAS(2a.9). This wrapper returns a result to the coordinator ofITA (2a.10), which sends a notification to the coordinator of AB (2a.11). After in-voking ABS(2a.12and2a.13), the coordinator of AB
sends notifications both to the wrapper ofCTS(2a.14a) and to the coordinator ofCR(2a.14b). The coordinator ofCRand the wrapper ofCTSthen evaluate the condition
near(major attraction, accommodation). If this condition is true, the coordinator ofCRinvokes the ser-viceCRS(messages3and4). Once this invocation is com-pleted, a notification is sent to the wrapper ofCTS, and the overall execution is completed.
3.3. Preconditions and postprocessings tables
Extracting the knowledge required by a state coordinator from the statechart implementing a composite service oper-ation, involves answering the following questions:
What are thepreconditionsfor entering a state? That is,
what are the source states of the transitions leading to a given state, and what are the conditions that need to be satisfied for this transition to be taken.
When the execution of a state is completed (whether
successfully or because of a signal), which are the states that may need to be entered next? The process by which a coordinator notifies that its state is being exited to the relevant peer coordinators is calledpostprocessing. The behavior of a state coordinator can therefore be cap-tured through two sets: (i) a set ofpreconditionssuch that
Coordinator AS 2b.3 2b.2 1 6 Wrapper ASS Coordinator ITA 2a.2 2a.10
Wrapper ITAS Coordinator IFB Coordinator TI 2a.6 2a.7 Wrapper IFBS Wrapper TIS 2a.8 2a.3 2a.4 2a.5 2a.9 Coordinator AB 2a.13 Wrapper ABS Coordinator CR 4 3 Wrapper CRS 2a.1 2b.12 2a14a 5 Wrapper CTS 2b.1 2b.4b 2b.4a
service invocation / completion
control-flow notification
2a.11 2a.14b
Figure 2. Interactions between the coordinators and the wrappers during an execution of CTS. The acronyms used here are detailed in Figure 1.
the state is entered when one of these preconditions is met, and (ii) a set ofpostprocessing actionsindicating which co-ordinators need to be notified when a state is exited. Prefer-ably, these sets of preconditions and postprocessing actions should be defined in a way to ensure minimal communica-tion overhead. In other words, when a state is exited, only those states that potentially need to be entered are notified. The following definitions formalize what is meant by a state potentially needed to be entered.
First of all, in order to identify the states which are ac-cessible from another one in a single step, we introduce the concept of compound transition. Intuitively, a compound transition3 is any path (i.e. list of linked transitions),
go-ing from a basic state to another basic state without passgo-ing through any other basic state.
Definition 1(Compound transition).A compound transi-tion CT is a sequence of transitransi-tions t1, t2, ..., tnbelonging to
a given statechart, such that: source(t1)
4is a basic state, target(tn) is a basic state, and
for all i in [1..n-1], either target(ti) is the final state of a region belonging to the compound state source(ti+1),
or source(ti+1) is the initial state of a region belonging
to the compound state target(ti).
Under these conditions, CT is said to connect source(t1)
with target(tn), i.e., source(CT) = source(t1) and target(CT)
= target(tn). The condition part of CT, noted Cond(CT), is the conjunction of the conditions labelling t1, ..., tn.
For example, in Figure 1 there is a compound tran-sition with two elements, going from state AS to state
CR, and another going fromABtoCR. In both cases, the condition of the compound transition is [true ^ not
near(major attraction, accommodation)]. 3Notice that the definition of compound transition that we adopt, is
slightly different from that of [8].
4Here, source(t) denotes the source state of transition t, while target(t)
denotes the target state of t.
When a state is exited, the states which potentially need to be entered next are those which are target of a compound transition for which either: (i) the condition part is true, or (ii) the condition part cannot be fully evaluated, but the part that can be evaluated is true.
Definition 2 (Minimal postprocessing table of a state). The minimal postprocessing table of a state ST, is a set of rules of the form [C]/ST’ such that:
There exists a compound transition CT such that source(CT) = ST and target(CT) = ST’.
Conjuncts(C) Conjuncts(Cond(CT)), where Conjuncts(c1^::: ^cn) =fc1,::: cng.
If Conjuncts(C)6=Conjuncts(Cond(CT)), then the ele-ments of Conjuncts(Conds(CT))nConjuncts(C) are ex-actly those that cannot be evaluated at the time the state ST is exited. Here,nstands for the set difference oper-ator.
For the example of Figure 1,Preconditions(AB)
= fready(ITA)[true], ready(DFB)[true]g,
meaning that the state AB is entered when a
mes-sage is received from either the coordinator of the
state ITA or that of DFB. Similarly,
Precondi-tions(CR) = fready(AB) ^ ready(AS)[not
near(major attraction, accommodation)]g.
When a service labelling a state completes its execution, the coordinator of this state evaluates the condition part of each of the entries appearing in its postprocessing table. For each entry whose condition evaluates to true, it sends a no-tification message to the coordinator of the state referenced in that entry. The constraints imposed in the Definition 2 ensure that a stateST’, will receive a notification of com-pletion from another state ST, if and only if either (i) the state ST’needs to be entered, or (ii) it is not possible for
STto determine whether the stateST’should be entered or not. In this latter case, the decision on whetherST’should be entered or not, is made by the coordinator ofST’based on its preconditions table as defined below.
Definition 3(Minimal preconditions table of a state).The (minimal) preconditions table of a state ST of a composite service specification is a set of rules E[C] such that:
E is a conjunction of events of the form ready(ST’). The event ready(ST’) is generated when a notification of completion is received from the coordinator attached to stateST’. The conjunction of two eventse1ande2
is noted e1^e2 and the semantics is that if an occur-rence ofe1and an occurrence ofe2are registered in any order, then an occurrence of e1^e2 is generated. There exists a compound transitionCTfromST’toST
such thatCST.
If Conjuncts(C)6=Conjuncts(Cond(CT)), then the con-ditions in CTn C are exactly those which cannot be evaluated by the coordinator ofST’.
In the example of Figure 1, we have that Postpro-cessing(AS) = f[true]/notify(CR), [true
]/notify(wrapper)g. Notice that the condition
near(major attraction , accommodation) ca-nnot be evaluated by the coordinator ofAS, since it involves information which is only known once the accommodation has been selected, and this is done in a separate concurrent region.
When a rule in the preconditions table of a state STis triggered (i.e. an event occurrence matches the event part of the rule), if the rule’s condition evaluates to true, stateSTis entered, and the service that labels it is invoked by the coor-dinator ofST. The third item in Definition 3 ensures that the coordinator ofSTwill only evaluate those conditions which have not been previously evaluated by the coordinators ref-erenced in the event part of the rule.
3.4. Routing tables generation
We describe in turn the algorithms for generating the postprocessing and the preconditions tables of a state. For the sake of simplicity and for space reasons, we restrict our presentation to the case where the transitions are only la-beled with conditions (i.e., they do not have an event nor an action part). In [1], we discuss how transitions labeled with user-defined events and actions can be accommodated.
3.4.1 Postprocessings table generation
In order to derive the postprocessing table of a state, its outgoing transitions are analyzed, and one or several postprocessing actions are generated for each of them. The algorithm for generating the postprocessing table of a state, namelyPostProc, relies on an auxiliary algorithm
PostProcTranswhich takes as input a transitionT, and returns a set of postprocessing actions that need to be under-taken if transitionTis taken. By observing that the postpro-cessing table of a stateSTis the union of the postprocessing
actions associated to the outgoing transitions ofST, we de-duce that:
PostProc(st) =
letft1, t2,:::, tngare the outgoing transitions of st in
PostProcTrans(t1)[PostProcTrans(t2)[:::[PostProcTrans(tn)
Let us now discuss how an outgoing transition is used to generate a set of postprocessing actions. The simplest case is that when this transition leads to a basic state (sayST), and it is labeled with a conditionC. The postprocessing ac-tion[C]/notify(ST)is included in the postprocessing table, meaning that if conditionCis true, a notification must be sent to the coordinator of stateST.
If an outgoing transitionT points to a compound state
CST, then one postprocessing action is generated for each of the initial transitions ofCST. The condition labellingT
is then added as a conjunct to the condition guarding each of these postprocessing actions, sinceThas to be true for any of these actions to be undertaken. This process is car-ried out recursively, that is, if one of the initial transitions ofCSTpoints to another compound stateCST’, then one postprocessing action is generated for each initial transition inCST’and so on.
When an outgoing transitionTpoints to a final state of a compound stateCST, the outgoing transitions ofCSTare considered in turn, and one or several postprocessing ac-tions are generated for each of them. A distinction should be made here between the case whereCSThas no succes-sors (in which case the notification of completion is sent to the wrapper), the case whereCSTis anOR-STATE, and the case where it is anAND-state. In this latter case, the con-ditions emanating fromCSTare not included in the postpro-cessing table, since their evaluation may require informa-tion which is not available when the transiinforma-tionTis taken. For instance, in the case of Figure 1, the condition at-tractions far from accommodationshould not appear in the postprocessing table of stateAS, since it can-not be evaluated until stateABis exited, and stateAB exe-cutes in a region concurrent to that ofAS.
3.4.2 Preconditions table generation
The preconditions table of a state is generated by deter-mining, for each of the incoming transitions of the state, what are the conditions that should be met for that transi-tion to be taken. The functransi-tionPreCond(ST)which com-putes the preconditions of stateSTcan thus be written in terms of an auxiliary functionPreCondTrans(T)which computes the preconditions of transitionT.
PreCond(st) =
letft1, t2,:::, tngbe the incoming transitions of st
PreCondTrans(t1)[PreCondTrans(t2)[:::[PreCondTrans(tn)
The function PreCondTrans(T) distinguishes the
one in which it is an initial state, the one in which it is an
OR-state, and that in which it is anAND-state. In the first case, the only precondition for taking the transition is that the source state is exited, and the condition in the tran-sition is taken. In the second case (the trantran-sitionTstems from an initial transition), the preconditions for taking the transitionTare identical to the preconditions for entering the superstate ofT, except that they contain the condition in the transition ofTas a conjunct. Notice that if the superstate ofTis the topmost state of the statechart,Tis aninitial transitionof the composite service and it is therefore taken when the composite service’s wrapper sends an order to execute the service.
The case where a transition stems from a compound state
CSTis treated by recursively applying the function Pre-CondTransto the final transitions ofCST, and merging the resulting preconditions tables. In the case whereSTis an OR-state, the merging is a simple set union. In the case of anAND-state, each concurrent region is treated as anOR-state, and the preconditions tables obtained for each concurrent region are merged through a cartesian prod-uct, meaning that theAND-stateis exited if one of the final transitions in each of the concurrent regions is taken.
Detailed descriptions of PreCondTransand
Post-CondTransare given in [1]. It can be proven by struc-tural induction (the proof is omitted for space reasons) that the tables generated by PreCondandPostProcfulfill the conditions in Definition 3 and Definition 2 respectively. It follows that, at runtime, a control-flow message is sent from a coordinatorC1to another coordinatorC2, only if there is a compound transition from the state ofC1to that ofC2, and either the state ofC2needs to be entered, or it is impossible forC1to determine whether the state ofC2
needs to be entered or not.
4. Implementing SELF-SERV
In this section, we discribe a prototype implementa-tion of SELF-SERV architecture. This implementaimplementa-tion has shown that the ideas behind SELF-SERV fit together, are consistent with one another, and are realizable using exist-ing technologies.
4.1. Architecture
The SELF-SERV’s prototype architecture (see Figure 3) is composed of aninterface, aservice manager, and apool of services. All these components have been implemented in Java. Currently, three types of proprietary/native services are supported: Domino-based workflows, Java applications that provide access to relational databases via JDBC, and Web-accessible programs. As mentioned earlier in the pa-per, services communicate through XML documents con-taining data and control flow information. These documents
are exchanged through Java sockets. Oracle’s XML Parser 2.0 is used for parsing XML documents.
Theservice managerconsists of three modules, namely theservice discovery engine, theservice editor, and the ser-vice deployer. In the current implementation, we use the service discovery engine of the AgFlowprototype [15]5.
Service descriptions (e.g., location and properties) are stored in an XML-based meta-data repository called the ser-vice catalogueimplemented on top of the Oracle8i DBMS. Theservice editorprovides facilities for defining new ser-vices and editing existing ones. A service is edited through a visual interface, and translated into an XML document for subsequent analysis and processing by the service deployer. Any service wishing to participate in the SELF-SERV platform, needs to register with the service discovery en-gine. For this purpose, the administrator of the service has to download and install a pre-existing class, namely Coor-dinator, implementing the concept of coordinator (see Sec-tion 4.2). An administrator registering a service is also re-quired to build a wrapper of this service, by downloading and configuring a pre-existing classWrapper provided by the SELF-SERV platform (see Section 4.2). The only in-frastructure required to install and configure these classes are Java and the XML parser. By default, the XML docu-ments containing the routing tables are stored in plain files, so that there is no need to have a DBMS in the site where the installation is made. However, if the administrator decides to store these documents in a DBMS, (s)he can customize the classCoordinatoraccordingly.
The service deployer is responsible for generating the preconditions and postprocessing tables of every state of a composite service statechart, using the algorithms presented in Section 3.4. The input of the programs implementing these algorithms are statecharts represented as XML doc-uments, while the outputs are routing tables formatted in XML as well. Once the tables are generated, theservice de-ployerassists the service composer in the process of upload-ing these tables into the hosts of the correspondupload-ing compo-nent services. It also assists the composer in the deployment of the wrapper of the composite service. At present, secu-rity issues related to uploading tables are not considered.
Notice that the statechart implementing a composite ser-vice is not uploaded/downloaded into the hosts of the com-ponent services. Instead, a host providing a serviceSwill only receive the routing tables of the states where an invo-cation toSis made. In this way, it is not required that each participant of the SELF-SERV platform deploys the whole system. Instead, the only parts of the system which are re-quired by all the participants are the classes implementing the coordinators and the wrappers.
We note that a service may be involved in several com-positions (e.g.,S1may be a component of bothCS1and
Service Manager is registered with service descriptions Pool of Services Elementary services Communities XML service catalogue Composite services is composed of Service Editor Service Deployer Communication Bus
Coordinator.1 Coordinator.2 Coordinator.n
Wrapper Legend
SELF-SERV SELF-SERV Interface
requests/results
workflow database applications web-accessible programs Service Discovery Engine
C1 C2 C3
CS1 CS2
ES1 ES2 ES3 ES4
Figure 3. Architecture of the SELF-SERV prototype.
CS2), and may even be referenced more than once in a given composition (e.g., the state ST1 ofCSinvokes the operationop1()ofS, and the stateST2ofCSinvokes the operationop2()ofS). Consequently, the host of a service
S, may need to store several preconditions and several post-processing tables (one table of each type per state in which
Sis invoked). In order to ensure that a coordinator is able to retrieve the right table at the right moment, each precon-ditions and each postprocessings table is identified by a pair
(cs-id, state-id), wherecs-idis the identifier of a composite service and state-idis the identifier of a state ofcs-id’s statechart.
4.2. The
Coordinatorand
Wrapperclasses
Message Contents. The messages exchanged between the coordinators (i.e. the control-flow notifications) are
identified by tuples of the form (senderState id,
receiverState id, compositeSVC id, in-stance id), where senderState idis the identifier of the state that is being exited, receiverState id
is the identifier of the state that potentially needs to be
entered, compositeSVC id is the identifier of the
composite service, andinstance idis the identifier of the instance of this composite service to which the message
relates.
On the other hand, the invocation messages sent by the coordinators to their underlying wrappers are identified by
tuples of the form (compositeSVC id,
composite-Instance id, service id, operation id), such thatcompositeSVC idis the identifier of the compos-ite service,compositeInstance idis the identifier of the instance of the composite service,service idis the identifier of the invoked service, and operation id is the identifier of the invoked operation within this service.
The Class Wrapper. The concept of service wrapper is mapped into an abstract class called Wrapper, which defines (among others) methods for (i) invoking an op-eration of the service (method start service), and (ii) collecting the outputs of a service instance (method
get service result). To account for the three kinds of services supported in SELF-SERV, the abstract class Wrapperis specialised into three concrete subclasses: El-ementaryWrapper, CompositeWrapper, and Community-Wrapper. Each of these subclasses realises the above meth-ods in a different way.
In the ElementaryWrapper class, the method
start service loads the translator program cor-responding to the invoked operation, and invokes the
underlying application program. The outputs of this application program are translated back into the format of SELF-SERV using the translator, and made accessible through the methodget service result.
In the CommunityWrapper class, the method
start service begins by invoking a program im-plementing the selection policy. This program returns the identifier of one of the members registered with the community. Then the selected service is invoked through its wrapper, which can be implemented by an instance of the classElementaryWrapper,CompositeWrapperor even CommunityWrapper.
Finally, in the CompositeWrapper class, the method
start servicebegins by accessing the postprocessings table of the initial state of the statechart, and sends a control-flow notification message to each of the coordinators of the states that need to be entered first. These coordinators then interact in a peer-to-peer way with other coordinators, un-til eventually the coordinators of the states which are ex-ited the last send their control-flow notifications back to the composite wrapper. Once all the control-flow notifications are received, the outputs of the service invocation are made available through theget service resultsmethod.
The classes ElementaryWrapper, CommunityWrapper andCompositeWrapper, may need to dynamically load ex-ternal programs. For example, theElementaryWrappermay need to load the translator programs that realise the service operations, while the classCommunityWrappermay need to load and execute the programs implementing the selec-tion policies. This is done using the reflecselec-tion capabilities of the Java platform.
The ClassCoordinator. The functionalities of the coor-dinators are realised by a class called Coordinator, which provides methods for receiving, processing, generating and sending control-flow notifications, service invocation, and service completion messages.
More precisely, the classCoordinatorimplements a soft-ware component made up of acontainerand apool of ob-jects.6 The container is a process that runs continuously,
listening to a socket through which control-flow notifica-tion messages from other coordinators are received. When the container receives a message from another coordinator, it first examines the identifier of the composite service in-stance to which the message relates, and proceeds as fol-lows:
If the identifier of the composite service instance is
unknown to the container (i.e., this is the first time that a control-flow notification related to that instance is received), a new coordinator object is created, and this object is given access to the routing tables of 6This pool of object is different from the pool of services discussed
previously.
the receiver state indicated in the message identifier. The task of handling the notification is delegated to this newly created object by invoking a method pro-cess notification on it. If other control-flow notifications related to the same composite service in-stance are expected to arrive subsequently, the object is temporarily added to the pool of objects so that it can treat them as they arrive.
If on the other hand the container has previous
knowl-edge about the composite service instance to which the control-flow notification relates, the notification is del-egated to the coordinator object that was created when the first message related to that instance was received. This object is retrieved from the pool of objects and the
methodprocess notificationis invoked on this
object.
Each object in the pool is dedicated to a particular com-posite service instance, and processes all the incoming control-flow notifications related to that instance. By keep-ing track of these notifications, and by havkeep-ing access to the relevant preconditions tables, the object is able to detect when should a given state of the composite service be en-tered. When a coordinator object detects that a given state of the composite service needs to be entered, it sends an invocation message to the wrapper of this service. Once the corresponding completion message is received, the ob-ject polls the result parameters from the service’s wrapper, generates one or several control-flow notification messages (according to the information contained in the relevant post-processings table), and dispatches these messages through sockets. From there on, the coordinator object is no longer needed, so it is removed from the pool and destroyed.
5. Related Work
Service composition is a very active area of research and development [13, 3]. In this section, we focus on re-search efforts that are closely related to our work, namely eFLOW[4],CMI[12],CrossFlow[7],WISE[9],CPM[5], andMentor[10, 3].
CMI [12] and eFlow [4] are platforms for specifying, en-acting, and monitoring composite services. In both of these platforms, the underlying execution model is based on a centralised process engine, responsible for scheduling, dis-patching, and controlling the execution of all the instances of a composite service. This is in contrast with SELF-SERV’s peer-to-peer execution approach. Both eFLOW and CMI support dynamic provider selection, although the con-cept of community provided in SELF-SERV is not explic-itly supported. The concept of community in SELF-SERV stems from the concept of “push community” sketched in WebBIS [2]. WebBIS however does not provide a means for specifying a global view of a composite service.
CrossFlow and WISE are inter-organisational workflow management platforms that focus on loosely coupled pro-cesses. They consider important requirements of B2B ap-plications such as dependability and external manageability. However, the dynamic and peer-to-peer provisioning of ser-vices is not explicitly supported.
CPM supports the execution of inter-organisational busi-ness processes through peer-to-peer collaboration between a set of workflow engines, each representing a player in the overall process. A major difference between CPM and SELF-SERV, is that in CPM, the number of messages ex-changed between the players is not optimised. Instead, each time that a process terminates a task, it must notify it to all the other players. Hence, if a process involvesNtasks and
M players, its execution requires the exchange ofN M
messages: far more than required. Moreover, CPM requires that all the players participating in an inter-organisational process deploy a full-fledged workflow engine to cater for the coordination with the other players, whereas in SELF-SERV the coordination between entities is handled through lightweight schedulers (the state coordinators).
In Mentor, the problem addressed is that of distributing the execution of workflows expressed as state and activity charts. The idea is to partition the overall workflow speci-fication into several sub-workflows, each encompassing all the activities that are to be executed by a given entity within an organisation. Mentor differs from SELF-SERV, in that it assumes that the assignment of activities to entities is known at workflow definition time: a restrictive assump-tion in the context of service composiassump-tion. Moreover, as in CPM, Mentor imposes that each organisation participating in a distributed workflow deploys a full-fledged execution engine, capable of interpreting state and activity charts.
6. Conclusion
In this paper, we have presented the design and the im-plementation of SELF-SERV, a framework for declarative Web services composition using statecharts, where the re-sulting services can be executed in a decentralized way within a dynamic environment. The concept of communi-ties is used to form alliances among a potentially large num-ber of dynamic services. The underlying execution model allows services participating in a composition, to collabo-rate in a peer-to-peer fashion in order to ensure that the con-trol and data flow dependencies expressed by the schema of a composite service are respected. So far, we have imple-mented a prototype that realises the execution of composite service in a peer-to-peer manner. We illustrated the viability of the proposed approach. On-going work includes the as-sessment of the performance and scalability of SELF-SERV.
References
[1] B. Benatallah, M. Dumas, M. Fauvet, and H. Paik. Self-coordinated and self-traced composite services with dy-namic provider selection. Technical Report UNSW-CSE-TR-0108, School of Computer Science & Engineering, University of New South Wales, May 2001. Avail-able athttp://www.cse.unsw.edu.au/˜qsheng/ selfserv.ps.gz.
[2] B. Benatallah, B. Medjahed, A. Bouguettaya, A. Elma-garmid, and J. Beard. Composing and maintaining web-based virtual enterprises. InProc. of the 1st VLDB Work-shop on Technologies for E-Services, Cairo, Egypt, Septem-ber 2000.
[3] F. Casati, D. Georgakopoulos, and M. Shan editors. Special Issue on E-Services.VLDB Journal, 24(1), 2001.
[4] F. Casati, S. Ilnicki, L.-J. Jin, V. Krishnamoorthy, and M.-C. Shan. Adaptive and dynamic service composition in eFlow. InProc. of the Int. Conference on Advanced Infor-mation Systems Engineering (CAiSE), Stockholm, Sweden, June 2000. Springer Verlag.
[5] Q. Chen and M. Hsu. Inter-Enterprise Collaborative Busi-ness Process Management. InProc. of 17th Int. Conference on Data Engineering (ICDE), pages 253–260, Heidelberg, Germany, April 2001. IEEE Computer Society.
[6] J. Clark and S. DeRose. XML Path Language (XPATH) Ver-sion 1.0.
[7] CrossFlow Project web page. http://www. crossflow.org/.
[8] D. Harel and A. Naamad. The STATEMATE semantics of statecharts.ACM Transactions on Software Engineering and Methodology, 5(4):293–333, October 1996.
[9] A. Lazcano, G. Alonso, H. Schuldt, and C. Schuler. The WISE approach to electronic commerce. Journal of Com-puter Systems Science and Engineering, 15(5), September 2000.
[10] P. Muth, D. Wodtke, J. Weissenfels, A. Dittrich, and G. Weikum. From centralized workflow specification to dis-tributed workflow execution.Journal of Intelligent Informa-tion Systems, 10(2), March 1998.
[11] P. O’Kelly. B2B Content and Process Integration. http: //www.psgroup.com/, November 2000.
[12] H. Schuster, D. Georgakopoulos, A. Cichocki, and D. Baker. Modeling and composing service-based and reference process-based multi-enterprise processes. InProc. of the Int. Conference on Advanced Information Systems Engineering (CAiSE), Stockholm, Sweden, June 2000. Springer Verlag. [13] G. Weikum editor. Special issue on infrastructure for
ad-vanced e-services. IEEE Data Engineering Bulletin, 24(1), March 2001.
[14] B. Yang and H. Garcia-Molina. Comparing Hybrid Peer-to-Peer Systems. InProc. of 27th Int. Conference on Very Large Data Bases, Roma, Italy, 2001.
[15] L. Zeng, B. Benatallah, A. Ngu, and P. Nguyen. AgFlow: Agent-based Cross-Enterprise Workflow Management Sys-tem. InProc. of 27th Int. Conference on Very Large Data Bases, Roma, Italy, 2001.
