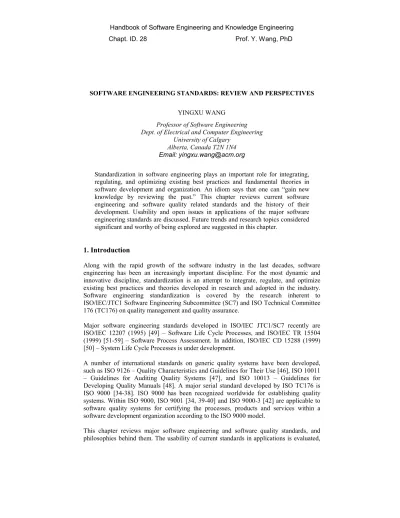

SOFTWARE ENGINEERING STANDARDS: REVIEW AND PERSPECTIVES YINGXU WANG

Professor of Software Engineering Dept. of Electrical and Computer Engineering

University of Calgary Alberta, Canada T2N 1N4 Email: yingxu.wang@acm.org

Standardization in software engineering plays an important role for integrating, regulating, and optimizing existing best practices and fundamental theories in software development and organization. An idiom says that one can “gain new knowledge by reviewing the past.” This chapter reviews current software engineering and software quality related standards and the history of their development. Usability and open issues in applications of the major software engineering standards are discussed. Future trends and research topics considered significant and worthy of being explored are suggested in this chapter.

1. Introduction

Along with the rapid growth of the software industry in the last decades, software engineering has been an increasingly important discipline. For the most dynamic and innovative discipline, standardization is an attempt to integrate, regulate, and optimize existing best practices and theories developed in research and adopted in the industry. Software engineering standardization is covered by the research inherent to ISO/IEC/JTC1 Software Engineering Subcommittee (SC7) and ISO Technical Committee 176 (TC176) on quality management and quality assurance.

Major software engineering standards developed in ISO/IEC JTC1/SC7 recently are ISO/IEC 12207 (1995) [49] – Software Life Cycle Processes, and ISO/IEC TR 15504 (1999) [51-59] – Software Process Assessment. In addition, ISO/IEC CD 15288 (1999) [50] – System Life Cycle Processes is under development.

A number of international standards on generic quality systems have been developed, such as ISO 9126 – Quality Characteristics and Guidelines for Their Use [46], ISO 10011 – Guidelines for Auditing Quality Systems [47], and ISO 10013 – Guidelines for Developing Quality Manuals [48]. A major serial standard developed by ISO TC176 is ISO 9000 [34-38]. ISO 9000 has been recognized worldwide for establishing quality systems. Within ISO 9000, ISO 9001 [34, 39-40] and ISO 9000-3 [42] are applicable to software quality systems for certifying the processes, products and services within a software development organization according to the ISO 9000 model.

This chapter reviews major software engineering and software quality standards, and philosophies behind them. The usability of current standards in applications is evaluated,

(2)

and open issues of them are discussed by using the body of empirical and theoretical studies [66, 83, 86, 89-94]. Perspectives on trends and future development in software engineering standardization are provided.

2. A Brief History of Standardization in Software Engineering

There are two main historical threads in tracing the emergence of software engineering standards. They are software engineering itself and applications of management science in software engineering.

Research into the engineering processes and management principles in management sciences began in the 1960s [1, 62, 63, 78, 81]. In the 1970s and 1980s, management science was well established in almost all branches. Worthy of particular note are Crosby, Juran and Deming who developed the approach of quality conformity to requirements and specifications [16, 17, 63] and proposed a number of agendas that must be carried out in order to deliver total quality. These concepts have largely influenced software engineering processes and software quality assurance technology. In 1982, the Deming Circle, Plan-Do-Check-Act (PDCA), was proposed [17] and received much attention in software process modeling and analysis. Then, a project designated ISO TC176 in 1987 to develop an international standard for quality systems [34-38] was implemented. ISO 9000 series of standards are applicable to a wide range of engineering systems, with ISO 9001 particularly focusing on software engineering [15, 34, 39, 40].

In the software engineering sector, studies on the software engineering process can be traced to as early as 1965 in Weinwurm and Zagorski’s work. However, interest in the software process was initiated in the 1970s after the so called “software crisis” [3, 14, 69]. The software process as a recognized branch of software engineering was formed in the 1980s following the work of Basili [4], Aron [2], Evans [23], Boehm [7-9], Gilb [26], Humphrey [27-29]. These works led to the development of the capability maturity model (CMM) [27, 70-72] and several other models, such as the IEEE Software Engineering Standards [32-33] and British Standard BS 5750 [15] in the late 1980s. Since then the software engineering process has attracted much interest and recognition in software engineering research, practices, and standardization.

2.1 Software Engineering Process Standardization

In 1987 a Software Engineering Subcommittee (SC7) was established by the ISO/IEC Joint Technical Committee-1 (JTC1) in order to recognize the importance and requirements for a set of software engineering standards. Since then, a dozen working groups (WGs) have been founded to cover specific software engineering areas such as, inter alia:

• WG7: Life cycle management

• WG8: Support of software life cycle processes

• WG9: Software integrity

• WG10: Software process assessment

• WG11: Software engineering data definition and representation

(3)

The major outputs of ISO/IEC JTC1/SC7 WG8 are ISO/IEC 12207 (1995) – Software Life Cycle Processes [49], and ISO/IEC CD 15288 (1999) – System Life Cycle Processes (Draft) [50]. ISO/IEC JTC1/SC7 WG10 focuses on ISO/IEC 15504 (1998/99) – Software Process Assessment [51-59]. A recent trend of ISO/IEC TR 15504 is to align its process dimension to ISO/IEC 12207. In addition, extensions of ISO/IEC TR 15504 have been proposed to cover some system life cycle processes such as acquisition processes and broader system environment processes [20].

The list of JTC1/SC7 working groups is still expanding. As software engineering theory, methodologies, and practices evolve, we may expect more areas to be covered in software engineering standardization, such as system requirement definition, domain knowledge infrastructure, software architecture and frameworks, software engineering notations, etc.

2.2 Software Quality Standardization

Software quality system standardization is carried out by the ISO Technical Committee 176 (TC176) on quality management and quality assurance. ISO TC176 was initiated in 1979 with subcommittees working on generic quality systems and supporting technologies.

Major standards developed by ISO TC176 are the ISO 9000 family [34-45], and ISO 9126 software quality characteristics [46]. Within ISO 9000, ISO 9001 [34, 39-40] and ISO 9000-3 [37] are specially oriented to software quality systems for certifying the processes, products, and services within a software development organization. For absorbing the experience in developing process-based software engineering standards, ISO 9000/9001 are under revision currently [34], and this will be described in Section 4.6.

All current software quality and software process standards are based on generic quality system principles developed in management sciences, such as the following:

• Statistical quality control

• Total quality management (TQM), and

• Continuous improvement

These principles are considered to benefit from the pioneering work of Walter Shewhart (1939) [80], Joseph Juran (1962) [62], Philip Crosby (1979) [16], W. Edwards Deming (1982) [17] and others.

2.3 Interrelationship between current software engineering standards

A number of software engineering standards and models have been developed in the last decade, such as TickIT [22, 84, 85], ISO 9001 [34, 39, 40], CMM [27-29, 70-73], ISO/IEC 12207 [49], ISO/IEC 15504 (SPICE) [51-59]. In addition, a number of regional and internal models [6, 15] have been adopted. According to a recent worldwide survey [86, 89, 91], the ISO 9001standard are the most popular in software engineering, followed by CMM and ISO/IEC TR 15504. Some regional, internal, and industry sectors’ process models, such as Trillium, also share a significant part of application in the software industry.

(4)

The SEI Capability Maturity Model (CMM) was initially developed as an assessment model for software engineering management capabilities of software providers [27-28]. As such it was expected that it would provide useful measurement for organizations bidding or tendering for software contracts. It was soon found that the concept of “process” for software engineering has more utility than that of capability assessment, and that software development organizations may use the capability model for internal process improvement. As a result of this deeper understanding, new practices in process-based software engineering have been emerging in the last decade. This is to be considered as one of the important inspirations arising from CMM and related research.

From another angle, management sciences, looking at software engineering, ISO 9001 and ISO 9000-3 were developed. ISO 9001 (Quality Systems – Model for Quality Assurance in Design, Development, Production, Installation, and Servicing) [34, 39, 40], and ISO 9000-3 (Quality Management and Quality Assurance Standards Part 3 – Guidelines for the Application of ISO 9000 to the Development, Supply, and Maintenance of Software) [37] are important parts of ISO 9000, and are designed for software engineering.

In 1992, the ISO/IEC JTC1 software engineering committee recognized a need to develop a new international standard for software process assessment and improvement. Then, after a six-year international collaborative project (SPICE) within the ISO/IEC JTC1/SC7/WG10, an ISO 15504 Technical Report suite was completed. Inspired by a European research project, BOOTSTRAP [12, 67], ISO/IEC 15504 has recognized the value inherent in separating the “process” dimension from the “capability” dimension in a software engineering process model. As a result, a true two-dimensional process system model was developed for the first time. However, what is interesting is that in the ISO/IEC TR 15504 model, the activities for the process dimension and the attributes for the capability dimension at some points overlap. This means that there is still a need to further distinguish the process activities and the measurement attributes as well as their indicators in the two dimensions.

3. Review of Current Software Engineering Standards and Models

According to a number of world-wide surveys in the software industry, widely accepted software engineering standards are ISO 9001, CMM, ISO 9126, and ISO/IEC 15504 [66, 86, 89, 91]. This section reviews the four major software engineering standards and models. The technical frameworks and usability of these standards are described and evaluated based on industrial trial experience and reports [83, 86, 88, 90-94].

3.1 CMM

The capability maturity model (CMM) was the first process methodology that tried to model software engineering process systems. CMM [27-29, 70-73] was initially developed in the Software Engineering Institute (SEI) at Carnegie-Mellon University in 1987. The current version of CMM (Version 1.1) was released in 1993.

(5)

The requirements for distinguishing and selecting matured software providers led to the development of the SEI method for assessing software project contractors [28-29] and the SEI capability maturity model (CMM) for software [70-73]. A set of important concepts and successful experience, such as process, quality, and management techniques, have been introduced into software engineering from management sciences.

However, in addition to the initial goals of CMM for software engineering management capability modeling and software organization maturity measurement, researchers and the software industry soon realized that the concept of software process introduced in CMM is a universal model for organizing software engineering. This led to studies in a new approach to process-based software engineering and the development of a number of new software process models and standards.

CMM (V.1.1) was developed by Paulk and his colleagues [70] with the supplement of a set of detailed key practices in Paulk et al. [71], and a questionnaire in Zubrow et al. [95]. A summary of differences between Version 1.0 and Version 1.1 is provided in [72]. For more background and related work that led to the development of CMM, see Humphrey and his colleagues [27-29].

Applications and case studies of CMM were reported in Humphrey et al. [31], Kitson and Masters [64], and Saiedian and Kuzara [77]. For looking at relationships of CMM with other process models, see Paulk et al. [74], Kitson [65], Wang et al. [86, 88-94]. Criticism on CMM may be referred to Bollinger and McGowan [11], Brodman and Johnson [13], and Fayad and Laitinen [24-25]. Readers may also be interested in reading the counterpoint comments on Bollinger and McGowan’s article by Humphrey and Curtis [30].

3.1.1 Framework of the CMM Process Model

CMM models 18 key practice areas and 150 key practices. These key practices and key practice areas are grouped into a 5-level process capability maturity scale known as the initial, repeatable, defined, managed, and optimizing levels. What is significant is the systematic breakdown of software engineering activities, and the analytical judgement of process capability levels that the model allows.

A hierarchical structure of the CMM framework is shown in Table 1.

3.1.2 Process Capability Scale

CMM develops a five-level software process capability model as shown in Table 2 [70]. Each capability level is defined in the table with supplemental description of capability performance indicators in the last column.

(6)

Table 1. Structure of the CMM Framework

ID. Level Key Practice Area (KPA) Identified Key Practices

CL1 Initial 0

CL2 Repeated 62

KPA2.1 Requirement management 3

KPA2.2 Software project planning 15

KPA2.3 Software project tracking and oversight 13

KPA2.4 Software subcontract management 13

KPA2.5 Software quality assurance 8

KPA2.6 Software configuration management 10

CL3 Defined 50

KPA3.1 Organization process focus 7

KPA3.2 Organization process definition 6

KPA3.3 Training program 6

KPA3.4 Integrated software management 11

KPA3.5 Software product engineering 10

KPA3.6 Intergroup coordination 7

KPA3.7 Peer reviews 3

CL4 Managed 12

KPA4.1 Quantitative process management 7

KPA4.2 Software quality management 5

CL5 Optimizing 26

KPA5.1 Defect prevention 8

KPA5.2 Technology change management 8

KPA5.3 Process change management 10

Table 2. The CMM Process Capability Model Capability

level

Title Description Performance

Indicator

CL1 Initial At this level, the software process is characterized as ad hoc, and occasionally even chaotic. Few processes are defined, and success depends on individual effort.

Schedule and cost targets are typically overrun.

CL2 Repeated At this level, basic project management processes are established to track cost, schedule, and functionality. The necessary process discipline is in place to repeat earlier successes on projects with similar applications.

Plans based on past performance are more realistic.

CL3 Defined At this level, the software process for both management and engineering activities is documented, standardized, and integrated into a standard software process for the organization. All projects use an approved, tailored version of the organization’s standard software process for developing and maintaining software.

Performance improves with well-defined processes.

CL4 Managed At this level, detailed measures of the software process and product quality are collected. Both the software process and products are quantitatively understood and controlled.

Performance continues to improve based on quantitative under-standing of process and product.

CL5 Optimizing At this level, continuous process improvement is enabled by quantitative feedback from the process and from piloting innovative ideas and technologies

Performance contin-uously improves to increase process efficiency, eliminate costly rework, and allow development time to be shortened.

(7)

3.1.3 Evaluation of CMM

The design philosophy behind CMM is a software project contractor’s perception on the organizational and managerial capacity of a software development organization. It has been noted, however, that interpretations of CMM have been shifted from the original second-party point of view to the third-party and first-party-oriented applications in the software industry.

Despite the fact that programming had been a profession for almost half a century, it is noteworthy that the software industry is still relatively young, and the discipline of software engineering is still being built. Because of the systematic studies in developing CMM, the process approach as an overarching methodology to software engineering is widely accepted by researchers and the software industry. CMM has developed a stepwise software engineering process assessment and improvement methodology. It is relatively easy in application and has intensive adoption in the software industry worldwide.

However, CMM is a 1-D process model and there is no distinguish between the dimensions of process and capability. This inherent limitation of CMM results in a number of structural arguments about whether CMM provided a process dimension or a capability dimension in process system modeling. There were also logical arguments about CMM concerning whether we would recommend the implementation of only a subset of a whole process system for a software organization each time if all processes in the system were considered essential for producing quality software.

3.2 ISO 9001

ISO 9000 [34 – 45] is a set of international standards for quality systems. It is designed for quality management and assurance, and specifies the basic requirements for the development, production, installation, and servicing at system level and product level. ISO 9000 provides a quality-system-oriented approach to the organization and management of production and service industries. ISO 9000 was first published in 1987 and revised in 1994, and is updating again currently [34].

Within the ISO 9000 suite, ISO 9001 [34, 39-40] and ISO 9000-3 [37] are applicable to the software process and quality systems for a software development organization. ISO 9001 aims to set minimum requirements for a general quality management system. The ISO 9001 model is generic, simple, and it has been accepted and supported worldwide. There are a number of derived versions of ISO 9000 standards adopted by national or regional standardization bodies, such as: ANSI/ASQC 9001 in the USA, EN29001 in Europe, BS/EN29001 in the UK, and AS/NZS 9001 in Australia and New Zealand. Some variation or extension of ISO 9000 standards also exist, such as IEEE 1298 [33] and TickIT [84-85].

In Jenner’s work [61], a set of 177 management issues was identified in the ISO 9001 conformance checklist for assessors based on the ISO 9001 revised version in 1994. Wang et al. [86, 88-94] presented a series of comparative analyses of relationships and mutual mappings between the major process models including ISO 9001. According to Wang et al. [86], those organizations that can pass the threshold of ISO 9001 assessment are

(8)

equivalent to CMM capability levels 2 – 3. Referring to Zubrow’s statistics [95], this implies that about 38% of those CMM-assessed organizations are technically at or above the ISO 9001 requirement level.

Seddon [79] set out 10 arguments against ISO 9000. He argued that the command-and-control ethos that pervades the ISO 9000 way of thinking – an inflexible compliance to a rigid set of written rules – is precisely what most companies do not need. He showed how real quality can be achieved by viewing the organization as a system and focusing on continuous improvement as the best means to create higher quality products and services.

3.2.1 Framework of ISO 9001

ISO 9001 models a basic set of requirements for establishing and maintaining a quality management and assurance system for software engineering. It identifies 20 main topic areas (MTAs) and 177 management issues (MIs), and categorized them into three subsystems known as management, product management, and development management. Perhaps because of its simplicity, ISO 9001 has been the most popular process model that is adopted in the software industry [68, 86, 89, 91]. An important characteristic of ISO 9001 is the underlying notion of a threshold standard and pass/fail criteria.

A hierarchical structure of the ISO 9001 framework is shown in Table 3. Table 3. Structure of the ISO 9001 Framework

ID. Subsystem Main Topic Area (MTA) Identified Management Issues

SS1 Organization

management

53

MTA1.1 Management responsibility 15

MTA1.2 Quality system 7

MTA1.3 Document and data control 8

MTA1.4 Internal quality audits 6

MTA1.5 Corrective and preventive action 6

MTA1.6 Quality system records 7

MTA1.7 Training 4

SS2 Product

management

31

MTA2.1 Product management 4

MTA2.2 Control of customer-supplied product 4

MTA2.3 Purchasing 8

MTA2.4 Handling, storage, packaging, preservation, and delivery 9

MTA2.5 Control of nonconforming product 6

SS3 Development

management

93

MTA3.1 Contract reviews 9

MTA3.2 Process control 23

MTA3.3 Design and development control 30

MTA3.4 Inspection and testing 11

MTA3.5 Inspection and test status 2 MTA3.6 Control of inspection, measuring, and test equipment 12

MTA3.7 Statistical techniques 2

(9)

3.2.2 Evaluation of ISO 9001

The design philosophy behind ISO 9001 is a generic quality system perception on software engineering. Although this philosophy has been proven successful in the conventional manufacturing industries, there is still a need for supporting evidence of its effectiveness and impact on the design-intensive software engineering and nonconventional software industries. It appears likely that software engineering is sufficiently unique as an engineering discipline in that it relies upon special foundations and applies a different philosophy. Therefore, further studies on common features and differences between conventional mass manufacturing and software engineering are still expected.

ISO 9001 has developed a straightforward checklist-based process methodology for a quality management system of a software development organization. Because of its simplicity, ISO 9001 has been widely accepted and applied in the software industry. While, it is noteworthy that ISO 9001 lacks a staged process capability framework for software engineering process assessment and improvement. As a result, all software organizations that pass the ISO 9001 registration assessment may lost their motivation and identification of differences in long-term continued software engineering process improvement.

3.3 ISO 9126

Another key international software quality standard is ISO 9126 – Software Product Evaluation – Quality Characteristics and Guidelines for Their Use [46]. ISO 9126 extends principles of quality control to software engineering and summarizes the major characteristics and attributes of software quality.

3.3.1 Framework of ISO 9126

What is software quality and how to measure it? This is a significant issue in software engineering that we are still seeking solutions. Usually, quality software is perceived as the software that meets users’ needs. However, for the same software system, users’ needs may be different and informal. Therefore, the quality of software is difficult to be verified according to this definition. Another definition perceives quality software as the software that contains fewer bugs. While, bugs as an internal feature of software are difficult to identify and measure in practice.

The author defined software quality as a software system’s inherent internal and external characteristics that show relative advantages over similar systems or indicate a conformance to a standard [86]. The central idea of this definition is to recognize that the quality of software (not quality software) is a relative concept. That is why we usually refer to the quality of a product as ‘higher’ or ‘better’.

ISO 9126 develops a new way to perceive software quality. According to the philosophy of ISO 9126, software quality is a set of quantitative or qualitative characteristics and attributes. ISO 9126 provides a software quality model by defining 6 software quality characteristics and 20 attributes, which are intended to be exhaustive. An overview of ISO 9126 software quality model is shown in Table 4.

(10)

Table 4. ISO 9126 Software Quality Model

No. Quality characteristics Quality attributes

1 Functionality 1.1 Suitability 1.2 Accuracy 1.3 Interoperability 1.4 Security 2 Reliability 2.1 Maturity 2.2 Fault tolerance 2.3 Recoverability 3 Usability 3.1 Understandability 3.2 Learnability 3.3 Operability 4 Efficiency 4.1 Time behavior 4.2 Resource behavior 5 Maintainability 5.1 Analyzability 5.2 Changeability 5.3 Stability 5.4 Testability 6 Portability 6.1 Adaptability 6.2 Installability 6.3 Conformance 6.4 Replaceability

The major quality characteristics identified in ISO 9126, as shown in Table 4, are described below:

Functionality: The characteristics that a system can provide specified services

that meet users’ requirements.

Reliability: The probability that a system will fulfil the service during a given period when ever a user demands.

Usability: The characteristics that a system is ready and easy for use when a user needs its service.

Efficiency: The characteristics that a system uses minimum resources and provides timely response to an application.

Maintainability: The probability that a system can be restored, within a given time after a failure, to provide the originally specified services.

Portability: The characteristics that a system is capable of running on different target machines, operating systems, and network platforms.

(11)

3.3.2 Evaluation of ISO 9126

Software quality may be characterized by external and internal attributes. External quality characteristics are those which can be evaluated when executing the software; and internal quality characteristics are those which are evaluated by inspecting the internal features of the software. The former is user-oriented and may be verified by black-box testing techniques. While, the latter is oriented to developers and maintainers, and may be verified by white-box testing techniques.

ISO 9126 adopts a philosophy of the black-box that represents user’s view on quality of software products and systems. Recent investigations [21, 75] argue that the ISO 9126 model focuses only on external characteristics of software quality. Substantial internal attributes of software quality, such as of architecture, reuse description, coding styles, test completeness, run-time efficiency, resource usage efficiency, and exception handling, have not been modeled. Another gap in ISO 9126’s quality characteristic set is the lack of exception handling capability requirements for software [86]. The exception handling capability is an important attribute of software quality that identifies the unexpected circumstances and conditions of a system, and specifies how the system should behave under such conditions. Design for exception handling capability of software is recognized as a good sign to distinguish naive and professional software engineers and system analysts, even that a customer has not explicitly required for this kind of built-in software quality.

Further, it is found that the concept of software quality might be different between vendor-specified (common system) software and user-specified (applications) software. For the former, quality refers to the software that provides much more usability and higher dependability at a comparable price. While, for the latter, quality means the software that meets the user’s requirements and runs with less failures. Also, it is considered that we need to distinguish the quality of software according to its developing processes. For example, we may identify the design quality, implementation quality, test quality, and maintenance quality of a software system, rather than pursuing a hybrid concept of the quality of software.

Generally, in a broad view, it is recognized that internal quality attributes of software can be measured and assured by software process standards and models. In this way, an interesting connection between software product quality standards (ISO 9126/ISO 9001) and software engineering process standards (ISO 15504/ISO 12207) may be established. 3.4 ISO/IEC 15504 (SPICE)

ISO/IEC TR 15504 is an emerging international standard for software engineering process system assessment and improvement. SPICE, software process improvement and capability determination, is the name of the international project for the development of this standard.

The design philosophy behind ISO/IEC TR 15504 is to develop a set of structured capability measurements for all software lifecycle processes and for all parties, such as software developers, acquirers, contractors, and customers. ISO/IEC TR 15504 is a result

(12)

of an international collaborative effort working towards developing an ISO software process assessment standard. ISO/IEC TR 15504 has incorporated experience and the improved understanding of software engineering processes gained in the development of CMM, BOOTSTRAP, ISO 9001, Trillium, and other models.

An ISO/IEC standard development is usually divided into three phases:

• DTR – Draft technical report

• TR – Technical report

• STD – Formal standard

The international project SPICE was initiated in 1991. An ISO/IEC 15004 technical report (TR) was released in 1999 [51-59] as a final step before publishing as an international standard. Now ISO/IEC TR 15504 is in the third phase of user trials.

ISO/IEC TR 15504 develops a 2-D process capability assessment model with both a process and a process capability dimension based on the technology advances. ISO/IEC TR 15504 assesses a software development organization in the process dimension against the process attributes in the capability dimension. The 2-D framework of ISO/IEC TR 15504 provides a refined process assessment approach and a process improvement platform for process-based software engineering.

Dorling [18-19] reviewed the initiative and history of the SPICE project and the early development phases of ISO/IEC TR 15504. Rout [76] highlighted the technical issues in ISO/IEC TR 15504 development. Kitson [65] related the ISO/IEC TR 15504 framework and ESI approach to software process assessment. Wang et al. [86, 88-94] presented a series of comparative analyses of relationships and mutual mappings between major process models including ISO/IEC TR 15504. Wang et al. [90] reported a conformance analysis case study between a tailored CMM and ISO/IEC TR 15504. For industrial experienced reports on ISO/IEC TR 15504, see SPICE Phase 2 Trial Report [83]. For the latest development of ISO/IEC TR 15504 extensions for acquisition processes, see Dorling and Wang et al. [20].

3.4.1 Framework of ISO/IEC TR 15504

ISO/IEC TR 15504 models 5 process categories, 35 processes, and 201 base practices. The processes are measured at 6 levels with 9 attributes. A hierarchical structure of the ISO/IEC TR 15504 framework is shown in Table 5.

3.4.2 ISO/IEC TR 15504 Process Capability Scale

In the ISO/IEC TR 15504 capability dimension [52], a process capability scale is defined by capability levels with generic measurement aids known as process attributes. Process attributes are features of a process that can be evaluated on a scale of achievement that provides a measure of the capability of the process. The process attributes are designed as a set of generic measurements of process capability, or as refinement of the given capability levels.

(13)

Table 5. Structure of the ISO/IEC TR 15504 Framework

ID. Process Category Process Identified Base Practices

CUS Customer- supplier 39

CUS.1 Acquire software product 5

CUS.2 Establish contract 4

CUS.3 Identify customer needs 3

CUS.4 Perform joint audits and reviews 6

CUS.5 Package, deliver and install software 7

CUS.6 Support operation of software 7

CUS.7 Provide customer service 4

CUS.8 Assess customer satisfaction 3

ENG Engineering 32

ENG.1 Develop system requirements 4

ENG.2 Develop software requirements 5

ENG.3 Develop software design 4

ENG.4 Implement software design 3

ENG.5 Integrate and test software 6

ENG.6 Integrate and test system 5

ENG.7 Maintain system and software 5

RRO Project 50

PRO.1 Plan project life cycle 5

PRO.2 Establish project plan 10

PRO.3 Build project teams 4

PRO.4 Manage requirements 5

PRO.5 Manage quality 6

PRO.6 Manage risks 8

PRO.7 Manage resources and schedule 5

PRO.8 Manage subcontractors 7

SUP Support 32

SUP.1 Develop documentation 5

SUP.2 Perform configuration management 8

SUP.3 Perform quality assurance 5

SUP.4 Perform problem resolution 6

SUP.5 Perform peer reviews 8

ORG Organization 48

ORG.1 Engineer the business 6

ORG.2 Define the process 13

ORG.3 Improve the process 9

ORG.4 Perform training 4

ORG.5 Enable reuse 7

ORG.6 Provide software engineering environment 4

ORG.7 Provide work facilities 5

Total 5 35 201

The process capability scale of ISO/IEC TR 15504 is defined at six levels with nine process attributes as shown in Table 6. The ISO/IEC TR 15504 capability levels generally consist of two process attributes except Level 1 (one attribute) and Level 0 (no attribute).

(14)

Table 6. The ISO/IEC TR 15504 Process Capability Model

ID. Capability Level Process Attribute Description

CL[0] Incomplete There is general failure to attain the purpose of the process. There are little or no easily identifiable work products or outputs of the process.

CL[1] Performed The purpose of the process is generally achieved. The achievement may not be rigorously planned and tracked. Individuals within the organization recognize that an action should be performed, and there is general agreement that this action is performed as and when required. There are identifiable work products for the process, and these testify to the achievement of the purpose.

PA11 Process

performance

CL[2] Managed The process delivers work products according to specified procedures and is planned and tracked. Work products conform to specified standards and requirements. The primary distinction from the Performed Level is that the performance of the process now delivers work products that fulfil expressed quality requirements within defined timescales and resource needs.

PA21 Performance management

PA22 Work product management

CL[3] Established The process is performed and managed using a defined process based upon good software engineering principles. Individual implementations of the process use approved, tailored versions of standard, documented processes to achieve the process outcomes. The resources necessary to establish the process definition are also in place. The primary distinction from the Managed Level is that the process of the Established Level is using a defined process that is capable of achieving its process outcomes.

PA31 Process

definition

PA32 Process

resource

CL[4] Predictable The defined process is performed consistently in practice within defined control limits to achieve its defined process goals. Detailed measures of performance are collected and analyzed. This leads to a quantitative understanding of process capability and an improved ability to predict and manage performance. Performance is quantitatively managed. The quality of work products is quantitatively known. The primary distinction from the Established Level is that the defined process is now performed consistently within defined limits to achieve its process outcomes.

PA41 Process

measurement

PA42 Process

resource

CL[5] Optimizing Performance of the process is optimized to meet current and future business needs, and the process achieves repeatability in meeting its defined business goals. Quantitative process effectiveness and efficiency goals (targets) for performance are established based on the business goals of the organization. Continuous process monitoring against these goals is enabled by obtaining quantitative feedback, and improvement is achieved by analysis of the results. Optimizing a process involves piloting innovative ideas and technologies and

(15)

changing noneffective processes to meet defined goals or objectives. The primary distinction from the Predictable Level is that the defined and standard processes now dynamically change and adapt to effectively meet current and future business goals.

PA51 Process

change

PA52 Continuous

improvement

3.4.3 Evaluation of ISO/IEC TR 15504

Technically and historically, ISO/IEC TR 15504 has absorbed the basic capability rating scale from CMM; the software engineering process activities identified in ISO/IEC 12207, Trillium, and CMM; the attribute-based profile representation for process capability from BOOTSTRAP; and the general quality system management experience from ISO 9001. Major contributions of ISO/IEC TR 15504 are considered as follows:

• It is the first 2-D software engineering process model with a fully independent process dimension and capability dimension. As a result, the processes and/or practices have no longer been assigned a pre-allocated and fixed priority as those in CMM.

• A process assessment result may be represented by a 2-D process profile.

• There is a refined process capability scale with a set of nine generic process attributes at six capability levels.

• A set of conformance criteria has been defined for enabling external process models to be compared and to meet common requirements.

Open issues on ISO/IEC TR 15504 methodology and framework have been identified as follows:

• It is found that the domain of ISO/IEC TR 15504 processes may need to be expanded significantly in order to provide a broader coverage and to increase compatibility with the existing process models.

• In ISO/IEC TR 15504 development and applications, there were difficulties in making the nine process attributes universally generic for all processes and base practices (BPs). As a result, it is often found that some of the attributes used as a rating scale were not suitable or applicable to some of the processes and BPs in assessment.

• The capability dimension of ISO/IEC TR 15504 has grown relatively complicated. It also introduced some extent of overlaps with the process dimension. This indicates there is a need to further explore the roles and relationships of the two dimensions in process system modeling.

(16)

• The assessment complexity of ISO/IEC TR 15504 is quite high with regard to the other process models. This means the cost of an ISO/IEC TR 15504 assessment would be much higher than that of the other process models.

4. Perspectives on Trends in Software Engineering Standardization

This section presents perspectives on current trends and future development of software engineering standardization. Some areas for future research are suggested which the author considers significant and worthy of being explored.

4.1 Integration of Process-Related Standards

A number of process-related standards have been developed or are under development within the international and professional standardization organizations such as the ISO/IEC JTC1/SC7 software engineering subcommittee and the IEEE. Significant standards coming forward are, inter alia: ISO/IEC 12207 [49] on software life cycle processes, ISO/IEC CD 15288 [50] on system life cycle processes, and ISO/IEC TR 15504 [51-59] on software process assessment and capability determination.

Major trends in software engineering process standardization have been considered to integrate the existing process-related standards and models, but standardization may also cover new process areas in software engineering.

4.2 Requirements for New Standards

The list of ISO/IEC JTC1/SC7 working groups is continuously expanding. As the evolution of software engineering theories, methodologies, and practices gets faster, more and more areas are expected be covered by efforts in software engineering standardization. Candidate examples, as the author forecast, might be new standards as follows:

• Standard for system requirement definition • Standard for domain knowledge infrastructure • Standard for software architecture and frameworks • Standard for software engineering notations • Standard for reference software design samples 4.3 Standardization of Software Engineering Notations

Almost all mature science and engineering disciplines have a common notation system. A requirement for establishing standard software engineering notations independent of languages and methodologies is beneficial to mainstream software development efforts.

Various software notations have been developed and adopted in software engineering, from graphical to symbolic notations, or from visual to mathematical (formal) notations. The existing software notations can be classified into five categories: the formal (algebraic and logical) notations, state-machine-based notations, data-flow-based notations, object-oriented notations, and process notations.

(17)

The international standardization community (e.g. IEEE SNP) is now investigating the feasibility of developing and unifying software engineering notations. The central concept of this effort is to develop a notation standard that is a primary independent entity built on a life cycle-based framework for the description of software archetypes. Archetypes may be described in different languages or meta-languages using the same core set of notations and a limited set of its extensions. The standard notation should be flexible enough to accommodate recent languages and implementations as well as those of the future.

4.4 Development of New Subdomain Process Models

It is recognized that software engineering is a discipline requiring inter-disciplinary domain knowledge. A number of subdomain process models have been developed recently in order to provide a more detailed process methodology for a specific application and/or process area in software engineering. Examples of subdomain process models are process models of:

• Requirement engineering processes [82]

• System engineering processes [5]

• Software and IT acquisition processes [20]

• The Spiral software processes [10]

• The Rational software development processes [60].

For details, readers may wish to consult the references provided above.

4.5 Process-Based Software Engineering

In the software industry, the software engineering process systems have been seen as a fundamental infrastructure for software engineering [86, 87]. Process-based development has been proven a successful approach not only in software engineering, but also in other, long matured engineering disciplines.

A trend in software engineering process system modeling is to adopt an operating system technology known as “plug-ins.” A plug-in is an extended process module that can be easily adapted to a host process system infrastructure. The plug-in process module usually has a conformant structure and identical syntax as those of the host process system model. Process reengineering is another attractive technology to adapt and reorganize an existing software engineering process system. Process reengineering has been found benefit-providing in the software industry. For instance, in one of the pilot projects the author advised a software organization to shift its test design process from postcoding to parallel with system specification and design processes. By this simple reengineering of the whole processes, a large proportion of the requirement specification gaps and system design defects are found long before the software implementation processes begin. As a result, the postcoding defect rate has been reduced dramatically. Further, and much more significantly, the project showed that the defects injected and revealed in different processes were not equivalent in terms of significance, scope of impact, and/or the costs to removal. Almost all of the defects found in the reengineered test design process were

(18)

significant problems that would impact all following processes if they had not been removed at an early stage.

4.6 Trends in ISO 9000/9001 Evolution

On the basis of feedback from both industries and researchers, a significant trend in current ISO 9000/9001 revision [34] is to shift from a check-list based quality system standard to a process-oriented one. The new version of ISO 9001 will include a process model based on Deming’s Plan-Do-Check-Act cycle for product, service, and management processes. Also, ISO 9001:2000 will merge the 1994 versions of ISO 9001, ISO 9002, and ISO 9003 into a single and integrated standard.

The 20 MTAs of ISO 9001 as shown in Table 3 will be re-organized into 21 processes which are categorized in four primary processes: management responsibility, resource management, product realization, and measurement, analysis and improvement. New requirements in ISO 9001:2000, such as customer focus, establishment of measurable objectives, continual improvement, and evaluation of training effectiveness, are added for enabling quality process assessment and improvement.

4.7 Trends in ISO/IEC 15504/12207 Evolution

ISO/IEC TR 15504 is currently undergoing a transition process from technical report (TR) to full international standard (IS). A set of requirements has been specified and the new base documents are well under way. The document set of ISO/IEC 15504 standard will be reduced from 9 parts to 5 parts. The new 15504-2 is already prepared for ballot.

Part of a structural evolution of ISO/IEC TR 15504 is the shift from a self-contained software process and process assessment model to a standard software process assessment model with an open infrastructure for incorporating any existing or future process models with unified definitions and descriptions. This would mean that the future ISO/IEC 15504 might only provide a standard process assessment methodology and defined compliance requirements for any external software processes. Therefore, the existing and/or innovative software engineering processes compliant to the standard will be defined and developed by any process model providers who so wish.

One of the most important new features is that ISO/IEC 15504 will align to ISO/IEC 12207. This means, at the high level, ISO/IEC 15504 will provide a conceptual process reference model (PRM), and describe how a process provider can achieve conformance to the requirements of the PRM. The overall reference model concept [86, 94] for ISO/IEC 15504 will allow other PRMs to be defined. For instance, there could be an ISO 9001 PRM defined for software or an ISO/IEC 15288 PRM defined for systems. In fact, although the scope of ISO/IEC 15504 is defined within the domain of Software Engineering, the name of ISO/IEC 15504 is being changed to Process Assessment. There is the possibility therefore to use a future ISO/IEC 15504 with a PRM outside the domain of Software Engineering.

Secondly, ISO/IEC 12207 is planning for continuously evolution by amendments and revisions towards year 2020. The first such amendment is already underway and is current

(19)

out on ballot by national standardization bodies. This Amendment provides an interim revision to ISO/IEC 12207 that establishes a coordinated set of software process information that can be used for process definition and process assessment and improvement. The amendment accommodates the requirements of current and developing ISO/IEC SC7 standards and technical reports, notably ISO/IEC 12207 and ISO/IEC TR 15504, and considers other standards, i.e., ISO/IEC 14598 and ISO/IEC 15939. The overall result of this amendment will provide a set of process definitions with process purpose and outcome statements that can be used as a basis for an ISO/IEC 12207 Process Reference Model in conjunction with ISO/IEC 15504 capability dimension to assess software processes. When ISO/IEC 15504 is published it will contain an exemplar assessment model related to an ISO/IEC 12207 PRM.

5. Conclusions

A variety of software engineering standard and models, international, regional, and internal, have been developed in the last decade. This chapter has reviewed the major international software engineering standards, especially their emergence, history of development, inter-relationships, and principles and philosophies behind the standards and models for software engineering.

It is recognized that almost all current software engineering standards is based on a generic quality system perception on software development. Although this philosophy has been proven successful in conventional manufacturing industry, there is still a need for supporting evidence of its effectiveness and impact on the design-intensive software engineering and the non-conventional software industry. Further research on common features and differences between conventional mass manufacturing and software development is still expected.

Considering that the software engineering process system seems to be one of the most complicated engineering systems, the search and integration of useful and valid processes and best practices have much further to go. Also, it is noteworthy that as long as the fast development of software engineering methodologies remaining viable, software engineering standards and models will need to evolve as quickly, especially in the important areas for future software engineering standardization as identified in this chapter.

Acknowledgements

This chapter is developed based on the author’s work in ISO/IEC JTC1/SC7, IEEE SESC, and IEEE SNP. It is resulted from many interesting discussions with colleagues in the working groups. The author would like to thank the referees and colleagues for their valuable comments that improved the quality of his chapter.

(20)

References

[1] Anthony, R. N. (1965), Planning and Control Systems: A Framework for Analysis, Harvard University Graduate School of Business Administration, Cambridge, MA. [2] Aron, J, D. (1983), The Program Development Process, Part 2 – The Programming

Team, Addison-Wesley, Reading, MA.

[3] Baker, F. T. (1972), Chief Programmer Team Management of Production Programming, IBM Systems Journal, Vol.11, No.1, pp.56-73.

[4] Basili, V. (1980), Models and Metrics for Software Management and Engineering, IEEE Computer Society Press, Los Alamitos, CA.

[5] Bate, R. et al. (1993), A System Engineering Capability Maturity Model, Version 1.1, CMU/SEI-95-MM-03, Software Engineering Institute, Pittsburgh, PA, 841993. [6] Bell Canada (1994), TRILLIUM - Model for Telecom Product Development and

Support Process Capability (Internet ed.), Release 3.0, December, pp. 1-118. [7] Boehm, B. W. (1981), Software Engineering Economics, Prentice-Hall, Englewood

Cliffs, NJ.

[8] Boehm, B.W., Penedo, M.H. et al. (1986), A Software Development Environment for Improving Productivity, IEEE Computer, Vol. 17, No. 6, pp.30.

[9] Boehm, B.W. (1987), Improving Software Productivity, IEEE Computer, Vol. 20, No. 9, pp.43.

[10] Boehm, B. and Bose, P. (1994), A Collaborative Spiral Software process Model based on Theory W, Proceedings of 3rd International Conference on the Software Process, IEEE Computer Society Press, Reston, VA, October, pp.59-68.

[11] Bollinger, T.B. and McGrowan, C. (1991), A Critical Look at Software Capability Evaluations, IEEE Software, July, pp. 25-41.

[12] BOOTSTRAP Team (1993), BOOTSTRAP: Europe’s Assessment Method, IEEE Software, May, pp.93-95.

[13] Brodman J.G. and Johnson D.L. (1994), What Small Business and Small Organization Say about the CMM, Proceedings of the 16th International Conference on Software Engineering (ICSE16), pp.331-340.

[14] Brooks, F. P. (1975), The Mythical Man Month, Addison-Wesley. [15] BSI (1987), BS 5750: Quality Systems, BSI, London.

[16] Crosby, P. B. (1979), Quality is Free, McGraw Hill, New York.

[17] Deming, W. E. (1982), Methods for Management of Productivity and Quality, George Washington University, Washington, D.C.

[18] Dorling, A. (1993), SPICE: Software Process Improvement and Capability Determination, Information and Software Technology, Vol.35, No.6/7, June/July. [19] Dorling, A. (1995), History of the SPICE Project, Proceedings of the 2nd

(21)

International SPICE Symposium, Brisbane, Australia, pp. 1-7.

[20] Dorling, A., Wang, Y., et al. (1999), Reference Model Extensions to ISO/IEC TR 15504-2 for Acquirer Processes, ISO/IEC JTC1/SC7/WG10, Curitiba, Brazil, May, pp. 1-34.

[21] Dromey, R. Geoff (1996), Cornering the Chimera, IEEE Software, Vol.13, No.1, Jan., pp.33-43.

[22] DTI (1987), The TickIT Guide, Department of Trade and Industry, London.

[23] Evans M.W. and Marciniak J. J. (1987), Software Quality Assurance and Management, Wiley-Interscience, New York.

[24] Fayad, M.E. (1997), Software Development Process: the Necessary Evil? Communications of the ACM, Vol.40, No.9, Sept.

[25] Fayad, M.E. and Laitinen, M. (1997), Process Assessment: Considered Wasteful, Communications of the ACM, Vol.40, No.11, Nov.

[26] Gilb, T. (1988), Principles of Software Engineering Management, Addison-Wesley, Reading, MA.

[27] Humphrey, W.S. and Sweet, W.L. (1987), A Method for Assessing the Software Engineering Capability of Contractors, Technical Report CMU/SEI-87-TR-23, Software Engineering Institute, Pittsburgh, PA.

[28] Humphrey, W.S. (1988), Characterizing the Software Process: A Maturity Framework, IEEE Software, March, pp.73-79.

[29] Humphrey, W.S. (1989), Managing the Software Process, Addison-Wesley Longman, Reading, MA.

[30] Humphrey, W.S. and Curtis, B. (1991), Comment on ‘a Critical Look’, IEEE Software, Vol.8, No.4, pp.42-47.

[31] Humphrey, W.S., Snyder, T.R. and Willis, R.R. (1991), Software Process Improvement at Hughes Aircraft, IEEE Software, July, pp.11-23.

[32] IEEE (1983), Software Engineering Standards, 1983 Collection, IEEE Computer Society Press, Los Alamitos, CA.

[33] IEEE (1988), Software Engineering Standards, 1988 Collection, IEEE Computer Society Press, Los Alamitos, CA.

[34] ISO 9001 (2000), Outline of ISO 9001:2000 Draft International Standard, http://www.iso-9000-2000/ .

[35] ISO 9000-1 (1994), Quality Management and Quality Assurance Standards (Part 1) - Guidelines for Selection and Use, International Organization for Standardization, Geneva.

[36] ISO 9000-2 (1994), Quality Management and Quality Assurance Standards (Part 2) – Generic Guidelines for Application of ISO 9001, ISO 9002 and ISO 9003, International Organization for Standardization, Geneva.

(22)

- Quality Management and Quality Assurance Standards (Part 3) - Guidelines to Apply ISO 9001 for Development, Supply and Maintenance of Software, International Organization for Standardization, Geneva.

[38] ISO 9000-4 (1993), Quality Management and Quality System (Part 4) - Guidelines for Dependability Programme Management, International Organization for Standardization, Geneva.

[39] ISO 9001 (1989), Quality Systems - Model for Quality Assurance in Design, Development, Production, Installation, and Servicing, International Organization for Standardization, Geneva.

[40] ISO 9001 (1994), Quality Systems - Model for Quality Assurance in Design, Development, Production, Installation, and Servicing, Revised Edition, International Organization for Standardization, Geneva.

[41] ISO 9002 (1994), Quality Systems - Model for Quality Assurance in Production, Installation and Servicing, International Organization for Standardization, Geneva. [42] ISO 9003 (1994), Quality Systems - Model for Quality Assurance in Final

Inspection and Test, International Organization for Standardization, Geneva.

[43] ISO 9004-1 (1994), Quality Management and Quality System Elements (Part 1) – Guidelines, International Organization for Standardization, Geneva.

[44] ISO 9004-2 (1991), Quality Management and Quality System Elements (Part 4) - Guidelines for Quality Management and Quality Systems Elements for Services, International Organization for Standardization, Geneva.

[45] ISO 9004-4 (1993), Quality Management and Quality System Elements (Part 2) - Guidelines for Quality Improvement, International Organization for Standardization, Geneva.

[46] ISO 9126 (1991), Information Technology – Software Product Evaluation – Quality Characteristics and Guidelines for their Use, International Organization for Standardization, Geneva.

[47] ISO 10011 (1988), Guidelines for Auditing Quality Systems, International Organization for Standardization, Geneva.

[48] ISO 10013 (1992), Guidelines for Developing Quality Manuals, International Organization for Standardization, Geneva.

[49] ISO/IEC 12207 (1995), Information Technology – Software Life Cycle Processes, International Organization for Standardization, Geneva.

[50] ISO/IEC CD 15288 (1999), Information Technology – Life Cycle Management – System Life Cycle Processes, ISO/IEC JTC1/SC7 Draft N2184, Geneva, pp.1-42. [51] ISO/IEC TR 15504-1 (1999), Information Technology – Software Process

Assessment - Part 1: Concept and Introduction Guide, ISO/IEC, Geneva, pp.1 - 11. [52] ISO/IEC TR 15504-2 (1999), Information Technology – Software Process

Assessment - Part 2: A Reference Model for Processes and Process Capability, ISO/IEC, Geneva, pp. 1 - 39.

(23)

[53] ISO/IEC TR 15504-3 (1999), Information Technology – Software Process Assessment - Part 3: Performing an Assessment, ISO/IEC, Geneva, pp. 1 - 4.

[54] ISO/IEC TR 15504-4 (1999), Information Technology – Software Process Assessment - Part 4: Guide to Performing Assessments, ISO/IEC, Geneva, pp. 1 - 18.

[55] ISO/IEC TR 15504-5 (1999), Information Technology – Software Process Assessment - Part 5: An Assessment Model and Indicator Guidance, ISO/IEC, Geneva, pp.1-132.

[56] ISO/IEC TR 15504-6 (1999), Information Technology – Software Process Assessment - Part 6: Guide to Qualification of Assessors, ISO/IEC, Geneva, pp. 1 - 23.

[57] ISO/IEC TR 15504-7 (1999), Information Technology – Software Process Assessment - Part 7: Guide for Use in Process Improvement, ISO/IEC, Geneva, pp. 1 - 36.

[58] ISO/IEC TR 15504-8 (1999), Information Technology – Software Process Assessment - Part 8: Guide for Use in Determining Supplier Process Capability, ISO/IEC, Geneva, pp.1 - 17.

[59] ISO/IEC TR 15504-9 (1999), Information Technology – Software Process Assessment - Part 9: Vocabulary, ISO/IEC, Geneva, pp.1 - 11.

[60] Jacobson, I., Booch, G. and Rumbaugh, J. (1998), The Unified Software Development Process, Addison Wesley Longman, Reading, MA.

[61] Jenner, M.J. (1995), Software Quality Management and ISO 9001, John Wiley & Sons, Inc., New York.

[62] Juran, J. M., Seder, L. A. and Gryna, F. M. (eds.) (1962), Quality Control Handbook (2nd ed.), McGraw-Hill, New York.

[63] Juran, J.M. and Gryna, F.M. (1980), Quality Planning and Analysis, McGraw-Hill, New York.

[64] Kitson D.H. and Masters, S. (1992), An Analysis of SEI Software Process Assessment Results: 1987-1991, Technical Report CMU/SEI-92-TR-24, Software Engineering Institute, Pittsburgh.

[65] Kitson, D.H. (1996), Relating the SPICE Framework and SEI Approach to Software Process Assessment, Proceedings of International Conference on Software Quality Management (SQM’96), MEP Press, London, pp. 37-49.

[66] Kugler H.J. and Rementeria, S. (1995), Software Engineering Trends in Europe, ESI Research Report, Spain, pp.1-5.

[67] Kuvaja, P. and Bicego, A. (1994), BOOTSTRAP – A European Assessment Methodology, Software Quality Journal, June.

[68] Mobil Europe Ltd. (1995), The Mobil Survey of ISO 9000 Certificates Awarded Worldwide (4th Cycle), Quality System Update, Vol.5, No.9.

(24)

Conference Sponsored by the NATO Science Committee, NATO.

[70] Paulk, M.C., Curtis, B., Chrissis, M.B. and Weber, C.V. (1993), Capability Maturity Model for Software., Version 1.1, Software Engineering Institute, CMU/SEI-93-TR-24, February.

[71] Paulk, M.C., Weber, C.V., Garcia, S., Chrissis, M.B. and Bush, M. (1993), Key Practices of the Capacity Maturity Model, Version 1.1, Technical Report CMU/SEI-93-TR-25, Software Engineering Institute, Pittsburgh, PA.

[72] Paulk, M.C., Curtis, B., Chrissis, M.B. and Weber, C.V. (1993), Capability Maturity Model, Version 1.1, IEEE Software, Vol.10, No.4, July, pp.18-27.

[73] Paulk, M.C., Weber, C.V. and Curtis, B. (1995), The Capability Maturity Model: Guidelines for Improving the Software Process, SEI Series in Software Engineering, Addison-Wesley.

[74] Paulk, M.C. (1995), How ISO 9001 Compares with the CMM, IEEE Software, January, pp.74-83.

[75] Pfleeger, S.L. (1998), Software Engineering: Theory and Practice, Prentice- Hall, Englewood Cliffs, NJ.

[76] Rout, T. (1995), SPICE: A Framework for Software Process Assessment, Software Processes: Improvement and Practice, Vol.1, No.1.

[77] Saiedian, H. and Kuzara, R. (1995), SEI Capability Maturity Model’s Impact on Contractors, IEEE Computer, Vol.28, No.1, pp.16-26.

[78] Schein, E. H. (1961), Management Development as a Process at Influence, Industrial Management Review, Vol.2, No.2, Spring, pp.59-77.

[79] Seddon, J. (1997), In Pursuit of Quality: The Cases Against ISO 9000, Oak Tree Press, Oxford, UK.

[80] Shewhart, W.A. (1939), Statistical Method from the Viewpoint of Quality Control, The Graduate School, George Washington University, Washington, D.C.

[81] Simon, H. A. (1960), The New Science of Management Decision, Harper & Row, New York.

[82] Sommerville, I. and Sawyer, P. (1997), Requirements Engineering – A Good Practice Guide, John Wiley & Sons, New York.

[83] SPICE Project (1998), SPICE Phase II Trials Interim report, ISO/IEC JTCI/SC7/WG10, pp. 1-175.

[84] TickIT Project Office (1987), Guide to Software Quality Management System Construction and Certification using EN29001, Issue 1.0, UK Department of Trade and Industry and BCS, UK.

[85] TickIT Project Office (1992), Guide to Software Quality Management System Construction and Certification using EN29001, Issue 2.0, UK Department of Trade and Industry and BCS, UK.

[86] Wang, Y. and G. King (2000), Software Engineering Processes: Principles and Applications, CRC Press, USA, April, ISBN: 0849323665, pp.1- 752.

(25)

[87] Wang Y. and Bryant, A. eds. (2000), Process-Based Software Engineering, CFP, International Journal of Annals of Software Engineering, Vol.14, http://manta.cs.vt.edu/ase/vol14call.html .

[88] Wang Y., King, G., Doling, A. and Wickberg, H. (1999), A Unified Framework of the Software Engineering Process System Standards and Models, Proceedings of 4th IEEE International Software Engineering Standards Symposium (IEEE ISESS’99), IEEE CS Press, Brazil, May, pp.132-141.

[89] Wang Y., Court, I., Ross, M., Staples, G., King, G. and Dorling, A. (1999), Towards Software Process Excellence: A Survey Report on the Best Practices in the Software Industry, ASQ Journal of Software Quality Professional, Vol.2, No.1, Dec., pp. 34-43.

[90] Wang, Y., Dorling, A., Brodman, J, and Johnson, D. (1999), Conformance Analysis of the Tailored CMM with ISO/IEC 15504, Proceedings of International Conference on Product Focused Software Process Improvement (PROFES’99), Oulu, Finland, June, pp. 237-259.

[91] Wang Y., King, G., Dorling, A., Patel, D., Court, I., Staples, G. and Ross, M. (1998), A Worldwide Survey on Software Engineering Process Excellence, Proceedings of IEEE 20th International Conference on Software Engineering (ICSE’98), Kyoto, April, IEEE Press, pp.439-442.

[92] Wang, Y., I. Court, M. Ross, G. Staples, G. King and A. Dorling (1997), Quantitative Analysis of Compatibility and Correlation of the Current SPA Models, Proceedings of The IEEE International Symposium on Software Engineering Standards (IEEE ISESS’97), USA, June, pp. 36-56.

[93] Wang, Y., I. Court, M. Ross, G. Staples, G. King and A. Dorling (1997), Quantitative Evaluation of the SPICE, CMM, ISO9000 and BOOTSTRAP, Proceedings of the IEEE International Symposium on Software Engineering Standards (IEEE ISESS’97), USA, June, pp. 57-68.

[94] Wang, Y., I. Court, M. Ross and G. Staples (1996), Towards a Software Process Reference Model (SPRM), Proceedings of International Conference on Software Process Improvement (SPI’96), Brighton, UK, November, pp.145-166.

[95] Zubrow, D. (1997), The Software Community Process Maturity Profile, Software Engineering Institute, Pittsburgh.

Figure

Updating...

References

Updating...
