Hardware Manual. Versio. 2 RU Platform 7/10/

(1)

Versio™

2 RU Platform

7/10/2015

175-100544-00

(2)

Publication Information

Imagine Communications considers this document and its contents to be proprietary and confidential. Except for making a reasonable number of copies for your own internal use, you may not reproduce this publication, or any part thereof, in any form, by any method, for any purpose, or in any language other than English without the written consent of Imagine Communications. All others uses are illegal. This publication is designed to assist in the use of the product as it exists on the date of publication of this manual, and may not reflect the product at the current time or an unknown time in the future. This publication does not in any way warrant description accuracy or guarantee the use for the product to which it refers. Imagine Communications reserves the right, without notice to make such changes in equipment, design, specifications, components, or documentation as progress may warrant to improve the performance of the product.

Trademarks

Product names and other appropriate trademarks, e.g. D-Series™, Invenio®, PowerSmart®, Versio™ are trademarks or trade names of Imagine Communications or its subsidiaries.

Microsoft® and Windows® are registered trademarks of Microsoft Corporation. All other trademarks and trade names are the property of their respective companies.

Contact Information

Imagine Communications has office locations around the world. For domestic and international location and contact information, visit our Contact page

(http://www.imaginecommunications.com/company/contact-us.aspx).

Support Contact Information

For domestic and international support contact information see:

 Support Contacts (http://www.imaginecommunications.com/services/customer-care.aspx)  eCustomer Portal (http://support.imaginecommunications.com)

(3)

Hardware Manual Contents

Preface ... 7

Manual Information ... 7

Purpose ... 7

Audience ... 7

Obtaining Documents ... 7

Unpacking/Shipping Information ... 8

Safety Standards and Compliances ... 9

Safety Terms and Symbols ... 9

Restriction on Hazardous Substances (RoHS) Directive ... 9

Waste from Electrical and Electronic Equipment (WEEE) Directive ... 10

Safety Guidelines ... 11

Electrical Safety Guidelines ... 11

General Safety Guidelines ... 12

ESD Safety Guidelines ... 12

Operation Safety Guidelines ... 13

Chassis Components ... 15

Front Panel ... 16

Inner Front Panel ... 16

Front LED Panel ... 16

Front Panel Buttons ... 17

Front Panel LEDs ... 17

Drive Carrier LEDs ... 18

Disk Subsystems... 19

Disk Subsystems Organization ... 19

Drive Configuration ... 20

Back Panel... 21

Back Panel Components ... 21

Motherboard I/O ... 21

Broadcast I/O ... 22

(4)

Power Supply Modules ... 24

External Serial and GPI Control ... 25

AB4 Fanout Cable Design... 25

Lengths of Fanout Cables ... 26

Fanout Cable Pinouts ... 27

AB4 to RJ12 ... 27

HD-BNC Female Cables ... 28

RS422 Wiring - EIA-422 DB9 ... 28

RJ RS422 PINOUT ... 29

AB4 to RJ12 GPI PINOUT ... 29

RJ12 to DB9 Adapters ... 30

Tributary Adapter: AB4 (Master) Controlling External Device ... 31

Master Adapter: External Device (MASTER) Controlling AB4 (Slave) ... 31

System Installation ... 32

Chassis Components Installation... 33

Important Safety Guidelines ... 33

Safety Steps ... 33

Installation Tools ... 33

Install Hard Drives ... 34

Remove Hard Drive Trays from the Chassis ... 34

Install Hard Drive into a Drive Carrier ... 34

Remove the Chassis Cover ... 35

Before You Open the Chassis ... 35

Remove the Chassis Cover ... 36

Reinstall the Chassis Cover ... 36

System Fans ... 36

System Fan Failure ... 36

Replace a System Fan ... 37

Air Shroud ... 38

Install the Air Shroud ... 38

Replace the Onboard CR2032 Battery ... 38

Power Supply ... 39

Power Supply Failure ... 39

Change the Power Supply ... 39

Chassis Rack Installation ... 41

(5)

Prepare for Setup ... 41

Choosing a Setup Location ... 41

Warnings and Precautions ... 41

Rack Precautions ... 41

General System Precautions ... 42

Rack Mounting Considerations ... 42

Ambient Operating Temperature ... 42

Reduced Airflow ... 42

Mechanical Loading ... 42

Circuit Overloading ... 42

Reliable Ground ... 42

Rack Mounting ... 43

Identify the Sections of the Rack Rails ... 43

Locking Tabs ... 43

Install Inner Rails to the Chassis ... 44

Identify the Outer Rack Rails ... 44

Install the Outer Rails to the Rack ... 45

Install Chassis into Rack ... 47

BIOS Error Beep Codes ... 50

Non-Fatal and Fatal Errors ... 50

Maintenance ... 51

Hot Swap Power Supplies ... 52

To replace the failed power supply module ... 52

System Recovery ... 53

Initial Production WIM Recovery Image ... 53

Create a WIM Recovery Image ... 53

Prepare the Drive for Capture ... 53

Format a Third-Party USB Stick ... 53

Capture the WIM Image ... 54

Apply the WIM Recovery Image ... 55

Prevent Damage and Malfunction ... 58

Hardware ... 58

Anti-Virus Software ... 58

Operating System Updates ... 58

(6)

Specifications ... 60

Versio System Specifications ... 61

Broadcast I/O ... 61

Audio Processing ... 62

SD Video Codecs ... 62

HD Video Codecs ... 63

Chassis ... 64

Integrated Devices... 65

System Details ... 66

(7)

Hardware Manual Preface

Preface

Manual Information

Purpose

This manual details the features, installation, operation, maintenance, and specifications of your Versio™ system.

Audience

This manual is written for engineers, technicians, and operators responsible for the system installation and setup.

Obtaining Documents

Imagine Communications documents can be viewed or downloaded from the Imagine Communications website at http://support.imaginecommunications.com. Alternatively, contact your customer service representative to request a document.

(8)

Unpacking/Shipping Information

Your system has been carefully inspected, tested, and calibrated prior to shipment to ensure years of stable and trouble free service.

Before you install and configure your Versio system, follow these steps:

1. Check equipment for any visible damage that may have occurred during transit. 2. Confirm that you have received all items listed on the packing list.

3. Contact your sales representative if any parts are missing. 4. Contact the carrier if any item is damaged.

5. Remove all packaging material from the product and its associated components before you install the unit.

Keep at least one set of original packaging, in the event that you need to return a product for servicing. If the original packaging is not available, you can purchase replacement packaging at a modest cost or supply your own packaging as long as it meets the following criteria:

 The packaging must be able to withstand the weight of the product.  The product must be held rigid within the packaging.

 There must be at least two inches (5 cm) of space between the product and the container.  The corners of the product must be protected.

If the product is still within the warranty period, Imagine Communications will return the product to you prepaid after servicing.

(9)

Safety Standards and Compliances

Safety Terms and Symbols

This manual uses the following safety terms and symbols to identify certain conditions or practices.

Safety Terms and Symbols

WARNING: Identifies conditions or practices that can result in personal injury or loss of life—high voltage is present. Uninsulated dangerous voltage within the product’s enclosure may be sufficient to constitute a risk of electric shock to persons.

CAUTION: Identifies conditions or practices that can result in damage to the equipment or other property. Important operating and maintenance (servicing) instructions are included in the literature accompanying the product.

Restriction on Hazardous Substances (RoHS) Directive

Directive 2002/95/EC – commonly known as the European Union (EU) Restriction on Hazardous Substances (RoHS)–sets limits on the use of certain substances found in electrical and electronic equipment. The Directive took effect on July 1, 2006, and it refers to the following hazardous substances:

 Lead (Pb)  Mercury (Hg)

 Cadmium (Cd)

 Hexavalent Chromium (Cr-V1)  Polybrominated Biphenyls (PBB)  Polybrominated Diphenyl Ethers (PBDE)

All relevant Imagine Communications products either comply with the legislation or are exempt. For example, spare parts supplied for the repair and upgrade of equipment sold before July 1, 2006 are exempt from the legislation.

(10)

Waste from Electrical and Electronic Equipment (WEEE)

Directive

The European Union (EU) Directive 2002/96/EC on Waste from Electrical and Electronic Equipment (WEEE) deals with the collection, treatment, recovery, and recycling of electrical and electronic waste products. The objective of the WEEE Directive is to assign the responsibility for the disposal of

associated hazardous waste to either the producers or users of these products. Producers or users are required to recycle electrical and electronic equipment at end of its useful life, and must not dispose of the equipment in landfills or by using other unapproved methods.

In accordance with this EU Directive, Imagine Communications has affixed labels indicating that such products must be properly recycled. Contact your local Imagine Communications sales representative for information on returning these products for recycling. Imagine Communications equipment that complies with the EU directive will be marked with a WEEE-compliant symbol, as shown in below.

(11)

Safety Guidelines

This unit is for use in restricted access only. Adhere to the following safety guidelines to avoid personal injury or damage to your system.

Electrical Safety Guidelines

Power Cords

WARNING

To avoid electrical shock, check the power cords properly.  Use the exact type of power cords as required.

 Be sure to use power cord(s) that came with safety certifications.

 The power cord(s) must be compliant with the AC voltage requirements in your region.

 The power cord plug cap must have an electrical current rating that is at least 125% of the electrical current rating of this product.

 The power cord plug cap that plugs into the AC receptacle on the power supply must be an IEC 320, sheet C13, type female connector.

 Be sure to disconnect the power supply before accessing the Versio chassis or its components.  Plug the Power cord(s) into a socket that is properly grounded before turning on the power.

General Electrical Safety Guidelines

WARNING

Adhere to the following Electrical Safety Guidelines to avoid possible damages to the system or injury to yourself.

 Be aware of the locations of the power switches on the chassis and in the room, so you can disconnect the power supply if an accident occurs.

 Take extra precautionary measures when working with high voltage components. It is not recommended to work alone.

 Before removing or installing main system components, be sure to disconnect the power first. Turn off the system before you disconnect the power supply.

 Use only one hand when working with powered-on electrical equipment to avoid possible electrical shock.

 Use rubber mats specifically designed as electrical insulators when working with computer systems.  The power supply or power cord must include a grounding plug and must be plugged into grounded

outlets.

 Motherboard Battery: CAUTION – Make sure not to install the onboard battery upside down to avoid possible explosion. Make sure that the positive side should be facing up on the motherboard.

(12)

This battery must be replaced only with the same or an equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

General Safety Guidelines

WARNING

Adhere to the following General Safety Guidelines to ensure your personal safety.

 Keep the area around the Versio chassis clean and free of clutter.

 To avoid injuries to the back, be sure to use your leg muscles, keep your back straight, and bend your knees, when lifting the system.

 Avoid wearing loose clothing to preventing it from coming into contact with power circuits.  After removing the components or chassis covers from the system, place them on a table for

safeguard.

 Be sure to remove any jewelry or metal objects before working on the chassis to avoid short circuits should these objects come into contact with power circuits.

 After accessing the interior of the chassis, be sure to close the chassis with chassis covers and secure the chassis to the racks with screws.

ESD Safety Guidelines

CAUTION

Electric Static Discharge (ESD) can damage electronic components. To prevent damage to your system board, it is important to handle it very carefully.

The following measures are generally sufficient to protect against Electric Statics Discharge (ESD).  Do not use mats designed to decrease electrostatic discharge as protection from electrical shock.

Instead, use rubber mats that have been specifically designed as electrical insulators.  Use a grounded wrist strap designed to prevent static discharge.

 Keep all components and printed circuit boards (PCBs) in their anti-static bags until ready for use.  Touch a grounded metal object before removing the board from the anti-static bag.

 Do not let components or PCBs come into contact with your clothing, which may retain a charge even if you are wearing a wrist strap.

 Handle a board by its edges only; do not touch its components, peripheral chips, memory modules or contacts.

 When handling chips or modules, avoid touching their pins.

 Put the motherboard and peripherals back into their anti-static bags when not in use.

 For grounding purposes, make sure your computer chassis provides excellent conductivity between the power supply, the case, the mounting fasteners and the motherboard.

(13)

Operation Safety Guidelines

Before accessing the Versio chassis:

WARNING

To avoid personal injury and property damage, please carefully follow all the Operation Safety Guidelines precisely.

1. Turn off all peripheral devices connected to the Versio chassis. 2. Press the power button to power off the system.

3. Unplug all power cords from the system or the wall outlets.

4. Disconnect all the cables and label the cables for easy identification.

5. Use a grounded wrist strap designed to prevent static discharge when handling components.

Removing the chassis covers:

CAUTION

For proper cooling, make sure to install all chassis covers before turning on the system. If this rule is not strictly followed, warranty may become void. Do not open the casing of a power supply. Power supplies can only be accessed and serviced by a qualified technician of the manufacturer.

After completing the above steps, you can remove the covers and install components/peripheral devices into the Versio chassis. See Chassis Components Installation (on page 33) for details.

1. Unlock and remove the screws and fasteners to remove the cover or components.

2. Save all the screws and fasteners for later use. (If necessary, label these screws or fasteners for easy identification.)

3. Follow the instruction in Remove the Chassis Cover (on page 35) to remove the chassis cover.

Reinstalling the chassis covers:

To maintain proper system cooling and airflow, do not operate the system without installing all chassis covers back to the chassis. To reinstall the chassis covers, please follow the steps listed below:

1. Make sure that all components and devices are securely fastened on the chassis and there are no loose parts/screws inside the chassis.

2. Make sure that all cables are properly connected to the connectors and ports. 3. Use the original screws or fasteners to install the covers to the chassis. 4. Be sure to lock to the chassis or the system to prevent unauthorized access. 5. For proper cooling, enclose the chassis with covers before operating the system.

(14)

Before installing the chassis into a rack:

1. Make sure that the rack is securely anchored onto an unmovable surface or structure before installing the chassis into the rack.

2. Unplug the power cord(s) of the rack before installing the chassis into the rack.

3. Make sure that the system is adequately supported. Make sure that all the components are securely fastened to the chassis to prevent components from falling off from the chassis.

4. Be sure to install an AC Power Disconnect for the entire rack assembly and this Power Disconnect must be clearly marked.

5. The rack assembly shall be properly grounded to avoid electric shock.

(15)

Hardware Manual Chassis Components

Chassis Components

This chapter provides details on the front and back panel components of the Versio system, and includes the following topics:

 Front Panel (on page 16)  Disk Subsystems (on page 19)  Back Panel (on page 21)

(16)

Hardware Manual Front Panel

Front Panel

The following information describes the front panel components for Versio systems.

Inner Front Panel

The Versio inner front panel includes the following:  System Power (on/off) button

 LED indicators

 Hot-swappable hard disk drives

 USB Ports

Front LED Panel

There are several LEDs on the LED panel as well as other LEDs on the hard drive carriers to keep you constantly informed of the overall status of the system, as well as the activity and health of specific components.

(17)

This section explains the meaning of the LED indicators and the appropriate response you may need to take.

Front Panel Buttons

There are two push-buttons located on the front of the chassis. These are the power on/off button and the reset button.

Button Description

Power: The main power switch is used to apply or remove power from the power supply to the server system. Turning off the system power with this button removes the main power but keeps standby power supplied to the system.

Reset: The reset button reboots the system.

Front Panel LEDs

The control panel located on the front of the chassis has five LEDs. These LEDs provide you with critical information related to different parts of the system. The following table explains what each LED indicates when illuminated and any corrective action you may need to take.

LED Description

Power: Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.

(18)

LED Description

NIC 2: Indicates network activity on LAN2 when flashing.

NIC 1: Indicates network activity on LAN1 when flashing.

Power Failure: When this LED flashes, it indicates a power failure in the power supply.

Overheat/Fan Fail: When this LED flashes it indicates a fan failure. When continuously on (not flashing) it indicates an overheat condition, which may be caused by cables obstructing the airflow in the system or the ambient room temperature being too warm. Check the routing of the cables and make sure all fans are present and operating normally. You should also check to make sure that the chassis covers are installed. Finally, verify that the heatsinks are installed properly. This LED will remain flashing, or on, as long as the overheat condition exists.

Drive Carrier LEDs

Each drive carrier has two LEDs.

 Green: Each hard drive carrier has a green LED. When illuminated, this green LED (on the front of the hard drive carrier) indicates drive activity. A connection to the backplane enables this LED to blink on and off when that particular drive is being accessed.

 Red: The red LED indicates a hard drive failure. If one of the drives fail, you should be notified by your system management software.

(19)

Hardware Manual Disk Subsystems

Disk Subsystems

This section details the Versio disk subsystems.

Disk Subsystems Organization

The Versio disk subsystem features the following RAID configuration:  OS and graphics media drives (4 x 240 GB SSD drives in RAID 5).

 Server media drives (8 x 1 TB SATA drives in RAID 6), which are configured during system deployment.

(20)

Hardware Manual Disk Subsystems

Drive Configuration

See the following illustration for the detailed system drive configuration.

(21)

Hardware Manual Back Panel

Back Panel

The following information details the back panel components of the Versio system.

Back Panel Components

The following images show the back panel components of the Versio system.

Note: The illustration shows the maximum configuration. Some systems may have a second GPU. Exact device placement on your system might also vary slightly from the graphic.

Motherboard I/O

The following details the motherboard connectors and I/O.

1: Keyboard 6: COM1

2: PS/2 Mouse 7: VGA (inactive)

3-4: USB ports 8-11: LAN ports

(22)

*The IPMI LAN port comes with a plug inserted into the port. Remove the plug when you want to use the port for IPMI.

For further details on the IPMI functions, see the "IPMI Manual (SMT).pdf" that is available on the following Supermicro web page: http://www.supermicro.com/support/manuals/.

Broadcast I/O

The following details the broadcast I/O:

Video I/O (right to left)

1: SDI output 1 6: SDI input 3

2: SDI input 1 7: SDI output 4

3: SDI output 2 8: SDI input 4

4: SDI input 2 9: analog reference input

5: SDI output 3

For specification details see Broadcast I/O (on page 61).

Port and Channel Assignments

The following information outlines the port and channel assignments for three different workflows.

Workflow Set 1

This workflow features two SDI HD/SD format switchable inputs and three SDI outputs. One SDI output is HD/SD switchable with branded graphics. The second SDI output is either HD/SD switchable with branded graphics or SD simulcast. The third SDI output is preview.

(23)

Physical INPUTS

Server Channel

Description Automation Control Channel View Physical OUTPUTS Server Channel

Description Automation Control

Channel View

-- -- -- -- -- -- SCH3 or

NA*

Codec PB1 Yes Routable Source

-- -- -- -- -- -- SCH 4 Codec PB2 Yes Routable

Source SDI 1 SCH 5 Live input to

Mixer

NO Routable

Source

SDI 1 SCH 1 Branded HD NO Routable Source SDI 2 SCH 6 Server Rec

or Live In

YES Routable

Source

SDI 2 SCH 2 Branded HD or SD Simulcast

NO Routable

Source [SDI 3] not

applicable

SDI 3 or NA*

SCH 3 or NA

Review NO Routable

Source [SDI 4] not

applicable

[SDI 4] not applicable

* When the "review" channel is enabled the Server Channel (SCH3) is not available for codec playback (CPB1).

Workflow Set 2

This workflow features four SDI HD/SD format switchable inputs and two SDI outputs with graphics branding.

-- -- -- -- -- -- SCH 3 Codec PB1 YES Routable

Source

Source SDI 1 SCH 5 Live Input to

Mixer

NO Routable

Source

or Live In

YES Routable

Source

SDI 2 SCH 2 Branded HD NO Routable Source

SDI 3 SCH 7 Fill In NO Routable

Source

SDI 4 SCH 8 Key In NO Routable

Source

Workflow Set 3

This workflow features two SDI HD/SD format switchable inputs and four SDI outputs with graphics branding. Two SDI outputs are HD and two are SD.

(24)

Source SDI 1 SCH 7 Live Input to

Mixer

NO Routable

Source

or Live In

YES Routable

Source

SDI 2 SCH 2 Branded HD NO Routable Source [SDI 3] not

applicable

SDI 3 SCH 3 Branded SD NO Routable Source [SDI 4] not

applicable

SDI 4 SCH 4 Branded SD NO Routable Source

Power Supply Modules

The Versio system has a 920 watt redundant power supply consisting of two power modules. Each power supply module has an auto-switching capability, which enables it to automatically sense and operate at a 100V - 240V input voltage. It is essential that both power supply modules be connected at all times during operation; therefore it is recommended that the failed module be replaced immediately to maintain full power redundancy.

If you need to replace a failed power supply, see Change the Power Supply (on page 39) for the replacement procedure.

Power Supply LED Descriptions

 Green: System is on.

 Amber: System is off and plugged in.  Off: There is no AC power to the system.

Note: For extra insurance against power loss, you can connect the two power supply modules to AC outlets on different circuit breakers or connect the system to an Uninterruptible Power Supply (UPS).

(25)

Hardware Manual External Serial and GPI Control

External Serial and GPI Control

External control of the Versio system is available over RS-422 serial connectors and GPI (General Purpose Interface) inputs. The serial connectors and GPI outputs can also control external devices. The Versio system supports up to 8 serial connections, 8 GPI inputs, and 8 GPI outputs. The 1 RU height requires that a "fanout" cable is used to manage these connections. The fanout cable attaches to the Afterburner4 (AB4) card on the back of the Versio system.

AB4 Fanout Cable Design

A single AB4 fanout cable is provided for the serial 16 card, which allows for a single VHDCI connection to the board while providing 16 individual RJ connections. The cable is designed without splices within the length of the cable. This approach reduces the number of cables; simplifies the installation, connection, labeling, and dressing of cables; and improves the overall cabling to the chassis.

Each port is labeled with a number and a letter starting with "1" and "A". The letters "O" and "I" have been omitted to avoid confusion with the numbers "0" and "1". See Fanout Cable Pinouts (on page 27) for more details.

(26)

Lengths of Fanout Cables

The standard cables provided are 7 ft (210 cm) in total length, with a 3 ft (90 cm) portion, a single cable from the VHDCI connector carrying all 16 ports, and the remaining 4 ft (120 cm) individual cables for each port (part number: 502120-00). A 16 ft (485 cm) cable is also available (part number: 502120-01).

(27)

Fanout Cable Pinouts

(28)

HD-BNC Female Cables

The HD-BNC cables connect to the Broadcast Video I/O ports. ICC cable part number is 165-100024Q00.

(29)

RJ RS422 PINOUT

AB4 to RJ12 GPI PINOUT

RJ12

1 GPI-O

2 GPI-I

3 GPI-I GND

4 GPI-O

5 nc

(30)

RJ12 to DB9 Adapters

(31)

Tributary Adapter: AB4 (Master) Controlling External Device

The following is based on AB4 using the MASTER fanout cable.

(part number: 134-000721Q-00)

Master Adapter: External Device (MASTER) Controlling AB4

(Slave)

The following is based on AB4 using the MASTER fanout cable.

(32)

Hardware Manual System Installation

System Installation

This chapter provides information about installing the Versio system, and includes the following topics:  Chassis Components Installation (on page 33)

 Chassis Rack Installation (on page 41)  BIOS Error Beep Codes (on page 50)

(33)

Hardware Manual Chassis Components Installation

Chassis Components Installation

This section describes important safety guidelines, tools needed for installation, and how to access and install chassis components.

Important Safety Guidelines

To avoid personal injury and property damage, please read all the information provided in Safety

Guidelines (on page 11), and carefully follow all the safety steps listed in this chapter before accessing or servicing your system or its components.

Safety Steps

WARNING

This product should only be accessed and serviced by technically qualified personnel or technicians.

Before accessing the chassis

1. Turn off all peripheral devices and the power supply connected to the system. 2. Unplug all power cords from the system or wall outlets.

3. Disconnect all the cables and label the cables for easy identification.

Removing the chassis covers

After completing the above steps, you can remove the chassis covers and install components and devices into the chassis as described in this chapter.

1. Unlock and remove the screws and fasteners to remove the covers or components.

2. Save all the screws and fasteners for later use. (If necessary, label the screws and fasteners for easy identification.)

3. Follow the instructions provided in this chapter to remove the chassis covers.

Installation Tools

You will need the following tools for the safe and proper installation of your system.  Phillips screw driver

(34)

Install Hard Drives

The hard drives are mounted in drive carriers to simplify their installation and removal from the chassis. System power may remain on when removing carriers with drives installed. These carriers also help promote proper airflow for the drive bays. For this reason, even empty carriers without drives installed must remain in the chassis.

Remove Hard Drive Trays from the Chassis

1. Press the release button on the drive carrier. This extends the drive carrier handle. 2. Swing the handle out fully and pull the tray straight out.

Install Hard Drive into a Drive Carrier

1. Remove the four Phillips head screws holding the dummy drive to the carrier and discard the screws.

Note: The screws used to secure the dummy drive to the tray cannot be used to secure the hard drive.

2. Insert your new drive into the carrier with the PCB side facing down and the connector end toward the rear of the carrier.

(35)

3. Align the drive in the carrier so that the mounting holes of both are aligned.

4. Secure the drive to the carrier with four M3 flat-head screws included in the HDD bag of your accessory box.

5. Insert the drive and drive carrier into its bay vertically, keeping the carrier oriented so that the release button is on the right side. When the carrier reaches the rear of the bay, the release handle will retract.

6. Push the hard drive into the hard drive bay until the hard drive clicks into the locked position.

Remove the Chassis Cover

You must remove the chassis cover before you can access the motherboard or replace components such as power supplies or fans.

WARNING

Do not operate the server without the chassis cover in place. The chassis cover must be in place to allow proper airflow and to prevent overheating. You can remove the cover for a short period of time without powering down, but be sure the replace the cover as soon as possible.

Before You Open the Chassis

1. Close all of your applications and shut down Windows.

2. Turn off all peripheral devices connected to the device chassis. 3. Press the power button to power-off the system.

(36)

5. Disconnect all the cables and label them for easy identification.

Remove the Chassis Cover

Use a Phillips screwdriver to remove the 2 chassis screws.

1. Press both release buttons (toward the front of the unit on the top) at the same time. This will release the cover from the locked position.

2. Once the cover is released, slide the cover back. 3. Lift the cover up and off the chassis unit.

Reinstall the Chassis Cover

CAUTION

For proper cooling, ensure the chassis covers are properly installed before turning the system on.

Follow these instructions before you replace the chassis cover.

 Ensure that all components and devices are securely fastened on the chassis and that there are no loose parts or screws inside the chassis.

 Ensure that all cables are properly connected to the connectors and ports.  Use the original screws or fasteners to install the covers to the chassis.  Be sure to lock the chassis or the system to prevent unauthorized access.

 To replace the cover, reverse steps 1, 2, and 3 described under Before You Open the Chassis (on page 35).

System Fans

Four 8-cm hot-swap fans provide the cooling for the Versio system. These fans are located on the front side of the fan bracket. In addition, three optional fans may be placed on the rear side of the fan bracket for cooling redundancy. An air shroud is also included to concentrate the air flow for a greater cooling effect.

It is very important that the chassis top cover is properly installed and making a good seal in order for the cooling air to circulate properly through the chassis and cool the components.

System Fan Failure

Fan speed is controlled by system temperature via a BIOS setting. If a fan fails, the remaining fan will ramp up to full speed and the overheat/fan fail LED on the control panel will turn on. Replace any failed fan at your earliest convenience with the same type and model (the system can continue to run with a failed fan).

(37)

Note: The part number for the Versio system fan is 131-100014Q00.

Replace a System Fan

1. Turn off the power to the system and unplug the system from the outlet. 2. Remove the chassis cover.

3. Press the fan release tab to lift the failed fan from the chassis and pull it completely out of the chassis.

4. Place the new fan into the vacant space in the housing while making sure the arrows on the top of the fan (indicating air direction) point in the same direction as the arrows on the other fans. The fan will automatically begin running at the correct speed.

(38)

Air Shroud

Air shrouds concentrate airflow to maximize fan efficiency. The Versio chassis air shroud does not require screws for installation.

Install the Air Shroud

1. Lay the chassis on a flat, stable surface and remove the chassis cover.

2. Ensure that the motherboard, CPU, heatsink and memory are all properly installed. 3. If necessary, move any cables that interfere with the air shroud placement.

4. Place the air shroud in the chassis. The air shroud fits just behind the fans in the fan rack. Slide the air shroud into the grooves just behind the fan rack.

Replace the Onboard CR2032 Battery

If you are replacing the onboard battery make sure to handle the used battery carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do

(39)

not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

Power Supply

The Versio device has two redundant hot-swappable power supply modules. You can access the power connectors from the Back Panel. Each power supply module has an auto-switching capability. This allows them to automatically sense and operate at 100V to 240V input voltage. Under normal operation both power supplies work in tandem spreading the load between them. If one of the power supplies fails, the working power supply can provide all of the power needed by the device.

CAUTION

Both power supply modules must be connected at all times during operation. If one of the modules fails, you must replace it immediately to maintain full power redundancy.

Power Supply Failure

If either of the two power supply modules fail the other module takes the full load and allows the system to continue operation without interruption. The PWR Fail LED illuminates and remains on until the failed unit has been replaced.

The power supply units have a hot-swap capability, meaning you can replace the failed unit without powering down the system.

Change the Power Supply

WARNING

Unplug the power cord before removing the power supply.

1. Determine which power supply needs to be replaced and unplug the AC power cord to that module. 2. Push the release tab on the back of the power supply.

(40)

3. While holding down the release tab, pull the power supply out using the handle provided on the power module.

4. Replace the failed power supply module with the same model.

Note: The part number for the Versio power supply module is 122-100054Q00.

5. Push the new power supply module into the power bay until the tab clicks into the locked position. 6. Plug the AC power cord back into the module and the replacement power module will automatically

power-up.

CAUTION

(41)

Hardware Manual Chassis Rack Installation

Chassis Rack Installation

This section provides steps for installing the chassis into the rack unit you are using.

Rack Location

Decide on a suitable location for the rack unit that will hold your chassis. It should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fields are generated. The system needs to be placed near a grounded power outlet. Be sure to read the Warning and Precautions in the next section.

Prepare for Setup

The box your chassis was shipped in should include two sets of rail assemblies and the mounting screws needed for installing the system into the rack. Please read this section in its entirety before you begin the installation procedure outlined in the sections that follow.

Choosing a Setup Location

 Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches).

 Leave approximately 30 inches of clearance in the back of the rack to allow for sufficient airflow and ease in servicing.

 This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like).

Warnings and Precautions

Rack Precautions

 Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them.

 In single rack installations, stabilizers should be attached to the rack.  In multiple rack installations, the racks should be coupled together.

 Always make sure that the rack is stable before extending a component from the rack.

 You should extend only one component at a time. Extending two or more simultaneously may cause the rack to become unstable.

(42)

General System Precautions

 Review the electrical and general safety precautions that came with the components you are adding to your chassis.

 Determine the placement of each component in the rack before you install the rails.

 Install the heaviest system components on the bottom of the rack first, and then work upwards.  Use a regulating uninterruptible power supply (UPS) to protect the system from power surges,

voltage spikes and to keep your system operating in case of a power failure.

 Allow the hot plug hard drives and power supply modules to cool before touching them.

 Always keep the rack's front door and all panels and components on the system closed when not servicing them to maintain proper cooling.

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with system operating environment specifications. See System Operating Environment (on page 65) for details.

Reduced Airflow

Equipment should be mounted into a rack so that the amount of airflow required for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (i.e. the use of power strips, etc.).

(43)

Rack Mounting

This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly from the instructions provided. You should also refer to the installation instructions that came with the rack unit you are using.

Note: This rail will fit a rack between 26.6" and 36.5" deep.

Identify the Sections of the Rack Rails

The chassis package includes two rail assemblies in the rack mounting kit. Each assembly consists of two sections: an inner fixed chassis rail that secures directly to the server chassis and an outer fixed rack rail that secures directly to the rack itself.

Note: The part number for the Versio rack rail is 148-100032Q00.

Locking Tabs

Both inner chassis rails have a locking tab. The tabs lock the chassis into place when installed and pushed fully into the rack. These tabs also lock the server in place when fully extended from the rack. This prevents the server from coming completely out of the rack when you pull it out for servicing.

(44)

Install Inner Rails to the Chassis

The chassis includes a set of inner rails in two sections: inner rails and inner rail extensions. The inner rails are pre-attached and do not interfere with normal use of the chassis if you decide not to use a server rack. When using a rack, attach the inner rail extension to stabilize the chassis within the rack.

Note: If you are not using a rack, you do not have to install the inner rail extensions.

1. Place the inner rail extension on the side of the chassis aligning the hooks of the chassis with the rail extension holes. Make sure the extension faces "outward" just like the pre-attached inner rail. 2. Slide the extension toward the front of the chassis.

3. Secure the rail to the chassis with two screws. 4. Repeat steps 1-3 for the other inner rail extension.

Identify the Outer Rack Rails

Outer rails attach to the server rack and hold the chassis in place. The Versio system comes equipped with quick-release outer rails that allow the chassis to be easily extended or removed from the rack. 1. Identify the two outer rack rails.

(45)

2. Pull out the end of the outer rail until it is fully extended.

3. Note the location of the release tab which will allow the outer rail extension to be separated from the outer rail. Do not release it at this time. If released, simply depress the release tab and slide the outer rail extension back into the outer rail.

4. Repeat steps 1-3 for the second outer rail.

Install the Outer Rails to the Rack

The outer rails attach to the rack and allow easy access to the chassis. 1. Press the button to retract the outer rail extensions.

(46)

2. Hang the hooks of the front portion of the outer rail onto the slots of the rack. If necessary, use screws to secure the outer rails to the rack.

3. Hang the hooks of the rear portion of the outer rail onto the slots of the rack. Use screws as shown in step two to secure the rear of the outer rail to the rear of the rack.

(47)

Install Chassis into Rack

1. Confirm that the inner rails (A) and rail extensions (B) are properly installed. Confirm that the outer rails (C) and outer rail extensions (D) are correctly installed on the rack.

2. Align the chassis inner rails with the front of the outer rails on the rack.

3. Slide the chassis rails into the rack rails, keeping the pressure even on both sides (you may have to depress the locking tabs when inserting). When the Versio system has been pushed completely into the rack, you should hear the locking tabs click into position.

(48)

4. If necessary, insert and tighten the thumbscrews that hold the front of the server to the rack.

(49)

For threaded-hole racks, use the square-to-round-hole adapter kit included in the accessory box. The thread must be M5 or larger to allow the accessory kit screws and washer to pass through the flange. Mount the adapter on the rack to connect to the rack rail.

(50)

Hardware Manual BIOS Error Beep Codes

BIOS Error Beep Codes

During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur.

Non-Fatal and Fatal Errors

Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process. The error messages normally appear on the screen.

Fatal errors are those which will not allow the system to continue the boot-up procedure. If a fatal error occurs, you should consult with your system manufacturer for possible repairs.

These fatal errors are usually communicated through a series of audible beeps. The numbers on the fatal error list correspond to the number of beeps for the corresponding error. All errors listed are fatal errors.

BIOS Error Beep Codes

Beep Code Error Message Description

1 beep Refresh Circuits have been reset (Ready

to power up) 5 short beeps

and 1 long beep

Memory error No memory detected in the

system

5 beeps No Con-In or

Con-Out devices

Con-In includes USB or PS/2 keyboard, PCi or Serial console redirection, IPMI KVM or SOL. Con-Out includes video

controller, PCI or Serial console redirection or IPMI SOL.

(51)

Hardware Manual Maintenance

Maintenance

This chapter provides information about maintaining your Versio system, and includes the following topics:

 Hot Swap Power Supplies (on page 52)  System Recovery (on page 53)

(52)

Hardware Manual Hot Swap Power Supplies

Hot Swap Power Supplies

Your system uses a dual-redundant hot-swappable power supply. You can replace a failed power supply module without turning the system off.

Make sure you have a replacement power supply before starting this procedure. Keep a replacement power supply module on hand, and replace failed modules promptly. Running on one power supply module for any length of time can compromise the uninterrupted operation of your system. Three signals indicate that a power supply module has failed.

 The warning alarm sounds.

 The green LED on the failed power supply module is off.  The PS FAIL LED on the front of the unit is red.

To stop the alarm from sounding, unplug the power supply module from the system.

Note: For redundant operation your system requires two working modules. If one module fails, replace the failed module immediately.

To replace the failed power supply module

1. Put on protective gloves before removing the failed power supply module. The power supply module is very hot.

2. Pull out the failed power supply module, and put it somewhere where it will not be touched until it cools down.

3. Insert a replacement power supply module.

4. Confirm that the power supply module LED is green. 5. Confirm that the PS FAIL LED on the front of the unit is off. 6. Snap the power supply module in place.

(53)

Hardware Manual System Recovery

System Recovery

This section describes the system recovery process using the system recovery image, also called the WIM image.

Initial Production WIM Recovery Image

The initial WIM image is captured to the System Recovery USB stick at the customer’s facility during initial system deployment. At the time of shipment, the System Recovery USB stick does not include a WIM file.

Customers should confirm the final production-ready Versio configuration is captured to the USB stick during system deployment.

Create a WIM Recovery Image

Prepare the Drive for Capture

When you capture a WIM image, you are capturing the current state of a specific drive on the Versio system to use for future system recovery.

A WIM image capture can contain extremely large files. Before capturing the image you should delete any unnecessary files (like log files and temporary files) that are unnecessary to store as a part of the WIM image capture.

Format a Third-Party USB Stick

The WIM image must be captured to a properly formatted USB stick. It is recommended that the WIM image is captured to the System Recovery USB stick, which is already properly formatted for the WIM image. Note that you can also capture the WIM image to a network share.

If you are using a third-party USB stick, use the following steps to format the USB stick for the WIM image.

1. Insert the third-party USB stick into the USB port on the back of the Versio system. 2. On the Versio system, open the Programs\PE_Apps folder.

(54)

4. From the File menu, select Format Disk. The Format Disk dialog opens.

5. From the Assign Letter drop-down list, select only the third-party USB stick. 6. From the Format Type drop-down list, select NTFS.

7. Click the FORMAT button to format the third-party USB stick.

Capture the WIM Image

Use the following steps to capture a WIM image for future system recovery.

Note: The System Recovery USB stick is located inside the Versio chassis. 1. Restart the system.

2. Continuously press F11 during the POST to open the Boot Menu.

3. Select the USB drive and press ENTER to access the Recovery Desktop. 4. On the Recovery Desktop, double-click the Utility Launcher icon.

(55)

6. From the File menu, select Capture WIM Image to open the Capture Image dialog.

7. If necessary, click the Browse button beside the Step (1) field and select the C:\ drive. 8. Click the Browse button beside the Step (2) field.

9. Select the location on the USB stick for saving the WIM file and enter a name for the file. 10. In the Capture Image dialog, select the Make Bootable checkbox.

11. Click the Capture Image button. The progress and status displays in the title bar. 12. When the capture is complete, click Close.

Note: If the final WIM image does not fit on the System Recovery USB stick or the third-party USB stick, you can capture the WIM image to a network share.

Apply the WIM Recovery Image

Use the following steps to apply a WIM image and restore your Versio system to the configuration captured by the WIM image. The System Recovery USB stick is attached to a USB drive inside the chassis.

Note that applying the WIM image will reformat the C:\ drive on the Versio system. If you want to preserve any files on the C:\ drive, back up the files before proceeding.

(56)

2. Continuously press F11 during the POST to open the Boot Menu.

3. Select the USB drive and press ENTER to access the Recovery Desktop.

Note: The System Recovery USB stick is attached to a USB drive inside the chassis. 4. Make sure the Versio system has access to the WIM image.

 If the WIM image is on the System Recovery USB stick, it is already attached to a USB drive inside the chassis.

 If the WIM image is on a different USB stick, insert the USB stick into an available USB port on the Versio system.

 If the WIM image is on a network share, make sure the location is accessible to the Versio system.

5. On the Recovery Desktop, double-click the Utility Launcher icon.

6. In the Utility Launcher, click the Imaging button to open the NxImage application. 7. From the File menu, select Format Disk to open the Format Disk dialog.

8. From the Disk Discovery list, select the disk marked System. 9. In the Assign Letter list, select C.

10. In the Format Type list, select NTFS. 11. Click the Format button.

12. In the Format Disk pop-up, click Yes to confirm the formatting of the C:\ drive. 13. When the formatting is complete, click Close to return to the NxImage application. 14. From the File menu, select Apply WIM Image.

15. In the Apply Image dialog, click Open.

16. In the Open dialog, navigate to and double-click the .wim file. The filename displays in the Step (1) field of the Apply Image dialog.

(57)

17. In the Apply Image dialog, click the Browse button and select the C:\ drive. Note that you must click Browse to select the destination drive. The drive displays in the Step (2) field.

18. Click the Apply Image button. The progress and status displays in the title bar. 19. When the process is complete, click Close to return to the Recovery Desktop. 20. Remove the USB stick from the external USB port if necessary.

21. Shutdown the Versio system (Start > Shutdown).

22. Once the system has completely shut down, press the Power button on the front panel to restart the Versio system.

(58)

Hardware Manual Prevent Damage and Malfunction

Prevent Damage and Malfunction

Read and observe all instructions in this section to keep your system working safely and effectively.

Hardware

Do NOT modify the hardware. Your system is delivered with all the necessary hardware and software already installed. You should not have to open the system case. However, if the system case is damaged, refer to Chassis Components (on page 15) for proper instructions on accessing the chassis components. Installing additional hardware or modifying the hardware in any way can compromise the operation of your system.

Anti-Virus Software

Imagine Communications does not condone the operation of anti-virus software on Graphics/Server systems during operation of the software. We also do not condone the operation of anti-virus software from networked machines on Graphics/Server systems during any operation of the software.

Imagine Communications supports regular manual or scheduled scans on Graphics/Server systems, using licensed professional third party applications, during known off-line time periods when the software is not on-air or actively in use. Under these conditions, Imagine Communications agrees that such scans may be conducted while software applications are running but are not performing editing, playback, output, or other productive operations. Always disable "scan on access" options of your anti-virus software.

Any application or service which consumes system resources (including but not limited to system hard drive access, CPU cycles, and RAM or primary system bus traffic) will negatively impact the performance and operational status of the software. Such conditions may impair your Graphics/Server system from meeting its operational requirements.

Operating System Updates

To assure the operation, service, technical support, and maintenance of Imagine Communications Graphics/Server systems on known tested and qualified operating system configurations, customers should not install any operating system updates on Graphics/Server systems unless formally notified by Imagine Communications to do so. Imagine Communications tests and verifies software releases using current updates immediately prior to release, and are confident of the operation of the updates as of that date.

Customers who do install additional operating system updates on Graphics/Server systems waive the right for Imagine Communications support to assist with any updates which have not been formally

(59)

Hardware Manual Prevent Damage and Malfunction

approved by Imagine Communications. Furthermore, Imagine Communications service representatives may require the removal of any operating system updates which have not been formally approved by Imagine Communications for use on Graphics/Server systems, before offering assistance with

troubleshooting and providing service, technical support, or maintenance. If additional updates have been installed we recommend creating a system restore point before proceeding.

Automatic Updates

Imagine Communications builds and ships Graphics/Server systems with the Microsoft® Updates feature turned off. This prevents future operating system updates from automatically installing code which may prevent Imagine Communications Graphics/Server systems from operating as expected.

Versio systems are built on a Windows 7® 64-bit platform and, as such, comply with the platform design rules as they existed when the software was built. Imagine Communications has no control over

Microsoft’s platform support or the patches which Microsoft may issue. Imagine Communications also has no control over the user-configured distribution mechanism which Microsoft uses to push updates to machines running operating system software.

(60)

Hardware Manual Specifications

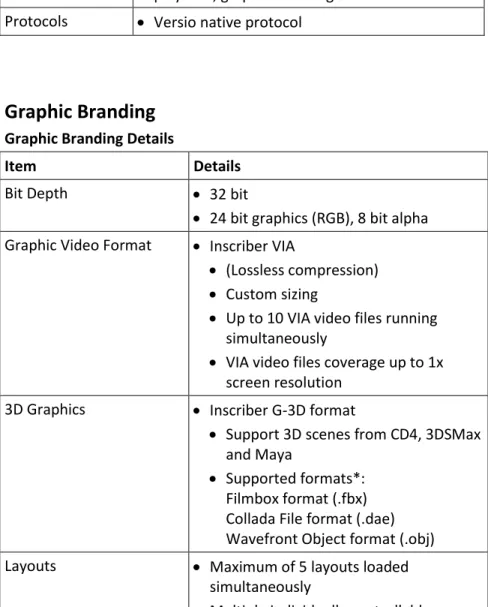

Specifications

This chapter provides your Versio system specifications, and includes the following topics:  Broadcast I/O (on page 61)

 Audio Processing (on page 62)  SD Video Codecs (on page 62)  HD Video Codecs (on page 63)  Chassis (on page 64)

 Integrated Devices (on page 65)  System Details (on page 66)
