ABSTRACT
AKSHAY, VENKITASUBRAMANIAN. Object-Oriented Framework for Healthcare Simulation. (Under the direction of Dr. Stephen D. Roberts and Dr. Jeffery A. Joines).
This thesis addresses the problem of modeling complexity of healthcare simulation projects. From an extensive literature review, three problems associated with healthcare simulation were elicited: lack of flexibility among healthcare simulation, lack of
implementation methodologies to support building of complex integrated multi-facility simulation models, and lack of stakeholder involvement in simulation projects.
The first problem was attributed to lack of flexibility in healthcare simulation
software. This can be deduced from sheer number of simulation projects resorting to develop their own simulation using general purpose languages. The root cause of the problem has been identified as the lack of conceptual framework in development of healthcare simulation libraries. In addition to this, we present four intuitive axioms to assist future simulation software developers and modelers in assessing the utility of simulation toolkit and models.
The second problem was attributed to lack of integrative framework for complex facilities simulations. Healthcare is a highly interconnected environment and multi-facility simulations will help in relaxing the fixed boundaries assumed in facility-specific simulation projects. In this thesis, we present a model development process that takes advantage of expertise of simulation community in facility-specific models and extend it to the development of complex integrated multi-facility systems.
Finally, we address the problem of stakeholder involvement and lack of
implementation in simulation projects in healthcare sector. We present a causal loop diagram to visualize the dynamics of four simulation success factors: Verification, Validation,
© Copyright 2012 by Venkitasubramanian Akshay
Object-Oriented Framework for Healthcare Simulation
by
Venkitasubramanian Akshay
A thesis submitted to the Graduate Faculty of North Carolina State University
in partial fulfillment of the requirements for the degree of
Master of Science
Industrial Engineering
Raleigh, North Carolina 2012
APPROVED BY:
_______________________________ ______________________________ Dr. Stephen D. Roberts Dr. Jeffery A. Joines
Committee Co-Chair Committee Co-Chair
_________________________________ Dr. Yunan Liu
ii
DEDICATION
iii
BIOGRAPHY
Akshay Venkitasubramanian was born on September 19th, 1988 in a quaint, little town of Neyveli, India to two bankers. Hence, he was brought up in a dynamic environment where they shifted places every 4 years. This change put him through 4 different school systems and helped him understand that his academic forte lied in mathematics and programming. In addition to this, growing up in diverse societies helped in cultivating his strong personal interests for social development. Combining his personal experiences with academic interest, he chose to study Electronics and Biomedical Engineering at Government Model Engineering College, Cochin where he graduated with FIRST class in June 2009.
During these four years, he actively became involved with the Young Indians (Yi) organization which provided a platform for students to work alongside leaders and
entrepreneurs designing and implementing initiatives to improve their local communities.For his contributions to the organization, he was awarded Most Valuable Member of the Year (All India) in 2009 and was given invited to give a talk on the topic of social development and youth involvement at the prestigious Indian School of Business, Hyderabad. This is where he came in touch with late management professor Dr. C.K.Prahalad (University of Michigan-Ross Business School) and the following interactions with Dr. C.K.Prahalad taught him that technology is only a part of the healthcare problem and that an equally-important focus should be on operations strategy.
After graduation, he decided to pursue a series of developmental internships in Nigeria and India to understand the role of healthcare systems while he pondered over the choice of graduate program. His uncle, Dr. Parasuram Balasubramanian (CEO, ThemeWorks Analytics), who holds a doctorate in Industrial Engineering from Purdue University was a huge help and he finally chose the graduate program in Industrial Engineering at North Carolina State University.
iv infection control practices. He is also an active member of Alpha Phi Mu, Institute for
Industrial Engineers, Society for Health Systems, System Dynamics Society, and INFORMS. He hopes to pursue doctoral studies in management science focusing on public health
v
ACKNOWLEDGEMENTS
The author wishes to express his sincere gratitude to his advisors: Dr. Stephen D Roberts and Dr. Jeffery A Joines for tirelessly working with him and instilling a culture of academic research. In addition to this, he is also grateful to them for supporting him through research and teaching assistantships. The author also expresses his thanks to Dr. Yunan Liu for his time and support in helping refine this work. Last but not the least, the author
vi
TABLE OF CONTENTS
LIST OF TABLES
...x
LIST OF FIGURES
...xi
READING STYLE GUIDE
...xvi
1. INTRODUCTION
... 1
1.1THE POWER TO SEE ...1
1.2HEALTHCARE AND SIMULATION ...2
1.2.1 Timeliness of Care ...2
1.2.2 Quality of Care ...3
1.2.3 Errors in care delivery ...4
1.2.4 Complexity in healthcare delivery ...4
1.2.5 Value of healthcare services ...5
1.3SIMULATION MODELING PARADIGMS ...6
1.3.1 Discrete Event Simulation (DES): ...7
1.3.2 System Dynamics (SD):...7
1.3.3 Agent-Based Modeling (ABM): ...7
1.4SIMULATION MODELING SOFTWARE ...8
1.4.1 Simulation software history- An overview ...8
1.4.2 Healthcare Simulation Packages ...10
1.4.2.1 MedmodelTM ...10
1.4.2.2 Flexsim HCTM ...11
1.5THESIS OUTLINE ...11
2. LITERATURE SURVEY
... 13
2.1OBJECT ORIENTED SIMULATION (OOS) ...13
2.2SYSTEMATIC REVIEW OF HEALTHCARE SIMULATION LITERATURE ...16
2.3PATIENT FLOW AND OPTIMIZATION ...18
vii
2.3.1 Inpatient Scheduling ...20
2.3.2 Emergency Department (ED) Simulations...21
2.3.3 Specialist Clinics ...23
2.3.4 Physician and Healthcare Staffing ...24
2.4HEALTHCARE ASSET ALLOCATION ...25
2.4.1 Bed Sizing and Planning ...25
2.4.2 Room Sizing and Planning ...25
2.4.3 Staff Sizing and Planning ...26
2.5HEALTH POLICY SIMULATIONS ...27
2.6MULTI-FACILITY SIMULATION MODELS ...31
2.7SIMULATION TUTORIALS ...32
2.7.1 Modeling Tutorials...32
2.7.2 Implementation Tutorials ...34
2.8RESEARCH SCOPE DEVELOPMENT ...36
2.9CHAPTER SUMMARY ...38
3. HEALTHCARE TOOLKIT DEVELOPMENT
... 39
3.1SIMIO–A BRIEF INTRODUCTION ...39
3.1.1 Base Classes...40
3.1.2 Building New Class ...42
3.2BASE CLASSES OF SIMIO-HC ...43
3.3FIXED GROUP ...46
3.3.1 Patient Care (PC) ...46
3.3.2 Patient Care with Lab Care Class (PC_Labcare) ...50
3.3.3 Hospital Workstation ...54
3.3.4 Hospital Workstation with Lab Care Class (HWS_Labcare) ...58
3.3.5 Redirect Object Class (RO) ...60
3.3.6 Waiting Room (WR) ...62
3.3.7 Registration Desk (RD) ...63
viii
3.4NODE ...67
3.4.1 Hospital Transfer node ...67
3.5TRANSPORTER CLASS ...68
3.5.1 Hospital Transporter Class (HT) ...69
3.5.2 Hospital Worker (HW) ...73
3.6ENTITY CLASS ...74
3.6.1 Patient Entity Class (PE) ...74
3.6.2 Specimen Entity (SE) ...77
3.7CHAPTER SUMMARY ...78
4. COMPLEX INTEGRATED MULTI-FACILITY SYSTEMS SIMULATION
... 79
4.1AN INTRODUCTION TO CIMS ...79
4.2BUILDING CIMSMODEL ...80
4.2.1 Emergency Department Model ...81
4.2.2 Oncology Clinic model ...84
4.2.3 Laboratory Services ...87
4.2.4 Radiology Services ...89
4.2.5 Facility Integration ...91
4.3MODEL DEPLOYMENT ...91
4.3.1 Experimentation Setup and Results ...93
4.4SIMULATION PROJECT LIFECYCLE ...97
4.5CHAPTER SUMMARY ...100
5. CONCLUSIONS AND FUTURE WORK
... 101
BIBLIOGRAPHY
... 104
APPENDICES
... 149
Appendix A SIMIO Framework: ...150
A.I Object-Oriented Programming Concepts ...150
ix
A.III Object Definitions ...153
A.IV SIMIO Standard Library ...158
A.V Additional Readings ...159
Appendix B : SIMIO-HC Toolkit ...161
B.I Base Class Overview ...161
B.II Patient Entity ...163
B.III Specimen Entity ...167
B.IV Hospital Transfer node ...168
B.V Redirect Object ...169
B.VI Waiting room Object ...173
B.VII Registration desk ...177
B.VIII Patient Care Object ...179
B.IX Patient Care with LabCare (PC_LabCare) ...185
B.X Hospital Workstation ...189
B.XI Hospital Workstation with Lab Care (HWS_Labcare) ...200
B.XII Statistics Collection Sink: ...207
B.XIII Hospital Transporter ...209
B.XIV Hospital Worker ...217
Appendix C : CIMS Model Development ...220
C.I Emergency Room Model ...220
C.II Oncology Clinic ...228
C.III Laboratory Services ...235
C.IV Radiology Services ...241
x
LIST OF TABLES

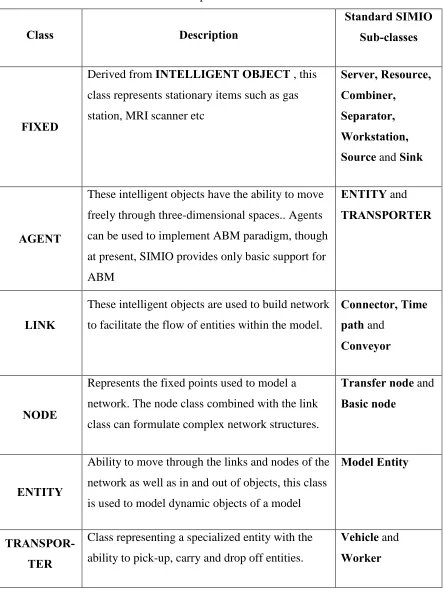

Table 3-1: Description of SIMIO Base Class ... 41
Table 3-2: Patient Care Object Label Definitions s ... 48
Table 3-3: Patient Care Object Resource State Definitions ... 49
Table 3-4: Hospital Workstation Resource States ... 57
Table 3-5: Agent Class Resource States ... 71
Table 3-6: Patient Entity Activity States... 77
Table 4-1: Patient Care Treating & Occupied Resource State Averages ... 95
Table 4-2: Laboratory utilization breakdown ... 95
Table 4-3: Radiology Department utilization breakdown ... 95
Table 4-4: Percent Time statistics breakdown for Patient’s activity ... 96
Table 4-5: Total Time statistics (in minutes) for patient’s activity ... 97
Table B-1: Patient Entity Lists………..163
Table B-2 : Patient Entity Function Table ... 163
Table B-3: Patient Entity States ... 165
Table B-4: Specimen Entity’s States ... 167
Table C-1: ED Patient Arrival Table (ED_ArrivalTable) ... 221
Table C-2: Data Table for Oncology Patients ... 230
Table C-3: Processed Specimen routing out expressions ... 240
xi
LIST OF FIGURES
Figure 1-1: Abstraction Levels For Dynamic Simulation Paradigms ...6
Figure 1-2: Block Diagram Of A DES Package [Adopted from Pidd and Carvalho(2006)] ..9
Figure 2-1 Breakdown of Literature Survey Papers ...37
Figure 3-1: Simio Base Classes ...40
Figure 3-2: Utility as function of Hierarchy and Class Count ...44
