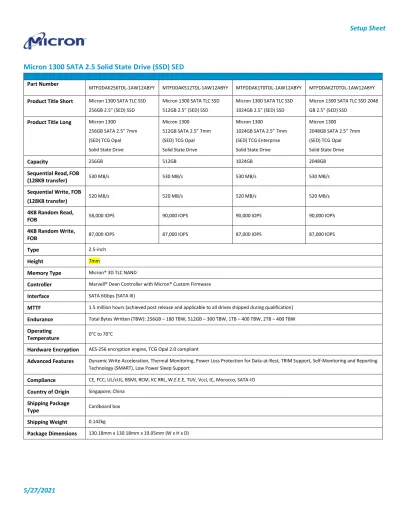

Micron 1300 SATA 2.5 Solid State Drive (SSD) SED

(1)

Micron 1300 SATA 2.5 Solid State Drive (SSD) SED

Part Number

MTFDDAK256TDL-1AW12ABYY MTFDDAK512TDL-1AW12ABYY MTFDDAK1T0TDL-1AW12ABYY MTFDDAK2T0TDL-1AW12ABYY Product Title Short Micron 1300 SATA TLC SSD

256GB 2.5” (SED) SSD

Micron 1300 SATA TLC SSD 512GB 2.5” (SED) SSD

Micron 1300 SATA TLC SSD 1024GB 2.5” (SED) SSD

Micron 1300 SATA TLC SSD 2048 GB 2.5” (SED) SSD

Product Title Long Micron 1300 256GB SATA 2.5” 7mm (SED) TCG Opal Solid State Drive

Micron 1300

512GB SATA 2.5” 7mm (SED) TCG Opal Solid State Drive

Micron 1300

1024GB SATA 2.5” 7mm (SED) TCG Enterprise Solid State Drive

Micron 1300

2048GB SATA 2.5” 7mm (SED) TCG Opal Solid State Drive

Capacity ^256GB ^512GB ^1024GB ^2048GB

Sequential Read,FOB

(128KB transfer) ^{530 MB/s} ^{530 MB/s} ^{530 MB/s} ^{530 MB/s}

Sequential Write, FOB

4KB Random Read,

FOB 58,000 IOPS 90,000 IOPS 90,000 IOPS 90,000 IOPS

4KB Random Write,

Type ^2.5-inch

Height ^7mm

Memory Type Micron® 3D TLC NAND

Controller Marvell® Dean Controller with Micron® Custom Firmware Interface SATA 6Gbps (SATA III)

MTTF 1.5 million hours (achieved post release and applicable to all drives shipped during qualification) Endurance Total Bytes Written (TBW): 256GB – 180 TBW, 512GB – 300 TBW, 1TB – 400 TBW, 2TB – 400 TBW Operating

Temperature 0°C to 70°C

Hardware Encryption AES-256 encryption engine, TCG Opal 2.0 compliant

Advanced Features Dynamic Write Acceleration, Thermal Monitoring, Power Loss Protection for Data-at-Rest, TRIM Support, Self-Monitoring and Reporting Technology (SMART), Low Power Sleep Support

Compliance CE, FCC, UL/cUL, BSMI, RCM, KC RRL, W.E.E.E, TUV, VccI, IC, Morocco, SATA-IO Country of Origin Singapore; China

Shipping Package

Type Cardboard box

Shipping Weight ^0.142kg

Package Dimensions 130.18mm x 130.18mm x 19.05mm (W x H x D)

(2)

Micron 1300 SATA M.2 Solid State Drive (SSD) SED

Part Number

MTFDDAV256TDL-1AW12ABYY MTFDDAV512TDL-1AW12ABYY MTFDDAV1T0TDL-1AW12ABYY Product Title Short Micron 1300 SATA TLC SSD

256GB M.2 (SED) SSD

Micron 1300 SATA TLC SSD 512GB M.2 (SED) SSD

Micron 1300 SATA TLC SSD 1TB M.2 (SED) SSD Product Title Long Micron 1300 256GB SATA M.2 (SED) TCG

Opal Solid State Drive

Micron 1300 512GB SATA M.2 (SED) TCG Opal Solid State Drive

Micron 1300 1TB SATA M.2 (SED) TCG Opal Solid State Drive

Capacity¹ ^256GB ^512GB ^1TB

Sequential Read,

FOB (128KB transfer) ^{530 MB/s} ^{530 MB/s} ^{530 MB/s}

Sequential Write, FOB

(128KB transfer)

520 MB/s 520 MB/s 520 MB/s

FOB 58,000 IOPS 90,000 IOPS 90,000 IOPS

Type ^M.2

Height (Max) ^2.15mm

MTTF 1.5 million hours

Endurance Total Bytes Written (TBW): 256GB – 180 TBW, 512GB – 300 TBW, 1TB – 400 TBW, 2TB – 400 TBW Operating

Temperature 0°C to 70°C Hardware

Encryption AES-256 encryption engine, TCG Opal 2.0 compliant

Advanced Features Dynamic Write Acceleration, Thermal Monitoring, Power Loss Protection for Data-at-Rest, TRIM Support, Self- Monitoring and Reporting Technology (SMART), Low Power Sleep Support

(3)

Micron 1300 SATA 2.5 Solid State Drive (SSD) Non-SED

Part Number

MTFDDAK256TDL-1AW1ZABYY MTFDDAK512TDL-1AW1ZABYY MTFDDAK1T0TDL-1AW1ZABYY MTFDDAK2T0TDL-1AW1ZABYY Product Title Short Micron 1300 SATA SSD

256GB 2.5” SSD

Micron 1300 SATA SSD 512GB 2.5” SSD

Product Title Long Micron 1300 256GB SATA 2.5” 7mm Solid State Drive

Micron 1300

512GB SATA 2.5” 7mm Solid State Drive

Micron 1300

Capacity ^256GB ^512GB ^1024GB ^2048GB

Sequential Read,FOB

Sequential Write, FOB

Type ^2.5-inch

Height ^7mm

Advanced Features Dynamic Write Acceleration, Thermal Monitoring, Power Loss Protection for Data-at-Rest, TRIM Support, Self-Monitoring and Reporting Technology (SMART), Low Power Sleep Support

(4)

Micron 1300 SATA M.2 Solid State Drive (SSD) Non-SED

Part Number

MTFDDAV256TDL-1AW1ZABYY MTFDDAV512TDL-1AW1ZABYY MTFDDAV1T0TDL-1AW1ZABYY Product Title Short Micron 1300 SATA SSD

256GB M.2 SSD

Micron 1300 SATA SSD 512GB M.2 SSD

Micron 1300 SATA SSD 1024GB M.2 SSD Product Title Long Micron 1300 256GB M.2 SATA Solid State

Drive

Micron 1300 512GB M.2 SATA Solid State Drive

Micron 1300 1TB M.2 SATA Solid State Drive

Capacity¹ ^256GB ^512GB ^1TB

Sequential Read,

FOB (128KB transfer) ^{530 MB/s} ^{530 MB/s} ^{530 MB/s}

Sequential Write, FOB

(128KB transfer)

520 MB/s 520 MB/s 520 MB/s

Type ^M.2

Height (Max) ^2.15mm

Controller Marvell® Dean Controller with Micron® Custom Firmware SATA 6Gbps (SATA III) SATA 6Gbps (SATA III)

Advanced Features Dynamic Write Acceleration, Thermal Monitoring, Power Loss Protection for Data-at-Rest, TRIM Support, Self- Monitoring and Reporting Technology (SMART), Low Power Sleep Support

(5)

Micron 1300 SATA Solid State Drive (SSD) Product Description Options

For additional content and images please contact your channel marketing or regional marketing specialist.

15 Word Description

The Micron® 1300 SATA TLC SSD makes NAND flash innovation for client drives even more accessible.

3D NAND flash performance for client computing is even more accessible with the Micron® 1300 SATA SSD, leveraging dense 96-layer TLC architecture and familiar interfaces.

Delivering the performance of 3D NAND technology, plus power efficiency and data protection, the Micron® 1300 SATA solid state drive (SSD) makes flash storage compelling for client computing with advantageous price-to-performance ratios. The 1300 SSD offers capacities up to 2TB in M.2 and 2.5”

form factors with dense 96-layer TLC architecture.

A highlight in the ongoing changeover from legacy hard drives to flash storage, the slim Micron® 1300 SATA solid state drive (SSD) makes the fast performance and endurance of 3D NAND technology for client computing even more accessible. Its Micron-architected, 96-layer TLC SSD design improves density to deliver capacities up to 1TB (in M.2) and 2TB (2.5"), with advantageous price-to-
