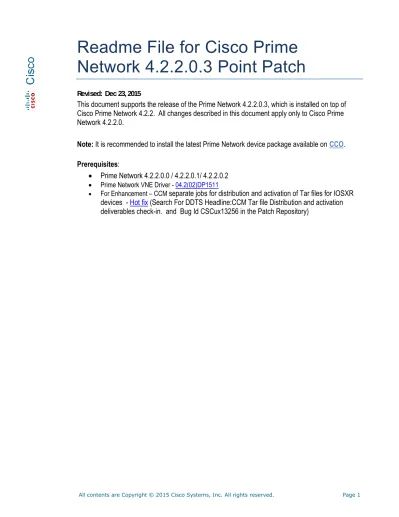

Readme File for Cisco Prime Network 4.2.2.0.3 Point Patch

Revised: Dec 23, 2015

This document supports the release of the Prime Network 4.2.2.0.3, which is installed on top of Cisco Prime Network 4.2.2. All changes described in this document apply only to Cisco Prime Network 4.2.2.0.

Note: It is recommended to install the latest Prime Network device package available on CCO.

Prerequisites:

 Prime Network 4.2.2.0.0 / 4.2.2.0.1/ 4.2.2.0.2

 Prime Network VNE Driver - 04.2(02)DP1511

 For Enhancement – CCM separate jobs for distribution and activation of Tar files for IOSXR devices - Hot fix (Search For DDTS Headline:CCM Tar file Distribution and activation deliverables check-in. and Bug Id CSCux13256 in the Patch Repository)

(2)

1. Whats New

This point patch contains a new CCM feature.

Distribution and Activation of Tar files for IOSXR devices now have separate jobs for each action.

This allows to distribut a tar file to an IOSXR device, and schedule the activation for a later time.

This feature requires use of VNE Driver Device Package 04.2(02)DP1511 + Hotfix(Search For DDTS Headline:CCM Tar file Distribution and activation deliverables check-in. and Bug Id CSCux13256 in the Patch Repository)

Hot Fix Installtion Instructions

1) Download the Cisco-NCCM_IOX-v6.0.0.0 Zip file from the above location.

2) Unzip it and copy the jar to <PN HOME>/Main/drivers/PrimeNetwork-4.2.2-DP1511 in GW and all units.

3) restart PN (anactl restart).

Bug ids relevant to this feature:

CSCux16373 Distribute and Activate on multiple devices for future time not working

CSCux41931 Distribute and Activation of tar file using SFTP (ASAP) fails

CSCux13256 Distribute, Install Add, Commit of tar file using SFTP for future time fail

Known Caveate in this feature:

CSCux13256 Distribute,Install Add,Commit of tarfile using SFTP for future time fail

2. Obtaining the Point Patch

To obtain the Cisco Prime Network 4.2.2.0.3 Point Patch installation, download it from:

https://software.cisco.com/download/type.html?mdfid=286287455&flowid=76162

Point Patch Contents

 Cisco Prime Network 4.2.2.0.3 Point Patch contains the necessary files and scripts in support of the following:

(4)

 Prime Network Patch

 Resolved caveats. For a list of caveats resolved in this Point Patch, see section 12

Explanation on Contents

The patch will automatically install the Prime Network Integration Layer patch if the Prime Network Integration Layer base application exists. If there are any updates associated with Operations Reports, they will also be included in this patch installation.

Note: Not all Point Patches contain updates for Prime Network Integration Layer and Operations Report Tool.

(5)

3. Installing the Point Patch

This procedure describes how to install the Cisco Prime Network 4.2.2.0.3 Point Patch on top of an existing Cisco Prime Network 4.2.2 installation.

Before You Begin

1. If you are using the LINUX RHCS solution:

Login to the Cisco Prime Network gateway as root user and move the services into freeze mode, by running:

a) clusvcadm –Z <Prime Network service>

b) clusvcadm –Z <Oracle service>

For example:

clusvcadm –Z ana clusvcadm –Z oracle_db

2. If you are using Geo HA solution:

a. Unzip the RH_ha.zip from the installation package.

b. Copy the folder RH_ha/perlForHA/PrimeNetwork to /var/adm/cisco/primenetwork/scripts/ha/util/perlForHA directory on all of the gateways of the system.

c. Set the privilege and ownership of the copied "PrimeNetwork" folder and its included subfolders and files to the values same as other folders and files in /var/adm/cisco/prime-network/scripts/ha/util/.

d. Remove the perl folder if exists (owned by root) from /var/adm/cisco/prime-

network/scripts/ha/util on all of the gateways of the system (The SP/PP install script will create the same perl folder, but this time the perl folder will be owned by PRIME NETWORK user).

3. Make sure the Cisco Prime Network gateway and units are up and running before installing the Point Patch (Except for Unit behind NAT, see next step).

4. If you are using Unit behind NAT, stop the Prime Network application and remove the current crontab. Enter the following commands on each of the NAT units:

a) networkctl stop b) crontab –r

If you are using Operations Reports, verify that the MySql database is up prior to installing the Prime Network Point Patch.

(6)

Example: (as ‘root’ user) service mysqld-ib status

5. Copy the Point Patch to a directory outside of the Cisco Prime Network home directory (as user ‘root’).

Example:

cd /export/home mkdir 4.2.2.0.3

6. Grant the directory Cisco Prime Network user permission.

Example:

chown <Prime Network-user>:ana 4.2.2.0.3 Notes

 The installation process is configured to execute automatic backup of all the files under the Cisco Prime Network home directory. Creating the backup zip file can take up to one hour.

 You can abort the installation if a backup of the database has not been performed.

 You are prompted for a destination path for the backup file and to indicate the required disk space requirements. This path location cannot be $PRIME_NETWORK_HOME.

 Grant Cisco Prime Network user permission to the backup directory.

 The backup file name is appended with the UNIX time stamp of the gateway machine.

 The file format of the backup is PrimeNetworkBackUp_<unix_time>.tar.gz.

 We recommend that you install Cisco Prime Network 4.2.2.0.3 Point Patch with the default option: perl upgrade.pl.

To install the Point Patch without a backup (no rollback option), run the upgrade.pl script with the –nobackup option, as follows:

perl upgrade.pl –nobackup

 This Point Patch might include database table changes. If you would like the option to rollback to a previous Cisco Prime Network version, backup the database.

 If your setup is installed with an embedded database, see the “Performing a Manual Backup of an Embedded Database and Cisco Prime Network” section in the Cisco Prime Network Administrator Guide, 4.2.

 The Cisco Prime Network gateway and units restart automatically after the installation has completed successfully.

3. Installation Procedure

1. Login to the Cisco Prime Network gateway as the Prime Network user.

2. Navigate to the directory in which you placed the Point Patch.

(7)

3. Navigate to the patch directory location created in Step 5 and unzip the file to extract the necessary JAR files and Perl scripts (for Prime Network and Operations Report installation).

Example:

cd /export/home/4.2.2.0.3

unzip Prime_Network4.2.2.0.3.zip –d ./Point-Patch

4. The zip file will contain 2 separate additional zip files. One contains the files associated with installing the Prime Network patch (same name as original zip file) and the other for installing patches related to the Operations Report Tool.

Note: Operations Report Tool zip file will exist only if there are updates available to this Point Patch.

1. Prime_Network4.2.2.0.3.zip 2. 4.2_Reports.zip

5. For installing the Prime Network patch, go to the newly created sub directory (i.e. Point-Patch) and unzip the Prime Network Patch zip file:

Example:

cd ./Point-Patch

unzip Prime_Network4.2.2.0.3.zip

6. Navigate to the Prime_Network_upgrade directory:

cd Prime_Network_upgrade

7. Enter one of the following commands, depending on whether or not you want to install the Point Patch with the option to roll back.

To install the Point Patch and create a backup file, enter:

perl upgrade.pl

To install the Point Patch without creating a backup file, enter:

perl upgrade.pl –nobackup

(8)

8. Enter root password when prompted to do so.

9. If you are using a Unit behind NAT, restart the crontab, see Restarting Crontab Jobs for NAT Units in the Cisco Prime Network 4.2 Installation Guide.

10. During the patch installation, the console output will indicated that the NCCM patch is being installed, “Upgrading NCCM”.

11. If you observe the following output from the install script “Upgrading Integration Layer”, then the base Prime Network Integration Layer was previously installed and the script is upgrading the Prime Network Integration Layer patch. If the base Prime Network Integration Layer is not installed, then no action is taken by the script. The base Prime Network Integration Layer is required for Suite setups and optional for Standalone setups (enables MTOSI and 3GPP web service implementations via WS-SOAP NBI).

12. The script will provide a user prompt “Do you want to proceed (Yes/No)?” Answer “Yes” to install the Prime Network Integration Layer patch. Answering “No” continues the installation but does not install the Prime Network Integration Layer patch.

13. Wait until the Cisco Prime Network gateway is up and running.

14. For installing the Operations Report Tool patch, refer to section 7 Prime Network Operations Report Tool Installation.

15. If you are using the LINUX RHCS solution:

Log into the Cisco Prime Network gateway as root user and move the services out of freeze mode, by running:

 clusvcadm –U <Prime Network service>

 clusvcadm –U <Oracle service>

16. If you are working in suite mode, log on to the Prime Central Server and restart the Integration Layer.

 itgctl stop

 itgctl start

17. On the Prime Network Gateway Verify that the Prime Network Integration Layer is up. If not start Prime Network Integration Layer.

 As the Prime Network user, run:

$PRIMEHOME/local/scripts/itgctl start

(9)

4. Optional – Post Installation of Prime Network Integration Layer

To install the Prime Network Integration Layer patch post the installation of Prime Network Point Patch, follow the install procedure specified in the Prime Network 4.2 install guide (Base Install) and then follow these steps for the patch installation:

Note: Not all Point Patches contain updates for Prime Network Integration Layer.

Post the Prime Network Integration Layer install, perform the following steps as the Prime Network User:

$PRIMEHOME/local/scripts/il-watch-dog.sh disable itgctl stop

cd ~/.setup/independent/integrationlayer/patch ./patchIntegrationLayer.sh

$PRIMEHOME/local/scripts/il-watch-dog.sh enable itgctl start

(10)

5. Optional - Prime Network Operations Report Patch Installation

Prerequisite - The Reporting tool is an optional installation requirement with Prime Network 4.2.

Refer to “Installing Prime Network Operations Report” in the Prime Network 4.2 Installation Guide for details. This reporting tool and associated Infobright database must be installed on the gateway and unit(s) prior to installing any required patches for this tool.

Note: Not all Point Patches contain updates for Prime Network Operations Report.

If you don’t have Prime Network Operations Report installed or if there is no 4.2 Reports zip file in the Point Patch, skip to the next section.

You can confirm if the tool is already installed (as a Cisco Prime Network user) by either checking for the existence of a ~/pentaho directory under $PRIME_NETWORK_HOME, launching the Operations report tool using https://<gw-ip>:8445/prime-network-reports/Login or checking to see if the server is listening to the default port: (i.e. netstat -a | grep LISTEN | grep 8445).

Perform the following steps as a Cisco Prime Network user to install the Operations Report patch:

1. Navigate to the directory in which you placed the Point Patch. (Refer to Step 5 in Section 5, Installing the Point Patch)

2. To extract the necessary JAR files and Perl scripts, for Operations Report installation, unzip the file by entering the following command:

unzip 4.2_Reports.zip

3. As the PRIME NETWORK installation user, run the following commands to start the patch installation:

cd ./4.2_Reports

chmod +x install-reports-patch.sh (makes script executable) ./install-reports-patch.sh (initiates the patch installation)

4. Check the log file for any errors. Both progress and status are printed to the console and the following log file:

$PRIME_NETWORK_HOME/install-reports.log

Once the patch is successfully installed, the solution repository requires a restart and refresh. Follow the steps provided below for the post installation.

Post installation steps for Operations Report Patch Install

1. Stop the server using the Pentaho master script:

~/pentaho/ctlscript.sh stop

(11)

2. Ensure all Pentaho process are stopped. Run the command:

ps –ef | grep pentaho

If any process is listed, stop them using kill command:

kill -9 <pid>

3. Start the server using the Pentaho master script:

~/pentaho/ctlscript.sh start

4. Update the solution repository by logging into the Operations Report server (https://<gw- ip>:8445/prime-network-reports/Login) and performing the following actions:

> Tools > Refresh > Repository Cache

> Tools > Refresh > Reporting Metadata

(12)

6. Verifying the Prime Network Point Patch Installation

This section describes how to verify that Cisco Prime Network 4.2.2.0.3 Point Patch has been installed successfully, as explained inSection 5, Installing the Point Patch.

This procedure uses the script ~/Main/scripts/checkPatchInstallation.pl to confirm that the Point Patch has been installed correctly.

Note: Execute the commands from the gateway.

Verification Procedure

1. Enter the following command to determine the version of the Point Patch installed:

checkPatchInstallation.pl -p

The gateway responds with the Point Patch information, such as:

Current patch (in 127.0.0.1): Prime_Network4.2.2.0.3 _PP.jar: Prime_Network4.2.0.1.0 _PP.jar:patch.jar

2. Enter the following command to determine whether all the components of the Point Patch have been installed successfully:

checkPatchInstallation.pl Prime_Network4.2.2.0.3_PP.jar

If the installation was successful, information similar to the following is displayed:

Patch Prime_Network4.2.2.0.3_PP.jar correctly installed in the gateway (127.0.0.1)

Patch Prime_Network4.2.2.0.3_PP.jar correctly installed in the golden source registry (0.0.0.0)

Patch Prime_Network4.2.2.0.3_PP.jar correctly installed in the unit

Patch Prime_Network4.2.2.0.3_PP.jar correctly found at the start of 0.out log file

Patch Prime_Network4.2.2.0.3_PP.jar correctly found as the first reference on file

/export/home/pn42/Main/webstart/agentregistryviewer.jnlp

Patch Prime_Network4.2.2.0.3_PP.jar correctly found as the first reference on file /export/home/pn42/Main/webstart/bosmanage.jnlp Patch Prime_Network4.2.2.0.3_PP.jar correctly found as the first reference on file /export/home/pn42/Main/webstart/dcdebugger.jnlp Patch Prime_Network4.2.2.0.3_PP.jar correctly found as the first reference on file /export/home/pn42/Main/webstart/eventvision.jnlp Patch Prime_Network4.2.2.0.3_PP.jar correctly found as the first reference on file /export/home/pn42/Main/webstart/networkvision.jnlp Patch Prime_Network4.2.2.0.3_PP.jar correctly found as the first reference on file

/export/home/pn42/Main/webstart/processdebugger.jnlp

(13)

All contents are Copyright © 2015 Cisco Systems, Inc. All rights reserved. Page 13 Patch Prime_Network4.2.2.0.3_PP.jar correctly found as the first reference on file /export/home/pn42/Main/webstart/regedit.jnlp Patch Prime_Network4.2.2.0.3_PP.jar correctly found as the first reference on file

/export/home/pn42/Main/webstart/sessiondebugger.jnlp

Patch Prime_Network4.2.2.0.3_PP.jar correctly found as the first reference on file /export/home/pn42/Main/webstart/stresser.jnlp Patch Prime_Network4.2.2.0.3_PP.jar correctly found as the first reference on file /export/home/pn42/Main/webstart/workflowstudio.jnlp Patch Prime_Network4.2.2.0.3_PP.jar's classes files are being called from this patch on server 127.0.0.1

Patch Prime_Network4.2.2.0.3_PP.jar's xml files are being called from this patch on server 127.0.0.1

Patch Prime_Network4.2.2.0.3_PP.jar's classes files are being called from this patch on server <unit IP>

Patch Prime_Network4.2.2.0.3_PP.jar's xml files are being called from this patch on server <unit IP>

---> Patch Prime_Network4.2.2.0.3_PP.jar correctly installed

If the installation was not successful, messages are displayed that indicate where problems are located. The final line in the report is:

---> Patch Prime_Network4.2.2.0.3_PP.jar not correctly installed or at least one warning displayed

(14)

7. Post Patch Installation Tasks

1. After installing or upgrading PN it is recommended to clear the browser cache before using the CCM application.

2. If you are using CCM on a large scale Network, change the number of allowed connections to 400

(See Installation Guide for definition of Large Network.) Run the following SQL Commands as system dba:

SQL> update <PNUSER_SCHEMA_NAME>.BOSUser set

ALLOWEDCONNECTIONNUMBER=400 where username='root';

SQL> commit;

Example:

[root@tier4-rhel-vm26 ~]# su - oracle11 oracle11@tier4-rhel-vm26 [~]# sqlplus

SQL*Plus: Release 12.1.0.1.0 Production on Sun Mar 8 14:48:45 2015

Enter user-name: system Enter password: XXXXXXX

Last Successful login time: Sun Mar 08 2015 09:39:31 -04:00

Connected to:

Oracle Database 12c Enterprise Edition Release 12.1.0.1.0 - 64bit Production

With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options

SQL> select ALLOWEDCONNECTIONNUMBER from pn42.BOSUser where username='root';

ALLOWEDCONNECTIONNUMBER --- 40

SQL> update pn42.BOSUser set ALLOWEDCONNECTIONNUMBER=400 where username='root';

1 row updated.

SQL> commit;

Commit complete.

SQL> select ALLOWEDCONNECTIONNUMBER from pn42.BOSUser where username='root';

ALLOWEDCONNECTIONNUMBER --- 400

(15)

8. Uninstalling the Prime Network Point Patch

This procedure describes how to uninstall the Point Patch. Performing an uninstall will completely remove the Point Patch from the system.

Note: you can uninstall the Point Patch only if it was installed with the backup option, using the command: perl upgrade.pl.

Note: Rolling back the Prime Network Point Patch will also roll back any applied patches related to other components such as Prime Network Integration Layer and Operation Reports.

Rollback Procedure

1. Verify that the gateway and unit workstations can communicate via SSH.

2. Login to Prime Network Administration and disconnect Standby and NAT units from the gateway using the Administration GUI.

3. Login to the Cisco Prime Network gateway as Prime Network user.

Stop Cisco Prime Network by entering the following commands:

networkctl stop

Note: The above step is only applicable for non-embedded databases. If using an embedded database, the embdclt script will automatically stop the gateway and units.

4. If you are using GEO HA: On the Remote DB machine, stop the replication:

cd /var/adm/cisco/prime-network/scripts/ha/util/

perl primeha –stop

5. Restore the Cisco Prime Network database alone:

 For an embedded database, see the “Restoring an Embedded Database and Prime Network“ section in the Cisco Prime Network Administrator Guide, 4.2.

 Make sure to use the instructions to “Restore Prime Network Embedded Database Alone“ (i.e. use the ‘emdbctl --restore_db’ command).

 For a non-embedded database setup, restore the backed-up database and start the database services and the listener. The database table structure is changed during the upgrade. In order for the system to function correctly after a rollback, the old table structure must be recovered through a database backup.

6. Reinstall the units. This is required prior to running the rollback.pl script in the subsequent steps.

7. Navigate to the Prime_Network_upgrade directory you created for installing the Point Patch:

Example:

cd 4.2.2.0.3/Point-Patch/Prime_Network_upgrade

(16)

8. As the Cisco Prime Network user, enter the following command on the Cisco Prime Network gateway only:

perl rollback.pl

Note: Running the rollback.pl script will also restore the Cisco and Non-Cisco Device driver files associated with Device Package (DP) installations. Therefore, any VNE device driver files associated with DP installations that occurred after the last backup procedure will be overwritten. The rollback procedure removes and replaces the entire contents of the Cisco Prime Network home directory which includes the ~/Main/drivers directory.

9. At the prompt "Are you sure you want to rollback the current Prime Network installation?" enter yes.

- Writing log to /export/home/network-upgrade/PrimeNetwork_upgrade/rollback-number.log - Have you rolled back the database? (yes,no) [default yes]

- Have you reinstalled the units? (Y,N) [default Y]

- Are you sure you want to rollback the current Prime Network installation? (yes,no)[default yes]

10. At the prompt "Please enter the full path to the backup archive file," enter the location of the backup archive directory. The rollback.pl script does not delete the backup archive.

- Please enter the full path to the backup archive file.

Example:

/export/home/4.2.2.0.3/PrimeNetworkBackup/PrimeNetworkBackUp_<unix_time>.tar.gz

11. The scripts revert the gateway back to its earlier version:

- Removing content of /export/home/network40 [OK]

- Extracting backup archive under /export/home/network40 [OK]

- Removing Standby Units [OK]

- Starting Prime Network on GW + Rollback completed successfully.

Please remember to do the following:

- Re-login as the Prime Network user for environment changes take place check logs for further information.

- Rollback logs can be found at <logFile>

(17)

12. Run the “network-conf –rollback” command on the unit machines.

13. Run "networkctl start" on the unit machines.

14. If you are using GEO HA: From the RH_ha directory (extracted during the install process of this PP) run the following command as root user:

perl setup_Prime_DR.pl

This will setup the replication between the local and remote sites and copy the db files to the remote site.

This may be a lengthy process depending on the size of the database.

15. After the rollback to your original Cisco Prime Network 4.2 environment is complete, reconfigure your user-defined crontabs.

16. For Prime Suite environments, you must run the DMIntegrator.sh script in order for the Prime Network Version in the Suite Monitoring portlet to be reverted back successfully.

$PRIME_NETWORK_HOME/prime_integrator/DMIntegrator.sh

(18)

9. Verifying the Prime Network Point Patch Uninstalling

This procedure allows you to verify that the Point Patch was uninstalled successfully.

Uninstalling Verification Procedure

1. On the Cisco Prime Network gateway, login as Prime Network user.

2. Navigate to the Main directory.

3. Enter the following command:

./runRegTool.sh -gs 127.0.0.1 get 0.0.0.0 site/mvm/services/bsm/patchjar You should not see the Point Patch that was removed.

./runRegTool.sh -gs 127.0.0.1 get 127.0.0.1 site/mvm/services/bsm/patchjar You should not see the Point Patch that was removed.

5. Enter the following command from the Cisco Prime Network gateway for all the units:

./runRegTool.sh -gs 127.0.0.1 get <unit ip> site/mvm/services/bsm/patchjar You should not see the Point Patch that was removed.

6. To verify that the Prime_Network4.2.2.0.3_PP.jar file does not exist in any of the JNLP files, enter the following command:

cat ~/Main/webstart/*.jnlp | grep Prime_Network4.2.2.0.3_PP.jar The output should be empty.

find ~/Main/ -name Prime_Network4.2.2.0.3_PP.jar The output should be empty.

8. Navigate to the logs directory (~/Main/logs).

9. Check the AVM 0 log file by entering the following command:

cat 0.out | grep Prime_Network4.2.2.0.3_PP.jar The output should be empty.

10. Check the AVM 11 log file by entering the following command:

cat 11.out | grep Prime_Network4.2.2.0.3_PP.jar The output should be empty.

(19)

10. Resolved Caveats – Cisco Prime Network 4.2.2.0.3 Point Patch

The following caveats have been fixed in Cisco Prime Network 4.2.2.0.3 Point Patch.

Resolved Caveats - 4.2.2.0.3 Point Patch Identifier Headline

CSCuv60898 FEC-129:Naming of FEC-129 pw in EVC & pw discovery shd be end to end CSCuv77599 FEC-129: Incomplete IP address in EVC representation

CSCuv85452 VNE is not modeled using SSH

CSCuv07170 CCM: Shift-click selection and select-all have different behavior CSCuv93149 Compliance Audit Dialog box is not populating data in ALL JOBS.

CSCuv51845 Image Distribution: Same device result is showing multiple times.

CSCuu97806 com.jcraft.jsch.JSchException: verify: false during Image distribution CSCuj27901 CCM - About and splash screen don't show CCM PP or SP version CSCuu34625 Add new vendor for Ruggedcom & new element type for Ruggedcom and

Ciena

CSCuv58416 Nexus 9K support is needed in CCM Framework CSCuv87277 Support of Cancel Job in NCCM and Switch user in CM CSCuw32083 MPLS-TE topology links are not shown in maps

CSCuw21580 MPLS TE liink down ticket hyperlink not working.

CSCuw21575 MPLS TE links colour does not change on link down.

CSCuw01245 VNE status does not reflect disabled reachability tracking command CSCuw12046 Cancelled job:Compliance:Jobs are not getting cancelled

CSCuv63126 Getting OUT OF BOUNDS:18 value in GUI for G.8032 service container CSCuw02863 Port Down and Pluggable transceiver out is not Correlating

CSCuw26649 Issues in Cancel Task

CSCuw29749 Listing out cancelled tasks in new dialog for NCCM

CSCut71391 Add new vendor for Edgewater, element type for Edgewater and Adtran CSCuw26959 Non-revertive lag support in Bundle Ethernet for ASR9k

CSCus75245 ASR9K satellite Host roll is not updated after IC port down CSCut32817 VNE inventory shows wrong numbers for MLPPP group

CSCuf15027 ENH: LDAP need to authenticate users belonging to different subgroups CSCup21269 Collector agent is suspended when a Command Script is executing CSCur75222 CRS8S: Fan-tray out has not been developed on fan tray OIR

CSCur68162 CCM job/CB exe not work when "Ask for user creds" is en and device is wi CSCuq11869 PN - NCCM - Help About is showing SNAPSHOT reference in version

(20)

CSCur75646 Exception when see comma in oid in property_value of notfication table CSCus83290 PN CCM 4.0 IPA config backup naming convention incorrect

CSCus81180 "Authentication expired" causes false BGP events CSCuu13741 NullPointerException in IsSubTree when parsing traps

CSCut91924 ignore-template rule does not work in case of Unassociated events CSCuv14567 CCM restore fails when banner has empty newline spaces in it CSCub20879 VEM modules status in Nexus 1000 is shown as unknown in GUI

CSCur79402 Some Interface status down alarms are not cleared on chassis connected CSCut89371 Port utilization counters are way beyond 100%

CSCuv49045 Bad geometry of Registry Controller window

CSCuv48843 SNMP reachability test param change doesnot affect the alarm development CSCuv57682 Path Tracer fails to find trace route for PW originated on ASR9K VNE CSCuv55493 EFP policy bindings are not added/updated when interface added/changed CSCuv91862 special characters removal on telnet result from ASR9K

CSCuv90200 Pathtracer: Sometimes Layer 2 information is not displayed in results CSCuw01748 ana startup fails because "ssh localhost" fails.

CSCuv05316 Patch stream build issue

CSCuw14772 Remove compliance policies backup for PP/SP from upgrade.pl CSCuw09429 Events do not get updated with a Null Pointer Exception

CSCuw39377 Cancelled Task:It is showing junk values in cancelled tasks

CSCuw37658 Cancelled user name is not coming on jobs page of Compliance audit.

CSCuw40593 PN failed to discover MPLS link between ASR903 and ASR920 CSCuw44366 VNE Failed to push MPLS topology data for matching

CSCul46808 configurator commands should have urgent priority

CSCuw44404 Any user other than administrator not able to run command manager job CSCuv73336 Image Distribution: Running jobs are not getting cancelled

CSCuw15861 Not able to upgrade to 4.2.2.0.3 from 4.2.2.0.1

CSCuw43125 Wrong dialog box is displaying while clicking on cancelled hyperlink CSCuw48039 Command manager result "no managed devices found with device profile"

CSCuw28688 Cmd Manager:Edit: Residual devices present after deselection of devices.

CSCuw35168 Command manager parent job - view and edit is not working properly CSCuw50081 Command Manager Cancelled Job: Still runs in the backend

CSCuw45121 CCM Cancelled Jobs: Does not display the device details CSCuw26080 Refresh Button Is not ressponding in ALL JOBS Page CSCuw62710 CCM: XR Image Distribute and activate in a single job fails

CSCuu88970 VPN IPv6 links are not ignored when ignoreVrfLinks is true in registry CSCut23090 ArrayIndexOutOfBoundsException flood AVM 11 log

CSCuw98564 NIOTelnetCollector cannot recover when loosing current command CSCuu42479 Missing ingress/egress policies setting for IP interfaces

CSCuu27480 NCCM - config restoration fail in device banner on 6500 device series CSCuu11665 PN - patch install script fails with Pentaho installed

CSCuw10790 Getting NullPointerException in logs for ASR5K-17.4 device CSCuw85499 Generic Server is not processing all parsing rules patterns

CSCuw42244 Sometimes VNE get to Unsynchronized state due Telnet Collector timeout

(21)

CSCuw47169 Telnet Protocol fail to connect erroneously classified as unrecoverable CSCuw49093 continuous generation of local flapping proxy event overflows avm queue CSCuw54117 Counters need to be cleared when report gets timed out

CSCuw58994 ASR5500 VNE got stuck in Discovery due to NullPointerException CSCuw62222 Notification Agent fails on processing 'interfacename and detectiontime' CSCuw62261 Notification Agent fails to process value array when it contains "$s"

CSCuw62272 Notification Agent looses notifications due to IllegalArgumentException CSCuw71191 CCM Compliance Audit does not allow _ (underscore) in commands CSCuw74551 Missing 'Link down on unreachable' on communication cable cut CSCuw79752 BGP incorrect peer state (Established) for administratively down peers CSCuw81643 Registration "vc counters" is loaded multiple times for ATM DC CSCuw92015 old archive logs are not deleted from system

CSCur33112 Add new element type in PrimeNetwork for X1200 CSCuw17717 CCM image-activation is not working for Nexus 9K

CSCux00529 bosmanageplugin not loaded in avm 11 after redundant unit is configured CSCux02468 NullPointerException in CommandHandler while processing NULL SNMP

values

CSCur99826 LAG member down alarm is not cleared when member is removed from group CSCur99852 LACP topology test fails to discover moved or added physical link

CSCuu93176 Port utilization alarm for DS1 controller shows wrong location

CSCuv53028 Wrong Event Type is displayed on All tab when Location filter is enabled CSCuw28551 Java Exception for EGTP Service in logs for asr5k

CSCuw55325 P-PN: MPLS-TE topology discovery causes many errors in VNE log CSCuw83690 EV Error - OID Does not exist message on standard events from ALL Tab CSCuw74181 NCCM:Tar file activation failed when select activation at scheduled time CSCuw75611 Cmd Mng: Edit child job, hyperlink for parent job name got disabled CSCux29339 VNE fails to get single context inventory from multi-context device CSCux16373 Distribute and Activate on multiple devices for future time not working CSCux10393 Distribute and Activation for future time : Job details shows wrong data CSCuu28201 VCB & NW discovery splash screen don't show correct PP or SP version CSCux03518 jsch 1.42 appear in third_party.jar and copy to unit on unit restart

CSCup97561 PN - workflowstudio.jnlp is not being updated with patch reference CSCux45555 AVMs change state to Unreachable frequently

11. Bug Resolutions That Require VNE Device Package

The following bug resolutions are contained in this Prime Network Point-Patch. However, to completely resolve the bug you must also install a VNE Device Package that contains the associated VNE software fix. The following table describes these bugs and the VNE Device Package that is required (along with the associated VNE bug). To obtain any Prime Network patches, contact your Cisco representative.

(22)

Identifier Headline Resolved in Required Device

Package Onwards (VNE Bug) See – Pre-requisites

CSCux16373 Distribute and Activate on multiple devices for future time not working

4.2.2.0.3 04.2(02)DP1511 + Hot Fix

CSCuv91862 special characters removal on telnet result from ASR9K

4.2.2.0.2 04.2(02)DP1509

CSCuw85499 Generic Server is not processing all parsing rules patterns

4.2.2.0.3 TBD

CSCuw75339

12. Obtaining Documentation, Support and Security Guidelines

For information on obtaining documentation, obtaining support, providing documentation feedback, security guidelines, and also recommended aliases and general Cisco documents, see the monthly what’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation.

Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.

Readme File for Cisco Prime Network Point Patch

Readme File for Cisco Prime Network 4.2.2.0.3 Point Patch

Table of Contents

Contents

1. Whats New

2. Obtaining the Point Patch

3. Installing the Point Patch

3. Installation Procedure

4. Optional – Post Installation of Prime Network Integration Layer

5. Optional - Prime Network Operations Report Patch Installation

6. Verifying the Prime Network Point Patch Installation

7. Post Patch Installation Tasks

8. Uninstalling the Prime Network Point Patch

9. Verifying the Prime Network Point Patch Uninstalling

10. Resolved Caveats – Cisco Prime Network 4.2.2.0.3 Point Patch

11. Bug Resolutions That Require VNE Device Package

12. Obtaining Documentation, Support and Security Guidelines
