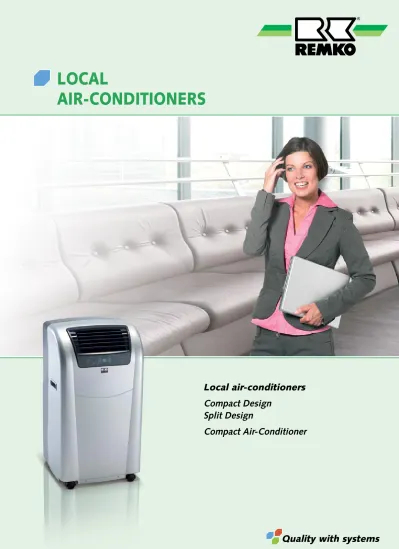

LOCAL AIR-CONDITIONERS

(1)

LOCAL

AIR-CONDITIONERS

Quality with systems

Local air-conditioners

Compact Design

Split Design

(2)

From the development of new technologies to the intensive training of our specialised retail partners – REMKO convinces through first class performance. As a Europe-wide supplier of air conditioning and heating systems, we offer a range of products to suit all require-ments.

■ Well thought-out designs in reliable quality

■ Solid, economical, and forward-looking

■ The right device for every need

■ For heating, preheating, thawing, drying, dehumidi-fying, and air conditioning

Product development

■ REMKO does not orientate itself on existing solutions, but is committed to the development and realisa-tion of innovative technical concepts.

■ The development depart-ment employs the latest technical equipment. An im-portant area of development is cooperation with testing institutes. REMKO products are thoroughly tested on an in-house test stand in co-op-eration with testing institutes in compliance with the latest European standards.

Marketing and advertising ■ Good, permanent revenues

due to an interesting product palette and a high degree of familiarity with the REMKO brand.

Customer service

■ At REMKO, customer service already starts before the purchase. With intensive, requirement-specific consult-ing by experienced experts

■ If a malfunction appears, an extensive network of experienced service partners is available.

REMKO – THE CUSTOMER-ORIENTED SYSTEM

SUPPLIER FOR THE WHOLE YEAR THROUGH

Training

■ REMKO helps its partners stay "on the ball" – due to extensive training pro-grammes for further techni-cal and commercial training. A modern training centre is available at the factory.

■ The current seminar dates can be found under:www. remko.de/seminare

Spare parts service

■ Original REMKO spare parts are delivered without 24 hours.

This fast service is ensured by a computer-controlled spare parts store.

■ REMKO specialised partners are provided with a techni-cal handbook for reference purposes. This manual contains exploded drawings and piece lists for all REMKO products.

■ REMKO provides a service case with the initial equip-ment.

This ensures that our spe-cialised partners are always prepared.

(3)

For more than 40 years, our service has been part of the success concept of REMKO

We regularly offer seminars to REMKO specialised partners.

The further development of our products guarantees you an innovative lead.

(4)

REMKO – THE SYSTEM PROVIDER

CLIMATE

Air-conditioners Local air-conditioners Comfort air-conditioners Chilled water systems Chillers

Dehumidifiers Mobile dehumidifiers Pool dehumidifiers

HEATING

Hot air heating systems Mobile hot air heating systems Stationary hot air heating systems

NEW ENERGIES

Heat pump systems Heat pumps Heat pump packages

(5)

Product overview

Local air-conditioners

Page Series

6 – 13 Local air-conditioners

8 Compact design VERONA 9 Compact design IBIZA

10 – 11 Split design DC inverter PALMA 12 – 13 Compact air-conditioner DC inverter KWT 14 – 17 Air-Conditioning Packages

14 – 15 High wall units MALAGA DC

16 – 17 Wall units with quick-release coupling

BOLOGNA DC

18 – 19 Accessories

(6)

Heat and humid air reduce human performance and concentration. Air-conditioners from REMKO offer a cure. They cool and dehumidify the air in the room and ensure a feeling of well-being in office buildings, doctors offices, boutiques, galleries, holiday apartments, living rooms, bedrooms and anywhere where a comfortable room climate is essential.

Cooling capacity

For the calculation of the cooling capacity, the following rule of thumb applies: about 30 W cooling capacity is required per cubic metre. The cooling capacity for a room with a surface area of 28 m²_{and height of 2.5 m can be}

calculated as follows:

28 m2_{x 2.5 m x 30 W/m}3_{= 2,100 Watt (2.1 kW)}

We recommend that you always calculate the cooling capacity for the room precisely.

Installation and commissioning

The mobile air-conditioners can be easily set up and commissioned.

A technician is required to install and commission a stationary air-conditioner.

REMKO has a network of qualified service partners.

Compact air-conditioners

So-called compact units are ideal for spot cooling. The condenser, compressor and evaporator reside in a compact housing.

The intake air is filtered and dehumidified and resupplied to the room. A flexible air outlet tube guides the heat to the outside. You only have to slightly open a door or a win-dow. The moisture is expelled to the outside through the air outlet tube as vaporized condensate water.

Air-conditioner in split design

These air-conditioners consist of units that are located in differ-ent places. The condenser unit (outdoor unit) and the evapo-rator unit (indoor unit) were designed to be separate. The outdoor unit is set up outside, on a balcony, or on the terrace. The two units are connected to one another by a connection line.

AIR-CONDITIONERS

(7)

(8)

Ready to use anytime, anywhere - no installation needed

The MKT Series mobile air conditioner is ideal if you need a flexible air-conditioning solution. The series convinces with its modern optics in a trendy silver colour. This unit, with its four wheels and flexible air outlet hose, can be used anywhere. You just need a place to plug it in. Its high cooling capacity ensures that heat remains outside. All functions are controlled electroni-cally.

■ High cooling capacity

■ Ready for immediate operation

■ Digital display of tempera-ture and timer time

■ Programmable timer func-tion for activafunc-tion and deactivation times

■ Lightweight, requiring mini-mum space for setup

VERONA SERIES

Local air-conditioner

in compact design

REMKO MKT 251/291

Flexible use Infrared remote

control filter systemIntegrated

■ Removable air filter

■ 3 fan speeds

■ With infrared remote control in standard design

■ Automatic condensate removal

■ Compact design

■ Display of operating state via LED

R410A

Refrigerant ErP Ready Energy

A

Efficiency Class Technical data Unit type MKT 251 MKT 291 Cooling capacity kW 2.6 2.9

Energy efficiency class A A

Energy efficiency size EER 2.6 2.6

Energy consumption, hourly kWh 0.99 1.11

Refrigerant 2) _{R 410A} _{R 410A}

Basic filling volume / CO2 equivalent kg/t 0.50/1.04 0.65/1.36

Fan speeds 3 3

Max. air flow rate m3_/h ₃₂₀ ₃₂₀

Max. dehumidification capacity l/h 1.6 1.8 Usage area (room size) approx. m³ 80 90 Sound pressure level per speed LpA 1) _dB(A) _49/52/53 _49/53/54

Max. sound power dB(A) 62 62

Voltage supply V/Ph/Hz 230/1~/50 230/1~/50

Power consumption kW 0.99 1.11

Air outlet tube, length mm 1500 1500

Air outlet tube Ø mm 125 125

Dimensions – height/width/depth mm 770/435/430 770/435/430

Weight kg 33.0 33.0

Compact unit

Ref. no. colour: white 1612255 1612295

Compact unit

Ref. no. colour: silver 1612256 1612296

1) _{At distance of 1 m in the open air}2)_{GWP = 2088}

Accessories

Wall lead-through for air outlet tube

(9)

■ High cooling capacity

■ Ready for immediate operation

■ Easy and efficient automatic dehumidification

■ Practical electronic system for operation with digital display of temperature and other operating modes

■ Air discharge with swing function

Local air-conditioner

in compact design

IBIZA SERIES

■ Removable air filter

■ Gradually adjustable air outlet direction

■ Automatic condensate removal

■ Compact design

■ Programmable 24-hour timer function

Flexible

use remote controlInfrared filter systemIntegrated REMKO RKL 300/360

High-performance spot cooler

Working and living areas can be cooled in a targeted manner using the mobile air-conditions RKL 300 and RKL 360. The series convinces with its modern optics in a trendy silver colour. The condenser, compressor, and evaporator reside in a compact housing in the case of these small, flexible air-conditioners.

R410A

A

Efficiency Class Technical data Unit type MKT 251 MKT 291 Cooling capacity kW 2.6 2.9

Energy efficiency size EER 2.6 2.6

Energy consumption, hourly kWh 0.99 1.11

Fan speeds 3 3

Max. air flow rate m3_/h ₃₂₀ ₃₂₀

Weight kg 33.0 33.0

Compact unit

Accessories

Ref. no. 1613115 1613115

Technical data

Unit type RKL 300 RKL 360

Cooling capacity kW 3.2 3.6

Energy efficiency size EER 2.8 2.7 Energy consumption, hourly kWh 1.13 1.33

Fan speeds 3 3

Max. air flow rate m³/h 450 450

Weight kg 35.0 35.0

Compact unit

Accessories

(10)

PALMA SERIES

REMKO RKL 491 DC

For the first time, state-of-the-art inverter technology has been used for an air-condition in a split design. The result is excellent

efficiency and a reduced noise level. The inverter technology pro-vides maximum comfort as temperature fluctuations in exiting air are reduced to a minimum. The REMKO split-design air-conditioner consists of two units. The condenser unit (outdoor unit) and the evaporator unit (indoor unit) were designed to be separate. The condenser unit is set up outside. All units in the series are equipped with a suspension unit which allows it to be attached to an outside wall. The series convinces with its modern optics in a trendy silver colour.

Inverter technology Very high cooling capacity Refrigerant, total length

3 m, removable using quick coupling system

Programmable 24-hour timer function

Air outlet with swing function

Gradually adjustable air outlet direction

Removable air filter

Practical electronic system for operation with digital display of temperature and other operating modes Universal use

Compact design requiring minimum space for setup With infrared remote control

in the standard version Integrated condensate pump

Local air-conditioners in split design

with inverter technology

The inverter requires only one-third of the time of conventional systems to start up.

Inverter Conventional

Minimal temperature fluctuations mean energy savings

1/3 Overcooling zone

Modern inverter technology

Temperatur

e

Time

R410A

(11)

Flexible

use designSplit remote controlInfrared filter systemIntegrated Inverter

tech-nology Technical data

Unit type RKL 491 DC

Cooling capacity kW 4.3 (1.8-4.6)

Energy efficiency class B

Energy efficiency size SEER 4.6

Energy consumption, annual, QCE kWh 346

Refrigerant 3) _{R 410A}

Basic filling volume / CO2 equivalent kg/t 1.08/2.26

Cooling power consumption kW 1.31

Usage area (room size) approx. m³ 120 Operating range – indoor unit °C +16 to +30

Operating range – outdoor unit °C/% rel. _hum. +21 to +43 / 35 to 65 Air flow rate per speed setting m³/h 380/520/600 Sound pressure level of indoor unit per speed LpA 1)_dB(A) _45/48/54

Max. sound power, indoor unit/outdoor unit dB(A) 59/64

Voltage supply V/Ph/Hz 230/1~/50

Length of the refrigerant line, max. 2) _mm ₃₀₀₀

Dimensions of indoor unit, height / width / depth mm 695/470/335 Dimensions of outdoor unit, height / width / depth mm 490/510/230 Weight – indoor/outdoor unit kg 35.0/14.0

Split design

Ref. no. colour: white 1615490

Split design

Ref. no. colour: silver 1615491

(12)

REMKO KWT

Easy installation and high energy efficiency due to inverter technology

The compact air-conditioner of the KWT series persuades through state-of-the-art inverter technology. In the process, it does not need an outdoor unit. For installation, only two holes are required in the wall. Thanks to the integrated heat pump function and standard winter fan speed control, the air-conditioner works reliably in cooling and heating operation at outdoor temperatures down to -15 °C. The appliance is provided ready for plug-in with all mounting materials. This makes installation especially easy and flexible.

COMPACT AIR-CONDITIONER

KWT series

Cooling and heating

■ Easy wall installation

■ Inverter air-conditioner with-out with-outdoor unit

■ Immediately ready for op-eration – plug-and-play

■ Compact design (no outdoor unit)

■ Programmable 24-hour timer function

3 fan speeds and automatic

operation

■ Automatic condensate draining in cooling operation

■ Air discharge with swing function

■ With winter fan speed control for cooling and heating operation down to -15 °C

■ With wall penetration and protective grid for wall thicknesses up to 450 mm

Ideal for permanent use in con-struction site containers

Subdued 2-hose technology replaces the outdoor unit Easy wall installation

Optimum for use in buildings listed in the historic register

(13)

Air-conditioning system without outdoor unit

Cooling and

heating technologyInverter Infrared remote control filter systemIntegrated after power failureAutomatic restart Technical data

Unit type KWT 200 DC

Cooling capacity kW 1.9 (1.10-2.93)

Energy efficiency class – cooling A

Energy efficiency size EER 2.6

Heating capacity kWh 2.3 (0.90-3.05)

Additional electrical heating capacity Resistance kW 0.85 Energy efficiency class – heating A

Energy efficiency size COP 3.2

Refrigerant 2) _{R 410A}

Basic filling volume / CO2 equivalent kg/t 0.85/1.77

Cooling / heating power consumption kW 0.71/0.72 Usage area (room size) approx. m³ 80

Adjustment range °C/% rel. hum. +10 to +32 / 35 to 65

Operating range, cooling °C -15 to +45

Operating range, heating °C -15 to +34

Air flow rate per speed setting m³/h 280/300/330 Sound pressure level per speed setting 1) _dB(A) _35/38/43

Max. sound power dB(A) 51

Voltage supply V/Ph/Hz 230/1~/50

Diameter of air channel mm 160

Max. length of air channel m 2

Condensate drain connection Ø mm 16

Dimensions – height/width/depth mm 735/839/280

Weight kg 35.0

Complete unit KWT 200 DC

Ref. no. 1612200

Quality seal Air-conditioners

R410A

A

Efficiency Class Integrated win-ter fan speed

control max. 2m

Flexible application possibilities due to the installation of an air channel

(14)

REMKO ML DC

Simple installation above doors or in the upper part of the wall

The devices cool, filter, and dehumidify humid air in the room. The outdoor component can be individually positioned. Outside on the ground, mounted on the wall, on the roof or in well-ventilated areas.

The inverter technology used in the REMKO ML DC series guarantees a comfortable room climate in combination with low energy costs. The integrated inverter condenser modulates and thereby ensures minimal temperature fluctuation.

MALAGA DC SERIES

Wall units in compact design

Inverter technology saves on energy costs

Automatic restart after power failure

Weather-resistant outdoor units

Microprocessor-controlled system technology Air outlet with swing

func-tion

Removable air filter Programmable 24-hour

timer function

Low-noise unit operation (Silent mode)

Universal operation with max. 30 m long connecting lines

The outdoor units are filled with R 410A refrigerant at the factory (line length up to 5 m).

Accessories (see page 18)

Refrigerant lines Wall and floor brackets Condensate pump Temperature-controlled

winter fan speed control for heating operation up to -15 °C

The inverter requires only one-third of the time of conventional systems to start up

Inverter Conventional

Minimal temperature fluctuations mean energy savings

1/3 _{Overcooling zone}

Modern inverter technology

Temperatur

e

(15)

Single-split

climate system Cooling and heating Inverter tech-nology Infrared remote control filter systemIntegrated after power failureAutomatic restart Silent mode

Quality seal Air-conditioners

R410A

A

++ Efficiency Class Technical data Unit type ML 263 DC ML 353 DC ML 523 DC Cooling capacity kW 2.8 (1.0-3.7) 3.5 (1.1-4.1) 5.1 (3.1-6.2)

Energy efficiency class – cooling A+ A+ A++

Energy efficiency size SEER 5.7 5.8 6.5

Energy consumption, annual, QCE kWh 172 187 269

Heating capacity kW 2.6 (0.9-3.8) 3.7 (1.0-4.4) 5.3 (1.5-6.4)

Energy efficiency class for heating 1) _A _A _A

Energy efficiency size SCOP 1) _3.8 _3.8 _3.8

Energy consumption, annual, QHE1) kWh 958 1179 1805

Refrigerant 4) _{R 410A} _{R 410A} _{R 410A}

Basic filling volume / CO2 equivalent kg/t 0.8/1.67 0.8/1.67 1.25/2.61

Cooling / heating power consumption kW 0.9/0.7 1.1/0.9 2.2/1.9

Usage area (room size) approx. m³ 80 110 160

Operating range – indoor unit °C/% rel. hum. +17 to +30 / 35 to 65 +17 to +30 / 35 to 65 +17 to +30 / 35 to 65 Operating range – outdoor unit – cooling °C +5 to +50 +5 to +50 +5 to +50

Operating range – outdoor unit – heating 3) _°C _{+5 to +30} _{+5 to +30} _{+5 to +30}

Air flow rate indoor unit max. m³/h 400/530/620 410/570/640 440/500/680 Sound pressure level of indoor unit per speed LpA 2) _dB(A) _29/37/41 _29/39/42 _28/31/33

Sound pressure level, Silent/Turbo mode LpA 2) _dB(A) _26/43 _22/44 _26/41

Max. sound power level LWA dB(A) 58/64 58/64 55/62

Voltage supply V/Ph/Hz 230/1~/50 230/1~/50 230/1~/50

Refrigerant connection, injection pipe Inch ¼ ¼ ¼

Refrigerant connection, suction pipe Inch 3 8 3 8 ½

Condensate drain connection Ø mm 18 18 18

Max. refrigerant line length/height m 25/10 25/10 30/15

Dimensions – indoor unit H/W/D mm 275/800/188 275/800/188 275/940/205

Dimensions – outdoor unit H/W/D mm 540/780/250 540/780/250 590/760/285

Weight – indoor/outdoor unit kg 6.5/29.5 8.0/29.5 9.0/35.0

Complete unit ML 263 DC ML 353 DC ML 523 DC

Ref. no. 1633263 1633353 1633523

(16)

REMKO BL DC

The entire system in a split design

With the quick-release coupling, the installation of the units is problem-free. The devices cool, filter, and dehumidify humid air in the room. The outdoor component can be individually positioned. Outside on the ground, mounted on the wall, on the roof or in well-ventilated areas. Due to the simple connection of the refrigerant line using the quick-release system, the units can be used very flexibly. The inverter technology used in the REMKO BL DC series guarantees a comfortable room climate in combination with low energy costs. The integrated inverter condenser modulates and thereby ensures minimal temperature fluctuation.

BOLOGNA SERIES

Wall units with quick-release mounting coupling

Easy wall installation This translates to maximum

comfort, as temperature fluctuations in exiting air are reduced to a minimum. Automatic adjustment of the

air flow in heating and cool-ing mode

Removable air filter Programmable 24-hour

timer function

Integrated ion generator for improving room air Low-noise unit operation

(Silent mode)

The outdoor units are filled with R 410A refrigerant at the factory.

Accessories (see page 18)

Connection set, including quick-release coupling available with lengths of 3 m, 5 m or 8 m

Temperature-controlled winter fan speed control for heating operation up to -15 °C

Wall and floor brackets Condensate pump

(17)

Quick-release coupling system Cooling and

heating Inverter tech-nology Infrared remote control filter systemIntegrated after power failureAutomatic restart modeSilent Technical data

Unit type BL 262 DC BL 352 DC

Cooling capacity kW 2.8 (1.1-3.7) 3.6 (1.1-4.2)

Energy efficiency class – cooling A++ A++

Energy efficiency size SEER 6.8 6.1

Energy consumption, annual, QCE kWh 144 207

Heating capacity kW 2.9 (1.0-4.1) 3.7 (1.1-4.6)

Energy efficiency class for heating 1) _A _A

Energy efficiency size SCOP 1) _3.8 _3.8

Energy consumption, annual, QHE1) kWh 1068 1363

Cooling / heating power consumption kW 0.73/0.75 1.18/0.91

Usage area (room size) approx. m³ 80 110

Operating range – indoor unit °C/% rel. hum. +17 to +30 / 35 to 65 +17 to +30 / 35 to 65 Operating range – outdoor unit – cooling °C +5 to +50 +5 to +50

Operating range – outdoor unit – heating 3) _°C _{+5 to +34} _{+5 to +34}

Air flow rate per speed setting m³/h 360/480/550 370/480/630

Sound pressure level per speed – indoor unit 2) _dB(A) _28/36/40 _27/36/42

Sound pressure level, Silent/Turbo mode 2) _dB(A) _22/42 _22/44

Max. sound power, indoor unit/outdoor unit dB(A) 53/60 56/63

Condensate drain connection Ø mm 18 18

Length of the refrigerant line 5) _m _3/5/8 _3/5/8

Dimensions indoor unit, height / width / depth mm 280/750/198 280/835/198 Dimensions of outdoor unit, height / width / depth mm 590/760/285 590/760/285

Weight – indoor/outdoor unit kg 7.0/35.0 8.5/35.5

Complete unit BL 262 DC BL 352 DC

Ref. no. 1629262 1629352

1)_{Average temperature period}2)_{Distance 1 m in open air} 3)_{Expandable to -15°C with WRH-1}4)_{GWP= 2088} 5)_{The required connection sets and additional accessories (see page 18)}

Ion generator Quality seal Air-conditioners

R410A

A

++ Efficiency Class

(18)

ACCESSORIES

Condensate drip tray including oil separator

made of stainless steel for the outdoor unit, including temperature-controlled condensate drainage heating, leaf guard grating, and oil separator.

For unit type Ref. no.

ML 263-523 DC 1613132 BL 262-352 DC 1613132

Wall bracket WKM-500

for the safe fastening of the unit to the outside wall.

ML 263-523 DC 1613171 BL 262-352 DC 1613171

Sound insulation set 1613900

Condensate tube, loose, 6 mm Ø

Suited for connection to condensate pump KP-8 and KP-6.

Ref. no.

100 m 1613065

20 m 1613066

Running metre 1613067

Refrigerant lines, 25m ring

for the connection of stationary indoor air-conditioners and outdoor units.

Ø Ref. no.

25 m ring ¼ 1613055 25 m ring 38 1613056 25 m ring ½ 1613057

Floor brackets BK-500

Suited for the stable installation of the outdoor units of the MALAGA DC and BOLOGNA DC series.

ML 263-523 DC 1613190 BL 262-352 DC 1613190

Floor bracket BK-600 Plus

Robust floor bracket with high intrinsic weight and good damping properties.

ML 263-523 DC 1613127 BL 262-352 DC 1613127

Connection set

incl. quick-release coupling for Bologna DC series.

For unit type Length Ref. no.

BL 262-352 DC 3 m 1629250 BL 262-352 DC 5 m 1629251 BL 262-352 DC 8 m 1629252

Condensate tube

Suitable for 16 and 18 mm connection ports. Ivory-coloured condensate tube with 16 mm Ø. For unit type: ML 263-523 DC, BL 262-352 DC

Ref. no.

50 m 1613052

Running metre 1613053

Refrigerant lines, running metres, for the con-nection of stationary indoor air-conditioners and outdoor units. Knurled, incl. union nuts and system-adapted refrigerant filling.

For unit type Ø Ref. no.

ML 263 DC ¼/38 1613181 ML 353 DC ¼/38 1613181 ML 523 DC ¼/½ 1613193

(19)

Condensate pump KP-6

including cable duct for surface mounting The kit is only intended for vertical installation and removal of condensate through the ceiling in conjunction with wall units.

The cable duct is 80 cm long.

Compact, high-performance condensate pump,

pump delivery: max. 10 l/h, pump head: max. 10 m Protection class IP 54

Low noise version, less than 22 dB(A) Colour of cable duct: white

Connection options available left and right sides

Kit is ready to install, incl. cable duct, cover angle and vibration-damped pump bracket Dimensions:

Width 85 mm Depth 135 mm Length 800 mm

For unit type series Ref. no.

ML/BL 1613050

Flush-mounted box

including condensate pan with condensate connection

White plastic housing for flush mounting, incl. cover plate and condensate connection port

Also ideally suited for accommodating an external condensate pump,

e.g. REMKO KP-8

The condensate connection and pipe inlet can come from the left or the right side Dimensions:

Length Indoor/outdoor 500/540 mm Height Indoor/outdoor 70/135 mm Depth Indoor/outdoor 45/55 mm

For unit type series Ref. no.

ML/BL 1613051

Only for refrigerant lines fitted on site:

Lump-sum service fee for refilling refrigerant based on 5 m pipe length:

Ref. no.

Single-split outdoor units 992560

Union nuts

For attaching refrigerant lines. Brass component for refrigeration applications.

Ø Ref. no.

¼ 1106380

38 1106381

½ 1106382

Connectors

For extending refrigerant lines. Brass component for refrigeration applications.

Ø Ref. no.

¼ 1106385

38 1106386

½ 1106387

Winter fan speed control

For heating operation in the winter, installed in the outdoor unit

ML 263-523 DC WRH-1 1613134 BL 262-352 DC WRH-1 1613134

Condensate pump KP-8

This condensate pump is suited for connection to the air-conditioner series DC and Bologna DC.

ML 263-523 DC 1613125 BL 262-352 DC 1613125

(20)

REMKO INTERNATIONAL

...and somewhere near you!

Take advantage of our experience and advice

REMKO dealers

MS/PD/20/12.15

W

e r

eserve the right to technical modifications. Information

pr

ovided without guarantee!

Hotline

Within Germany

+49 (0) 5232-606-0

International

+49 (0) 5232-606-130

REMKO GmbH & Co. KG Klima- und Wärmetechnik

Im Seelenkamp 12 · 32791 Lage PO Box 1827 · 32777 Lage Telephone + 49-5232-606-0 Fax + 49-5232-606-260 E-mail [email protected] URL www.remko.de
