Centralization of data File management. Embedded site supervision, Alarms, SMS. Servers Database. Remote I/Os. LoRa, 2G, 4G Ethernet Sigfox RS485

(1)

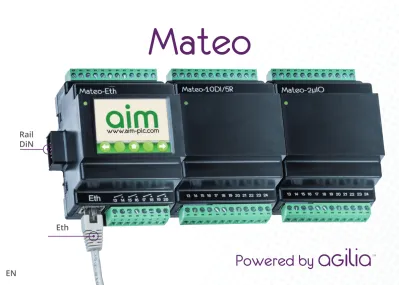

Rail

DiN

(2)

Servers Database Embedded site supervision, Alarms, SMS Remote I/Os RS485 Sensors Actuators Centralization of data File management LoRa, 2G, 4G Ethernet Sigfox

Bus AIO 12 to 72 I/Os with industrial modules: PWM, PT, encoders, counters, analogue and digital...

(3)

This range of PLCs for Industry 4.0 is characterized by its wide choice

of intuitive software for embedded applications:

• « Agilia Intuitive Automation »

to easily develop ergonomic solutions with

HMIs and embedded websites.

• «

Mateo

Configurator »

 to define in a few clicks the right hardware configuration 

based on the I/Os to control.

• « Ladder » et « Grafcet »

to program using logical operators.

• « DevTools »

a real-time development environment based on Eclipse equipped

with system plug-ins suitable for Mateo processors. You have all the necessary

tools to create new features, meet the needs of your customers and extend your

offer.

(4)

4

(5)

Mateo

is programmed with

«

Agilia Intuitive Automation » using

function blocks.

• Intuitive programmation:

  put  the  pre-coded  blocks  you  need  onto  the 

programming  pages,  wire  them  together  using  links  and  check  the  program 

with the simulator or online debugger. All blocks have accessible online help so 

you can efficiently develop your applications.

• IHM Editor:

for PLCs with a colour touch screen, the HMI editor offers a complete 

set of “widgets” to easily create your GUIs.

• Website Editor (WebUI):

with Agilia’s web-widgets, you can create an embedded

website without writing a single line of HTML, CSS or JavaSript code. With Agilia’s

“WebUI”, creating an embedded website is as simple as designing an HMI and

frees you from many system constraints.

• Agilia Intuitive Automation:

a professional tool for many

applications.

« Graphic design platform »

(6)

6

μIO slot

not used

(7)

μIOs  are  boards  that  are  installed  in 

Mateo

  docking  modules.

• μIO-6DI-X N ou P: 6 type N or P digital inputs

• μIO-6DI-X CPT N ou P: 6 N or P type impulsion counter inputs • μIO-6DO-N: 6 type N digital outputs

• μIO-6DO-P: 6 type P digital outputs

• μIO-2AI-C-SP: 2 4-20 mA analogue inputs with 23-bit sensor power supply

• μIO-2AI-V: 2 analogue inputs, 0-10V 23 bits

• μIO-2AI-C: 2 23 bits, 4-20 mA analogue inputs

• μIO-2AO-C 0-20 mA: 2 analogue outputs, 0-20 mA, 16 bits • μIO-2AO-C 4-20 mA: 2 analogue outputs, 4-20 mA, 16 bits • μIO-2AO-V: 2 analogue outputs, 0-10 V, 16 bits

• μIO-PT100: 2 PT100 3 wire inputs

• μIO-PT1000: 2 PT1000 3 wire inputs

• μIO-2PWM: 2 PWM outputs and 2 24 V frequency inputs

• μIO-CODEUR 24 V: 1 incremental encoder input and 24V index input

• μIO-CODEUR 5 V: 1 incremental encoder input and 5V index input

• μIO-4R NO: 4 relays N.O. 3AV 30 VDC

• μIO-2R NO: 2 relays N.O. 3AV 30 VDC or 3A 250 VAC

µIOs

(8)

(9)

«

Mateo

Configurator »

The

«

Mateo

 Configurator » works like a construction game. It helps 

you to specify the hardware characteristics of the PLC adapted to your

needs:

• Chose the CPU adapted to your needs among 12 references,

• Add the complementary I/O modules: 10DI / 5R or 2μIO,

• Select the desired μIOs interface boards among more than 15 references,

• Install these in the 2μIO docking modules,

• Specify, if necessary, the desired communication modem.

• Well done! The hardware architecture of your controller is ready.

• All you have to do is develop your application with our development tools « Agilia »  and/or « DevTools ». 

(10)

10

DevTools, the professionnel environment for

Mateo

With

DevTools, professional

developers are equipped with

all the plug-ins and software tools

needed to develop new features

and respond to any new needs:

• control

a new heat pump,

• regulate

engines and real-time

systems,

• manage

HMIs and websites...

DevTools, is three tools in one that work together to meet the needs of developers with 

(11)

DevTools, the professionnel environment for

Mateo

With the DevTools license

, you have a system toolbox for Mateo with AIM support.

You can quickly create specific solutions for your customers and you stand out from your 

competitors!

• « µOne »

AIM’s IDE based on Eclipse

(2009-2019).

• « µRTS »

AIM’s deterministic

real-time kernel for ARM Cortex-M: low 

memory footprint, 254 priority

levels,  different  types  of  tasks, 

dynamic creation and destruction

of tasks etc. 

• « Agilia »

AIM’s graphical design

platform which works in symbiosis 

with μOne and μRTS.

Scheduling tasks

(12)

12

Modularity:

• A

Mateo

PLC handles from 12 to 72 I/Os.

•  The «

Mateo

Configurator » helps you define your hardware configuration.

Scalability:

•

Mateo

 already has a significant range of µIOs and will follow the evolution of  your new needs by focusing on innovation as we have done for more than 40 years.

Communications:

•

Mateo

 CPUs are equipped with a connector for the control of different 2G, 4G, 

LoRa and Sigfox modems. They are equipped with a rechargeable battery to allow them to emit alarms.

•

Mateo

 PLCs equipped with an Ethernet port can be configured remotely. 

Standard protocoles:

• DHCP (automatic IP configuration)

•

SMTP (sending and receiving e-mails)

• SNTP (time synchronization)

• Web Client: HTTP and HTTPS

• Embedded servers available for:

Modbus TCP/RTU server HTTP/HTTPS server

(13)

The

Mateo

-Eth module is equipped with: • Micro-controller STM32F7 • Frequency 216 MHz • ROM Flash 2 MB • RAM 512 KB • I/O types:

- Ana, Digital, N or P, 230 VAC - RS485, Counters 3 KHz

• 4 relays N.O. 5A 230V or 5A 30V

• External power supply: 24V DC

The

Mateo

-USB module is equipped with: • Micro-controller STM32F7 • Frequency 100 MHz • ROM Flash 1 MB • RAM 256 KB • I/O types:

- Ana, Digital, N or P, 230 VAC - RS485, Counters 3 KHz

• 4 relays N.O. 5A 230V or 5A 30V

(14)

Mateo

CPU references

Mateo

USB

- P1000 : USB 4DI/ANA + 4DI/CPT + 4 Relays N.O

- P1001 : USB 4DI/ANA + 4DI 230 V + 4 Relays N.O

- P1010 : USB 1DI/ANA + 4DI/CPT + 4 Relays N.O + RS485

- P1011 : USB 1DI/ANA + 4DI 230 V + 4 Relays N.O + RS485

Mateo

Ethernet

- P2000 : ETH 4DI/ANA + 4DI/CPT + 4 Relays N.O

- P2001 : ETH 4DI/ANA + 4DI 230 V + 4 Relays N.O

- P2010 : ETH 1DI/ANA + 4DI/CPT + 4 Relays N.O + RS485

- P2011 : ETH 1DI/ANA + 4DI 230 V + 4 Relays N.O + RS485

Mateo

Ethernet + colour touch screen 320x240 pixels

- P2100 : ETH ECRAN + 4DI/ANA + 4DI/CPT + 4 Relays N.O

- P2101 : ETH ECRAN + 4DI/ANA + 4DI 230 V + 4 Relays N.O

- P2110 : ETH ECRAN + 1DI/ANA + 4DI/CPT + 4 Relays N.O + RS485

- P2111 : ETH ECRAN + 1DI/ANA + 4DI 230 V + 4 Relays N.O + RS485

(15)

(16)

AIM is a Grenoble-based SME created in 1977.

Our core business is the development of embedded hardware and software for the industry.

As both a French manufacturer and a service provider, AIM offers computer solutions in the fields 

of real-time instrumented kernels, programming languages, development chains and associated  network and driver protocols.

All our products are designed and manufactured in France

To order online

www.aimstore.fr/en

21 avenue de la Plaine Fleurie

38240 MEYLAN - FRANCE

Tel : +33 (0)4 76 90 10 95

Mail : [email protected]

www.aim-plc.com
