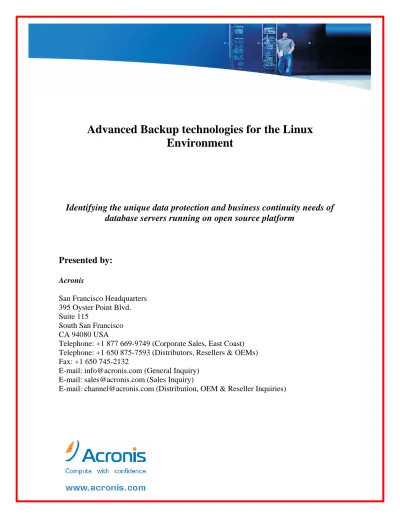

Advanced Backup technologies for the Linux
Environment
Identifying the unique data protection and business continuity needs of
database servers running on open source platform
Presented by:
AcronisSan Francisco Headquarters 395 Oyster Point Blvd. Suite 115
South San Francisco CA 94080 USA
Telephone: +1 877 669-9749 (Corporate Sales, East Coast) Telephone: +1 650 875-7593 (Distributors, Resellers & OEMs) Fax: +1 650 745-2132
E-mail: [email protected] (General Inquiry) E-mail: [email protected] (Sales Inquiry)
Solving the Linux Backup Conundrum with Imaging Technologies
IntroductionThis paper discusses the impact that open source solutions have on backup and disaster recovery technology and how traditional backup technologies fail to meet the needs of today’s IT infrastructures.
Many organizations are turning to open source solutions to improve the bottom line. Leading the charge to savings is the Linux Operating System, readily available from several vendors offering specialized distributions and bundles of the latest Linux Kernel. The network operating system is just the beginning when it comes to open source, many business are looking to shift database chores over to the open source product, MySQL, which proves to be an affordable alternative to the likes of Oracle and Microsoft SQL server.
Calculating the bottom line and overall ROI (return on investment) extends far beyond initial software costs, those shifting to open source solutions need to consider the long term viability of the solution to truly calculate savings, an area often over looked until deep into a transition to the new solution.
The true cost of the transition usually rears its ugly head when key elements such as backup, recovery and archiving data for both protection and disaster recovery needs. That situation seems to be magnified by the unique needs of an open source solution, which is often installed as a line-of-business application such as e-commerce or data warehousing solutions.
Those applications leave little room for error when it comes to selecting the proper data backup solution, and therein lies the biggest challenge for modern IT departments. The very nature of open source solutions drives complicated customized applications, further impacting the backup process. Simply put, the flexibility offered by open source
solutions, impacts the overall efficiency of traditional backup technologies.
The Problem in Detail
Traditional backup solutions rely on file-based backup events, in other words, each file contained on the system is opened and then copied to alternate media. That process proves to be time consuming and does little to insure that the data is properly backed up and synchronized.
The Failings of File-Based Backup Technologies: - Slow Backup and Restore performance - Inability to natively deal with open files
- Increased risk of data changing during the backup process, invalidating backups - Typically relies on expensive tape based technology for storage
- Complex scripting interferes with ease of use - Data restoration can be tedious
- Lack of bare-metal recovery capabilities prevents quick restores
- Software is expensive and often requires add-ons to perform needed tasks - Lacks comprehensive rescue media capabilities
The Impact on Open Source Solutions
Linux users are faced with several options for backup, many of which introduce
additional overhead and costs into a company’s operating budget. The budgetary impact doesn’t end with initial software purchase, additional costs come in the form of time spent backing up, restoring, rotating and maintaining backup sets. That situation is especially evident when using traditional file-by-file level backup solutions.
93% of companies that lost their data center for 10 days or more due to a disaster filed for bankruptcy within one year of the disaster. 50% of businesses that found themselves without data management for this same time period filed for
bankruptcy immediately. - National Archives & Records Administration in Washington
Solving the problem: Advanced systems need advanced solutions
The evidence shows that file-based backup solutions are no longer an appropriate choice for backup of line of business applications and that file-based solutions come up short when considering the implications of disaster recovery planning.
The answer lies with transitioning over to image-based backup solutions. Imaging is rapidly becoming the first choice for comprehensive data backup on both server- and desktop-based systems. The advantages offered by imaging are many.
The advantages of imaging technology:
- Faster backups: backup speed is limited only by system speed - Flexible storage options: images can be saved to most any medium - Rapid recovery: Systems can be completely restored in a few minutes - Ease of use: Complete partition backups eliminate individual file selections - Bare-metal Recovery: All data and system settings are stored in a portable image - System State Tolerance: Open files and in-use processes don’t prevent backups
Imaging clearly offers the capability to solve most any backup problem. What’s more, the technology lends itself well to disaster recovery planning and archiving capabilities. Today’s imaging solutions (such as those available from Acronis) offer the same robust feature set that file-based backup solutions have become known for. Features such as incremental backups, scheduled backups and individual file restoration have been incorporated into Acronis’ industry-leading imaging solutions. Those features, when combined with the inherent speed and flexibility offered by imaging, proves to be a winning combination that no other backup process can approach. What’s more, the cost of hard disk-based backup solutions is rapidly becoming more cost effective than tape-based storage solutions on the market. That helps to spell out increased ROI, while still offering portability and speed.
Another area that imaging shows promise is with ease of use. Imaging products, by their
ver of
tha e complete data volumes as
opposed to being forced to select individual components to backup.
backup technology can benefit businesses of any size. Beyond the overall backup strategy, imaging brings additional benefits that promise to improve greatly the backup
nd recovery process, especially where database protection and rapid recovery are
nts
e benefits of an imaging product, one has to understand what would ormally be involved in backing up a database server, such as MySQL.
that you can g se Server either locally or remotely. Refer to the
docume L Admin for your
latform for installation instructions.
you had previously set up to do - From the icon menu on the left hand side of the client window, select Backup
or the hat you want to Backup (in the MySQL Admin y design, are much easier to use and manage than file-based backup systems. Much t advantage can be attributed to the ability to captur
Leveraging the Imaging Process
With the advantages defined, it becomes quite easy to extrapolate where imaging as a
a
primary concerns.
Database servers prove to be troublesome to backup, partially due to open files and indexes and partially due to rapid data changes. Add in high-availability requireme and backups using traditional methods become almost impossible to accomplish. Here is where imaging can achieve its biggest improvement over file-based backup systems. To really appreciate th
n
The manual process consists of two steps executed in the Linux Environment: - service mysql stop &&
- scp -r /var/lib/mysql username at dest-pc:/var/lib/mysql An example of what’s involved is outlined below:
Note: This assumes you have already installed MySQL Admin and set it up so lo in to the MySQL Databa
ntation that comes with the installation package of MySQ p
- Open the MySQL Admin client and login as
- If you have not already created a Backup Project, do this now by clicking on the "New Project" button at the lower part of the window and type in a name f Backup Project where prompted
- Select one or more databases t
client these are called a "Schema" (pl. "Schemata")). Add them to the Backup Content window on the right using the right-pointing arrow button
- When you have selected the Schema(ta), you can save the Backup Project. Or you may simply choose to Backup Now using the button on the lower right of the window
me
- tory to which
Clearly the backup process has become a complex endeavor that requires a bit of hand hol g
underly so on. That makes restoration from
a di st
Linux, MySQL data and
l of the information on the server. As shown below:
- A dialogue will come up asking you where to put the Backup. Enter the pathna or browse to the location using the dialogue
Assuming all is correct (and you have write permissions in the direc you're writing the Backup), the backup will complete shortly
din and management intervention. What’s more, those processes do nothing for the ing operating system, settings, user rights and
sa er a complex and intimidating process. With Acronis True Image Server for the process becomes a simple mouse click to backup all of the
al
The Create Image process brings up a second dialog screen, which allows backup administrators to select drives and partitions to be included in the backup (or imaging process). For those looking to fine tune the backup process, data and applications can be divided up and stored on different partitions, a process that allows additional granularity to be achieved.
ng the ate Note: It is recommended that the database be suspended just before pressi
For example, all of the MySQL database files could be exclusively stored on the “hda10” partition. That would allow the imaging process to only backup MySQL related
information and databases. That comes in handy when mo
ystem, either as part of a hardware upgrade or to a “hot spare” system defined for
is
To dec create a
truei tions
efore options after creating file system snapshot.
name:/backups/test.tib)" ving the data to an alternate s
disaster recovery use.
Note: Automation of backup can be done using the Linux cron service. The following an example. System has /dev/sda1 as root(/) and /dev/sda2 mounted to /backups directory. All database (mysql) data are located on root(/).
The first way is to do sequential actions - "stop mysql", do backup and "start mysql". You may schedule a cron job to do this by the following record in
/var/spool/cron/root file:
14 4 * * * /bin/bash -c "(/etc/init.d/mysqld
stop;/usr/sbin/trueimagecmd create partition:11 --filename:/backups/test.tib; /etc/init.d/mysqld
start)"
rease database downtime (because full image creation may take quite long time), special /usr/lib/Acronis/tils_freeze_hook script. trueimage or magecmd will call this script using the <device-name> <stop> op
and <device-name> <start> b
Having set up this script once, you will not have to run the "mysql stop" or "mysql start" command neither in cron job, nor in GUI mode. tils_freeze_hook will be called automatically and start/stop MySQL itself.
And here is an example of tils_freeze_hook. This assumes MySQL database is
#!/bi
"
OOKLOG="/var/log/tils_freeze_hook.log" /init.d/mysqld"
# prepare file descriptors 3-100 to be e launch msql o unning" \ ction write_log { date \ > $HOOKLOG
[ "$MODE" == "stop" ] ; then _msql_running
$? -eq 0 ] && exit 0 # msql is not running \
Stopping MySQL ..." op" in synchronous (foreground)
tops
MSQLCMD} stop $FD > /dev/null 2>&1"
write_log "Backup ${DEV}. Starting MySQL ..." located on sdb1 partition. n/bash mple of tils_ # Exa freeze_hook # MYSQLDEV="/dev/sdb1 H MSQLCMD="/etc function set_fd { # closed befor for i in `/usr/bin/seq 3 100` ; d FD="$FD $i>&-" done } function is_msql_running {
${MSQLCMD} status | grep "mysqld.* r > /dev/null 2>&1 } fun local prefix="`/bin/ +%Y-%m-%dT%H%M%S%z`:tils_freeze_hook:" echo ${prefix}$* > } DEV=${1} MODE=${2}
[ "${MYSQLDEV}" != "${DEV}" ] && exit 0 # mysql database partition affected if
is [ !
#- nothing to do set_fd
write_log "Backup ${DEV}. # launch "msql st
# mode because backup must wait # until database s
eval "${
write_log "MySQL was stopped." fi
if [ "$MODE" == "start" ] ; then is_msql_running
[ $? -eq 0 ] && exit 0 # msql is running set_fd
# in asynchronous (background) mode n concurrently
to logs because we don't
isasters, businesses still need to protect their data. If disaster strikes, businesses that are and software are at a distinct dvantage. Imaging proves to be a key technology in that situation.
s or only as fresh as the test recoverable tape cartridge.
igate to the storage device holding the image file and en simply restore the image to the new hardware.
- are. Other benefits include the bility to mount the image as a volume and access files directly through an explorer like
offer a distinct advantage over file-based backup systems. Acronis’ products support # because backup and database start
# may ru
eval "${MSQLCMD} start $FD > /dev/nill 2>&1 &" # Don't write anything
# know real "msql start" exit status fi
exit 0
Worldwide sales of IT security and business-continuity products rpass $150 billion by 2006. -
and services will IDC
Disaster Recovery and Business Continuity Planning
While no business wants to experience a disaster or loss of facilities, they still must consider that a possibility. Regardless if the event is due to man-made or natural d
ready to perform bare-metal recoveries of their hardware a
Traditional backup technologies fall short in many areas when it comes to busines continuity planning. File-based backup systems require administrators to regenerate the operating environment (OS, Hardware, etc.) and go through a lengthy restore process. F larger businesses, that can take several hours and the restored data is
la
Imaging products, such as those from Acronis, offer a monumental step forward in the disaster recovery process. Saved images can be restored to new hardware in a matter of minutes with a simple process. Administrators boot off of rescue media (created by the Acronis imaging product) and nav
th
There are additional benefits offered by imaging in that scenario. First off, images are usually stored to removable hard disk based media, which is many times faster than tape based restores. Secondly, images can be redirected or resized to meet any changes in capacity caused by the transition to emergency hardw
a
interface. This is a feature that proves to be both more intuitive and flexible than a file catalog offered by a traditional backup stored on a tape drive. That flexibility allows an organization to recover key documents or records quickly to continue operations while waiting to restore a complete data set.
With disaster planning, one can not only consider restoration techniques, but must also look at the base backup procedures. That is another area that Acronis’ imaging products
incremental backups via snapshot technology. That capability allows the creation of several backups during the working day, without interrupting any business processes. On
e other hand, file-based solutions are slow performers when it comes to incremental
isaster Recovery – Best Practices
to
be at
all of the planning in the world counts for nothing if there is no company information to store.
ne of the leading causes of failing to optimally plan and execute a business continuity
off-site storage and required training; it becomes very clear why a large ercentage of businesses fail to accomplish an effective backup and restoration plan.
cy gle iency
n e smallest of businesses. After all, only the most recent data changes need to be moved
hard
- Determine business objectives: Define acceptable margins for recovery time, (type of failure) - Account for data loss scenarios: Human error, data corruption, storage failure, th
backups and usually force the shutdown of database applications and force users to close open files. That proves to be inefficient during business hours.
On the restoration side of the equation, Acronis’ imaging products automatically roll incremental backups together into the base image file that greatly speeds restorations and eliminated the hassles of swapping out various tapes that file-based backups require.
Only 38 percent of businesses have any kind of business continuity plan in place
D
While data backup is only a single part of the disaster recovery process, it still proves the most important element to successfully protect a business. It is a simple fact th re
O
process is the inherent complexity of existing backup solutions on the market. The file-based backup systems available from the major vendors are commonly too wieldy or cumbersome to manage. Add to that the requirement for tape rotations, incremental backups,
p
This is an area where drive imaging helps to demystify and simplify the business continuity planning process. By simply leveraging image-based backups and emergen recovery media, a major portion of the disaster recovery plan can be reduced to a sin page consisting of just a few steps. What’s more, by leveraging the speed and effic of image based incremental backups, remote backup storage becomes feasible for eve th
over the wire to a remote facility. That remote facility can be as simple as a shared drive on a broadband connection or as complex as a leased, hardened data center. There are several elements to an effective disaster recovery plan:
- Prioritize business processes: Define mission critical, business critical and operationally important processes and classify the impact of each process on business operations
recovery points (acceptable data loss), and data loss events
- Define the backup and recovery process: Location of backups, frequency, b types, backup device redundancy, key personnel and procedures
ackup The o when o own into x streaml Leadin sound * Hard drive not spinning
ent of all data loss) rrors * Software application won't load
d or inaccessible ss)
* Strange and unpredictable behavior
appears on screen
* Fires
c mbination of those elements will be used to create a disaster recovery plan, and ne considers the inherent complexity of breaking each of those components d e ecutable tasks, it becomes readily apparent how imaging products from Acronis
ine the process.
g Causes of Data Loss (Ontrack Research)
Hardware or System Malfunctions (44 percent of all data loss) * Error message stating the device is not recognized
* Previously accessible data suddenly gone * Scraping or rattling
* Computer hard drive doesn't function Human Error (32 percent of all data loss) * Previously accessible data suddenly gone * Message similar to "File Not Found" Software Corruption (14 perc
* System messages relating to memory e
* Error message stating data is corrupte Computer Viruses (7 percent of all data lo
* Error message stating
* "File Not Found" Message announcing virus Natural Disasters (3 percent of all data loss) * Floods * Brownouts * Severe Weather * Earthquakes It is estim m
The Acronis Advantage
The facts prove the case: Imaging is a vastly superior backup technology. T -based backup solutions are costing businesses countle ncy and reliability. Add to that the IT management burden, it
ased backup solutions are losing the ROI battle a he
shortcomings of file ss dollars in
productivity, efficie
becomes clear that file b gainst imaging
technology.
e leading technology, there is still one hurdle to overcome: hat imaging vendor should you select to protect your valuable data? The answer is
rket for d y. have met the challenge of backing up Linux-based systems, and even fewer an boast the ability to seamlessly backup open files and database servers like Acronis
of
gement: Define policies for system and non-system files backup events
- No re-installation: Backup image contains everything the system needs to run.
- e: Wizard-driven Graphical User Interface (GUI)
- ze Existing IT investment: Use existing storage devices for backup g system. This is ideal for businesses without a backup infrastructure -
e in the With imaging defined as th
W
simple, Acronis. Acronis has been an industry leader in the backup imaging ma
several years. The company’s ability to identify requirements and come up with advance solutions is provided by the numerous awards and endorsements by the IT industr Few vendors
c
True Image Server for Linux. By combining the power of imaging with the availability Linux and MySQL, Acronis has created a product that brings safety to the open source market. No longer are open source solutions at risk for data loss and open source based solutions can be included in the business continuity and disaster recovery planning and execution process.
Acronis True Image Server for Linux offers several unique features not found in any other backup solution:
- Fastest restoration time: Create and restore a system from an image of an entire hard drive. Creating and restoring a system from an image is faster than file-based solutions
- Policy Mana
- Incremental Backups: Create image of sectors that have changed since the last backup
The operating system, databases, configuration files, applications, etc. The system is restored from the image without requiring a lengthy reinstallation
Ease of Us
- Console Mode: IT staff can create scripts using the cron service Maximi
- Acronis Secure Zone: Save backup image to a special partition, hidden from the operatin
because storage media is not required for backup
The choice is clear: Acronis!
onis True Image Server for Linux not only boasts
Acr a robust feature set, but also
e
sup x
bas ty includes:
- Supports all major Linux operating systems and Linux kernels
- Supports current backup technologies: Direct Attached Storage (DAS),
Redundant Arrays of Independent Disks (RAID), Network drives (SMB, NFS), USB and FireWire Storage Devices, CD-R/RW, DVD+R/RW, DVD-RW, Removable Drives (Floppy, Zip, etc.)
- Clustering Support: Backup and restore redundant servers over the network. - Supported Operating Systems : Red Hat 7.3, 8.0, 9.0/Advanced Server 2.1, 3.0,
Fedora Core 1/Fedora Core 2, Advanced Server 3.0/Enterprise Server 3.0, SuSE 8.0, 8.1, 8.2, 9.0, 9.1, Mandrake 8.0, 9.2, 10.0, 10.1, Slackware 10, Debian stable and unstable (sarge), Gentoo, UnitedLinux 1.0, Linux Kernels 2.4.x or 2.6.6 Considering the value of today’s corporate data and the increasing economy of disk-based storage, imaging makes both protection and financial sense. Companies large and small can benefit from the leading technology offered by Acronis and can rely on Acronis True Image Server for Linux to effectively protect data, while sill being friendly to the bottom line. That should be of special concern to companies needing to meet legislative requirements set forth by HIPPA and Sarbanes-Oxley legalities. With Acronis, those problems and others are quickly resolved, leaving a business with not only a
comprehensive backup solution, but also with all of the underpinnings needed to effectively implement disaster recovery scenarios, while also offering IT technicians a tool to assist in hardware migration and deployment testing.
Linux and Acronis: Everybody wins
While Linux and open source products such as MySql offer organizations significant savings and an alternative to expensive commercial operating systems and database servers, the true value can not be judged until a product such as Acronis True Image Server for Linux is incorporated. For companies following the path of Linux, backed up by Acronis, savings and reduced overhead will be quickly realized, making everyone happy from the CFO down to the IT technician, all with out compromising ease of use and without impacting the end user. A true win-win solution.
