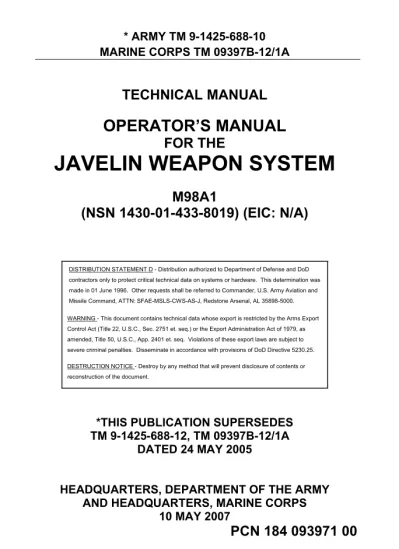

TM 91425-688-10 - M98 Javelin Weapon System

(1)

MARINE CORPS TM 09397B-12/1A

TECHNICAL MANUAL

OPERATOR’S MANUAL

FOR THE

JAVELIN WEAPON SYSTEM

M98A1

(NSN 1430-01-433-8019) (EIC: N/A)

DISTRIBUTION STATEMENT D - Distribution authorized to Department of Defense and DoD contractors only to protect critical technical data on systems or hardware. This determination was made in 01 June 1996. Other requests shall be referred to Commander, U.S. Army Aviation and Missile Command, ATTN: SFAE-MSLS-CWS-AS-J, Redstone Arsenal, AL 35898-5000.

WARNING - This document contains technical data whose export is restricted by the Arms Export Control Act (Title 22, U.S.C., Sec. 2751 et. seq.) or the Export Administration Act of 1979, as amended, Title 50, U.S.C., App. 2401 et. seq. Violations of these export laws are subject to severe criminal penalties. Disseminate in accordance with provisions of DoD Directive 5230.25.

DESTRUCTION NOTICE - Destroy by any method that will prevent disclosure of contents or reconstruction of the document.

*THIS PUBLICATION SUPERSEDES TM 9-1425-688-12, TM 09397B-12/1A

DATED 24 MAY 2005

HEADQUARTERS, DEPARTMENT OF THE ARMY AND HEADQUARTERS, MARINE CORPS

10 MAY 2007

(2)

(3)

WARNING SUMMARY

The warning summary contains general safety warnings that must be understood and applied during operation and maintenance. Failure to observe these warnings could result in serious injury or death to personnel. For information concerning First Aid, refer to FM 4-25.11.

WARNING

MISSILE LAUNCHING

FLYING PARTICLES

• Flying debris can cause serious injury. Should injury occur, get medical help at once.

• Do not launch the missile where obstructions such as trees, bushes, windows, doors, and/or overhangs would obstruct the missile’s flight path.

• Do not fire the javelin over heads of friendly troops during training.

• Make sure all friendly troops are clear of back blast areas.

(4)

WARNING SUMMARY – (Continued)

WARNING

EAR PROTECTION

• All personnel within 25 meters (83 feet) must wear hearing protection.

(5)

WARNING SUMMARY – (Continued)

WARNING

MISSILE LAUNCHING

• Allow sufficient space for the missile to clear any possible obstruction when launching the missile.

• Personnel may be injured if a javelin missile is launched from enclosures without sufficient openings.

• Launch missile with left eye if face shield absorber (a piece between indentation and main housing) is missing. • Follow instructions in WP 0007 00 for a failure to

launch/fire.

• Debris from the rocket motor may cause serious injury. Avoid looking down-range during initial missile launch without proper protection. Use the CLU to observe missile flight. Should injury occur, get medical help at once.

(6)

WARNING SUMMARY – (Continued)

WARNING

PRONE POSITION

• Keep body at a 30º angle away from the round when launching a missile from the prone position.

• Injury may occur if body is extended into back blast area. If injury should occur, seek medical help immediately. • Ensure that gunner's body remains clear of the back

blast area.

WARNING

LAUNCH TUBE ASSEMBLY

Do not attempt to remove the missile from the LTA.

WARNING

CLU BATTERY

VAPOR

• The BA-5590/U battery contains pressurized lithium sulfur dioxide gas. It is highly toxic. Do not handle the battery in any way which may cause the battery to rupture.

(7)

WARNING SUMMARY – (Continued)

WARNING

CLU BATTERY

• Do not use the Saft America BA-5590/U batteries produced under contract 88-C-C045 & DAAB07-90-C-C020. BA-5590/U batteries made under both contracts were dead lined in December 1997 by safety of use message SOUM 97-017.

HOT AREA

• Power down the CLU if the battery or battery compartment becomes hot to the touch. Wait at least 60 minutes before attempting to remove the battery.

VAPOR

• Do not discharge batteries which show signs of bulging or cracks. Dispose of batteries as hazardous waste.

• Batteries which show signs of a damaged discharge switch may be unstable and could result in violent battery venting during handling or disposal. Dispose of batteries as hazardous waste.

(8)

WARNING SUMMARY – (Continued)

WARNING

CLU BATTERY

• Power down the CLU upon hearing a hissing/popping sound (battery venting). Leave the area until any smell (rotten eggs) or signs of leaking gas have been cleared from the area.

WARNING

BATTERY COOLANT UNIT

HOT AREA

• Hot surfaces can cause serious burns. • Do not touch unshrouded BCU surfaces.

• If the operator experiences burns from contact with BCU, get medical help at once.

• The BCU contains a lithium-alloy thermal battery that is considered hazardous waste. Disposal of the BCU after use must be in accordance with TB 43-0134.

(9)

WARNING SUMMARY – (Continued)

WARNING

SHIPPING AND STORAGE CONTAINER

EXPLOSION

Vent shipping and storage container prior to removing cover assembly. Failure to comply may result in injury to personnel.

WARNING

NUCLEAR, BIOLOGICAL, AND CHEMICAL CONTAMINATION

Notify your supervisor if you think you have been exposed to nuclear, biological, or chemical contamination. FM 3-11.5 gives procedures for decontamination.

(10)

(11)

LIST OF EFFECTIVE WORK PACKAGES

INSERT LATEST CHANGED WORK PACKAGES. DESTROY SUPERSEDED DATA.

Dates of issue for original and changed pages/work packages are:

Original 0 10 May 2007

TOTAL NUMBER OF PAGES FOR FRONT AND REAR MATTER IS 24 AND THE TOTAL NUMBER OF WORK PACKAGES IS 22 CONSISTING OF THE FOLLOWING: Page/WP Change No. No. Cover...0 a-g ...0 h Blank ...0 A...0 B Blank...0 i-vii...0 viii Blank...0

Chapter 1 Title Page ...0

WP 0001 00 ...0

WP 0002 00 ...0

WP 0003 00 ...0

Chapter 2 Title Page ...0

WP 0004 00 ...0 WP 0005 00 ...0 WP 0006 00 ...0 WP 0007 00 ...0 WP 0008 00 ...0 WP 0009 00 ...0 Page/WP Change No. No. WP 0010 00 ...0 WP 0011 00 ...0 WP 0012 00 ...0 WP 0013 00 ...0 WP 0014 00 ...0

Chapter 3 Title Page...0

WP 0015 00 ...0

WP 0016 00 ...0

WP 0017 00 ...0

WP 0018 00 ...0 WP 0019 00 ...0 WP 0020 00 ...0 WP 0021 00 ...0 WP 0022 00 ...0 Index ...0

(12)

(13)

*ARMY TM 9-1425-688-10 MARINE CORPS TM 09397B-12/1A

HEADQUARTERS, DEPARTMENT

OF THE ARMY AND MARINE CORPS WASHINGTON, DC., 10 MAY 2007

OPERATOR’S MANUAL

For

JAVELIN WEAPON SYSTEM

M98A1 (NSN 1430-01-433-8019) (EIC: N/A)

REPORTING ERRORS AND RECOMMENDING IMPROVEMENTS

You can help improve this manual. If you find any mistakes, or if you know of a way to improve the procedures, please let us know. Mail your letter or DA Form 2028 (Recommended Changes to Publications and Blank Forms) directly to: Commander, U.S. Army Aviation and Missile Command, ATTN: AMSAM-MMC-MA-NP, Redstone Arsenal, AL 35898-5000. A reply will be furnished to you. You may also provide DA Form 2028 information to AMCOM via email, fax, or the World Wide Web. Our fax number is: DSN 788-6546 or Commercial 256-842-6546. Our email address is:

[email protected]. Instructions for sending an electronic 2028 may be found at the back of this manual. For World Wide Web use:

https://amcom2028.redstone.army.mil.

Notice of discrepancies or suggested changes should be forwarded on NAVMC form 10772 to: Commander, Marine Corps Logistics Bases (Code ACAL) Albany, Ga 31704-1128.

(14)

DISTRIBUTION STATEMENT D - Distribution authorized to Department of Defense and DoD contractors only to protect critical technical data on systems or hardware. This determination was made on 01 June 1996. Other requests shall be referred to Commander, U.S. Army Aviation and Missile Command. ATTN: SFAE-MSLS-CWS-AS-J, Redstone Arsenal, AL 35898-5000. WARNING - This document contains technical data whose export is restricted by the Arms Export Control Act (Title 22, U.S.C., Sec. 2751 et. seq.) or the Export Administration Act of 1979, as amended, Title 50, U.S.C., App. 2401 et. seq. Violations of these export laws are subject to severe criminal penalties. Disseminate in accordance with provisions of DoD Directive 5230.25.

DESTRUCTION NOTICE - Destroy by any methods that will prevent disclosure of contents or reconstruction of the document.

*This publication supersedes TM 9-1425-688-12 and TM 09397B-12/1A dated 24 May 2005

TABLE OF CONTENTS

WP Sequence No

WARNING SUMMARY HOW TO USE THIS MANUAL

CHAPTER 1 - GENERAL INFORMATION, EQUIPMENT DESCRIPTION AND THEORY OF OPERATION

General Information ... 0001 00 Equipment Description and Data ... 0002 00 Theory of Operation ... 0003 00 CHAPTER 2 - OPERATOR INSTRUCTIONS

Description and Use of Operator Controls

and Indicators ... 0004 00 Carry Techniques, Firing Restrictions And

Selecting A Firing Position... 0005 00 Assembly and Preparation for Use ... 0006 00 Target Engageability ... 0007 00

(15)

TABLE OF CONTENTS (Continued)

CLU Battery Installation, Removal, and

Disposal ... 0008 00 BCU Removal, Installation

and Disposal ... 0009 00 Operating Procedures... 0010 00 CLU Round and Carry Bag Cleaning

Instructions... 0011 00 Packing Instructions – CLU Shipping

and Storage Container... 0012 00 Operation Under Unusual Conditions ... 0013 00 Emergency Procedures ... 0014 00 CHAPTER 3 - TROUBLESHOOTING PROCEDURES Operational Check Out and

Troubleshooting Procedures... 0015 00 CHAPTER 4 - MAINTENANCE INSTRUCTIONS

Introduction to Preventive Maintenance Checks

and Services ... 0016 00 Preventive Maintenance Checks and Services ... 0017 00 CHAPTER 5 - SUPPORTING INFORMATION

References... 0018 00 Components of End Items and Basic

Issue Items Lists ... 0019 00 Additional Authorization List (AAL) ... 0020 00 Expendable/Durable Supplies

and Materials List... 0021 00 Loose Cargo Transportation ... 0022 00

(16)

HOW TO USE THIS MANUAL

You must familiarize yourself with the procedure before beginning the task. To become familiar with this manual, spend some time looking through it to see what it contains. Once you are familiar with it, you can find information in two ways:

• Use the table of contents

• Use the index at the rear of the manual

The best way to find what you want depends on how familiar you are with this manual. In most cases, the fastest way is to use the table of contents.

USE THE TABLE OF CONTENTS

1. The table of contents is a list of work packages in the manual.

2. Suppose you were told to clean the CLU.

3. Using the example below, you could go directly to the table of contents. There you would see Work Package 0011 00, CLU Round and Carry Bag Cleaning Instructions.

4. The top of the page has INITIAL SETUP. This tells you what you will need to complete the procedure.

5. Following the INITIAL SETUP are illustrated procedures to clean the CLU.

(17)

USE THE TABLE OF CONTENTS - Continued

TM 9-1425-688-10 0011 00

OPERATOR INSTRUCTION JAVELIN WEAPON SYSTEM M98A1 NSN 1430-01-433-8019

CLU, ROUND AND CARRY BAG CLEANING INSTRUCTIONS

INITIAL SETUP

Tools None

Materials Kit, Lens Cleaning,

Item 2, WP 0021 00 Cloth, Cleaning, Item 5, WP 0021 00 Detergent, General Purpose Cleaning Item 6, WP 0021 00 CLU and ROUND

1. Inspect surfaces for heavy coating of dirt or mud. If dirt or mud is visible go to step 2. If slightly dirty, i.e., dust, proceed to step 3.

2. Rinse area with clean water and wipe with clean dry cloth.

(18)

USE THE INDEX AT THE REAR OF THE MANUAL

1. The index lists, in alphabetical order, all the subjects that are in the manual.

2. Each subject is listed in two or three ways whenever possible so that you can easily find what you are looking for. For example, "List of Abbreviations" is also listed as "Abbreviations, List of".

EMERGENCY PROCEDURES

This manual contains EMERGENCY PROCEDURES for use by the operator if a missile fails to launch. As shown below these pages are BLACK BORDERED to allow for instant location within the book. Read the procedures in case you experience a hangfire or misfire. References within the manual refer to WP 0014 00 when immediate action may be needed.

(19)

USE EMERGENCY PROCEDURES - Continued

TM 9-1425-688-10 0014 00

OPERATOR INSTRUCTIONS JAVELIN WEAPON SYSTEM M98A1 NSN 1430-01-433-8019

EMERGENCY PROCEDURES JAVELIN WARNINGS AND MALFUNCTIONS –

(Continued) Definitions

Misfire: When the fire trigger has been pulled and the missile does not launch. The ; indicator on the CLU display may or may not flash.

Hangfire: When the fire trigger has been pulled and the missile does not launch. The ;indicator on the CLU display will be flashing. The missile has been activated and could possibly launch.

Javelin Malfunction Indicators/Immediate Action Procedures.

PROBLEM INDICATOR ACTION

MISFIRE _{; Red}

(Flashing) or NO INDICATOR

(1) Release fire and seeker triggers. Keep Javelin pointed in direction of enemy. (2) Re-attempt to launch

missile. If missile fails to launch, go to (3) below. (3) Set CLU power switch to OFF.

(20)

(21)

CHAPTER 1 GENERAL INFORMATION,

EQUIPMENT DESCRIPTION

AND THEORY OF OPERATION

FOR

(22)

(23)

GENERAL INFORMATION

JAVELIN WEAPON SYSTEM

M98A1 NSN 1430-01-433-8019

GENERAL INFORMATION

SCOPE

Type of Manual: Operator‘s Maintenance

Model Number and Surface Attack Guided

Equipment Name: Missile & Launcher:

FGM-148A, FGM-148B

and FGM-148C

Command Launch Unit:

M98A1

Purpose of Equipment: To provide medium range

antitank capability for the

U.S. Army and U.S. Marine

Corps.

MAINTENANCE FORMS, RECORDS, AND REPORTS

Department of the Army forms and procedures used for equipment maintenance shall be those prescribed by DA PAM 750-8, the Army Maintenance Management System (TAMMS) Users Manual.

Accidents involving injury to personnel or damage to materiel will be reported on DA Form 285, U.S. Army Accident Report, in accordance with AR 385-40, Accident Reporting and Records. Explosives and ammunition malfunctions will be reported in accordance with AR 75-1, Malfunctions Involving Ammunition and Explosives (RCS CSGLD-1961(MI)).

Marine Corps Personnel will use TM 4700-15/1 Equipment

(24)

REPORTING EQUIPMENT IMPROVEMENT RECOMMENDATIONS

If your Javelin needs improvement, let us know. Send us an EIR. You, the user, are the only one who can tell us what you do not like about your equipment. Let us know why you do not like the design or performance. Put it on an SF Form 368 (Product Quality Deficiency Report). Mail it to: Commander, U.S. Army Aviation Missile Command, ATTN: AMSAM-MMC-MA-NM, Redstone Arsenal, AL 35898-5238. E-mail to: [email protected]. We'll send you a reply.

Marine Corps Personnel are encouraged to submit SF Form

368 in accordance with MCO 4855.10.

CORROSION PREVENTION AND CONTROL

Corrosion Prevention and Control (CPC) of Army materiel is a continuing concern. It is important that any corrosion problems with this item be reported so that the problem can be corrected and improvements can be made to prevent the problem in the future.

While corrosion is typically associated with rusting of metals, it can also include deterioration of other materials, such as rubber and plastic. Unusual cracking, softening, swelling or breaking of these materials may be a corrosion problem. If a corrosion problem is identified, it can be reported using Product Quality Deficiency Report SF Form 368. Use of key words such as “corrosion”, “rust”, “deterioration” or “cracking” will ensure that the information is identified as a CPC problem.

The form should be submitted to the address specified in DA PAM 750-8.

(25)

OZONE DEPLETING SUBSTANCES

The continued use of ozone depleting substances (ODS) has been prohibited by Executive Order 12856 of 3 August 1993. Ozone depleting substances are not used during operation or maintenance of the Command Launch Unit (CLU).

DESTRUCTION OF ARMY AND MARINE CORPS MATERIEL TO PREVENT ENEMY USE

Destruction of Army materiel to prevent enemy use shall be in accordance with TM 43-0002-70.

Marine Corps Personnel: render the CLU inoperable by

smashing, scattering or burying disassembled pieces, burning or destroying by weapons fire.

PREPARATION FOR STORAGE OR SHIPMENT

Refer to WP 0012 00 for instructions on preparing the CLU for storage or shipment.

(26)

NOMENCLATURE CROSS-REFERENCE LIST Simplified Official

Nomenclature Nomenclature

Absorber Afocal Absorber

Absorber Battery Box Cover Absorber

Absorber Battery Cover Absorber

Absorber Left Handle Absorber

Absorber Right Handle Absorber

Aft End Cap Aft Shock Cushion

Aft End Cap

Membrane Frangible Membrane

Bail Battery Cover Retainer

Assembly

Battery Cover Battery Cover Assembly

BCU Battery Coolant Unit (BCU)

Assembly

BCU Latch BCU Latch Assembly

BCU Status Indicator BCU Temperature Indicator

Buckle Slide Adjuster

Carry Handle Handle

CLU Interface

Connector Electrical Plug Connector Crossbrace Lower Crossbrace Assembly

Daysight Visible Optics Assembly

Daysight Lens No. 1 Window

Daysight Lens Cover Visible Optics Assembly

Lens Cap

Detector Dewar Cooler Detector Dewar Cooler

Assembly

Diopter Adjust Ring Diopter Grip

Elapsed Time Meter Time Totalizing Meter

Eyecup Eyecup Assembly

Eyepiece Eyepiece Assembly

Face Shield Absorber Top/Facial Absorber Fire Trigger Right Trigger Assembly

(27)

NOMENCLATURE CROSS-REFERENCE LIST – (Continued)

Simplified Official Nomenclature Nomenclature

Forward End Cap Forward Shock Cushion Forward End Cap

Latch End Cap Clamp

Guide Bar Alignment Pin

Guide Pin Pylon Aft Guide Pin

Guide Pin Pylon Forward Guide Pin

Humidity Indicator Desiccator

Humidity Indicator Forward Desiccator Latch Assembly Latch Base

Latch Release Latch Lock Launch Tube

Assembly Launch Tube Final Assembly Left Handgrip

Controls Left Switch Assembly

Lens Paper Presaturated Lens Paper

Locking Pin End Cap Lock Pin

Main Housing Main Housing Assembly Manual Release

Button Manual Release Button

Night Vision Sight Afocal Assembly

NVS Lens Afocal Number One Lens

NVS Lens Cover Lens Cap Assembly Protective Cover Protective Cap

Pylon Pylon Assembly

Right Handgrip

Controls Right Switch Assembly

Round Surface Attack Guided

Missile: FGM-148A,

FGM-148B, and

FGM-148C

(28)

NOMENCLATURE CROSS-REFERENCE LIST – (Continued)

Simplified Official Nomenclature Nomenclature

Round Interface

Bracket Missile Interface Bracket Round Interface

Catch Missile Interface Catch

Round Interface

Connector Viking Connector

Seeker Trigger Left Trigger Assembly Shoulder Strap Shoulder Strap Carrying

Assembly

Strap Mount Aft Shoulder Strap Mount Strap Mount Forward Shoulder Strap

Mount

(29)

LIST OF ABBREVIATIONS AND ACRONYMS

Abbreviations and Acronyms, with their meanings, are contained in the following list:

Abbreviation/Acronym Meaning

AAL Additional Authorization List

ASIOE Associated Support Item of

Equipment

BCU Battery Coolant Unit

BII Basic Issue Items

BIT Built-in-Test

CAGEC Commercial and Government

Entity Code

CIIC Controlled Item Inventory

Code

COEI Components of End Items

CLU Command Launch Unit

CPU Corrosion Prevention and

Control

CTA Common Table of

Allowances

DDC Detector Dewar Cooler

DMWR Depot Maintenance Work

Requirements

DOT Department of Transportation

EIR Equipment Improvement

Recommendations

EMI Electromagnetic Interference

EOD Explosive Ordnance Disposal

ETM Elapsed Time Meter

FOV Field-of-View

FTT Field Tactical Trainer

IR Imaging Infrared

JTA Joint Table of Allowances

LTA Launch Tube Assembly

(30)

LIST OF ABBREVIATIONS AND ACRONYMS – (Continued)

Abbreviation/Acronym Meaning

MTOE Modified Table Of

Organizational Equipment

NBC Nuclear, Biological, and

Chemical

NFOV Narrow Field-of-View

NHA Next Highest Assembly

NSN National Stock Number

NVS Night Vision Sight

ODS Ozone Depleting Substances

PMCS Preventive Maintenance

Checks and Services

Q-D Quantity-Distance

QASAS Quality Assurance Specialist

Ammunition Surveillance

SMR Source, Maintenance and

Recoverability Code

SRA Specialized Repair Activity

TAMMS The Army Maintenance

Management System

TDA Table of Distribution and

Allowances

TMDE Test, Measurement, and

Diagnostic Equipment

TOE Table of Organizational

Equipment

UUT Unit Under Test

U/M Unit of Measure

(31)

QUALITY OF MATERIAL

Material used for replacement, repair or modification must meet the requirements of this technical manual. If quality of material requirements are not stated in this technical manual, the material must meet the requirements of the drawings, standards, specifications or approved engineering change proposals applicable to the subject equipment.

SAFETY, CARE, AND HANDLING CLU Safety

The CLU has been assigned a Controlled Item Inventory Code (CIIC) of Category 3. Physical security provided to the CLU must be commensurate with this CIIC. The Javelin round and CLU together are CIIC Category 1. The CLU and round must never be stored at the same location.

Round Safety

The Javelin round is classified Quantity-Distance (Q-D) Class 1.1 when out of round shipping and storage container (1.2 when in container), Compatibility Group E, and Department of Transportation (DOT) Class A for shipping. Explosive weight:

Warhead 5.89 lb

Missile motor 2.69 lb

(32)

SAFETY, CARE, AND HANDLING –(Continued) CLU Care

CLU lenses require special care. Don't try to scrub lens surface, optical coating may be damaged. When cleaning the lenses, always follow the cleaning procedure in WP 0011 00. When the CLU has been in storage for long periods of time, the CLU must be powered-up in DAY mode to allow the cathode ray tube to warm up prior to applying high voltage in the Night Vision Sight (NVS) mode. Use the chart listed below to determine the warm-up time period.

Storage Time Warm-Up Time

3 Months - 1 Year 5 Minutes 1 Year or Longer 12 Hours

Round Care

Storage temperature limits for Javelin rounds are -51º to +160ºF (-46º to +71ºC).

(33)

SAFETY, CARE, AND HANDLING – (Continued) CLU Handling

CAUTION

• If CLU has been in storage in excess of 30 days, DO NOT power-up CLU in NVS mode of operation or place switch in TEST position. Power-up CLU in day mode for at least five minutes. Failure to comply will damage CRT. • If CLU has been in storage longer than one

year, CLU must be powered-up in day mode for a minimum of 12 hours. DO NOT place switch in NIGHT or TEST position sooner than 12 hours. The Javelin CLU is shipped and stored in the CLU shipping and storage container. The CLU shipping and storage container protects the CLU during transportation, storage, and associated handling. The CLU shipping and storage container also protects the CLU from natural and induced environments, including nuclear, biological, and chemical (NBC) environments.

During unit storage keep the CLU in the CLU shipping and storage container, sealed with a security seal.

(34)

SAFETY, CARE, AND HANDLING – (Continued) Round Handling

CAUTION

• The Launch Tube Assembly provides environmental and physical protection for the missile. Do not attempt to remove the missile from the Launch Tube Assembly.

• Do not handle the round roughly or drop it. Rough handling may damage the missile motor or missile components and cause a malfunction at launch or in flight.

The Javelin round is shipped and stored in the round shipping and storage container. The round shipping and storage container protects the round during transportation, storage, and associated handling. The round shipping and storage container also protects the round from natural and induced environments, including NBC environments.

(35)

SAFETY, CARE, AND HANDLING – (Continued)

Design features of the round shipping and storage container include:

• A cover assembly containing a latch mechanism that provides environmental and Electromagnetic Interference (EMI) seals.

• Pressure and humidity control provided by a humidity indicator, 2 packages of desiccant, and a pressure release valve controlling positive and negative container pressure to two pounds per square inch differential.

• Four handles for lifting and tiedown and interlocking posts to provide stack stability.

Rounds may be stacked 8 high in indoor storage, and 4 high (depending on stack stability) on level, improved outdoor storage. Use 4-inch dunnage for indoor storage and 6-inch dunnage for outdoor storage. Do not use dunnage between stack layers, containers have interlocking feature.

The nose end of rounds in storage must be pointed in the direction posing the least hazard to personnel and equipment in case of fire or accidental explosion.

Temporary shelters (tarpaulin covered, shed, etc.). Javelin rounds may be maintained in this type of storage with storage site location in a well drained area. Tarpaulin or cover should be placed in a manner to permit free air circulation while still protecting rounds from direct sunlight. This type of storage should be used only when mission requirements dictate and should not exceed 30 days.

(36)

SAFETY, CARE, AND HANDLING – (Continued)

Open storage (without tarpaulin, shed etc.) will be permitted only during wartime and during firing exercises. Before storing rounds in open storage during peacetime, authorization must be first obtained from Commander, USA AMCOM, ATTN SFAE-MSLS-CWS-AS-J, Bldg 4505, Redstone Arsenal, AL 35898-5000. Open storage must be held to the absolute minimum time (not to exceed 30 days). Open storage in excess of 30 days requires waiver. Request for waiver must be submitted in accordance with AMC-R 385-100 through command channels to Commander, HQ, AMC Safety Office, ATTN AMCSF-X, with a copy provided to SFAE-MSLS-CWS-AS-J.

The Javelin round has been assigned a CIIC of Category 1. Physical security provided to the round must be commensurate with this CIIC. The Javelin round and CLU together are also CIIC Category 1. The round and CLU must never be stored at the same location.

Refer to DA PAM 385-63 and DA PAM 385-64 for general ammunition care, handling, and safety.

Refer to TB 43-0134 for the safe handling of lithium-sulfur dioxide batteries.

Warning And Caution Statements

WARNING and CAUTION statements have been strategically

placed throughout this text prior to operating or maintenance procedures. Conditions considered essential to the protection of personnel are labeled CAUTION. A WARNING or

CAUTION will apply each time the related step is repeated.

Prior to starting any task, the WARNINGs or CAUTIONs included in the text for that task shall be reviewed and understood.

(37)

GENERAL INFORMATION

JAVELIN WEAPON SYSTEM

M98A1 NSN 1430-01-433-8019

EQUIPMENT DESCRIPTION AND DATA

SCOPE

This section shows the location and briefly describes the major components of the Javelin weapon system. Equipment characteristics, capabilities, features, differences between models, equipment data, equipment configuration, safety, care and handling are explained.

EQUIPMENT CHARACTERISTICS, CAPABILITIES, AND FEATURES

The Javelin is a medium range, manportable, recoilless, antitank assault weapon and is capable of defeating current and projected enemy armor, and hovering enemy helicopters. The Javelin can be used during the day, night, or degraded weather conditions, including electronic and electro-optical countermeasures. The Javelin is made up of a one-time expendable round and a Command Launch Unit (CLU). The round consists of a missile environmentally sealed inside a Launch Tube Assembly (LTA). The LTA is also used as the missile launch platform.

The CLU is manportable, reusable, battery operated, and is the gunner's interface with the round. The CLU contains Built-in-Test (BIT) capability. The CLU is issued with a carry bag. The carry bag provides space to carry the CLU, lens cleaning kit, technical manual, and battery.

(38)

EQUIPMENT CHARACTERISTICS, CAPABILITIES, AND FEATURES – (Continued)

(39)

LOCATION AND DESCRIPTION OF MAJOR COMPONENTS

CLU

Figure 2. CLU (Sheet 1 of 2)

Face Shield Absorber - Shields gunner's face from possible

launch debris and helps protect CLU from damage during handling and movement.

Absorbers - Protects the CLU from damage during handling

and movement.

Desiccant Plug - Contains desiccant to reduce humidity

inside of the CLU.

Power Switch - Four-position rotary switch used to select

CLU operational modes.

Seeker Trigger - Initiates seeker mode of operation and

(40)

LOCATION AND DESCRIPTION OF MAJOR COMPONENTS – (Continued)

Left Handgrip Controls - Consists of focus (FOC), sight

select (SGT SEL), and filter (FLTR) switches. Switch functions are described in WP 0004 00.

Figure 2. CLU (Sheet 2 of 2)

Elapsed Time Meter (ETM) - Records the total operating

hours of CLU. Move cover aside to view internally mounted ETM.

Round Interface Bracket - Provides the mechanical

interface with round.

Daysight - Optical system that works similar to a telescope.

Provides a magnified, visible-light image of what the gunner sees.

(41)

DDC – The Detector Dewar Cooler (DDC) provides thermal

imaging for the Night Vision Sight (NVS) operation.

Night Vision Sight - Optical system that converts an infrared

(IR) image into a visible-light target image of what the gunner sees.

Test Connector - Provides electrical interface for Field

Tactical Trainer (FTT) simulator round operation and CLU testing.

Battery Compartment - Provides housing for the battery. Fire Trigger - Used to initiate missile firing sequence.

Right Handgrip Controls - Consists of gate adjust (GATE

ADJ), contrast & brightness (CTRS & BRT), and attack select (ATTK SEL) switches. Switch functions are described in WP 0004 00.

Absorbers – Protect the CLU from damage during handling

and movement.

Round Interface Connector - Provides electrical interface

(42)

Round

Figure 3. Components of the Round

End Caps - The end caps are designed to protect the missile

from damage during transport and handling. There are two end caps on the LTA: the forward and aft end caps. Each has a foam shock absorber to protect the round from impact if it is dropped or otherwise abused. The end caps also provide stability and support when the round is strapped in a vehicle transit rack or placed on the ground.

(43)

Forward End Cap - The forward end cap protects the missile

from moisture, dust, etc. It is not removed unless the missile is to be launched. The forward end cap is removed from the round after the CLU is connected to the round. If the missile is not launched, the forward end cap is reinstalled to prevent missile damage. The forward end cap latch secures forward end cap to round. Locking pin locks forward end cap latch in place and prevents movement. A humidity indicator displays status of relative humidity inside the LTA.

Desiccant - Prevents moisture from gathering in the missile

and causing possible missile malfunctions. (Not Shown - Located in Forward End Cap)

CLU Interface Connector - Provides electrical interface with

the CLU.

Latch Assembly - Provides mechanical interface with the

CLU.

Shoulder Pad - Provides point of balance and support when

round is placed on gunner's shoulder.

Launch Tube Assembly - Serves as a handling container

and launch platform for the missile. Provides environmental and electromagnetic interference (EMI) protection for the missile.

Aft End Cap - The aft end cap is permanently attached to the

LTA. During launch, the center of the cap is designed to be blown out by the blast of the missile launch motor.

Aft End Cap Membrane - Provides environmental protection

for missile. Designed to be blown out by missile launch motor blast during launch.

(44)

Carry Handle - Provides a means to lift and carry the round. Shoulder Strap - Provides a means of carrying the round. Battery Coolant Unit - The Battery Coolant Unit (BCU)

consists of two sections: a battery section and a compressed-gas coolant section. The battery section powers the missile electronics before missile launch. The coolant section cools the missile to its operating temperature before missile launch. There are two configurations of the BCU and they are functionally identical.

DIFFERENCE BETWEEN MODELS

This manual covers round versions, FGM-148A, FGM-148B and FGM-148C.

There are two versions of the shipping and storage container. Both versions are covered in this manual.

ROUND IDENTIFICATION

Round Shipping and Storage Containers, PN 13305300-029, PN 13305300-039 and PN 13303015-009 are identified as indicated in Figure 4.

ROUND SHIPPING AND STORAGE CONTAINER

Container markings include: Storage Temperature Limits, Nomenclature, Contract Number, Serial Number, Part Number, Manufacturer, Material Stock, Center of Gravity, Direction of Flight, Explosive Markings, and United Nations Identification.

(45)

ROUND SHIPPING AND STORAGE CONTAINER – (Continued)

341_0251

RIGHT SIDE VIEW LEFT SIDE VIEW

TOP VIEW

FORWARD VIEW AFT VIEW LEFT SIDE VIEW

RIGHT SIDE VIEW

TOP VIEW

FORWARD VIEW AFT VIEW PN 13305300-029

AND

PN 13305300-039 PN 13303015-009

Figure 4. Shipping and Storage Container

LAUNCH TUBE ASSEMBLY

The Javelin round is marked in accordance with MIL-STD-709C. Javelin rounds are identified with colored bands. Black with yellow banding signifies an armor defeating and high explosive tactical round. A round with a single gold band signifies an inert round.

(46)

EQUIPMENT DATA Weight & Dimensions

CLU Weight 11.44 lb (5.19 kg) Length 19.29 in. (49.00 cm) Height 13.77 in. (35.00 cm) Width 14.96 in. (38.00 cm) Carry Bag 0.60 lb (0.27 kg) Battery 2.22 lb (1.01 kg)

Lens Cleaning Kit 0.05 lb (0.02 kg) Round

Weight 34.16 lb (15.49 kg)

Length 47.60 in. (120.90 cm)

Width 11.75 in. (29.85 cm)

Round Shipping and Storage Container for P/N 13305300-029 and P/N 13305300-039

Weight 40.00 lb (18.14 kg)

Length 59.25 in. (150.50 cm)

Height 15.00 in. (38.10 cm)

Width 15.25 in. (38.74 cm)

Round Shipping and Storage Container for P/N 133003015-009

Weight 54.00 lb (24.49 kg)

Length 55.40 in. (140.72 cm)

Height 18.10 in. (45.97 cm)

Width 15.2 in. (38.6 cm)

CLU Shipping and Storage Container

Weight 29.00 lb (13.15 kg)

Length 27.25 in. (69.22 cm)

Height 16.87 in. (42.85 cm)

(47)

EQUIPMENT DATA – (Continued) Electrical Power Source

CLU Lithium-Sulfur Dioxide

battery, BA-5590/U.

Round BCU containing gas coolant

bottle and thermal battery for ground operations, internal thermal battery for flight

Voltage Required

CLU 24 VDC

Round Various voltages provided

by BCU and internal battery

Fields-of-View CLU: Daysight 4 by 6° (approx.) NVS NFOV 2 by 3° (approx.) NVS WFOV 4 by 6° (approx.) Missile: Seeker 1 by 1° Magnification Daysight 4X NVS WFOV 4.2X NVS NFOV 9.2X Seeker 9X

(48)

EQUIPMENT DATA – (Continued) Battery Operating Time

CLU:

Power Conv Cambe Inc.

Above 120˚F (49˚C) 0.5 hr Below 120˚F (49˚C) 4.0 hr Saft America Inc.

Above 120˚F (49˚C) 0.5 hr At 50˚F (10˚C) to 120˚F (49˚C) 3.0 hr Below 50˚F (10˚C) to -20˚F (-29˚C) 1.0 hr Round: BCU 4.0 min

Missile Effective Range

Top Attack Mode Minimum – 150 m (492 ft) Maximum – 2000 m (6562 ft) Direct Attack Mode Minimum – 65 m (213 ft)

Maximum – 2000 m (6562 ft)

EQUIPMENT CONFIGURATION

There are three configurations of the Javelin: the M98, the M98A1, and the M98A2. This manual covers CLU M98A1. For information about CLU M98. For information about the CLU M98A2, refer to TM 9-1425-1687-10.

PREPARATION FOR AIR DROP

Refer to FM 10-552 for instructions on How to Prepare a Javelin for Air Drop.

(49)

GENERAL INFORMATION

JAVELIN WEAPON SYSTEM

M98A1 NSN 1430-01-433-8019

THEORY OF OPERATION

SCOPE

Javelin is made up of the CLU and a one-time expendable round. The CLU is manportable, reusable, battery operated, and is the gunner's interface with the round. The CLU provides passive day/night surveillance, target detection, classification and recognition, battlefield damage assessment, CLU status, built-in test (BIT), and missile software storage capabilities. When a round is connected, the CLU provides missile status indication, missile software download, and launch capabilities.

CLU OPERATION

The CLU has four modes of operation: OFF, DAY, NIGHT, and TEST. The operational modes are controlled by the power switch.

(50)

CLU OPERATION – (Continued)

The CLU may not power up properly the first time it is turned on. Instead of performing normally, the CLU indicators will flash. This behavior occurs when the CLU battery is not able to generate the voltage needed. Leaving the power switch in

DAY position for about a minute, then cycling power will

condition the battery to supply power to the CLU. The power may have to be cycled on and off several times before the battery is warm enough to begin normal operation.

Off Mode. Power switch is in the OFF position. In this mode,

no power is applied to the CLU. The daysight can be used for surveillance, target detection, and recognition. The NVS cannot be used and the gunner has no missile launch capability.

Day Mode. Power switch is in the DAY position. In this mode,

power is applied to the CLU. The day FOV can be used to acquire a target. The gunner has full missile launch capability.

Night Mode. Power switch is in the NIGHT position. In this

mode, NVS cooldown is initiated. NVS cooldown time is approximately 2.5 minutes. The gunner has full missile launch capability.

Test Mode. Power switch is placed in the TEST position,

then released. BIT can only be performed when a round is not attached to the CLU. When a round is attached, the TEST position is ignored. Results of BIT are displayed on the CLU display within about 20 seconds of initiation. If a failure is detected during BIT, the CLU BIT FAILURE 7 indicator will light.

(51)

JAVELIN OPTICAL SYSTEMS AND FIELDS OF VIEW

Javelin is equipped with three optical systems; two in the CLU (daysight and NVS) and one in the round (seeker). An optical system is a series of optical elements (lenses, mirrors, filters, etc.) that gather light at the system’s input and develop an image at its output. In this case, the output is to the gunner. The area of a scene that can be viewed at one time through an optical system is the FOV.

An optical system’s FOV is related to the system’s magnification. The wider the FOV’s coverage, the less magnification it has. The narrower the FOV's area of coverage, the greater magnification it has. Javelin has four FOVs. They include: day FOV, WFOV, NFOV, and seeker FOV. The daysight provides the day FOV. The Night Vision Sight provides WFOV and NFOV. The seeker, found in the missile, provides seeker FOV.

Daysight. The daysight is like a telescope. It provides day

FOV for the gunner. Day FOV is used when visibility is good. It is also used to engage a target when the gunner cannot wait the 2.5 minutes required for the NVS to cool down.

(52)

JAVELIN OPTICAL SYSTEMS AND FIELDS OF VIEW – (Continued)

Night Vision Sight. The NVS is an imaging infrared (IR)

system. It converts an infrared target into a visible target image. This allows the gunner to see during daytime and conditions of limited visibility. The NVS has two fields of view: WFOV and NFOV.

Wide Field of View. The WFOV provides the gunner with a

4x magnification of the target scene. With an area of coverage approximately 6° x 4°, WFOV covers a large or wide area compared to NFOV. This allows the gunner to scan a large general area to detect potential targets. However, the gunner will not be able to distinguish target detail. As a result, WFOV is used for surveillance and target detection.

(53)

Narrow Field Of View. The NFOV provides an infrared

image with 9x magnification of the target scene. With an area of coverage approximately 3° x 2°, NFOV covers a smaller, or narrower, area of the scene than WFOV. The gunner would have to move the CLU back-and-forth and up-and-down in NFOV to cover the same area as WFOV. The gunner only uses NFOV after locating a potential target. This lets the gunner see a potential target’s details more clearly so the gunner can determine whether or not it’s a target. Therefore, NFOV is used primarily to classify and recognize a target, but it can be used for battle assessment also.

(54)

Seeker Field Of View. The seeker FOV provides an infrared

image as seen through the missile with 9x magnification of the target scene. Images in seeker FOV are not as detailed due to the limitations of the optics of the seeker. This FOV is used to lock on to a target and engage it.

(55)

SEEKER OPERATION

Seeker Activation. The CLU must be attached to a round

before the seeker can be activated. Squeezing the seeker trigger when in DAY mode of NVS mode can activate the seeker. Once the gunner squeezes the seeker trigger, it initializes software download from the CLU to the missile. The seeker begins to cool down and the missile powers up, the 1 and < indicators will light up on the CLU display until the seeker is ready for use (10-15 seconds). The CLU display will change from either ., /, or 0 to 1. Track gates will appear and flash, the < indicator will go out and the 2 attack indicator will come on.

601127A 601127A AFTER SEEKER TRIGGER PULL 10-15 SECONDS AFTER SEEKER TRIGGER PULL 124_0463 Figure 6. Seeker Activation

(56)

SEEKER OPERATION – (Continued)

Track Gate Adjustments. The gunner uses track gates to

lock the seeker onto the target. Track gates are adjusted using the GATE ADJ/CTRS & BRT switch. Track gate adjustments can only be done after seeker activation and prior to lock-on.

(57)

SEEKER OPERATION – (Continued)

Seeker Lock-On. After the track gates are adjusted around

the target, the gunner squeezes and holds the seeker trigger. Two things happen to indicate lock-on has occurred. The track gates stop flashing and solid crosshairs appear on the CLU display.

(58)

MISSILE OPERATION

Missile Attack Modes. The Javelin can kill a target at two

thousand meters. In addition, the missile has two gunner-selectable attack modes (top or direct). Each mode has its own peculiar flight path or "profile" for reaching the target.

Top Attack Mode. In top attack, the missile comes from

above the target to impact and detonate on top of the target. This capability allows you to attack a vehicle from the front, the rear or a flank position. Generally, armored vehicles have less protective armor on top. By striking the top of the vehicle, the missile penetrates the vehicle and still has enough explosive force remaining to do extensive damage inside the target vehicle. This mode greatly increases the probability of a kill.

Top attack is the default missile mode when the seeker is first activated. The exact profile of the missile during flight depends on range to the target and is determined automatically by the missile on-board software.

If the target is under a protective structure, using top attack may cause the missile to impact and detonate on the structure instead of the target. To avoid this, the missile can be programmed for direct attack.

(59)

MISSILE OPERATION – (Continued)

Direct Attack Mode. In the direct attack mode, the missile

impacts and detonates on the side of the vehicle. The direct attack mode flight allows the missile to reach a target that is under a protective structure at a maximum range of 2000 meters. To do this, the missile flies a more direct route from the gunner to the target vehicle. Direct attack can be selected only after the seeker is activated when the gunner pushes the ATTK SEL switch on the right handgrip. As in top attack, the exact profile of the missile flight path depends on the range to the target.

(60)

(61)

CHAPTER 2 OPERATOR INSTRUCTIONS

FOR

(62)

(63)

OPERATOR INSTRUCTIONS

JAVELIN WEAPON SYSTEM

M98A1 NSN 1430-01-433-8019

DESCRIPTION AND USE OF OPERATOR

CONTROLS AND INDICATORS

INTRODUCTION

The controls and indicators used to operate the Javelin Command Launch Unit (CLU) and round are described and shown in this work package. Controls are switches and buttons used to perform various functions, with some having dual-purpose use. Indicators identify Javelin operational modes, conditions, and functions. Study the illustrations and descriptions of the controls and indicators before you attempt to operate the Javelin.

(64)

COMMAND LAUNCH UNIT Control Function

Figure 1. Diopter Adjust Ring

Diopter Adjust Ring

The diopter adjust ring is located on the CLU eyepiece. It is a hand rotated ring that the gunner uses to adjust the focus of the CLU display image. The adjustment compensates for individual differences in vision.

(65)

CLU – (Continued)

Control Function

Power Four-position rotary switch.

Switch Controls CLU operation.

Figure 2. CLU Power Switch

OFF position. No power is applied to CLU. Daysight can be used for surveillance and target detection. The Night Vision Sight (NVS) is not operational and gunner has no missile launch capability.

DAY position. When the power

switch is in the DAY position, the Javelin is in the day mode. In the day mode, power is applied to the CLU. The gunner has use of the day field of view (FOV) but has no NVS. The gunner also has full missile capability. (The gunner can activate the seeker, lock the missile onto a target, and launch the missile).

(66)

Control Function Power

Switch (Continued)

NIGHT position. When the power switch is in

the NIGHT position, the Javelin is in the night mode. This mode gives the gunner full Javelin capability. Once the NVS is cool enough (approximately 2.5 to 3.5 minutes, dependent on the temperature), the gunner can select either the NVS wide field of view (WFOV), the narrow field of view (NFOV), or the day FOV. Again, the gunner has full missile capability. (The gunner can activate the seeker, lock the missile onto a target, and launch the missile).

TEST position. Spring-loaded position that

returns to NIGHT position after being selected and released. Initiates CLU built-in-test (BIT) when round is not attached.

(67)

Control Function Right Handgrip

124_0487

Figure 3. Right Handgrip

GATE ADJ CTRS & BRT

Spring-loaded, self-centering thumb switch. Moves up, down, left, and right. Switch functions differently during NVS and seeker operations.

NVS Operation. - Adjusts contrast and

brightness of CLU display image. Brightness is adjusted by moving switch vertically (up increases brightness /down decreases brightness). Contrast is adjusted by moving switch horizontally (left decreases contrast/right increases contrast).

Seeker Operation - Adjusts size of track

gates. Up moves track gates apart vertically and down moves track gates together vertically. Left moves track gates in horizontally and right moves track gates out horizontally

(68)

Control Function Right Handgrip

- (Continued)

ATTK SEL Allows gunner to select which missile flight profile (top attack or direct attack) to use for target engagement. Switch is only active after seeker activation and cool down. Top attack is the default mode. Direct attack mode can be selected by pressing ATTK SEL switch. The mode selected will be indicated by the appropriate indicator lighting on CLU display. Switch is deactivated after seeker lock-on is commanded.

Fire Trigger Sends fire signal to missile. Fire trigger

(69)

Control Function Left Handgrip

124_0486

Figure 4. Left Handgrip

SGT SEL Selects FOV viewed on CLU display. Appropriate indicator (., /, 0) lights when SGT SEL switch is pressed. Switch is only active after NVS cool down and the power switch is in the NIGHT position. Pressing SGT SEL switch allows gunner to cycle through day ., /, and 0. After seeker activation, gunner can switch back to last FOV before seeker activation by pressing SGT

(70)

– (Continued)

FOCUS Spring-loaded, self-centering thumb switch. Adjusts focus of NVS (WFOV or NFOV). Not operational in day or seeker FOVs. Moves up or down.

Up. - Focus at a longer range. Down. - Focus at a closer range.

FLTR Selects NVS filter. The filter is used as field counter-counter measure.

Trigger Guard

Prevents seeker from accidental activation. Lift up to access seeker trigger.

Seeker

Trigger Activates seeker, locks seeker onto a target, and enables fire trigger. Initial squeeze, (3-5 seconds) and release action activates Battery Coolant Unit (BCU), initiates seeker cool down, missile power up, and software download to missile.

When seeker trigger is squeezed a second time and held, seeker lock-on is initiated. When seeker lock-on is achieved, fire trigger is enabled. Releasing seeker trigger after lock-on and prior to pressing fire trigger to launch missile will cause a loss of lock-on.

(71)

- (Continued) Seeker

Trigger Activates seeker, locks seeker onto a target, and enables fire trigger. Initial squeeze, (3-5 seconds) and release action activates Battery Coolant Unit (BCU), initiates seeker cool down, missile power up, and software download to missile.

When seeker trigger is squeezed a second time and held, seeker lock-on is initiated. When seeker lock-on is achieved, fire trigger is enabled. Releasing seeker trigger after lock-on and prior to pressing fire trigger to launch missile will cause a loss of lock-on.

(72)

CLU INDICATORS

Indicator Function

Figure 5. Elapsed Time Meter and Desiccant Plug

Elapsed

Time Meter Records elapsed time of CLU operation. Desiccant

(73)

CLU DISPLAY INDICATORS

Status Indicators. The status indicators surround the CLU

display images, whether they are from the daysight (.), from the NVS (/ or 0), or from the seeker in the missile (1). The gunner can observe the status indicators by looking into the eyepiece. They identify Javelin operational modes, conditions, and malfunctions. There are fourteen indicators, each coded in one of three colors: green, amber, or red. All the status indicators are never lit at the same time during normal operation. However, a few may be lit simultaneously.

(74)

CLU DISPLAY INDICATORS

Green Status Indicators. Seven of the fourteen status

indicators are green. Green signifies that the monitored function is in a satisfactory condition and that it is all right to proceed with normal operations.

Figure 7. Green Status Indicators

.

The DAY indicator is located at the top of the CLU display and at the far left. It lights when the day FOV is selected when the power switch is either in the Day or Night mode.

/

The WFOV indicator is located at the top of the CLU display and to the left of center. Solid ON indicates the CLU is in WFOV. When it flashes, it indicates the NVS has reached a focus limit.

(75)

CLU DISPLAY INDICATORS – (Continued) Indicator Function

0

The NFOV indicator is located at the top of the CLU display and to the right of center. When it is steadily lit, it indicates that the CLU is in NFOV. When it flashes, it indicates that a focus limit has been reached.

1

The SEEK indicator is located at the top of the CLU display at the far right. It lights within 3 seconds after gunner pulls the seeker trigger. When the SEEK indicator lights, the gunner releases the seeker trigger. The gunner sees 1 approximately 10 seconds later.

(76)

CLU DISPLAY INDICATORS Indicator Function

Figure 8. CLU Display Indicators

2

The TOP indicator is located in the right side of the CLU display at the top. It lights when the missile is in the top attack mode. This is the default mode.

3

The DIR indicator is located in the right side of the CLU display in the center. It lights when the missile is in the direct attack mode.

4

The FLTR indicator is located on the right side of the CLU display at the bottom. It lights when the filter is selected.

(77)

CLU DISPLAY INDICATORS – (Continued)

Amber Status Indicators. Two of the status indicators are

amber. Amber is used to advise the gunner that a marginal condition exists. It also alerts the gunner to situations where caution, a recheck, or an unexpected delay is necessary.

Figure 9. Amber Status Indicators

(78)

+

The NVS NOT COOL indicator is located on the left side of the CLU display at the top. It lights when the NVS is selected but the detector dewar cooler (DDC) has not cooled down to its operating temperature. The indicator goes out when the NVS is cooled down to its operating temperature. If the DDC warms up again, this indicator lights.

,

The MISSILE NOT READY indicator is

located at the bottom of the CLU display at the far right. Solid ON indicates the missile flight information is not downloaded from the CLU, missile BIT is not complete, or seeker not cooled.

The MISSILE NOT READY indicator flashes to indicate the missile electronics are close to an overheat condition. Missile will shut down a minimum of 30 seconds after flashing starts.

(79)

CLU DISPLAY INDICATORS – (Continued)

Red Status Indicators. Five of the status indicators are red.

Red has two meanings depending on whether it is flashing or solid. A flashing red indicator is used to warn the gunner of an emergency condition where action must be taken. A solid indicator is used to alert the gunner that the system or any portion of the system is inoperative or that a successful Javelin engagement is not possible until corrective action is taken.

Figure 11. Red Status Indicators

;

The MISSILE BIT FAILURE indicator is located at the bottom of the CLU display and to the right of center. Solid ON indicates the missile BIT has detected a failure within the missile. The MISSILE

BIT FAILURE indicator flashes to indicate

a misfire occurred when the gunner squeezed the fire trigger and the missile did not launch.

(80)

:

The HANGFIRE indicator is located on the bottom of the CLU display and to the left of center. The HANGFIRE indicator flashes to indicate a missile hangfire occurred when the gunner squeezed the fire trigger.

(81)

Figure 12. Battery Coolant Unit (BCU) Low Indicator

9

The BATTERY COOLANT UNIT LOW

indicator is located at the bottom of the CLU display at the far left. During system operation, after seeker activation, the 0 indicator will flash to indicate the BCU has approximately 30 seconds (or more, depending on the ambient temperature) of operating time remaining. When it lights solid, the BCU is spent, the CLU reverts to the last CLU FOV, all missile functions stop, and the missile cannot be launched.

(82)

8

The CLU BATTERY LOW indicator is

located on the left side of the display at the bottom. The indicator flashes to indicate the CLU battery is low and has approximately 2 to 5 minutes of operating time remaining. When the CLU battery power is too low to operate the CLU, the CLU display automatically reverts to day FOV (. does not illuminate), the CLU BATTERY LOW indicator goes solid and the 7 illuminates. The missile cannot be launched until the CLU battery is replaced.

(83)

Figure 13. CLU BIT FAILURE Indicator

7

The CLU BIT FAILURE indicator is located on the left side of the CLU display in the center. The CLU BIT FAILURE lights to indicate the CLU has failed its BIT.

(84)

ROUND CONTROLS

Control Function

Figure 14. Round Controls

BCU Latch Releases BCU from round when pulled upward (BCU P/N 13303250) or when pressed down (BCU P/N 13303844). Secures BCU to round when BCU is properly mounted.

Forward End

Cap Latch Secures forward end cap to round. After locking pin is removed, forward end cap latch is rotated counterclockwise to release forward end cap.

Latch

Release Secures CLU to round when CLU is properly mounted. Releases CLU from round when pressed

(85)

ROUND CONTROLS – (Continued) Control Function

Figure 15. Manual Release Button

Manual Release Button

Equalizes pressure between the outside atmospheric pressure and the air space between the seeker dome and the forward end cap when pushed. (May make a hissing sound when pressed while equalizing pressure.).

(86)

ROUND CONTROLS – (Continued) Indicator Function

Figure 16. BCU Status Indicator

BCU Status

Indicator Displays status of BCU. Indicator changes from a white spot to a dark spot to indicate when BCU is

(87)

ROUND CONTROLS – (Continued) Indicator Function

Figure 17. Humidity Indicator

Humidity Indicator Located on the forward end cap.

Monitors humidity of round during long-term storage. It does not delong-termine serviceability of the round.

(88)

(89)

OPERATOR INSTRUCTIONS

JAVELIN WEAPON SYSTEM

M98A1 NSN 1430-01-433-8019

CARRY TECHNIQUES, FIRING RESTRICTIONS

AND SELECT A FIRING POSITION

SCOPE

This work package contains instructions for operating the Javelin weapon system under usual conditions. Carry techniques, firing restrictions, selecting a firing position, target engageability, engage a target, engage multiple targets, target engagement during limited visibility conditions, malfunction procedures, and troubleshooting are explained. The tasks are organized to make it as easy as possible for you to complete what is required. Review this work package, WP 0007 00 and WP 0010 00 to make sure that you are familiar with the procedures for each task before attempting to perform a task.

Refer to WP 0006 00 for unpacking instructions for the Javelin Command Launch Unit (CLU). Refer to WP 0006 00 for preparation for issue and use of the round.

CARRY TECHNIQUES

There are three recommended carry techniques that the soldier can use to transport the CLU and round: short distance, long distance, and tactical.

Marine Corps Personnel may use the missile carry bag (not

shown) in the same position as the Launch Tube Assembly (LTA) in the Short Distance and Long Distance Carry.

(90)

0005 00 TM 9-1425-688-10 CARRY TECHNIQUES – (Continued)

CAUTION

Damage to CLU and round could occur if shoulder strap comes free from strap mounts. To prevent damage to CLU and round, ensure that shoulder strap is properly routed through buckles. Check routing of shoulder strap through buckle. If necessary, redo as shown.

Figure 1. Shoulder Strap Buckle Routing

Short Distance Carry. In the short distance carry technique,

the round can be carried in one of two ways:

1. The round may be carried on the gunner’s right side with the shoulder strap over the right shoulder. The round is parallel to the ground, waist high with the forward end cap pointed in the direction of movement. The right hand may be placed on the shoulder strap to help keep the strap on the shoulder.

(91)

CARRY TECHNIQUES – (Continued)

2. The round may be carried on the gunner’s right side with the shoulder strap over the right shoulder. The forward end cap is pointed down with the round behind the right shoulder, parallel to the gunner’s body. The gunner’s right hand may be placed on the shoulder strap to help keep the strap on his shoulder.

124_0412

120_0413 124_0413

(92)

0005 00 TM 9-1425-688-10 CARRY TECHNIQUES – (Continued)

Long Distance Carry. The long distance carry technique is

used when contact is not likely and the Javelin is not required for immediate use.

124_0432 Figure 3. Long Distance Carry Technique

(93)

CARRY TECHNIQUES – (Continued)

Tactical Carry. The tactical carry technique is used when

moving between firing locations and enemy contact is likely.

(94)

0005 00 TM 9-1425-688-10 FIRING RESTRICTIONS

WARNING

• Flying debris can cause serious injury. Should injury occur get medical help at once.

• Don't launch the missile where obstructions such as trees, bushes, windows, doors, and/or overhangs would obstruct the missile's flight path. • Do not fire the javelin over heads of friendly troops
