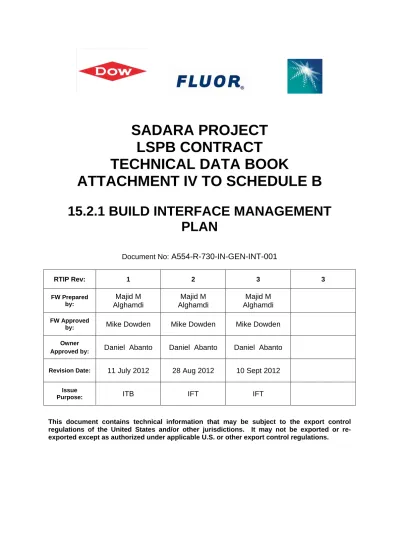

SADARA PROJECT

LSPB CONTRACT

TECHNICAL DATA BOOK

ATTACHMENT IV TO SCHEDULE B

15.2.1 BUILD INTERFACE MANAGEMENT

PLAN

Document No: A554-R-730-IN-GEN-INT-001

RTIP Rev: 1 2 3 3 FW Prepared by: Majid M Alghamdi Majid M Alghamdi Majid M Alghamdi FW Approved

by: Mike Dowden Mike Dowden Mike Dowden Owner

Approved by: Daniel Abanto Daniel Abanto Daniel Abanto

Revision Date: 11 July 2012 28 Aug 2012 10 Sept 2012

Issue

Purpose: ITB IFT IFT

This document contains technical information that may be subject to the export control regulations of the United States and/or other jurisdictions. It may not be exported or re-exported except as authorized under applicable U.S. or other export control regulations.

(2)

SUMMARY OF DOCUMENT REVISIONS Rev. No. Date Revised Section

Revised Revision Description

1 3 July-12 Issued for Client Review

2 28 Aug-12 Attachment 2 Interface Dependency Table Update 3 10-Sept-12 Attachment 2 Interface Dependency Table Update

(3)

TABLE OF CONTENTS Section Topic 1.0 PURPOSE ... 4 2.0 SCOPE ... 4 3.0 DEFINITIONS ... 4 4.0 RESPONSIBILITIES ... 5 4.1 INTERFACE PARTIES ... 6 4.2 CONTRACTOR F ... 6 4.3 CONTRACTOR O ... 7

4.4 PROGRAM INTERFACE MANAGEMENT TEAM (PIMT) ... 8

5.0 INTERFACE TYPES ... 8

5.1 EXTERNAL INTERFACE ... 8

5.2 INTERNAL INTERFACE ... 9

6.0 INTERFACE NUMBERING ... 9

7.0 COMMUNICATION ... 10

7.1 INTERFACE QUERIES (IQS) ... 11

7.2 IQ NUMBERING ... 11

7.3 TRANSMISSION OF DOCUMENTATION ... 11

8.0 INTERFACE GUIDELINES ... 11

8.1 PIPING ... 12

8.1.1 ABOVE GROUND PIPING INTERFACES ... 12

8.1.2 UNDERGROUND PIPING INTERFACES ... 12

8.2 CIVIL INTERFACES ... 13

8.2.1 ROAD INTERFACE ... 13

8.2.2 PAVING INTERFACES ... 14

8.2.3 DITCH INTERFACES ... 14

8.2.4 TELECOMMUNICATION CONCRETE ENCASED DUCT BANKS ... 15

8.3 TELECOMMUNICATIONS ... 16

8.4 ELECTRICAL ... 16

ATTACHMENT 1 – IQ GUIDELINES ... 17

(4)

(5)

1.0 PURPOSE

This document defines how interfaces are to be managed by the Packages Contractors. It defines the role and responsibilities of each interface Party. It does not define the engineering requirements of each interface.

This document is intended to:

• Ensure all interfaces are identified

• Define clear responsibilities for each Party • Ensure there are no interface gaps or overlaps

• Define the physical method of making the interface (flange, junction box, etc) • Ensure schedule compatibility, relating to interfaces

2.0 SCOPE

This document defines the requirements for the management of interfaces during construction phase

The physical interface definition includes the following connections: • Piping (above and underground)

• Civil (roads, paving, ditches, ducts) • IT/Telecoms

• Electric power cable and Control Cable 3.0 DEFINITIONS Title Definition BL Battery limit Contractor “Package A, B, C, Or D Contractor”

The SDL Building Project is divided into four Packages, A, B,C and D. Each Package will be constructed by a Package contractor

Package contractor The Contractor responsible for Construction of a Package. Finalization

Contractor “Contractor F”

Contractor F effectively will accept the works of Contractor O and will complete the Interface Point works. Contractor F will maintain responsibility for the Interface Point until construction turnover.

Originator

Contractor “ Contractor O”

Contractor O is the Contractor who initiates the works at an IP. Contractor O will provide Contractor F the required support to allow Contractor F to complete the works at subject interface point.

(6)

3rd Party contractor Contractors nominated for works outside of the building battery limit or not included in Contractor A,B,C& D scope of work

ICF Interconnecting Facilities Contractor ITC Information Technology Contractor

EW Early Work Contractor

IDT Interface Dependency Table

External Interface External Interface is an interface between any Package Contractor and a third party contractor e.g. between Package C Contractor and ICF Contractor

Internal Interface An Internal Interface is an interface between any two Package Contractors

IP Interface Point

IQ Interface Query

ISBL Inside Battery Limit. A category of work scope for facilities inside a process Unit BL

OSBL Outside Battery Limits. Outside the Process Unit BL but within the Site boundary

PMT Project Management Team

SPOC Single Point of Contact

4.0 RESPONSIBILITIES

This section outlines the respective responsibilities of the Project Management Team and the Packages Contractors.

Package Contractors are wholly responsible for the completion of all Interface Points within the parameters of the contract price. Package Contractor shall be responsible to communicate with any other Package Contractor as required to complete all works relating to the Interface Points. Package Contractor shall also be responsible for all documentation and communication with the PMT.

The following is the general frame of responsibilities

I. PMT will: Oversee the interface process and nominate contractor (F) Finalization Contractor or (O) Originator Contractor in each IP.

II. It is the responsibility of a Package Contractors to coordinate with the other Package Contractors to establish schedule of activities at each Interface Point (IP). Agreeing to the sequence of activities, and finalizing the proper sign off and required testing for each (IP) based

(7)

on the role they will be assigned to as an Originator contractor Or Finalization contractor.

III. Contractor O will be the first contractor to install their works in a condition that Contractor F will be able to complete the IP per the Contract Documents.

IV. Contractor F prior to starting any works at an IP shall confirm Contractor O installation is acceptable to complete the IP per the terms of the contract documents. This is to include layout and elevations and general soundness of the installation.

V. Contractor O shall facilitate Contractor F as required to complete the IP, providing required access or traffic control, etc. etc.

VI. Upon completion of any irregularities and acceptance of Contractor O IP works, Contractor F shall complete the IP per the requirements of the contract documents.

VII. Contractor F shall be responsible for future protection of the IP and all snag list works associated with the said IP.

VIII. It is the responsibility of the parties involved to ensure that the appropriate Non-Disclosure Agreements are in place where the exchange of information and / or drawings & documents as specified in this document.

4.1

Interface Parties

There are four parties involved in the management of interface points: • Finalization Contractor “ Contractor F”

• Originator Contractor “ Contractor O” • 3rd_{party Contractor}

• Project Management Team

For each IP, Contractor F and Contractor O will be identified by the PMT.

4.2

Contractor F Contractor F shall:

1. Be the contractor that finalizes the works at an IP

2. Participate in the creation and maintenance of the IDT Interface Dependency Table

3. Participate in all requested IP coordination meetings

4. Mutually agree with Contractor O that the IP and associated data is correct, consistent and complete.

(8)

6. Populate interfaces completion dates in the Interface Dependency Schedule (See Attachment 2) and update regularly to manage and monitor the timing of completion of interface points and gates. Copy to be provided to PMT. 7. Reach agreement on interfaces with other Contractors in a timely manner to

support the overall Project schedule.

8. Identify and agree with Contractor O the inspections, tests and construction and pre-commissioning records that are required to be performed and/or maintained by itself and Contractor O. This applies to situations where both Contractors have an overlap of activities at the interface such as the joint hydrotest of both sides of an interface point at the same time. Otherwise the Contractors shall each be responsible for their 'side' of the interface.

9. Identify and agree with Contractor O any inspections, tests, drying and any other requirements to be witnessed by itself and Contractor O.

10. Prior to starting any interface works, confirm the acceptability of the in-place works instated by Contractor O. This confirmation shall include the overall acceptability of the in place IP works, including: layout, alignment elevation and the integrity of the elements being attached to or abutted. If any unacceptable conditions are identified then an equitable resolution shall be sought with Contractor O and the PMT. If Contractor F connects to an IP without identifying any deficiencies then Contractors O IP works will be considered as accepted without exception. This will not include any “latent or impossible to identify” problems. The PMT will act as arbitrator as required. 11. Upon acceptance of Contractor O works at IP Contractor F shall complete the

IP works and provide protection until final turnover of the works. 12. Complete all Snag list works associated with the IP

13. Be fully responsible for the procurement and construction of the part of system within its own area.

14. Identify IPs that are no longer relevant, and communicate such to Contractor O and the PMT in a timely manner. .

4.3

Contractor O Contractor O shall:

1. Be the contractor that starts the works at an IP

2. Participate in the creation and maintenance of the IDT Interface Dependency Table

3. Participate in all requested IP coordination meetings

4. Mutually agree with Contractor F that the IP and associated data is correct, consistent and complete.

5. Provide all necessary input and support to the PMT

6. Populate interfaces completion dates in Interface Dependency Schedule (See Attachment 2) and update regularly to manage and monitor the timing of completion of interface points and gates. Copy to be provided to PMT. 7. Reach agreement on interfaces with other Contractors in a timely manner to

support the overall Project schedule.

8. Identify and agree with Contractor F the inspections, tests and construction and pre-commissioning records that are required to be performed and/or maintained by itself and Contractor F. This applies to situations where both Contractors have an overlap of activities at the interface such as the joint

(9)

hydrotest of both sides of an interface point at the same time. Otherwise the Contractors shall each be responsible for their 'side' of the interface.

9. Identify and agree with Contractor F any inspections, tests, drying and any other requirements to be witnessed by itself and Contractor O.

10. Complete the first stage of the works relating to subject IP per the documented agreements made with Contractor F.

11. Facilitate all requested inspections of the IP with Contractor F and or the PMT to confirm installation is installed per the contract requirements, position and elevation. Any and all unacceptable conditions shall be rectified promptly to prevent any schedule disruption of Contractor F and the overall program schedule.

12. Provide all required interface assistance including access, traffic control and any other reasonable or required assistance to allow Contractor F complete the IP.

13. Identify IPs that are no longer relevant, and communicate such to Contractor F in a timely manner. Also communicate to PMT.

14. Be fully responsible for the procurement and construction of the part of a System within its own area.

4.4

Project Management Team (PMT) will:

1. Develop, communicate and maintain the Interface Management Plan and associated guidelines for:

• Identifying and defining interface points

• Assigning responsibilities of parties at each IP

• Data required to define each interface point construction phase 2. Provide Final resolution of any queries at interface points

5.0 INTERFACE TYPES

5.1

External Interface

External Interface specifically refers to 3rd parties outside of the contractors nominated for the building envelope.

(10)

5.2

Internal Interface

Internal Interface is an interface between Package Contractors nominated for the Building scope.

6.0 INTERFACE NUMBERING

The IP number will be assigned as follow

IP-d-w/u-nnnn Where:

Internal Interface Point Unit 1

Unit 2

Unit 3

Envelope

Internal Interface Point Package A

Package C

Package B

Unit

External Interface Point Unit 1

Unit 2

Unit 3

Envelope

External Interface Point Package A

Package C

Package B

(11)

d Discipline code, see below w/u Package Contractors Code

The first number shown (w) is Contractor O and the second number (u) is Contractor F.

nnnn Serial number (a unique number will be assigned for each discipline)

Discipline codes:

CAE Cable Tray - Electrical CAT Cable Tray – IT

CBE Cable Trench – Electrical CBT Cable Trench/Duct Bank - IT CC Civil Open Ditch

CF Civil Fence Crossing CR Civil Road CRT Road Crossing - IT E Electrical Cable F Firewater P Piping S Structural T Telecommunications Cable

TS Miscellaneous IT (Supplementary Interface Table) U Underground Piping (gravity flow only)

The following is the specific Package Contractors Codes, which will be used to provide clarity.

A Package A Contractor B Package B Contractor C Package C Contractor D Package D Contractor

For example: “IP-P-A/B-000004” would be a piping IP between the Package A Contractor and Package B Contractor.

(12)

7.0 COMMUNICATION

Packages Contractors shall communicate directly with each other to agree definition and completion of interfaces. PMT will maintain, the master SPOCs List which will include the names and contact details of the interface coordinators (Single Points of Contact) for all parties.

Communication may take place in a combination of the following formats: • Interface Queries (IQs)

• Transmission of documentation

• Meetings (with decisions subsequently recorded by IQs using MOM as a proof of agreements)

• Emails

Each Package Contractor shall appoint a SPOC to efficiently manage such communications. Each Package Contractor shall maintain a log of all IQs sent/received. IQs raised by any Contractor shall be addressed to the other Party’s Contractor SPOC’ and shall also be copied to the ‘PMT SPOC – additional people may be copied but all IQs must be sent only ‘To’ the Package Contractor SPOC’

7.1

Interface Queries (IQs)

Interface Queries (IQs) may be raised by any Party to make a query, provide or request information or to confirm an agreement, using the form in Attachment P,

Contractors shall communicate directly with all other Contractors having an interest in the interface. All formal agreements and requests shall be recorded in an IQ.

7.2

IQ Numbering

IQs shall be numbered in the form:

IQ-x-y-nnnn Where:

x Querying Party code y Responding Party code

nnnn Serial number (assigned by the querying Party)

The Party codes are included within the ‘SPOCs List’ which is maintained by PMT and regularly issued to all parties. The ‘SPOCs List’ also identifies which units are associated with each Party. For example, the second IQ from Package B Contractor to Package C contractor would be numbered IQ-B-C-002.

(13)

7.3

Transmission of Documentation

A record shall be kept of all documentation (documents and drawings) transmitted between Contractors and IQs shall be used for the transmittal.

8.0 INTERFACE GUIDELINES

The following defines the split of responsibilities between Contractors during construction at IPs and provides guidance on how to implement interfaces for different situations that may arise. The engineering requirements are defined in the relevant Program documents and drawings. The list of IPs are listed in Attachment 2

The following is general guidance

• For external interfaces between a Package and a 3rd_{Party contractor, then}

the Package Contractor will be Contractor F.

• For internal interfaces between Packages, then Contractor F will be assigned by the Project Management Team.

8.1

Piping

8.1.1 Above Ground Piping Interfaces 8.1.1.1 General

1. The default position shall be that Contractor F shall provide the required isolation, based on the service, at the IP for commissioning and operating purposes. This isolation could be blind flanges, figure 8 blinds, valves or other means. Contractor F shall provide any final spacers, gaskets and bolts required for the final closure of the IP.

2. Contractor F and Contractor O shall each provide their own test gaskets, blind flanges and bolts to allow testing of the piping within their respective scope. 3. After completion of flushing, testing, etc by each Contractor of his own

section of piping, Contractor F, after agreement with the other Contractor, remove the blind, install the spacer, and bolt up the flanges to complete the joint.

4. Each Contractor shall be responsible for the design and installation of insulation up to the Interface Point with Contractor F responsible for final closure of the joint.

CONTRACTOR F CONTRACTOR O

(14)

8.1.2 Underground Piping Interfaces 8.1.2.1 Firewater

1. Contractor O shall provide fire mains and appurtenances along the main roads for the overall firemain outside Buildings area and provide spurs off the ring main at the indicated on the drawings

2. The IP, which consists of a valve supplied by Contractor O will be installed in a valve box constructed by Contractor O. Contractor F will be responsible for grouting and sealing the valve box where his pipe protrudes.

3. Contractor O shall install and test the fire main up to the IP.

4. Contractor F shall install and test his fire main up to the isolation valve. 5. Contractor F shall provide the gaskets, bolts etc to make the final closure. 8.1.2.2 Other services

1. Each contractor shall construct, test, flush, clean, and back fill their piping up to their respective battery limits. Contractor F will then complete the system with a short section of pipe. These final joints will be considered “Golden Joints” followed by service test before backfilling.

8.2

Civil Interfaces 8.2.1 Road Interfaces

1. Contractor O shall lay and compact the pavement materials to an acceptable stable slope beyond the extent of his wearing surface slope.

2. Contractor F shall ensure the soundness of this material prior to laying all subsequent layers.

CONTRACTOR F ANCHOR

ANCHOR TEMPORARY END

PIECES FOR TESTING

FINAL SPOOL, JOINTS & TESTING BY CONTRACTOR O

ANCHOR

ANCHOR TEMPORARY END

PIECES FOR TESTING

FINAL SPOOL, JOINTS & TESTING BY CONTRACTOR F

(15)

It is the responsibility of Contractor F to complete the interface, unless PMT instructed otherwise, recognizing that the edge of the courses, shown above, may have worn during the interim period. They will be responsible for rectification work to the edge.

8.2.2 Paving Interfaces

1. Paving interface shall typically be at the high point of paving.

2. Contractor O shall lay and compact the pavement materials to an acceptable stable slope beyond the extent of his wearing surface slope.

3. Contractor F shall ensure the soundness of this material prior to laying all subsequent layers.

CONTRACTOR O CONTRACTOR ICF

1.0m* 1.0m*

*Dimensions to be confirmed by CONTRACTOR F Asphalt/concrete paving

Base course

Interface

Centreline of Road

Interface

CONTRACTOR F CONTRACTOR ICF

*Dimensions to be confirmed by CONTRACTOR F 1.0m*

1.0m*

Surface wearing course Base course

Sub –base (if required) Sub -grade Interface Interface PLAN PLAN CONTRACTOR F CONTRACTOR F

CONTRACTOR ICF _{CONTRACTOR ICF}

(16)

8.2.3 Ditch Interfaces

1. If the IP is a direct tie-in to the Contractor O ditch, Contractor O will Construct the ditch without provision for Contractor F, who will tie-in in accordance with Project Specifications.

2. If the IP is not a direct tie-in to the Contractor O ditch, Contractor O shall extend the reinforcement to permit continuity by Contractor F. 3. Contractors O & F shall provide initial construction joint with

Water stops.

8.2.4 Telecommunication Concrete Encased Duct Banks

1. The Contractor O ensures the integrity of the conduits to be free from damage. 2. Conduit ends shall be cap and plugged at the interface point to ensure that no

un-desired material will enter into the conduits.

3. The Contractor O shall leave at least 300mm of the conduit, free of concrete for the Contractor F to conveniently place the couplings.

4. Contractor F shall provide and install the couplings to properly connect the conduits. 5. Contractor F shall provide and install the completion of concrete encasement for the

conduit protection.

6. Contractor F shall coordinate with the Contractor O to execute mandrel throughout the length of the involved duct bank

CONTRACTOR F CONTRACTOR O 0.5m * exposed reinforcement Expansion Joint Slope Plan Elevation Section

(17)

8.3

IT/ Telecom Interface

All telecommunication cables inside buildings will be supplied and installed by Package Contractors as per Package Contractor scope, however ITC will terminate the cables at the wall faceplates and at the building interface terminal strip; Package Contractor will supervise terminations within the building.

8.4

Electrical Interface

(18)

ATTACHMENT 1 – INTERFACE QUERY FORM

(19)

(20)

No. Interface Point O F Type IP Status Days

ELECTRICAL

1 IP‐CBE‐B/A‐0001

B

A

Electrical Trench

2 IP‐CBE‐B/A‐0002

B

A

Electrical Trench

3 IP‐CBE‐B/A‐0003

B

A

Electrical Trench

4 IP‐CBE‐B/ICF‐0004

B

ICF

Electrical Trench

5 IP‐CBE‐B/ICF‐0005

B

ICF

Electrical Trench

6 IP‐CBE‐B/ICF‐0006

B

ICF

Electrical Trench

7 IP‐CBE‐B/C‐0007

B

C

Electrical Trench

8 IP‐CBE‐B/C‐0008

B

C

Electrical Trench

9 IP‐CBE‐D/C‐0009

D

C

Electrical Trench

10 IP‐CBE‐B/C‐0010

B

C

Electrical Trench

11 IP‐CBE‐D/A‐0011

D

A

Electrical Trench

12 IP‐CBE‐C/A‐0012

C

A

Electrical Trench

13 IP‐CBE‐D/C‐0013

D

C

Electrical Trench

14 IP‐CBE‐D/C‐0014

D

C

Electrical Trench

15 IP‐CBE‐D/C‐0015

D

C

Electrical Trench

16 IP‐CBE‐C/A‐0016

C

A

Electrical Trench

17 IP‐CBE‐C/A‐0017

C

A

Electrical Trench

18 IP‐CBE‐C/A‐0018

C

A

Electrical Trench

19 IP‐CBE‐C/A‐0019

C

A

Electrical Trench

(21)

Tray

21 IP‐CAE‐A/ICF‐0002

A

ICF

Electrical Cable

Tray

22 IP‐CAE‐A/ICF‐0003

A

ICF

Electrical Cable

Tray

IT

1 IP‐CBT‐ B/A‐0001

B

A

IT Duct Banks

2 IP‐CBT‐ B/A‐0002

B

A

IT Duct Banks

3 IP‐CBT‐ A/ICF‐0003

A

ICF

IT Duct Banks

4 IP‐CBT‐A /ICF‐0004

A

ICF

IT Duct Banks

5 IP‐CBT‐ A/ICF ‐0005

A

ICF

IT Duct Banks

6 IP‐CBT‐B/C‐0006

B

C

IT Duct Banks

7 IP‐CBT‐D/C‐0007

D

C

IT Duct Banks

8 IP‐CBT‐ D/C‐0008

D

C

IT Duct Banks

9 IP‐CBT‐D/C‐0009

D

C

IT Duct Banks

10 IP‐CBT‐ D/C‐0010

D

C

IT Duct Banks

11 IP‐CBT‐ D/C‐0011

D

C

IT Duct Banks

12 IP‐CBT‐B/C‐0012

B

C

IT Duct Banks

13 IP‐CBT‐ B/ICF‐0013

B

ICF

IT Duct Banks

14 IP‐CBT‐ B/A‐0014

C

ICF

IT Duct Banks

15 IP‐CBT‐C/A‐0015

C

A

IT Duct Banks

16 IP‐CBT‐D/A‐0016

D

A

IT Duct Banks

(22)

18 IP‐CBT‐ D/C‐0018

D

C

IT Duct Banks

19 IP‐CBT‐D/C‐0019

D

C

IT Duct Banks

20 IP‐CBT‐ A/C‐0020

A

C

IT Duct Banks

21 IP‐CBT‐ C/ICF‐0021

C

ICF

IT Duct Banks

22 IP‐CBT‐D/A‐0022

D

A

IT Duct Banks

23 IP‐CBT‐ B/C‐0023

B

D

IT Duct Banks

24 IP‐CBT‐ B/D‐0024

B

D

IT Duct Banks

25 IP‐CBT‐D/C‐0025

D

C

IT Duct Banks

26 IP‐CBT‐B/ICF‐0026

B

ICF

IT Duct Banks

27 IP‐CBT‐B/ITC‐0027

B

ITC

IT Duct Banks

28 IP‐CBT‐B/ITC‐0028

C

ITC

IT Duct Banks

29 IP‐CBT‐B/ITC‐0029

B

ITC

IT Duct Banks

30 IP‐CBT‐B/ICF‐0030

B

ICF

IT Duct Banks

31 IP‐CBT‐/‐0031

Intentionally

Not Used

32 IP‐CBT‐D/A‐0032

D

A

IT Duct Banks

33 IP‐CBT‐ C/EW‐0033

C

EW

IT Duct Banks

34 IP‐CBT‐ C/EW‐0034

C

EW

IT Duct Banks

35 IP‐CBT‐ D/EW‐0035

D

EW

IT Duct Banks

36 IP‐CBT‐ D/EW‐0036

D

EW

IT Duct Banks

37 IP‐CBT‐ D/EW‐0037

D

EW

IT Duct Banks

38 IP‐CBT‐ D/EW‐0038

D

EW

IT Duct Banks

3 3

(23)

40 IP‐CBT‐ D/EW‐0040

D

EW

IT Duct Banks

41 IP‐CBT‐ D/EW‐0041

D

EW

IT Duct Banks

42 IP‐CBT‐ D/EW‐0042

D

EW

IT Duct Banks

43 IP‐CBT‐ D/EW‐0043

D

EW

IT Duct Banks

CIVIL

1 IP‐CR‐A/ICF‐0001

A

ICF

Road

2 IP‐CR‐A/ICF‐0002

A

ICF

Road

3 IP‐CR‐A/ICF‐0003

A

ICF

Road

4 IP‐CR‐A/ICF‐0004

A

ICF

Road

5 IP‐CR‐A/ICF‐0005

A

ICF

Road

6 IP‐CR‐A/ICF‐0006

A

ICF

Road

7 IP‐CR‐A/ICF‐0007

A

ICF

Road

8 IP‐CR‐A/ICF‐0008

A

ICF

Road

9 IP‐CR‐A/ICF‐0009

A

ICF

Road

10 IP‐CR‐B/ICF‐0010

B

ICF

Road

11 IP‐CR‐A/B‐0011

A

B

Road

12 IP‐CR‐A/B‐0012

A

B

Road

13 IP‐CR‐A/B‐0013

A

B

Road

14 IP‐CR‐A/B‐0014

A

B

Road

15 IP‐CR‐A/B‐0015

A

B

Road

16 IP‐CR‐A/B‐0016

A

B

Road

17 IP‐CR‐A/B‐0017

A

B

Road

18 IP‐CR‐A/B‐0018

A

B

Road

3 3

(24)

19 IP‐CR‐B/ICF‐0019

B

ICF

Road

20 IP‐CR‐B/ICF‐0020

B

ICF

Road

21 IP‐CR‐B/ICF‐0021

B

ICF

Road

22 IP‐CR‐C/ICF‐0022

C

ICF

Road

23 IP‐CR‐D/C‐0023

D

C

Road

24 IP‐CR‐D/C‐0024

D

C

Road

25 IP‐CR‐D/C‐0025

D

C

Road

26 IP‐CR‐D/C‐0026

D

C

Road

27 IP‐CR‐A/C‐0027

A

C

Road

28 IP‐CR‐A/C‐0028

A

C

Road

29 IP‐CR‐A/C‐0029

A

C

Road

30 IP‐CR‐A/C‐0030

A

C

Road

31 IP‐CR‐D/C‐0031

D

C

Road

32 IP‐CR‐D/PREP‐0032

D

PREP

Road

33 IP‐CR‐D/PREP‐0033

D

PREP

Road

34 IP‐CR‐D/PREP‐0034

D

PREP

Road

35 IP‐CR‐D/PREP‐0035

D

PREP

Road

36 IP‐CR‐D/C‐036

D

C

Road

37 IP‐CR‐C/ICF‐0037

C

ICF

Road

38 IP‐CR‐C/ICF‐0038

C

ICF

Road

39 IP‐CR‐D/ICF‐0039

D

ICF

Road

40 IP‐CR‐D/PREP‐0040

D

PREP

Road

3 3

(25)

42 IP‐CR‐D/PREP‐0042

D

PREP

Road

43 IP‐CR‐D/PREP‐0043

D

PREP

Road

44 IP‐CR‐D/ICF‐0044

D

ICF

Road

37 IP‐CC‐A/B‐0001

A

B

Storm Ditches

38 IP‐CC‐A/B‐0002

A

B

Storm Ditches

39 IP‐CC‐A/ICF‐0003

A

ICF

Storm Ditches

40 IP‐CC‐A/ICF‐0004

A

ICF

Storm Ditches

41 IP‐CC‐A/ICF‐0005

A

ICF

Storm Ditches

42 IP‐CC‐B/ICF‐0006

B

ICF

Storm Ditches

43 IP‐CC‐C/PREP‐0007

D

C

Storm Ditches

44 IP‐CC‐D/C‐0008

D

C

Storm Ditches

45 IP‐CC‐ ‐0009

Intentionally Not Used

46 IP‐CC‐D/C‐0010

D

C

Storm Ditches

47 IP‐CC‐C/A‐0011

C

A

Storm Ditches

48 IP‐CC‐A/C‐0012

A

C

Storm Ditches

49 IP‐CC‐ 0013

Intentionally Not

Used

50 IP‐CC‐C/A‐0014

C

A

Storm Ditches

51 IP‐CC‐A/RC‐0015

A

RC

Storm Ditches

52 IP‐CC‐D/C‐0016

D

C

Storm Ditches

53 IP‐CC‐D/C‐0017

D

C

Storm Ditches

54 IP‐CC‐C/RC‐0018

C

RC

Storm Ditches

(26)

55 IP‐CC‐D/C‐0019

D

C

Storm Ditches

56 IP‐CC‐D/C‐0020

D

C

Storm Ditches

57 IP‐CC‐B/C‐0021

B

C

Storm Ditches

58 IP‐CC‐B/RC‐0022

B

RC

Storm Ditches

59 IP‐CC‐B/C‐0023

B

C

Storm Ditches

60 IP‐CC‐B/C‐0024

B

C

Storm Ditches

61 IP‐CC‐C/ICF‐0025

C

ICF

Storm Ditches

62 IP‐CC‐C/ICF‐0026

C

ICF

Storm Ditches

PIPING

1 IP‐P‐B/A‐0001

B

A

Sanitary System

2 IP‐P‐B/A‐0002

B

A

Return ‐ Chilled

Water

3 IP‐P‐B/A‐0003

B

A

Supply ‐ Chilled

Water

4 IP‐P‐ ‐0004

Intentionally

Not Used

5 IP‐P‐ ‐0005

Intentionally

Not Used

6 IP‐P‐ ‐0006

Intentionally

Not Used

7 IP‐P‐ ‐0007

Intentionally

Not Used

8 IP‐P‐B/A‐0008

B

A

Potable Water

9 IP‐P‐B/A‐0009

B

A

Compressed Air

(27)

10 IP‐P‐B/A‐0010

B

A

Return ‐ Chilled

Water

11 IP‐P‐B/A‐0011

B

A

Supply ‐ Chilled

Water

12 IP‐P‐B/A‐0012

B

A

Sanitary System

13 IP‐P‐B/C‐0013

B

C

Return ‐ Chilled

Water

14 IP‐P‐B/C‐0014

B

C

Supply ‐ Chilled

Water

15 IP‐P‐B/C‐0015

B

C

Potable Water

16 IP‐P‐B/C‐0016

B

C

Potable Water

17 IP‐P‐B/C‐0017

B

C

Sanitary System

18 IP‐P‐B/C‐0018

B

C

Sanitary System

19 IP‐P‐D/C‐0019

D

C

Sanitary System

20 IP‐P‐D/C‐0020

D

C

Potable Water

21 IP‐P‐B/C‐0021

B

C

Utility Water

22 IP‐P‐B/C‐0022

B

C

Compressed Air

23 IP‐P‐B/C‐0023

B

C

Potable Water

24 IP‐P‐C/A‐0024

C

A

Potable Water

25 IP‐P‐C/A‐0025

C

A

Utility Water

26 IP‐P‐C/A‐0026

C

A

Sanitary System

27 IP‐P‐D/C‐0027

D

C

Supply ‐ Chilled

Water

(28)

Water

29 IP‐P‐ ‐0029

Intentionally

Not Used

30 IP‐P‐D/C‐0030

D

C

Potable Water

31 IP‐P‐ ‐0031

Intentionally

Not Used

32 IP‐P‐A/C‐0032

A

C

Potable Water

33 IP‐P‐A/C‐0033

A

C

Return ‐ Chilled

Water

34 IP‐P‐A/C‐0034

A

C

Supply ‐ Chilled

Water

35 IP‐P‐ ‐0035

Intentionally

Not Used

36 IP‐P‐D/C‐0036

D

C

Sanitary System

37 IP‐P‐D/C‐0037

D

C

Sanitary System

38 IP‐P‐D/C‐0038

D

C

Potable Water

39 IP‐P‐D/C‐0039

D

C

Sanitary System

40 IP‐P‐D/C‐0040

D

C

Sanitary System

41 IP‐P‐D/B‐0041

D

B

Potable Water

42 IP‐P‐ ‐0042

43 IP‐P‐B/C‐0043

B

C

Sanitary System

44 IP‐P‐ ‐0044

(29)

Used

46 IP‐P‐ ‐0046

47 IP‐P‐ ‐0047

48 IP‐P‐ ‐0048

49 IP‐P‐ ‐0049

50 IP‐P‐B/A‐0050

B

A

Sanitary System

51 IP‐P‐B/A‐0051

B

A

Potable Water

52 IP‐P‐B/A‐0052

B

A

Compressed Air

53 IP‐P‐C/A‐0053

C

A

Potable Water

54 IP‐P‐C/A‐0054

C

A

Compressed Air

55 IP‐P‐C/A‐0055

C

A

Utility Water

56 IP‐P‐C/EW‐0056

C

EW

Sanitary System

MUSSALA & CAFÉ

4

57 IP‐P‐C/EW‐0057

C

EW

Potable Water

MUSSALA & CAFÉ

4

58 IP‐P‐D/BRINE‐0058

D

BRINE

Sanitary System

GATE 4

59 IP‐P‐D/BRINE‐0059

D

BRINE

Potable Water

GATE 4

60 IP‐P‐D/EW‐0060

D

EW

Potable Water

GATE 5

61 IP‐P‐D/ICF‐0061

D

ICF

Sanitary System

GATE 5

62 IP‐P‐D/ICF‐0062

D

ICF

Sanitary System

GATE7

63 IP‐P‐D/ICF‐0063

D

ICF

Potable Water

GATE 7 3

3 3 3

(30)

64 IP‐P‐D/ICF‐0064

D

ICF

Sanitary System

PEDESTRIAN

SOUTH

65 IP‐P‐D/ICF‐0065

D

ICF

Potable Water

PEDESTRIAN

SOUTH

66 IP‐F‐B/A‐0001

B

A

Firewater

67 IP‐F‐ ‐0002

Intentionally

Not Used

68 IP‐F‐ ‐0003

Intentionally

Not Used

69 IP‐F‐ ‐0004

Intentionally

Not Used

70 IP‐F‐ ‐0005

Intentionally

Not Used

71 IP‐F‐B/C‐0006

B

C

Firewater

72 IP‐F‐B/C‐0007

B

C

Firewater

73 IP‐F‐ ‐0008

Intentionally

Not Used

74 IP‐F‐ ‐0009

Intentionally

Not Used

75 IP‐F‐C/A‐0010

C

A

Firewater

76 IP‐F‐B/C‐0011

B

C

Firewater

77 IP‐F‐ ‐0012

Intentionally

Not Used

78 IP‐F‐ ‐0013

Intentionally

Not Used

3

(31)
