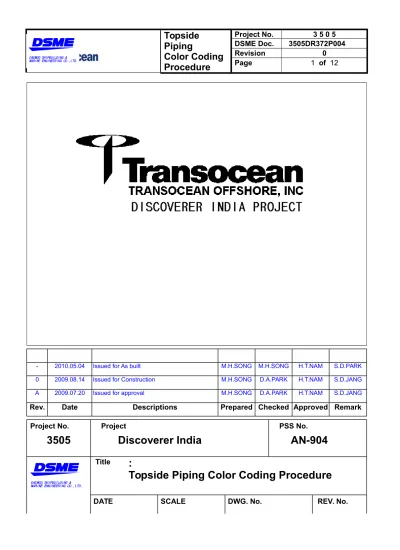

Topside Piping Color Coding Procedure
CONTENTS
PAGE
1.0 GENERAL--- 3
2.0 APPLICABLE --- 3
3.0 MATERIAL OF COLOR CODE--- 3
4.0 LOCATION OF COLOR CODE IDENTIFICATION--- 4
5.0 MARKING OF COLOR CODE--- 5
6.0 PIPING COLOR CODING SCHEDULE TABLE--- 6
7.0 IDENTIFICATION COLOR BOARD--- 8
1. GENERAL
This procedure covers minimum requirements of color code for line identification on Topside piping systems for TRANSOCEAN OFFSHORE INC. DISCOVERER INDIA PROJECT.
Piping will be identified with the help of pipe maker labels in accordance with guideline given in this procedure.
The purpose of the color coding is to easy identification of lines for operation and maintenance. Placement of color coding bands shall be marked near the operation and maintenance items such as valves, equipment, pumps, etc.
2. APPLICABLE SPECIFICATION.
2.1 Transocean DIA Contract Specifications
- Group 10. Pipe Marking 2.2 Builder’s Standards
- HQS-OPS-HB-04: Coating and application recommended selection of coatings, 5.3. Color coding of pipe work
3. MATERIAL OF COLOR CODE IDENTIFICATION
3.1 Pipe Label Material
The color code bend tapes shall be made with polyester type material and strong enough to resist fading, cracking and UV coated. The width of color bends shall be adhesion inside (self-adhering) type.
3.2 Color Shades - Yellow : Ral #1023 - Grey : Ral #7037 - White : Ral #9003 - Blue : Ral #5017 - Red : Ral #3020 - Orange : Ral #2009 - Green : Ral #6029 - Brown : Ral #8011 - Violet : Ral #4008
4. LOCATION OF COLOR CODE IDENTIFICATION.
4.1 Quantity and location of labels shall allow an easy follow up of fluid flows. As a
minimum, the following locations shall be labeled.
A) Below & Above the Deck penetrations & on both sides of all Wall/Bulkhead penetrations no matter what their height is, B) At inlet and outlet of package.
C) Near each main valve
D) At Pipe connection, such as tees.
E) Each 15M on all straight runs no matter what height the straight run is above the deck.
4.2 Above Color code identification shall be applied to the pipe above the deck by
2.5M and the service platform surrounded 2.5M for easy identification of the lines to operate and to maintain the valves, equipment etc., it is not necessities on not seen the line like just below the deck on behind lines.
The sketch is as following.
Note:
1. Color marking shall be applied inside of hatching area.
4.3 The Color code band tapes shall be marked approximately 1.5m from the deck or
platforms for the vertical pipes.
4.4 The Color code band tapes are marked on the insulation jacket after insulation
but personnel protected lines are to be installed on pipe inside of personnel protections.
4.5 The Color code band tapes are marked side by side for the two or more in a
5. MARKING OF COLOR CODE
6. PIPING COLOR CODING SCHEDULE TABLE
System System ID
ABBR- AVIATI-ONS
Colour coding Example
Primary Secondary
AIR, BULK AB AB YELLOW BROWN AB
AIR, HIGH PRESSURE NA AHP YELLOW RED AHP AIR, INSTRUMENT LA/QC AI YELLOW WHITE AI AIR, RIG AG/GA AR YELLOW YELLOW AR AIR, VENT & SOUNDING AV AS YELLOW GREEN AS AIR, STARTING AT AST YELLOW ORANGE AST
ACID CA ACID VIOLET VIOLET ACID
CO2 CO CO2 RED RED CO2
FM200 FM FM2 RED RED FM2
HALON HL H RED RED H
CLEAN CUTTINGS CC CC GREY GREY CC
COMPLETION FLUID CF CF BROWN GREEN CF
DRAINS,
BILGE/OILY WATER
BG/BS DBOW BLACK YELLOW DBOW
DRAINS,GREY WATER SD DGW BLACK GREY DGW
DRAINS,SCUPPER, OPEN DRAIN
SP/BS DSC BLACK WHITE DSC
DRAINS,SEWAGE SD DS BLACK BLACK DS
DRAINS, WASTE OIL/DO/CLOSED
OD/BS/CD DWO BLACK ORANGE DWO
FRESH WATER, COOLING
FC/UC/EC/GC /HW
FWC BLUE ORANGE FWC
FRESH WATER, DRILL DW FWD BLUE BROWN FWD
FRESH WATER, HIGH PRESSURE WW FWHP BLUE GREEN FWHP FRESH WATER , POTABLE HC/FW FWP BLUE WHITE FWP
FRESH WATER, SANITARY HC FWS BLUE BLACK FWS
FRESH WATER, STEAM ST FWST BLUE GREY FWST
FRESH WATER, TECHNICAL
System System ID ABBR- AVIATI-ONS
Colour coding Example
FRESH WATER, FIRE WF/FL/WD FWF RED BLUE FWF
GAS, EXHAUST EG GE GREY WHITE GE
GAS, INERT, NITROGEN IG GI VIOLET WHITE GI
HELIFUEL(JET A-1) OH HF ORANGE RED HF
OIL, CARGO CL OC ORANGE BLACK OC
OIL, DIESEL TRANSFER/FEED
OF/OP/OM/O E/OB/OI
OD ORANGE ORANGE OD
OIL, BASE BO OB ORANGE ORANGE OB
OIL, HYDRAULIC VR/HH/LH/ HV/WH/BP/
DT
OH ORANGE YELLOW OH
System System ID
ABBR- AVIATI-ONS
Colour coding Example
Primary Secondary
OIL,LUBE LF/LP/LM/LE/ LT
OL ORANGE WHITE OL
OIL,THERMAL TM OT ORANGE BROWN OT
SEA WATER, BALLAST BA SWBL GREEN YELLOW SWBL
SEA WATER, COOLING CW SWC GREEN ORANGE SWC
SEA WATER, DELUGE WD SWD RED WHITE SWD
SEA WATER FIRE MAIN WD FM RED WHITE FM
SEA WATER,FOAM/AFFF AE FOAM RED RED FOAM
SEA WATER, UTILITY TC SWU GREEN WHITE SWU
SEA WATER, BRINE BR SWB GREEN BLACK SWB
GAS, FREON RO GFR VIOLET WHITE GFR OIL, GLYCOL GL GLY ORANGE BLUE GLY
MUD, LIQUID LOW PRESURE
MS LMLP BROWN YELLOW LMLP
MUD, LIQUID HIGH PRESURE
MS LMHP BROWN RED LMHP
AIR, VACUUM VS AV YELLOW BROWN AV GAS, FLARE BOOM FB GF GREY WHITE GF
BULK, BARITE CT BB BROWN WHITE BB
System System ID ABBR- AVIATI-ONS
Colour coding Example
BULK, CEMENT CT BC BROWN GREY BC
BULK, LIQUID MUD MS BLM BROWN YELLOW BLM
CHOKE & KILL LINE CU HPF RED GREY HPF
CEMENT(LIQUID) CU LC BROWN BLACK LC
7. IDENTIFICATION COLOR BOARD
An Identification color board is to be fitted in the Mechanic Shop in Aux. Machinery Module of Topside.
- Material : Aluminum plate - Thickness: 5t
8. COLOR MARKING FOR INTERNALLY COATED PIPE
The polyethylene coated salt water piping has to be identified and labeled as follows:
“INTERNALLY COATED PIPING-NO WELDING OR BURNING”
