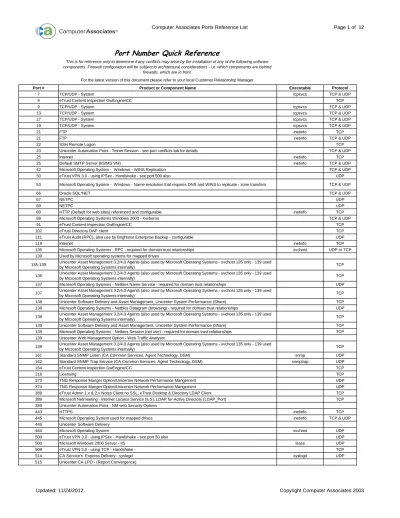

Port Number Quick Reference
This is for reference only to determine if any conflicts may arise by the installation of any of the following software components. Firewall configuration will be subject to architectural considerations - i.e. which components are behind
firewalls, which are in front.
For the latest version of this document please refer to your local Customer Relationship Manager.
Port # Product or Component Name Executable Protocol
7 TCP/UDP - System tcpsvcs TCP & UDP
9 eTrust Content Inspection GwEngine/CC TCP
9 TCP/UDP - System tcpsvcs TCP & UDP
13 TCP/UDP - System tcpsvcs TCP & UDP
17 TCP/UDP - System tcpsvcs TCP & UDP
19 TCP/UDP - System tcpsvcs TCP & UDP
21 FTP inetinfo TCP
21 FTP inetinfo TCP & UDP
22 SSH Remote Logon TCP
23 Unicenter Automation Point - Telnet Session - see port conflicts tab for details TCP & UDP
25 Internet inetinfo TCP
25 Default SMTP Server (IIS/MS VM) inetinfo TCP & UDP
42 Microsoft Operating System - Windows - WINS Replication TCP & UDP
50 eTrust VPN 3.0 - using IPSec - Handshake - see port 500 also UDP
53 Microsoft Operating System - Windows - Name resolution that requires DNS and WINS to replicate - zone transfers TCP & UDP
66 Oracle SQL*NET TCP & UDP
67 NETPC UDP
69 NETPC UDP
80 HTTP (Default for web sites) referenced and configurable inetinfo TCP
88 Microsoft Operating Systems Windows 2000 - Kerberos TCP & UDP
91 eTrust Content Inspection GwEngine/CC TCP
102 eTrust Directory DAP client TCP
111 eTrust Audit (RPC), also use by Brightstor Enterprise Backup - configurable UDP
119 Internet inetinfo TCP
135 Microsoft Operating Systems - RPC - required for domain trust relationships svchost UDP or TCP 139 Used by Microsoft operating systems for mapped drives
135-139 Unicenter Asset Management 3.2/4.0 Agents (also used by Microsoft Operating Systems - svchost 135 only - 139 used
by Microsoft Operating Systems internally) TCP
136 Unicenter Asset Management 3.2/4.0 Agents (also used by Microsoft Operating Systems - svchost 135 only - 139 used
by Microsoft Operating Systems internally) TCP
137 Microsoft Operating Systems - Netbios Name Service - required for domain trust relationships UDP 137 Unicenter Asset Management 3.2/4.0 Agents (also used by Microsoft Operating Systems - svchost 135 only - 139 used
by Microsoft Operating Systems internally) TCP
138 Unicenter Software Delivery and Asset Management, Unicenter System Performance (Share) TCP 138 Microsoft Operating Systems - Netbios Datagram (browsing) - required for domain trust relationships UDP 138 Unicenter Asset Management 3.2/4.0 Agents (also used by Microsoft Operating Systems - svchost 135 only - 139 used
by Microsoft Operating Systems internally) TCP
139 Unicenter Software Delivery and Asset Management, Unicenter System Performance (Share) TCP 139 Microsoft Operating Systems - Netbios Session (net use) - required for domain trust relationships TCP 139 Unicenter Web Management Option - Web Traffic Analyser
139 Unicenter Asset Management 3.2/4.0 Agents (also used by Microsoft Operating Systems - svchost 135 only - 139 used
by Microsoft Operating Systems internally) TCP
161 Standard SNMP Listen (CA Common Services, Agent Technology, DSM) snmp UDP
162 Standard SNMP Trap Service (CA Common Services, Agent Technology, DSM) snmptrap UDP
164 eTrust Content Inspection GwEngine/CC TCP
216 Licensing TCP
373 TNG Response Manger Option/Unicenter Network Performance Mangement UDP
374 TNG Response Manger Option/Unicenter Network Performance Mangement UDP
389 eTrust Admin 1.x & 2.x Notes Client no SSL, eTrust Desktop & Directory LDAP Client TCP 389 Microsoft Netmeeting - Internet Locator Service (ILS), LDAP for Active Directory (LDAP_Port) TCP 389 Unicenter Automation Point - NM web Security Options
443 HTTPS inetinfo TCP
445 Microsoft Operating System used for mapped drives inetinfo TCP & UDP
445 Unicenter Software Delivery
464 Microsoft Operating System svchost UDP
500 eTrust VPN 3.0 - using IPSec - Handshake - see port 50 also UDP
500 Microsoft Windows 2000 Server - IIS Isass UDP
509 eTrust VPN 3.0 - using TCP - Handshake - TCP
514 CA-Service's Express Delivery - syslogd syslogd UDP
Port # Product or Component Name Executable Protocol 515 Unicenter Solve/EPS - configurable
515 Unicenter Solve:EPS - configurable
522 Microsoft Netmeeting - User Location Service TCP
563 Internet inetinfo TCP & UDP
636 eTrust Admin 1.0 & 2.0 Notes Client with SSL
636 Micorosoft Operating System - Windows 2000 Server - LDAP for Active Directory (LDAP_SSL)
721 Unicenter Solve:EPS - configurable, Unicenter CA-Spool (standard lpr/lpd port - outside side - user chooses range 722 Unicenter Solve:EPS - configurable, Unicenter CA-Spool (standard lpr/lpd port - outside side - user chooses range 723 Unicenter Solve:EPS - configurable, Unicenter CA-Spool (standard lpr/lpd port - outside side - user chooses range 724 Unicenter Solve:EPS - configurable, Unicenter CA-Spool (standard lpr/lpd port - outside side - user chooses range 725 Unicenter Solve:EPS - configurable, Unicenter CA-Spool (standard lpr/lpd port - outside side - user chooses range 726 Unicenter Solve:EPS - configurable, Unicenter CA-Spool (standard lpr/lpd port - outside side - user chooses range 727 Unicenter Solve:EPS - configurable, Unicenter CA-Spool (standard lpr/lpd port - outside side - user chooses range 728 Unicenter Solve:EPS - configurable, Unicenter CA-Spool (standard lpr/lpd port - outside side - user chooses range 729 Unicenter Solve:EPS - configurable, Unicenter CA-Spool (standard lpr/lpd port - outside side - user chooses range 730 Unicenter Solve:EPS - configurable, Unicenter CA-Spool (standard lpr/lpd port - outside side - user chooses range 731 Unicenter Solve:EPS - configurable, Unicenter CA-Spool (standard lpr/lpd port - outside side - user chooses range 777 BrightStor SRM on the PC to the mainframe task CA-Vantage
799 Unicenter Remote Control rp32u TCP
800 Unicenter Remote Control rp32u UDP
1025 Microsoft Operating Systems msdtc TCP
1027 Brightstore/ARCServe ITDS asdscsvc UDP
1031 Microsoft Operating System Isass UDP
1032 Unicenter Mgmt for Web Servers - Default for Load Balancer java.exe in WMO dir. TCP
1035 Unicenter Database Performance Management epm_service TCP
1036 Unicenter Database Performance Management epm_service TCP
1038 JAVA java - in TND/agents dir TCP
1041 Microsoft Operating Systems svchost UDP
1041 Microsoft Operating Systems svchost UDP
1042 Microsoft Operating Systems svchost UDP
1042 Microsoft Operating Systems svchost UDP
1043 Cleverpath Reporter - used in Unicenter for reporting itlocator TCP
1044 Cleverpath Reporter - used in Unicenter for reporting itlocator TCP
1045 Microsoft Operating Systems services UDP
1045 Microsoft Operating Systems svchost UDP
1047 Microsoft Operating Systems MSTask TCP
1056 Unicenter Response Manger Option (NetworkIT, RMO/NMO)- Now known as Unicenter Network Performance Mgmt and
Advanced Network Option TCP
1057 Response Manger Option (NetworkIT, RMO/NMOO TCP
1060 Unicenter Database Performance Management spdirector TCP
1068 Unicenter Database Performance Management uv_driver TCP
1070 Unicenter Database Performance Management uv_driver TCP
1074 Unicenter Network and Systems - Builder schproxd TCP
1078 Microsoft Windows 2000 Server msdtc TCP
1098 eTrust PKI - RMI Server - see port conflict tab for details TCP
1099 eTrust PKI - RMI Registry - see port conflict tab for details TCP
1104 CA Common Services - AWS ORB aws_orb TCP
1105 CA Common Services - AWS ORB aws_orb TCP
1106 Microsoft Windows 2000 Server - IIS inetinfo UDP
1106 Micorosoft Operating System inetinfo UDP
1109 CA Common Services - AWS Store aws_store TCP
1110 CA Common Services - AWS Store aws_store TCP
1112 eTrust Directory SSLD & eTrust OCSPro SSLD - CCS - GATE caagate TCP
1113 eTrust Directory SSLD - CCS - GATE caagate TCP
1114 Cleverpath Reporter - used in Unicenter for reporting itnaming TCP
1119 Cleverpath Reporter - used in Unicenter for reporting itnaming TCP
Port # Product or Component Name Executable Protocol
1125 CA Common Services aws_snmp TCP
1126 CA Common Services aws_snmp TCP
1128 CA Common Services cau9mtr TCP
1129 CA Common Services aws_snmp UDP
1130 Unicenter Service Plus Service Desk sslump_nxd TCP
1132 Unicenter Service Plus Service Desk pdm_d_mgr TCP
1133 CA Common Services - Sadmin aws_sadmin TCP
1134 CA Common Services - Sadmin aws_sadmin TCP
1135 Unicenter Database Performance. Management - POEMS pisphier TCP
1135 Microsoft Windows 2000 Server Isass UDP
1136 Unicenter Database Performance. Management - POEMS ptevmgr TCP
1137 Cleverpath Reporter - used in Unicenter for reporting itnaming TCP
1138 Unicenter DB Perf. Mgmt - POEMS ptspppc TCP
1139 Cleverpath Reporter - used in Unicenter for reporting itnaming TCP
1140 Cleverpath Reporter - used in Unicenter for reporting itnaming TCP
1144 Unicenter Network and Systems - Builder capagesrv TCP
1147 Unicenter Service Plus Service Desk pdm_proctor_nxd TCP
1148 Unicenter Database Performance. Management uv_net_scan_sp TCP
1149 Unicenter Database Performance. Management uv_net_arch_sp TCP
1150 Unicenter Database Performance. Management uv_net_scan_sp TCP
1151 Unicenter Database Performance. Management uv_rtd_sp TCP
1153 CA Common Services capagsrv TCP
1155 Unicenter Service Plus Service Desk boplgin TCP
1157 Unicenter Service Plus Service Desk bpnotify_nxd TCP
1158 Unicenter Service Plus Service Desk bpnotify_nxd TCP
1160 Unicenter Service Plus Service Desk pcrpt_nxd TCP
1162 Unicenter Service Plus Service Desk license_nxd TCP
1165 Unicenter Service Plus Service Desk pdm_ver_nxd TCP
1165 Unicenter Service Plus Service Desk pdm_ver_nxd TCP
1168 Unicenter Network and Systems - Reporting irsrv TCP
1171 Unicenter Service Plus Service Desk spel_srvr TCP
1172 Unicenter Service Plus Service Desk spel_srvr TCP
1174 Unicenter Service Plus Service Desk sql_prov_nxd TCP
1176 Unicenter Service Plus Service Desk sql_prov_nxd TCP
1180 CleverPath Portal - used as Unicenter Mangement Portal java.exe in TND\Portal
dir. TCP
1181 CleverPath Portal - used as Unicenter Mangement Portal java.exe in TND\Portal dir. TCP 1182 CleverPath Portal - used as Unicenter Mangement Portal java.exe in TND\Portal
dir. TCP
1183 CleverPath Portal - used as Unicenter Mangement Portal java.exe in TND\Portal
dir. TCP
1184 CleverPath Portal - used as Unicenter Mangement Portal java.exe in TND\Portal
dir. TCP
1185 CA Common Services cau9mtr TCP
1187 Unicenter Service Plus Service Desk ehm_ndx TCP
1192 Unicenter Service Plus Service Desk form_server TCP
1193 Unicenter Service Plus Service Desk form_server TCP
1194 CA Common Services cau9mtr TCP
1194 Microsoft Operating Systems services UDP
1195 CA Common Services cau9mtr TCP
1196 CA Common Services cau9mtr TCP
1197 CA Common Services cau9mtr TCP
1199 Unicenter Service Plus Service Desk bpvirtdb_srvr TCP
1202 CA Common Services - CCI, CAM, CAFT TCP/UDP
1202 Unicenter CA-Docview/Web (and CA-Docview) to DRAS Mainframe (over CCI)
1202 eTrust Administrator TCP/UDP
1203 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1204 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1207 Unicenter Service Plus Service Desk bpvirtdb_srvr TCP
1208 Unicenter Service Plus Service Desk bpvirtdb_srvr TCP
1211 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1212 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1214 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1216 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1218 Unicenter Service Plus Service Desk sql_agent_nxd TCP
Port # Product or Component Name Executable Protocol
1222 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1224 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1224 Microsoft Operating Systems - IIS Isass UDP
1225 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1227 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1228 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1229 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1230 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1231 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1233 Microsoft Operating Systems MSTask TCP
1234 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1236 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1238 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1240 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1241 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1244 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1245 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1246 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1247 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1248 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1252 Unicenter Service Plus Service Desk ehc_nxd TCP
1255 Unicenter Service Plus Service Desk filter_nxd TCP
1257 Unicenter Service Plus Service Desk ehwriter TCP
1259 Unicenter Service Plus Service Desk domsrver TCP
1260 Unicenter Service Plus Service Desk ehwriter TCP
1262 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1263 Unicenter Service Plus Service Desk domsrver TCP
1264 Unicenter Service Plus Service Desk sql_agent_nxd TCP
1267 CA Common Services cau9mtr TCP
1268 Unicenter Service Plus Service Desk domsrver TCP
1269 Unicenter Service Plus Service Desk domsrver TCP
1283 Microsoft Operating Systems winlogon UDP
1303 Advantage Data Transport Service tngdta TCP
1304 Advantage Data Transport Service tngdta TCP
1305 Advantage Data Transport Service tngdta TCP
1307 Unicenter Service Plus Service Desk webengine TCP
1309 Unicenter Service Plus Service Desk webengine TCP
1309 Advantage Data Transport Service - TOS Engine tngdtos TCP
1310 Advantage Data Transport Service - TOS Engine tngdtos TCP
1318 Unicenter Asset Management rss TCP
1323 Unicenter Asset Management rss TCP
1325 eTrust Admin (RPC)
1346 CA Common Services SEVPROP TCP
1350 Advantage Data Transport Service - TOS Engine tngdtos TCP
1351 Advantage Data Transport Service - TOS Engine tngdtos TCP
1358 CA Common Services aws_sadmin UDP
1362 Advantage Data Transport Service - NOS Engine tngdtnos TCP
1367 CA Common Services cauwvdmn TCP
1371 Advantage Data Transport Service - NOS Engine tngdtnos TCP
1373 CA Common Services canotify TCP
1376 CA Common Services cauwvdmn TCP
1377 CA Common Services cauwvdmn TCP
1382 Microsoft Operating System - System Pid 8 TCP
1386 Unicenter Software Delivery TASKM_L TCP
1387 Unicenter Software Delivery TASKM_L TCP
1390 Unicenter Software Delivery APISRV TCP
1392 JAVA Java.exe in
WINNT/System32 TCP
1401 Microsoft Operating Systems - System Pid 8 TCP
1403 Unicenter Network and Systems EGC20 TCP
1405 Unicenter Network and Systems EGC20 TCP
1406 Unicenter Software Delivery APISRV TCP
1410 Unicenter Network and Systems EGC20 TCP
1410 Unicenter Service Plus Service Desk webengine TCP
1411 Unicenter Network and Systems EGC20 TCP
Port # Product or Component Name Executable Protocol
1412 JAVA Java.exe in
WINNT/System32 TCP
1413 JAVA Java.exe in
WINNT/System33 TCP 1414 Unicenter Mgmt for Web Servers - One port per instance of the agent - configuable WebResponseAgent TCP 1415 Unicenter Mgmt for Web Servers - One port per instance of the agent - configuable WebResponseAgent TCP 1416 Unicenter Mgmt for Web Servers - One port per instance of the agent - configuable LoadBalanceAgent TCP 1417 Unicenter Mgmt for Web Servers - One port per instance of the agent - configuable LoadBalanceAgent TCP 1418 Unicenter Mgmt for Web Servers - One port per instance of the agent - configuable IISAgent TCP 1419 Unicenter Mgmt for Web Servers - One port per instance of the agent - configuable IISAgent TCP 1420 Unicenter Mgmt for Web Servers - One port per instance of the agent - configuable IISAgent TCP 1421 Unicenter Mgmt for Web Servers - One port per instance of the agent - configuable IISAgent TCP 1423 Unicenter Mgmt for Web Servers - One port per instance of the agent - configuable ApacheAgent TCP 1424 Unicenter Mgmt for Web Servers - One port per instance of the agent - configuable ApacheAgent TCP 1425 Unicenter Mgmt for Web Servers - One port per instance of the agent - configuable WSAAgent TCP 1426 Unicenter Mgmt for Web Servers - One port per instance of the agent - configuable WSAAgent TCP
1428 Unicenter Network and Systems caiW2kOs TCP
1429 Unicenter Network and Systems caiW2kOs TCP
1430 Unicenter System Performance caSqlAgent TCP
1431 Unicenter System Performance caSqlAgent TCP
1431 Microsoft Operating Systems - System - Pid 8 TCP
1432 Unicenter Network and Systems caiLogA2 TCP
1433 MS SQL Server used by TNG, SDO, AMO (used by eTrust for ODBC access) sqlservr TCP
1433 Unicenter Asset Management 3.2/4.0 Admin Console/Engine to Domain - see above TCP
1433 MS SQL Server sqlservr TCP
1434 Unicenter Network and Systems caiLogA2 TCP
1434 Microsoft SQL Server used by TNG, SDO, AMO (used by eTrust for ODBC access) sqlservr UDP
1434 Microsoft SQL Server sqlservr UDP
1435 JAVA Java.exe in WINNT/System32 TCP 1436 JAVA Java.exe In WINNT/System32 TCP 1437 JAVA Java.exe in WINNT/System32 TCP
1438 Unicenter System Performance prfAgent TCP
1439 Unicenter System Performance prfAgent TCP
1440 JAVA Java.exe in
WINNT/System32 TCP
1441 Unicenter System Performance prfAgent TCP
1444 Unicenter Service Plus Service Desk animator_nxd TCP
1446 Unicenter Service Plus Service Desk pdm_text_nxd TCP
1447 Unicenter Service Plus Service Desk animator_nxd TCP
1448 CA Common Services catng2d TCP
1448 Unicenter Service Plus Service Desk animator_nxd TCP
1453 Cleverpath Reporter - used in Unicenter for reporting irengine TCP
1455 Cleverpath Reporter - used in Unicenter for reporting irengine TCP
1456 Cleverpath Reporter - used in Unicenter for reporting irengine TCP
1458 Cleverpath Reporter - used in Unicenter for reporting irengine TCP
1459 Unicenter System Performance caSqlAgent TCP
1461 Unicenter Management for Web Servers (out of TND\agent\bin) ApacheAgent TCP
1462 Unicenter Management for Web Servers LoadBalanceAgent TCP
1465 Unicenter Management for Web Servers WebResponseAgent TCP
1467 Unicenter Management for Web Servers WebResponseAgent TCP
1470 Unicenter TNG - abrowser 2.1 - bypass via dsm routing (-R on abrowser launch with DSM to route) UDP 1471 Unicenter TNG - abrowser 2.1 - bypass via dsm routing (-R on abrowser launch with DSM to route) UDP 1472 Unicenter TNG - abrowser 2.1 - bypass via dsm routing (-R on abrowser launch with DSM to route) UDP 1473 Unicenter TNG - abrowser 2.1 - bypass via dsm routing (-R on abrowser launch with DSM to route) UDP
1474 Microsoft Operating System - System - PID 8 TCP
1474 Unicenter TNG - abrowser 2.1 - bypass via dsm routing (-R on abrowser launch with DSM to route) UDP
1478 JAVA Java.exe in WINNT/System32 TCP 1479 JAVA Java.exe in WINNT/System33 TCP 1481 JAVA Java.exe in WINNT/System34 TCP 1482 JAVA Java.exe in WINNT/System35 TCP 1487 Unicenter Service Plus Service Desk (CA Common Services integration engine) tngcnv TCP
Port # Product or Component Name Executable Protocol 1493 Unicenter Asset Management uses no TCP/IP ports (unless you are using the UNIX agent, which uses port 1493), TCP
1493 CA Common Services aws_snmp UDP
1493 Unicenter Asset Management - SQL Server
1494 CA Common Services SEVPROP TCP
1495 CA Common Services catrapd TCP
1496 CA Common Services catrapd TCP
1497 CA Common Services aws_dsm TCP
1498 CA Common Services aws_dsm TCP
1500 Brightstor Ent. Backup for Linux/390 to the mainframe Tape Device Driver
1501 Microsoft Operating Systems - System - PID 8 TCP
1502 Unicenter System Performance hpaAgent TCP
1503 Unicenter System Performance hpaAgent TCP
1503 Microsoft S Netmeeting - T.120 TCP
1505 Unicenter Network and Systems Management Dynamic Containment Service TCP
1515 Unicenter Service Plus Service Desk tngcnv TCP
1518 CA Common Services canotify TCP
1521 Oracle communicates (same as port 1433 for SQL Server)
1524 Unicenter Management for Web Servers (out of TND\agent\bin) IISAgent TCP
1526 Unicenter Management for Web Servers (out of TND\agent\bin) IISAgent TCP
1533 CA Common Services caftf TCP
1536 CA Common Services cauwvdmn TCP
1539 CA Common Services cauwvdmn TCP
1540 CA Common Services cauwvdmn TCP
1544 Unicenter Software Delivery DIALOG_M UDP
1545 CA Common Services cau9mtr TCP
1548 CA Common Services tng4 TCP
1553 CA Common Services cautmosv TCP
1555 CA Common Services aws_dsm TCP
1556 CA Common Services tng4 TCP
1557 Unicenter Network and Systems - GCU GCUServer TCP
1559 CA Common Services aws_dsm TCP
1561 CA Common Services aws_wvgate TCP
1562 CA Common Services aws_wvgate TCP
1564 Unicenter System Performance (out of CA_APPS directory) prfserver TCP
1570 CA Common Services aws_wvgate TCP
1596 Unicenter System Performance hpaAgent TCP
1599 Unicenter System Performance (out of CA_APPS directory) prfserver TCP
1626 CA Common Services tng4 TCP
1627 CA Common Services tng4 TCP
1645 Microsoft Operating Systems svchost UDP
1646 Microsoft Operating Systems svchost UDP
1680 eTrust Anti-Virus InoRpc UDP
1684 eTrust VPN (GUI)
1720 Microsoft S Netmeeting H.323 call setup TCP
1721 CA Common Services ccirmtd TCP
1723 Microsoft Operating Systems - trust established through PPTP TCP
1731 Microsoft Netmeeting - Audio Call Control TCP
1761 Microsoft SMS HelpDesk - Verification of Rights, Remote Reboot, Remote Execute TCP
1762 Microsoft SMS HelpDesk - Remote Control TCP
1763 Microsoft SMS HelpDesk - Remote Chat TCP
1764 Microsoft SMS HelpDesk - File Transfer TCP
1799 Unicenter Remote Control 6.0 -RC Host may change - must test
1812 Microsoft Operating Systems svchost UDP
1813 Microsoft Operating Systems svchost UDP
1827 eTrust Policy Compliance (client - MFC gui/Server/Agent - see port conflict tab for details on configuration TCP
1882 eTrust Common Services - Client to Server Communication TCP
1883 eTrust Common Services - Client to Server Communication UDP
1900 eTrust Director (SNMP) 1902 eTrust Director (Telnet)
1927 Unicenter Response Manger Option (NetworkIT, RMO/NMO) now known as Unicenter Network Performance
Management and Advanced Network Options TCP
1928 AllFusion CCC/Harvest
2000 Unicenter CA-DB for TNG 1.1 TCP
2000 Unicenter Automation Point - PPQs - configurable
Port # Product or Component Name Executable Protocol
2001 eTrust PKI - CA Server RMI and RA Server RMI (servers) TCP
2001 CleverPath Portal - Search Engine Index Port (can be changed during installation) 2002 CleverPath Portal - Search Engine Action Port (can be changed during installation)
2100 Unicenter Service Plus Service Desk sslump_nxd UDP
2123 eTrust Directory Dxadmind & eTrust OCSPro DXadmind TCP
2234 Unicenter Service Plus Service Desk - Qserver
2300 Unicenter Service Plus Service Desk - Proctor to initate conection to daemon_mgr
2533 Microsoft Operating Systemsr - System - Pid 8 TCP
2571 BrightStor SRM GNS Server 2572 BrightStor SRM MRT Server 2573 BrightStor SRM LNC Server 2574 BrightStor SRM AS_RPC Server 2575 Brightstor SRM RSC Server
3075 Unicenter NSM - Reporting - Orbix itlocator TCP
3104 CA Common Services cam TCP
3268 Microsoft Operating Systems - LDAP for Active Directory (LDAP GC Port) TCP
3269 Microsoft Operating Systems - LDAP for Active Directory (LDAP GC Port)
3372 Microsoft Operating Systems msdtc TCP
3456 Microsoft - IIS inetinfo UDP
3456 Internet inetinfo UDP
3532 Microsoft Operating Systems - System Pid 8 TCP
3611 Microsoft Operating Systems - System Pid 8 TCP
4001 ServiceIT
4002 Advantage Info Transport TCP
4003 Advantage Info Transport TCP
4004 Advantage Info Transport TCP
4005 Advantage Info Transport TCP
4006 Advantage Info Transport TCP
4006 Sequelink Server 4.5 (for MS SQL Server) - Used for connectivity for Portals
4007 Advantage Info Transport TCP
4008 Advantage Info Transport TCP
4010 Sequelink Server 4.5 (for ingres) - Used for connectivity for Portals
4011 NETPC UDP
4012 Advantage Info Transport TCP
4013 Advantage Info Transport TCP
4014 Advantage Info Transport TCP
4015 Advantage Info Transport TCP
4040 CleverPath Portal - Portal Index Port (can be changed during installation - Search Engine)
4099 JAVA Jave.exe in TND\Portal TCP
4099 Unicenter Automation Point - NM website
4104 Unicenter Remote Control 6.0 Managed Host, Viewer and Management Server
4104 CA Common Services cam UDP
4104 Unicenter Asset Management
4104 Unicenter Remote Control 6.0 Managed Host, Viewer and Management Server
4105 Advantage Data Transport TCP
4105 CA Common Services cam TCP\UDP
4105 Unicenter Asset Management - Remote Sector Server
4251 eTrust Anti-Virus InoRpc TCP
4444 Unicenter AutoSys Job Management Java Interface - port is used for eplistener (configurable) 4567 ServiceIT
4569 ServiceIT
4711 CA-Connect/MVS - configurable
4713 CA Common Services tndmdmgr TCP
4718 Unicenter Software Delivery ACNATF TCP
4719 Unicenter Software Delivery
4720 Unicenter Software Delivery - ASMEM_Local Event Engine process TCP
4721 Unicenter Software Delivery -stagechk, jobcheck (ASMUILSR) - ASMUILSER local server Dialog Manager process APISRV and DIALOG_M TCP
4722 Unicenter Software Delivery - ASMUICSR - Ent. Server Dialog Mgr Process TCP
4723 Unicenter Software Delivery - ASMFtSERVER file transfer server process TCP
4724 Unicenter Software Delivery - CATALOGSRV - Catalog GUI server process APISRV TCP
4725 Unicenter Software Delivery - TRIGGER process TRIGGAG TCP\UDP
4726 Unicenter Software Delivery - SDSWEEP
4905 Advantage Data Transport, Perf., Directory Mgmt., Netware Agent/Gateway SPX
4905 CA Common Services SPX
Port # Product or Component Name Executable Protocol 5101 Unicenter Database Performance - Ent. Communicator (PEC) configurable - DEC to Agent rtserver TCP/UDP 5125 Unicenter CA-Docserver
5126 Unicenter CA-Docserver 5127 Unicenter CA-Docserver 5128 Unicenter CA-Docserver 5129 Unicenter CA-Docserver
5190 AOL Instant Messenger TCP
5280 Unicenter AutoSys Job Management - port used for AutoSys Remote Client (configurable) 5500 Unicenter Automation Point - Remote Viewing
5501 Unicenter Automation Point - Unicenter Security for AP Sessions
5555 Unicenter WorldView Gateway - User choice for signing on to Repository - TNGWVserver TCP
5635 JAVA Java.exe in
WINNT\System32 TCP
5636 JAVA Java.exe in
WINNT\System32 TCP
5678 CA Common Services - Agent Technology TCP
5679 CA Common Services - Agent Technology TCP
5700 Unicenter Automation Point - Netspeak - configurable 5726 Unicenter Remote Control - FTS
5726 Unicenter Asset Management - FTS 5727 Unicenter Remote Control - DM Primer 5727 Unicenter Asset Management - DM Primer
5813 ICMP for PingIP polling (standard ICMP use) TCP/UDP
6001 Unicenter OPS/MVS - OPSLOG Web Browser - future
6050 BrightstorArcserve Open for Unix TCP
6050 Brightstor Arcserve -for NT agent
6051 Brightstor Arcserve Open for Unix TCP
6051 Unicenter Network and System - GCU GCUServer TCP
6051 Brightstor Arcserve - for Unix agents
6055 Brightstor Arcserve - Smart Reactor-NT agent casmrtbk TCP
6055 CA Common Services
6060 Brightstor Arcserve - 6060 Arcserve Replication and remote Unix Management TCP
6061 Brightstor Arcserve TCP
6062 Brightstor Arcserve - 6060 Arcserve Replication and remote Unix Management TCP
6065 CA-BAOF 6066 CA-BAOF
6070 Brightstor Arcserve Managed Backup and Microsoft Exchange Backup Agent
6162 SNMP - alternate for 162 UDP
6162 CA Common Services aws_snmp UDP
6200 Unicenter Automation Point - WebMV 6205 Unicenter Automation Point - WebMV 6300 Unicenter Automation Point - WebMV
6502 Brightstor Enterprise Backup - TAPE ENGINE - (to manage the server located in a DMZ) 6503 Brightstore Enterprise Backup - JOB ENGINE - (to manage the server located in a DMZ) 6504 Brightstore Enterprise Backup - DB ENGINE - (to manage the server located in a DMZ)
6664 CA Common Services UDP
6665 CA Common Services aws_sadmin UDP
6665 Unicenter Network and Systems GCU to servers in DMZ's UDP
6665 Unicenter Web Management Option
6667 Unicenter Service Level Management data collector (summCollect) tclsh TCP
6668 Unicenter Service Level Management - management server (only on console) http://hostname:6668 configurable Apache in SLM directory TCP
6669 Unicenter Service Level Management - Report Daemon (summReportd) tclsh TCP
6670 Unicenter Service Level Management - Report Daemon (summReportd) tclsh TCP
6671 Unicenter Service Level Management - Report Daemon (summReportd) tclsh TCP
7000 CA Common Services - MVS Remote Daemon TCP
7000 Unicenter Automation Point (CCS-CAICCI) - see port conflicts tab for details 7000 Unicenter Service Level Management
7001 CA Common Services quenetd TCP
7001 CA Common Services CCS-CAICCI (conflicts with Uni Mgmt for WebLogic - Linux and other Unix implementations -
configurable) and BEA WebLogic Server 6 - configurable TCP
7001 CA Common Services - Ping TCP
7003 CA Common Services - Ping TCP
7003 CA Common Services quenetd TCP\UDP
7004 CA Common Services quenetd UDP
7010 Unicenter Software Delivery - CADB 7011 Unicente Network and Systems - CA-DB
Port # Product or Component Name Executable Protocol 7078 CleverPath Web Services Broker - Non Secure - see port 8484
7100 CA Common Services - Remote Listener (configurable) 7116 Microsoft IIS - Default Administration web site (IIS/MS VM)
7224 CleverPath Reporter Server - Enterprise Communicator schproxd TCP
7225 CleverPath Reporter Server - Enterprise Communicator (will communicate with CP Portal over this) 7226 CleverPath Reporter Server - Enterprise Communicator (Administrator and Report Server) 7226 Tomcat - as installed by CleverPath Server
7648 CU-SEEME TCP
7648 CU-SEEME UDP
7770 CA Common Services aws_orb TCP
7774 CA Common Services aws_orb TCP
7774 CA Common Services - abrowser UDP
7775 eTrust Intrustion Detection
7776 eTrust Intrustion Detection - default configurable (log view) TCP
7777 eTrust Intrustion Detection - default configurable (central/remote) TCP/UDP
7778 Super Ping Path Doctor TCP
7778 eTrust Intrustion Detection - default configurable (central/remote) TCP
7778 Microsoft Operating Systems - IIS inetinfo TCP
7779 eTrust Intrustion Detection - default configurable (ADCP Agent) TCP
7878 Unicenter Cluster Management Option TCP
8008 eTrust PKI - HTTP TCP
8017 JAVA java.exe in TND\Portal
dir. TCP
8019 JAVA java.exe in TND\Portal
dir. TCP
8025 eTrust Audit - configurable TCP
8080 Used by all the portals and some Java and Web based GUIs - causes conflicts (AllFustion Project Office Council,
Timesheet, Advisor etc) - http://hostname:8080 - Service Portal TCP
8080 JAVA java.exe in TND\Portal
dir. TCP
8080 Advantage Joe installs and uses Sun's JSWDK 1.0 which defaults 8080
8097 eTrust Firewall (to engine from admin server or login user client) - must be changed if the Admin Server Port is changed) TCP
8098 eTrust Firewall (to authentication Agent from Admin Server) TCP
8099 eTrust Firewall (to admin server client or engine) - (configurable) TCP
8189 Microsoft Operating Systems - IIS Java.exe in
WINNT\System32 TCP
8196 Advantage Data Transport - DTS NOS TCP
8196 Advantage Data Tranport Service - NOS Engine tngdtnos TCP
8197 Advantage Data Transport Manager
8198 Advantage Data Transport Service - TOS Engine tngdttos TCP
8198 eTrust Firewall Login Agent TCP
8199 Advantage Data Transport Manager TCP
8200 Advantage Data Transport Service - DTS SOS TCP
8202 Unicenter Network and Systems RTMCServer TCP
8208 Unicenter Web Mgmt for Web Servers - Super Agent (each agent gets a port - configurable at installation WSAAgent TCP
8222 Advantage Data Transport - DTS Master Agent tngdta TCP
8223 Advantage Data Transport Service - DTS Master Agent tngdta UDP
8224 Advantage Data Transport Service - BCAST RPORT tngdta Broadcast
8225 Advantage Data Transport Service - MCAST RPORT tngdta Multicast
8226 Advantage Data Transport Service - DTS Master Agent SPX socket
8300 Advantage Data Transport Service - DTS DOBA SPX
8300 Advantage Data Transport Service - DTS DOBA tngdoba TCP
8301 Advantage Data Transport Service - DOBA
8443 eTrust PKI - HTTPS & eTrust VPN Admin GUI TCP
8444 eTrust PKI - HTTP TCP
8448 CleverPath Web Services Broker - Secure - see port 7078
8888 Unicenter Mobile Manager for PocketPC TCP
8888 eTrust Admin (LDAP)
8889 eTrust SSO TCP
8890 eTrust Access Control TCP
8891 eTrust Admin & eTrust Access Control Audit Collection (Unix) TCP/UDP
8891 eTrust Web Access Control 8892 eTrust Web Access Control
9002 Unicenter Mangement for Web Servers - Loadbalancer - in TND\Agents directory LBKernel TCP
9005 Unicenter Mgmt for Web Servers - Default for Load Balancer ApacheAgent UDP
Port # Product or Component Name Executable Protocol
9051 Unicenter Management for WebLogic - SNMP Traps (Weblogic Agent) UDP
9052 Unicenter Management for WebLogic - HTTP Config - WebLogic Agent) TCP
9090 Unicenter Application Performance Monitor Web Report Server ex: http://mymachine:9090 9099 Unicenter Application Performance Monitor Transaction Recorder/Playback
9100 eTrust Content Inspection (G to CC) 9164 eTrust Content Inspection (G to CC)
9191 eTrust Intrustion Detection Engine from the Management Console TCP
9292 eTrust Content Inspection (GUI to Engine) 9308 eTrust Content Inspection (Policy GUI to CC) 9324 eTrust Content Inspection (Audit to CC) 9696 Unicenter Doc Server Admin GUI to Docserver 9697 Unicenter CA-Connect Admin GUI to Connect 9802 Unicente rCA-Docview/Web to DocServer
9990 CA Common Services - servicectrl - remote commands awservices TCP
9991 CA Common Services - awservices commands awservices TCP
10999 CA Common Services rmiregistry TCP
11000 Unicenter Application Performance Monitor - APM Agent receives all collector messages 11001 Unicenter Application Performance Monitor - Reserved for APPMon debugging
11002 Unicenter Application Performance Monitor - Used by Data Viewer to view transactions monitored by APM Agent 11003 Unicenter Application Performance Monitor - Reserved for communicaton between the ARM Agent and ArmApi.dll 11004 Unicenter Application Performance Monitor - APM Agent and AroNet use for message q1ueue maintenance 11005 Unicenter Application Performance Monitor - APMEdit uses this port to receive app0lication trance messages from
APPMon
11006 Unicenter Application Performance Monitor - Control port for remotely restating the APM Server component 11007 Unicenter Application Performance Monitor - Used by APPMon listens and receives Java discovery message from the
APOPerf.dll
12168 eTrust Anti-Virus Java Gui to inoweb TCP
13389 eTrust Web Access Control - Embedded Directory, eTrust Web Access Control Embedded eTrust Directory 13967 eTrust Single Sign On - Server/OTP Agent
13969 eTrust Single Sign On - Client/SDI Agent 13970 eTrust Single Sign On - Client/Safe Word Agent
13980 eTrust Single Sign On - Client/Server & Assistant/Serverr - Policy Server, eTrust Web Access Control Server TCP 13980 eTrust Web Access Control - Policy Server
13981 eTrust Single Sign On
13987 eTrust Single Sign On - client/Etrust Agent
14414 eTrust Web Update - bunded with eTrust Policy Compliance
15389 eTrust PKI - Configuration Directory & LDAP Client (embedded eTrust Directory) TCP 15390 eTrust PKI - Directory Console
15489 eTrust PKI - LDAP client
18181 eTrust Content Inspection (FW1 to GwEngine) 18984 Advantage EDBC 18985 Advantage EDBC 18986 Advantage EDBC 18987 Advantage EDBC 18988 Advantage EDBC 18989 Advantage EDBC 18990 Advantage EDBC 18991 Advantage EDBC
19289 eTrust Directory Samples TCP
19289 eTrust Directory SNMP (monitoring) Internet Explorer UDP
19290 eTrust Directory Samples TCP
19389 eTrust Directory SNMP (monitoring) 19489 eTrust Directory SNMP (monitoring) 19489 eTrust Directory Samples 19490 eTrust Directory Samples
19589 eTrust OCSPro - Directory & LDAP client TCP
19589 eTrust PKI - Publishing Directory TCP
19590 eTrust PKI - OCSPro - Directory Console TCP
19689 eTrust VPN 3.0 Admin Server TCP
19690 eTrust Directory Samples
20120 Crypt/IT TCP
20171 Unicenter TCP
20360 eTrust Admin - Server (LDAP port) 20389 eTrust Admin - Server (LDAP port)
Port # Product or Component Name Executable Protocol 20390 eTrust Admin - Server TLS (LDAP over TLS)
20391 eTrust Admin - DB (LDAP port by Workflow Interface) 20392 eTrust Admin - DB TLS (LDAP over TLS by Workflow interface) 20393 eTrust Admin - Operations (LDAP port by admin to store temp objects) 20394 eTrust Admin - Operations TLS (LDAP over TLS to store temp objects) 20395 eTrust Admin - Server SNMP
20396 eTrust Admin - Server Console 20397 eTrust Admin - Operations SNMP 20398 eTrust Admin - Operations Console 20689 eTrust Admin - DB SNMP
21064 Unicenter Service Level Management - client access to Ingres II DBMS on Unix 21064 Advantage Ingres 21065 Advantage Ingres 21066 Advantage Ingres 21067 Advantage Ingres 21068 Advantage Ingres 21069 Advantage Ingres 21070 Advantage Ingres 21071 Advantage Ingres 21391 eTrust Admin - Workflow 21392 eTrust Admin - Workflow TLS
29477 eTrust Single Sign On - Client/Brocker for 6.x and 7.x 31387 eTrust Directory v4 OSP1
31388 eTrust Directory v4 OSP1 31389 eTrust Directory v4.1 31390 eTrust Directory v4.1
41508 eTrust Inoculate/Anti-Virus - advertisement UDP
41523 Brightstor Arcserve/BEB Discovery asdscsvr TCP
41524 Brightstor Arcserve/BEB Discovery asdscsvc UDP
42508 eTrust Inoculate/Anti-Virus (Discovery Listen) InoRpc UDP
42509 eTrust Inoculate/Anti-Virus (Discovery Response) TCP
42510 eTrust Inoculate/Anti-Viru (RPC) TCP
47138 Unicenter Network and Systems Management tndmdmgr TCP
48074 BizWorks - Timer Service TCP
Port # Product or Component Name Executable Protocol
1024-65535 MS Netmeeting - secondary TCP and UDP dynamic ports TCP/UDP
3200 thru 3499 SAP TCP
32884 thru 32944 Unicenter SNMP
721-1023 or
721-5000 CA-Spool - standard lpr/lpd port (output side) user chooses the range - see port conflict for details configurable
User Choice TNGWVSERVER from Service Level Mgmt 3.0 Installation TNGWVserver
2100 - 2200 AHD, Paradigm, Unicenter Service Plus Service Desk sslump_nxd TCP
Additional Information can be found
Other (unofficial ) web sites containing ports lists
http://www.seifried.org/security/ports
http://www.networksorcery.com/enp/protocol/ip/ports00000.htm
http://www.keir.net/porftlist.html
Internet Assigned Numbers Authority (IANA)
Internet Assigned Numbers Authority (IANA) Internet Multicast Addresses
Internet Assigned Numbers Authority (IANA) Port Numbers
Internet Assigned Numbers Authority (IANA) Protocol Numbers
http://www.iss.net/security_center/advice/Exploits/Ports/
http://www.iana.org/assignments/port-numbers
http://www.isi.edu/in-notes/iana/assignments/port-numbers
Port Range Quick Reference
An index of assigned Internet numbers.
Host Extensions for IP multicasting [RFC
Please refer to the following links
The port numbers are divided into three
An index of assigned Internet Protocol
numbers.
Complete listing of IANA port listing
includes hyperlinks to explanations of the
Port # Product or Component Name Executable Protocol
