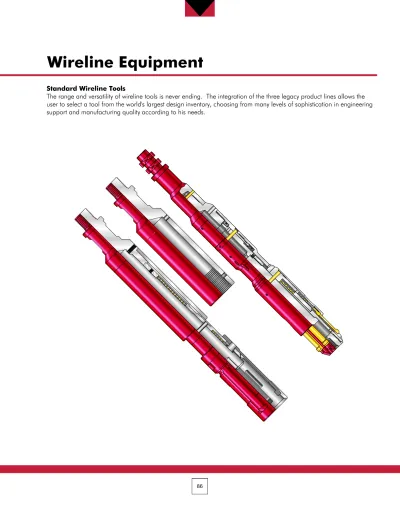

Wireline Equipment

Standard Wireline Tools

The range and versatility of wireline tools is never ending. The integration of the three legacy product lines allows the

user to select a tool from the world's largest design inventory, choosing from many levels of sophistication in engineering

support and manufacturing quality according to his needs.

(2)

(3)

BDK Pulling Tool

The Weatherford BDK

Pulling Tool is designed for running and

retrieving down-hole flow control devices with external fishing necks.

With the pulling tool in the latched position, the dogs are supported

within the skirt of the tool. This allows sustained jarring without fear of

shearing the dogs. For surface release operation the dog assembly

has a finger grip to enable manual release of the of the tool from the

retrieved fishing neck without the need to shear the tool.

The tool can be converted from a shear up tool to a shear tool simply

by changing the top sub. In addition a range of cores are available to

alter the reach of the tool.

Interchangeable top sub to convert from Jar Up to Jar Down

Range of core lengths

Supported dog design

Simple manual release mechanism

Re- pinning tool available

Cost effective design minimises inventory

All wireline operations

®

Features

Benefits

Applications

(4)

BDK Pulling Tool

No m in al Siz e 1.187" 1.250" 1.500" 2.000" 2.500" 3.000" 4.000"

Max imum OD 1.290" 1.450" 1.687" 1.875" 2.235" 2.800" 3.612"

To engage f is hing nec k OD 0.875" 1.000" 1.187" 1.375" 1.750" 2.312" 3.125"

Weight (kg) 1.9 2.6 3.6 5.5 8.2 12 15

Make Up Length - Shear Up 11.97" 14.46" 16.40" 16.41" 16.80" 17.14" 18.60"

Make Up Length - Shear Dow n 12.87" 14.91" 16.87" 16.87" 17.37" 17.88" 19.33"

Bear ing Load (lbs ) - Standard 7,606 8,963 21,673 23,230 31,632 29,930 60,830

Bearing Load ( lbs ) - H2S 7,260 8,963 20,688 22,171 30,194 28,570 58,065

A s s y Par t No .s - Su ck e r Ro d

No m in al Siz e 1.187" 1.250" 1.500" 2.000" 2.500" 3.000" 4.000" A s s y No. - Shor t Reac h 10302-A 2 8784- S-A 2 4794-S-A 2 5951- S-A 3 5985- S-A 4 5964- S-A 6 4747- S-A 6

A s s y No. - Medium Reac h 8784-M-A 2 4794-M-A 2 5950-M-A 3 5985- M- A 4 5964- M- A 6 4747- M- A 6

A s s y No. - Long Reac h 4794-L- A 2 5950- L-A 3 5985-L-A 4 5964-L-A 6 4747-L-A 6

A s s y No. - Ex tra Long Reac h 5950- E-A 3 5985-E-A 4 5964-E-A 6 4747-E-A 6

Top Connec tion Detail 15/16" - 10 15/16"- 10 15/16" - 10 1- 1/16" -10 1-1/16" -10 1-9/16"- 10 1-9/16"- 10

A s s y Par t No .s - He avy Du ty QRJ

No m in al Siz e 1.187" 1.250" 1.500" 2.000" 2.500" 3.000" 4.000"

A s s y No. - Shor t Reac h 5951- S-C3 5985-S- C4 5964-S- C6 4747-S- C6

A s s y No. - Medium Reac h 5950- M- C3 5985- M- C4 5964- M- C6 4747- M- C6

A s s y No. - Long Reac h 5950-L-C3 5985-L-C4 5964-L-C6 4747-L-C6

A s s y No. - Ex tra Long Reac h 5950-E-C3 5985-E-C4 5964-E-C6 4747-E-C6

Top Connec tion Detail 1- 1/2" HDQRJ 1-7/8" HDQRJ 2-1/2" HDQRJ 2-1/2" HDQRJ

A s s y Par t No .s - QL S

No m in al Siz e 1.187" 1.250" 1.500" 2.000" 2.500" 3.000" 4.000" A s s y No. - Shor t Reac h 10302-Q2* 8784-S- Q2* 4794- S-Q2* 5951-S- Q3* 5985-S- Q4* 5964-S- Q6* 4747-S- Q6*

A s s y No. - Medium Reac h 8784-M- Q2* 4794-M-Q2* 5950-M- Q3* 5985-M-Q4* 5964-M-Q6* 4747-M-Q6*

A s s y No. - Long Reac h 4794- L-Q2* 5950-L-Q3* 5985-L- Q4* 5964-L- Q6* 4747-L- Q6*

A s s y No. - Ex tra Long Reac h 5950-E-A 3* 5985-E- Q4* 5964-E- Q6* 4747-E- Q6*

Top Connec tion Detail 1-1/4" QLS 1-1/4" QLS 1- 1/4" QLS 1-1/2" QLS 1-7/8" QLS 2-1/2" QLS 2-1/2" QLS

C o r e De t ails

No m in al Siz e 1.187" 1.250" 1.500" 2.000" 2.500" 3.000" 4.000"

(5)

DU Pulling Tool

The Weatherford Petroline

DU Pulling Tool was designed to overcome the

weaknesses of conventional pulling tools used to recover equipment with internal

fishing necks. When retrieving many lock mandrel types it is necessary to jar both

downwards, to free-off relative key motion, and upwards, to overcome seal friction.

The DU was designed to overcome the following limitations of standard GS type

pulling tools where 2 separate runs may be required to recover a lock mandrel:

Downward jarring will shear a GS-type pulling tool.

Upward jarring will shear the alternativeGR-type pulling tool.

Consequently, 'one-run' devices can often require at least two runs to recover. The

design of the DU Pulling Tool overcomes these problems by allowing bi-directional

jarring. Initial downward jarring will not affect the DU, no matter how prolonged or

severe. Subsequent upward jarring can also be applied indefinitely. This action

merely shears screws in the DU mechanism, which moves the tool into a pre-release

position. Final downward jarring will shear the release pin, allowing retrieval of the

DU from the fishing neck.

In addition, the DU offers improved retrievability over a conventional GS design. With

a GS-type pulling tool, debris inside a lock mandrel, or incorrect equalizing prong

spacing, may prevent the pulling tool from shouldering-out on the fishing neck. This

means that the GS release pin will not shear and a fishing job is the likely result.

However, the design of the DU Pulling Tool is such that it can be released from the

fishing neck even where the DU does not shoulder-out.

Bi-directional jarring capability

Field redressable

Available to suit all industry standard fishing neck sizes

Improved retrievability

Reduced operating costs

™

Retrieving flow control lock mandrels

Setting and retrieving bridge plugs

Features

Benefits

Applications

(6)

Part Number Size Top Connection Connection Max O.D. Redress Kit

435-2000-00-01 2" 1-1/2" QLS 1/2" - 13 UNC 1.750" 435-2000-90-01

435-2000-00-02 2" 15/16" Sucker Rod 1/2" - 13 UNC 1.750" 435-2000-90-02 435-2500-00-01 2-1/2" 1-1/2" QLS 5/8" - 11 UNC 2.250" 435-2500-90-01 435-2500-00-02 2-1/2" 15/16" Sucker Rod 5/8" - 11 UNC 2.250" 435-2500-90-02 435-2500-00-03 2-1/2" 1-7/8" QLS 5/8" - 11 UNC 2.250" 435-2500-90-03 435-2500-00-04 2-1/2" 1-1/16" Sucker Rod 15/16" - 10 UNS 2.250" 435-2500-90-04 435-3000-00-02 3" 15/16" Sucker Rod 5/8" - 11 UNC 2.710" 435-3000-90-01

435-3000-00-03 3" 1-7/8" QLS 5/8" - 11 UNC 2.710" 435-3000-90-01

435-3000-00-04 3" 1-1/16" Sucker Rod 5/8" - 11 UNC 2.710" 435-3000-90-04 435-3000-00-05 3" 1-1/16" Sucker Rod 15/16" - 10 UNS 2.710" 435-3000-90-04 435-3500-00-01 3-1/2" 1-7/8" QLS 1-3/8" - 12 UN 3.110" 435-3500-90-01 435-4000-00-05 4" 1-1/16" Sucker Rod 2-1/8" - 12 UN 3.605" 435-4000-90-05 435-4000-00-06 4" 2-1/2" QLS 2-1/8" - 12 UN 3.605" 435-4000-90-06 435-4000-00-07 4" 1-7/8" QLS 2-1/8" - 12 UN 3.605" 435-4000-90-07 435-5000-00-04 5" 2-1/2" QLS 2-1/2" - 10 UN 4.496" 435-5000-90-01 435-5000-00-05 5" 1-7/8" Trinity 2-1/2" - 10 UN 4.496" 435-5000-90-01 435-5000-00-08 5" 1-1/16" Sucker Rod 2-1/2" - 10 UN 4.496" 435-5000-90-01 435-5000-00-10 5" 1-7/8" QLS 2-1/2" - 10 UN 4.496" 435-5000-90-10 435-6000-000-020 6" 2-1/2" QLS 2-3/4" - 10 UN 5.543" 435-6000-090-020 435-6000-000-022 6" 2-1/8" QLS 2-3/4" - 10 UN 5.433" 435-6000-090-022 435-6000-000-023 6" 2-1/2" Trinity 2-3/4" - 10 UN 5.543" 435-6000-090-023 435-6000-000-025 6" 2-7/8" 8.7# Hydril PH-6 2-3/4" - 10 UN 5.543" 435-6000-090-025 435-6000-000-030 6" 1-9/16" Sucker Rod 2-3/4" - 10 UN 5.543" 435-6000-090-030

DU Pulling Tool

(7)

Type WB Shifting Tool

The WB Shifting Tool is used to open or close all Weatherford and industry

standard sliding sleeves. Operation of the tool moves the inner sleeve to the open

or closed position.

The shifting tool engages the profile in the upper or lower end of the inner sleeve

to permit the sleeve to be shifted by jarring action. The tool is designed to release

itself only after the sleeve reaches its fully open or closed position. A releasing

profile on the key acts to compress the key spring and release the shifting tool. A

shear pin is an added feature designed to release the tool in the event of well

conditions making it impossible to shift the sleeve.

Sets of non-releasing keys are available for the WB shifting Tool to permit shifting

one among several circulating devices in one well bore. These keys do not have a

releasing profile. The shifting tool pin must be sheared to release.

NOTE: The WB Shifting Tool will not pass through position 1 S type landing

nipples.

The WB Shifting Tool when used to shift the Weatherford RIV Sliding Sleeve

product uses the B-1, B-2 B-3 and B-4 keys. These keys designed by Weatherford

which enable the shifting tool to run through a larger numbered sleeve, and shift

the sleeve with a matching number or lower.

Key Guide

(8)

Specification Guide

Shifting

Tool Size

Positive

Selective

XL

Top (Pin)

Bottom (Pin)

1.500"

S07.150.00 S07.150.01

N/A

15/16"-10 SR 15/16"-10 SR

1.710"

S07.171.00 S07.171.01

N/A

15/16"-10 SR 15/16"-10 SR

1.750"

S07.175.00 S07.175.01

N/A

15/16"-10 SR 15/16"-10 SR

1.812"

S07.181.00 S07.181.01

N/A

15/16"-10 SR 15/16"-10 SR

1.875"

S07.187.00 S07.187.01 S07.187.02 15/16"-10 SR 15/16"-10 SR

2.125"

S07.212.00 S07.212.01 S07.212.02 15/16"-10 SR 15/16"-10 SR

2.313"

S07.231.00 S07.231.01 S07.231.02 15/16"-10 SR 15/16"-10 SR

2.562"

S07.256.00 S07.256.01 S07.256.02 15/16"-10 SR 15/16"-10 SR

2.750"

S07.275.00 S07.275.01 S07.275.02 1-1/16"-10 SR 1-1/16"-10 SR

3.688"

S07.368.00 S07.368.01 S07.368.02 1-1/16"-10 SR 1-1/16"-10 SR

3.812"

S07.381.00 S07.381.01 S07.381.02 1-1/16"-10 SR 1-1/16"-10 SR

Assembly Numbers

Connections

(9)

WD-2 Shifting Tool

The WD-2 Shifting Tool is used to open or close the Weatherford 'WL' Sliding Sleeve.

The WD-2 is run in either the opening position (shifting dogs facing up) or closing position

(shifting dogs facing down) by inverting the tool.

The shifting dogs are held in the closed position by a spring-loaded retractor. When the

collet engages the bore of the sleeve, by slacking off weight for opening or up-strain for

closing, the retractor is moved away from the shifting dogs allowing them to engage the

profile of the 'WL' Sliding Sleeve. At this point, jarring up will shift the sleeve in the required

direction.

The WD-2 Shifting Tool has 3 shear pins to permit the dogs to retract in the event that the

sleeve will not move.

(10)

Specification Guide

Max Body OD

in/

mm

1.74

44.20

2.187

55.55

3.036

77.11 Upper

Connection

.937"-10N

37.25"

Sizes

Assembly No.

Make-up

Length

1.781" Thru 1.875"

S08.200.00

.937"-10N

1.062"-10N

41.62"

2.250" Thru 2.313"

S08.250.00

38.38"

2.750" Thru 2.813"

S08.300.00

WD-2 Shifting Tool

(11)

Wireline Equipment

Fishing Tools

Weatherford Completion Systems has established a reputation as the market leader in specialist wireline fishing tool

design. These designs proved to be stronger and more reliable than the previous generation of tools. The ultimate test

for these tools has been their use with the Heavy Duty Wireline Fishing Service. Using 2-1/16" toolstrings, impact forces

in excess of 150,000 lbs are achievable.

Weatherford Completion Systems operate 6 Heavy Duty Wireline Fishing packages, 3 in the North Sea and 3 in the Gulf

of Mexico. In addition to the established products shown here, we can design and manufacture equipment to solve

specific downhole problems. A separate Heavy Duty Wireline Fishing Services brochure contains more information

Relating to this service.

(12)

(13)

Alligator Grab

The BDK Alligator Grab is designed to retrieve items from the wellbore where

conventional grapples and debris grabs have failed.

The tool incorporates adjustable spring tension giving the operator control

over the Alligator Grabs jaw force.

The Grab is designed with two Alligator type serrated jaws. These are

activated by downward jarring which shears a pin in the Jaw body allowing

the spring to activate the jaws in a scissors like motion.

(14)

Specification Guide

Alligator Grab

Part Number Max O.D. Fish Neck Size Connection

8743-A3 1.500" 1.375" Fish Neck 15/16" Sucker Rod 8743-C3 1.500" 1.375" Fish Neck 1.500" HDQRJ

8743-Q3 1.500" 1.375" Fish Neck 1.500" QLS

8744-A4 1.750" 1.750" Fish Neck 1-1/16" Sucker Rod 8744-C4 1.750" 1.750" Fish Neck 1.875" HDQRJ

8744-Q4 1.750" 1.750" Fish Neck 1.875" QLS

5673-Q4 2.250" 1.750" Fish Neck 1.875" QLS

6240-Q4 2.600" 1.750" Fish Neck 1.874" QLS

8745-Q6 3.500" 2.313" Fish Neck 2.500" QLS

NOTE: QRJ & Trinity Connections available on request. Additional sizes available on request.

(15)

Releasable Alligator Grab

The Weatherford Petroline

Releasable Alligator Grab was developed to

address the performance limitations of previous designs. A number of

improvements were made resulting in a tool which could be relied on to

retrieve loose debris or 'junk' from a well-bore, even at depth in a high

deviation.

The Releasable Alligator Grab, when in the 'run' position requires a small pin

to be sheared before it can activate. This is accomplished by light downward

jarring once the ‘junk’ is located but prevents premature activation when ID

restrictions in the well-bore are encountered.

In addition there is also a safety release feature so that if the debris is not

retrievable, upward jarring shears a release pin allowing the grab to

disengage.

Both these features are further enhanced by the adjustable spring rating,

which determines how much force is generated when activated.

Custom jaws available on request

Adjustable spring rating

Shear release mechanism

Wireline Fishing Operations

™

Features

Applications

(16)

Part Num be r M ax O.D. Conne ction 442-1500-00-02 1.500" 15/16" Sucker Rod 442-1500-00-03 1.500" 1-1/2" QLS 442-1875-00-04 1.881" 1-1/16" Sucker Rod 442-1875-00-05 1.881" 15/16" Sucker Rod 442-1875-00-06 1.881" 1-7/8" QLS 442-2500-00-02 2.506" 1-9/16" Sucker Rod 442-2500-00-03 2.506" 1-7/8" QLS 442-2500-00-04 2.506" 1-1/16" Sucker Rod 442-2500-00-05 2.506" 2-1/2" QLS

Specification Guide

ReleasableAlligator Grab

(17)

DriveDownBailer

The Weatherford Drive Down Bailer is used to collect

samples or remove debris from the well bore. The Bailer is

jarred into the sample or debris forcing material into the

cylinder, which is retained by a ball or flapper type non-return

seat. The bailer is then jarred upwards and retrieved.

Available with either Ball or Flapper seats

Field redressable

Available with ball of flapper shoe

Extension tubes available to increase capacity

Recovery of in-fill samples from wellbore or sump

Removal of compacted debris or sand from flow control

devices

Benefits

Applications

(18)

Par t Num be r (Ball Type )

Par t Num be r

(Flappe r Type ) M ax O.D. Fis h Ne ck Size Conne ction

Std Cham be r Le ngth*

Capacity Pe r Foot

01350-OB-A3 01350-OF-A 3 1.500" 1.375" Fish Neck 15/16" Sucker Rod 5 f t 0.2 Litres 01350-OB-C3 01350-OF-C3 1.500" 1.375" Fish Neck 1.500" HDQRJ 5 f t 0.2 Litres 01350-OB-Q3 01350-OF-Q3 1.500" 1.375" Fish Neck 1.500" QLS 5 f t 0.2 Litres 01351-OB-A3 01351-OF-A 3 1.750" 1.375" Fish Neck 15/16" Sucker Rod 5 f t 0.3 Litres 01351-OB-C3 01351-OF-C3 1.750" 1.375" Fish Neck 1.500" HDQRJ 5 f t 0.3 Litres 01351-OB-Q3 01351-OF-Q3 1.750" 1.375" Fish Neck 1.500" QLS 5 f t 0.3 Litres 01352-OB-A4 01352-OF-A 4 2.000" 1.750" Fish Neck 1-1/16" Sucker Rod 5 f t 0.4 Litres 01352-OB-C4 01352-OF-C4 2.000" 1.750" Fish Neck 1.875" HDQRJ 5 f t 0.4 Litres 01352-OB-Q4 01352-OF-Q4 2.000" 1.750" Fish Neck 1.875" QLS 5 f t 0.4 Litres 01353-OB-A4 01353-OF-A 4 2.250" 1.750" Fish Neck 1-1/16" Sucker Rod 5 f t 0.5 Litres 01353-OB-C4 01353-OF-C4 2.250" 1.750" Fish Neck 1.875" HDQRJ 5 f t 0.5 Litres 01353-OB-Q4 01353-OF-Q4 2.250" 1.750" Fish Neck 1.875" QLS 5 f t 0.5 Litres 02168-OB-A4 02168-OF-A 4 2.500" 1.750" Fish Neck 1-1/16" Sucker Rod 5 f t 0.6 Litres 02168-OB-C4 02168-OF-C4 2.500" 1.750" Fish Neck 1.875" HDQRJ 5 f t 0.6 Litres 02168-OB-Q4 02168-OF-Q4 2.500" 1.750" Fish Neck 1.875" QLS 5 f t 0.6 Litres 01158-OB-A4 01158-OF-A 4 2.625" 1.750" Fish Neck 1-1/16" Sucker Rod 5 f t 0.7 Litres 01158-OB-C4 01158-OF-C4 2.625" 1.750" Fish Neck 1.875" HDQRJ 5 f t 0.7 Litres 01158-OB-Q4 01158-OF-Q4 2.625" 1.750" Fish Neck 1.875" QLS 5 f t 0.7 Litres 02169-OB-A4 02169-OF-A 4 3.000" 1.750" Fish Neck 1-1/16" Sucker Rod 5 f t 0.9 Litres 02169-OB-C4 02169-OF-C4 3.000" 1.750" Fish Neck 1.875" HDQRJ 5 f t 0.9 Litres 02169-OB-Q4 02169-OF-Q4 3.000" 1.750" Fish Neck 1.875" QLS 5 f t 0.9 Litres 10912-OB-A6 10912-OF-A 6 3.500" 2.313" Fish Neck 1-9/16" Sucker Rod 5 f t 1.3 Litres 10912-OB-C6 10912-OF-C6 3.500" 2.313" Fish Neck 2.500" HDQRJ 5 f t 1.3 Litres 10912-OB-Q4 10912-OF-Q4 3.500" 2.313" Fish Neck 2.500" QLS 5 f t 1.3 Litres 8714-OB-A6 8714-OF-A 6 4.000" 2.313" Fish Neck 1-9/16" Sucker Rod 5 f t 1.5 Litres 8714-OB-C6 8714-OF-C6 4.000" 2.313" Fish Neck 2.500" HDQRJ 5 f t 1.5 Litres 8714-OB-Q6 8714-OF-Q6 4.000" 2.313" Fish Neck 2.500" QLS 5 f t 1.5 Litres

*The Bailer can be manuf actured to any length required. Additional sizes available on request. NOTE: QRJ & Trinity Connections available on request.

(19)

Dump Bailer

The Weatherford Dump Bailer and Inverted Dump Bailer are

designed to carry acids, mercury and other fluids down to a point in

the wellbore where they will be most effective i.e. Plugs, Check

Valves, SCSSSV Flow Tubes.

Downward jarring is required to overcome the shear pin that allows

the plunger to rupture a shear disc.

Dual shear capability

Variable shear pin rating

Available in either standard or inverted designs

Fully field redressable

Glass disc available for Acid service

The Inverted Dump Bailer is utilized to carry heavy viscosity fluids

such as cement. With the Inverted Dump Bailer downward jarring

is required to shear the pin, which allows the plunger to rupture the

shear disc. The shear disc is pushed out through the Bailer,

leaving an unrestricted through bore making this Bailer more

suitable for use with heavier viscosity fluids.

Features

(20)

Dump Bailer

Par t Num be r M ax O.D. Fis h Ne ck Size Conne ction

Std Cham be r Le ngth*

Capacity Pe r Foot

01350-OB-A3 1.500" 1.375" Fish Neck 15/16" Sucker Rod 5 f t 0.2 Litres 01350-OB-C3 1.500" 1.375" Fish Neck 1.500" HDQRJ 5 f t 0.2 Litres 01350-OB-Q3 1.500" 1.375" Fish Neck 1.500" QLS 5 f t 0.2 Litres 01351-OB-A3 1.750" 1.375" Fish Neck 15/16" Sucker Rod 5 f t 0.3 Litres 01351-OB-C3 1.750" 1.375" Fish Neck 1.500" HDQRJ 5 f t 0.3 Litres 01351-OB-Q3 1.750" 1.375" Fish Neck 1.500" QLS 5 f t 0.3 Litres 01352-OB-A4 2.000" 1.750" Fish Neck 1-1/16" Sucker Rod 5 f t 0.4 Litres 01352-OB-C4 2.000" 1.750" Fish Neck 1.875" HDQRJ 5 f t 0.4 Litres 01352-OB-Q4 2.000" 1.750" Fish Neck 1.875" QLS 5 f t 0.4 Litres 01353-OB-A4 2.250" 1.750" Fish Neck 1-1/16" Sucker Rod 5 f t 0.5 Litres 01353-OB-C4 2.250" 1.750" Fish Neck 1.875" HDQRJ 5 f t 0.5 Litres 01353-OB-Q4 2.250" 1.750" Fish Neck 1.875" QLS 5 f t 0.5 Litres 02168-OB-A4 2.500" 1.750" Fish Neck 1-1/16" Sucker Rod 5 f t 0.6 Litres 02168-OB-C4 2.500" 1.750" Fish Neck 1.875" HDQRJ 5 f t 0.6 Litres 02168-OB-Q4 2.500" 1.750" Fish Neck 1.875" QLS 5 f t 0.6 Litres 01158-OB-A4 2.625" 1.750" Fish Neck 1-1/16" Sucker Rod 5 f t 0.7 Litres 01158-OB-C4 2.625" 1.750" Fish Neck 1.875" HDQRJ 5 f t 0.7 Litres 01158-OB-Q4 2.625" 1.750" Fish Neck 1.875" QLS 5 f t 0.7 Litres 02169-OB-A4 3.000" 1.750" Fish Neck 1-1/16" Sucker Rod 5 f t 0.9 Litres 02169-OB-C4 3.000" 1.750" Fish Neck 1.875" HDQRJ 5 f t 0.9 Litres 02169-OB-Q4 3.000" 1.750" Fish Neck 1.875" QLS 5 f t 0.9 Litres 10912-OB-A4 3.500" 1.750" Fish Neck 1-1/16" Sucker Rod 5 f t 1.3 Litres 10912-OB-C4 3.500" 1.750" Fish Neck 1.875" HDQRJ 5 f t 1.3 Litres 10912-OB-Q4 3.500" 1.750" Fish Neck 1.875" QLS 5 f t 1.3 Litres 8714-OB-A6 4.000" 2.313" Fish Neck 1-9/16" Sucker Rod 5 f t 1.5 Litres 8714-OB-C6 4.000" 2.313" Fish Neck 2.500" HDQRJ 5 f t 1.5 Litres 8714-OB-Q6 4.000" 2.313" Fish Neck 2.500" QLS 5 f t 1.5 Litres

*The Bailer can be manuf actured to any length required.

(21)

Hydrostatic Bailer

The Weatherford Hydrostatic Bailer is used to remove sand, mud fallout, salt,

paraffin, scale and other solids from the well bore, where pump type bailers

have been ineffective due to the solidified nature of the debris.

When assembled the chamber remains at atmospheric pressure. On contact

with the debris in the well-bore the bailer is activated by jarring down to shear

the pins. Once sheared the well-bore pressure (including hydrostatic) forces

the piston up into the cylinder ‘sucking’ the solids or debris into the chamber.

The ball or flapper check prevents any debris loss.

The pressure relief valve operates automatically as the bailer is recovered

from the well, balancing the internal and external pressure. At surface the

internal pressure will be at atmospheric.

Pressure relief check valve

Variable shear pin rating

Available with ball of flapper shoe

Fully field redressable

Specialist bottom housings designed on request for fishing operations

Recovery of solids or debris from top of or internally within flow control

devices

Recovery of ‘lost in hole’ objects which standard fishing methods cannot

access

Features

Applications

(22)

Hydrostatic Bailer

Std Chamber Length*

Capacity Per Foot

Redress Kit Part No.

02119-00-A2 1.250" 1.187" Fish Neck 15/16" Sucker Rod 5 ft 0.2 Litres 02119-00-A2-RD

02119-00-Q2 1.250" 1.187" Fish Neck 1.125" QLS 5 ft 0.2 Litres 02119-00-Q2-RD

01042-00-C3 1.500" 1.375" Fish Neck 1.500" HDQRJ 5 ft 0.2 Litres 01042-00-C3-RD

02114-00-A4 2.000" 1.750" Fish Neck 1-1/16" Sucker Rod 5 ft 0.4 Litres 02114-00-A4-RD

*The Bailer can be manufactured to any length required. Additional sizes available on request. NOTE: QRJ & Trinity Connections available on request.

(23)

Inverted Dump Bailer

The

Inverted Dump Bailer is designed to carry heavy

viscosity liquids e.g. cement and other fluids down to a point in the well bore

where they will be most effective, i.e. Plugs, Check Valves etc.

Weatherford BDK®

Par t No. Max O.D. Fis h Ne ck Size Connection Std Cham ber Le ngth* Capacity Pe r Foot

Redr ess Kit Part No.

7540-A3 1.750" 1.375" 15/16" Sucker Rod 5 f t 0.3 Litres 7540-A3-RD 7540-C3 1.750" 1.375" 1.500" HDQRJ 5 f t 0.3 Litres 7540-C3-RD 7540-Q3 1.750" 1.375" 1.500" QLS 5 f t 0.3 Litres 7540-Q3-RD 9705-A4 2.000" 1.750" 1-1/16" Sucker Rod 5 f t 0.4 Litres 9705-A4-RD 9705-C4 2.000" 1.750" 1.875" HDQRJ 5 f t 0.4 Litres 9705-C4-RD 9705-Q4 2.000" 1.750" 1.875" QLS 5 f t 0.4 Litres 9705-Q4-RD 8129-A4 2.250" 1.750" 1-1/16" Sucker Rod 5 f t 0.5 Litres 8129-A4-RD 8129-C4 2.250" 1.750" 1.875" HDQRJ 5 f t 0.5 Litres 8129-C4-RD 8129-Q4 2.250" 1.750" 1.875" QLS 5 f t 0.5 Litres 8129-Q4-RD 10433-A4 2.500" 1.750" 1-1/16" Sucker Rod 5 f t 0.6 Litres 10433-A4-RD 10433-C4 2.500" 1.750" 1.875" HDQRJ 5 f t 0.6 Litres 10433-C4-RD 10433-Q4 2.500" 1.750" 1.875" QLS 5 f t 0.6 Litres 10433-Q4-RD 10422-A4 3.000" 1.750" 1-1/16" Sucker Rod 5 f t 0.9 Litres 10422-A4-RD 10422-C4 3.000" 1.750" 1.875" HDQRJ 5 f t 0.9 Litres 10422-C4-RD 10422-Q4 3.000" 1.750" 1.875" QLS 5 f t 0.9 Litres 10422-Q4-RD 10411-A5 3.500" 2.313" 1-1/16" Sucker Rod 5 f t 1.3 Litres 10411-A5-RD 10411-C5 3.500" 2.313" 1.875" HDQRJ 5 f t 1.3 Litres 10411-C5-RD 10411-Q5 3.500" 2.313" 1.875" QLS 5 f t 1.3 Litres 10411-Q5-RD * The bailer can bemanufactured to any length required

QRJ™ & Trinity™ connections available on request. Additional sizes available on request

(24)

Inverted Dump Bailer

Part No. Max O.D. Fish Neck Size Connection

Capacity Per

Foot Redress Kit Part No.

7540-A3 1.750" 1.375" Fish Neck 15/16" Sucker Rod 5 ft 0.3 Litres 7540-A3-RD

7540-C3 1.750" 1.375" Fish Neck 1.500" HDQRJ 5 ft 0.3 Litres 7540-C3-RD

7540-Q3 1.750" 1.375" Fish Neck 1.500" QLS 5 ft 0.3 Litres 7540-Q3-RD

9705-A4 2.000" 1.750" Fish Neck 1-1/16" Sucker Rod 5 ft 0.4 Litres 9705-A4-RD

(25)

Sample Bailer

The Weatherford Sample Bailer is used to retrieve well samples. This tool is

generally run in conjunction with the Tubing End Locator. The ball sealing

mechanism retains the sample in place as the tool is recovered from the

wellbore.

(26)

Sample Bailer

Capacity Per

(27)

Sand Pump Bailer

The Weatherford Sand Pump Bailer is used to remove sand and small pieces

of debris from the wellbore.

The Sand Pump Bailer consists of a piston within a cylinder. Manipulating the

piston by means of jarring up and down sucks debris into the cylinder for

retrieval to surface. A ball check valve then prevents the debris from being

lost.

Debris retention via Ball Seal

Field redressable

Extension tubes available to increase capacitys

Recovery of in-fill samples from well-bore or sump

Removal of compacted debris or sand from flow control devices

Benefits

Applications

(28)

Capacity Per

(29)

Universal Bell Guide

The Weatherford BDK

All wireline operations

® Universal Bell Guide is designed as an alternative

to the use of Bell Skirts. The guides eliminate the need to thread or weld

to, the pulling tool or overshot body. The Universal Bell Guide offers the

flexibility to interchange the size of centralising Bell Guide efficiently. The

base assembly consists of the Top Sub, Cylinder and Protection Sleeve,

an extensive range of bell guides complements the base assembly.

Available to suit all industry standard pulling tools

Range of bell guides to suit each nominal base assembly

Available with a variety of threaded and quick lock connections

Improved tensile ratings compared to threaded or welded skirts

Reduced inventory cost

Reduces risk of failure from threaded or welded skirts on standard

pulling tools

Features

Benefits

Applications

Ordering Information

The Universal Bell Guide should be ordered as two separate

components:

a) The base assembly as required by size and connection type

b) The required bell guide(s) by OD size and to suit the relevant

base assembly

c) See table detail for information on size availability

d) Alternative sizes and connections available on requested

e) It is recommended that the type of pulling tool to be utilised in

conjunction with the Universal Bell Guide is referenced on

order to ensure compatibility with the Universal Bell Guide.

(30)

Universal Bell Guide

Sucker Rod Connection

Part Number Nominal Size Fish Neck Size Connection To Suit Pulling Tool Size / Type Base Assembly

13182-A3 1.500" 1.375" 15/16" -10 1-1/2" R and S

10135-A3 1.500" 1.375" 15/16" - 10 1-1/2" BDK Heavy Duty and BDK Standard

7949-A3 2.000" 1.375" 15/16" -10 2" R and S

10139-A3 2.000" 1.375" 15/16" - 10 2" BDK Heavy Duty

7950-A3 2.500" 1.375" 15/16" -10 2-1/2" R and S

10143-A3 2.500" 1.375" 15/16" - 10 2-1/2" BDK Heavy Duty

7951-A5 3.000" 2.312" 1-1/16" - 10 3" R and S

10143-A5 3.000" 2.312" 1-1/16" - 10 3" BDK Heavy Duty

7951-A5 4.000" 2.312" 1-1/16" - 10 4" R and S

10143-A5 4.000" 2.312" 1-1/16" - 10 4" BDK Heavy Duty

HDQRJ Connection

13182-C3 1.500" 1.375" 1-1/2" HDQRJ 1-1/2" R and S

10135-C3 1.500" 1.375" 1-1/2" HDQRJ 1-1/2" BDK Heavy Duty and BDK Standard

7949-C3 2.000" 1.375" 1-1/2" HDQRJ 2" R and S 10139-C3 2.000" 1.375" 1-1/2" HDQRJ 2" BDK Heavy Duty 7950-C3 2.500" 1.375" 1-1/2" HDQRJ 2-1/2" R and S 10143-C3 2.500" 1.375" 1-1/2" HDQRJ 2-1/2" BDK Heavy Duty 7951-C5 3.000" 2.312" 1-7/8" HDQRJ 3" R and S 10143-C5 3.000" 2.312" 1-7/8" HDQRJ 3" BDK Heavy Duty 7951-C5 4.000" 2.312" 1-7/8" HDQRJ 4" R and S 10143-C5 4.000" 2.312" 1-7/8" HDQRJ 4" BDK Heavy Duty QLS Connection

13182-Q3* 1.500" 1.375" 1-1/2" QLS 1-1/2" R and S

10135-Q3* 1.500" 1.375" 1-1/2" QLS 1-1/2" BDK Heavy Duty and BDK Standard

7949-Q3* 2.000" 1.375" 1-1/2" QLS 2" R and S

(31)

Universal Bell Guide

Bell Guide to Suit Base Assembly 13182 Bell Guide to Suit Base Assembly 10135

Base Assembly Bell Skirt OD Part Number Base Assembly Bell Skirt OD Part Number

Nominal Size OD Nominal Size OD

1.500" 2.12" 13182-03-2120 1.500" 2.50" 10138-2500 1.500" 2.25" 13182-03-2250 1.500" 2.75" 10138-2750 1.500" 2.37" 13182-03-2370 1.500" 3.00" 10138-3000 1.500" 2.50" 13182-03-2500 1.500" 3.25" 10138-3250 1.500" 2.62" 13182-03-2620 1.500" 3.50" 10138-3500 1.500" 2.75" 13182-03-2750 1.500" 3.75" 10138-3750 1.500" 2.87" 13182-03-2870 1.500" 4.00" 10138-4000 1.500" 3.00" 13182-03-3000 1.500" 4.25" 10138-4250 1.500" 3.12" 13182-03-3120 1.500" 4.50" 10138-4500 1.500" 3.25" 13182-03-3250 1.500" 4.75" 10138-4750 1.500" 3.37" 13182-03-3370 1.500" 5.00" 10138-5000 1.500" 3.50" 13182-03-3500 1.500" 5.25" 10138-5250 1.500" 3.62" 13182-03-3620 1.500" 5.50" 10138-5500

2.000" 2.87" 8590-2870 2.000" 2.75" 10142-2750 2.000" 3.00" 8590-3000 2.000" 3.00" 10142-3000 2.000" 3.25" 8590-3250 2.000" 3.25" 10142-3250 2.000" 3.50" 8590-3500 2.000" 3.50" 10142-3500 2.000" 3.75" 8590-3750 2.000" 3.75" 10142-3750 2.000" 4.00" 8590-4000 2.000" 4.00" 10142-4000 2.000" 4.25" 8590-4250 2.000" 4.25" 10142-4250 2.000" 4.50" 8590-4500 2.000" 4.50" 10142-4500 2.000" 4.75" 8590-4750 2.000" 4.75" 10142-4750 2.000" 5.00" 8590-5000 2.000" 5.00" 10142-5000 2.000" 5.25" 8590-5250 2.000" 5.25" 10142-5250 2.000" 5.50" 8590-5500 2.000" 5.50" 10142-5500 2.000" 5.50" 8590-5500 2.000" 5.50" 10142-5500

2.500" 3.25" 8582-3250 2.500" 3.12" 10145-3120 2.500" 3.50" 8582-3500 2.500" 3.37" 10145-3370 2.500" 3.75" 8582-3750 2.500" 3.62" 10145-32620 2.500" 4.00" 8582-4000 2.500" 3.87" 10145-3870 2.500" 4.25" 8582-4250 2.500" 4.12" 10145-4120

(32)

Universal Bell Guide

3.000" 4.00" 8586-4000 3.000" 3.75" 10149-3750 3.000" 4.25" 8586-4250 3.000" 4.00" 10149-4000 3.000" 4.50" 8586-4500 3.000" 4.25" 10149-4250 3.000" 4.75" 8586-4750 3.000" 4.50" 10149-4500 3.000" 5.00" 8586-5000 3.000" 4.75" 10149-4750 3.000" 5.25" 8586-5250 3.000" 5.00" 10149-5000 3.000" 5.50" 8586-5550 3.000" 5.25" 10149-5250 3.000" 5.75" 8586-5750 3.000" 5.50" 10149-5500 3.000" 6.00" 8586-6000 3.000" 5.75" 10149-5750

4.000" 4.38" 12798-04-4380 4.000" 4.50" 10152-4500 4.000" 4.63" 12798-04-4630 4.000" 4.75" 10152-4750 4.000" 4.88" 12798-04-4880 4.000" 5.00" 10152-5000 4.000" 5.13" 12798-04-5130 4.000" 5.25" 10152-5250 4.000" 5.38" 12798-04-5380 4.000" 5.50" 10152-5500 4.000" 5.63" 12798-04-5630 4.000" 5.75" 10152-5750 4.000" 5.88" 12798-04-5880 4.000" 6.00" 10152-6000 4.000" 6.13" 12798-04-6130 4.000" 6.250" 10152-6250 4.000" 6.38" 12798-04-6380 4.000" 6.500" 10152-6500 4.000" 6.63" 12798-04-6630 4.000" 6.750" 10152-6750 4.000" 6.88" 12798-04-6880 4.000" 7.000" 10152-7000

(33)

Go-Devil - Flat Bottom Type

If the wireline toolstring becomes fouled, the

Flat Bottom

Go-Devil can be used to cut conventional wireline. This type of Go-Devil is

ideal if the Rope Socket of the stuck toolstring is obscured with sand or

debris. Purpose designed Centralizers are available for use with Go-Devils.

(34)

Go-Devil - Flat Bottom Type

Specification Guide

Body Diameter Fish Neck Wire Size Length Part Number

1.500" 1.375" 0.092" / 0.108" 2ft 01286-07 1.500" 1.375" 0.125" 2ft 01286-16 1.500" 1.375" 0.187" 2ft 01286-08 1.500" 1.375" 0.092" / 0.108" 3ft 01286-09 1.500" 1.375" 0.125" 3ft 01286-17 1.500" 1.375" 0.187" 3ft 01286-10 1.500" 1.375" 0.092" / 0.108" 5ft 01286-11 1.500" 1.375" 0.125" 5ft 01286-12 1.500" 1.375" 0.187" 5ft 01286-18 1.875" 1.750" 0.092" / 0.108" 2ft 01018-10 1.875" 1.750" 0.125" 2ft 01018-22 1.875" 1.750" 0.187" 2ft 01018-11 1.875" 1.750" 0.218" 2ft 01018-12 1.875" 1.750" 0.092" / 0.108" 3ft 01018-13 1.875" 1.750" 0.125" 3ft 01018-23 1.875" 1.750" 0.187" 3ft 01018-14 1.875" 1.750" 0.218" 3ft 01018-15 1.875" 1.750" 0.092" / 0.108" 5ft 01018-16 1.875" 1.750" 0.125" 5ft 01018-24 1.875" 1.750" 0.187" 5ft 01018-17 1.875" 1.750" 0.218" 5ft 01018-18 2.500" 2.312" 0.092" / 0.108" 2ft 01104-10 2.500" 2.312" 0.125" 2ft 01104-22 2.500" 2.312" 0.187" 2ft 01104-11 2.500" 2.312" 0.218" 2ft 01104-12 2.500" 2.312" 0.092" / 0.108" 3ft 01104-13 2.500" 2.312" 0.125" 3ft 01104-23 2.500" 2.312" 0.187" 3ft 01104-14 2.500" 2.312" 0.218" 3ft 01104-15 2.500" 2.312" 0.092" / 0.108" 5ft 01104-16 2.500" 2.312" 0.125" 5ft 01104-24 2.500" 2.312" 0.187" 5ft 01104-17 2.500" 2.312" 0.218" 5ft 01104-18

(35)

Go-Devil - Cutter Type

If the wireline toolstring becomes fouled, the

Cutter Type

Go-Devil can be used to cut conventional wireline. The tool is most effective in

situations where the Rope Socket of the stuck string is clear of sand and

debris.

Centralizers are available for use with Go-Devils.

(36)

Go-Devil - Cutter Type

Specification Guide

Body Diameter Fish Neck Wire Size Length Part Number

1.500" 1.375" 0.092" / 0.108" 2ft 01286-01 1.500" 1.375" 0.125" 2ft 01286-13 1.500" 1.375" 0.187" 2ft 01286-02 1.500" 1.375" 0.092" / 0.108" 3ft 01286-03 1.500" 1.375" 0.125" 3ft 01286-14 1.500" 1.375" 0.187" 3ft 01286-04 1.500" 1.375" 0.092" / 0.108" 5ft 01286-05 1.500" 1.375" 0.125" 5ft 01286-15 1.500" 1.375" 0.187" 5ft 01286-06 1.875" 1.750" 0.092" / 0.108" 2ft 01018-01 1.875" 1.750" 0.187" 2ft 01018-02 1.875" 1.750" 0.218" 2ft 01018-03 1.875" 1.750" 0.092" / 0.108" 3ft 01018-04 1.875" 1.750" 0.187" 3ft 01018-05 1.875" 1.750" 0.218" 3ft 01018-06 1.875" 1.750" 0.092" / 0.108" 5ft 01018-07 1.875" 1.750" 0.187" 5ft 01018-08 1.875" 1.750" 0.218" 5ft 01018-09 2.500" 2.312" 0.092" / 0.108" 2ft 01104-01 2.500" 2.312" 0.187" 2ft 01104-02 2.500" 2.312" 0.218" 2ft 01104-03 2.500" 2.312" 0.092" / 0.108" 3ft 01104-04 2.500" 2.312" 0.187" 3ft 01104-05 2.500" 2.312" 0.218" 3ft 01104-06 2.500" 2.312" 0.092" / 0.108" 5ft 01104-07 2.500" 2.312" 0.187" 5ft 01104-08 2.500" 2.312" 0.218" 5ft 01104-09

QRJ™ & Trinity™ connections available on request. Additional sizes available on request

(37)

Internal Fishing Tool

-Parallel & Tapered

Mandrel

Parallel Mandrel

Tapered Mandrel

This tool is designed to retrieve down hole flow control devices

with damaged internal fish necks.

The tool (excluding the mandrel) is run using the upper fish neck,

downward jarring will set the retrieving collet and shear the

Running Tool. The mandrel is then run in, latching the upper

fishing neck, upward jarring sets the tool and retrieves the lock.

To release from the lock a reverse of the procedure will allow a full

retrieval of the Fishing Tool.

This tool is designed to retrieve down hole devices by locating in

the bore when the exact internal diameter cannot be determined

due to damage, 'wash-out', or wear.

The tapered Mandrel allows expansion of the collet to contact the

bore. The tool is run using the upper fishing neck. Downward

jarring will set the retrieving Collet and shear the Running Tool.

The pulling Tool is then run in, latching the lower fishing neck.

Upward jarring sets the tool and retrieves the lock.

To release from the lock a reverse of the procedure will allow full

retrieval of the Fishing Tool. The Fishing Tool can also be used for

retrieval of tools with damaged internal fishing necks.

An alternative Pulling Neck is available should an external Fishing

Neck be preferred.

Tools are manufactured to suit any size required.

Part Numbers are available on request.

Tapered Mandrel Parallel Mandrel

(38)

(39)

WirelineMagnet

The

Wireline Magnet is a special purpose wireline tool

that is used to retrieve small magnetically attractable items such as nuts,

bolts, tool parts and any ferrous debris lost within the well bore. The outer

sleeve prevents debris from becoming dislodged on retrieval.

Weatherford BDK®

Specification Guide

Sucker Rod Connection

01077-1500-A2 1.500" 1.187" Fish Neck 15/16" Sucker Rod 01077-1750-A3 1.750" 1.375" Fish Neck 15/16" Sucker Rod 01078-2000-A3 2.000" 1.375" Fish Neck 15/16" Sucker Rod 01078-2250-A4 2.250" 1.375" Fish Neck 15/16" Sucker Rod 01079-2500-A4 2.500" 1.750" Fish Neck 1-1/16" Sucker Rod 01079-2750-A4 2.750" 1.750" Fish Neck 1-1/16" Sucker Rod 01080-3000-A5 3.000" 1.750" Fish Neck 1-1/16" Sucker Rod 01080-3250-A5 3.250" 2.312" Fish Neck 1-1/16" Sucker Rod 01081-3500-A5 3.500" 2.312" Fish Neck 1-1/16" Sucker Rod 01081-3750-A5 3.750" 2.312" Fish Neck 1-1/16" Sucker Rod 01081-4000-A5 4.000" 2.312" Fish Neck 1-1/16" Sucker Rod 01081-4250-A5 4.250" 2.312" Fish Neck 1-1/16" Sucker Rod 01081-4500-A5 4.500" 2.312" Fish Neck 1-1/16" Sucker Rod 02098-4750-A5 4.750" 2.312" Fish Neck 1-1/16" Sucker Rod 02098-5000-A5 5.000" 2.312" Fish Neck 1-1/16" Sucker Rod 02098-5250-A5 5.250" 2.312" Fish Neck 1-1/16" Sucker Rod 02098-5500-A5 5.500" 2.312" Fish Neck 1-1/16" Sucker Rod 02098-5750-A5 5.750" 2.312" Fish Neck 1-1/16" Sucker Rod 02098-6000-A5 6.000" 2.312" Fish Neck 1-1/16" Sucker Rod

(40)

Wireline Magnet

Heavy Duty QRJ Connection

01077-1750-C3 1.750" 1.375" Fish Neck 1.500" HDQRJ 01078-2000-C3 2.000" 1.375" Fish Neck 1.500" HDQRJ 01078-2250-C3 2.250" 1.375" Fish Neck 1.500" HDQRJ 01079-2500-C4 2.500" 1.750" Fish Neck 1.875" HDQRJ 01079-2750-C4 2.750" 1.750" Fish Neck 1.875" HDQRJ 01080-3000-C5 3.000" 1.750" Fish Neck 1.875" HDQRJ 01080-3250-C5 3.250" 2.312" Fish Neck 1.875" HDQRJ 01081-3500-C5 3.500" 2.312" Fish Neck 1.875" HDQRJ 01081-3750-C5 3.750" 2.312" Fish Neck 1.875" HDQRJ 01081-4000-C5 4.000" 2.312" Fish Neck 1.875" HDQRJ 01081-4250-C5 4.250" 2.312" Fish Neck 1.875" HDQRJ 01081-4500-C5 4.500" 2.312" Fish Neck 1.875" HDQRJ 02098-4750-C5 4.750" 2.312" Fish Neck 1.875" HDQRJ 02098-5000-C5 5.000" 2.312" Fish Neck 1.875" HDQRJ 02098-5250-C5 5.250" 2.312" Fish Neck 1.875" HDQRJ 02098-5500-C5 5.500" 2.312" Fish Neck 1.875" HDQRJ 02098-5750-C5 5.750" 2.312" Fish Neck 1.875" HDQRJ 02098-6000-C5 6.000" 2.312" Fish Neck 1.875" HDQRJ QLS Connection

01077-1500-Q2 1.375" 1.187" Fish Neck 1.500" QLS 01077-1750-Q3 1.750" 1.375" Fish Neck 1.500" QLS 01078-2000-Q3 2.000" 1.375" Fish Neck 1.500" QLS 01078-2250-Q3 2.250" 1.375" Fish Neck 1.500" QLS 01079-2500-Q4 2.500" 1.750" Fish Neck 1.875" QLS 01079-2750-Q4 2.750" 1.750" Fish Neck 1.875" QLS 01080-3000-Q5 3.000" 1.750" Fish Neck 1.875" QLS 01080-3250-Q5 3.250" 2.312" Fish Neck 1.875" QLS 01081-3500-Q5 3.500" 2.312" Fish Neck 1.875" QLS 01081-3750-Q5 3.750" 2.312" Fish Neck 1.875" QLS 01081-4000-Q5 4.000" 2.312" Fish Neck 1.875" QLS 01081-4250-Q5 4.250" 2.312" Fish Neck 1.875" QLS

(41)

Heavy Duty Releasable Overshot

The Weatherford Petroline

Heavy Duty Releasable Overshot (HDRO) has been

designed to withstand jarring forces experienced during complex heavy duty fishing

operations. Manufactured to the highest standard, the HDRO is the most robust

overshot on the market today.

The HDRO has been designed with the ability to release from the fish if desired. This

is simply achieved by downward jarring until the pin shears allowing the top sub

mandrel to move downwards and latch the top of the slip mandrel. From an

operational point of view, the overshot is of a simple design with no complex

components. No special tools are required for dismantling or reassembling and it

therefore requires the minimum of maintenance.

The tool is released by downward jarring until the pin shears allowing the top sub

mandrel to move downwards and latch the top of the slip mandrel.

The HDRO is available in a range of sizes with a complementary range of slips and

cores.

™

Self releasing

Robust construction

Wide range of slips and cores

Range of top connectors

Available with integral bell guide connection

Simple design for easy maintenance

Standard wireline fishing operations

Heavy duty wireline fishing operations

Features

Benefits

Applications

(42)

2.240" O.D. Heavy Duty Releasable Overshot

Asse m bly Num ber c/w Connection Assem bly Num ber Threaded Latch Housing 15/16” Sucker Rod 440-2240-00-30 440-2240-00-50 1-1/16” Sucker Rod 440-2240-00-31 440-2240-00-51 1-7/8” QLS Male 440-2240-00-36 440-2240-00-56 2-1/2” QLS Male 440-2240-00-37 440-2240-00-57 1.750” Rope Socket 440-2240-00-40 440-2240-00-60

Slips Range Part Num ber

0.560” - 0.720” 440-2240-50-11 0.700” - 0.830” 440-2240-51-11 0.820” - 0.950” 440-2240-52-11 0.930” - 1.060” 440-2240-53-15 1.040” - 1.180” 440-2240-54-11 1.190” - 1.290” 440-2240-55-11 1.280” - 1.410” 440-2240-56-11 1.390” - 1.530” 440-2240-57-11 1.510” - 1.640” 440-2240-58-11 1.630” - 1.750” 440-2240-59-11 Complete Set 440-2240-00-70

Cores Reach Part Num ber

2.125” 440-2240-40-11 1.575” 440-2240-41-11 0.709” 440-2240-42-11 Complete Set 440-2240-00-90

2.795" O.D. Heavy Duty Releasable Overshot Connection Assem bly Num ber

Asse m bly Num ber c/w Threaded Latch Housing 1-1/16” Sucker Rod 440-2795-00-31 440-2795-00-51 1-3/8” Sucker Rod 440-2795-00-32 440-2795-00-52 1-7/8” QLS Male 440-2795-00-36 440-2795-00-56 2-1/2” QLS Male 440-2795-00-37 440-2795-00-57 1.750” Rope Socket 440-2795-00-40 440-2795-00-60 2.313” Rope Socket 440-2795-00-41 440-2795-00-61

1.400” - 1.560” 440-2795-58-11 1.560” - 1.720” 440-2795-59-11 1.720” - 1.880” 440-2795-60-15 1.870” - 2.030” 440-2795-61-15 Complete Set 440-2795-00-70

(43)

3.501" O.D. Heavy Duty Releasable Overshot Connection Assem bly Number

Assem bly Num ber c/w Threaded Latch Housing 1-1/16” Sucker Rod 440-3501-00-31 440-3501-00-51

1-3/8” Sucker Rod 440-3501-00-32 440-3501-00-52 1-7/8” QLS Male 440-3501-00-36 440-3501-00-56 2-1/2” QLS Male 440-3501-00-37 440-3501-00-57

1.375” - 1.500” 440-3501-58-15 1.500” - 1.625” 440-3501-59-15 1.625” - 1.750” 440-3501-60-15 1.750” - 1.875” 440-3501-61-15 1.875” - 2.000” 440-3501-62-15 2.000” - 2.125” 440-3501-63-15 2.125” - 2.250” 440-3501-64-15 2.250” - 2.375” 440-3501-65-15 2.375” - 2.500” 440-3501-66-15 Set 1 as above Complete Set 440-3501-00-70 1.687” - 1.812” 440-3501-75-15 1.812” - 1.937” 440-3501-76-15 1.937” - 2.062” 440-3501-77-15 Set 2 as above Complete Set 440-3501-00-71

5.118” 440-3501-40-11

(44)

(45)

Releasable Overshot

The

Releasable Overshot is designed for use when the

engagement of a regular pulling tool is impossible due to wear or mechanical

damage to the fishing neck.

The Releasable Overshot has the advantage that, should the fish become

stuck, it can be released. Downward jarring will shear the shear pins releasing

the overshot slips from around the fish.

(46)

Releasable Overshot

Sucker Rod Connections

Part No. Tool O.D. Slip Range Connection Fish Neck Length Comments

Pin Up OD

11875-A3 1.750" 0.500" - 1.375" 15/16" - 10 1.187" 20.18" Slip Range in 1/8" Increments 6484-A3 1.770" 0.500" - 1.375" 15/16" - 10 1.375" 20.18" Slip Range in 1/8" Increments 12258-A4 1.850" 0.500" - 1.375" 1-1/16" -10 1.375" 20.18" Slip Range in 1/8" Increments 6473-A4 2.250" 0.500" - 1.750" 1-1/16" -10 1.750" 20.50" Slip Range in 1/8" Increments 12259-A4 2.300" 0.500" - 1.750" 1-1/16" -10 1.750" 20.50" Slip Range in 1/8" Increments 11879-A4 2.625" 0.500" - 1.750" 1-1/16" -10 1.750" 20.68" Slip Range in 1/8" Increments 12257-A4 2.650" 0.500" - 2.125" 1-1/16" -10 1.750" 22.40" Slip Range in 1/8" Increments 6461-A4 2.740" 0.500" - 2.125" 1-1/16" -10 1.750" 22.60" Slip Range in 1/8" Increments 10026-A4 3.350" 0.500" - 2.750" 1-1/16" -10 1.750" 24.50" Slip Range in 1/8" Increments 8842-A5 3.800" 0.500" - 3.000" 1-1/16" -10 2.312" 28.30" Slip Range in 1/8" Increments 8843-A5 4.150" 0.500" - 3.000" 1-1/16" -10 2.312" 29.10" Slip Range in 1/8" Increments

HDQRJ Connections

Male Up OD

11875-C3 1.750" 0.500" - 1.375" 1-1/2" HDQRJ 1.187" 20.18" Slip Range in 1/8" Increments 6484-C3 1.770" 0.500" - 1.375" 1-1/2" HDQRJ 1.375" 20.18" Slip Range in 1/8" Increments 12258-C4 1.850" 0.500" - 1.375" 1-7/8" HDQRJ 1.375" 20.18" Slip Range in 1/8" Increments 6473-C4 2.250" 0.500" - 1.750" 1-7/8" HDQRJ 1.750" 20.50" Slip Range in 1/8" Increments 12259-C4 2.300" 0.500" - 1.750" 1-7/8" HDQRJ 1.750" 20.50" Slip Range in 1/8" Increments 11879-C4 2.625" 0.500" - 1.750" 1-7/8" HDQRJ 1.750" 20.68" Slip Range in 1/8" Increments 12257-C4 2.650" 0.500" - 2.125" 1-7/8" HDQRJ 1.750" 22.40" Slip Range in 1/8" Increments 6461-C4 2.740" 0.500" - 2.125" 1-7/8" HDQRJ 1.750" 22.60" Slip Range in 1/8" Increments 10026-C4 3.350" 0.500" - 2.750" 1-7/8" HDQRJ 1.750" 24.50" Slip Range in 1/8" Increments 8842-C5 3.800" 0.500" - 3.000" 1-7/8" HDQRJ 2.312" 28.30" Slip Range in 1/8" Increments 8843-C5 4.150" 0.500" - 3.500" 1-7/8" HDQRJ 2.312" 29.10" Slip Range in 1/8" Increments

QLS Connections

Male Up OD

11875-Q3* 1.750" 0.500" - 1.375" 1-1/2" QLS 1.375" 19.50" Slip Range in 1/8" Increments 6484-Q3* 1.770" 0.500" - 1.375" 1-1/2" QLS 1.375" 19.50" Slip Range in 1/8" Increments 12258-Q4* 1.850" 0.500" - 1.375" 1-7/8" QLS 1.750" 20.75" Slip Range in 1/8" Increments

(47)

Wireline Overshot

The Weatherford BDK

Wireline Overshot is designed for use when wear and

other mechanical damage prevents the engagement of a regular pulling tool,

The Wireline Overshot is designed to engage equipment of a specific

diameter, although a given size tool may be used to engage a range of

diameters, simply by installing the appropriate size set of slips.

Robust Design

Easy to maintain

Quick to use during deployment operations

Fishing operations

®

Benefits

Applications

(48)

Wireline Overshot

Sucker Rod Connections

Assembly No. Tool O.D. Slip Range Connection Fish Neck Length

Pin Up OD 11591-A2 1.40" 0.75" - 1.00" 15/16" - 10 1.187" 7.81" 01718-00-A3 1.75" 0.50" - 1.25" 15/16" - 10 1.375" 10.5" 8206-A3 1.85" 0.50" - 1.50" 15/16" - 10 1.375" 10" 01719-00-A3 2.25" 0.50" - 1.50" 15/16" - 10 1.375" 12.62" 01720-00-2625-A4 2.62" 0.50" - 2.00" 1-1/16" -10 1.750" 13.56" 01720-00-A4 2.65" 0.50" - 2.00" 1-1/16" -10 1.750" 13.56" 01721-A5 3.35" 0.75" - 2.60" 1-1/16" -10 2.312" 14" 01721-A6 3.35" 0.75" - 2.60" 1-9/16" -10 2.312" 14" 01722-A5 3.80" 0.50" - 2.90" 1-1/16" -10 2.312" 14.75" 01722-A6 3.80" 0.50" - 2.90" 1-9/16" -10 2.312" 14.75"

HDQRJ Connections

Male Up OD 01718-00-C3 1.75" 0.50" - 1.25" 1-1/2" HDQRJ 1.375" 10.5" 8206-C3 1.85" 0.50" - 1.50" 1-1/2" HDQRJ 1.375" 10" 01719-00-C3 2.25" 0.50" - 1.50" 1-1/2" HDQRJ 1.375" 12.62" 01720-00-2625-C4 2.62" 0.50" - 2.00" 1-7/8" HDQRJ 1.750" 13.56" 01720-00-C4 2.65" 0.50" - 2.00" 1-7/8" HDQRJ 1.750" 13.56" 01721-C5 3.35" 0.75" - 2.60" 1-7/8" HDQRJ 2.312" 14" 01721-C6 3.35" 0.75" - 2.60" 2-1/2" HDQRJ 2.312" 14" 01722-C5 3.80" 0.50" - 2.90" 1-7/8" HDQRJ 2.312" 14.75" 01722-C6 3.80" 0.50" - 2.90" 2-1/2" HDQRJ 2.312" 14.75"

QLS Connections

Male Up OD

(49)

Sidewall Cutter

The Weatherford BDK® Sidewall Cutter is designed to cut the

wireline at any point within the tubing string.

The Sidewall Cutter is run into the tubing (Running Prong

optional) alongside the wire until the required depth is reached,

the cutter is then activated by gently downward jarring. This

shears the pin allowing the mandrel to force the Cutter against

the tubing wall. Further downward jarring will cause the cutter

blades to sever the wireline.

Optional Running Prong

(50)

Sidewall Cutter

Sidewall Cutter Type 1 - with collet retainer

Part No. Pinned Collet Sheared Collet Fishing Neck Wire Size Length Weight

Diameter Diameter (Maximum) (kg)

9393 1.95" 2.48" 1.375" 0.125" 23" 4

12150 2.00" 2.53" 1.375" 0.187" 23" 4

Sidewall Cutter Type 2 - without collet retainer

Part No. Pinned Collet Sheared Collet Fishing Neck Wire Size Length Weight

Diameter Diameter (Maximum) (kg)

12271 1.67" 2.14" 1.375" 0.125" 24.4" 3.6

12281 2.12" 2.65" 1.750" 0.125" 23.7" 5.7

12272 2.51" 3.10" 1.750" 0.125" 23" 9

Note : Optional Running prongs are available on request

Additional sizes available on request

(51)
