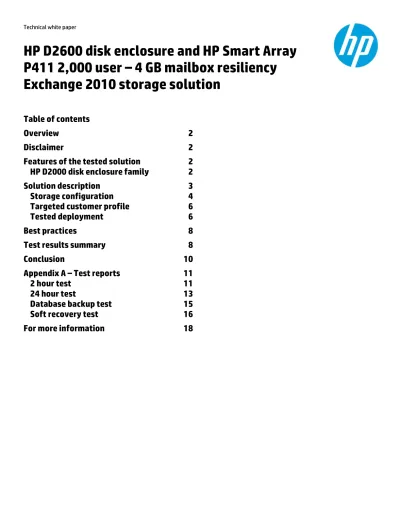

Technical white paper
HP D2600 disk enclosure and HP Smart Array
P411 2,000 user – 4 GB mailbox resiliency
Exchange 2010 storage solution
Table of contents
Overview
2
Disclaimer
2
Features of the tested solution
2
HP D2000 disk enclosure family
2
Solution description
3
Storage configuration
4
Targeted customer profile
6
Tested deployment
6
Best practices
8
Test results summary
8
Conclusion
10
Appendix A – Test reports
11
2 hour test
11
24 hour test
13
Database backup test
15
Soft recovery test
16
Overview
This solution brief provides information on an HP D2600 disk enclosure and HP Smart Array P411 storage solution for
Microsoft® Exchange Server 2010 (Exchange), based on the Microsoft Exchange Solution Review Program (ESRP) –
Storage Program.
The ESRP – Storage Program was developed by Microsoft Corporation to provide a common storage testing framework
for vendors to provide information on their storage solutions for Microsoft Exchange Server software. For more details
on the Microsoft ESRP V3.0 – Storage Program, please see:
http://technet.microsoft.com/en-us/exchange/2010/ff182054.aspx
Tested with: ESRP – Storage Version 3.0
Test Date: June 2012
Disclaimer
This document has been produced independently of Microsoft Corporation. Microsoft Corporation expressly disclaims
responsibility for, and makes no warranty, express or implied, with respect to the accuracy of the contents of this
document.
Features of the tested solution
This solution implements the Database Availability Group (DAG) mailbox resiliency features in Exchange Server 2010.
The DAG architecture allows two or more mailbox servers (up to 16) to be grouped together for increased database
availability. Mailbox servers participating in the DAG manage mailbox database replications and configuration of
database copies. DAG members also monitor database operations and in the event of a database, server, storage or
network failure, can initiate an automatic database-level recovery, by activating a (passive) database copy on another
server.
This solution brief describes a tested configuration for deploying Microsoft Exchange Server 2010 (Exchange) in a 2,000
user mailbox resiliency environment. The performance results and best practices outlined in this document provide
tested guidelines for configuring Exchange using the HP D2600 disk enclosure, HP Smart Array P411 controller and
ProLiant DL360 G7 servers in a direct attached storage (DAS) configuration.
For this solution, a single DAG was designed for supporting 2,000 mailboxes. The mailboxes were 4 GB in size and evenly
distributed across 6 active databases. To provide mailbox resiliency, there are two copies of each database (active and
passive). The active and passive database copies are hosted on separate server and storage configurations. With no
server failures, each server hosts 3 active databases. With one of the servers’ offline (due to hardware failure,
maintenance, power outage, etc.), the other server would host 6 active databases. This solution was tested with all
active mailbox databases on one server, simulating the worst case scenario.
The HP D2000 disk enclosure family offers affordable, modular and flexible storage, as detailed below.
HP D2000 disk enclosure family
Manage your small and midrange business’ growing storage needs by deploying the HP D2000 disk enclosures, the next
generation 6Gb SAS low-cost, flexible, and tiered external storage system. The HP D2000 disk enclosures are ideal for
small application environments in small and medium businesses, remote offices and departmental locations.
The 6Gb SAS enclosures—Large Form Factor (LFF) D2600 with 12 drive bays and Small Form Factor (SFF) D2700 with 25
drive bays—offer modular solutions to simplify capacity expansion of HP ProLiant and Integrity server environments to
external storage without having to make the full move to SAN or NAS. HP MSA storage (SFF only) can also be expanded
with the D2700. This allows you to buy what is needed today and purchase additional capacity as data storage needs
grow.
Affordable storage
HP D2000 disk enclosures double the transfer rate of current 3Gb solutions, adding crucial bandwidth.
The HP D2000 disk enclosures modular platform allows customers to purchase based on current need and future
growth, no hidden management charges.
Ability to add enterprise-class dual-port SAS drives as the need and budget dictates
Affordable redundancy and reliability, reducing or eliminating single points of failure within the storage network.
Flexible and scalable
Flexibility to mix and match SAS and SATA drives in the same enclosure. Extends benefit of tiered storage to direct
attach customers. Solid State drives supported in the D2700.
The D2600 LFF can grow up to 96 drives. Up to four Large Form Factor (LFF) enclosures can be connected together
from a single controller port.
The D2700 SFF can grow up to 200 drives. Up to four Small Form Factor (SFF) enclosures can be connected together
from a single controller port.
Easy to manage
The HP D2000 disk enclosures use familiar HP ProLiant management tools including HP Systems Insight Manager and
the HP Array Configuration Utility (ACU) software.
The HP D2000 disk enclosures are compatible with selected HP Smart Array SAS controllers.
Little IT expertise is required.
Solution description
This solution brief provides tested best practices to help administrators implement the Exchange deployment, with the
following criteria:
2,000 users total, with (2) mailbox servers
0.24 IOPS per user (0.2 with additional 20% headroom included)
4 GB tested mailbox size
Database Availability Group (DAG) deployment with 2 copies of each database in the DAG
6 databases total on each server (3 active and 3 passive) during normal operations
Database background maintenance (DBM) configured during testing
Storage in this solution is deployed as RAID 1 pairs. See the Storage configuration section for more information.
HP has developed the HP Sizer for Microsoft Exchange Server 2010 to assist customers with proper server and storage
sizing for their Exchange Server 2010 deployments. The algorithms developed and implemented in this tool are based
upon extensive testing of Exchange Server 2010 server roles and technologies, HP’s deep experience with Microsoft
Exchange, and intricate knowledge of server CPU, memory and I/O subsystems. This tool is free to download and use,
and is designed to simplify configuration across a broad range of deployments. For more information, please visit:
Figure 1 below illustrates the tested solution hardware. Each server in this solution utilizes all (12) 3TB MDL SAS Disks
for database, logs and content indexing all on the same volumes. Recovery space (often referred as the restore LUN) can
be provided using drives within the server.
Figure 1: Rack mounted view of the hardware used in this solution
8 12 UID 4 1 5 3 2 SID HP ProLiant DL360 G7 SA S 6G DP 15 k 1 4 6 G B SA S 6G DP 15 k 1 4 6 G B SA S 6G DP 15 k 1 4 6 G B SA S 6G DP 15 k 1 4 6 G B UID 147 10 12 9 6 3 HP StorageWorks D2600 1 .0 T B D ua l P ort 7 .2 K S A S M D L 1 .0 T B D ua l P ort 7 .2 K S A S M D L 1 .0 T B D ua l P ort 7 .2 K S A S M D L 1 .0 T B D ua l P ort 7 .2 K S A S M D L 1 .0 T B D ua l P ort 7 .2 K S A S M D L 1 .0 T B D ua l P ort 7 .2 K S A S M D L 1 .0 T B D ua l P ort 7 .2 K S A S M D L 1 .0 T B D ua l P ort 7 .2 K S A S M D L 1 .0 T B D ua l P ort 7 .2 K S A S M D L 1 .0 T B D ua l P ort 7 .2 K S A S M D L 1 .0 T B D ua l P ort 7 .2 K S A S M D L 1 .0 T B D ua l P ort 7 .2 K S A S M D L
1
2
1. Host (DL360 G7)
2. Storage (D2600)
Storage configuration
In this solution, the D2600 disk enclosure is attached to a Smart Array P411 controller and configured using the HP Array
Configuration Utility (ACU). The Smart Array P411 controller manages RAID configuration and LUN ownership. For
storage performance and redundancy, the D2600 and P411 are cabled as a dual-domain configuration. The dual-domain
configuration uses two independent SAS data paths from the servers to the storage. The dual-domain communication
path prevents disk I/O from being interrupted in the event of a single data path failure. For more detail on implementing
a dual-domain configuration with the D2600, please see:
http://h20000.www2.hp.com/bizsupport/TechSupport/Home.jsp?prodTypeId=12169&prodSeriesId=3954787
Figure 2 below illustrates the dual-domain configuration used in this solution.
Figure 2: Dual-Domain Configuration
UID iLO
TOP
1200W PLC B 94% 1200W PLC B 94% Smart Arra y P4 11 UID PS 1 PS 2 2 1 I/O B I/O A Mfg P2 P1 UID Mfg P2 P1 UID Attention This module fits 3.5" large form factor drives only. Attention This module fits 3.5" large form factor drives only.1
2
3
4
1. Host (DL360 G7)
2. Storage (D2600)
3. Primary Path
4. Alternate Path
The disk layout containing the mailbox databases and logs were created using RAID 1. Each RAID 1 disk group consisted
of (2) 3 TB disks, for a total of (6) RAID groups. Since Exchange was configured for multiple database copies, the
databases and logs resided on the same volumes.
Figures 3 and 4 below show how the active mailbox databases would be distributed during normal and failed operations
in order to maintain production. This solution was tested will all active mailbox databases on one server, simulating the
worst case scenario.
Figure 3: Primary Data Center with (2) Member DAG – Normal Operation
Active
Passive
MBX1
MBX2
DAG1
DB1
DB2
DB3
DB4
DB5
DB6
DB1
DB2
DB3
DB4
DB5
DB6
Figure 4: Primary Data Center with (2) Member DAG – MBX2 Offline Due to Fault
Active
Passive
MBX1
MBX2
DAG1
DB1
DB2
DB3
DB4
DB5
DB6
DB1
DB2
DB3
DB4
DB5
DB6
Targeted customer profile
This solution brief provides tested best practices to help administrators implement the Exchange deployment, with the
following criteria:
2000 users total, with (2) active Exchange servers and two (2) database copies
0.24 IOPS per user (0.2 with additional 20% headroom)
4 GB tested mailbox size
Database Availability Group (DAG) deployment with 2 copies of each database in the DAG
6 databases total on each server (3 active and 3 passive) during normal operations
Database background maintenance (DBM) configured during testing
Tested deployment
The following table summarizes the testing environment.
Simulated Exchange configuration
Number of Exchange mailboxes simulated
2000
Number of Database Availability Groups (DAGs)
1
Number of mailbox servers/DAG
2
Number of active mailboxes/server
1000
Number of databases/host
6
Number of copies/database
2
Number of mailboxes/database
167
Simulated profile: I/O operations per second per mailbox
(IOPS), includes 20% headroom
0.24
Database maintenance (DBM)
Tested with 24/7 DBM enabled
Database + Log LUN size
3 TB
Total database size for performance testing
8.64 TB (6 databases * 1.44 TB)
Storage hardware
Storage Connectivity
SAS
Storage model and OS/firmware version
HP D2600 (0134 firmware)
Storage cache
See below
Number of storage controllers
1 per server
Number of storage ports
Connected (2) 4x 6Gb SAS connectors
Maximum bandwidth of storage connectivity to host
24 Gb per 4x SAS connector (2 in use for this solution)
Storage Controller
HP Smart Array P411
Controller Cache
1 GB Flash-Backed Write Cache
(25/75 read/write = default)
Host server type
HP ProLiant DL360 G7
Total number of disks tested in solution
12
Maximum number of spindles that can be hosted in the
storage
96 (12 per D2600 x8)
Storage software
Smart Array P411 Driver
6.24.0.64
Queue depth & target setting
Not applicable
Multipathing
Not applicable
Host OS
Windows® Server 2008 R2 Enterprise with SP1
ESE.dll file version
14.02.0283.000
Storage disk configuration (mailbox & log disks)
Disk type, speed, and firmware revision
HP 3 TB 6Gb SAS 7.2k RPM LFF 3.5” MDL
HDD (firmware: HPD3)
Raw capacity per disk (TB)
3 TB
Number of physical disks in test
12
Total raw storage capacity (TB)
36 TB
Disk slice size (GB)
Not applicable
RAID level
RAID 1 (2 disks per RAID group)
Total formatted capacity (TB)
18 TB
Storage capacity utilization
50%
Formatted capacity / Total raw capacity
Database capacity utilization
24%
Total Database size / Total raw capacity
* Capacity of drives, and therefore the raw data capacity of the disk array, is based on 1K = 1000, not 1024.
This means that 1 GB = 1,000,000,000 bytes, not (1,073,741,824 bytes)
Best practices
Exchange Server is a disk-intensive application. For Exchange 2010 best practices on storage design from Microsoft, visit
http://technet.microsoft.com/en-us/library/dd346703.aspx
. For Exchange Server solution guidance, visit HP at
hp.com/solutions/microsoft/exchange
.
The best practices for this solution are:
Drivers and Firmware
Ensure firmware and drivers for all hardware are up to date. For more information, see:
http://support.hp.com
Physical Drive Write Cache
Unlike controller-level cache, individual drive write caches are not protected. If the server loses power or if a hot plug
drive is physically removed from the array during operations, unwritten data in the physical drives’ write caches will
be lost. HP recommends Physical Drive Write Cache be disabled on the HP Smart Array P411 controller. For more
information, see:
http://h20000.www2.hp.com/bc/docs/support/SupportManual/c02278484/c02278484.pdf
Accelerator Ratio and Flash-Backed Write Cache (FBWC)
HP recommends setting the Accelerator Ratio to 75 percent write cache and 25 percent read cache (battery-backed
cache). 1 GB or more of Flash-Backed Write Cache (FBWC) is recommended.
Dual Domain
The HP Smart Array Advanced Pack is required to enable this feature. Dual domain creates redundant pathways for
external drives from server to storage devices. The redundant paths created by these configurations reduce or
eliminate single points of failure within the storage network. For more information on the Smart Array Advanced
Pack, see:
http://h18004.www1.hp.com/products/quickspecs/13200_div/13200_div.pdf
Jetstress 2010
Before installing Exchange Server 2010, test your storage solution with Jetstress to ensure it is configured properly
and meets your requirements. For more information on Jetstress, see:
http://technet.microsoft.com/en-us/library/ff706601
Mailbox Database Copies
This solution was tested with 2 copies of the Exchange mailbox database. When using a JBOD configuration without
RAID storage protection, ensure that there are at least three copies for each Exchange mailbox database in the
solution.
RAID Level
The disks used in this solution were configured as RAID 1 pairs with a RAID stripe size of 256 KB (256 KB or better is
recommended). Provisioning of other RAID types are supported but not recommended for this Exchange Server
solution.
Test results summary
This section provides a high-level summary of the test data from ESRP and links to the detailed HTML reports generated
by the ESRP testing framework. Click on the underlined headings below to view the HTML report for each test.
An HP ProLiant DL360 G7 server was used to drive the Jetstress I/O load, and simulate the storage I/O. For solutions that
utilize a uniform building block style where each building block is independent and isolated, ESRP requires that only one
of the building blocks be tested. In this case, a single unit was tested as the building block. However, for production
deployments of this solution, 2 identical units are required. For site resiliency, a third copy could be added later.
Reliability
One of the tests in the framework is designed to test reliability over a 24-hour test period. The goal is to verify that the
storage can handle high I/O load for a long period of time. Both log and database files will be analyzed for integrity after
the stress test to ensure no database/log corruption.
Below is an initial list of questions used to validate testing.
Q. Were any errors reported in the saved event log file?
A. No. There were no relevant errors reported in the event log for the storage reliability testing.
Q. Were any errors reported during the
database
and
log
checksum process?
A. No. There were no errors reported for the database and log checksum process.
Storage performance results
The Primary Storage performance testing is designed to exercise the storage with maximum sustainable Exchange type
of I/O for 2 hours. The test shows how long it takes the storage to respond to an I/O under load. The data below is the
sum of all logical disk I/Os and the average of all the logical disk I/O latency in the 2 hour test duration.
This solution is designed around a 2 server DAG with a single server failure service level. It is important to understand
not only the performance of the storage solution in normal operations with all servers hosting Exchange mailbox
databases, but also with a single server failure where the remaining server is running all Exchange mailbox databases.
The following table provides performance information for this scenario.
Database I/O
Database Disk Transfers/sec
701
Database Disk Reads/sec
438
Database Disk Writes/sec
263
Average Database Disk Read Latency (ms)
15.02
Average Database Disk Write Latency (ms)
0.84
Transaction Log I/O
Log Disk Writes/sec
240
Average Log Disk Write Latency (ms)
0.17
Database backup/recovery performance
There are two test reports in this section. The first one is to measure the sequential read rate of the database files, and
the second is to measure the recovery/replay performance (playing transaction logs into the database). One important
characteristic of the default test is that these read rates and log replay rates are measured with all databases under
concurrent or simultaneous load. This test case was also run with a single server failure where the remaining server is
running all Exchange mailbox databases.
Database read-only performance
This test is to measure the maximum rate at which databases could be backed up via a Microsoft Volume Shadow Copy
Service (VSS) aware backup application. The following table shows the average rate for a single database file and for the
entire server.
MB read/sec per database
39.49
Transaction log recovery / replay performance
This test is to measure the maximum rate at which the log files can be played against the databases. The following table
shows the average rate for 500 log files played in a single storage group. Each log file is 1 MB in size.
Average time to play one log file (sec)
3.61
Conclusion
The information discussed in this solution brief highlights the tested performance results and configuration best
practices for an Exchange Server solution supporting 2,000 Exchange users with 4 GB mailboxes. Testing was performed
with an HP Smart Array P411 controller and D2600 disk enclosure with (12) 3 TB MDL SAS 7.2k RPM disks for the
Exchange database storage and transaction logs. The testing demonstrated that the storage subsystem was capable of
supporting both the IOPS needed to support 2,000 Exchange users as well as providing additional headroom.
This document was developed by HP Storage, and reviewed by the Microsoft Exchange product team. The test results
and data presented in this document are based on the tests introduced in the ESRP test framework and should be used
as a guide. Each specific deployment should be tested to ensure that their solution performs to the requirements of their
specific environment.
The ESRP program is not designed to be a benchmarking program. The tests are not designed to measure the maximum
throughput for a given solution. Rather, it is focused on producing recommendations from vendors for Exchange Server
storage solutions. So the data presented in this document should not be used for direct comparisons among solutions.
Appendix A – Test reports
2 hour test
Test Summary Overall Test Result Pass Machine Name D2600
Test Description 2000 users, 0.24 IOPS, 4GB Mailbox, Thread Count=4 Test Start Time 6/20/2012 2:14:39 PM
Test End Time 6/21/2012 7:58:02 AM Collection Start Time 6/20/2012 2:17:52 PM Collection End Time 6/20/2012 4:17:45 PM Jetstress Version 14.01.0225.017 ESE Version 14.02.0283.000
Operating System Windows Server 2008 R2 Enterprise Service Pack 1 (6.1.7601.65536) Performance Log C:\Jetstress tests\2000 user 4 thread\Performance_2012_6_20_14_14_52.blg Database Sizing and Throughput
Achieved Transactional I/O per Second 701.47 Target Transactional I/O per Second 480 Initial Database Size (bytes) 8597483683840 Final Database Size (bytes) 8616081227776 Database Files (Count) 6
Jetstress System Parameters
Thread Count 4 (per database)
Minimum Database Cache 192.0 MB Maximum Database Cache 1536.0 MB
Insert Operations 40%
Delete Operations 20%
Replace Operations 5%
Read Operations 35%
Lazy Commits 70%
Run Background Database Maintenance True Number of Copies per Database 2 Database Configuration
Instance4956.1 Log path: E:\dblg1
Database: E:\dblg1\Jetstress001001.edb Instance4956.2 Log path: F:\dblg2
Database: F:\dblg2\Jetstress002001.edb Instance4956.3 Log path: G:\dblg3
Database: G:\dblg3\Jetstress003001.edb Instance4956.4 Log path: H:\dblg4
Database: H:\dblg4\Jetstress004001.edb Instance4956.5 Log path: I:\dblg5
Database: I:\dblg5\Jetstress005001.edb Instance4956.6 Log path: J:\dblg6
Database: J:\dblg6\Jetstress006001.edb Transactional I/O Performance
MSExchange Database ==> Instances I/O Database Reads Average Latency (msec) I/O Database Writes Average Latency (msec) I/O Database Reads/sec I/O Database Writes/sec I/O Database Reads Average Bytes I/O Database Writes Average Bytes I/O Log Reads Average Latency (msec) I/O Log Writes Average Latency (msec) I/O Log Reads/sec I/O Log Writes/sec I/O Log Reads Average Bytes I/O Log Writes Average Bytes Instance4956.1 19.184 1.126 73.681 44.141 33950.240 36202.042 0.000 0.179 0.000 40.362 0.000 4449.584 Instance4956.2 14.362 1.019 72.532 43.507 34492.805 36201.516 0.000 0.173 0.000 39.711 0.000 4525.801 Instance4956.3 14.120 0.912 71.925 43.072 34530.017 36214.553 0.000 0.171 0.000 39.550 0.000 4524.763 Instance4956.4 14.340 0.801 73.573 44.205 34503.301 36115.821 0.000 0.168 0.000 39.874 0.000 4490.570 Instance4956.5 13.953 0.684 73.184 43.943 34478.125 36113.834 0.000 0.172 0.000 40.111 0.000 4495.380 Instance4956.6 14.180 0.526 73.533 44.174 34496.028 36153.090 0.000 0.167 0.000 40.297 0.000 4470.200
Background Database Maintenance I/O Performance
MSExchange Database ==> Instances Database Maintenance IO Reads/sec Database Maintenance IO Reads Average Bytes
Log Replication I/O Performance
MSExchange Database ==> Instances I/O Log Reads/sec I/O Log Reads Average Bytes
Instance4956.1 0.725 229163.171 Instance4956.2 0.725 227221.111 Instance4956.3 0.721 226735.595 Instance4956.4 0.721 221394.928 Instance4956.5 0.727 224793.535 Instance4956.6 0.726 227221.111
Total I/O Performance
MSExchange Database ==> Instances I/O Database Reads Average Latency (msec) I/O Database Writes Average Latency (msec) I/O Database Reads/sec I/O Database Writes/sec I/O Database Reads Average Bytes I/O Database Writes Average Bytes I/O Log Reads Average Latency (msec) I/O Log Writes Average Latency (msec) I/O Log Reads/sec I/O Log Writes/sec I/O Log Reads Average Bytes I/O Log Writes Average Bytes Instance4956.1 19.184 1.126 98.362 44.141 91128.760 36202.042 0.337 0.179 0.725 40.362 229163.171 4449.584 Instance4956.2 14.362 1.019 98.806 43.507 94954.766 36201.516 0.673 0.173 0.725 39.711 227221.111 4525.801 Instance4956.3 14.120 0.912 99.917 43.072 98220.958 36214.553 0.332 0.171 0.721 39.550 226735.595 4524.763 Instance4956.4 14.340 0.801 99.709 44.205 94090.906 36115.821 0.432 0.168 0.721 39.874 221394.928 4490.570 Instance4956.5 13.953 0.684 101.131 43.943 97328.180 36113.834 0.342 0.172 0.727 40.111 224793.535 4495.380 Instance4956.6 14.180 0.526 99.820 44.174 94376.200 36153.090 0.702 0.167 0.726 40.297 227221.111 4470.200
Host System Performance
Counter Average Minimum Maximum
% Processor Time 0.606 0.381 1.593
Available MBytes 44663.404 44565.000 44798.000
Free System Page Table Entries 33555094.004 33555068.000 33555604.000
Transition Pages RePurposed/sec 0.000 0.000 0.000
Pool Nonpaged Bytes 184358510.933 184238080.000 184713216.000
Pool Paged Bytes 103770777.600 99627008.000 147685376.000
Database Page Fault Stalls/sec 0.000 0.000 0.000
Test Log6/20/2012 2:14:39 PM -- Jetstress testing begins ... 6/20/2012 2:14:39 PM -- Preparing for testing ... 6/20/2012 2:14:46 PM -- Attaching databases ...
6/20/2012 2:14:46 PM -- Preparations for testing are complete. 6/20/2012 2:14:46 PM -- Starting transaction dispatch..
6/20/2012 2:14:46 PM -- Database cache settings: (minimum: 192.0 MB, maximum: 1.5 GB) 6/20/2012 2:14:46 PM -- Database flush thresholds: (start: 15.3 MB, stop: 30.7 MB)
6/20/2012 2:14:52 PM -- Database read latency thresholds: (average: 20 msec/read, maximum: 100 msec/read). 6/20/2012 2:14:52 PM -- Log write latency thresholds: (average: 10 msec/write, maximum: 100 msec/write).
6/20/2012 2:14:56 PM -- Operation mix: Sessions 4, Inserts 40%, Deletes 20%, Replaces 5%, Reads 35%, Lazy Commits 70%. 6/20/2012 2:14:56 PM -- Performance logging started (interval: 15000 ms).
6/20/2012 2:14:56 PM -- Attaining prerequisites:
6/20/2012 2:17:52 PM -- \MSExchange Database(JetstressWin)\Database Cache Size, Last: 1450156000.0 (lower bound: 1449551000.0, upper bound: none) 6/20/2012 4:17:52 PM -- Performance logging has ended.
6/21/2012 7:58:00 AM -- JetInterop batch transaction stats: 219151, 220288, 219390, 219657, 219870 and 219728. 6/21/2012 7:58:00 AM -- Dispatching transactions ends.
6/21/2012 7:58:00 AM -- Shutting down databases ...
6/21/2012 7:58:02 AM -- Instance4956.1 (complete), Instance4956.2 (complete), Instance4956.3 (complete), Instance4956.4 (complete), Instance4956.5 (complete) and Instance4956.6 (complete)
6/21/2012 7:58:02 AM -- C:\Jetstress tests\2000 user 4 threads\Performance_2012_6_20_14_14_52.blg has 491 samples. 6/21/2012 7:58:02 AM -- Creating test report ...
6/21/2012 7:58:05 AM -- Instance4956.1 has 19.2 for I/O Database Reads Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.1 has 0.2 for I/O Log Writes Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.1 has 0.2 for I/O Log Reads Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.2 has 14.4 for I/O Database Reads Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.2 has 0.2 for I/O Log Writes Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.2 has 0.2 for I/O Log Reads Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.3 has 14.1 for I/O Database Reads Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.3 has 0.2 for I/O Log Writes Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.3 has 0.2 for I/O Log Reads Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.4 has 14.3 for I/O Database Reads Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.4 has 0.2 for I/O Log Writes Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.4 has 0.2 for I/O Log Reads Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.5 has 14.0 for I/O Database Reads Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.5 has 0.2 for I/O Log Writes Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.5 has 0.2 for I/O Log Reads Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.6 has 14.2 for I/O Database Reads Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.6 has 0.2 for I/O Log Writes Average Latency. 6/21/2012 7:58:05 AM -- Instance4956.6 has 0.2 for I/O Log Reads Average Latency. 6/21/2012 7:58:05 AM -- Test has 0 Maximum Database Page Fault Stalls/sec.
6/21/2012 7:58:05 AM -- The test has 0 Database Page Fault Stalls/sec samples higher than 0.
24 hour test
Test Summary Overall Test Result Pass Machine Name D2600
Test Description 24 Hour Stress Test 2000 users, 0.24 IOPS, 4GB Mailbox, TC=4 Test Start Time 6/21/2012 3:49:15 AM
Test End Time 6/23/2012 7:57:59 PM Collection Start Time 6/21/2012 3:50:57 AM Collection End Time 6/22/2012 3:50:50 AM Jetstress Version 14.01.0225.017 ESE Version 14.02.0283.000
Operating System Windows Server 2008 R2 Enterprise Service Pack 1 (6.1.7601.65536) Performance Log C:\Jetstress tests\2000 user 4 threads\Performance_2012_6_21_8_54_11.blg Database Sizing and Throughput
Achieved Transactional I/O per Second 702.833 Target Transactional I/O per Second 480 Initial Database Size (bytes) 8616081227776 Final Database Size (bytes) 8623496757248 Database Files (Count) 6
Jetstress System Parameters
Thread Count 4 (per database)
Minimum Database Cache 192.0 MB Maximum Database Cache 1536.0 MB
Insert Operations 40%
Delete Operations 20%
Replace Operations 5%
Read Operations 35%
Lazy Commits 70%
Run Background Database Maintenance True Number of Copies per Database 2 Database Configuration
Instance4956.1 Log path: E:\dblg1
Database: E:\dblg1\Jetstress001001.edb Instance4956.2 Log path: F:\dblg2
Database: F:\dblg2\Jetstress002001.edb Instance4956.3 Log path: G:\dblg3
Database: G:\dblg3\Jetstress003001.edb Instance4956.4 Log path: H:\dblg4
Database: H:\dblg4\Jetstress004001.edb Instance4956.5 Log path: I:\dblg5
Database: I:\dblg5\Jetstress005001.edb Instance4956.6 Log path: J:\dblg6
Database: J:\dblg6\Jetstress006001.edb Transactional I/O Performance
MSExchange Database ==> Instances I/O Database Reads Average Latency (msec) I/O Database Writes Average Latency (msec) I/O Database Reads/sec I/O Database Writes/sec I/O Database Reads Average Bytes I/O Database Writes Average Bytes I/O Log Reads Average Latency (msec) I/O Log Writes Average Latency (msec) I/O Log Reads/sec I/O Log Writes/sec I/O Log Reads Average Bytes I/O Log Writes Average Bytes Instance4956.1 19.439 1.536 72.475 44.502 33979.413 35354.852 0.000 0.180 0.000 39.094 0.000 4461.371 Instance4956.2 14.572 1.412 72.369 44.395 34737.014 35348.660 0.000 0.172 0.000 39.085 0.000 4489.613 Instance4956.3 14.644 1.299 72.673 44.602 34454.474 35350.243 0.000 0.175 0.000 39.203 0.000 4517.859 Instance4956.4 14.501 1.183 72.423 44.418 34578.030 35376.733 0.000 0.173 0.000 39.069 0.000 4513.190 Instance4956.5 14.416 1.040 73.033 44.840 34561.193 35346.953 0.000 0.173 0.000 39.233 0.000 4490.878 Instance4956.6 14.326 0.713 72.582 44.521 34543.802 35352.108 0.000 0.173 0.000 39.225 0.000 4497.710 Background Database Maintenance I/O Performance
MSExchange Database ==> Instances Database Maintenance IO Reads/sec Database Maintenance IO Reads Average Bytes
Instance4956.1 24.137 261850.973
Instance4956.2 26.308 261814.560
Instance4956.3 27.500 261866.496
Log Replication I/O Performance
MSExchange Database ==> Instances I/O Log Reads/sec I/O Log Reads Average Bytes
Instance4956.1 0.703 224644.930 Instance4956.2 0.707 223816.799 Instance4956.3 0.714 223953.439 Instance4956.4 0.711 225456.483 Instance4956.5 0.710 223813.479 Instance4956.6 0.711 223680.324
Total I/O Performance MSExchange Database ==> Instances I/O Database Reads Average Latency (msec) I/O Database Writes Average Latency (msec) I/O Database Reads/sec I/O Database Writes/sec I/O Database Reads Average Bytes I/O Database Writes Average Bytes I/O Log Reads Average Latency (msec) I/O Log Writes Average Latency (msec) I/O Log
Reads/sec I/O Log Writes/sec I/O Log Reads Average Bytes I/O Log Writes Average Bytes Instance4956.1 19.439 1.536 96.612 44.502 90909.760 35354.852 0.307 0.180 0.703 39.094 224644.930 4461.371 Instance4956.2 14.572 1.412 98.677 44.395 95277.190 35348.660 0.313 0.172 0.707 39.085 223816.799 4489.613 Instance4956.3 14.644 1.299 100.173 44.602 96885.692 35350.243 0.285 0.175 0.714 39.203 223953.439 4517.859 Instance4956.4 14.501 1.183 98.643 44.418 94993.859 35376.733 0.319 0.173 0.711 39.069 225456.483 4513.190 Instance4956.5 14.416 1.040 100.299 44.840 96343.806 35346.953 0.285 0.173 0.710 39.233 223813.479 4490.878 Instance4956.6 14.326 0.713 98.868 44.521 94976.837 35352.108 0.323 0.173 0.711 39.225 223680.324 4497.710 Host System Performance
Counter Average Minimum Maximum
% Processor Time 0.578 0.329 1.680
Available MBytes 44631.408 44533.000 44749.000 Free System Page Table Entries 33555092.224 33555068.000 33555606.000 Transition Pages RePurposed/sec 0.000 0.000 0.000 Pool Nonpaged Bytes 184924858.701 184889344.000 185393152.000 Pool Paged Bytes 105001453.059 102158336.000 150032384.000 Database Page Fault Stalls/sec 0.000 0.000 0.000 Test Log6/3/2011 3:49:15 AM -- Jetstress testing begins ...
6/21/2011 3:49:15 AM -- Preparing for testing ... 6/21/2011 3:49:24 AM -- Attaching databases ...
6/21/2011 3:49:24 AM -- Preparations for testing are complete. 6/21/2011 3:49:24 AM -- Starting transaction dispatch ..
6/21/2011 3:49:24 AM -- Database cache settings: (minimum: 288.0 MB, maximum: 2.2 GB) 6/21/2011 3:49:24 AM -- Database flush thresholds: (start: 23.0 MB, stop: 46.1 MB)
6/21/2011 3:49:34 AM -- Database read latency thresholds: (average: 20 msec/read, maximum: 100 msec/read). 6/21/2011 3:49:34 AM -- Log write latency thresholds: (average: 10 msec/write, maximum: 100 msec/write).
6/21/2011 3:49:43 AM -- Operation mix: Sessions 8, Inserts 40%, Deletes 20%, Replaces 5%, Reads 35%, Lazy Commits 70%. 6/21/2011 3:49:43 AM -- Performance logging started (interval: 15000 ms).
6/21/2011 3:49:43 AM -- Attaining prerequisites:
6/21/2011 3:50:57 AM -- \MSExchange Database(JetstressWin)\Database Cache Size, Last: 2185871000.0 (lower bound: 2174327000.0, upper bound: none) 6/22/2011 3:50:58 AM -- Performance logging has ended.
6/23/2011 7:57:48 PM -- JetInterop batch transaction stats: 1831815, 1831814, 1832035, 1832346, 1830663, 1831065, 1830144, 1827729 and 1829473. 6/23/2011 7:57:48 PM -- Dispatching transactions ends.
6/23/2011 7:57:48 PM -- Shutting down databases ...
6/23/2011 7:57:59 PM -- Instance5052.1 (complete), Instance5052.2 (complete), Instance5052.3 (complete), Instance5052.4 (complete), Instance5052.5 (complete), Instance5052.6 (complete), Instance5052.7 (complete), Instance5052.8 (complete) and Instance5052.9 (complete)
6/23/2012 7:57:59 PM -- C:\Jetstress tests\2000 user 4 threads\Performance_2012_6_21_8_54_11.blg has 1715 samples. 6/23/2012 7:57:59 PM -- Creating test report ...
6/23/2012 7:58:38 PM -- Instance4956.1 has 19.4 for I/O Database Reads Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.1 has 0.2 for I/O Log Writes Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.1 has 0.2 for I/O Log Reads Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.2 has 14.6 for I/O Database Reads Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.2 has 0.2 for I/O Log Writes Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.2 has 0.2 for I/O Log Reads Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.3 has 14.6 for I/O Database Reads Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.3 has 0.2 for I/O Log Writes Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.3 has 0.2 for I/O Log Reads Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.4 has 14.5 for I/O Database Reads Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.4 has 0.2 for I/O Log Writes Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.4 has 0.2 for I/O Log Reads Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.5 has 14.4 for I/O Database Reads Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.5 has 0.2 for I/O Log Writes Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.5 has 0.2 for I/O Log Reads Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.6 has 14.3 for I/O Database Reads Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.6 has 0.2 for I/O Log Writes Average Latency. 6/23/2012 7:58:38 PM -- Instance4956.6 has 0.2 for I/O Log Reads Average Latency. 6/23/2012 7:58:38 PM -- Test has 0 Maximum Database Page Fault Stalls/sec.
6/23/2012 7:58:38 PM -- The test has 0 Database Page Fault Stalls/sec samples higher than 0.
Database backup test
Database Backup Statistics - All
Database Instance Database Size (MBytes) Elapsed Backup Time MBytes Transferred/sec
Instance4956.1 1370642.59 11:03:37 34.42 Instance4956.2 1370658.59 09:38:25 39.49 Instance4956.3 1370674.59 09:52:23 38.56 Instance4956.4 1370650.59 10:09:27 37.48 Instance4956.5 1370674.59 09:56:35 38.29 Instance4956.6 1370658.59 09:56:08 38.32
Jetstress System Parameters
Thread Count 4 (per database)
Minimum Database Cache 192.0 MB Maximum Database Cache 1536.0 MB
Insert Operations 40% Delete Operations 20% Replace Operations 5% Read Operations 35% Lazy Commits 70% Database Configuration
Instance4956.1 Log path: E:\dblg1
Backup path: E:\dblg1
Database: E:\dblg1\Jetstress001001.edb
Instance4956.2 Log path: F:\dblg2
Backup path: F:\dblg2
Database: F:\dblg2\Jetstress002001.edb
Instance4956.3 Log path: G:\dblg3
Backup path: G:\dblg3
Database: G:\dblg3\Jetstress003001.edb
Instance4956.4 Log path: H:\dblg4
Backup path: H:\dblg4
Database: H:\dblg4\Jetstress004001.edb
Instance4956.5 Log path: I:\dblg5
Backup path: I:\dblg5
Database: I:\dblg5\Jetstress005001.edb
Instance4956.6 Log path: J:\dblg6
Backup path: J:\dblg6
Database: J:\dblg6\Jetstress006001.edb
Transactional I/O Performance
MSExchange Database ==> Instances I/O Database Reads Average Latency (msec) I/O Database Writes Average Latency (msec) I/O Database Reads/sec I/O Database Writes/sec I/O Database Reads Average Bytes I/O Database Writes Average Bytes I/O Log Reads Average Latency (msec) I/O Log Writes Average Latency (msec) I/O Log
Reads/sec I/O Log Writes/sec I/O Log Reads Average Bytes
I/O Log Writes Average Bytes Instance4956.1 14.590 0.000 137.645 0.000 262144.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 Instance4956.2 12.239 0.000 157.881 0.000 262144.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 Instance4956.3 12.443 0.000 154.135 0.000 262144.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 Instance4956.4 13.037 0.000 149.737 0.000 262144.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 Instance4956.5 12.605 0.000 153.122 0.000 262144.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 Instance4956.6 12.462 0.000 153.171 0.000 262144.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000
Host System Performance
Counter Average Minimum Maximum
% Processor Time 1.647 0.138 9.719
Available MBytes 36556.803 28410.000 44561.000
Free System Page Table Entries 33555423.659 33555089.000 33556630.000
Test Log6/22/2012 8:13:15 AM -- Jetstress testing begins ... 6/22/2012 8:13:15 AM -- Preparing for testing ... 6/22/2012 8:13:22 AM -- Attaching databases ...
6/22/2012 8:13:22 AM -- Preparations for testing are complete.
6/22/2012 8:13:31 AM -- Performance logging started (interval: 30000 ms). 6/22/2012 8:13:31 AM -- Backing up databases ...
6/22/2012 7:17:08 PM -- Performance logging has ended.
6/22/2012 7:17:08 PM -- Instance4956.1 (100% processed), Instance4956.2 (100% processed), Instance4956.3 (100% processed), Instance4956.4 (100% processed), Instance4956.5 (100% processed) and Instance4956.6 (100% processed)
6/22/2012 7:17:08 PM -- C:\Jetstress tests\DB Backup test\DatabaseBackup_2012_6_22_8_13_22.blg has 1326 samples. 6/22/2012 7:17:08 PM -- Creating test report...
Soft recovery test
Soft-Recovery Statistics - All
Database Instance Log files replayed Elapsed seconds
Instance3728.1 507 1925.8722846 Instance3728.2 501 1698.8606859 Instance3728.3 505 1837.5605295 Instance3728.4 501 1795.6588559 Instance3728.5 507 1825.6265085 Instance3728.6 502 1824.8309071 Database Configuration
Instance3728.1 Log path: E:\dblg1
Database: E:\dblg1\Jetstress001001.edb
Instance3728.2 Log path: F:\dblg2
Database: F:\dblg2\Jetstress002001.edb
Instance3728.3 Log path: G:\dblg3
Database: G:\dblg3\Jetstress003001.edb
Instance3728.4 Log path: H:\dblg4
Database: H:\dblg4\Jetstress004001.edb
Instance3728.5 Log path: I:\dblg5
Database: I:\dblg5\Jetstress005001.edb
Instance3728.6 Log path: J:\dblg6
Database: J:\dblg6\Jetstress006001.edb
Transactional I/O Performance
MSExchange Database ==> Instances I/O Database Reads Average Latency (msec) I/O Database Writes Average Latency (msec) I/O Database Reads/sec I/O Database Writes/sec I/O Database Reads Average Bytes I/O Database Writes Average Bytes I/O Log Reads Average Latency (msec) I/O Log Writes Average Latency (msec) I/O Log
Reads/sec I/O Log Writes/sec I/O Log Reads Average Bytes I/O Log Writes Average Bytes Instance3728.1 31.898 0.146 201.504 1.565 39712.223 30784.134 12.585 0.000 2.348 0.000 216293.968 0.000 Instance3728.2 26.897 0.152 230.403 1.752 39495.015 31991.507 14.238 0.000 2.628 0.000 225673.565 0.000 Instance3728.3 28.938 0.150 211.628 1.634 39476.706 31549.059 15.325 0.000 2.451 0.000 223249.550 0.000 Instance3728.4 27.884 0.136 217.222 1.654 39500.766 31445.525 11.688 0.000 2.481 0.000 223225.070 0.000 Instance3728.5 28.063 0.591 211.880 1.649 39490.763 31252.300 12.564 0.000 2.472 0.000 221847.152 0.000 Instance3728.6 27.756 0.586 215.655 1.645 39533.731 31324.476 12.081 0.000 2.467 0.000 221930.935 0.000
Background Database Maintenance I/O Performance
MSExchange Database ==> Instances Database Maintenance IO Reads/sec Database Maintenance IO Reads Average Bytes
Instance3728.1 23.789 261964.328 Instance3728.2 22.999 261901.856 Instance3728.3 24.784 261829.348 Instance3728.4 22.084 261840.030 Instance3728.5 24.450 261919.446 Instance3728.6 22.311 261922.509
Total I/O Performance MSExchange Database ==> Instances I/O Database Reads Average Latency (msec) I/O Database Writes Average Latency (msec) I/O Database Reads/sec I/O Database Writes/sec I/O Database Reads Average Bytes I/O Database Writes Average Bytes I/O Log Reads Average Latency (msec) I/O Log Writes Average Latency (msec) I/O Log
Reads/sec I/O Log Writes/sec I/O Log Reads Average Bytes I/O Log Writes Average Bytes Instance3728.1 31.898 0.146 225.293 1.565 63180.448 30784.134 12.585 0.000 2.348 0.000 216293.968 0.000 Instance3728.2 26.897 0.152 253.402 1.752 59681.089 31991.507 14.238 0.000 2.628 0.000 225673.565 0.000 Instance3728.3 28.938 0.150 236.413 1.634 62787.141 31549.059 15.325 0.000 2.451 0.000 223249.550 0.000 Instance3728.4 27.884 0.136 239.306 1.654 60019.331 31445.525 11.688 0.000 2.481 0.000 223225.070 0.000 Instance3728.5 28.063 0.591 236.330 1.649 62502.438 31252.300 12.564 0.000 2.472 0.000 221847.152 0.000 Instance3728.6 27.756 0.586 237.966 1.645 60383.850 31324.476 12.081 0.000 2.467 0.000 221930.935 0.000
Host System Performance
Counter Average Minimum Maximum
% Processor Time 0.689 0.000 2.010
Available MBytes 42658.475 42567.000 43968.000
Free System Page Table Entries 33555604.196 33555603.000 33555606.000
Transition Pages RePurposed/sec 17.074 0.000 4535.049
Pool Nonpaged Bytes 375487368.533 375484416.000 375500800.000
Pool Paged Bytes 2973411208.533 2973392896.000 2973581312.000
Database Page Fault Stalls/sec 0.000 0.000 0.000
Test Log6/28/2012 8:31:23 AM -- Jetstress testing begins ... 6/28/2012 8:31:23 AM -- Preparing for testing ... 6/28/2012 8:31:29 AM -- Attaching databases ...
6/28/2012 8:31:29 AM -- Preparations for testing are complete. 6/28/2012 8:31:29 AM -- Starting transaction dispatch...
6/28/2012 8:31:29 AM -- Database cache settings: (minimum: 192.0 MB, maximum: 1.5 GB) 6/28/2012 8:31:29 AM -- Database flush thresholds: (start: 15.3 MB, stop: 30.7 MB)
6/28/2012 8:31:36 AM -- Database read latency thresholds: (average: 20 msec/read, maximum: 100 msec/read). 6/28/2012 8:31:36 AM -- Log write latency thresholds: (average: 10 msec/write, maximum: 100 msec/write).
6/28/2012 8:31:39 AM -- Operation mix: Sessions 4, Inserts 40%, Deletes 20%, Replaces 5%, Reads 35%, Lazy Commits 70%. 6/28/2012 8:31:39 AM -- Performance logging started (interval: 15000 ms).
6/28/2012 8:31:39 AM -- Generating log files ...
6/28/2012 10:15:47 AM -- E:\dblg1 (101.4% generated), F:\dblg2 (100.2% generated), G:\dblg3 (101.0% generated), H:\dblg4 (100.2% generated), I:\dblg5 (101.4% generated) and J:\dblg6 (100.4% generated)
6/28/2012 10:15:47 AM -- Performance logging has ended.
6/28/2012 10:15:47 AM -- JetInterop batch transaction stats: 21754, 21798, 21831, 21602, 21618 and 21601. 6/28/2012 10:15:47 AM -- Dispatching transactions ends.
6/28/2012 10:15:47 AM -- Shutting down databases ...
6/28/2012 10:15:48 AM -- Instance3728.1 (complete), Instance3728.2 (complete), Instance3728.3 (complete), Instance3728.4 (complete), Instance3728.5 (complete) and Instance3728.6 (complete)
6/28/2012 10:15:48 AM -- C:\Program Files\Exchange Jetstress\Performance_2012_6_28_8_31_36.blg has 416 samples. 6/28/2012 10:15:48 AM -- Creating test report ...
6/28/2012 10:15:49 AM -- Instance3728.1 has 18.2 for I/O Database Reads Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.1 has 0.2 for I/O Log Writes Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.1 has 0.2 for I/O Log Reads Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.2 has 15.6 for I/O Database Reads Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.2 has 0.2 for I/O Log Writes Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.2 has 0.2 for I/O Log Reads Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.3 has 16.4 for I/O Database Reads Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.3 has 0.2 for I/O Log Writes Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.3 has 0.2 for I/O Log Reads Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.4 has 16.5 for I/O Database Reads Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.4 has 0.2 for I/O Log Writes Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.4 has 0.2 for I/O Log Reads Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.5 has 16.4 for I/O Database Reads Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.5 has 0.2 for I/O Log Writes Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.5 has 0.2 for I/O Log Reads Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.6 has 16.3 for I/O Database Reads Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.6 has 0.2 for I/O Log Writes Average Latency. 6/28/2012 10:15:49 AM -- Instance3728.6 has 0.2 for I/O Log Reads Average Latency. 6/28/2012 10:15:49 AM -- Test has 0 Maximum Database Page Fault Stalls/sec.
6/28/2012 10:15:49 AM -- The test has 0 Database Page Fault Stalls/sec samples higher than 0.
6/28/2012 10:15:49 AM -- C:\Program Files\Exchange Jetstress\Performance_2012_6_28_8_31_36.xml has 415 samples queried. 6/28/2012 10:15:49 AM -- C:\Program Files\Exchange Jetstress\Performance_2012_6_28_8_31_36.html was saved.
6/28/2012 11:16:02 AM -- Performance logging started (interval: 4000 ms). 6/28/2012 11:16:02 AM -- Recovering databases ...
6/28/2012 11:48:08 AM -- Performance logging has ended.
6/28/2012 11:48:08 AM -- Instance3728.1 (1925.8722846), Instance3728.2 (1698.8606859), Instance3728.3 (1837.5605295), Instance3728.4 (1795.6588559), Instance3728.5 (1825.6265085) and Instance3728.6 (1824.8309071)
6/28/2012 11:48:08 AM -- C:\Program Files\Exchange Jetstress\SoftRecovery_2012_6_28_11_15_59.blg has 480 samples. 6/28/2012 11:48:08 AM -- Creating test report...
