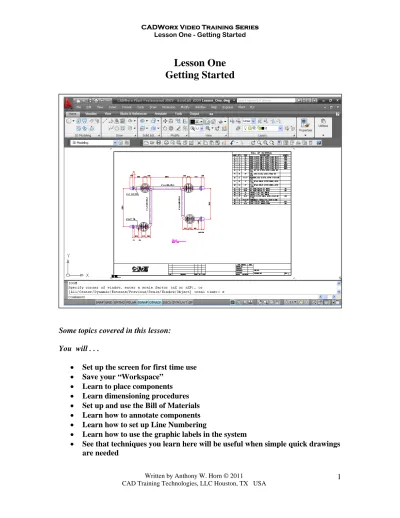

Lesson One
Getting Started
Some topics covered in this lesson: You will . . .
• Set up the screen for first time use • Save your “Workspace”
• Learn to place components • Learn dimensioning procedures • Set up and use the Bill of Materials • Learn how to annotate components • Learn how to set up Line Numbering
• Learn how to use the graphic labels in the system
• See that techniques you learn here will be useful when simple quick drawings
This lesson is the text portion of the video called Lesson One. This lesson covers all that you will see in the video, step-by-step. It is a written roadmap you can use to work your way through the exercise.
I recommend you play the video for a while and watch the first part of it. Then pause it and do the step-by-step instructions in this lesson. You can then go back to the video and repeat the process.
If you need to look at something more than once, you can always replay the video through that section. That’s the great thing about having a video to replay: you can clear up any part of the lessons that you may have questions about, and you won’t have any aspect of this course that you won’t understand.
So start the first video, and after a few minutes pause it. Then do the steps that follow. Good luck – and congratulations! You’re on your way to Mastering CADWorx Plant Professional Software!
• Starting up a drawing in CADWorx
• In this system you always use a template
• You can bring your border in at any time
• Using a template sets Units and other AutoCAD variables
Click the video buttons shown (Piping, Lesson One, Video One). The Video One gets you started and introduces the screen setup.
When you’ve finished viewing Video One, click the Video Two button. It will get you started setting up your drawing. Start CADWorx Plant Pro by double clicking on the
CADWorx icon.
1. Click on the “Use a Template” button
• You always set the size and spec
Initial Settings
When you start to work with CADWorx, everything is drawn to scale. So you have to set the system for a certain size (pipe diameter) and specification.
3. Click Plant 4. Click Setup
5. Click Size
6. Set the Main Size to 4”.
7. Set the Reduced Size to 6” (seems backwards but that’s what we want to do here).
8. Click OK to exit the size settings, and 9. Click Specification
• Selecting the Spec
• Selecting the Scale
• Inserting a Border 12. Click the Scale Button
13. Set the Scale to be 1:20, and click OK to exit that dialog box. 14. Click the Border Button.
15. Click Predefined.
• Clicking the User Name/Date/Time stamp box • Opening the CADWorx Specview tool palette
17. Click the box for the User Name/Date/Time stamp and click OK.
18. Click OK to exit the dialog box. 19. Type: Specview <Enter>
You will see the information contained in the 150_M spec appear in the left area of the screen. This is the Specview tool palette, and it is where you’ll go to select items to insert into the drawing (shown in AutoCAD 2009 version).
• Saving your screen setup using the Workspace command
• Saving the Drawing If you’re In AutoCAD 2009, set the Workspace first to 3D
Modeling. Then (all AutoCAD versions) save your Workspace as CADWorx Specview. (If you don’t have a Workspace toolbar open, right click on any AutoCAD button, and click on Workspace).
20. Click the Save Current As… 21. and name it CADWorx Specview
This will save all your screen settings and you can always restore them at a later time if needed.
Now, let’s save the drawing and get started. 22. Click Save As….
23. Path to the C:\CADWorx Video Training\Lessons folder. 24. Enter the drawing name:
• Placing a Flange
• Viewing the flange’s data
Placing Components
26. Click the Weld Neck Flange button.
27. Right click and click Face end.
28. Click a point to place the face of the flange in the upper right area of your drawing.
29. Drag the mouse to the right, and click (to indicate the direction you want to flange to be placed.
30. Zoom as needed to see the flange.
31. Double click on the Flange to see the data associated with it (this is data coming from the spec).
• Placing a Reducer • Adding Pipe
Important!
• Guaranteeing
good
connectivity
between
components
32. Click on the Reducer, Eccentric button.
33. Right click on the mouse and click “Small End.”
34. Press <Enter> and drag the mouse to the right and click. 35. The Reducer will connect automatically to the back of the
flange.
36. Type U <Enter> (for flat side up orientation of the Reducer).
37. Click the Pipe button.
38. Press <Enter> on the keyboard (the pipe will connect automatically to the reducer).
Note: Always press <Enter> to connect one component to the previous one. This will save a lot of trouble for you in the future, because it will help prevent connection errors between components. (A great example of this is when you connect to a gasket – it’s easy to miss!)
• Placing pipe
• Placing a Flange, Gasket, and Gate Valve
39. Drag the mouse to the right (to indicate the direction) and Type: 336 <Enter> (all lengths expressed in mm unless otherwise noted).
Note: We’re entering a length of 336 for this exercise. Later you will learn about router lines and see how to draw pipe segments in a different manner.
40. Click the Weld Neck Flange button.
41. Press <Enter> on the keyboard (to connect automatically), drag to the right and Click.
Notice, the system placed a Gasket automatically.
42. Click on the Gate Valve button.
• Continuing to place components
• Placing a Tee 44. Drag the mouse to the right and click.
45. Click the direction for the valve top works as shown in the video if you are running CADWorx 2009.
Note: If you are not running CADWorx 2009 you will not be prompted for the valve top works. You’ll add it in during a later section of the lesson. Note: The size and shape of the valve top works will be
changed in a later lesson to a standard size.
46. Click on the Weld Neck Flange button.
47. Press <Enter> on the keyboard to connect automatically 48. Drag the mouse to the right and click.
49. Click on the Tee button.
Note: Click on the Tee button, not the Reducing Tee button!
50. Press <Enter> on the keyboard to connect automatically.
• Placing pipe of specific lengths 51. Drag the mouse to the right and click (for the “run”
direction).
52. Then drag the mouse straight down (for the “branch” direction) and click.
Click on the Pipe button.
53. Press <Enter> on the mouse, then drag to the right and 54. Type: 1800 <Enter>
55. Click Pipe and click on the bottom of the Tee. Drag straight down and
• Placing an Elbow
• You can Copy components in CADWorx using normal AutoCAD commands
57. Place an Elbow at the bottom of the last pipe segment. 58. Click the Elbow button.
59. Press <Enter> on the keyboard, to connect automatically. 60. Drag down with the mouse and click (to indicate the elbow
corner direction).
61. Drag to the left and click (to indicate the direction of the end of the elbow).
62. Copy down the Flange, Gate Valve, and Flange, as shown in the video.
• Copying groups of components 63. Click Pipe.
64. Click on the end of the flange (be sure to use Osnap). 65. Drag the mouse to the left,
66. And Type: 250 <Enter>.
67. Copy down the Reducer and Flange as shown.
• Finishing up placing the components
• Saving the file
• Adding Nozzles 69. Working in a similar fashion as you have been doing, add the
remaining pipe segments and fittings.
70. Use the measurements shown in the figure, when you type in the values for the lengths of the pipe segments.
71. Save your drawing when completed to this point.
Adding Nozzles
72. Click on the Long Weldneck tool button.
• Adding Gaskets and Nozzles
• Viewing the Nozzle data
74. Zoom in around one of the six inch flanges on the right, and using the OSNAP Endpt, click on the Gasket, then drag to the right and Click.
75. Double click on the Long Weldneck you just placed, and notice the information contained in this dialog box.
a. The Long annotation area shows how the item will be listed in the Bill of Materials List.
b. The Tag is a field that can contain connection info (Nozzle 1 of Pump 123) or, in the case of a valve, a valve tag. All components carry weight.
• Setting the nozzle to be an Existing components
• Adding the 4” Gaskets and Nozzles 76. Click on the “Existing” check box, and set the nozzle to
“existing”. This will make it an item that will be shown on an iso, but not called out in a material list. (It’s like the nozzle “exists” on a vessel in the area, and we just want to connect to it).
77. Click OK when done, and notice how the flange has changed.
78. Repeat these steps and place a nozzle (Long Weldneck) on the other 6” flange.
79. Near the top of the screen, in the CADWorx tool pallet: 80. Set the Main Size to 4” (don’t worry about the Reduction
size, it doesn’t matter for this step).
81. Click on the Gasket button.
82. Click on the left edge of one of the 4” flanges, drag the mouse to the left, and click (place a gasket on the face of one of the 4” flanges).
• Setting the Nozzle to 8” in length, and making it “existing”, which means it will come out in the Isometric drawing, but not in the Material List
• Viewing a proper Gasket
84. Right click on the mouse and click Length. 85. Type: 200 <Enter> (to set the length to 200mm). 86. Press <Enter> again on the keyboard to connect
automatically to the gasket.
87. Drag the mouse to the left and Click.
88. The Long Weld Neck flange (the Nozzle) will be placed correctly.
89. Double click on the nozzle and set it to Existing.
90. Notice there’s a space between the Nozzle and the flange it connects to. The Gasket creates the space between them. This is how it should look.
91. Repeat for the other 4” flange, or copy the gasket and nozzle up to it.
• Adding Bolts to the drawing
• Viewing the Bolt Data
Adding Bolts
92. Type: Autobolt <Enter>
93. Window the drawing and press <Enter>
94. Bolts will be placed in the drawing (the system puts bolts for each Gasket).
95. Double click on one of the “B”s laying on a Gasket (the B’s are for “Bolts”).
• Setting the system to show Threaded Components
• Placing a Thredolet
Adding Olets (Drains)
96. Turn on the OSNAP, OTRACK, and POLAR buttons at the bottom of the screen.
97. Click the Main Size area in the tool pallet.
98. Set the main size to 6”, and the reduction size to ¾”. 99. Zoom into the upper left area of the piping.
100. Click the Settings tab on the Specview tool pallet. 101. Click the Show Threaded checkbox.
102. Click Thredolet
103. Move the cursor right over the point where the pipe and the reducer meet, but don’t click – just hover the
crosshairs right over that intersection point. 104. The OSNAP will “acquire” the point.
A Drag slightly to the right (you’ll see the tool tip box appear).
• Placing a Pipe Nipple
• Setting the End Conditions of the Pipe Nipple 105. Type: 125 <Enter>
106. Drag the mouse toward the bottom of the drawing (in the – Y direction) and click.
107. The OLET (Thredolet) will appear, and be oriented toward the bottom of the screen.
108. Pick the Nipple button.
109. Right click and Type: 100 <Enter>
110. Press <Enter> (to connect to the OLet, the last
component drawn).
111. Drag the mouse toward the lower part of the drawing and click.
112. Press <Enter> <Enter> (to set the ends of the nipple to threaded, threaded).
113. Double click on the Nipple.
In the dialog box, you’ll see TBE (for threaded both ends).
• Placing a threaded Gate Valve
114. Click OK, to exit the component edit dialog box. 115. Click the threaded Gate Valve button.
116. Press <Enter> (to connect to the last component). 117. Drag the mouse down and click.
118. In a similar fashion place another olet, nipple, and gate valve on the pipe segment at the lower right area of the drawing.
• Placing the other branch
Put it 100 from the end of the flange. See illustration which follows.
• Running a Continuity Check • Continuity Checks should be run on each line as a standard procedure
• This insures that you will produce
correctly drawn piping models and drawings
Running a Continuity Check
At this point it would be good practice to run a continuity check. This insures that the components you’ve placed in the drawing are connected correctly.
To run this check: 119. Click Plant 120. Click Utility 121. Click Continuity
122. Window the drawings and press <Enter>
123. Type: 300 <Enter> (to have the system show the ends of the pipe runs and branches with a 300 diameter circle). 124. Press <Enter> (for the 0.0010 precision).
• Extra circles that occur during the middle of a piping run, instead of at the ends, indicate errors
• All continuity errors must be fixed before proceeding with the drawing
• A failure to fix continuity errors will cause problems in generating
isometrics, and possibly give errors in material lists Your drawing should look like the previous figure. The circles
indicate that a piping run has started and stopped. They also will appear at the start points and end points of any branches (like the thredolets).
If you have additional circles appearing in the middle of the runs, this indicates an incorrect gap or an overlap between components. This can be caused by not pressing <Enter>, as you connect one component to the next, or not having a good OSNAP connection between components.
These errors must be corrected before continuing on, since they will cause problems with the isometric drawing you will be generating soon.
If you get extra circles, zoom into the area and take a close look. Click on the circles and light up their grips. You will either see gaps between centerlines, places where gaskets are placed incorrectly (not positioned right between flanges, but actually partly inside one of the flanges), or overlapping centerlines. All of these errors will cause an extra circle to appear in a pipe run where it is not expected.
Here are some examples
Overlapping centerlines Centerlines with gaps
• Starting the Line Number Setup command
Line Numbering
125. Click the Line Number Setup Tool Button.
This brings up the Line Numbering System Dialog Box.
By default, the system uses Size-Spec as its line number.
You’ll change that now, to a different line number format.
• Setting up the Line Numbering sequence
Setting up the Line sequence.
126. Click the down arrow under Category.
• Adding the other categories that make up the line number The category Service appears in the list.
128. Click the down arrow under category again (as shown previously) and click Count. Then click Add.
129. The Count is now added as part of the line number.
130. Click in the area under Separator, and type in a dash (hyphen).
131. Click Add.
132. Click Add again (two dashes are added to the line number list).
Now, you’ll arrange the line number to be Size-Service-Count-Spec.
• Adjusting the line number categories
• Setting the values for the fields in the line number
133. Click on the word Service, to highlight it. Click on the Move Up button to move it up in the list, below Size.
134. Click on the word Count, and move it up to be below Service.
135. Click one of the dashes in the list, to highlight it, and move it up between Service and Count (use the illustration, or the video to see what’s being described). 136. Continue to Move up the dashes, and the
Size/Service/Spec categories as needed to set up a line number list as shown.
137. Click OK when done, and Save the drawing at this point.
138. Click on the Line Number Setup tool button again to open the dialog box.
139. Click Service, and in the “Default value” area, highlight the word Service and type in LH <Enter>.
140. Click Count, and change it to 1000. 141. Click OK to exit this dialog box.
• Embedding line numbers in all the components
• Verifying the line number has been updated
Updating the Line Number in the Components
142. Type: Nba <Enter> (for Line Number Assign)
Note: A list of CADWorx commands that you can type in can be found by clicking Tools (pull down menu), Customize, Edit Program Parameters. The file will open in Notepad, and you can see all the commands that can be typed in. The CADWorx commands are toward the bottom of the file.
143. Select everything in the drawing, and press <Enter>. 144. Type: A <Enter> (for “All”). This will assign the new
line number to all of the components.
To verify:
145. Double click one off the Gate Valves in the drawing. You’ll get a dialog box showing the new line number assigned to the valve.
• Moving the drawing over in the border area
• Selecting the Automatic
Dimensioning option
Annotation (Dimensions, Bill of Materials, Line Number labels, etc.) - Paper Space or Model Space?
You can dimension the drawing and add labels to it either in Model Space or Paper Space, depending upon your preferences and also the job requirements. When you do 3D Modeling, you will typically use Paper Space for these tasks, since it lends itself so well to working in 3D.
In this example, you will place the dimensions and annotation in Model Space, and later you will be shown both methods.
146. Move your drawing down into the Border as shown. (Leaving room on the right for a Bill of Materials).
147. Click Plant 148. Click Dimension 149. Click Automatic
• Placing dimensioning automatically 150. Right click on the mouse and type: 675 <Enter>
(This sets the dimension lines 675mm away, to scale, from the objects.
151. Click a point, as shown, in the center of your pipe drawing.
152. The dimensions will appear.
153. Erase the two dimensions/lines on the left edge of the sheet, then using grips, move the two overall dimensions out to the ends as shown.
• Running a Bill of Materials
Running a Bill of Materials
Note: This exercise will use the default BOM in CADWorx. For setting up different BOM layouts, or exporting the BOM out to a spreadsheet or database, please see the video with that section on it.
154. Click Plant
155. Click Bill of Material 156. Click Tag
157. Click Toggle (this turns off the piece mark bubbles).
Running the Bill of Materials
158. Click Plant
159. Click Bill of Material 160. Click Run
161. Click Cut
162. Press <Enter> (to select objects)
• Viewing the Bill of Materials
164. Click a point in the upper right corner of your border. 165. The Bill of Materials will appear.
• Placing some Graphic Labels 166. At this point the drawing is almost completed.
167. Click Plant, then click Graphics. 168. Click Plan
169. A dialog appears with Head highlighted. 170. Click OK
171. Click a point on your drawing under the piping drawing to place this Plan label.
172. Drag the mouse to the right and click (for orientation), or you could also Type: 0 <Enter>, to orient the label at 0 degrees. Either way is fine. 173. Type 1:20 <Enter>, and the label will appear. 174. Save the drawing at this point.
• Placing some Graphic Labels
• Annotating (labeling a Line Number)
Line Number Annotation
175. Next you’ll add some Line Number and Component Annotation.
To bring up the Line Number tool bar: 176. Click Plant
177. Click Tool bars 178. Click Line Numbers
179. Dock the Line Numbers tool bar at the top of your screen.
180. Click the third tool button over, for Line Number Annotate.
• Placing the line number label
• Placing a line number label in vertical
181. Click the pipe segment in the top center area of the drawing.
182. Click a point to place the text.
183. Drag the mouse to the right and click, or 184. Type: 0 <Enter>.
185. The Line Number annotation will appear.
186. Place another Line Number label on the vertical segment, on the left. To tell the text to go up and down, you will need to type 90, for the rotation angle, or drag the mouse up toward the top of the screen and click. You can see this in the video.
• Annotating components
• The annotation text height matches the dimension text height.
• If you want to make it smaller, you will have to change the dimension text height (in Format, Dimension Style)
• You can also annotate the
components without using the Leader option, and draw your own Leader later. This will give you smaller text as well
Component Annotation
Next you’ll label a couple of the fittings. 187. Click Plant
188. Click Text 189. Click Annotate 190. Click Component
191. Press <Enter> (for Short Annotation).
192. Click the 6”x4” reducer in the top left area of the drawing. 193. Right click on the mouse and
194. Click Leader
195. Click a point where you want the text to start.
196. Use the Grip on the text to drag it into position like you want it to look (see the video for how this works).
197. You can also use a Grip to move the arrowhead of the Leader where you want it to point (on the edge of the reducer).
198. Repeat for the 6”x3/4” Thredolet at the bottom left of the drawing.
Congratulations! This concludes the first lesson. You are well on your way to mastering CADWorx® Plant Pro software!
Lesson Two
3D – First Look
Some topics covered in this lesson:You will learn how to….
• Use the AutoCAD View Ribbon and Tool Bar
• Convert CADWorx files from 2D to 3D
• Work with the CADWorx UCS Tool Bar
• Model components in the Vertical Plane
Note: Valve Operators (hand wheels) will be modified to correct sizes in a later part of the lesson
• Opening the Lesson One drawing • Saving under a different name • Using the 3D Modeling Work Space (AutoCAD 2009), or Bringing up the 3D View tool bar (AutoCAD 2008 and earlier)
• Setting the view to the South West 1. Start CADWorx, and open the Lesson_One drawing.
2. Click File, then Save As
3. Type: Lesson_Two (do a Save As, Lesson_Two). 4. Erase the Border, Bill of Materials, and Dimensions 5. Save the drawing again.
Opening the AutoCAD View Tool Bar
6. If you’re using AutoCAD 2009, you can set your Work Space to 3D Modeling. In that Work Space you can access the various 3D Views easily (see video).
7. For 2008 and earlier versions of AutoCAD:
8. Move the cursor (pointer) over any AutoCAD (not CADWorx) tool button.
9. Right Click on the mouse.
10. A list of AutoCAD tool bars will appear.
11. Click on the View toolbar (if it dos not already have a check on it. If it has a check on it, it is already open).
12. Drag and dock the toolbar in the top area of your drawing. 13. Click on the SW Isometric tool button.
CADWorx has the capability to display its components in 2D, 3D, or Single Line graphics. When you first open the drawing, you will be viewing it in 3D. If you want to have part of the model display in one of the other modes, you can use the Settings tool bar to change it.
• Seeing the drawing in different display modes (2D, Single Line, 3D)
14. Next you’ll place the Settings toolbar at the top of your screen, next to the AutoCAD View toolbar you placed there earlier.
15. Click Plant 16. Click Toolbars 17. Click Settings
18. Drag it up next to the view toolbar in the top area of your screen.
19. From the Settings Tool bar, hold down the mouse button on the 2D button, and you’ll see the tool bar has a “fly out.” 20. Move the pointer down to the “2D, “Single Line”, or
“Solids” button and release.
21. Click two points to Window all the objects, and press <Enter>.
22. The components will convert to the mode you selected. Convert the model back to 3D solids.
Note: The valve operators (called Top Works) are sized in this first model based on a file the system uses. As the lesson progresses, you’ll specify a different top works file so they come in as typical sizes for gate valves. Also, you’ll see how to model them manually if you are using a version of CADWorx that is 2008 or earlier.
• You’ll change the display to show the model in 2D wire frame, shaded as conceptual shading, and also as single line grapics
• Wireframe takes less system resources
• Bringing up the CADWorx UCS toolbar, which will greatly simplify 3D modeling
23. Click View
24. Click Visual Styles 25. Click Conceptual
• Discussing 3D versus Isometrics
• Rotating the UCS, which rotates the crosshairs
26. Click View
27. Click Visual Styles 28. Click 2D Wire frame
When working in 3D, it is a good rule to work in 2D Wire frame. It is less taxing on your system’s resources, and you’ll have better machine speed if you do so.
29. Watch Video Two and Video Three, which discuss the Top Works feature in CADWorx.
30. Bring in the CADWorx UCS Toolbar – 31. Click Plant, Toolbars, UCS.
32. Doc it at the top area of your screen.
33. Zoom into the area near to first flange and reducer, on the left of the drawing.
What you’ll do next is work in the vertical plane. The two olets, nipples and threaded gate valves were constructed earlier in the horizontal plane.
For this exercise, you’ll erase them, and then you’ll redo them in vertical, like they would actually be if this was a suction line on a pump.
34. Erase the two thredolets, nipples, and gate valves. What you’ll do next, is place a drain for the line. It will again consist of a thredolet, a pipe nipple, and a gate valve, but it will be placed this time in “vertical”.
To place it in vertical (coming down) the crosshairs have to be flipped on edge, sort of like doing an isometric drawing. When you draw Isos, you have to flip your crosshairs into the different planes you draw in: top plane, vertical left plane, vertical right plane.
The same is try in 3D modeling. You have to flip your crosshairs into the proper planes to place CADWorx components going up and down in the “Z” direction.
• Setting up the UCS to work in the vertical plane
• Setting the size and spec
• Modeling a thredolet
• Using tracking to position the thredolet along the pipe
The CADWorx UCS tool bar makes this easy. Using this toolbar, the “UCS” toolbar from CADWorx (not the UCS AutoCAD toolbar – they are different) it has the same look and feel as doing isometric drawings.
The UCS Next button
35. Look at they UCS icon in the lower left area of your screen. You are currently in the “World Coordinate System”. You can tell that by the small square where the three axes meet.
36. Click the UCS Next button (see illustration above)
37. Notice how your crosshairs change to work in “vertical right”, and the UCS icon changes as well.
This is how you need to be set to add the drains to the lines.
• Tracking the thredolet down the pipe 125mm
• Placing a pipe nipple 39. Set the Main Size to 6”.
40. Set the Reduction Size to ¾”.
41. Click on the Thredolet button.
42. Have the OSNAP, Tracking, and Polar buttons turned on. 43. Move the crosshairs over the end of the pipe and pause them
(don’t click). You need to be right over the center of the pipe, at its end.
44. The system will “acquire” that point and you can “track” from it.
(If you see a box similar to what is shown, you are tracking.)
45. While tracking, Type: 125 <Enter>.
46. Drag the crosshairs toward the bottom of the screen and click.
• Viewing the spec data in the nipple The Thredolet will be placed 125mm from the end of the
pipe, and oriented downward.
Click the Nipple button.
Note: If you don’t see it in the list to select, make sure your Main size is set to ¾”. The system will display components based on size.
.
47. Right click on the mouse, click Length, and Type: 100 <Enter>, for a 100mm long nipple.
48. Press <Enter> on the keyboard, to automatically connect the pipe nipple to the thredolet.
49. Press <Enter> <Enter> to set the nipple end conditions to threaded for each end.
• Placing a threaded gate valve and plug
• Copying the other drain branches
Note: As long as the nozzle data shows “Existing”, the color and line type display are fine.
Double click on the nipple that you just placed on the drawing.
You’ll see in the dialog box that it is shown as TBE (threaded both ends) in the long description part of the dialog box.
50. Click OK to close the dialog box.
51. Click on the Gate Valve, 800 LB, THRD button.
52. Press <Enter> on the keyboard, and the valve will connect automatically to the pipe nipple.
53. Drag the crosshairs down, to indicate the direction, and click.
54. Click on the Plug button.
55. Press <Enter> to connect automatically to the previous component.
56. Drag the mouse down and click (for the direction). 57. Place the other drains needed on the drawing. You can
place them using these same steps, if you want the practice, or you could also copy them using the regular AutoCAD
• Adding valve operators • Inserting the dimensions of the valve operators Copy command.
58. Get them as shown in the next figure, all located 125mm in from the end of each pipe.
59. Save the drawing.
Manually Adding Valve Operators (Hand Wheels) in CADWorx 2008 and earlier versions
60. Bring up the Operator’s tool bar . 61. Click Plant
62. Click Toolbars 63. Click Operators
64. Dock it at the top of your screen.
65. Click the OS&Y tool button on the Operator tool bar.
66. Click a point in the middle of one of the 6” gate valves (use an OSNAP MIDPOINT if necessary).
67. Drag the cursor up (to indicate the direction of the hand wheel). 68. Type: 168 <Enter> (for the diameter of the hand wheel).
• Adding Valve Tags 69. Type: 857 <Enter> (for the length of the hand wheel).
70. Repeat for the other 6” Gate Valves.
Setting a Valve Tag and Valve Hand Wheel Orientation
71. Double click on one of the 6” gate valves, to bring up the Component Edit dialog box.
72. Later, when the specs have been set up, you will probably have a valve tag automatically come into the valve’s data. For instance, when the specs have been done, a value of G33P might be put in the TAG field automatically.
73. In this case, you haven’t modified the specs yet (probably), so the TAG field will be blank.
74. Fill out the information in the TAG area as shown. This will give the valve a TAG value (G33P in this case).
• Adding data to tell Isogen how to draw the valve operators
• Placing hand wheel information on the small drain valves Next you’ll tell Isogen how to draw the hand wheels for the
valves, if you are running CADWorx 2008 and earlier version. In CADWorx 2009, this is done automatically as the valves are modeled.
75. Click the Isogen button at the bottom of the dialog box.
76. Set the Spindle Direction to Up if it is not already set. 77. Copy and paste the TAG info into the other 6” Gate Valves,
• Adding data for Isogen to draw the hand wheels on the drain valves
Placing Operators on the ¾” Gate Valves
78. Type: UCS <Enter> <Enter> (to return to the World Coordinate System).
79. Click the OS&Y tool button on the Operator tool bar. 80. Click the Midpoint on one of the ¾” Gate Valves (zoom
in as necessary).
81. Drag the mouse out away from the valve to indicate the hand wheel orientation.
82. Type: 60 <Enter> (for the hand wheel diameter). 83. Type: 125 <Enter> (for the length).
84. Repeat for the other ¾” Gate Valves.
85. Double click on the valve, and fill out the dialog box as needed for the TAG information and the orientation of the hand wheel. The Tag will be G33P.
86. In this example, the hand wheel will be oriented SOUTH (since it is pointing toward the bottom of the drawing). Two will be SOUTH, and two will be NORTH.
• Reviewing the finished model
87. Fill out the other ¾” Gate Valve TAG data as needed. 88. Save the drawing.
This completes Lesson Two. Next up – Isometrics!
.
• Opening the drawing
• Telling the system to generate an Isogen Isometric drawing of the line modeled
• Note: If Isogen is grayed out when you try to select it, see your system
administrator or the videos on setting up Isogen
Lesson Three
Running an Isometric using Isogen
Some topics covered in this lesson: You will…
• See how to run an isometric using Isogen
• Run the iso on various borders
• Look at some of the Isogen options
Note: There is a separate lesson on how to set up and customize Isogen (see page 238).
1. Open the Lesson Two drawing in CADWorx Plant Pro.
2. Click Plant 3. Click Accessory 4. Click ISOGEN 5. Click Isogen Out
• Use an A2 Border for this first example
• The system will generate two drawings You should see the following Isogen Configuration dialog
box. If not, see your System Administrator, or go through the Isogen Setup Video. This video is a later video in this training sequence.
6. In this first example, you will use the Metric_Inch_A2 Style (drawing border). So select it from the list, if it is not shown.
7. Click OK.
8. Press <Enter> (to select components).
9. Window all the items in the drawing and press <Enter>. You will get a CADWorx Isogen Results dialog box.
In this instance, the system shows it has generated two isometric drawings. It did this because if it put everything on a single isometric, the drawing would be too crowded. By making two isos, it is able to produce two drawings with a nice appearance.
.
• You can generate the isometrics using different size borders
• There’s even a border that shows welding information on the isometric
the video for possible causes.
10. Click the Open Plot Files button, and take a look at the isos.
11. Now run the isos on the A3 border, and also the A1 border. 12. Notice how the A1 border shows all the information on a
single sheet.
Note: Some clients generate their isos on a A1 border, and then plot them half-sized.
Welding Information
Isogen also has the ability to generate welding information on an iso.
To see how this works: 13. Click Plant
14. Click Accessory 15. Click Isogen 16. Click Isogen Out
Welded Iso – partially shown for clarity
• Reviewing the welding information results shown on the isometric
18. Click Sample-Final-Weld-Box 19. Click OK
20. Press <Enter>
21. Window everything and press <Enter>.
22. Click Open Plot Files to review the isometrics generated.
Note: The sample welding border is only available in Imperial Units at this time.
At this point you have been able to produce some Isogen Isometrics, providing everything has been set up for you. If you were doing production work at this time, you would probably have an administrator set up the job’s borders for you. If not, you could always erase the current border and insert your client’s border, then save the drawing in the directory needed for your job.
In a later lesson, I will show you how to set up an Isogen project, so you can see how all of this is done and
Lesson Four
3D Modeling
In this lesson you will learn how to:• Easily Rotate the UCS to model in different planes • Model lines in a method similar to drawing isometrics • Create 3D Router Lines
• Automatically place elbows and pipe segments
• Generate Clipped Views using the CADWorx Viewbox command • Annotate and Dimension in Paper Space on a Layout
• Starting the drawing
• Inserting External Reference Files (XRefs)
exchangers and a vessel. You’ll see a couple of ways these can be modeled: manual placement and using router lines. Both methods are effective, and the choice depends upon the geometry and information you have to work with. Generally speaking, a Router line is going to give you the fastest tool for constructing lines in 3D compared to other methods.
First you’ll model the return lines, from the top of the exchangers going back into the vessel.
1. Start a new drawing, using a template: Metric. 2. Click File, Click Save As
Browse to the C:\CADWorx_Video_Training\Lessons folder.
3. Save the drawing as 12-CPRA_B-1004-150_M.
4. Click Insert, from the pull down menus in both 2009 and earlier versions. In AutoCAD 2009 there is also a button along the bottom of the screen, if you prefer.
• List of attached XRefs
6. Click Attach
7. Browse to your C:\CADWorx_Training\Examples folder and click on the 35-450 drawing and the Exchangers_Pair drawing (hold down the Control Key as you select them. 8. Insert them in as Overlays and inserted at the 0,0,0 point,
Scaled 1:1, and Rotated 0 as shown.
9. You should have them in your attached drawings list as shown.
• Opening the View Tool bar
• Viewing from a 3D skewed view – SW Isometric Viewpoint 11. You will see your two XRefs now appearing on the drawing.
12. Depending upon your AutoCAD version, you can use the 2009 3D Workspace and work your 3D views directly off that. For this lesson, bring up the AutoCAD View tool bar, if it is not already on your screen (this method works with all versions of AutoCAD). To do this, you can move the mouse pointed over any AutoCAD tool button, and Right Click on the Mouse. A list of tool bars will appear, and then you select the View Tool bar (2008 version illustrated).
13. Dock the View tool bar at the top area on your screen. 14. Click on the South West Isometric View.
• Zooming closer to the exchangers
• Getting an overview of what’s to follow 16. In this lesson, you will be modeling the two lines that return
• Isometrics – the traditional way to work
• It’s a short step from Isometrics to
working in 3D when using CADWorx 17. This will be a valuable lesson for you, because you will see a
couple of different approaches to modeling these lines: placing fittings one by one, and also how to use a Router Line.
The first thing to emphasize in the lesson is that modeling in 3D using CADWorx is easy. The developers of CADWorx have made 3D modeling as easy as doing a 2D Isometric drawing.
Do you remember how, in doing an isometric, you flip the crosshairs from one plane to another using the F5 key on the keyboard?
When you pressed the F5 key your crosshairs would rotate into the top plane, or vertical left hand plane, or vertical right hand plane.
Do you remember how easy that is? It’s a fast and easy way to do a pictorial drawing.
Pressing the F5 Key flips the crosshairs in Isometric.
Well working with CADWorx in 3D is very similar! Modeling in 3D in CADWorx has the same look and feel as creating a 2D Isometric drawing! If you think of it like this, then 3D modeling in CADWorx is a breeze!
• Switching planes in 3D seems similar to flipping the
crosshairs in isometric
• In 3D, you click the UCS Next button to rotate the crosshairs (similar to hitting the F5 key on the
keyboard when you did isometrics) Instead of the F5 key to rotate your crosshairs, CADWorx
uses their own UCS Toolbar, which does a similar function.
18. Now you’ll bring up the CADWorx (not AutoCAD’s) UCS tool bar (2008 version illustrated)
19. Click Plant (at the top of the screen) 20. Click Tool Bars
21. Click UCS
22. The UCS tool bar will appear. Dock it in the top area of your screen.
23. Notice how your crosshairs are oriented.
24. Click the UCS Next button a few times, and notice how your crosshairs rotate. It looks very similar to how crosshairs rotate when you do isometrics!
Now you’ll test this to get a feel of how this works. 25. Click the UCS Next button until your crosshairs are in the
• Practicing some 3D
• Make sure you
have ORTHO on
• Drawing a 3D pipe Next you’ll set up your system to draw some test lines to
see how this works. 26. Click Plant
27. Click Setup
28. Set the Main Size to 6”.
29. Set the Specification to 150_M. 30. Set the Drawing Mode to 3D.
31. Pan the screen to the side, so that you are in a clear area. You will now draw a few fittings to get a good look at this.
32. Make sure you have ORTHO turned on.
33. Click Pipe
34. Click a point for the start point of your pipe. 35. Drag the mouse to the lower right direction and
• Placing a 3D elbow
• Modeling in the horizontal plane 37. Click Elbow
38. Press <Enter> on the keyboard to have the elbow connect automatically to the pipe you just drew.
39. Drag down and click (for the corner).
40. Drag to the right and click (for the elbow direction).
41. Draw a 1800mm piece of pipe from the elbow toward the upper right direction.
42. Now you’ll turn draw another elbow turning up in the vertical plane.
• Rotating the UCS easily into the “vertical right hand” plane
• Modeling in 3D has a similar look and feel to creating Isometric drawings 43. Click on the UCS Next button on the UCS tool bar.
44. Your cross hairs should look as shown. If not, keep clicking the UCS Next button to get them set.
Do you see how this is going to let you draw in the vertical plane? You can see how the X Y Plane is oriented in the “vertical right hand plane” (it’s on edge going up and down, instead of “flat” like you normally see it). When you draw with the UCS tilted like this, your components will be drawn in the vertical XY Plane.
Now you’ll draw some components in vertical. 45. Click Elbow
46. Press <Enter> on the keyboard, to have the elbow connect automatically to the last piece of pipe. 47. Drag the mouse toward the upper right direction and
click.
48. Drag the mouse straight up and click. You’ve just drawn an elbow going up.
• Showing how 3D is similar in approach to producing a 2D isometric
49. Click Pipe and press <Enter> on the keyboard.
50. Drag the mouse straight up and Type: 1800mm <Enter>.
Do you see how this is just like drawing a 2D isometric, but it’s really in 3D? Modeling in CADWorx Plant Pro can get really fast and easy, once you get used to it.
51. Click the UCS Next tool button on the UCS tool bar. 52. Set it as shown.
53. Click Elbow 54. Press <Enter>
55. Drag up for the corner and click. 56. Drag to the lower right and click.
• Illustrating how to model in 3D 57. Click Pipe
58. Press <Enter> on the keyboard to connect automatically to the last elbow.
59. Drag to the lower right and 60. Type: 2500 <Enter>.
Now let’s say you wanted to draw a valve with flanges in the second horizontal line, where it touches the elbow that’s turned up.
You’ll draw a gate valve and flanges here.
First you need to get your crosshairs (UCS) reset. 61. Click the UCS Next tool button.
• Inserting
components into a line and having the system “break out” the line as they are inserted
62. Click the Weld Neck Flange on the tool palette.
63. Click on the end of the elbow that’s turning up.
64. Drag toward the lower left area of the drawing and click.
65. Click the Gate Valve on the tool palette.
66. Press <Enter> on the keyboard to connect it to the flange automatically.
67. Drag the mouse toward the lower left area of the screen and click.
68. Click on the Weld Neck Flange in the tool palette. 69. Press <Enter> on the keyboard, to connect it
automatically to the valve.
70. Drag to the lower left area of the screen (using Polar or Ortho) and click.
• Getting set for modeling So you can see that modeling in 3D in CADWorx is a
matter of setting your crosshairs (UCS) in the plane you want to work, then simply placing components.
There’s also a great tool which you’ll do soon called a ROUTER LINE, which together with the method you just practiced, will have you creating 3D CADWorx models very fast and efficiently.
71. Erase the lines you just drew. It was just to illustrate how to model in 3D. Zoom back into the area near the top of the exchangers.
Now you’ll model lines coming out of the top of the far exchanger.
• Setting up the line number
72. Set the Main Size to 12”. The spec should be set to 150_M.
73. Click the Line Number setup button in the top area of the CADWorx tool palette.
74. You need to set the line number to include Size, Service, Count, Spec, and Insulate. You can see the video or lesson one if you need to review how to set this up. 75. Your line number will look as shown. You will use
CPRB for the Service, and 1004 for the count. The Insulate value will be nothing, since we don’t want to show insulation for this line.
• Rotating the UCS (User Coordinate System)
crosshairs in the vertical left hand plane. Note: The Z direction is not important here unless you want to place some text in 3D in the model. The X and Y are what’s important to us here.
77. Click Gasket from the CADWorx tool palette.
78. Place a gasket on the top of a nozzle (use OSNAP CENTER), and drag the mouse toward the top of the screen and click.
79. Click Flange, RFWN from the CADWorx tool palette. 80. Press <Enter> on the keyboard to connect automatically,
drag the mouse up toward the top of the screen, and click. 81. Click Pipe.
82. Press <Enter> on the keyboard.
83. Drag the mouse up, and Type: 1027 <Enter>. 84. Click Elbow and press <Enter> on the keyboard.
• Placing components in 3D • Copying components in 3D 86. Drag the mouse toward the upper left area of the screen
and click.
87. Repeat the steps you just did on the other nozzle. Have the elbow at the top pointing toward the first elbow.
• Modeling 3D components
• Inserting a Tee into the middle of a 3D pipe
89. Then click on the Tee, in the CADWorx tool palette.
90. Right click on the mouse and click Center.
91. Pause on the end of the elbow, on the right side (don’t click).
92. “Track” down the pipe (drag the mouse down the pipe and you will see the system “tracking), and type: 1738 <Enter>.
93. Click down the pipe for the Main Run direction. 94. Click Straight Up for the Branch direction.
95. Press <Enter> to accept the 1738mm distance from the end of the pipe.
96. Your drawing should appear similar to what’s shown.
97. Save the drawing at this point.
98. Now you’ll need to rotate your UCS (your crosshairs) to model in vertical, and also in the “right hand” plane. Click the UCS Next
button to rotate them as shown.
• Modeling in vertical
. 99. Zoom into the area around the two nozzles on the side of
the vessel.
100. Place a Gasket, Flange, and Elbow as shown.
The following figure shows what you will be constructing.
You’ll soon be modeling a line that comes up out of the Tee, and connects into the bottom of the Elbow.
• Evaluating the setup
• Inquiring about a needed distance You’ll need to determine how far it is from the center of
the Tee to the end of the Elbow on the vessel (you can just follow the steps in the video).
First, you’ll determine the distance from the Tee to the Elbow. Again, watch the video and this will be easy to follow. The video shows the following steps.
101. Click Tools 102. Click Inquiry 103. Click Distance
104. Click the Endpoint or Center of the Tee.
105. Click the Endpoint or Center of the bottom of the Elbow. 106. Note the distance between them (see video) – it’s
4845mm.
You’ll key in this distance shortly when you run a router line between them.
• Using the 3D Router command • Routing a line in 3D space, connecting to components as needed
107. Type: RT <Enter> to start the Router Line command. If it doesn’t work on your system, you can always click Plant, Accessory, Auto Route, Router.
108. Click the Endpoint of the top of the Tee. 109. Right click and click Position.
110. Right click and click BOP.
111. Press <Enter> (if prompted for size: 12”). 112. Right click and click Elevation.
113. Right click and click World. 114. Type: 7000 <Enter>.
115. Drag the mouse toward the vessel (with Ortho on). 116. Type: 4845 <Enter>.
117. Click the Endpoint of the Elbow. 118. Right click and click Current. 119. Press <Enter> to exit.
• Having the system automatically connect pipe and elbows along the routed line To add piping to the line,
120. Click Plant 121. Click Accessory 122. Click Auto Route 123. Click Buttweld LR
124. Press <Enter> to select Polyline, and 125. Click the router line you just drew.
The system will place pipe and elbows for you along the router line.
• Checking the UCS
• Placing the flanges and gate valve in vertical, and breaking out the existing pipe
126. Save the drawing at this point.
127. Zoom into the area around the elbow that’s above the Tee.
128. Make sure your UCS (your crosshairs) set to work in vertical, and place a Flange, Gate Valve, and Flange.
Note: The valve top works will be changed shortly to standard measurements. The next video discusses this.
• Rotating the UCS
• Placing a valve operator manually (2008 and earlier versions)
• Shading, and saving the file
129. Click the UCS Next tool button to rotate your crosshairs. They will be oriented like a “vertical left”
orientation, if you were doing an isometric. Again, modeling in CADWorx is very similar.
130. If you are running 2008 and earlier, and you don’t have the Operator’s tool bar open, Click Plant, Tool bars, Operators (skip this step if you’re using CADWorx 2009).
131. Add a hand wheel for the valve as shown. It will be 450 in diameter, and 1500 long.
132. Click Save, to save the drawing.
133. Click View, Visual Styles, Conceptual to look at your work.
• Setting up the new line number
• Rotating the UCS as needed
• Placing some gaskets and flanges command. Using the Router, you’ll route the centerline
of the piping, and let the system fill in the elbows and piping for you. Also, when using the Router, there are many options you can use to adjust the centerline as you go. You’ll actually explore all the Router command options in the lesson that follows this one. For now, just put in the values as given in the following section. It will be another good introduction to the command, so you will get more familiar with how it works.
134. Click View, Visual Styles, 2D Wireframe. 135. Click the Line Number Setup button.
136. Change the Service to CPRA.
137. Zoom in around the nozzles on top of the nearest exchanger.
138. Rotate the crosshairs (UCS) as shown.
• Using the Router command to route the 3D line
Now you’ll start the Router Line Command.
140. Type RT <Enter>. This starts the Router. IF IT DOESN’T START, click Plant, Accessory, Auto Route, Router. This will also start the command. Note: When you start the Router command, the system will rotate the UCS back to the World Coordinate System automatically. This is normal. 141. Using OSNAP CENTER, Click on the top of the
flange on the right.
142. Right click on the mouse and click Position.
143. Right click on the mouse and click BOP (for Bottom of Pipe).
144. If the system echoes back 12”, press <Enter> to accept. If it doesn’t echo back 12” go on to the next step.
145. Right click on the mouse and click Elevation. 146. Right click on the mouse and click World.
147. Type: 4800 <Enter>. This sets the bottom of pipe elevation you will be drawing to 4800.
148. Zoom in close around the other flange.
• Having the system automatically run pipe and elbows along the routed line
• Placing the Tee in the middle of the 3D pipe
149. Using OSNAP, click the CENTER (at the top) of the flange.
150. Press <Enter> on the keyboard for Last 151. Click on the same ENDPOINT of the flange. 152. Right click on the mouse and click Current. 153. Press <Enter> to exit the Router command.
This just routed a line for your piping. Next you’ll tell the system to automatically place pipe and elbows. 154. Save the drawing.
155. Click Plant, Accessory, Auto Route, Buttweld LR. 156. Press <Enter>.
157. Click on the polyline router line you just drew.
The system will place the elbows and pipe automatically. Now you’ll place a Tee in the line, then continue routing it using the Router command.
158. Verify your UCS (crosshairs) is as shown. If not, rotate them as needed.
159. Verify the Otrack, Osnap, and Ortho buttons are pushed in.
• Having the system break out the pipe and place the tee 161. Right click and click
Center
.162. Move the crosshairs over the end of the pipe on the left (where the pipe and elbow joint).
163. Don’t Click, just hover directly over that point.
164. Drag the mouse toward the lower right (you should see it “tracking”), and
165. Type: 1738 <Enter>.
166. Drag the mouse toward the lower right and click (for Main direction).
167. Drag the mouse straight up toward the top of the drawing and click (for the Branch direction).
168. Press <Enter> on the keyboard to accept the distance the system prompts (it’s verifying you want to place the
center
of the tee at a distance of 1738).The tee will appear in your drawing, in the correct position.
169. Save the drawing at this point. Now you’ll continue with the line.
170. Zoom in around the flange on the vertical tower where this line is going. It’s the flange right next to the previous line you finished.
• Placing the gasket, flange, and elbow
• Generating another 3D routed line 171. Rotate your crosshairs (rotate the UCS) as shown.
172. Place a gasket (using OSNAP Center), WNRF Flange, and Elbow (turning down) as shown.
Now you can finish the line using a Router.
Zoom back so you can see both ends of the line (the elbow you just placed, and also the tee).
Now you’ll use a Router Line to finish the line.
Routers let you lay out the path you would like the line to follow. You’ll see more of how this works as you proceed.
173. Type: RT <Enter> (to start the Router Command). If RT doesn’t work, or if you prefer, you can also click Plant, Accessory, Auto Route. This does the same thing.
174. Click the top end point of the Tee you just placed. 175. Right click and click Position.
176. Right click and click BOP.
177. If the system echoes back 12”, press <Enter>. If it doesn’t echo back 12” go on to the next step. 178. Right click and Click Elevation.
179. Press <Enter> for World.
180. Type: 7000 <Enter> (this will be the elevation of the bottom of the pipe.)
• Having the system generate pipe and elbows along the routed line
181. Drag the mouse to the right and
182. Click on the bottom of the elbow, coming down off the nozzle above.
183. Right click and click Last
184. Click on the bottom of the elbow, coming down off the nozzle above again.
185. Right click and click Current. 186. Press <Enter> to exit.
187. Click Plant 188. Click Accessory 189. Click Auto Route 190. Click Buttweld LR
191. Press <Enter> (to select the polyline) 192. Click the polyline you just routed.
• Starting the Spec Editor
• Editing the Gate Valves in the specification Next you’ll set the gate valves to use a standard top works file
for the valve operators, and adjust the existing gate valve’s top works.
193. Type: Topworksadd <Enter>
194. Following the video, change the gate valve’s top works (operator) to a standard size.
195. After you’ve completed that, Click the Spec Editor button on the CADWorx SpecView tool palette (see illustration). If instead, you’re running CADWorx 2008 and earlier, you’ll need to:
196. Type: SPED <Enter> to start the Spec Editor.
197. Select the 150_M Spec.
198. Click on Valves, Gate in the left section of the dialog box. 199. Highlight the 2-24 inch, 150 LB Flg and click the Edit
• Selecting the proper Top Works
measurement file.
• Now the system will draw valve operators to standard
measurements 200. In the Top Works section of the dialog box, click the Select
Button.
201. Click on the
Wheel_Gate_150_F_M.top
data file, and202. Click Select, OK, and OK to exit.
This will set the system up to draw the valve operators (Top Works) to standard dimensions.
• Viewing the model
• Saving the file 203. Adjust the crosshairs (UCS) as needed (click the UCS
Next button) and
204. Place the Flanges, Gate Valve, and Valve Operator in this line, like you did in the previous line.
205. Click View
206. Click Visual Styles 207. Click Conceptual 208. Save your work.
• Isolating the line
Running Continuity Checks and Generating Isometrics
209. Click View
210. Click Visual Styles. 211. Click 2D Wireframe.
You can Isolate a line (view only that line) a couple of ways. One way (demoed in the video – don’t do at this time) is to
212. Click Plant 213. Click Utility 214. Click Line Isolate
215. Right click and click Isolate 216. Right click and click Line Number 217. Right click and click List
218. Click on the line with the service of CPRA and
219. Click OK, and the line will be shown alone on the screen.
The way you’ll isolate the line is using the Lineview tool palette.
• Isolating the line 220. Type: LINEVIEW <Enter>
The Line View tool palette will appear.
221. Click on the line with the service of CPRA and
222. Click OK, and the line will be shown alone on the screen.
223. Click Plant 224. Click Utility 225. Click Continuity
• Viewing the continuity checking results • Generating an Isogen isometric drawing
227. Type: 1000 <Enter> (for the marker diameter). 228. Press <Enter> (for the precision).
229. You should see three circles, one on each end of the piping.
If you have more than three circles, that indicates that you have bad connectivity between your components. You may have a gap, or an overlapping of components, or a gasket placed improperly. If so, you should zoom in closely to the trouble area and correct it. The first lesson has a good section on what to look for with continuity errors. 230. Erase the circles.
Running an Isogen Isometric
231. Click Plant 232. Click Accessory 233. Click Isogen 234. Click Isogen Out
235. Choose the Metric_Inch_A2 Style and 236. Click OK
• Modeling the supply line
• Inserting the reference files (Xrefs)
238. Window the line and press <Enter>.
239. When the Isogen Results dialog box appears, 240. Click Open Plot Files
You should see a result similar to the following figure.
241. Save the drawing in the Lessons folder. 242. Plot the drawing for your portfolio.
Run isometrics of the other line and save it. If you have any errors, correct them before proceeding.
Now you’ll model the supply line.
• Viewing from a 3D viewpoint
243. Start a new drawing, using a TEMPLATE (remember you always use a template in this system).
244. Click Insert (from the pull down menus at the top) 245. Click External References (second from the bottom in
the pull down list). 246. Click Attach
247. Browse to your C:\CADWorx VideoTraining\Examples folder and click on the
248. 35-450 drawing and the Exchangers_Pair drawing (hold down the Control Key as you select them.
249. Insert them in as Overlays and inserted at the 0,0,0 point, Scaled 1:1, and Rotated 0 as shown.
250. You should have them in your attached drawings list as shown.
252. You will see your two XRefs now appearing on the drawing.
253. Click on the South West Isometric View from the View toolbar (it should already be docked in the top area of your screen).
• Setting up the Line Number
254. Zoom into the lower left area of the drawing.
In this section of the lesson, you will be modeling the supply line that flows from the nozzle in the bottom area of the vessel into the bottom of the exchangers.
This product is then heated up in the exchangers and piped out the top of the exchangers and back into the top of the vertical vessel.
255. Set your size to 16” for the Main size. 256. Set the specification to 150_M. 257. Click the Line Number Setup button.
258. Set the line number as shown. It will be set to 16”-CPS-1050-150_M-2”H.
