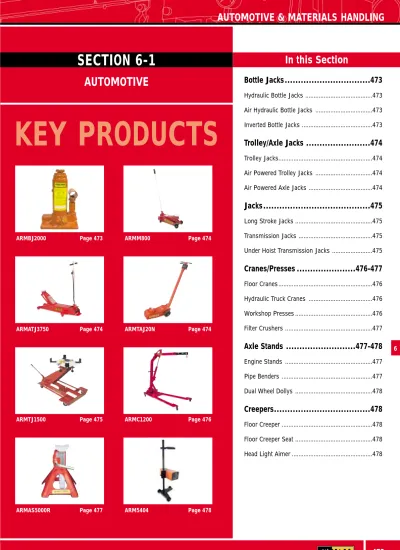

Automotive

Bottle Jacks...473

Hydraulic Bottle Jacks ...473

Air Hydraulic Bottle Jacks ...473

Inverted Bottle Jacks ...473

Trolley/Axle Jacks ...474

Trolley Jacks...474

Air Powered Trolley Jacks ...474

Air Powered Axle Jacks ...474

Jacks...475

Long Stroke Jacks ...475

Transmission Jacks ...475

Under Hoist Transmission Jacks ...475

Cranes/Presses ...476-477

Floor Cranes ...476

Hydraulic Truck Cranes ...476

Workshop Presses ...476

Filter Crushers ...477

Axle Stands ...477-478

Engine Stands ...477

Pipe Benders ...477

Dual Wheel Dollys ...478

Creepers...478

Floor Creeper ...478

Floor Creeper Seat ...478

Head Light Aimer ...478

ARMATJ3750 Page 474 ARMTAJ20N Page 474

ARMBJ2000 Page 473 ARMM800 Page 474

ARMTJ1500 Page 475 ARMC1200 Page 476

ARMAS5000R Page 477 ARM5404 Page 478

In this Section

KEY PRODUCTS

SECTION 6-1

AUTOMOTIVE

473

REPELEC Ph: 1300 555 586 Fax: 1300 666 066

AUTOMOTIVE

Bottle Jacks

Hydraulic Bottle Jacks

• The Armstrong range of bottle jacks are a robust range of high quality bottle jacks • Armstrong hydraulic bottle jacks conform to Australian Standard AS/NZ-2693 • Range in capacity from 2,000kg to 50,000kg

• Ideal for use in workshop, heavy industrial or roadside environment

Model No. Capacity Stroke Screw Closed Base Load Cap Weight Pack Repair Kit Kg mm Extension Height Area Dia. mm Kg Qty Part No.

mm ARMBJ2000 2,000 120 60 190 120X110 29 3.25 1 ARMGLTS4 4,000 126 60 205 144X92 29 4.0 1 ARM26239909108 ARMGLTS6 6,000 130 75 219 147X92 32 5.2 1 ARM26339909105 ARMMG8 8,000 150 75 219 138x95 38 5.9 1 ARMRMG8 ARMMG10 10,000 150 75 219 142x95 38 6.5 1 ARMRMG10 ARMMGS10 10,000 62 75 131 142x95 38 5.5 1 ARMRMG10 ARMMG12 12,000 150 75 226 153x112 44 8 1 ARMRMG12 ARMMG15 15,000 150 75 228 163x112 44 9 1 ARMRMG15 ARMMGS15 15,000 75 75 150 163x113 44 7.5 1 ARMRMG15 ARMMGS18 18,000 105 75 190 171x126 58 10 1 ARMRMG20 ARMMG20 20,000 150 75 234 171x127 58 12.1 1 ARMRMG20 ARMMG25 25,000 150 75 240 196x142 65 15 1 ARMRMG25 ARMGLTS50* 50,000 113 240 273X193 52 ARM24839900106 * Does not conform to AS/NZ2693

Air Hydraulic Bottle Jacks

• The Armstrong range of air hydraulic bottle jacks is a high quality range of heavy duty jacks • Range in capacity from 15,000kg to 30,000kg

• Ideal for use in workshop or roadside environment • Can be operated using a standard truck compressor

• Fitted with a hydraulic pump so they can be operated manually

• The operator will always remain in control of the jack, even if the air supply is interupted • High performance pneumatic pump

• Operates on minimum air pressure of 7bar / 100psi • Operates on necessary air flow of 270 l/min / 9.5 cfm • 30,000kg unit supplied with metal carry case

Model No. Capacity Stroke Screw Closed Load Cap Weight Pack Repair Kit Kg mm Extension Height Dia. mm Kg Qty Part No.

mm mm ARMMGH15 15,000 140 75 228 44 15 1 ARMRMGH15 ARMMGH20 20,000 138 75 234 58.0 15.5 1 ARMRMGH20 ARMMGH30 30,000 138 75 242 70 23.5 1 ARMRMGH30 ARMGLTS6 ARMMG8 ARMMGS10 ARMMG15 ARMMG20 ARMMGH30 ARMMGK15 ARMBJ2000

Model No. Capacity Stroke Screw Extension Base Repair Kit Tonne (mm) (mm) Closed Height Dimension (mm) Part No.

ARMMGK15 15 145 80 270 172X126 ARMRKMG15 ARMMGK30 30 145 80 290 195X143 ARMRKMG30 * Optional gauge Part Number ARMM5081

Inverted Bottle Jacks

• An excellent choice of spring assisted jacks for use in workshop presses & other assembly applications

Trolley Jacks / Axle Jacks

Model No. Capacity Minimum Maximum Chassis Width Width Overall Load Overall Pack Seal Kit Kg Height Height Height Front Rear Length Cap Dia. Weight Qty Part No.

mm mm mm mm mm mm mm Kg ARMM800 2,000 127 505 140 245 327 640 125 31 1 ARMM80078 ARMM901 2,500 133 483 150 297 355 644 125 38 1 ARMG93105078 ARMM781 1,500 125 815 180 375 375 1270 118 60.5 1 ARMRTJ15L ARMM780 2,000 125 490 165 245 360 34.5 118 34.5 1 ARMRTJ2 ARMM783 3,000 195 575 220 300 425 1300 185 82 1 ARMRTJ6 ARMM784 5,000 195 575 220 300 425 1300 185 82 1 ARMRTJ7 ARMM785 9,000 195 575 260 350 425 1600 140 130.5 1 ARMRTJ12 ARMM786 15,000 205 585 300 270 410 1845 168 257 1 ARMRTJ20

Low Profile Trolley Jacks

ARMTJC2A* 2,000 66 465 150 270 360 900 118 41 1 ARMRTJ2

Hydraulic Fork Lift Jack

ARMFJ3000 3,000 60 765 768 - - 260 - 40 1 ARMSKFJ4000 * Does not conform to AS/NZ 2693 (waiting for approval). Soon to be released.

Model No. Capacity Stroke Min. Max. Chassis Overall Load Cap. Power Overall Pack Repair Kit Kg mm Height Height Height Length Dia. mm Source Weight Qty Part No.

mm mm mm mm Kg

ARMATJ1800H 1,800 787 127 914 200 1600 140 Air Hand Foot 72 1 ARMG2439901100 ARMATJ2750 2,750 483 127 610 200 1300 140 Air Hand Foot 72.5 1 ARMG2439901100 ARMATJ3750 3,750 508 178 686 200 1468 167 Air Hand Foot 100 1 ARMG2539901107 ARMATJ6500 10,000 508 178 686 324 1390 188 Air Hand Foot 165 1 ARMG1039901104 Air Working Pressure 7-8 Bar, 110-115 PSI

Air Powered Axle Jacks

• Armstrong air powered axle jacks suitable heavy truck and bus applications • Range in capacity from 4,00kg to 60,000kg

• Ideal for low clearance applications

• Fitted with LCS, which allows the load to be smoothly lowered by automatically controlling the speed of descent • The hand lever which locks into 4 different positions,

• Other features include easy manoeuvrability & a safety valve to prevent overloading

Model No. Capacity Stroke Min. Max. Width Overall Load Cap Power Extension Pack Air Motor Repair Kit Tonne mm Height Height mm Length Dia. mm Source mm Qty Repair Kit Part No.

mm mm mm Part No.

ARMTAJ15 15 140 240 355 317 581 70 Air 100 1 ARMA0739903105 ARMTAJ20N 20 115 214 412 300 545 53 Air 100 1 ARM95000025 ARMRGN20 ARMTAJ1460* 4/25/40/60 235 155 490 315 1085 70 Air 100 1 ARM95000025 ARMRMGNT14L ARMTAJ2060* 20/40/60 233 180 513 315 1085 84 Air 100 1 ARM95000025 ARMRMGNT20 * Telescopic Ram

Trolley Jacks

• The Armstrong range of high quality trolley jacks provide an extensive choice to suit most applications • Armstrong trolley jacks conform to Australian Standard AS2615

• Backed by a full one year warranty

• Range in capacity from 1,500kg to 15,000kg • Ideal for use in a heavy workshop environment • Fully repairable

Air Powered Trolley Jacks

• Armstrong air powered trolley jacks conform to Australian Standard AS2615 • Range in capacity from 1,800kg to 6,500kg

• Ideal for use in a heavy workshop environment

• No manual effort is required to lift the load when operated by air • Can be operated by standard shop air, foot or hand pump • Fully repairable ARMM783 ARMTAJ20N ARMM800 ARMATJ3750

6

475

AUTOMOTIVE

Jacks

Long Stroke Jacks

• Armstrong long stroke jacks come with a flat or clevis base • Range in capacity from 3,000 kg to 8,000 kg

• Ideal for use in floor cranes or other assembly applications • Can also be used as a stand alone unit

Model No. Capacity Closed Maximum Stroke Base Seal Kit Part No. Kg Height (mm) Height (mm) mm

ARMM403 3,000 616 1143 527 Flat ARMSKM403 ARMM403H 3,000 616 1143 527 Clevis ARMSKM403 ARMM405 5,000 616 1143 527 Flat ARMSKM405 ARMM405H 5,000 616 1143 527 Clevis ARMSKM405 ARMM408 8,000 616 1143 527 Flat ARMSKM408 ARMM408H 8,000 616 1143 527 Clevis ARMSKM408

Transmission Jacks

• Armstrong transmission jacks are a robust range of heavy duty transmission jacks • Range in capacity from 500 kg to 1,500kg

• Suitable for all truck types up to and including Road Ranger truck transmissions • Permits easy one-man transmission removal and replacement

• The ARMMTJ1000 & ARMMJ1500 are both Australian made units • Fully repairable

Model No. Capacity Min Max Chassis Overall Overall Pack Seal Kit Kg Height Height Width Length Weight Qty Part No.

mm mm mm mm Kg

ARMTJ500 500 216 628 390 780 43 1 ARM45039901108 ARMTJ1000 1,000 240 770 700 1170 70 1 ARMSKTJ1500 ARMTJ1500 * 1,500 260 930 1200 1200 110 1 ARMSKTJ1500 *Suitable for Road Ranger truck transmissions.

Under Hoist Transmission Jacks

• Armstrong under hoist transmission jacks are manufactured using high quality hydraulics, built for reliability • Range in capacity from 500 kg to 750 kg

• Ideal for use on standard cars & 4WD

• Come complete with tilting saddles, adjustable fingers & rails • Fully repairable

Model No. SWL Minimum Max Base Power Usage Pack Repair Kit Kg Height Height Size Source Qty Part No.

mm mm mm

ARMTH500 500 890 2200 - Manual Hand 4WD 1 ARMSKTH500 Hydraulic

ARMUH500 500 1230 1800 1000x1000 Manual Hand Auto 1 ARMSKM403 Hydraulic

ARMUHT500* 500 865 1885 864x915 Manual Foot Auto 1 ARMG3639901102 Hydraulic

ARMUH750 750 1193 2013 650 Dia. Manual Foot Auto 1 ARMRFMG750 Hydraulic * Telescopic Model ARMTJ1500 ARMUH500 ARMM403 ARMTH500

REPELEC Ph: 1300 555 586 Fax: 1300 666 066

6

Cranes/Presses

Floor Cranes

• Armstrong floor cranes are made using high quality hydraulics allowing for easing lowering and raising of the boom • Designed to suit the needs of worshops & industrial applications where safe lifting and moving is essential • Armstrong floor cranes conform to Australian Standard AS1418

• Range in capacity from 500 kg to 2,500 kg

• The C Series floor cranes are Australian Made from 350 grade tensile steel

• The FC Series floor cranes come with a swivel hydraulic unit that rotates 135 degress

• The FC Series swivel hydraulic mechanism allows flexible user positioning when using the crane • The 500 kg, 1,000 kg & 1,200 kg units are collapsible for easy storage

Model No. Capacity Kg Hook Height

POS. 1 POS. 2 POS.3 POS.4 POS. 5 Min. Max. Max. Max. Leg Type Seal Kit mm mm Length Width Height Part No.

mm mm mm

ARMFC5A 500 400 325 - - - 2080 1500 970 80 Folding ARMRGH5 ARMFC10 1000 800 700 - - - 2415 1695 1085 80 Folding ARMRGH5 ARMC1200 1200 1000 900 750 500 - 2500 1690 990 155 Folding ARMSKM405 ARMC2000 2000 1500 1000 500 - 500 2500 2200 1100 190 Demountable ARMSKM405 ARMC2500 2500 1500 1000 500 - 500 2500 1680 910 200 Fixed ARMSKM408

Workshop Presses

• Armstrong workshop presses are designed and built to last

• Ideally suited for such jobs as pressing, straightening, bending & other tasks commonly found in the workshop • Manufactured in Europe using high quality hydraulics

• Hand, air & electric models available • 12 month warranty

• Custom made models on request up to 200 tonne available

Model No. Capacity Stroke Screw Power Cylinder Dim. A Dim.B Dim.C Dim.D Brake Repair Kit Tonne mm Extension Source Type mm mm mm mm Winch Part No.

mm

ARMKMG15 15 150 75 Manual Bottle Jack 1675 650 610 90 No ARMRKMG15 ARMKMG30 30 150 75 Manual Bottle Jack 1750 650 670 110 No ARMRKMG30

Hydraulic Truck Cranes

• Armstrong hydraulic truck cranes are made using high quality hydraulics allowing for easing lowering and raising of the boom

• Designed to suit the needs of worshops, industrial & agricultural applications where safe lifting and moving is essential

• Armstrong hydraulic truck cranes conform to Australian Standard AS1418.5 • The hydraulic truck cranes has the ability to rotate 360 degrees

• The hydraulic truck crane has safe working load of 500 kg at 1 metre extension

Model No. Boom Length 1.000 1.285 1.435 1.585 1.75 Seal Kit

Meter Part No.

ARMTMC500 SWL 500 400 350 300 250 ARMSKM403 Note: ARMTMC500 must be installed to comply with AS1418.5 (Section 2).

We accept no liability for installations not done in accordance to this standard.

C A D B ARMKMG15 ARMC1200 ARMTMC500

6

477

REPELEC Ph: 1300 555 586 Fax: 1300 666 066

REPELEC Ph: 1300 555 586 Fax: 1300 666 066

AUTOMOTIVE

Filter Crushers / Axle / Engine Stands / Pipe Benders

Filter Crushers

• Armstrong Oil Filter Crusher crushes all types of oil filters

• It is an efficient way of removing oil from filters, which can be pumped to the waste line or direct into an oil drum • Manufactured in Australia using high quality hydraulics

• Incorporates an electric motor for speedy operation and provides a safe intergral system • Environmentally friendly, fast in operation, crushes in seconds

Model No. Pump Type Power Source Max Oil Filter Size Height (mm) Width (mm) Depth (mm)

ARMFC240 Electric Hydraulic 240v (1.5HP) 200 Dia. 400 Long 1000 600 400 ARMFC415 Electric Hydraulic 415v (1.5HP) 200 Dia. 400 Long 1000 600 400

Model No. Capacity Per Type Min. Height Max. Height Weight Per Pair Pack Qty Standard Kg (mm) (mm) (mm)

ARMAS2000R 2,000 Ratchet 284 454 7.5 Pair ARMAS3000R 3,000 Ratchet 295 445 20.5 Pair ARMAS5000R 5,000 Ratchet 394 634 20.5 Pair ARMAS8000R 8,000 Ratchet 445 700 26 Pair ARMAS5P 5,000 Pin 650 900 49.4 Pair ARMAS10P 10,000 Pin 420 690 55 Pair

Engine Stands

• Armstrong enginer stands are constructed to provide maximum stability and support • Range in capacity from 340 kg to 550 kg

• With four adjustable fingers these stands can be easily manoeuvred throughout the workshop

Model No. Capacity Kg Base Size mm Height (mm) Weight (mm) No. of Wheels

ARMES340 340 760X820 875 19 4 ARMES450 450 800X864 935 24 4 ARMES550 550 860X860 1085 35 4

Pipe Benders

• The Armstrong pipe benders are a heavy duty pipe bender for industrial applications • Suitable for bending GAS, DIN 2440 & DIN 2441 pipe

• Comes complete with wooden case, tripod stand & complete set of shoes

• Fitted with retractable bending frames to facilitate easier positioning of bending supports and pipe

Model No. Capacity Tonne Maximum Pipe Size Weight Kg Repair Kit Part No.

ARMCVT-2 15 50.8 71 ARMRCVT2 ARMCVT-3 20 76.2 128 ARMRCVT3

Axle Stands

• Armstrong axle stands are a high quality axle stand that provide a safe & efficient means of supporting vehicles • Armstrong axle stands conform to Australian Standard AS2538

• Range in capacity from 2,000 kg to 10,000 kg

• Available with both ratchet type and pin type lifting mechanisms • The Armstrong pin type axle stands are Australian made

ARMAS2000R ARMAS5000R ARMAS5P ARMES340 ARMGK15 ARMFC240

6

Head Light Aimer

• The Armstrong head light aimer is a high quality unit manufactured in Europe • The unit is fitted with a 165mm glass lens and centre pointer

• It is suitable for any type of headlamp including main, dipped and fog • Comes complete with mechanism to set the height of the optical block • Has an aiming screen, digital light meter and lateral aligning visor • Approved for use in NSW, VIC & QLD

Dollys, Creepers & Headlight Aimer

Dual Wheel Dolly

• Armstrong wheel dollys allow one person to remove and replace heavy truck dual wheel assemblies • Manufactured in Australia from high quality hydraulics and components

• The unit is mounted on three castor wheels for complete manoeuvrability • Fully repairable

Model No. Capacity Kg Hydraulic Lift Tilt Adjustment Base Size mm Degrees (+/-)

ARMWD700 700 150 2 1100x940 ARMWD1000 1,000 150 2 1300X1120

Floor Creeper

• The Armstrong floor creeper has been designed with comfort and durability in mind • The creeper is manufactured from high quality moulded PVC for extra durability • The unit is fitted with 6 x 3"castor wheels for ease of manoeuvrability

Model No. Dimension (mm) Material Type Wheel Size mm/Inch Wheel Qty

ARMCP44 1020x485x100 PVC 77 / 3" 6

Floor Creeper Seat

• The Armstrong floor creeper seat has been designed with comfort and durability in mind • The creeper seat comes with oil / grease resistant castors

• The unit is lightweight weighing only 4.7kg

Model No. Dimension (mm) Material Type Wheel Size mm/Inch Wheel Qty

ARMC2001 450x350x360 Steel/Padded Seat 50/2" 4

Model No. Regulation Lens Dia. Bar Torison Beam Digital Lux Height (mm) (mm) cm/10m Slope Meter

ARM5404 250-1400 165 Type 2.5 ± 3.0 Type ± 1.0 Yes Max 2.5 ± 5.0 Max ± 3.0 ARMCP44 ARMC2001 ARMWD700 ARM5404

6

479

REPELEC Ph: 1300 555 586 Fax: 1300 666 066

MECHANICAL AUTOMOTIVE& MATERIALS HANDLING

This model is fitted with a glass lens, diameter 165mm, and is suitable for any type of headlamps (main, dipped and fog). Mechanism to set the height

of the optical block

Aiming screen and digital light meter. Lateral aligning visor.

Lifting Tables ...481

Scissor Lift Tables...481

Table Lifters ...481

Pallet Trucks ...481

Trolleys ...482

Flat Bed Trolleys ...482

Stainless Steel Flat Bed Trolleys ...482

Tiered & Caged Trolleys ...482

Hand Trucks ...482

Load Indicators ...483

Winches ...484

ARMBF1 Page 481 ARMTR631 Page 482

ARMSP150 Page 481 ARMAMG400 Page 481

ARMTR642 Page 482 ARMTR627 Page 482

TRA0400980 Page 483 Tirfor Winches Page 484

In this Section

BEST SELLERS

SECTION 6-2

MATERIALS HANDLING

481

REPELEC Ph: 1300 555 586 Fax: 1300 666 066

MATERIALS HANDLING

Lifting Tables / Pallet Trucks

Scissor Lift Tables

• Armstrong hydraulic scissor lift tables provide a safe & efficient method of lifting & transportation in the work place • Available in 10 models ranging in capacity from 150 kg to 2,000 kg

• Built with safety in mind, features include a well balanced sturdy construction & foot operated brakes • All Armstrong scisor lift tables come with a 12 month warranty

Model No. Capacity Minimum Maximum Table Handle Overall Foot Pedal Wheel Weight Kg Table Height Lift Height Size Height Length Cycles to Diameter Kg

(mm) (mm) (mm) (mm) (mm) Max. Height ARMSP150 150 225 740 700x450x35 825 780 25 100 46 ARMSP300 300 280 900 815x500x50 1000 935 32 127 75 ARMSPS350 350 349 1300 910x500x52 970 980 55 127 120 ARMSP500 500 280 900 815x500x50 1000 935 45 127 85 ARMSP800 800 420 1000 1000x515x55 996 1150 55 150 115 ARMSPT500 500 305 900 1600x800x50 970 1670 55 127 -ARMSPF680 680 455 1500 1219x610x50 1000 - 35 150 185 ARMSPLMF900 900 375 1000 1016x508x65 973 1446 34 127 135 ARMLT1250 1250 250 880 1020x500 - - - - 133 ARMLT2000 2000 260 880 1060x540 - - - - 190

Table Lifters

• Armstrong table lifters are an efficient cost effective choice for transportation and storage of light to medium loads • Available in 6 models ranging in capacity from 400 kg to 1,000 kg

• The Armstrong load lowering system provides a smooth descent whilst withstanding the full rated capacity of the lifter • All Armstrong table lifters come with a 12 month warranty

Model No. Capacity Min. Fork Max. Fork Table Fork Steering Fork Movable Weight Kg Height Height Size Length Wheel Dia. Wheel Dia. Forks Kg

(mm) (mm) (mm) (mm) (mm) (mm) ARMAMG400 400 90 1100 650x580 650 - - No 80 ARMAMG400M 400 90 1100 650x580 650 - - Yes 80 ARMAMG400H 400 90 1500 650x580 650 - - No 98 ARMAMG400HM 400 90 1500 650x580 650 - - Yes 98 ARMSDJ500 500 80 1600 - 810 150 80 No 153 ARMSDJ1000 1000 97 1507 - 802 150 80 No 160

Pallet Trucks

• Full hydraulic system, bullet connection between steering shaft & pump piston • Easy to manoeuvre with 210 degrees turning radius

• Grease fittings at all pivot points to ensure long life & easy control • Special lowering valve to control the rate of decent

• Reliable oil leak proof hydraulic system • Polyurethane wheel, tandem fork roller

Model No. Capacity Max Lift Fork Length Fork Width Width between Steering Fork Wheel Weight Repair Kit Kg Height mm mm mm Forks mm Wheel Dia. mm Kg Part No.

ARMBF1 2000-2500 200 1150 160 230 200 75 75 ARMBFIRK ARMBF11 2000-2500 200 1150 160 365 200 75 75 ARMBFIRK ARMSP150 ARMSP300 ARMSPLMF900 ARMSDJ500 ARMBF1 ARMAMG400

6

Trolleys / Hand Trucks

Trolleys

• The Armstrong range of trolleys are manufactured to the highest standard • All Armstrong trolleys come complete with a 12 month warranty

• Range in capacity from 200 kg to 500 kg

• Features include low maintenance vinyl deck tops & sturdy construction • Two fixed and two swivel wheels enable controlled & easy maoeuvrability • Anyone on the move will find it easier with an Armstrong trolley

Flat Bed Trolleys

• Fold down handles

Model No. Capacity Platform Platform Handle Weight Kg Height mm Size mm Height mm Kg

ARMTR630 200 140 740 x 480 875 11.5 ARMTR631 300 140 890 x 600 875 18.7 ARMTR645 500 290 1200 x 750 875 40

Stainless Steel Flat Bed Trolleys

• Suitable for use in the food industry & marine environments • Fold down handles

Model No. Capacity Platform Platform Handle Weight Kg Height mm Size mm Height mm Kg

ARMTR630SS 200 140 740 x 480 875 11.5 ARMTR631SS 300 140 890 x 600 875 18.7

Tiered & Caged Trolleys

• Armstrong trolleys also come in a range of tiered and caged models • The ARMTR642 comes with convenient drop down sides

Model No. Capacity Platform Platform Handle Tiers Caged Weight Kg Heights mm Size mm Height mm Edge Kg

ARMTR639 200 140&720 740 x 480 920 2 No 18.5 ARMTR640 300 190&750 890 x 600 900 2 No 29.6 ARMTR641 300 190,470&750 890 x 600 900 3 No 39.2 ARMTR642 300 - 890 x 600 x 900 900 1 Yes 30.4 ARMTR643 300 190&750 890 x 600 900 2 Yes 31 ARMTR644 300 190,470&750 890 x 600 900 3 Yes 40

Hand Trucks

• The Armstrong hand trucks range offers two foldable models • The ARMTR627 has an expandable handle

• The ARMTR628 has an expandable base • Both models are rust resistant and light weight

Model No. Loading Kg Shovel Width Shovel Depth Handle Height Handle Height Weight (mm) Collapsed (mm) Extended (mm) (mm) Kg

ARMTR627 100 355 240 715 1100 7

Model No. Loading Kg Dimension Dimension Handle Height Weight Normal (mm) Extended (mm) Extended (mm) Kg

ARMTR628 150 420 x 500 420 x 720 825 8.5 ARMTR631 ARMTR640 ARMTR642 ARMTR644 ARMTR627 ARMTR627 ARMTR628 ARMTR628

6

483

REPELEC Ph: 1300 555 586 Fax: 1300 666 066

MATERIALS HANDLING

Load Indicators

Dynafor Digital Load Indicators LLX-TR Series Radio Control

• The LLX TR series includes radio transmission of display to remote handset • Suitable for mobile cranes, very long slings & difficuilt to access situations

Part No. Model No. Radio Receiving Infrared Battery Battery More than Operation Battery Frequency Range Meter Transmission Power Power One Hand Of Several Life

Mhz Range Meter Supply Supply Set Units in Dynafor Handset Reception Proximity

TRA75159 LLX 0.25 TR 433.92 40-60 20 3X1.5V 2X1.5V Yes Yes Up to 100Hr TRA75169 LLX 0.5 TR 433.92 40-60 20 3X1.5V 2X1.5V Yes Yes Up to 100Hr TRA75179 LLX 1.25 TR 433.92 40-60 20 3X1.5V 2X1.5V Yes Yes Up to 100Hr TRA75189 LLX 2.5 TR 433.92 40-60 20 3X1.5V 2X1.5V Yes Yes Up to 100Hr TRA75199 LLX 5.0 TR 433.92 40-60 20 3X1.5V 2X1.5V Yes Yes Up to 100Hr TRA75209 LLX 12.5 TR 433.92 40-60 20 3X1.5V 2X1.5V Yes Yes Up to 100Hr TRA75219 LLX 25 TR 433.92 40-60 20 3X1.5V 2X1.5V Yes Yes Up to 100Hr TRA75229 LLX 50 TR 433.92 40-60 20 3X1.5V 2X1.5V Yes Yes Up to 100Hr TRA75239 LLX 100 TR 433.92 40-60 20 3X1.5V 2X1.5V Yes Yes Up to 100Hr TRA75249 LLX 250 TR 433.92 40-60 20 3X1.5V 2X1.5V Yes Yes Up to 100Hr

Dynafor Digital Load Indicators LLZ Series

• The budget version of the LLX Series

• Lightweight, compact, strong, weather and dust proof

Part No. Model No. Capacity Accuracy Minimum Weight Dimensions Kg 0.8% Kg Display Kg (mm) TRA0396980 LLZ 0.25 0.25 +/- 2 0.5 1.1 220 x 90 x 42 TRA0396981 LLZ 0.5 0.5 +/- 4 1 1.1 220 x 90 x 43 TRA0396982 LLZ 1.0 1 +/- 8 2 1.1 220 x 90 x 44 TRA0396983 LLZ 2.0 2 +/-15 5 1.3 233 x 90 x 48 TRA0396984 LLZ 3.2 3.2 +/-25 5 1.5 243 x 97 x 48 TRA0396985 LLZ 6.4 6.4 +/- 50 10 2.3 275 x 115 x 48

Part No. Model No. Capacity Accuracy Minimum Test Maximum Height of Weight Dimensions tonnes +/-0.2% Kg Display Kg Load t. Display Kg/t Digits mm (mm) LxWxD mm

TRA0398980 LLX 0.25 0.25 +/- 0.5 0.1 0.5 250 18 1.1 190x83x56 TRA0398985 LLX 0.5 0.5 +/- 1.0 0.2 1 500 18 1.1 190x83x56 TRA0399980 LLX 1.25 1.25 +/- 2.5 0.5 2.5 1250 18 1.1 190x83x56 TRA0400980 LLX 2.5 2.5 +/- 5.0 1 5 2500 18 1.4 214x83x56 TRA0407980 LLX 5.0 5 +/- 10 2 10 5,000 18 1.9 226x90x56 TRA0401980 LLX 12.5 12.5 +/- 25 5 25 12,500 25 3.8 310x110x58 TRA0402980 LLX 25 25 +/- 50 10 50 25,000 25 6.6 360x134x68 TRA0403980 LLX 50 50 +/- 100 20 85 50,000 25 15.1 440x164x98 TRA0404980 LLX 100 100 +/- 200 50 145 100,00 25 46 660x260x118 TRA0405980 LLX 250 250 +/- 500 100 333 250,000 44 215 950x425248

Dynafor Digital Load Indicators LLX Series

• The Dynafor LLX range of load indicators are highly accurate instruments for measuring tensile forces

• Suitable for the crane & construction industries, testing & safety organisations, monitoring lifting equipment & checking loads • Features include 250 hours of operation, push button control, 100% tare peak hold

• 6 choices of measurement eg. Kg, tonne, lb etc

TRA0400980

TRA0407980

LLZ Series

Load Indicators/ Winches

Dynafor Digital Load Indicators MWX Series

• The Dynafor MWX range of load indicators are highly accurate instruments for measuring tensile forces

• Suitable for the crane & construction industries, testing & safety organisations, monitoring lifting equipment & checking loads

• Features include push button control, 100% tare peak hold, LARGE 44mm LCD • 6 choices of measurement eg. kg, tonne, lb etc

Model No. Capacity Accuracy Minimum Test Load Maximum Height of Weight Dimensions (t) Kg +/- 0.2% Display Kg (t) Display Kg/t Digits mm Kg L x W x D mm

MWX0.25 0.25 0.5 0.1 0.5 250 25 4.7 440X138X160 MWX0.5 0.5 1 0.2 1 500 25 4.7 440X138X160 MWX1.25 1.25 2.5 0.5 2.5 1,250 25 4.7 440X138X160 MWX2.5 2.5 5 1 5 2,500 44 7 440x200x177 MWX5 5 10 2 10 5,000 44 8.5 520x200x177 MWX12.5 12.5 25 5 25 125,000 44 21 700x200x205

Dynafor Digital Load Indicators MWX-LED IR Series Radio Control

• The LLX TR series includes radio transmission of display to remote handset • Suitable for mobile cranes, very long slings & difficuilt to access situations

Model No. Capacity . Accuracy Minimum Test Load Maximum Height of Weight Dimensions (t) Kg +/- 0.2% Display Kg (t) Display Kg/t Digits mm Kg L x W x D mm

MWX2.5LEDIR 2.5 5 1 5 2,500 25 9.2 440x200x197 MWX5LEDIR 5 10 2 10 5,000 25 10.7 520x200x197 MWX12.5LEDIR 12.5 25 5 25 125,000 25 23.2 700x200x225

Dyanfor LLX/MWX Remote Accessories

Part No. Model No. Hand Held Remote LCD Digits mm Power Source Cable Length Meter

TRA0406960 LLX/MWX Yes 18 9v Battery

TRA0406962 LLX/MWX Cable to suit LLX/MWX Remote 10

Tirfor Winches

• Tirfor winches are the market leading winch in quality and reliability

• Tirfor T-500 range is light and easy to handle, offers safe, reliable and efficient operation • Ideal for pulling and lifting, these robust machines lend themselves to many applications

• Tirfor machines are lever operated winches using a separate wire rope, they can work in any position and over any height of lift • Tirfor, the right tool for the job wherever there is a need for lifting or pulling heavy loads

Part No. Model No. Capacity Kg Pulling Capacity* Machine Weight Kg Dimensions mm

TRA008699003 T508D 800 1250 6.6 420x250x99 TRA017099003 T516D 1600 2500 13.5 530x315x127 TRA033099003 T532D 3200 5000 24 631x357x148 *Reduced safety co-efficient

Tirfor Rope & Reelers

Part No. Model No. Dia. mm Length Meter

TRA1959 T508D 8.3 20 TRA2059 T516D 11.5 20 TRA2379 T532D 16.3 10 MWX2.5 Tirfor winches

6
