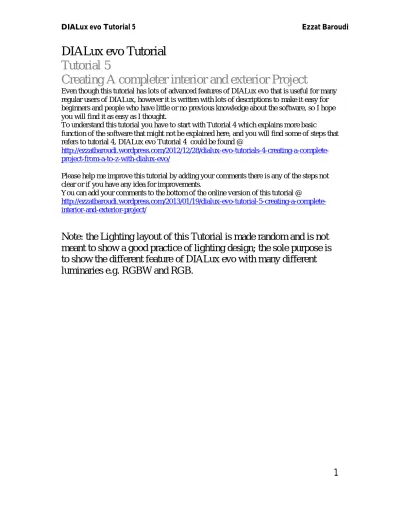

DIALux evo Tutorial

Tutorial 5

Creating A completer interior and exterior Project

Even though this tutorial has lots of advanced features of DIALux evo that is useful for many regular users of DIALux, however it is written with lots of descriptions to make it easy for beginners and people who have little or no previous knowledge about the software, so I hope you will find it as easy as I thought.

To understand this tutorial you have to start with Tutorial 4 which explains more basic function of the software that might not be explained here, and you will find some of steps that refers to tutorial 4, DIALux evo Tutorial 4 could be found @

http://ezzatbaroudi.wordpress.com/2012/12/28/dialux-evo-tutorials-4-creating-a-complete-project-from-a-to-z-with-dialux-evo/

Please help me improve this tutorial by adding your comments there is any of the steps not clear or if you have any idea for improvements.

You can add your comments to the bottom of the online version of this tutorial @

http://ezzatbaroudi.wordpress.com/2013/01/19/dialux-evo-tutorial-5-creating-a-complete-interior-and-exterior-project/

Note: the Lighting layout of this Tutorial is made random and is not

meant to show a good practice of lighting design; the sole purpose is

to show the different feature of DIALux evo with many different

luminaries e.g. RGBW and RGB.

2

In this tutorial you will learn

1. Handling AutoCAD files

2. Creating Site

3. Creating building

4. Using Reference help lines

5. Naming Site, Building & rooms

6. Creating interior of a building

7. Using Assessment Zone

8. Inserting Apertures (Windows & Doors)

9. Using cutout for wall ceiling & Floor.

10. Using Room Elements.

11. Inserting Luminaires and objects.

12. Using Duplicate Story

13. Creating balcony

14. Creating Double height.

15. Using cutout for Façade

16. Inserting dimension & text

3

Throughout this tutorial the following definition will be used

1. MODE SELECTION

Marked in the blue box in the above image.

The mode could be contraction, EN12464, Light, calculation or documentation.

2. TOOL SELECTION

Tool Selection marked in red is the vertical tool bar which has many tools according to the mode selection.

3.

CAD VIEW SELECTION

Marked in yellow where you can select the site, Building, story or room

For any of the above spaces you can select 3D, floorplan or one of the 4 elevations (front, right, back, left)

4. The Manipulator

Marked in black box, you can move, rotate, scale, use measure tape or zoom all.

5. Display option

Marked in green box has many display option where you can hide or show reference line, imported cad etc.

6. Action and property window

Marked in pink box

Here you can take an action or change a property of an object, luminaire, room surface etc.

4

Step-1

Creating a project

Start the software then select Outdoor and building planning.

Step-2

Importing Multiple cad files.

Make sure you are in

CONSTRUCTION mode and select DRAWINGS TOOL

Try to find a project where you have multiple CAD files for the same project like Ceiling layout, Furniture layout..etc. Or may be ground floor layout, first floor layout.

5

Click import select more than one file and open to import all the files.

Importing cad files is not limited at this stage, even later you can add more files if you wish.

Unlike DIALux 4 which is limited to one cad file. With DIALux evo you can import many files to design a complete building!

Note: if you don’t see the text beside the icon click on the question mark (?) On the right corner of the window to show the descriptive text.

After importing you can see the file you have imported, the one in the orange is the current selection.

The check box to allow you to show or hide the CAD file.

6

Step-3

Finding the current scale

Many times we receive cad files, without any idea about the unit of the file.so first verify the file by zooming to one architectural element, like doors or windows and measure the dimension if you have realistic values then your current scale is correct it you have unrealistic values like the one I have, then change the scale.

Figuring out the scale is easy, the door I have is 1000m, it should be 1 meter as realistic value then the real scale is millimeter.

7

Step-4

Changing the current scale

1. Before you change the scale of the file make sure you select the file by clicking on the file, to make sure it is your current selection look the orange square.

2. Change the units form the scale window by clicking on the drop down menu.

3. Tip: if you have many cad file you can you the search box to search by name.

Finally scale the other files to the correct scale.

After you scale all the files ZOOM ALL form the top menu bar, if you cannot see the files then you have to put to 0, 0, 0 the positioning window under the scale window.

8

Step-5

Moving and rotating the cad files.

Imagine you have ceiling plan and furniture layout plan which are located apart and you want to move one above another then select the ceiling layout cad and click on move.

Move form common reference point on both drawing e.g.( window, door, elevator shaft, corner of a room) form point 1 which is the current selected cad to point 2 which is the target point.

You can rotate the drawing in the rotation box by putting the value of the rotation angle.

9

Step-6

Other properties of the imported cad files

If you scroll down the side bar you will find other two windows which could be minimized

The layer and file options windows. Click on the small arrow to open the option.

You can open the layer window and change the color of the cad layers, that is very handy if the color is not matching well with background like very light color on white background.

The file options contain an option if you want to save the cad inside the DIALux evo file, but this could make the file very huge.

This option could be useful if you want to give the file to somebody else, so you can give him DIALux file with all cad and the modification you made in moving, rotation and layer colors

Step-7

Removing the cad files

For this tutorial we will continue without cad files as background, so remove the cad files by selecting the file and right click mouse and select remove, alternately select the file +Del key

Step-8

Creating a site

Go to Site view in the construction mode.

10

Make sure form the display option at the upper right corner, the SHOW

COORDINATE SYSTEM is activated if not then selected, this will show you the x,y,z axis @0,0,0 position with lines for each axis try to activate and deactivate to see the difference, but for now make it on.

On the FLOORPLAN VIEW zoom in to the coordinate system by rotating the middle wheel of the mouse.

pan by moving the mouse while pushing the wheel down.

11

Start form the coordinate system point1 @0,0,0 and move to point 2 x=40, then move to point 3 @y=30 you can use the ruler up to see the x value and the ruler left to see y value.

Zoom and pan help you achieve this very easily

Check if you made it right form last step by looking the positioning value.

Position X=20,Y=15 Size X=40,Y=30

12

Step-9

Using help lines to create building layout

Drawing many reference lines would probably make it this part as the most boring part of this tutorial but this step is very very important to follow the complete Tutorial so please

be patient when you make these reference lines thought this tutorial

Go to reference help line select

Draw Help reference grid and draw this grid on the site.

Draw form point 1 to point 2 to make the grid appear at top.(anti-clock wise) If you draw the grid form point 2 to point 1 the grid will appear down the line.

13

The point marked in GREEN SQUARE

let you move the whole grid.

The point marked in RED SQUARE

allow you to make the grid bigger or smaller by moving the point right or lift, this point also allow you to rotate the grid by moving the point up or down.

The point marked in BROWN to scale

the grid in y.

The two circle to set the size of the grid in x and y.

You can also modify the grid position and size by keyboard entry. . Form the window of the reference line, this window will appear only after creation of the grid.

For this tutorial modify the grid @ Position X=10,Y=10

Length =6 Width=6

Line distance X=6 Line distance X=6

14

Create anther grid somewhere in the site and modify the values to

Position X=13,Y=13 Length =20

Width=14

Line distance X=20 Line distance X=14

You should have a similar layout to this one.

Form reference tool select a draw reference line and line with parallels spaced apart 1.2 M.

Make sure the offset line is outside the second grid.

note: reference tool explained in details in tutorial 4

15

Make another reference line with offset (parallels spaced apart -7)

You have to put (-) sign before the 7 or use the rotation to make the offset to the left

Make another reference line on the second one with offset (parallels spaced apart -4.5)

Draw polygonal reference line on the marked points in red circles.

16

You can delete the reference help line with the parallels spaced apart lines,so you can have a similar layout to this one

17

Step-10 Creating the outline of the building

Go to SITE tool and select Draw new Building

Draw the line on the corner of the layout,

You have nine points as this image. Once you finish right click and select close polygon.

Remember you can zoom by the middle wheel and pan by holding the middle wheel down and move.

After you finish this step the software will change the current SITE tool to STORY AND BUILDING

CONSTRUCTION tool

Go back to SITE tool, make sure the active cad view is Site1 not Storey1. Select the Building you created and name it once the window appears. If you don’t select the Building you cannot see this window.

Name the Building as TB5

In the DESCRIPTION you can write any words you want to show in the print out

You can also change the position or rotate the Building after creation, this could be done either form the position or by selecting the standard

manipulators MOVE, ROTATE in the near the CAD view selection.

For this tutorial make the position the same without any change.

18

Finally use key Esc (to deselect the Building)

Change the name of the site to ST5. In DIALux evo is very important to know at which mode, which tool and what cad view you are one to take an action.

You can also change the name of the site and Building by going to project

overview tool and double click on the name and change it.

19

Step-11 Creating the layout of walls

Go to reverence lines tool, change the cad view to Storey 1.

Draw 10 reference line with parallels spaced apart for each one as 0.2 m This is the thickness of the exterior wall

Zoom the open coroner and move the line form the dot marked in red circle to close the corner.

20

Draw reference line with parallels spaced apart =7 form the lower edge of the building.

You can check value entries.

Draw another reference line with parallels spaced apart =3.

This line should be located at the last line.

21

Draw a vertical line form the corner marked in red circle and make the parallels spaced apart =0.05 to the left of the line.

22

In the area between the lines with 3 meter apart draw two reference lines One at bottom with parallels spaced apart=0.05 to the top of the new line. The other at top with parallels spaced apart=0.05 to bottom of the new line.

23

draw reference line with parallels spaced apart=3.55

Number of parallels=3

Select the last created reference line which has other 3 lines spaced apart, then use shortcut CTRL+C and CTRL+V

Modify the Start Point =2.85 End Point =2.85

24

Draw Reference Line and modify it @ Start point X=13, Y=-14(minus 14) End point X=19.8, Y=-14(minus 14)

25

Step-12 Creating the indoor contour

Go to Storey And Building Construction tool.

Draw New Indoor Contour

If you see this as faded that because you are not in Storey 1 cad view, so make the active cad view as Storey 1

Once you started Draw New Indoor Contour,The action will be active until you exit the action by using Esc key. So you can draw 8 rooms by clicking the left mouse button on the red corner start form room 1.

Draw New Indoor Contour following corners of the inside offset lines, once you finished right click and select close polygon.

To make it easy zoom and pan near the corner, but if you select other than the corner don’t worry continue and you can modify this later.

26

After you finish the 8 rooms click Esc to exit the action.

If you made any contour with incorrect points,

Select the contour by putting the cursor on the border of the contour not the middle; if you cannot select it make sure you are in the Storey And Building Construction tool.

then select the point and move it to the right position

While selecting the finished contour, you can right click and the pop menu will give you options

 Add point

 Delete point (active only if causer near point)

 Generate polygon anew (redraw).

 Delete contour

In the Active Storey window Put the Name as Ground Floor Make Story Height as 3.5 M

27

After creating the rooms the help lines could be hidden

From display option, make the reference line inactive

28

Step-13 Assessment zone-Name and Light requirements

Go to Assessment Zone Tool

Select the room in the upper right corner

Put the name as Training Room height of working plane=0.8 Wall zone=0.5

29

In Details

Select the Template as offices Conference and meeting room. This has the requirement of EN 12464 with lighting requirement as Lux of the task area, surrounding area and

background area,

Uniformity on the task area and UGR maximum limit.

Form display option makes sure the Show Room Designations is active so you can see the name of room in the plan.

You can hide it if you don’t want to see the name.

Change the name of the other room as shown in this image.

Office 1 Office 2 Office 3 Training Room Corridor

Open Plan Office Balcony

30

For corridor go to details, change the Utilisation profile as

Traffic zones inside buildings then Circulation areas and corridors

Once room are created you will find in the cad view selection area for rooms, naming rooms help you identify easily which to select.

31

Step-14 Inserting Furniture and objects

Go to Furniture and objects tool Select DIALux evo object Catalog.

Using search box, insert the following furniture  Table P2+M2  Office chair2  Flip Chart t  Simple Chair  Table P1  PC t  Johan1  Johan2

From cad view select Office 1 a & insert  Table P1

 Office chair2

Rotate & move the objects to have similar to this layout.

32

Go to ground floor view Copy the table & chair by using keyboard shortcut Ctrl+C Paste by using Ctrl+V

Move the object to office 2 by MOVE Manipulator.

Repeat this for Office 3

Select cad view to be Training Room, 3d view.

Inset the flip chart in the room.

Use keyboard Ctrl+T to open new window tab.

Make the new tab as floorplan view Now you have to tabs one for 3d and one for floor plan, this helps you swap between views quickly.

Note: You can open up to 8 tabs for different cad view, see the + sign on the upper right corner.

33

Select the active object to be Office chair2, then select Draw rectangular Arrangements.

Draw the rectangular following points 1, 2& 3.

Modify the grid arrangement of this chair to have X=4,Y=3

Rotate to the side of the flip chart Note:

You can always get more properties by clicking on the arrows

34

Select the chair in the training room, then Replace Selected Objects. Select simple chair and apply.

By selecting Edit grid line Manipulator while selecting the chair arrangements you can modify it by add, deleting or locking this arrangement.

35

Go to Open Plan Office cad view From Reference Lines tool, insert Grid reference with.

X=4.300 Y=3.500

Form Display Options activate Show Reference Lines

Table P1 and office Chair2 Copy past to get 4 of each.

Use move, rotate to get the arrangement at center of the first ¼ of the room. Tip: to avoid snapping object to

undesired location, hold Shift Key down while moving an a object

36

Make Front View as your active cad view & make sure the PC are on tables, if not use move manipulator and move by the blue arrow up.

Go to copy and arrange tool and select the 2 chair, 2 tables and the 2 PC t and center Y.

Repeat the same form the lower two sets

While you are in Copy & Arrange tool, 1. select all tables chairs and PC t in

the Open Plan Office.

2. Select Copy Along A Line option 3. draw the line form point 1 (middle

of second quarter of the Grid)to point 2 (middle of the fourth quarter of the Grid))

4. Put quantity as 3 5. Apply

37

Inset Johan1 and Johan2 in the open plan office

Make them facing each other Using MOVE & ROTATE Manipulator if required.

38

Step-15 Inserting Apertures(Windows & Doors)

 Go to Apertures Tool  Select Door if not Selected,  Position active building Opening  Zoom to Office 1

 Place the door on the wall of office 1

Place Doors in the 5 rooms as shown in this image.

Use Esc key to exit this action.

39

Place three windows in Office 1,2 & 3 Use Esc Key to exit this action.

 Zoom to Training Room and  Select Draw New building opening  Draw the line form point 1 to point

2.

 Use Esc key to exit action

1. Go to Reference Lines tool

2. Draw a line form 1 at corner to point 2 somewhere inside the room. 3. Make

Parallels Spaced Apart =-3.2 (minus) Number of Parallels=3

40

 Go to Apertures Tool  Select Square window

 Draw new building Opening from point 1 to point 2.

Go to 3d view of Ground floor Select the last created window

41

In the properties of the window modify the following data

Height =3

Frame width=0.05 Sill height =0

Mullion Position=2.4 Mullion width=0.05

Go to floorplan view and copy paste last window using Ctrl+C & Ctrl+V

Move window by using corner points of the window to the reference lines Repeat this another time so you have total of 3 windows.

Copy the last window and move it to the balcony.

42

Select Standard window and put Height=3.5

Width=1.5

Frame width=0.06 Sill height =0

Place the window in the entrance area as shown in this image and move it down to the end of the wall

43

If you go to 3d view you will see the window is cutting big part of the building.

From the properties of the window select the fixed cutting depth to 0.2

Place other 7 window of the same dimension as shown.

The total at the entrance will be 8. If the window is cutting other part of the building go to the properties of the window select the fixed cutting depth to 0.2

44

Step-16 Using the Cutout tool

Cutout tool is very powerful tool. Go to floorplan view of the Ground Floor and zoom to the wall that

separates the corridor form the Entrance

Go to cutout tool and select the Rectangular cutout

Draw the cutout on the wall separating the corridor form the Entrance

45

The cutout has removed the wall between the two spaces.

This is where useful where you want to create an opening without door.

Zoom to the Balcony wall

Select polygonal cutout

Draw the polygonal cutout on the outer wall of the balcony and right click to select the close polygon

46

After you create the cutout you can edit the polygon using the manipulator tool. You can move points; if you right click you can add or delete points.

Make this cutout to cover the outer wall of the Balcony.

Because cutout could be used for floor, walls, or ceiling, it is easier to do the cutout in 3d view then modify it in the floorplan view.

You should be having similar to this image if not, delete the cutout and redraw it in 3d view and modify it in floorplan.

47

Step-17 Inserting Room Elements

Go to floorplan of the Entrance room view

Place a Help Reference Grid with Position X= 0,Y= 0

Length= 5.6 Width = 5.6

Line Distance X= 2.8 Line Distance Y= 2.8

Note: If you are in ground floor view the position will be different, it is important to do this step in the Room View of the Entrance.

For any of the four square you have in this Reference Grid DIALux will snap (detect) the points on the end or middle of any line (marked in red circle in the side image).

But also to the middle of the Grid (Marked with Blue Circle)

For this reference line we will use the center of the Grid (the location of the Blue circle)

48

Go to Room Elements Tool Select Column (Round)

Place it in the middle of the upper left If you don’t see the Reference Grid activated the view form Display Options

Select the column and scroll down to properties

Put

Width = 0.6 Length = 0.6

Segments = 50 (to make the column smooth, more surfaces could increase time calculation).

49

Use CTRL+C and CTRL+V to copy and paste the column to get total of 4 in the center of the Grids.

Use move manipulator to move the columns

50

Step-18 Inserting Luminaires

The following luminaire will be used for this tutorial.

You can follow the direct link , if link is broken then go to ERCO website and use the search box.

Type

Article

Number

Direct link to download ULD data for ERCO

website

Downlight

Oval flood

ERCO

83313

http://www.erco.com/products/indoor/recessed-c-l/quadra-5420/en/artno-1.php?KEY=1083313000&TU=1&LANG=2057&TUR=1&ARTR=1283313101

Downlight

Wide flood

ERCO

83233

http://www.erco.com/products/indoor/recessed-c-l/quadra-5420/en/artno-1.php?KEY=1083233000&TU=1&LANG=2057&TUR=1&ARTR=1283233101

Spotlight

Narrow Spot

ERCO

41016

http://www.erco.com/products/indoor/recessed-spot/quintessence-round- 5492/en/artno-1.php?KEY=1041016000&TU=1&LANG=2057&TUR=1&ARTR=1241016103

Ceiling

washlights

ERCO

33449

http://www.erco.com/products/indoor/wall-mounted-l/trion-171/en/artno-1.php?KEY=1033449000&TU=1&LANG=2057&TUR=1&ARTR=1233449101

Façade

Luminaire

ERCO

33532

http://www.erco.com/

33532

Façade

Luminaire

ERCO

34171

http://www.erco.com/

34171

Download the ULD Data for the above luminaires.

51

After downloading inset the luminaire as explained in Tutorial 4 step-61

Tips

Click on Select button on Luminaires Tool

If you have many luminaries you can right click and delete the History. You can also make the view bigger by adjusting the bar at the lower left corner.

52

Go to Light Mode Select Luminaire tool Click on Select

Write 83233 in the search box

Draw rectangular arrangements to cover the tables area as shown in the side image.

Put the grid lines X=8

53

 Write 83313 in the search box of the select for Active luminaire  Draw line arrangement in the

corridor

 form Display Options, make sure the Show Light Distribution Curves is active make the quantity as 5 and rotate luminaire using Rotate button.  The luminaire oval flood has to

in longitudinal direction for the corridor.

Click on Automatic Arrangements for spaces and select Office 1

Repeat this action for Office 2

Office 3 Training Room

54

 Select all the luminaires in Office 1, Office 2, Office 3 and Training room and click on Replace Selected Luminaires.

 The software will show you the current selection marked in Orang box

 Select the other Downlight that was used for Open plan office

 Click on Apply

 The software will show you massage asking whether to recalculate

installation potion or not, click on yes.

55

Select the active luminaire to be Trion Ceiling washlight

Draw line arrangement at the back wall of the Open Plan Office.

Make quantity as 12

Click on Rotate to make luminaires inside the room.

56

Select the active luminaire to 41016 Draw circular arrangement around one of the column.

If you can’t draw it then hide the Reference line form Display Option, then draw the circle arrangement.

Scroll down to property and make Quantity = 4

57

Select the upper luminaire twice. If you click only one time then you are selecting the arraignment, by clicking second time on the luminaire you will be selecting only indusial luminaire.

Select the lower luminaire and then Go to copy & arrange tool in light mode. Select the column

Very important, if you can’t select the column that because you are not the Copy & Arrange tool.

After selection of the two luminaire and the column then align to center X

Select the Right and Left luminaire. Make sure you are still on Copy & Arrange tool

58

Use CTRL+C and CTRL+V to copy and paste the luminaires arrangements to get total of 4 in the center of the columns. Use move manipulator to move the luminaires arrangements.

59

Step-19 Duplicate Story

1. Go to Storey and Building Construction Tool. 2. Select Duplicate Storey

3. Put 2 as Copies of Ground Floor 4. Leave everything selected in the TO

Be copied.

5. Click Duplicate button.

Click inside the text and change the

names of the floor to first floor and 2nd

floor

Go to 3d view of the site view which is named as ST5, you should be having same as this image.

60

Step-20 Modifying the Floors

In the 3d view of the site view go to Cutout Tool

Now cutouts will appear in green Select the cutout of the first floor of the balcony and activate limit cutout depth and make cutting depth = 2.5

Now you have a balcony for the first floor!

61

Repeat the last step for the cutout in the

2nd floor to get a second Balcony.

Select all the spotlights around the column in the ground floor only and delete them.

62

Select First Floor view and select Entrance Room View- this is the Entrance room of the first Floor. Select the cad view to be Floorplan view.

Go to Cutout Tool and draw Polygonal Cutout to cover the whole room which is named as Entrance in the first floor After creating the Cutout you can modify it by the Manipulator in the tool bar or by mouse right click when you place the cursor on near the Cutout

63

Go to Site View of ST5 Select Martials Tool

Zoom to inside the Entrance.

Now you have a double height Entrance because you made a Cutout in the floor of the First floor.

Note:

You can also make the Cutout in the ceiling of the ground floor to get the same result but you have to use 3d View of the Room or floorplan view of the Ground Floor while creating the Cutout.

64

 Select the Pick Material and move the cursor to the wall to get the wall color.

 Select Apply Material to the grey color created by the Cutout which is the Floor color.

 Move rotates the view to apply this new material to all dark grey color.

65

Select Front view of the Site view and go to the Room Elements Tool.

If you are on Materials Tool you cannot select room Elements, you can only select surfaces.

Select all the column in the First Floor and delete them by right Click –> Delete Or by Keyboard Delete Key.

66

Select only one column in the ground floor and click on Scale Manipulator, Scale the column to the ceiling of the first floor by moving the mouse up in Z axis.

67

After Scaling the column you can check the height, it should be 7.2 which is the two Floor Height 2x3.5 Meter +0.2 the slab thickness the floor.

Make the other columns the same height, by selecting all columns and putting this value

or by Scale Manipulator and selecting Individual columns.

Make the View as Site 3d view Zoom to the corridor of the First floor , this should have interior balcony. Go to Cutout

Select the Cutout in the Ceiling which was created in the Ground floor and Copied in the Duplicate Floors. Activate Cutting Depth and make the value as 2 Meter.

68

Select all the windows in the 2nd floor

and delete them.

Go to 2nd floor Room View of the

Entrance, Floor plan view. Select assessment Zones

Select the Entrance Room and change the name to be Multi-Purpose Hall

69

Go to Cutout Tool and select

Rectangular Cutout and Draw it in the outer wall of the Multi-purpose hall following points 1,2 & 3

Activate Limit Cutting Depth and make it 0.15 Modify properties to Position X=0, Y= -17, Z = 1.7 Size 4,3 Note:

The reason for following points 1,2 & 3 while creating the cut out to get the same properties, if you follow other points the size could be X =4 , Y=3 instead of X=4 and Y=3.

70

Step-21 Creating Cutout in the Facade

Create another Cutout following points 1,2 & 3

activate Limit Cutting Depth and make it 0.15

Modify properties Position

-2.5,-17,1.7 Size 0.3,3

71

Create another Cutout following points 1,2 & 3

activate Limit Cutting Depth and make it 0.15

Modify properties Position

2.5,-17,1.7 Size 0.3,3

Go to front view to make sure your cutout are made in straight lines if not modify them

72

Step-22 Inserting luminaires in the facade

1. Select Cad View to be floorplan of 2nd floor.

2. Go to Light Mode

3. Select the active luminaire to Be Focalflood

4. Draw Line arrangement

5. Draw it form the point A to Point B on the back line of the big Cutout 6. Go to front view and move the line

73

The location of the luminaire should same as this image.

1. Make the active luminaire Kubus. 2. Place individual Luminaire. 3. Place it in the mall cutout move

rotate to make it inside this Cutout. 4. Go to front view & make sure the

luminaire are at the bottom of the small Cutout.

5. Repeat the same for the other small cutout.

74

Place 4 Kubus Luminaire in the two balcony

1. Go to calculation Mode 2. Select Light Scene Tool

3. Change the RGBW Color to Trion in similar way as explained in Tutorial 4, you should be having 3 groups one for each floor.

4. Change the color of the RGB luminaire of focal flood façade 5. Start Calculation

Tip:

To reduce calculation time make the groups less that the default value

75

Step-23 Inserting dimension & text

After calculation is finished 1. Go to Dimension Tool 2. Draw new Dimension line

3. Make it between the Trion ceiling wahshlight in the floorplan in any of the floor

4. Change the formatting Display Arrows on outside Text Size to normal

76

1. Go to Labeling Tool 2. Place new Text

3. Place it near the dimension 4. White Spacing and apply 5. You can chage the formatting as

77

1. Go to View Tool

2. Zoom the plan to good scale to show the text and dimension

3. Save new view

Go to front view place dimension to show the height of the Trion Washlight form floor.

78

1. Go to view Tool

2. Save the view showing the last dimension of the height.

3. White the name as Height of Trion 4. White in Description Height From

79

1. Go To Documentation Mode 2. Click on Edit

3. Select Views 4. Go to All Tab

5. Select height of Trion 6. Click the refresh button

80

The Description will appear under the image view.

Description is very useful tool and it is available for rooms floors and many other, you can use it to tell your client what is the brief about particular space or view.

You can add Marital as explained in Tutorial 4 and add other Furniture to get similar like the following images
