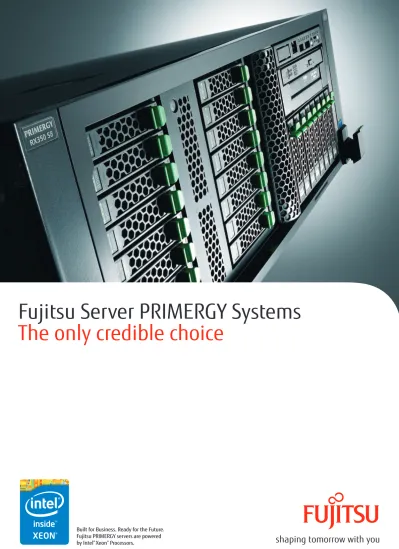

Fujitsu Server PRIMERGY Systems The only credible choice

(1)

Fujitsu Server PRIMERGY Systems

The only credible choice

Built for Business. Ready for the Future. Fujitsu PRIMERGY servers are powered by Intel® _Xeon®_Processors.

(2)

The rapid development of information and communication

technology (ICT) greatly influences the way we live and work.

The world is now linked by networks through which almost everyone

has access to information at anytime and from anywhere.

This continuous development of global networking towards an

“Internet of Things” has significant implications for IT organisations.

Infrastructure must be designed that is scalable and adaptable to

meet demand for ever-increasing volumes of data. According to the

latest studies, the amount of data being transported through worldwide

computer networks will quadruple to 1.3 zettabytes by 2016.

At the same time, IT complexity is on the increase. New server

technologies and form factors (blades and skinless servers,

for example) permit a higher degree of centralisation but they also

pose enormous challenges regarding energy supplies and cooling.

The expenditure for IT administration is also increasing. The result

is that many IT departments are grappling with the need to balance

cost-effectiveness with increasing demand for services.

Perhaps most importantly of all, the server market is volatile.

With some server vendors there is a risk that they could exit the

market, leaving customers with no long-term product support.

Others are driving down price at the expense of quality or innovation.

The new role of information and

communication technology

(3)

4 5

Selecting the right server

When business requirements change rapidly, organisations need to be able to rely on an IT infrastructure that will guarantee maximum productivity, cost efficiency and agility.

Whether it is a departmental server or a large data centre solution, Fujitsu PRIMERGY servers can meet these requirements for companies of all sizes while providing a cost-effective and adaptable range of services.

Fujitsu builds the complete PRIMERGY server line with quality standards and hardware availability known from mission critical systems with an average unplanned downtime caused due hardware errors of only 40 minutes per year. Built for quality, reliability and business agility, they also offer complete IT flexibility through virtualisation and consolidation. If the reliability of the IT operation is ensured, the performance is the next priority. The Fujitsu PRIMERGY server systems regularly achieve world record and leading results in a wide range of industry-standard benchmarks.

Fujitsu PRIMERGY Servers

The industry’s most comprehensive portfolio

The PRIMERGY blade (BX) server family

PRIMERGY blade servers provide a fast, simple and low-cost way to build and run an IT infrastructure in a medium-sized company, branch office or in a large data centre.

■ PRIMERGY BX400:

A fully-equipped blade system with up to eight servers, designed for ease-of-use and versatility in operation

■ PRIMERGY BX900:

Creates a dynamic infrastructure with up to 18 servers that offer considerable economic advantages for an increasing number of applications.

The Fujitsu PRIMERGY cloud (CX) server family

PRIMERGY Cloud eXtension servers are ideal for service providers and large scale-out computing server farms that require cloud and high performance computing.

■ PRIMERGY CX400:

Up to four independent dual-socket server nodes and 24 local hard disks in a shared 2U rack chassis.

■ PRIMERGY CX420:

A dual node cluster server for Microsoft Windows Server 2012, enabling continuous uptime for business applications and data within small and medium-sized enterprises or multi-site organisations.

The Fujitsu PRIMERGY tower (TX) server family

PRIMERGY tower servers are cost-effective and expandable all-round servers. This makes them ideal for departments, branches and small companies that require a server with maximum performance scalability to match future growth.

■ PRIMERGY TX100:

The ideal ‘first server’ for small and medium-sized companies.

■ PRIMERGY TX120:

Its whisper-like operation and ultra-compact form factor make it perfect for special requirements

■ PRIMERGY TX140:

An expandable all-rounder with the best price-to-performance ratio in its class.

■ PRIMERGY TX150:

Ideal for the initial virtualisation phases in a small or medium-sized company.

■ PRIMERGY TX200:

Offers the best price-to-performance ratio for a dual-processor server.

■ PRIMERGY TX300:

Provides dual-processor performance, full redundancy, high availability levels and ample internal storage capacity.

The Fujitsu PRIMERGY rack-optimised (RX) server family PRIMERGY rack servers offer a versatile, scalable platform with best-in-class energy efficiency and up to 20% more performance per watt than comparable systems from other providers.

■ PRIMERGY RX100:

An entry-level mono-socket infrastructure and front-end server with the highest level of energy efficiency in its class.

■ PRIMERGY RX200:

A dual-socket server in a space-saving 1U housing, making it ideal for virtualisation and cloud requirements.

■ PRIMERGY RX300:

A dual-socket server in a modular 2U housing providing unrivalled versatility and scalability.

■ PRIMERGY RX350:

A dual-socket server with 4U offering maximum performance, expandability and availability.

■ PRIMERGY RX500:

Provides 4-socket performance with the economic values and energy efficiency of a 2-socket server.

■ PRIMERGY RX600:

The most reliable 4-socket server for business-critical IT services such as database applications.

■ PRIMERGY RX900:

A fully-scalable 8-socket server for high security standards in challenging business application and virtualisation environments.

(4)

IT is frequently the heart of many business and production procedures. Any IT faults often have an immediate effect on productivity levels. The availability of IT thus has top priority. This also applies when developing new Fujitsu PRIMERGY systems.

As a guarantee of quality, Fujitsu technology combines Japanese innovation and German engineering with a service that is tailor-made in the UK.

Each PRIMERGY system is subjected to stringent and comprehensive quality assurance measures during the development phase. This includes electromagnetic and climate technology tests aimed at ensuring availability even in the most difficult of conditions.

The Fujitsu factory in Augsburg is recognised as the state-of-the-art IT systems factory in Europe, drawing on approximately 20 years of development and production know-how.

The results are robust PRIMERGY servers with an extremely low annual failure rate way below the market average. These low levels match those of high-end UNIX systems meaning the datacentre can expect lower costs due to less unplanned downtime or IT support.

Proven quality

“ Even in the world of gaming you need to have

something that is not a gamble. PRIMERGY

server technology from Fujitsu gives us absolute

security and more performance in handling

daily business. Thanks to the new solution, risks

were significantly reduced, and we are well on

the way to achieving our business objectives

with this technology.”

Director of IT

at a large European digital

entertainment firm

“ We’ve been partnering with Fujitsu for many

years. As a result, we are familiar with the

quality of their PRIMERGY systems. On the

basis of our experience, we can reckon with

a productive life cycle of 5 years.”

Chief Information Officer

for a European

telecommunications company

What do our customers say about the quality and reliability of PRIMERGY servers?

(5)

8 9 PRIMERGY servers have always been at the top in the rankings

for database and ERP benchmarks, such as SAP SD or TPC-E, offering Fujitsu customers much shorter latency times and fast transactions.

Fujitsu has set new standards in energy efficiency in recent years, making an important contribution to the continual reduction of energy and cooling costs. Fujitsu had nine systems in the top 10

most energy-efficient servers in 2012, providing up to 20% more performance per watt than comparable systems from other providers. Fujitsu has been optimising its PRIMERGY servers for virtualisation and cloud environments over several generations. This can also be seen in the “VMmark history” where PRIMERGY servers have dominated the various categories since the middle of 2010. PRIMERGY servers are currently top in six of the nine “total cores” categories.

In addition to high availability levels, top-class IT performance is also reflected in an organisation’s levels of efficiency and productivity. Fujitsu starts to optimise its PRIMERGY systems as early as the development phase using comprehensive quality assurance processes that ensure that an organisation can rely on its IT at all times, even during peak workloads.

Comprehensive benchmarking provides the basis for continuous optimisation, especially after the launch of a new server system. In this space, Fujitsu often sets a new world record whenever a benchmark is run.

Excellent

price/performance ratio

Fujitsu PRIMERGY Server – “Hall-of-Fame”

Current world records

Best virtualisation

platform with 128 cores (1) Most energy efficient _{1S rackserver}(2) Best 2-socket platform _{for SAP}(3) Best 2-socket system _performance(4) Most energy _{efficient 4S Server}(5)

PRIMERGY BX924 S3 VMmark 2.0 PRIMERGY RX100 S8 SPECpower_ssj2008 PRIMERGY RX300 S8 SAP SD 2-tier PRIMERGY RX350 S8 SPECfp_base2006 PRIMERGY RX500 S7 SPECpower_ssj2008 2010 2011 2012 2013 System Performance SPECint, SPECfp RX100 S6 RX300 S6 RX900 S1 TX150 S7 TX300 S6 BX922 S2 RX200 S6 RX300 S6 TX140 S1 TX300 S6 BX924 S3 RX200 S7 RX300 S7 RX500 S7 TX140 S2 TX300 S8 RX200 S8 RX350 S8 RX500 S7 Java/WEB Performance SPECweb, SPECjbb BX922 S2 RX900 S1 TX300 S6 RX100 S7 RX300 S7 RX600 S6 TX140 S1 TX300 S6 RX100 S7p RX500 S7 Server Virtualisation VMware, VMmark BX922 S2 BX924 S2 BX960 S1 RX200 S6 RX300 S6 RX600 S5 RX200 S6 RX300 S6 RX600 S6 RX900 S2 BX924 S3 RX200 S7 RX350 S7 RX500 S7 RX300 S7 BX924 S3 Database Performance TPC-E PQ1800E RX300 S6 RX600 S2 RX900 S1 RX300 S6 RX900 S2 RX300 S7 ERP/CRM Performance SAP SD BX922 S2 RX300 S6 TX300 S6 PQ1800E RX500 S7 RX300 S8 Energy efficiency

SPECpower, SAP Power, TCP-E Energy CX120 S1 TX150 S7 TX300 S6 BX920 S2 RX100 S7 RX300 S6 RX900 S2 TX120 S3 TX140 S1 TX300 S6 BX920 S2 RX100 S7p RX200 S7 RX300 S7 RX500 S7 TX120 S3p TX200 S7 TX300 S7 RX100 S8 RX200 S8 RX300 S8 TX300 S8

For more information: http://www.fujitsu.com/fts/products/computing/servers/primergy/benchmarks/

2008 2009 2010 2011 2012 2013

VMmark 1.1 VMmark 2.x

HP

Fujitsu PRIMERGY Servers have the longest leadership

positions in Virtualisation Performance since 2011 Dell Cisco IBM Fujitsu Others

VMmark 2.1 2x 8 Core VMmark 1.1 8 Core VMmark 2.1 2x 12 Core VMmark 1.1 12 Core VMmark 2.1 2x 16 Core VMmark 1.1 16 Core VMmark 2.1 2x 20 Core VMmark 1.1 24 Core VMmark 2.1 2x 32 Core VMmark 1.1 32 Core VMmark 2.1 2x 40 Core VMmark 2.1 2x 48 Core VMmark 2.1 2x 80 Core

Full test results including system specification, further details and current results can be found at vmware.com/a/vmmark/ . The comparison reflects the status of Nov 27, 2013. For information about VMmark and the rules regarding its usage visit vmware.com/products/vmmark . VMware and VMmark are trademarks or registered trademarks of VMware, Inc. VMware®_VMmark™_{is a product of VMware, Inc.}

Virtualisation Performance

(1) The mentioned VMmark results were achieved by Fujitsu PRIMERGY BX924 S3 server blades, each with 256 GB of memory, using Intel® Xeon® E5-2690 processors and Violin Memory Array V6616, 6 TB, with 64 VIMMs each. Full test results including system specification, further details and current results can be found at: http://www.vmware. com/a/vmmark/. The comparison reflects the status of Nov 27, 2013.

(2) Competitive benchmark results stated above reflect results published on www.spec.org as of Nov 27, 2013. The comparisons presented above are based on the best performing mono-socket rackserver in SPECpower_ssj2008.

(3) Competitive benchmark results stated above reflect results published on http://www.sap. com/solutions/benchmark/Power_Benchmark_results.htm as of Nov 27, 2013. The comparisons presented above are based on the best performing server in SAP Server Power Standard Application Benchmark

(4) Competitive benchmark results stated above reflect results published on www.spec.org as of Nov 27, 2013. The comparison presented above is based on the best performing dual-socket server in SPECfp_base2006.

(5) Competitive benchmark results stated above reflect results published on www.spec.org as of Nov 27, 2013. The comparisons presented above are based on the best performing quad-socket server in SPECpower_ssj2008.

SPEC®, SPECint®, SPECfp®, SPEC®jbb, SPECweb®, SPECpower®, SPECpower_ssj®, SPECvirt_sc®, and the SPEC logo are registered trademarks of the Standard Performance Evaluation Corporation (SPEC). For the latest benchmark results, visit http://www.spec.org. For information about VMmark and the rules regarding its usage visit www.vmmark.com/. VMware and VMmark are trademarks or registered trademarks of VMware, Inc. VMware® VMmark™ is a product of VMware, Inc.. VMmark V1 utilises SPECjbb®2005 and SPECweb®2005, which are available from the Standard Performance Evaluation Corporation (SPEC®) SAP, SAP NetWeaver and all SAP logos are trademarks or registered trademarks of SAP AG in Germany and in several other countries. All other product and service names mentioned are the trademarks of their respective companies. http://www.sap.com/benchmark

TPC, TPC Benchmark, http://www.tpc.org/tpce TPC-E and tpsE are trademarks of the http://www.tpc.org/ Transaction Processing Performance Council.

(6)

“Virtualisation was at the top of our agenda as it

provides the ability to scale without needing a

large physical footprint and makes maintenance

a lot faster and simpler. The key was in finding

the right partner to take us on the journey.”

Director of IT Services

at a European University

“ Thanks to our Fujitsu Blade Server we benefit

from noticeably better performance and we have

the ability to scale and centrally manage our

server and storage resources. The amount of

consolidation is also enormous. We save a lot

of space and energy in our datacentre.”

Information Technology Manager

at an International certification institution

What do our customers say about the performance of PRIMERGY servers?

DEPLOY

Fast, easy, reliable

CONTROL Centralised,easy, efficient DYNAMISE Simple, sophisticated, efficient MAINTAIN

In any state, at any place

INTEGRATE Seamless, manage uniformly Server Setup ■ SV Installation Manager ■ SV Scripting Toolkit Mass Deployment SV Deployment Manager

Server Monitoring and Control ■ SV Operations Manager ■ SV Agents / CIM Providers ■ SV System Monitor ■ SV Event Manager ■ SV RAID Manager Capacity Management ■ SV Threshold Manager Power Management ■ SV Power Monitor ■ SV Power Consumption Management (in iRMC)

Storage Support ■ Storage Management - Monitoring - Events Private Cloud Infrastructure SV Resource Orchestrator Cloud Edition Consolidated Server Infrastructures SV Resource Orchestrator Virtual Edition I/O Management SV Virtual-IO Manager Remote Management ■ integr. Remote Management Controller (iRMC)

iRMC Advanced Pack

■ SV Management Blade Update Management ■ SV Update Manager ■ Update Manager Express ■ SV Download Manager ■ SV Respository Manager Performance Measurement ■ SV Performance Manager Investigation ■ SV Asset Management ■ SV Archive Manager ■ SV Inventory Manager ■ SV PrimeCollect Inspection ■ SV Online Diagnostics

■ SV Customer Self Service Local Service Panel Local Service Display

Uniformed Management Fujitsu ManageNow® solutions SV Integration Packs ■ Microsoft SCOM ■ Microsoft SCCM ■ Microsoft SCE

■ Microsoft SC PRO Packs

■ VMware vCenter ■ Nagios ■ Icinga ■ HP Operations Manager ■ HP Systems Insight Manager ■ Altiris Development Server ■ CA Unicenter ■ CA Spectrum

■ IBM Tivoli TEC

■ IBM Tivoli NetView BMC Patrol

Fujitsu Software ServerView

®

Suite

Holistic Server Lifecycle Management

■ Standard ■ Option

Fujitsu’s Software ServerView

®

_{Suite offers all the functions required for fail safe,}

flexible and automated 24hr operations and improves productivity via intelligent

system management solutions.

(7)

Discover the

PRIMERGY advantage

Cool-safe™_{airflow channels}

conduct air to where it is needed most

Honeycomb design offers a 40% improvement in ventilation throughput

EPA-compliant power supplies bring up to 96% efficiency

ServerView™_power

management enables active power limitation and budgeting

PRIMERGY - key features:

Our added value Your benefit

Stringent and comprehensive quality assurance measures Lower costs due to fewer non-planned downtimes and considerably _{less time required for service calls} Stress tests with 5,000 boot cycles, electromagnetic and

compatibility testing, climate, mechanic and acoustic testing, mechanical vibration testing and many more

Quickly detect and eliminate even the most minor of deficiencies which leads to extremely low annual failure rate that is way below the market average

20 years of development and production know-how with

production and R&D in the center of Europe Close contact of manufacturing and engineering with fast and flexible response times PRIMERGY servers have always been at the top in the rankings

for database and ERP benchmarks, such as SAP SD or TPC-E

Systems which are optimised for databases and ERP and which thus offer much shorter latency times and fast transactions

New standards in energy efficiency in recent years making an important contribution to the continual reduction of energy and cooling costs

Nine systems out of the top10 of the most energy-efficient servers in 2012, providing up to 20% more performance per watt than comparable systems

Continually optimised for virtualisation

and cloud environments over several generations PRIMERGY servers are currently top in six of the nine “total cores” categories in VMware VMmark Fujitsu Cool-safe Advanced Thermal Design supports support

ambient temperatures of up to 40 °C A perfect climate and up to 27% additional savings in energy costs Comprehensive administration that cover the entire lifecycle

of individual servers as well asentire server parks

Up to 55% savings on maintenance and administration costs due to holistic management and virtualised hardware

Easy integration into existing management environments of other manufacturers

In addition to the technical and organisation benefits, training and conversion costs as well as costs for implementation can be reduced by up to 65%

ServerView Virtual I/O Manager radical simplifies tasks in the

data center Highest flexibility at the deployment and operation of servers with simplified management in LAN and SAN environments Dynamic resource management enabling self-service

provisioning in private cloud environments with guaranteed availability of IT infrastructures

Physical and virtual servers, storage and networks, are automatically provisioned in minutes, at a fraction of the cost of traditional provisioning methods

Tailor-made workload-optimised integrated solutions and reference architecture.

Wide-ranging portfolio of services (maintenance-, managed-, integration and logistic services) and tools (SystemArchitect, MatrixEP, Value4You, Built4You, Made4You, Software Pre-Load, …)

Reduce implementation times and efforts and lower the risk for IT project failure.

Reduce costs throughout the lifecycle, shorten project times and increase the availability of applications and services.

Quality

Efficiency

Agility

With increased server reliability, greater agility and lower costs, you can turn your

IT into competitive advantage faster with Fujitsu PRIMERGY

Fujitsu understand that delivering quality servers begins with exceptional server design

and the ability to control operating temperature for solution longevity.

Low temperature rates are achieved through intelligent Board-Layout fitting to cooling systems, which utilise controlled air flow through designed air channels, also known as our patented Fujitsu Cool-safe™_{technology - a best-in-class cooling technology that}

prevents the system overheating by keeping cool air coming in and moving hot air out.

Cool-safe™_{airflow design principles are further enhanced by Fujitsu’s}

Honeycomb design, running across the complete PRIMERGY family which enables 40% improved ventilation. Our further development of the Cool-safe®_{technology, called Cool-safe Advanced Thermal}

Design enables ambient temperatures of up to 40 °C which leads to additional savings on energy costs for cooling of up to 27 %.

12

Quality

Increased IT reliability Save on IT costs

Better availability with proven quality from Germany

Efficiency

Cut operational cost and complexity into half

Highest efficiency to save money in a data center

Agility

Turn your IT faster into a business advantage

More agility in daily operations to turn the IT faster into a business advantage

(8)

Contact us:

Andrew McDade

Enterprise Product Marketing Manager

+44 (0)7867 822880

[email protected]

For more information about Fujitsu IT products, services and solutions for businesses contact:

AskFujitsu on +44 (0) 843 354 7998.

Martin Finch

Enterprise Product Marketing Manager

+44 (0)7867 824686

[email protected]

(9)

www.fujitsu.com/uk/products/

FUJITSU LIMITED

All rights reserved, including rights created by patent grant or registration of a utility model. All designations used in this document may be trademarks, the use of which by third parties for their own purposes could violate the rights of their owners. We reserve the right to change delivery options or make technical modifications. Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.
