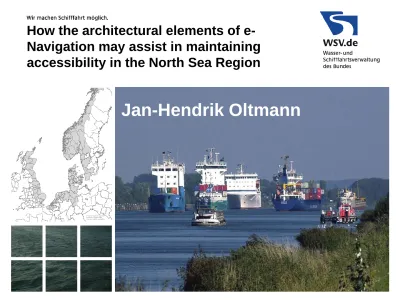

How the architectural elements of e-Navigation may assist in maintaining accessibility in the North Sea Region
Presentation overview
- The architectural elements of e-Navigation - Future Maritime Service Portfolios (MSPs)
for the North Sea Region (NSR) a) What services?
b) Where-to applied?
- What is a Route Topology Model (RTM)
- How to arrive at a practical RTM for the NSR - Potential applications of the NSR-RTM
* IMO NAV57, WP6, Fig. 1 Maritime
Service Portfolio
The architectural elements of e-Navigation
Architecture/ Human Factor /
Generalities
Shipboard Equipment fit for e-Nav
PNT
Shore-based infrastructure
fit for e-Nav Com-munication services Common Maritime Data Structure
The international
e-Navigation movement (!)
IMO e-Navigation Strategy (MSC85/26, Add.1, Annexes 20/21),
IMO NAV Reports/WPs; IMO e-Nav CG; SIP (2014)
A rchitec tu re / Hum an Element / G eneralities Shipb oard Equip men t „fit fo r e -Navigatio n“ Maritim e Serv ice Portfo lios (MSP s) Com mu nicat ion Ser v ices Resilient PNT Shore -based Inf rastructu re „fit fo r e -Navigatio n“ Co m m on Maritim e Data Struct ure (CMDS)
Seven pillars = seven working field where recognizable communities can work while being in sync with e-Navigation international movement at large => Means to reduce complexity
The „glue“ The foundation „Strategic Twins“ Technology-oriented
The future Maritime Service Portfolios (MSPs) of the NSR: Service “Spectra”
Maritime Service Portfolios OPERATIONAL Services TECHNICAL Services The spectrum of operational services The spectrum of technical services The spectra of sevices Maritime
Service Portfolios
The spectrum of operational services
The spectrum of technical services The spectra of sevices
Maritime Service Portfolios
Radar AIS Comms RDF ENC Updates
VTS SAR Pilotage
INS NAS TOS
VHF HFMF SAT
Requirements (Examples):
- Which technical services?
- What service level in which area? - What service quality parameters?
The future Maritime Service Portfolios (MSPs) of the NSR: Service “Spectra”
Power of the services spectra concept:
All services (existing + new) identified, named and thereby recognized in an internationally harmonized manner => catalogues of services.
Service levels, service quality parameters (existing + new) equally identified, named and thereby recognized in internationally harmonized manner
=> catalogue of service levels + service parameters.
Such catalogues may be transferred into a data model (product specification within S-100 framework) at CMDS => electronic exchange feasible and
measurement of service spectra at run time.
Service-to-service dependencies (= requirements) would be known exactly
=> applicability of requirement management methods.
International, harmonized role assignment for maintaining service descriptions by clearly identified international organisations feasible.
Reduction of complexity regarding MSP handling.
Synergies for (at least technical) services could potentially be gained by using same service levels + service parameters for several requirements.
The future Maritime Service Portfolios (MSPs) of the NSR: Service “Spectra”
The future Maritime Service Portfolios (MSPs)
of the NSR: From generic to specific – the Canadian example
Source: Canadian Coast Guard (CCG), input paper to IALA e-NAV Committee e-NAV10-7-2 attachment
Coverage Areas Mari ti me Se rvice Portfol ios (M SP s) / Se rvice S pe ctrum
The future Maritime Service Portfolios (MSPs) of the NSR: Where-to apply?
Two principal options for service provision:
- Blanket coverage irrespective of traffic
“coverage area”
service provision within coverage area
correlation between MSPs and areas - Traffic sensitive coverage
service provision at routes
“Route Topology Model (RTM)”
What is a Route Topology Model?
Junction
Leg Node, e.g. Port The construction of Route Topology Models using
three elements:
Attributes attached to each element:
- physical attributes: location, width, length, …
- traffic related attributes: direction, density, …
- services provided => Maritime Service Portfolio - …
Modeled using IHO S-100 methodology:
“RTM Product Specification”: “Features”, “Portrayal”
What is a Route Topology Model?
An (initial) example from the NSR with “London tube map” portrayal mode
– only Motorways of the Seas level shown:
Kiel Canal Bremen Kiel Rostock Wilhelms-haven Emden Bremer-haven Hamburg Brunsbüttel TSS Terschelling-German Bight TSS Terschelling-German Bight Western Approach Elbe River Fehmarnbelt To Öresund Grosser Belt Kadet-Rinne Wismar Lübeck-Travemünde Lübeck
„artist„s impression“
„artist„s impression“
How to arrive at a practical North Sea Region-Route Topology Model (NSR-RTM)?
Source: EU, TEN-T documents
Existing pre-cursors of RTMs:
1. the Motorways of the Sea
(MoS)
?
?
?
?
S13
How to arrive at a practical North Sea Region-Route Topology Model (NSR-RTM)?
Existing pre-cursors of RTMs:
2. the “lanes”
of Marine Spatial Planning
How to arrive at a practical North Sea Region-Route Topology Model (NSR-RTM)?
Start with
the density plots
and analyse the routes becoming visible …
How to arrive at a practical North Sea Region-Route Topology Model (NSR-RTM)?
Source: ACCSEAS GIS
An initial version of the North Sea
Region – Route Topo-logy Map (NSR-RTM)
How to arrive at a practical North Sea Region-Route Topology Model (NSR-RTM)?
Source: ACCSEAS GIS
An initial version of the NSR-RTM: Traffic directions shown
How to arrive at a practical North Sea Region-Route Topology Model (NSR-RTM)?
Source: ACCSEAS GIS
An initial version of the NSR-RTM: Offshore
installations shown
How to arrive at a practical North Sea Region-Route Topology Model (NSR-RTM)?
Zoom-in:
the southern en-trance to the North Sea (with traffic densities, offshore installations, and TSS)
How to arrive at a practical North Sea Region-Route Topology Model (NSR-RTM)?
Zoom-in: the German Bight + Kiel Canal (with present traffic densities, future offshore installations, and TSS)
How to arrive at a practical North Sea Region-Route Topology Model (NSR-RTM)?
An initial version of the NSR-RTM: partially shown; with present traffic densities, future offshore installations, and TSS
Potential applications of the NSR-RTM
(Generic) Route Topology Modeling is a description tool: - Captures a present situation, as derived from traffic
density analysis and objective features of waterways and ports
- Allows for higher level analysis: add attributes
Example: IWRAP risk figures modeled as attributes in the RTM.
- Allows to capture present service spectra in correlation with routes, junctions, nodes.
- Allows to categorize different levels of waterways and sea routes
Potential applications of the NSR-RTM An initial IWRAP risk analysis as based on the NSR-RTM IWRAP risk values entered as attributes
Potential applications of the NSR-RTM Three potential levels of the NSR-RTM: 1. Motorways of the Sea (MoS) shipping lanes
2. Roads of the Sea (RoS) shipping lanes, i. e. shipping lanes, other than MoS, relevant
for professional/commercial shipping (including ferry routes, offshore construction and supply traffic etc.);
3. Small Craft (SC) shipping lanes, i. e. all other shipping lanes, in particular those only
available, due to physical dimensions, for small crafts such as fishing vessels and pleasure crafts. Kiel Canal Bremen Kiel Rostock Wilhelms-haven Emden Bremer-haven Hamburg Brunsbüttel TSS Terschelling-German Bight TSS Terschelling-German Bight Western Approach Elbe River Fehmarnbelt To Öresund Grosser Belt Kadet-Rinne Wismar Lübeck-Travemünde Lübeck
Potential applications of the NSR-RTM
(Generic) Route Topology Modeling is a planning tool: - Captures a perceived future situation, as based on traffic
forecasts and planned objective features of waterways and ports
- Allows for higher level analysis: add attributes on future
Example: IWRAP risk figures modeled as attributes in the RTM on perceived future
situation (2020+).
- Allows to capture future planned/required service
spectrum, i. e. future Maritime Service Portfolio(s).
- Allows to create a development plan for different levels of waterways and sea routes => fill the TEN MoS “gaps” - May reconcile shipping needs with Marine Spatial
Planning: a well justified grid of future Traffic Separation Schemes in North Sea Region as a proposal for IMO?
Next steps with ACCSEAS
- Further develop generic description of the Route Topology Model:
- Verbal / graphical description in comprehensive standalone document
- Start develop IHO S-100 based “product specification”, “features”,
“portrayal”
- Offer to international e-Navigation movement for standardization on global scale => generic global MSPs; contribution to CMDS (HGDM)
- Create initial North Sea Region Route Topology Model (NSR-RTM)
for present situation and future situation (2020+)
- Create NSR-Maritime Service Portfolios (MSPs) map (following
Canadian example): associate existing service spectra/MSPs to routes where meaningful.
