Alcoprint Printing Chemicals

(1)

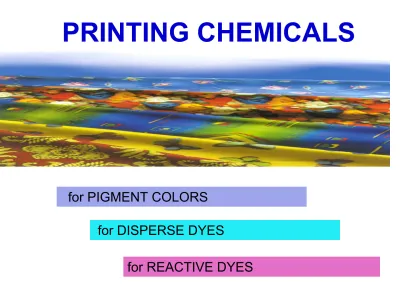

PRINTING CHEMICALS

.

for PIGMENT COLORS

for REACTIVE DYES

for DISPERSE DYES

(2)

Disperse dyes are water insoluble

and also dispersible in water

High energy dyes become soluble > 160 C

Medium energy dyes become soluble > 140 C

Low energy dyes become soluble > 110 C

They are THERMO- SOLUBLE (Thermosol)

Reactive dyes are water soluble but

are hydrolyzed by water

Pigment Colors are water insoluble

but dispersible in water

(3)

The three primary components for pigment printing pastes are

•Pigment dispersion

• Binder

•Thickener

Pigment particles are dispersed in water with chemicals such as glycols, emulsifiers, dispersants, etc., to give stable dispersions. (Pigment dispersion)

Pigment printing

Pigment print pastes are sensitive to increases in temperature and must not be mixed for long periods (heat generation) they should be stored in a cool place and kept covered to prevent skin formation on the paste surface by warm air interacting with the binder.

A high pH using volatile amines such ammonia as an important role in print productivity, especially in hot conditions.

(4)

Thickener Binder pH Mechanisms

pH 3 pH 5 pH 8 pH 5 pH 3 PRINT Acrylic acid Acrylamide Alcoprint Thickener + Ammonia liquor + Ammonia liquor Ammonia Gas

Print Paste Dry Cure +150C pH 5 -8 _{pH 8} pH 7 Higher Viscosity Print paste pH 5 Lower Viscosity Print paste pH 5 pH 3 PRINT

Print Paste Dry Cure Cross link ---Thickeners Binders Butyl Acrylate Styrene,

(5)

High Water or Air Temperatures

increase pH with Ammonia

0 1 2 3 4 5 6 7 8 9 10 0 5 10 15 20 25 30 35 40 45 Temperature C pH pH Recommend pH 8-9

(6)

PRINTING CHEMICALS

for PIGMENT COLORS

PRINTING CHEMICALS FUNCTION ALCOPRINT PBA BINDER

ALCOPRINT PX-GM METALIC BINDER ALCOPRINT PSC SOFTENER

ALCOPRINT PS-LF SOFTENER & FIXER ALCOPRINT PFL FIXER

ALCOPRINT PA-NS ANTIFOAM (non silicon) ALCOPRINT PD-ER EMULSIFIER –DISPERSANT ALCOPRINT PDN DISPERSANT/ – ANTI GELL BURST 100 ANTIFOAM (low smoke)

LYOPRINT AP ANTIFOAM - PENETRANT LYOPRINT DA DISCHARGING AGENT

(7)

ALCOPRINT THICKENERS

for PIGMENT COLORS

PTP PTN PT-RV PT-XN PT-FV PTF PTK Penetration Print Surface Print ALCOPRINT PTK 4g/Kg PT 21 30g/Kg PTN 18g/Kg PT-RV 16 g/Kg PT-FV 16g /Kg PT-XN 16g/Kg PTP 12 g/Kg PTF 16g/Kg

Approx Working. Dosage PT 21

(8)

SUITABLIITY of ALCOPRINT THICKENERS

containing LYOPRINT DA

PTN PT-RV PT-XN PT-FV PTF NOT Suitable Recommended ALCOPRINT PT 21 40 –60g/Kg PTN 30- 50 g/Kg PT-RV 30-60 g/Kg

Approx. Working Dosage

PT 21

(9)

PRINTING RECIPE for PIGMENT

COLORED DISCHARGE

* ALCOPRINT PT 21 40 -60g/Kg PTN 30- 60 g/Kg PT-RV 30-60 g/Kg

Approx. Working Dosage GUIDE RECIPE g/kg COLD WATER X Triethanolamine 3 Ammonia liquor 25% 0-5 Lyoprint AP 3 - 5 Lyoprint DA note 1 80 - 200

Alcoprint PBA note 2 80 - 200

Alcoprint * 12 - 30

---1000g note1 depends on the dyed ground note 2 pigment binder ration 1:3 & 1:4 for dark shades

(10)

PRINTING RECIPE for PIGMENT COLORS

* ALCOPRINT PTK 4g/Kg + PT- RV PT 21 30g/Kg PTN 18g/Kg PT-RV 16 g/Kg PT-FV 16g /Kg PT-XN 16g/Kg PTP 12 g/Kg PTF 16g/Kg

Approx. Working Dosage GUIDE RECIPE g/kg

CHILLED WATER X Ammonia liquor 25% note 1 0 - 8

Alcoprint PA-NS 5 -10 Alcoprint PBA note 2 80 - 200

Alcoprint * 12 - 30

---1000g

note1 maintain pH 8-9

note 2 pigment binder ration 1:3 & 1:4 for dark shades

(11)

Water insoluble Pigment particles surrounded by the binder film

Synthetic Fiber

Pigment particles do NOT diffuse into the fibers

Binder adheres to the outside of the fibers Pigment particles are surrounded within the binder film

Cure for 5mins @ 150C

Binder pigment ratios High binder ration, better crocking

PIGMENT BINDER FILM

Pigment particle 0.3- 0.5 microns, binder film minimum 0.5 micron thickness

(12)

BINDER FILM with ALCOPRINT PFL

Synthetic Fiber

ALCOPRINT PFL adheres to synthetic fibers and acrylic binder during cross-linking

Improving wet crocking fastness

(13)

ALCOPRINT PFL

2 3/4 4/5 3/4 4 4/5 3 3/4 4 100% Polyester No Fixing Agent 0.5% ALCOPRINT PFL 1.5% ALCOPRINT PFL 4 4/5 5 3 3/4 4 3 3/4 4 100% Cotton No Fixing Agent 0.5% ALCOPRINT PFL 1.5% ALCOPRINT PFL 3/4 4 4/5 4 4 4/5 3 3/4 4 50/50 T/C No Fixing Agent 0.5% ALCOPRINT PFL 1.5% ALCOPRINT PFL Wash Fastness Dry Rub Wet Rub Fabric PIGMENT

(14)

PRINTING CHEMICALS

for DISPERSE DYES

PRINTING CHEMICALS FUNCTION

CIBATEX AR ANTI REDUCING AGENT ( acid stable)

LYOPRINT AP ANTIFOAM- PENETRANT LYOPRINT AIR DE-AIRING

(15)

ALCOPRINT THICKENERS

for DISPERSE DYES

DT-CS RD-HT RTA Penetration Print Surface Print ALCOPRINT DT-CS 60g/Kg RD-HT 45g/Kg PTF 18g/Kg RTA 20g /Kg

Approx Working Dosage PTF

PTF

stiff PES fabrics RTA Pile PES fabrics

(16)

PRINTING RECIPE

for DISPERSE DYES

GUIDE RECIPE g/kg Water X Lyoprint AP 5 - 10 Cibatex AR 10 Alcoprint PDN 2 - 10 Alcoprint * 18 - 60 ---1000g * ALCOPRINT DT-CS 60g/Kg RD-HT 45g/Kg PTF 18g/Kg RTA 20g /Kg

(17)

Thickener Hydration (Swelling) Times

BOIL & COOL

Alginate Swelling & Mixing Times in Water

Powder 15 mins 60 mins 3 hours 4-8 hours

Alcoprint Swelling & Mixing Times in Water liquid 10 mins 20 mins

RTA DT-CS

PTF RD-HT NATURAL

Guar Gums (Boil)

ALCOPRINTS

(18)

DRIED THICKENER FILM

Natural Thickener _{ALCOPRINT DT-CS}

Thick hard film Thin flexible film

PES Fiber PES Fiber

Medium hard film ALCOPRINT RD-HT

PES Fiber

(19)

DYE DIFFUSION AFTER FIXATION

Natural Thickener _{ALCOPRINT DT-CS}

70% dye diffusion Thick hard film

>95% dye diffusion Thin flexible film

PES Fiber PES Fiber

80% dye diffusion Medium hard film ALCOPRINT RD-HT

PES Fiber

DISPERSE DYES are THERMOSOLUBLE and DIFFUSE slowly into HYROPHOBIC FIBRES

(20)

PRINTING CHEMICALS

for REACTIVE DYES

PRINTING CHEMICALS FUNCTION

LYOPRINT RG ANTI REDUCING AGENT ( granules and liquid ) ( alkali stable)

LYOPRINT AP ANTIFOAM - PENETRANT LYOPRINT AIR DE-AIRING AGENT

LYOPRINT LA Conc. EMULSIFIER (water in oil) ALCOPRINT PDN DISPERSANT

(21)

ALCOPRINT THICKENERS

for REACTIVE DYES

RT-BC RD-HT RTA Penetration Print Surface Print RD-HT +PTK 40g/20g/ Kg RD-HT 55g/Kg RT-BC 60g/Kg RTA 60g/Kg

Approx Working. Dosage RD-HT

+PTK

RT-BC +PTK

(22)

Thickener Hydration (Swelling) Times

Alginate Swelling & Mixing Times in Water

Powder 15 mins 60 mins 3 hours 4-12 hours

Alcoprint Swelling & Mixing Times in Water liquid 15 mins 20 mins

RTA RT-BC PTK RD-HT NATURAL SODIUM ALGINATES ALCOPRINTS Reactive Dyes

(23)

DRIED THICKENER FILM

Alginate Thickener Film ALCOPRINT RD-HT

+ PTK Film

Thick hard film Thin flexible film

REACTIVE DYES water SOLUBLE

Cellulosic Fiber Cellulosic Fiber

(24)

DYE DIFFUSION AFTER STEAM FIXATION

Natural Thickener Film ALCOPRINT RD-HT

+ PTK Film

70% dye diffusion thru Thick hard film

95% dye diffusion thru Thin flexible film

Water Soluble REACTIVE DYES DIFFUSE quickly into HYROPHILIC FIBERS

Cellulosic Fiber

(25)

IMPROVED DIFFUSION WITH

LYOPRINT AP ADDITION

Natural Thickener Film ALCOPRINT RD-HT

+ PTK Film

80% dye diffusion thru Thick hard film

>95% dye diffusion thru Thin flexible film

Cellulosic Fiber _{Cellulosic Fiber}

(26)

PRINTING RECIPE

for REACTIVE DYES

GUIDE RECIPE g/kg Water X Sodium carbonate note1 5

Sodium bicarbonate 30 Lyoprint RG 10 Lyoprint AP 5 Urea 100 - 200 Alcoprint * 45 - 60 ---1000g *ALCOPRINT RD-HT 45g/Kg RT-BC 60g/Kg RTA 60g/Kg PTK 20g/Kg

Approx Working. Dosage
