ECOLOGY & ECONOMY
Tear-3 and EU Stages 3A emission engine Eco gauge for monitoring fuel consumption
SAFETY & COMFORT
Introduction of Sturdy CAB to comply EOPS safety regulation
Silent noise inside CAB,
User friendly Color Monitor features
IT
Upgrade Monitor features

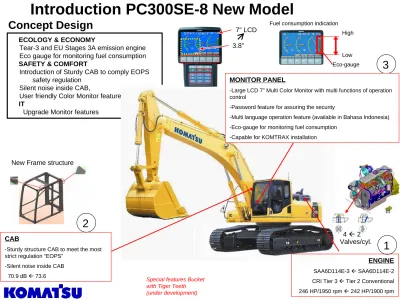

Introduction PC300SE-8 New Model
Concept Design
ENGINE
SAA6D114E-3 Å SAA6D114E-2 CRI Tier 3 Å Tier 2 Conventional 246 HP/1950 rpm Å 242 HP/1900 rpm
CAB
-Sturdy structure CAB to meet the most strict regulation “EOPS”
-Silent noise inside CAB 70.9 dB Å 73.6 1 3 7” LCD 3.8” Valves/cyl. 4 Å 2 New Frame structure
Eco-gauge Fuel consumption indication
High
Low
2
MONITOR PANEL
-Large LCD 7” Multi Color Monitor with multi functions of operation control
-Password feature for assuring the security
-Multi language operation feature (available in Bahasa Indonesia) -Eco-gauge for monitoring fuel consumption
-Capable for KOMTRAX installation
Special features Bucket with Tiger Teeth (under development)
ENVIRONMENT FRIENDLY FEATURES Komatsu SAA6D114E-3 engine
• Low emissionized SAA6D114E-3 (ecot3) engine, EPA Tier 3 and EU Stage 3A emission regulation
certified
Model KOMATSU KOMATSU KOMATSU HITACHI CAT
Item PC300-8 PC300-7E0 PC300-7 ZX330-3 330D
KOMATSU KOMATSU KOMATSU Isuzu CAT
SAA6D114E-3 SAA6D114E-3 SAA6D114E-2 AH-6HK1X C9 ACERT kW/rpm 184/1,950 184/1,950 180/1,900 202/1,900 184/1,800 {HP/rpm} {246/1,950} {246/1,950} (242/1,900) {271/1,900} {247/1,800} After cooler – Available Available Available Available Available
Tier 3 Tier 3
Complied emission with
regulation – Tier 3 Tier 3 Tier 2
Rated output
Engine model –
• 4-valves per cylinder
• HPCR (High Pressure Common Rail) fuel injection system
• Center injection
• Advanced combustion technology
Design features of SAA6D114E-3 engine
Model KOMATSU KOMATSU KOMATSU
Item PC300-8 PC300-7E0 PC300-7
Number of valves per cylinder 4 4 2
Electronic Electronic Mechanical Conventional Control
HPCR (High Pressure Common Rail System) Fuel injection system HPCR (High Pressure
Common Rail System)
Design features of SAA6D114E-3 engine New combustion technology ICS
(in-cylinder-solution) reduces NOx emission without using EGR.
4-valve (per cylinder) system to increase cylinder intake air flow. Injection nozzle arranged at cylinder center to effectively use the air contained in cylinder (to promote fuel-air mixing)
The common rail fuel injection system assures high-pressure fuel injection in low-speed range to increase low-speed torque. Electronic-controlled high pressure fuel injection
system realizes both low NOx emission and high performance.
The exhaust color density during acceleration is also reduced.
Fuel efficient engine/pump control (New E-mode) 1. Ecology & Economy
Eco-gauge to assist energy saving operation
Fuel consumption indicated
Fuel consumption
High
Low
Eco-gauge
1. Ecology & Economy 2. Safety & Comfort
Operator can control the optimum fuel consumption easily with considering job condition and working mode being used
To prevent unnecessary fuel consumption, an idling caution is displayed on the monitor if the engine idles for 5 minutes or more. Operator can see the caution easily in the Monitor Panel
Idling caution 1. Ecology & Economy 2. Safety & Comfort
Low operation noise
• Enables a low noise operation using the low-noise engine and methods to reduce noise at source.
• Meets the EU Stage 2 noise regulation.
Electronically controlled common rail type engine Multi-staged injection Highly rigid cylinder block
Optimal arrangement of sound absorbing materials
Large cooling unit
Low-noise muffler
Model KOMATSU KOMATSU KOMATSU HITACHI CAT
Item PC300-8 PC300-7E0 PC300-7 ZX330-3 330D
EU dynamic noise dB(A) 103.4 103.4 104.5 104.4 104.9/107 *
Actually measured values *: 70% speed fan/Max. speed fan
New cab with pipe-structured framework
Sturdy cab with improved resistance to deformation, to meet the most strict safety regulation EOPS
Model KOMATSU KOMATSU KOMATSU HITACHI CAT
Item PC300-8 PC300-7E0 PC300-7 ZX330-3 330D
Yes No No Yes No
Sturdy cab with improved resistance to deformation
Improved anti-slip plates
Protruded anti-slip plates 2. Safety & Comfort
Easy-to-clean and individually removable side-by-side cooling units
Since radiator and oil cooler are arranged side-by-side, it is easy to clean, remove and install them.
Oil cooler Radiator
Integrated armrest with control console
• To provide fixed positional relation between armrests and control levers
Armrests are mounted on the control console. 2. Safety & Comfort
Silent and comfortable cab
Dynamic noise level: at operator ears
70.9dB(A)
(PC300-7: 73.6dB(A))
Model KOMATSU KOMATSU KOMATSU HITACHI CAT
Item PC300-8 PC300-7E0 PC300-7 ZX330-3 330D
Dynamic noise level at operator ears dB(A) 70.9 72.2 73.6 74.3 75.4 / 76.0 *
* 70 fan speed / Max. fan speed
Fuel pre-filter with water separator, Large-capacity air cleaner
Fuel pre-filter
500h replacement, with water separator
Air cleaner size up
Large-capacity air cleaner
Model KOMATSU KOMATSU KOMATSU
Item PC300-8 PC300-7E0 PC300-7
Air cleaner size(Dia.) mm (in) 381(15") 381(15") 330(13")
Easy-to-see 7" LCD color monitor
TFT: Thin Film Transistor Air conditioner monitor
Wiper monitor Swing lock monitor Engine pre-heating/ Power Max. monitor Engine water
temperature gauge
Auto deceleration switch
Working mode selector switch
Buzzer cancel switch Function switch
Air conditioner control switch
Travel speed monitor
Working mode monitor Auto deceleration monitor Clock (possible to switch to service meter)
Eco-gauge Fuel gauge
Hydraulic oil temperature gauge
Travel speed selector switch
Wiper/washer switch
Size of current monitor 96.5mm (3.8")
EMMS (Equipment Management Monitoring System)
Abnormality and maintenance information are displayed on the 7" LCD color monitor to prevent a minor problem from becoming a major one.
Display is changed by push this function switch.
Abnormality display function
Maintenance function
3. IT (MULTI FEATURE MONITOR PANEL) 2. Safety & Comfort
PC300LC
PC300LC--8 Parallel Link Cab8 Parallel Link Cab
Same as -7 (1.8m2) Same as -7 (6.8m) Same as -7 (9.5m) New (-8) Grapple Arm Boom Arm cylinder New (-8) Boom cylinder New ( -8)
Parallel Link Cab
-Change profile - Keep same weight
Add C/W (new)
Same as -7
(Long Track for PLC)
Track Frame New ( -8) Cab EOPS New -8 (for PLC) R/F Frame Base Machine : PC300LC-8 Attachment : Arm (6800 mm) Boom (9500 mm) Grapple (1,8 m2) Same as Same as --77
Improved Operator view by Higher Lifting CAB (+ 140mm of height)
B. Comparison PLC
B. Comparison PLC --7 & 7 & --88
H = 2400 H = 2260
(-7) (-8)
